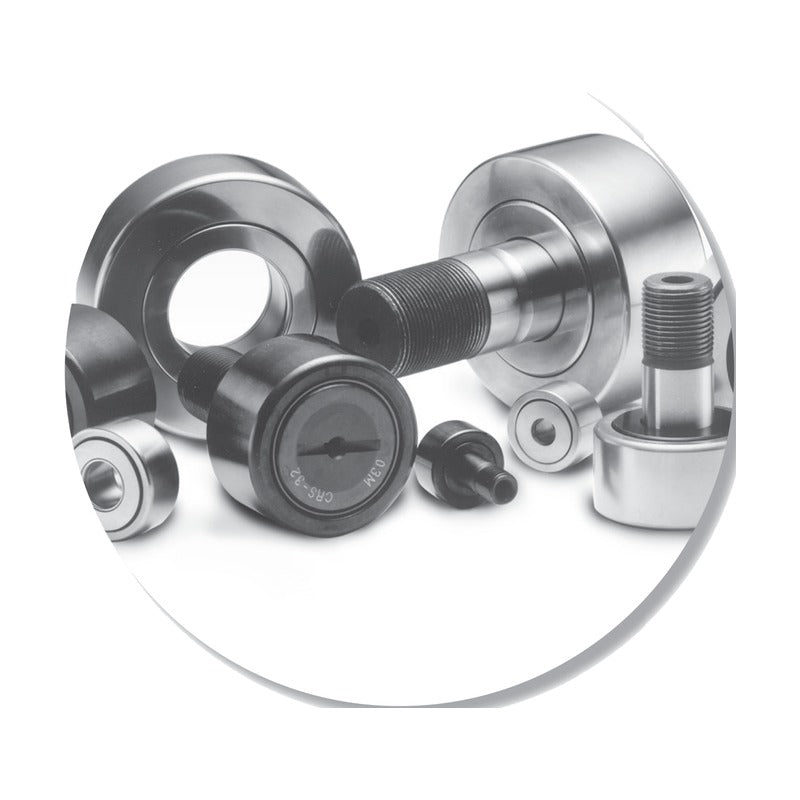

KOYO Full Complement Yoke-Type Track Rollers (FP, FG, FGU, RNA..B6)

KOYO Full Complement Yoke-Type Track Rollers (FP, FG, FGU, RNA..B6)

Full complement non-separable yoke-type track rollers: FP small series, FG sealed or unsealed, FGU..MM with metal seals (light and heavy series), and RNA..B6, RNAB, RNAL types without inner ring; crowned (FG, FGU) or cylindrical (FGL, FGUL) outer rings.

Key features

  • Full complement design for high radial load
  • Non-separable construction
  • Metal seals (MM) on FGU types
  • Crowned or cylindrical outer ring
  • Separate BIC inner rings for RNA types

Specifications

Product type Yoke-type track roller, full complement
Series FP, FG, FGL, FGU, FGUL, RNA..B6, RNAB, RNAL
Source KOYO Needle Roller Bearings catalogue, p. B-5-38 to B-5-46
FP 3 10 D: 10 mm | d: 3 mm | Width: 8 mm | Cr: 2.8 kN | C0r: 3.09 kN | Mass: 0.004 kg
FPL 3 10 D: 10 mm | d: 3 mm | Width: 8 mm | Cr: 2.8 kN | C0r: 3.09 kN | Mass: 0.004 kg
FP 3 11 D: 11 mm | d: 3 mm | Width: 8 mm | Cr: 2.8 kN | C0r: 3.09 kN | Mass: 0.005 kg
FPL 3 11 D: 11 mm | d: 3 mm | Width: 8 mm | Cr: 2.8 kN | C0r: 3.09 kN | Mass: 0.005 kg
FP 4 12 D: 12 mm | d: 4 mm | Width: 9 mm | Cr: 3.74 kN | C0r: 4.74 kN | Mass: 0.006 kg
FPL 4 12 D: 12 mm | d: 4 mm | Width: 9 mm | Cr: 3.74 kN | C0r: 4.74 kN | Mass: 0.006 kg
FP 4 13 D: 13 mm | d: 4 mm | Width: 9 mm | Cr: 3.74 kN | C0r: 4.74 kN | Mass: 0.008 kg
FPL 4 13 D: 13 mm | d: 4 mm | Width: 9 mm | Cr: 3.74 kN | C0r: 4.74 kN | Mass: 0.008 kg
FP 4 14 D: 14 mm | d: 4 mm | Width: 9 mm | Cr: 4.05 kN | C0r: 5.44 kN | Mass: 0.010 kg
FLP 4 14 D: 14 mm | d: 4 mm | Width: 9 mm | Cr: 4.05 kN | C0r: 5.44 kN | Mass: 0.010 kg
FP 4 15 D: 15 mm | d: 4 mm | Width: 9 mm | Cr: 4.05 kN | C0r: 5.44 kN | Mass: 0.011 kg
FLP 4 15 D: 15 mm | d: 4 mm | Width: 9 mm | Cr: 4.05 kN | C0r: 5.44 kN | Mass: 0.011 kg
FG 5 16 D: 16 mm | d: 5 mm | Width: 12 mm | Cr: 5.66 kN | C0r: 6.51 kN | Mass: 0.016 kg
FGL 5 16 D: 16 mm | d: 5 mm | Width: 12 mm | Cr: 5.66 kN | C0r: 6.51 kN | Mass: 0.016 kg
FG 6 19 D: 19 mm | d: 6 mm | Width: 12 mm | Cr: 6.44 kN | C0r: 8.15 kN | Mass: 0.019 kg
FGL 6 19 D: 19 mm | d: 6 mm | Width: 12 mm | Cr: 6.44 kN | C0r: 8.15 kN | Mass: 0.019 kg
FG 8 24 D: 24 mm | d: 8 mm | Width: 13 mm | Cr: 7.3 kN | C0r: 10.2 kN | Mass: 0.037 kg
FGL 8 24 D: 24 mm | d: 8 mm | Width: 13 mm | Cr: 7.3 kN | C0r: 10.2 kN | Mass: 0.037 kg
FG 8 24 15 D: 24 mm | d: 8 mm | Width: 15 mm | Cr: 9.08 kN | C0r: 13.5 kN | Mass: 0.044 kg
FGL 8 24 15 D: 24 mm | d: 8 mm | Width: 15 mm | Cr: 9.08 kN | C0r: 13.5 kN | Mass: 0.044 kg
FG 10 30 D: 30 mm | d: 10 mm | Width: 15 mm | Cr: 14.2 kN | C0r: 18.3 kN | Mass: 0.066 kg
FGL 10 30 D: 30 mm | d: 10 mm | Width: 15 mm | Cr: 14.2 kN | C0r: 18.3 kN | Mass: 0.066 kg
FG 12 32 D: 32 mm | d: 12 mm | Width: 15 mm | Cr: 15.5 kN | C0r: 21.2 kN | Mass: 0.077 kg
FGL 12 32 D: 32 mm | d: 12 mm | Width: 15 mm | Cr: 15.5 kN | C0r: 21.2 kN | Mass: 0.077 kg
FG 15 35 D: 35 mm | d: 15 mm | Width: 19 mm | Cr: 22.5 kN | C0r: 35.4 kN | Mass: 0.103 kg
FGL 15 35 D: 35 mm | d: 15 mm | Width: 19 mm | Cr: 22.5 kN | C0r: 35.4 kN | Mass: 0.103 kg
FG 17 40 D: 40 mm | d: 17 mm | Width: 21 mm | Cr: 29.9 kN | C0r: 48.0 kN | Mass: 0.155 kg
FGL 17 40 D: 40 mm | d: 17 mm | Width: 21 mm | Cr: 29.9 kN | C0r: 48.0 kN | Mass: 0.155 kg
FG 20 47 D: 47 mm | d: 20 mm | Width: 25 mm | Cr: 36.5 kN | C0r: 65.5 kN | Mass: 0.295 kg
FGL 20 47 D: 47 mm | d: 20 mm | Width: 25 mm | Cr: 36.5 kN | C0r: 65.5 kN | Mass: 0.295 kg
FG 25 52 D: 52 mm | d: 25 mm | Width: 25 mm | Cr: 39.7 kN | C0r: 76.4 kN | Mass: 0.310 kg
FGL 25 52 D: 52 mm | d: 25 mm | Width: 25 mm | Cr: 39.7 kN | C0r: 76.4 kN | Mass: 0.310 kg
FG 30 62 D: 62 mm | d: 30 mm | Width: 29 mm | Cr: 46.5 kN | C0r: 97.9 kN | Mass: 0.490 kg
FGL 30 62 D: 62 mm | d: 30 mm | Width: 29 mm | Cr: 46.5 kN | C0r: 97.9 kN | Mass: 0.490 kg
FG 35 72 D: 72 mm | d: 35 mm | Width: 29 mm | Cr: 50.0 kN | C0r: 113 kN | Mass: 0.670 kg
FGL 35 72 D: 72 mm | d: 35 mm | Width: 29 mm | Cr: 50.0 kN | C0r: 113 kN | Mass: 0.670 kg
FG 40 80 D: 80 mm | d: 40 mm | Width: 32 mm | Cr: 62.1 kN | C0r: 155 kN | Mass: 0.890 kg
FGL 40 80 D: 80 mm | d: 40 mm | Width: 32 mm | Cr: 62.1 kN | C0r: 155 kN | Mass: 0.890 kg
FG 45 85 EE D: 85 mm | d: 45 mm | Width: 32 mm | Cr: 65.7 kN | C0r: 173 kN | Mass: 0.970 kg
FGL 45 85 D: 85 mm | d: 45 mm | Width: 32 mm | Cr: 65.7 kN | C0r: 173 kN | Mass: 0.970 kg
FG 50 90 D: 90 mm | d: 50 mm | Width: 32 mm | Cr: 69.7 kN | C0r: 194 kN | Mass: 1.04 kg
FGL 50 90 D: 90 mm | d: 50 mm | Width: 32 mm | Cr: 69.7 kN | C0r: 194 kN | Mass: 1.04 kg
FG 55 100 D: 100 mm | d: 55 mm | Width: 36 mm | Cr: 85.0 kN | C0r: 233 kN | Mass: 1.35 kg
FGL 55 100 D: 100 mm | d: 55 mm | Width: 36 mm | Cr: 85.0 kN | C0r: 233 kN | Mass: 1.35 kg
FG 60 110 D: 110 mm | d: 60 mm | Width: 36 mm | Cr: 88.6 kN | C0r: 251 kN | Mass: 1.65 kg
FG 65 120 D: 120 mm | d: 65 mm | Width: 42 mm | Cr: 103 kN | C0r: 310 kN | Mass: 2.35 kg
FGL 65 120 D: 120 mm | d: 65 mm | Width: 42 mm | Cr: 103 kN | C0r: 310 kN | Mass: 2.35 kg
FG 70 125 D: 125 mm | d: 70 mm | Width: 42 mm | Cr: 106 kN | C0r: 332 kN | Mass: 2.50 kg
FGL 70 125 D: 125 mm | d: 70 mm | Width: 42 mm | Cr: 106 kN | C0r: 332 kN | Mass: 2.50 kg
FG 75 130 D: 130 mm | d: 75 mm | Width: 42 mm | Cr: 110 kN | C0r: 354 kN | Mass: 2.65 kg
FG 80 140 D: 140 mm | d: 80 mm | Width: 48 mm | Cr: 140 kN | C0r: 455 kN | Mass: 3.40 kg
FGL 80 140 D: 140 mm | d: 80 mm | Width: 48 mm | Cr: 140 kN | C0r: 455 kN | Mass: 3.40 kg
FG 85 150 D: 150 mm | d: 85 mm | Width: 48 mm | Cr: 146 kN | C0r: 490 kN | Mass: 4.00 kg
FG 90 160 D: 160 mm | d: 90 mm | Width: 54 mm | Cr: 168 kN | C0r: 603 kN | Mass: 5.30 kg
FG 95 170 D: 170 mm | d: 95 mm | Width: 54 mm | Cr: 172 kN | C0r: 629 kN | Mass: 6.00 kg
FG 100 180 D: 180 mm | d: 100 mm | Width: 65 mm | Cr: 238 kN | C0r: 828 kN | Mass: 8.05 kg
FG 110 200 D: 200 mm | d: 110 mm | Width: 65 mm | Cr: 252 kN | C0r: 922 kN | Mass: 10.00 kg
FG 120 215 D: 215 mm | d: 120 mm | Width: 65 mm | Cr: 261 kN | C0r: 985 kN | Mass: 11.50 kg
FG 150 270 D: 270 mm | d: 150 mm | Width: 78 mm | Cr: 372 kN | C0r: 1470 kN | Mass: 22.00 kg
FGU 15 35 D: 35 mm | d: 15 mm | Width: 18 mm | Cr: 7.80 kN | C0r: 17.0 kN | Mass: 0.096 kg
FGU 15 35 MM D: 35 mm | d: 15 mm | Width: 18 mm | Cr: 7.80 kN | C0r: 17.0 kN | Mass: 0.096 kg
FGUL 15 35 MM D: 35 mm | d: 15 mm | Width: 18 mm | Cr: 7.80 kN | C0r: 17.0 kN | Mass: 0.096 kg
FGU 17 40 MM D: 40 mm | d: 17 mm | Width: 20 mm | Cr: 11.5 kN | C0r: 20.0 kN | Mass: 0.142 kg
FGU 20 47 MM D: 47 mm | d: 20 mm | Width: 24 mm | Cr: 15.5 kN | C0r: 29.5 kN | Mass: 0.235 kg
FGUL 20 47 MM D: 47 mm | d: 20 mm | Width: 24 mm | Cr: 15.5 kN | C0r: 29.5 kN | Mass: 0.235 kg
FGU 25 52 D: 52 mm | d: 25 mm | Width: 24 mm | Cr: 17.3 kN | C0r: 31.5 kN | Mass: 0.268 kg
FGU 25 52 MM D: 52 mm | d: 25 mm | Width: 24 mm | Cr: 17.3 kN | C0r: 31.5 kN | Mass: 0.268 kg
FGUL 25 52 MM D: 52 mm | d: 25 mm | Width: 24 mm | Cr: 17.3 kN | C0r: 31.5 kN | Mass: 0.268 kg
FGU 30 62 MM D: 62 mm | d: 30 mm | Width: 28 mm | Cr: 24.5 kN | C0r: 44.5 kN | Mass: 0.454 kg
FGU 35 72 MM D: 72 mm | d: 35 mm | Width: 28 mm | Cr: 31.3 kN | C0r: 50.0 kN | Mass: 0.611 kg
FGUL 35 72 MM D: 72 mm | d: 35 mm | Width: 28 mm | Cr: 31.3 kN | C0r: 50.0 kN | Mass: 0.611 kg
FGU 40 80 D: 80 mm | d: 40 mm | Width: 30 mm | Cr: 40.6 kN | C0r: 59.0 kN | Mass: 0.822 kg
FGU 40 80 MM D: 80 mm | d: 40 mm | Width: 30 mm | Cr: 40.6 kN | C0r: 59.0 kN | Mass: 0.822 kg
FGUL 40 80 MM D: 80 mm | d: 40 mm | Width: 30 mm | Cr: 40.6 kN | C0r: 59.0 kN | Mass: 0.822 kg
FGU 60 110 MM D: 110 mm | d: 60 mm | Width: 34 mm | Cr: 64.0 kN | C0r: 88.0 kN | Mass: 1.625 kg
FGU 65 120 D: 120 mm | d: 65 mm | Width: 40 mm | Cr: 89.0 kN | C0r: 110 kN | Mass: 2.300 kg
FGU 65 120 MM D: 120 mm | d: 65 mm | Width: 40 mm | Cr: 89.0 kN | C0r: 110 kN | Mass: 2.300 kg
FGU 70 125 MM D: 125 mm | d: 70 mm | Width: 40 mm | Cr: 93.0 kN | C0r: 110 kN | Mass: 2.070 kg
FGU 80 140 MM D: 140 mm | d: 80 mm | Width: 46 mm | Cr: 130 kN | C0r: 138 kN | Mass: 3.450 kg
FGU 90 160 MM D: 160 mm | d: 90 mm | Width: 52 mm | Cr: 166 kN | C0r: 188 kN | Mass: 5.185 kg
FGU 95 170 MM D: 170 mm | d: 95 mm | Width: 52 mm | Cr: 184 kN | C0r: 198 kN | Mass: 5.925 kg
FGU 110 200 MM D: 200 mm | d: 110 mm | Width: 63 mm | Cr: 310 kN | C0r: 280 kN | Mass: 10.200 kg
FGU 120 215 D: 215 mm | d: 120 mm | Width: 63 mm | Cr: 310 kN | C0r: 310 kN | Mass: 11.560 kg
FGU 15 42 D: 42 mm | d: 15 mm | Width: 18 mm | Cr: 26.4 kN | C0r: 32.4 kN | Mass: 0.153 kg
FGUL 15 42 MM D: 42 mm | d: 15 mm | Width: 18 mm | Cr: 26.4 kN | C0r: 32.4 kN | Mass: 0.153 kg
FGU 17 47 MM D: 47 mm | d: 17 mm | Width: 20 mm | Cr: 28.3 kN | C0r: 36.5 kN | Mass: 0.214 kg
FGUL 17 47 MM D: 47 mm | d: 17 mm | Width: 20 mm | Cr: 28.3 kN | C0r: 36.5 kN | Mass: 0.214 kg
FGU 20 52 MM D: 52 mm | d: 20 mm | Width: 24 mm | Cr: 43.8 kN | C0r: 57.9 kN | Mass: 0.268 kg
FGUL 20 52 MM D: 52 mm | d: 20 mm | Width: 24 mm | Cr: 43.8 kN | C0r: 57.9 kN | Mass: 0.268 kg
FGU 25 62 D: 62 mm | d: 25 mm | Width: 24 mm | Cr: 48.2 kN | C0r: 68.2 kN | Mass: 0.435 kg
FGU 30 72 MM D: 72 mm | d: 30 mm | Width: 28 mm | Cr: 70 kN | C0r: 103 kN | Mass: 0.681 kg
FGUL 30 72 MM D: 72 mm | d: 30 mm | Width: 28 mm | Cr: 70 kN | C0r: 103 kN | Mass: 0.681 kg
FGU 35 80 D: 80 mm | d: 35 mm | Width: 28 mm | Cr: 77.5 kN | C0r: 124 kN | Mass: 0.82 kg
FGUL 35 80 D: 80 mm | d: 35 mm | Width: 28 mm | Cr: 77.5 kN | C0r: 124 kN | Mass: 0.82 kg
FGU 35 80 MM D: 80 mm | d: 35 mm | Width: 28 mm | Cr: 77.5 kN | C0r: 124 kN | Mass: 0.82 kg
FGU 40 90 MM D: 90 mm | d: 40 mm | Width: 30 mm | Cr: 89.2 kN | C0r: 153 kN | Mass: 1.125 kg
FGU 45 100 MM D: 100 mm | d: 45 mm | Width: 30 mm | Cr: 92.7 kN | C0r: 165 kN | Mass: 1.395 kg
FGU 50 110 D: 110 mm | d: 50 mm | Width: 30 mm | Cr: 97.8 kN | C0r: 182 kN | Mass: 1.683 kg
FGU 50 110 MM D: 110 mm | d: 50 mm | Width: 30 mm | Cr: 97.8 kN | C0r: 182 kN | Mass: 1.683 kg
FGU 55 120 D: 120 mm | d: 55 mm | Width: 34 mm | Cr: 128 kN | C0r: 215 kN | Mass: 2.235 kg
FGU 55 120 MM D: 120 mm | d: 55 mm | Width: 34 mm | Cr: 128 kN | C0r: 215 kN | Mass: 2.235 kg
FGUL 55 120 MM D: 120 mm | d: 55 mm | Width: 34 mm | Cr: 128 kN | C0r: 215 kN | Mass: 2.235 kg
FGU 60 130 MM D: 130 mm | d: 60 mm | Width: 34 mm | Cr: 133 kN | C0r: 232 kN | Mass: 2.62 kg
FGU 65 140 MM D: 140 mm | d: 65 mm | Width: 40 mm | Cr: 156 kN | C0r: 290 kN | Mass: 3.56 kg
FGU 70 150 MM D: 150 mm | d: 70 mm | Width: 40 mm | Cr: 161 kN | C0r: 310 kN | Mass: 4.09 kg
FGU 75 160 D: 160 mm | d: 75 mm | Width: 40 mm | Cr: 166 kN | C0r: 329 kN | Mass: 4.65 kg
FGU 75 160 MM D: 160 mm | d: 75 mm | Width: 40 mm | Cr: 166 kN | C0r: 329 kN | Mass: 4.65 kg
FGU 80 170 D: 170 mm | d: 80 mm | Width: 46 mm | Cr: 195 kN | C0r: 412 kN | Mass: 6.07 kg
FGU 80 170 MM D: 170 mm | d: 80 mm | Width: 46 mm | Cr: 195 kN | C0r: 412 kN | Mass: 6.07 kg
FGU 85 180 D: 180 mm | d: 85 mm | Width: 46 mm | Cr: 224 kN | C0r: 426 kN | Mass: 6.724 kg
FGU 85 180 MM D: 180 mm | d: 85 mm | Width: 46 mm | Cr: 224 kN | C0r: 426 kN | Mass: 6.724 kg
FGUL 85 180 MM D: 180 mm | d: 85 mm | Width: 46 mm | Cr: 224 kN | C0r: 426 kN | Mass: 6.724 kg
FGU 90 190 MM D: 190 mm | d: 90 mm | Width: 52 mm | Cr: 259 kN | C0r: 524 kN | Mass: 8.515 kg
FGU 120 260 MM D: 260 mm | d: 120 mm | Width: 63 mm | Cr: 396 kN | C0r: 875 kN | Mass: 19.750 kg
FGU 140 300 MM D: 300 mm | d: 140 mm | Width: 75 mm | Cr: 493 kN | C0r: 1210 kN | Mass: 31.265 kg
RNA 11005 B6 D: 19 mm | Width: 12 mm | Cr: 5.31 kN | C0r: 4.44 kN | Mass: 0.019 kg
RNAB 11005 D: 19 mm | Width: 12 mm | Cr: 5.31 kN | C0r: 4.44 kN | Mass: 0.019 kg
RNA 11007 B6 D: 22 mm | Width: 12 mm | Cr: 6.42 kN | C0r: 5.93 kN | Mass: 0.022 kg
RNAB 11007 D: 22 mm | Width: 12 mm | Cr: 6.42 kN | C0r: 5.93 kN | Mass: 0.022 kg
RNAL 11007 D: 22 mm | Width: 12 mm | Cr: 6.42 kN | C0r: 5.93 kN | Mass: 0.022 kg
RNA 11009 B6 D: 28 mm | Width: 12 mm | Cr: 7.37 kN | C0r: 7.42 kN | Mass: 0.028 kg
RNAB 11009 D: 28 mm | Width: 12 mm | Cr: 7.37 kN | C0r: 7.42 kN | Mass: 0.028 kg
RNAL 11009 D: 28 mm | Width: 12 mm | Cr: 7.37 kN | C0r: 7.42 kN | Mass: 0.028 kg
RNA 11012 B6 D: 32 mm | Width: 15 mm | Cr: 12.7 kN | C0r: 16.4 kN | Mass: 0.032 kg
RNAB 11012 D: 32 mm | Width: 15 mm | Cr: 12.7 kN | C0r: 16.4 kN | Mass: 0.032 kg
RNAL 11012 D: 32 mm | Width: 15 mm | Cr: 12.7 kN | C0r: 16.4 kN | Mass: 0.032 kg
RNA 11015 B6 D: 35 mm | Width: 15 mm | Cr: 13.9 kN | C0r: 19.4 kN | Mass: 0.035 kg
RNAB 11015 D: 35 mm | Width: 15 mm | Cr: 13.9 kN | C0r: 19.4 kN | Mass: 0.035 kg
RNA 11017 B6 D: 42 mm | Width: 15 mm | Cr: 15.0 kN | C0r: 22.4 kN | Mass: 0.042 kg
RNAB 11017 D: 42 mm | Width: 15 mm | Cr: 15.0 kN | C0r: 22.4 kN | Mass: 0.042 kg
RNAL 11017 D: 42 mm | Width: 15 mm | Cr: 15.0 kN | C0r: 22.4 kN | Mass: 0.042 kg
RNA 11020 B6 D: 47 mm | Width: 18 mm | Cr: 21.7 kN | C0r: 33.5 kN | Mass: 0.047 kg
RNAB 11020 D: 47 mm | Width: 18 mm | Cr: 21.7 kN | C0r: 33.5 kN | Mass: 0.047 kg
RNAL 11020 D: 47 mm | Width: 18 mm | Cr: 21.7 kN | C0r: 33.5 kN | Mass: 0.047 kg
RNA 11025 B6 D: 52 mm | Width: 18 mm | Cr: 23.6 kN | C0r: 39.1 kN | Mass: 0.052 kg
RNAB 11025 D: 52 mm | Width: 18 mm | Cr: 23.6 kN | C0r: 39.1 kN | Mass: 0.052 kg
RNA 11030 B6 D: 62 mm | Width: 22 mm | Cr: 34.2 kN | C0r: 65.8 kN | Mass: 0.062 kg
RNAB 11030 D: 62 mm | Width: 22 mm | Cr: 34.2 kN | C0r: 65.8 kN | Mass: 0.062 kg
RNA 11035 B6 D: 72 mm | Width: 22 mm | Cr: 36.7 kN | C0r: 75.7 kN | Mass: 0.072 kg
RNAB 11040 D: 80 mm | Width: 22 mm | Cr: 39.2 kN | C0r: 85.6 kN | Mass: 0.080 kg
RNA 11050 B6 D: 90 mm | Width: 24 mm | Cr: 44.0 kN | C0r: 107 kN | Mass: 0.090 kg
Track RollersKOYO
141 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Full Complement Yoke-Type Track Rollers (FP, FG, FGU, RNA..B6)

Brand KOYO·Track Rollers

Available part numbers (141)

FP 3 10, FPL 3 10, FP 3 11, FPL 3 11, FP 4 12, FPL 4 12, FP 4 13, FPL 4 13, FP 4 14, FLP 4 14 + 131 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FP 3 10D: 10 mm | d: 3 mm | Width: 8 mm | Cr: 2.8 kN | C0r: 3.09 kN | Mass: 0.004 kg
FPL 3 10D: 10 mm | d: 3 mm | Width: 8 mm | Cr: 2.8 kN | C0r: 3.09 kN | Mass: 0.004 kg
FP 3 11D: 11 mm | d: 3 mm | Width: 8 mm | Cr: 2.8 kN | C0r: 3.09 kN | Mass: 0.005 kg
FPL 3 11D: 11 mm | d: 3 mm | Width: 8 mm | Cr: 2.8 kN | C0r: 3.09 kN | Mass: 0.005 kg
FP 4 12D: 12 mm | d: 4 mm | Width: 9 mm | Cr: 3.74 kN | C0r: 4.74 kN | Mass: 0.006 kg
FPL 4 12D: 12 mm | d: 4 mm | Width: 9 mm | Cr: 3.74 kN | C0r: 4.74 kN | Mass: 0.006 kg
FP 4 13D: 13 mm | d: 4 mm | Width: 9 mm | Cr: 3.74 kN | C0r: 4.74 kN | Mass: 0.008 kg
FPL 4 13D: 13 mm | d: 4 mm | Width: 9 mm | Cr: 3.74 kN | C0r: 4.74 kN | Mass: 0.008 kg
FP 4 14D: 14 mm | d: 4 mm | Width: 9 mm | Cr: 4.05 kN | C0r: 5.44 kN | Mass: 0.010 kg
FLP 4 14D: 14 mm | d: 4 mm | Width: 9 mm | Cr: 4.05 kN | C0r: 5.44 kN | Mass: 0.010 kg
FP 4 15D: 15 mm | d: 4 mm | Width: 9 mm | Cr: 4.05 kN | C0r: 5.44 kN | Mass: 0.011 kg
FLP 4 15D: 15 mm | d: 4 mm | Width: 9 mm | Cr: 4.05 kN | C0r: 5.44 kN | Mass: 0.011 kg
FG 5 16D: 16 mm | d: 5 mm | Width: 12 mm | Cr: 5.66 kN | C0r: 6.51 kN | Mass: 0.016 kg
FGL 5 16D: 16 mm | d: 5 mm | Width: 12 mm | Cr: 5.66 kN | C0r: 6.51 kN | Mass: 0.016 kg
FG 6 19D: 19 mm | d: 6 mm | Width: 12 mm | Cr: 6.44 kN | C0r: 8.15 kN | Mass: 0.019 kg
FGL 6 19D: 19 mm | d: 6 mm | Width: 12 mm | Cr: 6.44 kN | C0r: 8.15 kN | Mass: 0.019 kg
FG 8 24D: 24 mm | d: 8 mm | Width: 13 mm | Cr: 7.3 kN | C0r: 10.2 kN | Mass: 0.037 kg
FGL 8 24D: 24 mm | d: 8 mm | Width: 13 mm | Cr: 7.3 kN | C0r: 10.2 kN | Mass: 0.037 kg
FG 8 24 15D: 24 mm | d: 8 mm | Width: 15 mm | Cr: 9.08 kN | C0r: 13.5 kN | Mass: 0.044 kg
FGL 8 24 15D: 24 mm | d: 8 mm | Width: 15 mm | Cr: 9.08 kN | C0r: 13.5 kN | Mass: 0.044 kg
FG 10 30D: 30 mm | d: 10 mm | Width: 15 mm | Cr: 14.2 kN | C0r: 18.3 kN | Mass: 0.066 kg
FGL 10 30D: 30 mm | d: 10 mm | Width: 15 mm | Cr: 14.2 kN | C0r: 18.3 kN | Mass: 0.066 kg
FG 12 32D: 32 mm | d: 12 mm | Width: 15 mm | Cr: 15.5 kN | C0r: 21.2 kN | Mass: 0.077 kg
FGL 12 32D: 32 mm | d: 12 mm | Width: 15 mm | Cr: 15.5 kN | C0r: 21.2 kN | Mass: 0.077 kg
FG 15 35D: 35 mm | d: 15 mm | Width: 19 mm | Cr: 22.5 kN | C0r: 35.4 kN | Mass: 0.103 kg
FGL 15 35D: 35 mm | d: 15 mm | Width: 19 mm | Cr: 22.5 kN | C0r: 35.4 kN | Mass: 0.103 kg
FG 17 40D: 40 mm | d: 17 mm | Width: 21 mm | Cr: 29.9 kN | C0r: 48.0 kN | Mass: 0.155 kg
FGL 17 40D: 40 mm | d: 17 mm | Width: 21 mm | Cr: 29.9 kN | C0r: 48.0 kN | Mass: 0.155 kg
FG 20 47D: 47 mm | d: 20 mm | Width: 25 mm | Cr: 36.5 kN | C0r: 65.5 kN | Mass: 0.295 kg
FGL 20 47D: 47 mm | d: 20 mm | Width: 25 mm | Cr: 36.5 kN | C0r: 65.5 kN | Mass: 0.295 kg
FG 25 52D: 52 mm | d: 25 mm | Width: 25 mm | Cr: 39.7 kN | C0r: 76.4 kN | Mass: 0.310 kg
FGL 25 52D: 52 mm | d: 25 mm | Width: 25 mm | Cr: 39.7 kN | C0r: 76.4 kN | Mass: 0.310 kg
FG 30 62D: 62 mm | d: 30 mm | Width: 29 mm | Cr: 46.5 kN | C0r: 97.9 kN | Mass: 0.490 kg
FGL 30 62D: 62 mm | d: 30 mm | Width: 29 mm | Cr: 46.5 kN | C0r: 97.9 kN | Mass: 0.490 kg
FG 35 72D: 72 mm | d: 35 mm | Width: 29 mm | Cr: 50.0 kN | C0r: 113 kN | Mass: 0.670 kg
FGL 35 72D: 72 mm | d: 35 mm | Width: 29 mm | Cr: 50.0 kN | C0r: 113 kN | Mass: 0.670 kg
FG 40 80D: 80 mm | d: 40 mm | Width: 32 mm | Cr: 62.1 kN | C0r: 155 kN | Mass: 0.890 kg
FGL 40 80D: 80 mm | d: 40 mm | Width: 32 mm | Cr: 62.1 kN | C0r: 155 kN | Mass: 0.890 kg
FG 45 85 EED: 85 mm | d: 45 mm | Width: 32 mm | Cr: 65.7 kN | C0r: 173 kN | Mass: 0.970 kg
FGL 45 85D: 85 mm | d: 45 mm | Width: 32 mm | Cr: 65.7 kN | C0r: 173 kN | Mass: 0.970 kg
FG 50 90D: 90 mm | d: 50 mm | Width: 32 mm | Cr: 69.7 kN | C0r: 194 kN | Mass: 1.04 kg
FGL 50 90D: 90 mm | d: 50 mm | Width: 32 mm | Cr: 69.7 kN | C0r: 194 kN | Mass: 1.04 kg
FG 55 100D: 100 mm | d: 55 mm | Width: 36 mm | Cr: 85.0 kN | C0r: 233 kN | Mass: 1.35 kg
FGL 55 100D: 100 mm | d: 55 mm | Width: 36 mm | Cr: 85.0 kN | C0r: 233 kN | Mass: 1.35 kg
FG 60 110D: 110 mm | d: 60 mm | Width: 36 mm | Cr: 88.6 kN | C0r: 251 kN | Mass: 1.65 kg
FG 65 120D: 120 mm | d: 65 mm | Width: 42 mm | Cr: 103 kN | C0r: 310 kN | Mass: 2.35 kg
FGL 65 120D: 120 mm | d: 65 mm | Width: 42 mm | Cr: 103 kN | C0r: 310 kN | Mass: 2.35 kg
FG 70 125D: 125 mm | d: 70 mm | Width: 42 mm | Cr: 106 kN | C0r: 332 kN | Mass: 2.50 kg
FGL 70 125D: 125 mm | d: 70 mm | Width: 42 mm | Cr: 106 kN | C0r: 332 kN | Mass: 2.50 kg
FG 75 130D: 130 mm | d: 75 mm | Width: 42 mm | Cr: 110 kN | C0r: 354 kN | Mass: 2.65 kg
FG 80 140D: 140 mm | d: 80 mm | Width: 48 mm | Cr: 140 kN | C0r: 455 kN | Mass: 3.40 kg
FGL 80 140D: 140 mm | d: 80 mm | Width: 48 mm | Cr: 140 kN | C0r: 455 kN | Mass: 3.40 kg
FG 85 150D: 150 mm | d: 85 mm | Width: 48 mm | Cr: 146 kN | C0r: 490 kN | Mass: 4.00 kg
FG 90 160D: 160 mm | d: 90 mm | Width: 54 mm | Cr: 168 kN | C0r: 603 kN | Mass: 5.30 kg
FG 95 170D: 170 mm | d: 95 mm | Width: 54 mm | Cr: 172 kN | C0r: 629 kN | Mass: 6.00 kg
FG 100 180D: 180 mm | d: 100 mm | Width: 65 mm | Cr: 238 kN | C0r: 828 kN | Mass: 8.05 kg
FG 110 200D: 200 mm | d: 110 mm | Width: 65 mm | Cr: 252 kN | C0r: 922 kN | Mass: 10.00 kg
FG 120 215D: 215 mm | d: 120 mm | Width: 65 mm | Cr: 261 kN | C0r: 985 kN | Mass: 11.50 kg
FG 150 270D: 270 mm | d: 150 mm | Width: 78 mm | Cr: 372 kN | C0r: 1470 kN | Mass: 22.00 kg
FGU 15 35D: 35 mm | d: 15 mm | Width: 18 mm | Cr: 7.80 kN | C0r: 17.0 kN | Mass: 0.096 kg
FGU 15 35 MMD: 35 mm | d: 15 mm | Width: 18 mm | Cr: 7.80 kN | C0r: 17.0 kN | Mass: 0.096 kg
FGUL 15 35 MMD: 35 mm | d: 15 mm | Width: 18 mm | Cr: 7.80 kN | C0r: 17.0 kN | Mass: 0.096 kg
FGU 17 40 MMD: 40 mm | d: 17 mm | Width: 20 mm | Cr: 11.5 kN | C0r: 20.0 kN | Mass: 0.142 kg
FGU 20 47 MMD: 47 mm | d: 20 mm | Width: 24 mm | Cr: 15.5 kN | C0r: 29.5 kN | Mass: 0.235 kg
FGUL 20 47 MMD: 47 mm | d: 20 mm | Width: 24 mm | Cr: 15.5 kN | C0r: 29.5 kN | Mass: 0.235 kg
FGU 25 52D: 52 mm | d: 25 mm | Width: 24 mm | Cr: 17.3 kN | C0r: 31.5 kN | Mass: 0.268 kg
FGU 25 52 MMD: 52 mm | d: 25 mm | Width: 24 mm | Cr: 17.3 kN | C0r: 31.5 kN | Mass: 0.268 kg
FGUL 25 52 MMD: 52 mm | d: 25 mm | Width: 24 mm | Cr: 17.3 kN | C0r: 31.5 kN | Mass: 0.268 kg
FGU 30 62 MMD: 62 mm | d: 30 mm | Width: 28 mm | Cr: 24.5 kN | C0r: 44.5 kN | Mass: 0.454 kg
FGU 35 72 MMD: 72 mm | d: 35 mm | Width: 28 mm | Cr: 31.3 kN | C0r: 50.0 kN | Mass: 0.611 kg
FGUL 35 72 MMD: 72 mm | d: 35 mm | Width: 28 mm | Cr: 31.3 kN | C0r: 50.0 kN | Mass: 0.611 kg
FGU 40 80D: 80 mm | d: 40 mm | Width: 30 mm | Cr: 40.6 kN | C0r: 59.0 kN | Mass: 0.822 kg
FGU 40 80 MMD: 80 mm | d: 40 mm | Width: 30 mm | Cr: 40.6 kN | C0r: 59.0 kN | Mass: 0.822 kg
FGUL 40 80 MMD: 80 mm | d: 40 mm | Width: 30 mm | Cr: 40.6 kN | C0r: 59.0 kN | Mass: 0.822 kg
FGU 60 110 MMD: 110 mm | d: 60 mm | Width: 34 mm | Cr: 64.0 kN | C0r: 88.0 kN | Mass: 1.625 kg
FGU 65 120D: 120 mm | d: 65 mm | Width: 40 mm | Cr: 89.0 kN | C0r: 110 kN | Mass: 2.300 kg
FGU 65 120 MMD: 120 mm | d: 65 mm | Width: 40 mm | Cr: 89.0 kN | C0r: 110 kN | Mass: 2.300 kg
FGU 70 125 MMD: 125 mm | d: 70 mm | Width: 40 mm | Cr: 93.0 kN | C0r: 110 kN | Mass: 2.070 kg
FGU 80 140 MMD: 140 mm | d: 80 mm | Width: 46 mm | Cr: 130 kN | C0r: 138 kN | Mass: 3.450 kg
FGU 90 160 MMD: 160 mm | d: 90 mm | Width: 52 mm | Cr: 166 kN | C0r: 188 kN | Mass: 5.185 kg
FGU 95 170 MMD: 170 mm | d: 95 mm | Width: 52 mm | Cr: 184 kN | C0r: 198 kN | Mass: 5.925 kg
FGU 110 200 MMD: 200 mm | d: 110 mm | Width: 63 mm | Cr: 310 kN | C0r: 280 kN | Mass: 10.200 kg
FGU 120 215D: 215 mm | d: 120 mm | Width: 63 mm | Cr: 310 kN | C0r: 310 kN | Mass: 11.560 kg
FGU 15 42D: 42 mm | d: 15 mm | Width: 18 mm | Cr: 26.4 kN | C0r: 32.4 kN | Mass: 0.153 kg
FGUL 15 42 MMD: 42 mm | d: 15 mm | Width: 18 mm | Cr: 26.4 kN | C0r: 32.4 kN | Mass: 0.153 kg
FGU 17 47 MMD: 47 mm | d: 17 mm | Width: 20 mm | Cr: 28.3 kN | C0r: 36.5 kN | Mass: 0.214 kg
FGUL 17 47 MMD: 47 mm | d: 17 mm | Width: 20 mm | Cr: 28.3 kN | C0r: 36.5 kN | Mass: 0.214 kg
FGU 20 52 MMD: 52 mm | d: 20 mm | Width: 24 mm | Cr: 43.8 kN | C0r: 57.9 kN | Mass: 0.268 kg
FGUL 20 52 MMD: 52 mm | d: 20 mm | Width: 24 mm | Cr: 43.8 kN | C0r: 57.9 kN | Mass: 0.268 kg
FGU 25 62D: 62 mm | d: 25 mm | Width: 24 mm | Cr: 48.2 kN | C0r: 68.2 kN | Mass: 0.435 kg
FGU 30 72 MMD: 72 mm | d: 30 mm | Width: 28 mm | Cr: 70 kN | C0r: 103 kN | Mass: 0.681 kg
FGUL 30 72 MMD: 72 mm | d: 30 mm | Width: 28 mm | Cr: 70 kN | C0r: 103 kN | Mass: 0.681 kg
FGU 35 80D: 80 mm | d: 35 mm | Width: 28 mm | Cr: 77.5 kN | C0r: 124 kN | Mass: 0.82 kg
FGUL 35 80D: 80 mm | d: 35 mm | Width: 28 mm | Cr: 77.5 kN | C0r: 124 kN | Mass: 0.82 kg
FGU 35 80 MMD: 80 mm | d: 35 mm | Width: 28 mm | Cr: 77.5 kN | C0r: 124 kN | Mass: 0.82 kg
FGU 40 90 MMD: 90 mm | d: 40 mm | Width: 30 mm | Cr: 89.2 kN | C0r: 153 kN | Mass: 1.125 kg
FGU 45 100 MMD: 100 mm | d: 45 mm | Width: 30 mm | Cr: 92.7 kN | C0r: 165 kN | Mass: 1.395 kg
FGU 50 110D: 110 mm | d: 50 mm | Width: 30 mm | Cr: 97.8 kN | C0r: 182 kN | Mass: 1.683 kg
FGU 50 110 MMD: 110 mm | d: 50 mm | Width: 30 mm | Cr: 97.8 kN | C0r: 182 kN | Mass: 1.683 kg
FGU 55 120D: 120 mm | d: 55 mm | Width: 34 mm | Cr: 128 kN | C0r: 215 kN | Mass: 2.235 kg
FGU 55 120 MMD: 120 mm | d: 55 mm | Width: 34 mm | Cr: 128 kN | C0r: 215 kN | Mass: 2.235 kg
FGUL 55 120 MMD: 120 mm | d: 55 mm | Width: 34 mm | Cr: 128 kN | C0r: 215 kN | Mass: 2.235 kg
FGU 60 130 MMD: 130 mm | d: 60 mm | Width: 34 mm | Cr: 133 kN | C0r: 232 kN | Mass: 2.62 kg
FGU 65 140 MMD: 140 mm | d: 65 mm | Width: 40 mm | Cr: 156 kN | C0r: 290 kN | Mass: 3.56 kg
FGU 70 150 MMD: 150 mm | d: 70 mm | Width: 40 mm | Cr: 161 kN | C0r: 310 kN | Mass: 4.09 kg
FGU 75 160D: 160 mm | d: 75 mm | Width: 40 mm | Cr: 166 kN | C0r: 329 kN | Mass: 4.65 kg
FGU 75 160 MMD: 160 mm | d: 75 mm | Width: 40 mm | Cr: 166 kN | C0r: 329 kN | Mass: 4.65 kg
FGU 80 170D: 170 mm | d: 80 mm | Width: 46 mm | Cr: 195 kN | C0r: 412 kN | Mass: 6.07 kg
FGU 80 170 MMD: 170 mm | d: 80 mm | Width: 46 mm | Cr: 195 kN | C0r: 412 kN | Mass: 6.07 kg
FGU 85 180D: 180 mm | d: 85 mm | Width: 46 mm | Cr: 224 kN | C0r: 426 kN | Mass: 6.724 kg
FGU 85 180 MMD: 180 mm | d: 85 mm | Width: 46 mm | Cr: 224 kN | C0r: 426 kN | Mass: 6.724 kg
FGUL 85 180 MMD: 180 mm | d: 85 mm | Width: 46 mm | Cr: 224 kN | C0r: 426 kN | Mass: 6.724 kg
FGU 90 190 MMD: 190 mm | d: 90 mm | Width: 52 mm | Cr: 259 kN | C0r: 524 kN | Mass: 8.515 kg
FGU 120 260 MMD: 260 mm | d: 120 mm | Width: 63 mm | Cr: 396 kN | C0r: 875 kN | Mass: 19.750 kg
FGU 140 300 MMD: 300 mm | d: 140 mm | Width: 75 mm | Cr: 493 kN | C0r: 1210 kN | Mass: 31.265 kg
RNA 11005 B6D: 19 mm | Width: 12 mm | Cr: 5.31 kN | C0r: 4.44 kN | Mass: 0.019 kg
RNAB 11005D: 19 mm | Width: 12 mm | Cr: 5.31 kN | C0r: 4.44 kN | Mass: 0.019 kg
RNA 11007 B6D: 22 mm | Width: 12 mm | Cr: 6.42 kN | C0r: 5.93 kN | Mass: 0.022 kg
RNAB 11007D: 22 mm | Width: 12 mm | Cr: 6.42 kN | C0r: 5.93 kN | Mass: 0.022 kg
RNAL 11007D: 22 mm | Width: 12 mm | Cr: 6.42 kN | C0r: 5.93 kN | Mass: 0.022 kg
RNA 11009 B6D: 28 mm | Width: 12 mm | Cr: 7.37 kN | C0r: 7.42 kN | Mass: 0.028 kg
RNAB 11009D: 28 mm | Width: 12 mm | Cr: 7.37 kN | C0r: 7.42 kN | Mass: 0.028 kg
RNAL 11009D: 28 mm | Width: 12 mm | Cr: 7.37 kN | C0r: 7.42 kN | Mass: 0.028 kg
RNA 11012 B6D: 32 mm | Width: 15 mm | Cr: 12.7 kN | C0r: 16.4 kN | Mass: 0.032 kg
RNAB 11012D: 32 mm | Width: 15 mm | Cr: 12.7 kN | C0r: 16.4 kN | Mass: 0.032 kg
RNAL 11012D: 32 mm | Width: 15 mm | Cr: 12.7 kN | C0r: 16.4 kN | Mass: 0.032 kg
RNA 11015 B6D: 35 mm | Width: 15 mm | Cr: 13.9 kN | C0r: 19.4 kN | Mass: 0.035 kg
RNAB 11015D: 35 mm | Width: 15 mm | Cr: 13.9 kN | C0r: 19.4 kN | Mass: 0.035 kg
RNA 11017 B6D: 42 mm | Width: 15 mm | Cr: 15.0 kN | C0r: 22.4 kN | Mass: 0.042 kg
RNAB 11017D: 42 mm | Width: 15 mm | Cr: 15.0 kN | C0r: 22.4 kN | Mass: 0.042 kg
RNAL 11017D: 42 mm | Width: 15 mm | Cr: 15.0 kN | C0r: 22.4 kN | Mass: 0.042 kg
RNA 11020 B6D: 47 mm | Width: 18 mm | Cr: 21.7 kN | C0r: 33.5 kN | Mass: 0.047 kg
RNAB 11020D: 47 mm | Width: 18 mm | Cr: 21.7 kN | C0r: 33.5 kN | Mass: 0.047 kg
RNAL 11020D: 47 mm | Width: 18 mm | Cr: 21.7 kN | C0r: 33.5 kN | Mass: 0.047 kg
RNA 11025 B6D: 52 mm | Width: 18 mm | Cr: 23.6 kN | C0r: 39.1 kN | Mass: 0.052 kg
RNAB 11025D: 52 mm | Width: 18 mm | Cr: 23.6 kN | C0r: 39.1 kN | Mass: 0.052 kg
RNA 11030 B6D: 62 mm | Width: 22 mm | Cr: 34.2 kN | C0r: 65.8 kN | Mass: 0.062 kg
RNAB 11030D: 62 mm | Width: 22 mm | Cr: 34.2 kN | C0r: 65.8 kN | Mass: 0.062 kg
RNA 11035 B6D: 72 mm | Width: 22 mm | Cr: 36.7 kN | C0r: 75.7 kN | Mass: 0.072 kg
RNAB 11040D: 80 mm | Width: 22 mm | Cr: 39.2 kN | C0r: 85.6 kN | Mass: 0.080 kg
RNA 11050 B6D: 90 mm | Width: 24 mm | Cr: 44.0 kN | C0r: 107 kN | Mass: 0.090 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
