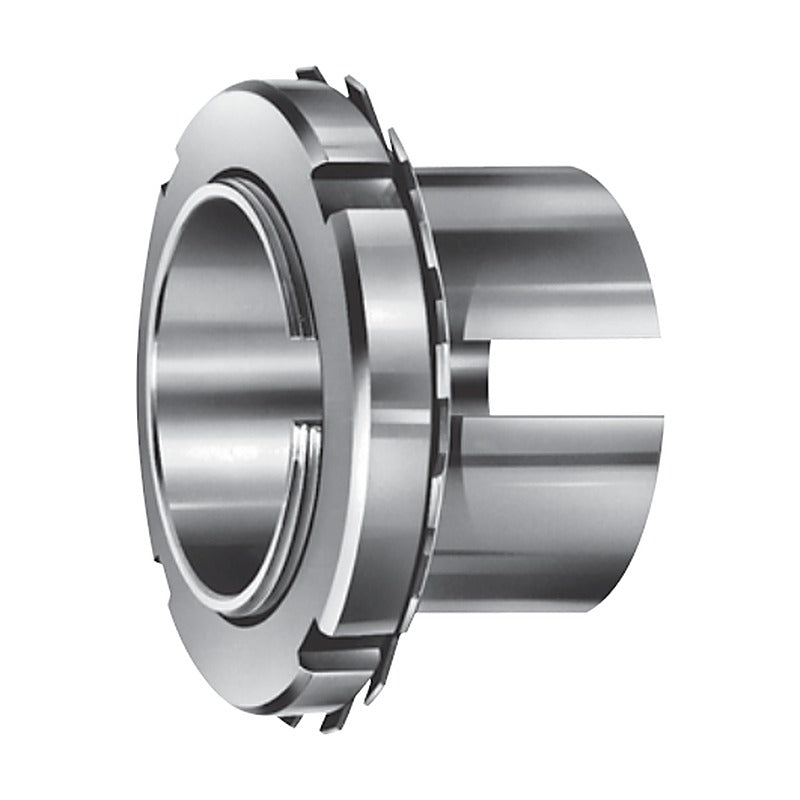

KOYO HN, HNL Locknuts for Withdrawal Sleeves

KOYO HN, HNL Locknuts for Withdrawal Sleeves

HN and HNL series locknuts for AH / AHX withdrawal sleeves, used to press sleeves into and out of tapered bore bearings.

Key features

  • For mounting and dismounting withdrawal sleeves
  • Trapezoidal thread for large sizes
  • Applicable withdrawal sleeve numbers listed
  • Heavy section for high axial forces

Specifications

Product type Locknut for withdrawal sleeve
Series HN, HNL
Thread Trapezoidal (Tr)
Source KOYO Special Bearings catalogue, p. C172-C173
HN 42 Thread: Tr210x4 | OD d2: 270 mm | Width B: 30 mm | Mass: 4.75 kg
HNL 69 Thread: Tr345x5 | OD d2: 410 mm | Width B: 45 mm | Mass: 11.5 kg
HN 44 Thread: Tr220x4 | OD d2: 280 mm | Width B: 32 mm | Mass: 5.35 kg
HNL 73 Thread: Tr365x5 | OD d2: 430 mm | Width B: 48 mm | Mass: 14.2 kg
HN 48 Thread: Tr240x4 | OD d2: 300 mm | Width B: 34 mm | Mass: 6.20 kg
HNL 77 Thread: Tr385x5 | OD d2: 450 mm | Width B: 48 mm | Mass: 15.0 kg
HN 52 Thread: Tr260x4 | OD d2: 330 mm | Width B: 36 mm | Mass: 8.55 kg
HNL 82 Thread: Tr410x5 | OD d2: 480 mm | Width B: 52 mm | Mass: 19.0 kg
HN 58 Thread: Tr290x4 | OD d2: 370 mm | Width B: 40 mm | Mass: 11.8 kg
HNL 86 Thread: Tr430x5 | OD d2: 500 mm | Width B: 52 mm | Mass: 19.8 kg
HN 62 Thread: Tr310x5 | OD d2: 390 mm | Width B: 42 mm | Mass: 13.4 kg
HNL 90 Thread: Tr450x5 | OD d2: 520 mm | Width B: 60 mm | Mass: 23.8 kg
HN 66 Thread: Tr330x5 | OD d2: 420 mm | Width B: 52 mm | Mass: 20.4 kg
HNL 94 Thread: Tr470x5 | OD d2: 540 mm | Width B: 60 mm | Mass: 25.0 kg
HN 70 Thread: Tr350x5 | OD d2: 450 mm | Width B: 55 mm | Mass: 25.2 kg
HNL 98 Thread: Tr490x5 | OD d2: 580 mm | Width B: 60 mm | Mass: 34.0 kg
HN 74 Thread: Tr370x5 | OD d2: 470 mm | Width B: 58 mm | Mass: 28.2 kg
HNL104 Thread: Tr520x6 | OD d2: 600 mm | Width B: 68 mm | Mass: 37.0 kg
HN 80 Thread: Tr400x5 | OD d2: 520 mm | Width B: 62 mm | Mass: 40.0 kg
HNL108 Thread: Tr540x6 | OD d2: 630 mm | Width B: 68 mm | Mass: 43.5 kg
HN 84 Thread: Tr420x5 | OD d2: 540 mm | Width B: 70 mm | Mass: 46.9 kg
HN 88 Thread: Tr440x5 | OD d2: 560 mm | Width B: 70 mm | Mass: 48.5 kg
HN 92 Thread: Tr460x5 | OD d2: 580 mm | Width B: 75 mm | Mass: 55.0 kg
HN 96 Thread: Tr480x5 | OD d2: 620 mm | Width B: 75 mm | Mass: 67.0 kg
HN 102 Thread: Tr510x6 | OD d2: 650 mm | Width B: 80 mm | Mass: 75.0 kg
HN 106 Thread: Tr530x6 | OD d2: 670 mm | Width B: 80 mm | Mass: 78.0 kg
HN 110 Thread: Tr550x6 | OD d2: 700 mm | Width B: 80 mm | Mass: 92.5 kg
HNL 41 Thread: Tr205x4 | OD d2: 250 mm | Width B: 30 mm | Mass: 3.43 kg
HNL 43 Thread: Tr215x4 | OD d2: 260 mm | Width B: 30 mm | Mass: 3.72 kg
HNL 47 Thread: Tr235x4 | OD d2: 280 mm | Width B: 34 mm | Mass: 4.60 kg
HNL 52 Thread: Tr260x4 | OD d2: 310 mm | Width B: 34 mm | Mass: 5.80 kg
HNL 56 Thread: Tr280x4 | OD d2: 330 mm | Width B: 38 mm | Mass: 6.72 kg
HNL 60 Thread: Tr300x4 | OD d2: 360 mm | Width B: 42 mm | Mass: 9.60 kg
HNL 64 Thread: Tr320x5 | OD d2: 380 mm | Width B: 42 mm | Mass: 10.3 kg
