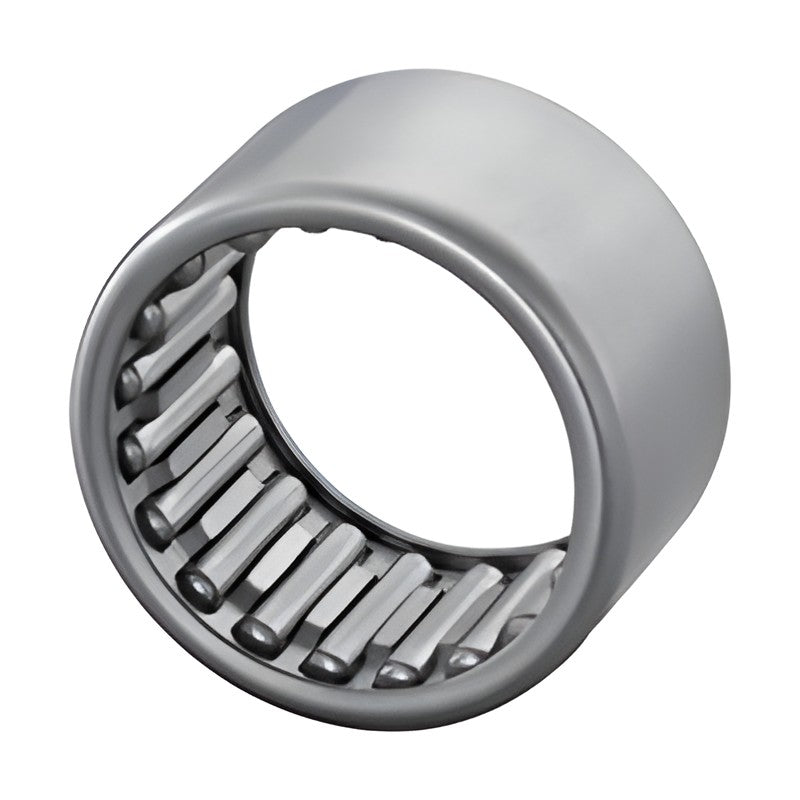

KOYO J, JH, MJ, MJH, BT Inch Caged Drawn Cup Needle Roller Bearings

KOYO J, JH, MJ, MJH, BT Inch Caged Drawn Cup Needle Roller Bearings

Inch-series caged drawn cup needle roller bearings with open ends (J, JH, BT) or closed end (MJ-1, MJH-1), to ANSI/ABMA 18.2.

Key features

  • Caged needle rollers for higher speeds
  • J / JH open ends, MJ / MJH closed end
  • BT series caged bearings
  • JH / MJH heavy-section cups
  • Inch nominal dimensions (shown in mm)

Specifications

Bearing type Drawn cup needle roller bearing, caged
Series J, JH, MJ, MJH, BT
Dimension system Inch (values in mm)
Source KOYO Needle Roller Bearings catalogue, p. B-2-66 to B-2-70
JP-23-F Fw: 3.175 mm | D: 6.350 mm | Width C: 4.78 mm | Cr: 0.89 kN | C0r: 0.62 kN | Mass: 0.001 kg
JP-24-F Fw: 3.175 mm | D: 6.350 mm | Width C: 6.35 mm | Cr: 1.33 kN | C0r: 1.02 kN | Mass: 0.001 kg
JP-2 1/2 3F Fw: 3.970 mm | D: 7.142 mm | Width C: 4.78 mm | Cr: 0.93 kN | C0r: 0.62 kN | Mass: 0.001 kg
JP-33-F Fw: 4.763 mm | D: 8.733 mm | Width C: 4.77 mm | Cr: 1.07 kN | C0r: 0.71 kN | Mass: 0.001 kg
JP-34-F Fw: 4.763 mm | D: 8.733 mm | Width C: 6.35 mm | Cr: 1.60 kN | C0r: 1.25 kN | Mass: 0.001 kg
J-36 Fw: 4.763 mm | D: 8.733 mm | Width C: 9.53 mm | Cr: 2.27 kN | C0r: 1.91 kN | Mass: 0.002 kg
MJ-361 Fw: 4.763 mm | D: 8.733 mm | Width C: 9.53 mm | Cr: 2.27 kN | C0r: 1.91 kN | Mass: 0.002 kg
J-45 Fw: 6.350 mm | D: 11.113 mm | Width C: 7.92 mm | Cr: 2.22 kN | C0r: 1.73 kN | Mass: 0.003 kg
MJ-451 Fw: 6.350 mm | D: 11.113 mm | Width C: 7.92 mm | Cr: 2.22 kN | C0r: 1.73 kN | Mass: 0.003 kg
J-47 Fw: 6.350 mm | D: 11.113 mm | Width C: 11.13 mm | Cr: 3.38 kN | C0r: 3.02 kN | Mass: 0.004 kg
MJ-471 Fw: 6.350 mm | D: 11.113 mm | Width C: 11.13 mm | Cr: 3.38 kN | C0r: 3.02 kN | Mass: 0.004 kg
J-55 Fw: 7.938 mm | D: 12.700 mm | Width C: 7.92 mm | Cr: 2.40 kN | C0r: 2.00 kN | Mass: 0.003 kg
J-57 Fw: 7.938 mm | D: 12.700 mm | Width C: 11.13 mm | Cr: 4.05 kN | C0r: 3.91 kN | Mass: 0.004 kg
MJ-571 Fw: 7.938 mm | D: 12.700 mm | Width C: 11.13 mm | Cr: 4.05 kN | C0r: 3.91 kN | Mass: 0.005 kg
JH-57 Fw: 7.938 mm | D: 14.288 mm | Width C: 11.13 mm | Cr: 4.63 kN | C0r: 3.78 kN | Mass: 0.006 kg
MJH-571 Fw: 7.938 mm | D: 14.288 mm | Width C: 11.13 mm | Cr: 4.63 kN | C0r: 3.78 kN | Mass: 0.007 kg
J-65 Fw: 9.525 mm | D: 14.288 mm | Width C: 7.92 mm | Cr: 2.76 kN | C0r: 2.49 kN | Mass: 0.004 kg
MJ-651 Fw: 9.525 mm | D: 14.288 mm | Width C: 7.92 mm | Cr: 2.76 kN | C0r: 2.49 kN | Mass: 0.004 kg
J-66 Fw: 9.525 mm | D: 14.288 mm | Width C: 9.53 mm | Cr: 3.51 kN | C0r: 3.47 kN | Mass: 0.004 kg
MJ-661 Fw: 9.525 mm | D: 14.288 mm | Width C: 9.53 mm | Cr: 3.51 kN | C0r: 3.47 kN | Mass: 0.005 kg
J-68 Fw: 9.525 mm | D: 14.288 mm | Width C: 12.70 mm | Cr: 5.20 kN | C0r: 5.74 kN | Mass: 0.005 kg
MJ-681 Fw: 9.525 mm | D: 14.288 mm | Width C: 12.70 mm | Cr: 5.20 kN | C0r: 5.74 kN | Mass: 0.006 kg
JH-68 Fw: 9.525 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 6.58 kN | C0r: 6.09 kN | Mass: 0.008 kg
J-78 Fw: 11.113 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 6.36 kN | C0r: 7.70 kN | Mass: 0.006 kg
MJ-781 Fw: 11.113 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 6.36 kN | C0r: 7.70 kN | Mass: 0.007 kg
JH-78 Fw: 11.113 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 7.12 kN | C0r: 6.89 kN | Mass: 0.009 kg
J-86 Fw: 12.700 mm | D: 17.463 mm | Width C: 9.53 mm | Cr: 4.67 kN | C0r: 5.38 kN | Mass: 0.005 kg
MJ-861 Fw: 12.700 mm | D: 17.463 mm | Width C: 9.53 mm | Cr: 4.67 kN | C0r: 5.38 kN | Mass: 0.006 kg
J-88 Fw: 12.700 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 6.32 kN | C0r: 7.92 kN | Mass: 0.007 kg
MJ-881 Fw: 12.700 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 6.32 kN | C0r: 7.92 kN | Mass: 0.008 kg
J-812 Fw: 12.700 mm | D: 17.463 mm | Width C: 19.05 mm | Cr: 10.23 kN | C0r: 14.72 kN | Mass: 0.010 kg
JH-87 Fw: 12.700 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 6.41 kN | C0r: 6.18 kN | Mass: 0.009 kg
MJH-871 Fw: 12.700 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 6.41 kN | C0r: 6.18 kN | Mass: 0.010 kg
JH-88 Fw: 12.700 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 7.56 kN | C0r: 7.70 kN | Mass: 0.010 kg
MJH-881 Fw: 12.700 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 7.56 kN | C0r: 7.70 kN | Mass: 0.012 kg
JH-812 Fw: 12.700 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 12.32 kN | C0r: 14.41 kN | Mass: 0.015 kg
J-97 Fw: 14.288 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 5.47 kN | C0r: 6.81 kN | Mass: 0.007 kg
MJ-971 Fw: 14.288 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 5.47 kN | C0r: 6.81 kN | Mass: 0.009 kg
J-98 Fw: 14.288 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 6.23 kN | C0r: 8.01 kN | Mass: 0.008 kg
MJ-981 Fw: 14.288 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 6.23 kN | C0r: 8.01 kN | Mass: 0.009 kg
J-910 Fw: 14.288 mm | D: 19.050 mm | Width C: 15.88 mm | Cr: 5.83 kN | C0r: 7.21 kN | Mass: 0.010 kg
JH-98 Fw: 14.288 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 8.01 kN | C0r: 8.50 kN | Mass: 0.011 kg
MJH-981 Fw: 14.288 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 8.01 kN | C0r: 8.50 kN | Mass: 0.014 kg
J-108 Fw: 15.875 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 6.72 kN | C0r: 9.12 kN | Mass: 0.009 kg
MJ-1081 Fw: 15.875 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 6.72 kN | C0r: 9.12 kN | Mass: 0.010 kg
J-1010 Fw: 15.875 mm | D: 20.638 mm | Width C: 15.88 mm | Cr: 8.81 kN | C0r: 12.94 kN | Mass: 0.010 kg
MJ-10101 Fw: 15.875 mm | D: 20.638 mm | Width C: 15.88 mm | Cr: 8.81 kN | C0r: 12.94 kN | Mass: 0.013 kg
J-1012 Fw: 15.875 mm | D: 20.638 mm | Width C: 19.05 mm | Cr: 11.74 kN | C0r: 18.86 kN | Mass: 0.013 kg
MJ-10121 Fw: 15.875 mm | D: 20.638 mm | Width C: 19.05 mm | Cr: 11.74 kN | C0r: 18.86 kN | Mass: 0.015 kg
JH-1010 Fw: 15.875 mm | D: 22.212 mm | Width C: 15.88 mm | Cr: 11.57 kN | C0r: 14.10 kN | Mass: 0.015 kg
MJH-10101 Fw: 15.875 mm | D: 22.212 mm | Width C: 15.88 mm | Cr: 11.57 kN | C0r: 14.10 kN | Mass: 0.017 kg
JH-1016 Fw: 15.875 mm | D: 22.212 mm | Width C: 25.40 mm | Cr: 19.79 kN | C0r: 28.11 kN | Mass: 0.024 kg
MJH-10161 Fw: 15.875 mm | D: 22.212 mm | Width C: 25.40 mm | Cr: 19.79 kN | C0r: 28.11 kN | Mass: 0.028 kg
J-1112 Fw: 17.463 mm | D: 22.212 mm | Width C: 19.05 mm | Cr: 12.46 kN | C0r: 20.91 kN | Mass: 0.014 kg
MJ-11121 Fw: 17.463 mm | D: 22.212 mm | Width C: 19.05 mm | Cr: 12.46 kN | C0r: 20.91 kN | Mass: 0.016 kg
JH-1110 Fw: 17.463 mm | D: 23.813 mm | Width C: 15.88 mm | Cr: 12.05 kN | C0r: 15.21 kN | Mass: 0.016 kg
MJH-11101 Fw: 17.463 mm | D: 23.813 mm | Width C: 15.88 mm | Cr: 12.05 kN | C0r: 15.21 kN | Mass: 0.019 kg
JH-1112 Fw: 17.463 mm | D: 23.813 mm | Width C: 19.05 mm | Cr: 16.15 kN | C0r: 22.20 kN | Mass: 0.019 kg
J-126 Fw: 19.050 mm | D: 25.400 mm | Width C: 9.53 mm | Cr: 6.49 kN | C0r: 7.03 kN | Mass: 0.010 kg
J-128 Fw: 19.050 mm | D: 25.400 mm | Width C: 12.70 mm | Cr: 9.92 kN | C0r: 12.19 kN | Mass: 0.014 kg
J-1210 Fw: 19.050 mm | D: 25.400 mm | Width C: 15.88 mm | Cr: 12.50 kN | C0r: 16.32 kN | Mass: 0.017 kg
MJ-12101 Fw: 19.050 mm | D: 25.400 mm | Width C: 15.88 mm | Cr: 12.50 kN | C0r: 16.32 kN | Mass: 0.020 kg
J-1212 Fw: 19.050 mm | D: 25.400 mm | Width C: 19.05 mm | Cr: 15.52 kN | C0r: 21.62 kN | Mass: 0.020 kg
MJ-12121 Fw: 19.050 mm | D: 25.400 mm | Width C: 19.05 mm | Cr: 15.52 kN | C0r: 21.62 kN | Mass: 0.025 kg
JH-1212 Fw: 19.050 mm | D: 26.988 mm | Width C: 19.05 mm | Cr: 19.08 kN | C0r: 23.58 kN | Mass: 0.026 kg
MJH-12121 Fw: 19.050 mm | D: 26.988 mm | Width C: 19.05 mm | Cr: 19.08 kN | C0r: 23.58 kN | Mass: 0.031 kg
J-1314 Fw: 20.638 mm | D: 26.988 mm | Width C: 22.23 mm | Cr: 19.31 kN | C0r: 29.31 kN | Mass: 0.025 kg
JH-1312 Fw: 20.638 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 18.77 kN | C0r: 24.55 kN | Mass: 0.028 kg
MJH-13121 Fw: 20.638 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 18.77 kN | C0r: 24.55 kN | Mass: 0.034 kg
J-146 Fw: 22.225 mm | D: 28.575 mm | Width C: 9.53 mm | Cr: 7.21 kN | C0r: 8.41 kN | Mass: 0.012 kg
J-148 Fw: 22.225 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 10.94 kN | C0r: 14.50 kN | Mass: 0.015 kg
J-1412 Fw: 22.225 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 17.88 kN | C0r: 27.18 kN | Mass: 0.024 kg
MJ-14121 Fw: 22.225 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 17.88 kN | C0r: 27.18 kN | Mass: 0.028 kg
J-1416 Fw: 22.225 mm | D: 28.575 mm | Width C: 25.40 mm | Cr: 23.66 kN | C0r: 38.97 kN | Mass: 0.031 kg
MJ-14161 Fw: 22.225 mm | D: 28.575 mm | Width C: 25.40 mm | Cr: 23.66 kN | C0r: 38.97 kN | Mass: 0.059 kg
JH-1412 Fw: 22.225 mm | D: 30.163 mm | Width C: 19.05 mm | Cr: 18.33 kN | C0r: 24.55 kN | Mass: 0.030 kg
MJH-14121 Fw: 22.225 mm | D: 30.163 mm | Width C: 19.05 mm | Cr: 18.33 kN | C0r: 24.55 kN | Mass: 0.036 kg
JH-1416 Fw: 22.225 mm | D: 30.163 mm | Width C: 25.40 mm | Cr: 25.40 kN | C0r: 37.37 kN | Mass: 0.040 kg
MJH-14161 Fw: 22.225 mm | D: 30.163 mm | Width C: 25.40 mm | Cr: 25.40 kN | C0r: 37.37 kN | Mass: 0.048 kg
J-1612 Fw: 25.400 mm | D: 31.750 mm | Width C: 19.05 mm | Cr: 18.15 kN | C0r: 28.82 kN | Mass: 0.026 kg
J-1616 Fw: 25.400 mm | D: 31.750 mm | Width C: 25.40 mm | Cr: 24.95 kN | C0r: 43.41 kN | Mass: 0.035 kg
MJ-16161 Fw: 25.400 mm | D: 31.750 mm | Width C: 25.40 mm | Cr: 24.95 kN | C0r: 43.41 kN | Mass: 0.042 kg
JH-1612 Fw: 25.400 mm | D: 33.338 mm | Width C: 19.05 mm | Cr: 20.68 kN | C0r: 29.58 kN | Mass: 0.034 kg
MJH-16121 Fw: 25.400 mm | D: 33.338 mm | Width C: 19.05 mm | Cr: 20.68 kN | C0r: 29.58 kN | Mass: 0.040 kg
JH-1616 Fw: 25.400 mm | D: 33.338 mm | Width C: 25.40 mm | Cr: 27.58 kN | C0r: 42.88 kN | Mass: 0.045 kg
MJH-16161 Fw: 25.400 mm | D: 33.338 mm | Width C: 25.40 mm | Cr: 27.58 kN | C0r: 42.88 kN | Mass: 0.054 kg
J-188 Fw: 28.575 mm | D: 34.925 mm | Width C: 12.70 mm | Cr: 11.65 kN | C0r: 16.95 kN | Mass: 0.020 kg
MJ-1881 Fw: 28.575 mm | D: 34.925 mm | Width C: 12.70 mm | Cr: 11.65 kN | C0r: 16.95 kN | Mass: 0.023 kg
J-1812 Fw: 28.575 mm | D: 34.925 mm | Width C: 19.05 mm | Cr: 19.04 kN | C0r: 31.76 kN | Mass: 0.029 kg
MJ-18121 Fw: 28.575 mm | D: 34.925 mm | Width C: 19.05 mm | Cr: 19.04 kN | C0r: 31.76 kN | Mass: 0.035 kg
J-1816 Fw: 28.575 mm | D: 34.925 mm | Width C: 25.40 mm | Cr: 26.16 kN | C0r: 48.04 kN | Mass: 0.039 kg
MJ-18161 Fw: 28.575 mm | D: 34.925 mm | Width C: 25.40 mm | Cr: 26.16 kN | C0r: 48.04 kN | Mass: 0.047 kg
JH-1812 Fw: 28.575 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 23.35 kN | C0r: 31.32 kN | Mass: 0.046 kg
MJH-18121 Fw: 28.575 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 23.35 kN | C0r: 31.32 kN | Mass: 0.055 kg
JH-1816 Fw: 28.575 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 33.14 kN | C0r: 49.38 kN | Mass: 0.061 kg
MJH-18161 Fw: 28.575 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 33.14 kN | C0r: 49.38 kN | Mass: 0.074 kg
J-2012 Fw: 31.750 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 19.84 kN | C0r: 34.70 kN | Mass: 0.036 kg
MJ-20121 Fw: 31.750 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 19.84 kN | C0r: 34.70 kN | Mass: 0.043 kg
J-2016 Fw: 31.750 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 28.82 kN | C0r: 56.49 kN | Mass: 0.043 kg
MJ-20161 Fw: 31.750 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 28.82 kN | C0r: 56.49 kN | Mass: 0.051 kg
JH-2012 Fw: 31.750 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 24.11 kN | C0r: 33.94 kN | Mass: 0.050 kg
JH-2016 Fw: 31.750 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 33.94 kN | C0r: 52.93 kN | Mass: 0.067 kg
JH-2020 Fw: 31.750 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 43.37 kN | C0r: 72.51 kN | Mass: 0.084 kg
J-228 Fw: 34.925 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 13.97 kN | C0r: 22.91 kN | Mass: 0.024 kg
MJ-2281 Fw: 34.925 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 13.97 kN | C0r: 22.91 kN | Mass: 0.028 kg
J-2212 Fw: 34.925 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 22.82 kN | C0r: 42.97 kN | Mass: 0.035 kg
JH-2212 Fw: 34.925 mm | D: 44.450 mm | Width C: 19.05 mm | Cr: 26.24 kN | C0r: 38.43 kN | Mass: 0.055 kg
MJH-22121 Fw: 34.925 mm | D: 44.450 mm | Width C: 19.05 mm | Cr: 26.24 kN | C0r: 38.43 kN | Mass: 0.065 kg
JH-2216 Fw: 34.925 mm | D: 44.450 mm | Width C: 25.40 mm | Cr: 36.52 kN | C0r: 58.72 kN | Mass: 0.073 kg
MJH-22161 Fw: 34.925 mm | D: 44.450 mm | Width C: 25.40 mm | Cr: 36.52 kN | C0r: 58.72 kN | Mass: 0.087 kg
J-2412 Fw: 38.100 mm | D: 47.625 mm | Width C: 19.05 mm | Cr: 29.89 kN | C0r: 47.15 kN | Mass: 0.059 kg
MJ-24121 Fw: 38.100 mm | D: 47.625 mm | Width C: 19.05 mm | Cr: 29.89 kN | C0r: 47.15 kN | Mass: 0.094 kg
J-2416 Fw: 38.100 mm | D: 47.625 mm | Width C: 25.40 mm | Cr: 39.32 kN | C0r: 66.72 kN | Mass: 0.079 kg
MJ-24161 Fw: 38.100 mm | D: 47.625 mm | Width C: 25.40 mm | Cr: 39.32 kN | C0r: 66.72 kN | Mass: 0.094 kg
J-2420 Fw: 38.100 mm | D: 47.625 mm | Width C: 31.75 mm | Cr: 49.38 kN | C0r: 89.85 kN | Mass: 0.099 kg
J-2610 Fw: 41.275 mm | D: 50.800 mm | Width C: 15.88 mm | Cr: 26.11 kN | C0r: 40.97 kN | Mass: 0.053 kg
J-2616 Fw: 41.275 mm | D: 50.800 mm | Width C: 25.40 mm | Cr: 39.28 kN | C0r: 68.95 kN | Mass: 0.085 kg
M-26161 Fw: 41.275 mm | D: 50.800 mm | Width C: 25.40 mm | Cr: 39.28 kN | C0r: 68.95 kN | Mass: 0.101 kg
J-2812 Fw: 44.450 mm | D: 53.975 mm | Width C: 19.05 mm | Cr: 29.58 kN | C0r: 49.38 kN | Mass: 0.068 kg
MJ-28121 Fw: 44.450 mm | D: 53.975 mm | Width C: 19.05 mm | Cr: 29.58 kN | C0r: 49.38 kN | Mass: 0.081 kg
J-2816 Fw: 44.450 mm | D: 53.975 mm | Width C: 25.40 mm | Cr: 40.08 kN | C0r: 72.95 kN | Mass: 0.091 kg
MJ-28161 Fw: 44.450 mm | D: 53.975 mm | Width C: 25.40 mm | Cr: 40.08 kN | C0r: 72.95 kN | Mass: 0.108 kg
J-2824 Fw: 44.450 mm | D: 53.975 mm | Width C: 38.10 mm | Cr: 59.61 kN | C0r: 121.88 kN | Mass: 0.136 kg
MJ-28241 Fw: 44.450 mm | D: 53.975 mm | Width C: 38.10 mm | Cr: 59.61 kN | C0r: 121.88 kN | Mass: 0.162 kg
J-3016 Fw: 47.625 mm | D: 57.150 mm | Width C: 25.40 mm | Cr: 41.10 kN | C0r: 76.06 kN | Mass: 0.097 kg
MJ-30161 Fw: 47.625 mm | D: 57.150 mm | Width C: 25.40 mm | Cr: 41.10 kN | C0r: 76.06 kN | Mass: 0.115 kg
J-3216 Fw: 50.800 mm | D: 60.325 mm | Width C: 25.40 mm | Cr: 42.39 kN | C0r: 81.40 kN | Mass: 0.103 kg
MJ-32161 Fw: 50.800 mm | D: 60.325 mm | Width C: 25.40 mm | Cr: 42.39 kN | C0r: 81.40 kN | Mass: 0.137 kg
J-3612 Fw: 57.150 mm | D: 66.675 mm | Width C: 19.05 mm | Cr: 35.41 kN | C0r: 65.83 kN | Mass: 0.086 kg
J-3616 Fw: 57.150 mm | D: 66.675 mm | Width C: 25.40 mm | Cr: 46.26 kN | C0r: 92.52 kN | Mass: 0.114 kg
J-4412 Fw: 69.850 mm | D: 79.375 mm | Width C: 19.05 mm | Cr: 36.25 kN | C0r: 72.95 kN | Mass: 0.103 kg
BT1112-1 Fw: 20.638 mm | D: 26.988 mm | Width C: 19.05 mm | Cr: 12.7 kN | C0r: 21.2 kN | Mass: 0.024 kg
BT146P Fw: 22.225 mm | D: 28.575 mm | Width C: 9.525 mm | Cr: 7.05 kN | C0r: 8.55 kN | Mass: 0.012 kg
BT166 Fw: 25.40 mm | D: 31.75 mm | Width C: 9.525 mm | Cr: 7.45 kN | C0r: 9.5 kN | Mass: 0.014 kg
BT188 Fw: 28.575 mm | D: 34.925 mm | Width C: 12.7 mm | Cr: 13.1 kN | C0r: 20.3 kN | Mass: 0.021 kg
BT1916M Fw: 30.162 mm | D: 38.1 mm | Width C: 25.4 mm | Cr: 31.5 kN | C0r: 51.9 kN | Mass: 0.054 kg
BT2012 Fw: 31.75 mm | D: 38.1 mm | Width C: 19.05 mm | Cr: 21.2 kN | C0r: 38.7 kN | Mass: 0.035 kg
BT2614 Fw: 41.275 mm | D: 50.8 mm | Width C: 22.225 mm | Cr: 34.1 kN | C0r: 56.9 kN | Mass: 0.082 kg
BT3010-1 Fw: 47.625 mm | D: 57.15 mm | Width C: 15.875 mm | Cr: 25.2 kN | C0r: 40.1 kN | Mass: 0.064 kg
Needle Roller BearingsKOYO
139 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO J, JH, MJ, MJH, BT Inch Caged Drawn Cup Needle Roller Bearings

Brand KOYO·Needle Roller Bearings

Available part numbers (139)

JP-23-F, JP-24-F, JP-2 1/2 3F, JP-33-F, JP-34-F, J-36, MJ-361, J-45, MJ-451, J-47 + 129 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JP-23-FFw: 3.175 mm | D: 6.350 mm | Width C: 4.78 mm | Cr: 0.89 kN | C0r: 0.62 kN | Mass: 0.001 kg
JP-24-FFw: 3.175 mm | D: 6.350 mm | Width C: 6.35 mm | Cr: 1.33 kN | C0r: 1.02 kN | Mass: 0.001 kg
JP-2 1/2 3FFw: 3.970 mm | D: 7.142 mm | Width C: 4.78 mm | Cr: 0.93 kN | C0r: 0.62 kN | Mass: 0.001 kg
JP-33-FFw: 4.763 mm | D: 8.733 mm | Width C: 4.77 mm | Cr: 1.07 kN | C0r: 0.71 kN | Mass: 0.001 kg
JP-34-FFw: 4.763 mm | D: 8.733 mm | Width C: 6.35 mm | Cr: 1.60 kN | C0r: 1.25 kN | Mass: 0.001 kg
J-36Fw: 4.763 mm | D: 8.733 mm | Width C: 9.53 mm | Cr: 2.27 kN | C0r: 1.91 kN | Mass: 0.002 kg
MJ-361Fw: 4.763 mm | D: 8.733 mm | Width C: 9.53 mm | Cr: 2.27 kN | C0r: 1.91 kN | Mass: 0.002 kg
J-45Fw: 6.350 mm | D: 11.113 mm | Width C: 7.92 mm | Cr: 2.22 kN | C0r: 1.73 kN | Mass: 0.003 kg
MJ-451Fw: 6.350 mm | D: 11.113 mm | Width C: 7.92 mm | Cr: 2.22 kN | C0r: 1.73 kN | Mass: 0.003 kg
J-47Fw: 6.350 mm | D: 11.113 mm | Width C: 11.13 mm | Cr: 3.38 kN | C0r: 3.02 kN | Mass: 0.004 kg
MJ-471Fw: 6.350 mm | D: 11.113 mm | Width C: 11.13 mm | Cr: 3.38 kN | C0r: 3.02 kN | Mass: 0.004 kg
J-55Fw: 7.938 mm | D: 12.700 mm | Width C: 7.92 mm | Cr: 2.40 kN | C0r: 2.00 kN | Mass: 0.003 kg
J-57Fw: 7.938 mm | D: 12.700 mm | Width C: 11.13 mm | Cr: 4.05 kN | C0r: 3.91 kN | Mass: 0.004 kg
MJ-571Fw: 7.938 mm | D: 12.700 mm | Width C: 11.13 mm | Cr: 4.05 kN | C0r: 3.91 kN | Mass: 0.005 kg
JH-57Fw: 7.938 mm | D: 14.288 mm | Width C: 11.13 mm | Cr: 4.63 kN | C0r: 3.78 kN | Mass: 0.006 kg
MJH-571Fw: 7.938 mm | D: 14.288 mm | Width C: 11.13 mm | Cr: 4.63 kN | C0r: 3.78 kN | Mass: 0.007 kg
J-65Fw: 9.525 mm | D: 14.288 mm | Width C: 7.92 mm | Cr: 2.76 kN | C0r: 2.49 kN | Mass: 0.004 kg
MJ-651Fw: 9.525 mm | D: 14.288 mm | Width C: 7.92 mm | Cr: 2.76 kN | C0r: 2.49 kN | Mass: 0.004 kg
J-66Fw: 9.525 mm | D: 14.288 mm | Width C: 9.53 mm | Cr: 3.51 kN | C0r: 3.47 kN | Mass: 0.004 kg
MJ-661Fw: 9.525 mm | D: 14.288 mm | Width C: 9.53 mm | Cr: 3.51 kN | C0r: 3.47 kN | Mass: 0.005 kg
J-68Fw: 9.525 mm | D: 14.288 mm | Width C: 12.70 mm | Cr: 5.20 kN | C0r: 5.74 kN | Mass: 0.005 kg
MJ-681Fw: 9.525 mm | D: 14.288 mm | Width C: 12.70 mm | Cr: 5.20 kN | C0r: 5.74 kN | Mass: 0.006 kg
JH-68Fw: 9.525 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 6.58 kN | C0r: 6.09 kN | Mass: 0.008 kg
J-78Fw: 11.113 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 6.36 kN | C0r: 7.70 kN | Mass: 0.006 kg
MJ-781Fw: 11.113 mm | D: 15.875 mm | Width C: 12.70 mm | Cr: 6.36 kN | C0r: 7.70 kN | Mass: 0.007 kg
JH-78Fw: 11.113 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 7.12 kN | C0r: 6.89 kN | Mass: 0.009 kg
J-86Fw: 12.700 mm | D: 17.463 mm | Width C: 9.53 mm | Cr: 4.67 kN | C0r: 5.38 kN | Mass: 0.005 kg
MJ-861Fw: 12.700 mm | D: 17.463 mm | Width C: 9.53 mm | Cr: 4.67 kN | C0r: 5.38 kN | Mass: 0.006 kg
J-88Fw: 12.700 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 6.32 kN | C0r: 7.92 kN | Mass: 0.007 kg
MJ-881Fw: 12.700 mm | D: 17.463 mm | Width C: 12.70 mm | Cr: 6.32 kN | C0r: 7.92 kN | Mass: 0.008 kg
J-812Fw: 12.700 mm | D: 17.463 mm | Width C: 19.05 mm | Cr: 10.23 kN | C0r: 14.72 kN | Mass: 0.010 kg
JH-87Fw: 12.700 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 6.41 kN | C0r: 6.18 kN | Mass: 0.009 kg
MJH-871Fw: 12.700 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 6.41 kN | C0r: 6.18 kN | Mass: 0.010 kg
JH-88Fw: 12.700 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 7.56 kN | C0r: 7.70 kN | Mass: 0.010 kg
MJH-881Fw: 12.700 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 7.56 kN | C0r: 7.70 kN | Mass: 0.012 kg
JH-812Fw: 12.700 mm | D: 19.050 mm | Width C: 19.05 mm | Cr: 12.32 kN | C0r: 14.41 kN | Mass: 0.015 kg
J-97Fw: 14.288 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 5.47 kN | C0r: 6.81 kN | Mass: 0.007 kg
MJ-971Fw: 14.288 mm | D: 19.050 mm | Width C: 11.13 mm | Cr: 5.47 kN | C0r: 6.81 kN | Mass: 0.009 kg
J-98Fw: 14.288 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 6.23 kN | C0r: 8.01 kN | Mass: 0.008 kg
MJ-981Fw: 14.288 mm | D: 19.050 mm | Width C: 12.70 mm | Cr: 6.23 kN | C0r: 8.01 kN | Mass: 0.009 kg
J-910Fw: 14.288 mm | D: 19.050 mm | Width C: 15.88 mm | Cr: 5.83 kN | C0r: 7.21 kN | Mass: 0.010 kg
JH-98Fw: 14.288 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 8.01 kN | C0r: 8.50 kN | Mass: 0.011 kg
MJH-981Fw: 14.288 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 8.01 kN | C0r: 8.50 kN | Mass: 0.014 kg
J-108Fw: 15.875 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 6.72 kN | C0r: 9.12 kN | Mass: 0.009 kg
MJ-1081Fw: 15.875 mm | D: 20.638 mm | Width C: 12.70 mm | Cr: 6.72 kN | C0r: 9.12 kN | Mass: 0.010 kg
J-1010Fw: 15.875 mm | D: 20.638 mm | Width C: 15.88 mm | Cr: 8.81 kN | C0r: 12.94 kN | Mass: 0.010 kg
MJ-10101Fw: 15.875 mm | D: 20.638 mm | Width C: 15.88 mm | Cr: 8.81 kN | C0r: 12.94 kN | Mass: 0.013 kg
J-1012Fw: 15.875 mm | D: 20.638 mm | Width C: 19.05 mm | Cr: 11.74 kN | C0r: 18.86 kN | Mass: 0.013 kg
MJ-10121Fw: 15.875 mm | D: 20.638 mm | Width C: 19.05 mm | Cr: 11.74 kN | C0r: 18.86 kN | Mass: 0.015 kg
JH-1010Fw: 15.875 mm | D: 22.212 mm | Width C: 15.88 mm | Cr: 11.57 kN | C0r: 14.10 kN | Mass: 0.015 kg
MJH-10101Fw: 15.875 mm | D: 22.212 mm | Width C: 15.88 mm | Cr: 11.57 kN | C0r: 14.10 kN | Mass: 0.017 kg
JH-1016Fw: 15.875 mm | D: 22.212 mm | Width C: 25.40 mm | Cr: 19.79 kN | C0r: 28.11 kN | Mass: 0.024 kg
MJH-10161Fw: 15.875 mm | D: 22.212 mm | Width C: 25.40 mm | Cr: 19.79 kN | C0r: 28.11 kN | Mass: 0.028 kg
J-1112Fw: 17.463 mm | D: 22.212 mm | Width C: 19.05 mm | Cr: 12.46 kN | C0r: 20.91 kN | Mass: 0.014 kg
MJ-11121Fw: 17.463 mm | D: 22.212 mm | Width C: 19.05 mm | Cr: 12.46 kN | C0r: 20.91 kN | Mass: 0.016 kg
JH-1110Fw: 17.463 mm | D: 23.813 mm | Width C: 15.88 mm | Cr: 12.05 kN | C0r: 15.21 kN | Mass: 0.016 kg
MJH-11101Fw: 17.463 mm | D: 23.813 mm | Width C: 15.88 mm | Cr: 12.05 kN | C0r: 15.21 kN | Mass: 0.019 kg
JH-1112Fw: 17.463 mm | D: 23.813 mm | Width C: 19.05 mm | Cr: 16.15 kN | C0r: 22.20 kN | Mass: 0.019 kg
J-126Fw: 19.050 mm | D: 25.400 mm | Width C: 9.53 mm | Cr: 6.49 kN | C0r: 7.03 kN | Mass: 0.010 kg
J-128Fw: 19.050 mm | D: 25.400 mm | Width C: 12.70 mm | Cr: 9.92 kN | C0r: 12.19 kN | Mass: 0.014 kg
J-1210Fw: 19.050 mm | D: 25.400 mm | Width C: 15.88 mm | Cr: 12.50 kN | C0r: 16.32 kN | Mass: 0.017 kg
MJ-12101Fw: 19.050 mm | D: 25.400 mm | Width C: 15.88 mm | Cr: 12.50 kN | C0r: 16.32 kN | Mass: 0.020 kg
J-1212Fw: 19.050 mm | D: 25.400 mm | Width C: 19.05 mm | Cr: 15.52 kN | C0r: 21.62 kN | Mass: 0.020 kg
MJ-12121Fw: 19.050 mm | D: 25.400 mm | Width C: 19.05 mm | Cr: 15.52 kN | C0r: 21.62 kN | Mass: 0.025 kg
JH-1212Fw: 19.050 mm | D: 26.988 mm | Width C: 19.05 mm | Cr: 19.08 kN | C0r: 23.58 kN | Mass: 0.026 kg
MJH-12121Fw: 19.050 mm | D: 26.988 mm | Width C: 19.05 mm | Cr: 19.08 kN | C0r: 23.58 kN | Mass: 0.031 kg
J-1314Fw: 20.638 mm | D: 26.988 mm | Width C: 22.23 mm | Cr: 19.31 kN | C0r: 29.31 kN | Mass: 0.025 kg
JH-1312Fw: 20.638 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 18.77 kN | C0r: 24.55 kN | Mass: 0.028 kg
MJH-13121Fw: 20.638 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 18.77 kN | C0r: 24.55 kN | Mass: 0.034 kg
J-146Fw: 22.225 mm | D: 28.575 mm | Width C: 9.53 mm | Cr: 7.21 kN | C0r: 8.41 kN | Mass: 0.012 kg
J-148Fw: 22.225 mm | D: 28.575 mm | Width C: 12.70 mm | Cr: 10.94 kN | C0r: 14.50 kN | Mass: 0.015 kg
J-1412Fw: 22.225 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 17.88 kN | C0r: 27.18 kN | Mass: 0.024 kg
MJ-14121Fw: 22.225 mm | D: 28.575 mm | Width C: 19.05 mm | Cr: 17.88 kN | C0r: 27.18 kN | Mass: 0.028 kg
J-1416Fw: 22.225 mm | D: 28.575 mm | Width C: 25.40 mm | Cr: 23.66 kN | C0r: 38.97 kN | Mass: 0.031 kg
MJ-14161Fw: 22.225 mm | D: 28.575 mm | Width C: 25.40 mm | Cr: 23.66 kN | C0r: 38.97 kN | Mass: 0.059 kg
JH-1412Fw: 22.225 mm | D: 30.163 mm | Width C: 19.05 mm | Cr: 18.33 kN | C0r: 24.55 kN | Mass: 0.030 kg
MJH-14121Fw: 22.225 mm | D: 30.163 mm | Width C: 19.05 mm | Cr: 18.33 kN | C0r: 24.55 kN | Mass: 0.036 kg
JH-1416Fw: 22.225 mm | D: 30.163 mm | Width C: 25.40 mm | Cr: 25.40 kN | C0r: 37.37 kN | Mass: 0.040 kg
MJH-14161Fw: 22.225 mm | D: 30.163 mm | Width C: 25.40 mm | Cr: 25.40 kN | C0r: 37.37 kN | Mass: 0.048 kg
J-1612Fw: 25.400 mm | D: 31.750 mm | Width C: 19.05 mm | Cr: 18.15 kN | C0r: 28.82 kN | Mass: 0.026 kg
J-1616Fw: 25.400 mm | D: 31.750 mm | Width C: 25.40 mm | Cr: 24.95 kN | C0r: 43.41 kN | Mass: 0.035 kg
MJ-16161Fw: 25.400 mm | D: 31.750 mm | Width C: 25.40 mm | Cr: 24.95 kN | C0r: 43.41 kN | Mass: 0.042 kg
JH-1612Fw: 25.400 mm | D: 33.338 mm | Width C: 19.05 mm | Cr: 20.68 kN | C0r: 29.58 kN | Mass: 0.034 kg
MJH-16121Fw: 25.400 mm | D: 33.338 mm | Width C: 19.05 mm | Cr: 20.68 kN | C0r: 29.58 kN | Mass: 0.040 kg
JH-1616Fw: 25.400 mm | D: 33.338 mm | Width C: 25.40 mm | Cr: 27.58 kN | C0r: 42.88 kN | Mass: 0.045 kg
MJH-16161Fw: 25.400 mm | D: 33.338 mm | Width C: 25.40 mm | Cr: 27.58 kN | C0r: 42.88 kN | Mass: 0.054 kg
J-188Fw: 28.575 mm | D: 34.925 mm | Width C: 12.70 mm | Cr: 11.65 kN | C0r: 16.95 kN | Mass: 0.020 kg
MJ-1881Fw: 28.575 mm | D: 34.925 mm | Width C: 12.70 mm | Cr: 11.65 kN | C0r: 16.95 kN | Mass: 0.023 kg
J-1812Fw: 28.575 mm | D: 34.925 mm | Width C: 19.05 mm | Cr: 19.04 kN | C0r: 31.76 kN | Mass: 0.029 kg
MJ-18121Fw: 28.575 mm | D: 34.925 mm | Width C: 19.05 mm | Cr: 19.04 kN | C0r: 31.76 kN | Mass: 0.035 kg
J-1816Fw: 28.575 mm | D: 34.925 mm | Width C: 25.40 mm | Cr: 26.16 kN | C0r: 48.04 kN | Mass: 0.039 kg
MJ-18161Fw: 28.575 mm | D: 34.925 mm | Width C: 25.40 mm | Cr: 26.16 kN | C0r: 48.04 kN | Mass: 0.047 kg
JH-1812Fw: 28.575 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 23.35 kN | C0r: 31.32 kN | Mass: 0.046 kg
MJH-18121Fw: 28.575 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 23.35 kN | C0r: 31.32 kN | Mass: 0.055 kg
JH-1816Fw: 28.575 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 33.14 kN | C0r: 49.38 kN | Mass: 0.061 kg
MJH-18161Fw: 28.575 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 33.14 kN | C0r: 49.38 kN | Mass: 0.074 kg
J-2012Fw: 31.750 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 19.84 kN | C0r: 34.70 kN | Mass: 0.036 kg
MJ-20121Fw: 31.750 mm | D: 38.100 mm | Width C: 19.05 mm | Cr: 19.84 kN | C0r: 34.70 kN | Mass: 0.043 kg
J-2016Fw: 31.750 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 28.82 kN | C0r: 56.49 kN | Mass: 0.043 kg
MJ-20161Fw: 31.750 mm | D: 38.100 mm | Width C: 25.40 mm | Cr: 28.82 kN | C0r: 56.49 kN | Mass: 0.051 kg
JH-2012Fw: 31.750 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 24.11 kN | C0r: 33.94 kN | Mass: 0.050 kg
JH-2016Fw: 31.750 mm | D: 41.275 mm | Width C: 25.40 mm | Cr: 33.94 kN | C0r: 52.93 kN | Mass: 0.067 kg
JH-2020Fw: 31.750 mm | D: 41.275 mm | Width C: 31.75 mm | Cr: 43.37 kN | C0r: 72.51 kN | Mass: 0.084 kg
J-228Fw: 34.925 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 13.97 kN | C0r: 22.91 kN | Mass: 0.024 kg
MJ-2281Fw: 34.925 mm | D: 41.275 mm | Width C: 12.70 mm | Cr: 13.97 kN | C0r: 22.91 kN | Mass: 0.028 kg
J-2212Fw: 34.925 mm | D: 41.275 mm | Width C: 19.05 mm | Cr: 22.82 kN | C0r: 42.97 kN | Mass: 0.035 kg
JH-2212Fw: 34.925 mm | D: 44.450 mm | Width C: 19.05 mm | Cr: 26.24 kN | C0r: 38.43 kN | Mass: 0.055 kg
MJH-22121Fw: 34.925 mm | D: 44.450 mm | Width C: 19.05 mm | Cr: 26.24 kN | C0r: 38.43 kN | Mass: 0.065 kg
JH-2216Fw: 34.925 mm | D: 44.450 mm | Width C: 25.40 mm | Cr: 36.52 kN | C0r: 58.72 kN | Mass: 0.073 kg
MJH-22161Fw: 34.925 mm | D: 44.450 mm | Width C: 25.40 mm | Cr: 36.52 kN | C0r: 58.72 kN | Mass: 0.087 kg
J-2412Fw: 38.100 mm | D: 47.625 mm | Width C: 19.05 mm | Cr: 29.89 kN | C0r: 47.15 kN | Mass: 0.059 kg
MJ-24121Fw: 38.100 mm | D: 47.625 mm | Width C: 19.05 mm | Cr: 29.89 kN | C0r: 47.15 kN | Mass: 0.094 kg
J-2416Fw: 38.100 mm | D: 47.625 mm | Width C: 25.40 mm | Cr: 39.32 kN | C0r: 66.72 kN | Mass: 0.079 kg
MJ-24161Fw: 38.100 mm | D: 47.625 mm | Width C: 25.40 mm | Cr: 39.32 kN | C0r: 66.72 kN | Mass: 0.094 kg
J-2420Fw: 38.100 mm | D: 47.625 mm | Width C: 31.75 mm | Cr: 49.38 kN | C0r: 89.85 kN | Mass: 0.099 kg
J-2610Fw: 41.275 mm | D: 50.800 mm | Width C: 15.88 mm | Cr: 26.11 kN | C0r: 40.97 kN | Mass: 0.053 kg
J-2616Fw: 41.275 mm | D: 50.800 mm | Width C: 25.40 mm | Cr: 39.28 kN | C0r: 68.95 kN | Mass: 0.085 kg
M-26161Fw: 41.275 mm | D: 50.800 mm | Width C: 25.40 mm | Cr: 39.28 kN | C0r: 68.95 kN | Mass: 0.101 kg
J-2812Fw: 44.450 mm | D: 53.975 mm | Width C: 19.05 mm | Cr: 29.58 kN | C0r: 49.38 kN | Mass: 0.068 kg
MJ-28121Fw: 44.450 mm | D: 53.975 mm | Width C: 19.05 mm | Cr: 29.58 kN | C0r: 49.38 kN | Mass: 0.081 kg
J-2816Fw: 44.450 mm | D: 53.975 mm | Width C: 25.40 mm | Cr: 40.08 kN | C0r: 72.95 kN | Mass: 0.091 kg
MJ-28161Fw: 44.450 mm | D: 53.975 mm | Width C: 25.40 mm | Cr: 40.08 kN | C0r: 72.95 kN | Mass: 0.108 kg
J-2824Fw: 44.450 mm | D: 53.975 mm | Width C: 38.10 mm | Cr: 59.61 kN | C0r: 121.88 kN | Mass: 0.136 kg
MJ-28241Fw: 44.450 mm | D: 53.975 mm | Width C: 38.10 mm | Cr: 59.61 kN | C0r: 121.88 kN | Mass: 0.162 kg
J-3016Fw: 47.625 mm | D: 57.150 mm | Width C: 25.40 mm | Cr: 41.10 kN | C0r: 76.06 kN | Mass: 0.097 kg
MJ-30161Fw: 47.625 mm | D: 57.150 mm | Width C: 25.40 mm | Cr: 41.10 kN | C0r: 76.06 kN | Mass: 0.115 kg
J-3216Fw: 50.800 mm | D: 60.325 mm | Width C: 25.40 mm | Cr: 42.39 kN | C0r: 81.40 kN | Mass: 0.103 kg
MJ-32161Fw: 50.800 mm | D: 60.325 mm | Width C: 25.40 mm | Cr: 42.39 kN | C0r: 81.40 kN | Mass: 0.137 kg
J-3612Fw: 57.150 mm | D: 66.675 mm | Width C: 19.05 mm | Cr: 35.41 kN | C0r: 65.83 kN | Mass: 0.086 kg
J-3616Fw: 57.150 mm | D: 66.675 mm | Width C: 25.40 mm | Cr: 46.26 kN | C0r: 92.52 kN | Mass: 0.114 kg
J-4412Fw: 69.850 mm | D: 79.375 mm | Width C: 19.05 mm | Cr: 36.25 kN | C0r: 72.95 kN | Mass: 0.103 kg
BT1112-1Fw: 20.638 mm | D: 26.988 mm | Width C: 19.05 mm | Cr: 12.7 kN | C0r: 21.2 kN | Mass: 0.024 kg
BT146PFw: 22.225 mm | D: 28.575 mm | Width C: 9.525 mm | Cr: 7.05 kN | C0r: 8.55 kN | Mass: 0.012 kg
BT166Fw: 25.40 mm | D: 31.75 mm | Width C: 9.525 mm | Cr: 7.45 kN | C0r: 9.5 kN | Mass: 0.014 kg
BT188Fw: 28.575 mm | D: 34.925 mm | Width C: 12.7 mm | Cr: 13.1 kN | C0r: 20.3 kN | Mass: 0.021 kg
BT1916MFw: 30.162 mm | D: 38.1 mm | Width C: 25.4 mm | Cr: 31.5 kN | C0r: 51.9 kN | Mass: 0.054 kg
BT2012Fw: 31.75 mm | D: 38.1 mm | Width C: 19.05 mm | Cr: 21.2 kN | C0r: 38.7 kN | Mass: 0.035 kg
BT2614Fw: 41.275 mm | D: 50.8 mm | Width C: 22.225 mm | Cr: 34.1 kN | C0r: 56.9 kN | Mass: 0.082 kg
BT3010-1Fw: 47.625 mm | D: 57.15 mm | Width C: 15.875 mm | Cr: 25.2 kN | C0r: 40.1 kN | Mass: 0.064 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
