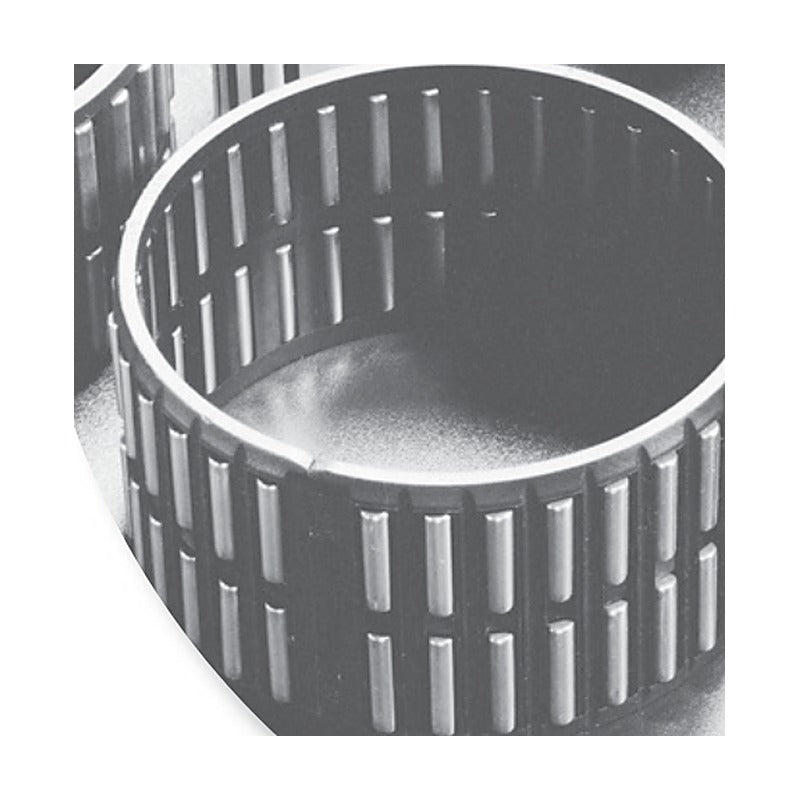

KOYO K, K ZW Series Radial Needle Roller and Cage Assemblies (Metric)

KOYO K, K ZW Series Radial Needle Roller and Cage Assemblies (Metric)

Metric single-row (K) and double-row (K ZW) radial needle roller and cage assemblies to ISO 3030 / DIN 5405, roller set bore Fw from 3 mm upward.

Key features

  • Compact radial section, run directly on shaft and housing
  • High load capacity and rigidity for size
  • Polymer (P) or steel (S) cages
  • Roller set bore Fw and outside diameter Ew listed
  • Grease and oil speed ratings given

Specifications

Bearing type Radial needle roller and cage assembly
Series K, K ZW
Standard ISO 3030 / DIN 5405-1
Cage Polymer (P) or steel (S)
Source KOYO Needle Roller Bearings catalogue, p. B-1-8 to B-1-29
K3X5X7TN Fw: 3 mm | Ew: 5 mm | Bc: 7 mm | Cr: 1.56 kN | C0r: 1.29 kN | Mass: 0.0002 kg
K4X7X7TN Fw: 4 mm | Ew: 7 mm | Bc: 7 mm | Cr: 1.83 kN | C0r: 1.32 kN | Mass: 0.0005 kg
K5X8X8TN Fw: 5 mm | Ew: 8 mm | Bc: 8 mm | Cr: 2.18 kN | C0r: 1.71 kN | Mass: 0.0007 kg
K5X8X10TN Fw: 5 mm | Ew: 8 mm | Bc: 10 mm | Cr: 3.04 kN | C0r: 2.63 kN | Mass: 0.0008 kg
K5X9X13TN Fw: 5 mm | Ew: 9 mm | Bc: 13 mm | Cr: 4.29 kN | C0r: 3.55 kN | Mass: 0.002 kg
K6X9X8H Fw: 6 mm | Ew: 9 mm | Bc: 8 mm | Cr: 3.19 kN | C0r: 2.90 kN | Mass: 0.0008 kg
K6X9X8TN Fw: 6 mm | Ew: 9 mm | Bc: 8 mm | Cr: 2.47 kN | C0r: 2.07 kN | Mass: 0.001 kg
K6X9X10TN Fw: 6 mm | Ew: 9 mm | Bc: 10 mm | Cr: 3.07 kN | C0r: 2.74 kN | Mass: 0.001 kg
K7X10X8TN Fw: 7 mm | Ew: 10 mm | Bc: 8 mm | Cr: 2.74 kN | C0r: 2.44 kN | Mass: 0.001 kg
K7X10X10TN Fw: 7 mm | Ew: 10 mm | Bc: 10 mm | Cr: 3.40 kN | C0r: 3.22 kN | Mass: 0.001 kg
K7X11X15TN Fw: 7 mm | Ew: 11 mm | Bc: 15 mm | Cr: 6.44 kN | C0r: 6.24 kN | Mass: 0.003 kg
K8X11X8FV Fw: 8 mm | Ew: 11 mm | Bc: 8 mm | Cr: 3.23 kN | C0r: 3.11 kN | Mass: 0.002 kg
K8X11X8TN Fw: 8 mm | Ew: 11 mm | Bc: 8 mm | Cr: 2.34 kN | C0r: 2.05 kN | Mass: 0.001 kg
K8X11X10H Fw: 8 mm | Ew: 11 mm | Bc: 10 mm | Cr: 4.57 kN | C0r: 4.89 kN | Mass: 0.002 kg
K8X11X10FV Fw: 8 mm | Ew: 11 mm | Bc: 10 mm | Cr: 4.01 kN | C0r: 4.11 kN | Mass: 0.002 kg
K8x11x10TN Fw: 8 mm | Ew: 11 mm | Bc: 10 mm | Cr: 3.84 kN | C0r: 3.91 kN | Mass: 0.001 kg
K8x11x13TN Fw: 8 mm | Ew: 11 mm | Bc: 13 mm | Cr: 5.18 kN | C0r: 5.75 kN | Mass: 0.002 kg
K8X11X13H Fw: 8 mm | Ew: 11 mm | Bc: 13 mm | Cr: 5.22 kN | C0r: 5.78 kN | Mass: 0.003 kg
K9X12X10FH Fw: 9 mm | Ew: 12 mm | Bc: 10 mm | Cr: 4.27 kN | C0r: 4.60 kN | Mass: 0.003 kg
K9X12X10FV Fw: 9 mm | Ew: 12 mm | Bc: 10 mm | Cr: 4.27 kN | C0r: 4.60 kN | Mass: 0.002 kg
K9X12X13FH Fw: 9 mm | Ew: 12 mm | Bc: 13 mm | Cr: 5.57 kN | C0r: 6.47 kN | Mass: 0.003 kg
K9X12X13FV Fw: 9 mm | Ew: 12 mm | Bc: 13 mm | Cr: 5.57 kN | C0r: 6.47 kN | Mass: 0.003 kg
K9X13X8H Fw: 9 mm | Ew: 13 mm | Bc: 8 mm | Cr: 3.96 kN | C0r: 3.50 kN | Mass: 0.003 kg
K10X13X10H Fw: 10 mm | Ew: 13 mm | Bc: 10 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.002 kg
K10X13X10TN Fw: 10 mm | Ew: 13 mm | Bc: 10 mm | Cr: 4.29 kN | C0r: 4.77 kN | Mass: 0.002 kg
K10X13X13 Fw: 10 mm | Ew: 13 mm | Bc: 13 mm | Cr: 5.90 kN | C0r: 7.16 kN | Mass: 0.003 kg
K10X13X16 Fw: 10 mm | Ew: 13 mm | Bc: 16 mm | Cr: 7.43 kN | C0r: 9.64 kN | Mass: 0.004 kg
K10X14X10H Fw: 10 mm | Ew: 14 mm | Bc: 10 mm | Cr: 6.12 kN | C0r: 6.29 kN | Mass: 0.003 kg
K10X14X13H Fw: 10 mm | Ew: 14 mm | Bc: 13 mm | Cr: 7.88 kN | C0r: 8.71 kN | Mass: 0.004 kg
K10X16X12F Fw: 10 mm | Ew: 16 mm | Bc: 12 mm | Cr: 8.39 kN | C0r: 7.47 kN | Mass: 0.006 kg
K10X16X12TN Fw: 10 mm | Ew: 16 mm | Bc: 12 mm | Cr: 7.50 kN | C0r: 6.40 kN | Mass: 0.005 kg
K12X15X10H Fw: 12 mm | Ew: 15 mm | Bc: 10 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.003 kg
K12X15X13H Fw: 12 mm | Ew: 15 mm | Bc: 13 mm | Cr: 6.78 kN | C0r: 9.03 kN | Mass: 0.004 kg
K12X16X13H Fw: 12 mm | Ew: 16 mm | Bc: 13 mm | Cr: 7.49 kN | C0r: 8.51 kN | Mass: 0.006 kg
K12X17X13 Fw: 12 mm | Ew: 17 mm | Bc: 13 mm | Cr: 8.93 kN | C0r: 9.29 kN | Mass: 0.008 kg
K12X18X12H Fw: 12 mm | Ew: 18 mm | Bc: 12 mm | Cr: 9.76 kN | C0r: 9.40 kN | Mass: 0.009 kg
K13X17X10 Fw: 13 mm | Ew: 17 mm | Bc: 10 mm | Cr: 7.22 kN | C0r: 8.33 kN | Mass: 0.004 kg
K13X18X15F Fw: 13 mm | Ew: 18 mm | Bc: 15 mm | Cr: 10.8 kN | C0r: 12.1 kN | Mass: 0.008 kg
K14X18X8 Fw: 14 mm | Ew: 18 mm | Bc: 8 mm | Cr: 5.39 kN | C0r: 5.82 kN | Mass: 0.004 kg
K14X18X10 Fw: 14 mm | Ew: 18 mm | Bc: 10 mm | Cr: 7.17 kN | C0r: 8.41 kN | Mass: 0.005 kg
K14X18X13 Fw: 14 mm | Ew: 18 mm | Bc: 13 mm | Cr: 9.73 kN | C0r: 12.5 kN | Mass: 0.006 kg
K14X18X15 Fw: 14 mm | Ew: 18 mm | Bc: 15 mm | Cr: 10.5 kN | C0r: 13.8 kN | Mass: 0.007 kg
K14X18X17H Fw: 14 mm | Ew: 18 mm | Bc: 17 mm | Cr: 12.4 kN | C0r: 17.1 kN | Mass: 0.008 kg
K14X19X13H Fw: 14 mm | Ew: 19 mm | Bc: 13 mm | Cr: 10.2 kN | C0r: 11.4 kN | Mass: 0.008 kg
K14X19X18F Fw: 14 mm | Ew: 19 mm | Bc: 18 mm | Cr: 13.2 kN | C0r: 16.0 kN | Mass: 0.011 kg
K14X20X12 Fw: 14 mm | Ew: 20 mm | Bc: 12 mm | Cr: 10.5 kN | C0r: 10.6 kN | Mass: 0.009 kg
K15X18X14TN Fw: 15 mm | Ew: 18 mm | Bc: 14 mm | Cr: 7.92 kN | C0r: 11.9 kN | Mass: 0.003 kg
K15X18X16F Fw: 15 mm | Ew: 18 mm | Bc: 16 mm | Cr: 8.36 kN | C0r: 12.6 kN | Mass: 0.005 kg
K15X18X17 Fw: 15 mm | Ew: 18 mm | Bc: 17 mm | Cr: 8.08 kN | C0r: 12.1 kN | Mass: 0.005 kg
K15X19X10 Fw: 15 mm | Ew: 19 mm | Bc: 10 mm | Cr: 7.87 kN | C0r: 9.69 kN | Mass: 0.005 kg
K15X19X13 Fw: 15 mm | Ew: 19 mm | Bc: 13 mm | Cr: 9.66 kN | C0r: 12.6 kN | Mass: 0.007 kg
K15X19X17H Fw: 15 mm | Ew: 19 mm | Bc: 17 mm | Cr: 12.3 kN | C0r: 17.2 kN | Mass: 0.009 kg
K15X19X22ZW Fw: 15 mm | Ew: 19 mm | Bc: 22 mm | Cr: 12.2 kN | C0r: 17.0 kN | Mass: 0.010 kg
K15X20X13H Fw: 15 mm | Ew: 20 mm | Bc: 13 mm | Cr: 9.93 kN | C0r: 11.3 kN | Mass: 0.008 kg
K15X21X15 Fw: 15 mm | Ew: 21 mm | Bc: 15 mm | Cr: 13.4 kN | C0r: 14.8 kN | Mass: 0.013 kg
K15X21X21H Fw: 15 mm | Ew: 21 mm | Bc: 21 mm | Cr: 18.0 kN | C0r: 21.7 kN | Mass: 0.018 kg
K16X20X8F Fw: 16 mm | Ew: 20 mm | Bc: 8 mm | Cr: 6.37 kN | C0r: 7.51 kN | Mass: 0.005 kg
K16X20X10H Fw: 16 mm | Ew: 20 mm | Bc: 10 mm | Cr: 7.82 kN | C0r: 9.76 kN | Mass: 0.006 kg
K16X20X13 Fw: 16 mm | Ew: 20 mm | Bc: 13 mm | Cr: 10.1 kN | C0r: 13.5 kN | Mass: 0.007 kg
K16X20X14 Fw: 16 mm | Ew: 20 mm | Bc: 14 mm | Cr: 10.8 kN | C0r: 14.8 kN | Mass: 0.007 kg
K16X20X17H Fw: 16 mm | Ew: 20 mm | Bc: 17 mm | Cr: 12.9 kN | C0r: 18.5 kN | Mass: 0.008 kg
K16X20X20 Fw: 16 mm | Ew: 20 mm | Bc: 20 mm | Cr: 13.4 kN | C0r: 19.5 kN | Mass: 0.011 kg
K16X22X12 Fw: 16 mm | Ew: 22 mm | Bc: 12 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.010 kg
K16X22X16H Fw: 16 mm | Ew: 22 mm | Bc: 16 mm | Cr: 14.9 kN | C0r: 17.2 kN | Mass: 0.014 kg
K16X22X20 Fw: 16 mm | Ew: 22 mm | Bc: 20 mm | Cr: 18.6 kN | C0r: 22.9 kN | Mass: 0.017 kg
K16X24X20 Fw: 16 mm | Ew: 24 mm | Bc: 20 mm | Cr: 20.2 kN | C0r: 21.4 kN | Mass: 0.025 kg
K17X20X10 Fw: 17 mm | Ew: 20 mm | Bc: 10 mm | Cr: 5.96 kN | C0r: 8.53 kN | Mass: 0.004 kg
K17X21X10 Fw: 17 mm | Ew: 21 mm | Bc: 10 mm | Cr: 8.12 kN | C0r: 10.4 kN | Mass: 0.006 kg
K17X21X13H Fw: 17 mm | Ew: 21 mm | Bc: 12.8 mm | Cr: 10.5 kN | C0r: 14.5 kN | Mass: 0.008 kg
K17X21X15 Fw: 17 mm | Ew: 21 mm | Bc: 15 mm | Cr: 11.4 kN | C0r: 16.1 kN | Mass: 0.008 kg
K17X21X17H Fw: 17 mm | Ew: 21 mm | Bc: 17 mm | Cr: 13.4 kN | C0r: 19.8 kN | Mass: 0.011 kg
K17X22X20FH Fw: 17 mm | Ew: 22 mm | Bc: 20 mm | Cr: 17.0 kN | C0r: 23.3 kN | Mass: 0.015 kg
K17X23X15F Fw: 17 mm | Ew: 23 mm | Bc: 15 mm | Cr: 14.1 kN | C0r: 16.3 kN | Mass: 0.010 kg
K18X22X8F Fw: 18 mm | Ew: 22 mm | Bc: 8 mm | Cr: 6.32 kN | C0r: 7.70 kN | Mass: 0.005 kg
K18X22X10H Fw: 18 mm | Ew: 22 mm | Bc: 10 mm | Cr: 8.41 kN | C0r: 11.1 kN | Mass: 0.006 kg
K18X22X13H Fw: 18 mm | Ew: 22 mm | Bc: 13 mm | Cr: 10.8 kN | C0r: 15.4 kN | Mass: 0.008 kg
K18X22X14 Fw: 18 mm | Ew: 22 mm | Bc: 14 mm | Cr: 11.6 kN | C0r: 16.8 kN | Mass: 0.009 kg
K18X22X14FV Fw: 18 mm | Ew: 22 mm | Bc: 14 mm | Cr: 11.3 kN | C0r: 16.3 kN | Mass: 0.009 kg
K18X22X17H Fw: 18 mm | Ew: 22 mm | Bc: 17 mm | Cr: 13.3 kN | C0r: 19.9 kN | Mass: 0.009 kg
K18X22X20F Fw: 18 mm | Ew: 22 mm | Bc: 20 mm | Cr: 15.0 kN | C0r: 23.4 kN | Mass: 0.011 kg
K18X24X12 Fw: 18 mm | Ew: 24 mm | Bc: 12 mm | Cr: 11.8 kN | C0r: 13.1 kN | Mass: 0.011 kg
K18X24X20H Fw: 18 mm | Ew: 24 mm | Bc: 20 mm | Cr: 19.4 kN | C0r: 24.9 kN | Mass: 0.019 kg
K18X25X22H Fw: 18 mm | Ew: 25 mm | Bc: 22 mm | Cr: 23.3 kN | C0r: 28.6 kN | Mass: 0.025 kg
K18X26X12FV Fw: 18 mm | Ew: 26 mm | Bc: 12 mm | Cr: 13.8 kN | C0r: 13.5 kN | Mass: 0.020 kg
K18X26X20F Fw: 18 mm | Ew: 26 mm | Bc: 20 mm | Cr: 21.7 kN | C0r: 24.1 kN | Mass: 0.027 kg
K19X23X13 Fw: 19 mm | Ew: 23 mm | Bc: 13 mm | Cr: 10.8 kN | C0r: 15.5 kN | Mass: 0.008 kg
K19X23X17 Fw: 19 mm | Ew: 23 mm | Bc: 17 mm | Cr: 13.4 kN | C0r: 20.6 kN | Mass: 0.011 kg
K20X24X8F Fw: 20 mm | Ew: 24 mm | Bc: 8 mm | Cr: 7.31 kN | C0r: 9.60 kN | Mass: 0.005 kg
K20X24X10H Fw: 20 mm | Ew: 24 mm | Bc: 10 mm | Cr: 8.97 kN | C0r: 12.5 kN | Mass: 0.006 kg
K20X24X12 Fw: 20 mm | Ew: 24 mm | Bc: 12 mm | Cr: 10.7 kN | C0r: 15.7 kN | Mass: 0.008 kg
K20X24X13H Fw: 20 mm | Ew: 24 mm | Bc: 13 mm | Cr: 11.5 kN | C0r: 17.3 kN | Mass: 0.009 kg
K20X24X14 Fw: 20 mm | Ew: 24 mm | Bc: 14 mm | Cr: 12.4 kN | C0r: 18.9 kN | Mass: 0.009 kg
K20X24X17H Fw: 20 mm | Ew: 24 mm | Bc: 17 mm | Cr: 14.8 kN | C0r: 23.7 kN | Mass: 0.011 kg
K20X26X12 Fw: 20 mm | Ew: 26 mm | Bc: 12 mm | Cr: 13.0 kN | C0r: 15.3 kN | Mass: 0.012 kg
K20X26X13H Fw: 20 mm | Ew: 26 mm | Bc: 13 mm | Cr: 13.4 kN | C0r: 15.9 kN | Mass: 0.014 kg
K20X26X17H Fw: 20 mm | Ew: 26 mm | Bc: 17 mm | Cr: 19.3 kN | C0r: 25.5 kN | Mass: 0.017 kg
K20X26X20 Fw: 20 mm | Ew: 26 mm | Bc: 20 mm | Cr: 20.3 kN | C0r: 27.2 kN | Mass: 0.020 kg
K20X28X20H Fw: 20 mm | Ew: 28 mm | Bc: 20 mm | Cr: 24.6 kN | C0r: 29.0 kN | Mass: 0.028 kg
K20X28X25H Fw: 20 mm | Ew: 28 mm | Bc: 25 mm | Cr: 29.7 kN | C0r: 37.0 kN | Mass: 0.036 kg
K20X30X30H Fw: 20 mm | Ew: 30 mm | Bc: 30 mm | Cr: 38.9 kN | C0r: 45.8 kN | Mass: 0.055 kg
K20X32X36H Fw: 20 mm | Ew: 32 mm | Bc: 36 mm | Cr: 49.9 kN | C0r: 57.0 kN | Mass: 0.082 kg
K21X25X17H Fw: 21 mm | Ew: 25 mm | Bc: 17 mm | Cr: 14.3 kN | C0r: 23.1 kN | Mass: 0.013 kg
K22X26X10H Fw: 22 mm | Ew: 26 mm | Bc: 10 mm | Cr: 9.81 kN | C0r: 14.5 kN | Mass: 0.007 kg
K22X26X13H Fw: 22 mm | Ew: 26 mm | Bc: 13 mm | Cr: 11.8 kN | C0r: 18.3 kN | Mass: 0.012 kg
K22X26X17H Fw: 22 mm | Ew: 26 mm | Bc: 17 mm | Cr: 15.6 kN | C0r: 26.3 kN | Mass: 0.012 kg
K22X26X18H Fw: 22 mm | Ew: 26 mm | Bc: 18 mm | Cr: 15.3 kN | C0r: 25.5 kN | Mass: 0.017 kg
K22X28X13 Fw: 22 mm | Ew: 28 mm | Bc: 13 mm | Cr: 13.9 kN | C0r: 17.1 kN | Mass: 0.015 kg
K22X28X17H Fw: 22 mm | Ew: 28 mm | Bc: 17 mm | Cr: 18.2 kN | C0r: 24.2 kN | Mass: 0.020 kg
K22X30X15H Fw: 22 mm | Ew: 30 mm | Bc: 15 mm | Cr: 19.7 kN | C0r: 22.3 kN | Mass: 0.023 kg
K22X30X20FV Fw: 22 mm | Ew: 30 mm | Bc: 20 mm | Cr: 24.4 kN | C0r: 29.4 kN | Mass: 0.031 kg
K22X32X24F Fw: 22 mm | Ew: 32 mm | Bc: 24 mm | Cr: 33.1 kN | C0r: 37.9 kN | Mass: 0.046 kg
K22X32X30H Fw: 22 mm | Ew: 32 mm | Bc: 30 mm | Cr: 41.8 kN | C0r: 51.3 kN | Mass: 0.057 kg
K23X28X24F Fw: 23 mm | Ew: 28 mm | Bc: 24 mm | Cr: 22.4 kN | C0r: 36.2 kN | Mass: 0.023 kg
K23X35X16H Fw: 23 mm | Ew: 35 mm | Bc: 16 mm | Cr: 25.9 kN | C0r: 25.1 kN | Mass: 0.040 kg
K24X28X10H Fw: 24 mm | Ew: 28 mm | Bc: 10 mm | Cr: 9.67 kN | C0r: 14.6 kN | Mass: 0.027 kg
K24X28X13H Fw: 24 mm | Ew: 28 mm | Bc: 13 mm | Cr: 12.5 kN | C0r: 20.2 kN | Mass: 0.010 kg
K24X28X16F Fw: 24 mm | Ew: 28 mm | Bc: 16 mm | Cr: 12.6 kN | C0r: 20.4 kN | Mass: 0.012 kg
K24X28X17H Fw: 24 mm | Ew: 28 mm | Bc: 17 mm | Cr: 15.4 kN | C0r: 26.4 kN | Mass: 0.013 kg
K24X30X10TN Fw: 24 mm | Ew: 30 mm | Bc: 10 mm | Cr: 11.3 kN | C0r: 13.5 kN | Mass: 0.008 kg
K24X30X17H Fw: 24 mm | Ew: 30 mm | Bc: 17 mm | Cr: 19.8 kN | C0r: 27.7 kN | Mass: 0.020 kg
K24X30X22 Fw: 24 mm | Ew: 30 mm | Bc: 22 mm | Cr: 25.0 kN | C0r: 37.3 kN | Mass: 0.024 kg
K24X36X23H Fw: 24 mm | Ew: 36 mm | Bc: 23 mm | Cr: 37.1 kN | C0r: 40.1 kN | Mass: 0.070 kg
K25X29X10H Fw: 25 mm | Ew: 29 mm | Bc: 10 mm | Cr: 9.61 kN | C0r: 14.6 kN | Mass: 0.008 kg
K25X29X13H Fw: 25 mm | Ew: 29 mm | Bc: 13 mm | Cr: 12.8 kN | C0r: 21.1 kN | Mass: 0.010 kg
K25X29X17H Fw: 25 mm | Ew: 29 mm | Bc: 17 mm | Cr: 15.1 kN | C0r: 26.2 kN | Mass: 0.016 kg
K25X30X13 Fw: 25 mm | Ew: 30 mm | Bc: 13 mm | Cr: 14.6 kN | C0r: 21.4 kN | Mass: 0.012 kg
K25X30X17H Fw: 25 mm | Ew: 30 mm | Bc: 17 mm | Cr: 18.8 kN | C0r: 29.8 kN | Mass: 0.016 kg
K25X30X18 Fw: 25 mm | Ew: 30 mm | Bc: 18 mm | Cr: 20.6 kN | C0r: 33.4 kN | Mass: 0.017 kg
K25X30X20H Fw: 25 mm | Ew: 30 mm | Bc: 20 mm | Cr: 21.9 kN | C0r: 36.1 kN | Mass: 0.019 kg
K25X30X24H Fw: 25 mm | Ew: 30 mm | Bc: 24 mm | Cr: 24.8 kN | C0r: 42.4 kN | Mass: 0.024 kg
K25X30X26ZW Fw: 25 mm | Ew: 30 mm | Bc: 26 mm | Cr: 23.0 kN | C0r: 38.6 kN | Mass: 0.027 kg
K25X31X14H Fw: 25 mm | Ew: 31 mm | Bc: 14 mm | Cr: 16.8 kN | C0r: 22.7 kN | Mass: 0.017 kg
K25X31X17H Fw: 25 mm | Ew: 31 mm | Bc: 17 mm | Cr: 19.7 kN | C0r: 27.8 kN | Mass: 0.020 kg
K25X31X21H Fw: 25 mm | Ew: 31 mm | Bc: 21 mm | Cr: 25.1 kN | C0r: 38.0 kN | Mass: 0.026 kg
K25X31X24FH Fw: 25 mm | Ew: 31 mm | Bc: 24 mm | Cr: 25.3 kN | C0r: 38.5 kN | Mass: 0.031 kg
K25X32X16 Fw: 25 mm | Ew: 32 mm | Bc: 16 mm | Cr: 19.8 kN | C0r: 25.3 kN | Mass: 0.027 kg
K25X33X20H Fw: 25 mm | Ew: 33 mm | Bc: 20 mm | Cr: 28.8 kN | C0r: 37.6 kN | Mass: 0.035 kg
K25X33X24H Fw: 25 mm | Ew: 33 mm | Bc: 24 mm | Cr: 32.3 kN | C0r: 43.5 kN | Mass: 0.038 kg
K25X33X25H Fw: 25 mm | Ew: 33 mm | Bc: 25 mm | Cr: 33.0 kN | C0r: 44.6 kN | Mass: 0.041 kg
K25X35X23,7H Fw: 25 mm | Ew: 35 mm | Bc: 23.7 mm | Cr: 35.9 kN | C0r: 42.3 kN | Mass: 0.050 kg
K25X35X25H Fw: 25 mm | Ew: 35 mm | Bc: 25 mm | Cr: 37.8 kN | C0r: 46.2 kN | Mass: 0.054 kg
K25X35X30H Fw: 25 mm | Ew: 35 mm | Bc: 30 mm | Cr: 44.6 kN | C0r: 57.2 kN | Mass: 0.060 kg
K25X35X36H Fw: 25 mm | Ew: 35 mm | Bc: 36 mm | Cr: 52.4 kN | C0r: 70.4 kN | Mass: 0.074 kg
K25X37X20H Fw: 25 mm | Ew: 37 mm | Bc: 20 mm | Cr: 32.5 kN | C0r: 34.1 kN | Mass: 0.055 kg
K26X30X10F Fw: 26 mm | Ew: 30 mm | Bc: 10 mm | Cr: 9.46 kN | C0r: 14.5 kN | Mass: 0.007 kg
K26X30X13 Fw: 26 mm | Ew: 30 mm | Bc: 13 mm | Cr: 12.3 kN | C0r: 20.4 kN | Mass: 0.011 kg
K26X30X17 Fw: 26 mm | Ew: 30 mm | Bc: 17 mm | Cr: 15.0 kN | C0r: 26.3 kN | Mass: 0.014 kg
K26X30X22ZW Fw: 26 mm | Ew: 30 mm | Bc: 22 mm | Cr: 16.7 kN | C0r: 30.2 kN | Mass: 0.018 kg
K28X32X21F Fw: 28 mm | Ew: 32 mm | Bc: 21 mm | Cr: 18.7 kN | C0r: 35.7 kN | Mass: 0.018 kg
K28X33X13F Fw: 28 mm | Ew: 33 mm | Bc: 13 mm | Cr: 14.1 kN | C0r: 21.4 kN | Mass: 0.015 kg
K28X33X17H Fw: 28 mm | Ew: 33 mm | Bc: 17 mm | Cr: 19.8 kN | C0r: 33.0 kN | Mass: 0.018 kg
K28X33X27 Fw: 28 mm | Ew: 33 mm | Bc: 27 mm | Cr: 29.0 kN | C0r: 53.8 kN | Mass: 0.027 kg
K28X34X17 Fw: 28 mm | Ew: 34 mm | Bc: 17 mm | Cr: 21.1 kN | C0r: 31.5 kN | Mass: 0.022 kg
K28X34X20H Fw: 28 mm | Ew: 34 mm | Bc: 20 mm | Cr: 24.4 kN | C0r: 37.8 kN | Mass: 0.025 kg
K28X35X15H Fw: 28 mm | Ew: 35 mm | Bc: 15 mm | Cr: 19.5 kN | C0r: 25.6 kN | Mass: 0.025 kg
K28X35X16H Fw: 28 mm | Ew: 35 mm | Bc: 16 mm | Cr: 21.5 kN | C0r: 29.1 kN | Mass: 0.026 kg
K28X35X27H Fw: 28 mm | Ew: 35 mm | Bc: 27 mm | Cr: 35.2 kN | C0r: 54.7 kN | Mass: 0.042 kg
K28X36X20FV Fw: 28 mm | Ew: 36 mm | Bc: 20 mm | Cr: 27.8 kN | C0r: 37.0 kN | Mass: 0.039 kg
K28X38X25,5 Fw: 28 mm | Ew: 38 mm | Bc: 25 mm | Cr: 40.9 kN | C0r: 52.7 kN | Mass: 0.059 kg
K28X40X18H Fw: 28 mm | Ew: 40 mm | Bc: 18 mm | Cr: 33.6 kN | C0r: 36.5 kN | Mass: 0.060 kg
K28X40X25H Fw: 28 mm | Ew: 40 mm | Bc: 25 mm | Cr: 45.5 kN | C0r: 54.0 kN | Mass: 0.072 kg
K28X40X30H Fw: 28 mm | Ew: 40 mm | Bc: 30 mm | Cr: 54.3 kN | C0r: 67.8 kN | Mass: 0.100 kg
K28X41X25H Fw: 28 mm | Ew: 41 mm | Bc: 25 mm | Cr: 49.2 kN | C0r: 57.1 kN | Mass: 0.082 kg
K29X34X27F Fw: 29 mm | Ew: 34 mm | Bc: 27 mm | Cr: 28.9 kN | C0r: 54.0 kN | Mass: 0.033 kg
K30X34X13 Fw: 30 mm | Ew: 34 mm | Bc: 13 mm | Cr: 13.5 kN | C0r: 24.1 kN | Mass: 0.011 kg
K30X35X13H Fw: 30 mm | Ew: 35 mm | Bc: 13 mm | Cr: 15.6 kN | C0r: 24.9 kN | Mass: 0.017 kg
K30X35X17H Fw: 30 mm | Ew: 35 mm | Bc: 17 mm | Cr: 20.2 kN | C0r: 34.6 kN | Mass: 0.022 kg
K30X35X20H Fw: 30 mm | Ew: 35 mm | Bc: 20 mm | Cr: 23.5 kN | C0r: 41.9 kN | Mass: 0.023 kg
K30X35X23F Fw: 30 mm | Ew: 35 mm | Bc: 22.8 mm | Cr: 25.6 kN | C0r: 46.8 kN | Mass: 0.028 kg
K30X35X27H Fw: 30 mm | Ew: 35 mm | Bc: 27 mm | Cr: 30.6 kN | C0r: 59.0 kN | Mass: 0.032 kg
K30X35X27HZW Fw: 30 mm | Ew: 35 mm | Bc: 27 mm | Cr: 19.9 kN | C0r: 33.6 kN | Mass: 0.033 kg
K30X36X14 Fw: 30 mm | Ew: 36 mm | Bc: 14 mm | Cr: 18.0 kN | C0r: 26.2 kN | Mass: 0.020 kg
K30X37X18 Fw: 30 mm | Ew: 37 mm | Bc: 17.8 mm | Cr: 24.3 kN | C0r: 34.8 kN | Mass: 0.033 kg
K30X40X30H Fw: 30 mm | Ew: 40 mm | Bc: 30 mm | Cr: 49.2 kN | C0r: 67.8 kN | Mass: 0.077 kg
K30X42X30H Fw: 30 mm | Ew: 42 mm | Bc: 30 mm | Cr: 54.2 kN | C0r: 68.6 kN | Mass: 0.096 kg
K30X44X26H Fw: 30 mm | Ew: 44 mm | Bc: 26 mm | Cr: 52.4 kN | C0r: 59.9 kN | Mass: 0.095 kg
K32X36X15F Fw: 32 mm | Ew: 36 mm | Bc: 15 mm | Cr: 11.6 kN | C0r: 20.2 kN | Mass: 0.015 kg
K32X37X13 Fw: 32 mm | Ew: 37 mm | Bc: 13 mm | Cr: 15.2 kN | C0r: 24.4 kN | Mass: 0.018 kg
K32X37X17H Fw: 32 mm | Ew: 37 mm | Bc: 17 mm | Cr: 20.0 kN | C0r: 34.8 kN | Mass: 0.020 kg
K32X37X27 Fw: 32 mm | Ew: 37 mm | Bc: 27 mm | Cr: 29.3 kN | C0r: 56.8 kN | Mass: 0.035 kg
K32X38X20H Fw: 32 mm | Ew: 38 mm | Bc: 20 mm | Cr: 27.3 kN | C0r: 45.7 kN | Mass: 0.030 kg
K32X38X26H Fw: 32 mm | Ew: 38 mm | Bc: 26 mm | Cr: 33.2 kN | C0r: 58.8 kN | Mass: 0.037 kg
K32X39X16H Fw: 32 mm | Ew: 39 mm | Bc: 16 mm | Cr: 23.0 kN | C0r: 33.0 kN | Mass: 0.030 kg
K32X39X18H Fw: 32 mm | Ew: 39 mm | Bc: 18 mm | Cr: 25.8 kN | C0r: 38.2 kN | Mass: 0.033 kg
K32X40X25H Fw: 32 mm | Ew: 40 mm | Bc: 25 mm | Cr: 37.9 kN | C0r: 57.2 kN | Mass: 0.052 kg
K32X40X36H Fw: 32 mm | Ew: 40 mm | Bc: 36 mm | Cr: 52.3 kN | C0r: 86.4 kN | Mass: 0.080 kg
K32X42X42H Fw: 32 mm | Ew: 42 mm | Bc: 42 mm | Cr: 69.2 kN | C0r: 108 kN | Mass: 0.110 kg
K32X46X18H Fw: 32 mm | Ew: 46 mm | Bc: 18 mm | Cr: 39.2 kN | C0r: 41.9 kN | Mass: 0.075 kg
K32X46X32H Fw: 32 mm | Ew: 46 mm | Bc: 32 mm | Cr: 67.0 kN | C0r: 83.4 kN | Mass: 0.140 kg
K32X46X40H Fw: 32 mm | Ew: 46 mm | Bc: 40 mm | Cr: 81.7 kN | C0r: 108 kN | Mass: 0.158 kg
K33X51X23H Fw: 33 mm | Ew: 51 mm | Bc: 23 mm | Cr: 55.9 kN | C0r: 57.6 kN | Mass: 0.140 kg
K34X38X11 Fw: 34 mm | Ew: 38 mm | Bc: 11 mm | Cr: 12.2 kN | C0r: 21.9 kN | Mass: 0.011 kg
K34X44X26FH Fw: 34 mm | Ew: 44 mm | Bc: 26 mm | Cr: 42.9 kN | C0r: 58.9 kN | Mass: 0.080 kg
K35X40X13H Fw: 35 mm | Ew: 40 mm | Bc: 13 mm | Cr: 16.2 kN | C0r: 27.2 kN | Mass: 0.018 kg
K35X40X17H Fw: 35 mm | Ew: 40 mm | Bc: 17 mm | Cr: 22.1 kN | C0r: 40.8 kN | Mass: 0.025 kg
K35X40X19H Fw: 35 mm | Ew: 40 mm | Bc: 19 mm | Cr: 23.2 kN | C0r: 43.2 kN | Mass: 0.025 kg
K35X40X25H Fw: 35 mm | Ew: 40 mm | Bc: 25 mm | Cr: 28.4 kN | C0r: 56.2 kN | Mass: 0.035 kg
K35X40X27H Fw: 35 mm | Ew: 40 mm | Bc: 27 mm | Cr: 29.8 kN | C0r: 59.6 kN | Mass: 0.037 kg
K35X42X16AH Fw: 35 mm | Ew: 42 mm | Bc: 16 mm | Cr: 24.5 kN | C0r: 36.8 kN | Mass: 0.031 kg
K35X42X18 Fw: 35 mm | Ew: 42 mm | Bc: 18 mm | Cr: 27.5 kN | C0r: 42.6 kN | Mass: 0.035 kg
K35X42X20H Fw: 35 mm | Ew: 42 mm | Bc: 20 mm | Cr: 30.4 kN | C0r: 48.5 kN | Mass: 0.037 kg
K35X42X30FH Fw: 35 mm | Ew: 42 mm | Bc: 30 mm | Cr: 40.5 kN | C0r: 70.0 kN | Mass: 0.061 kg
K35X45X20FH Fw: 35 mm | Ew: 45 mm | Bc: 20 mm | Cr: 36.5 kN | C0r: 49.9 kN | Mass: 0.059 kg
K35X45X30F Fw: 35 mm | Ew: 45 mm | Bc: 30 mm | Cr: 51.2 kN | C0r: 74.5 kN | Mass: 0.100 kg
K35X45X35H Fw: 35 mm | Ew: 45 mm | Bc: 35 mm | Cr: 62.1 kN | C0r: 95.5 kN | Mass: 0.085 kg
K35X45X41 Fw: 35 mm | Ew: 45 mm | Bc: 41 mm | Cr: 70.8 kN | C0r: 113 kN | Mass: 0.120 kg
K35X45X49H Fw: 35 mm | Ew: 45 mm | Bc: 49 mm | Cr: 82.5 kN | C0r: 138 kN | Mass: 0.143 kg
K35X45X49HZW Fw: 35 mm | Ew: 45 mm | Bc: 49 mm | Cr: 71.8 kN | C0r: 115 kN | Mass: 0.143 kg
K35X50X40F Fw: 35 mm | Ew: 50 mm | Bc: 40 mm | Cr: 79.7 kN | C0r: 102 kN | Mass: 0.200 kg
K36X40X29TN Fw: 36 mm | Ew: 40 mm | Bc: 29 mm | Cr: 21.2 kN | C0r: 45.2 kN | Mass: 0.029 kg
K36X42X16 Fw: 36 mm | Ew: 42 mm | Bc: 16 mm | Cr: 22.8 kN | C0r: 37.7 kN | Mass: 0.027 kg
K37X42X13H Fw: 37 mm | Ew: 42 mm | Bc: 13 mm | Cr: 16.9 kN | C0r: 29.4 kN | Mass: 0.017 kg
K37X42X17H Fw: 37 mm | Ew: 42 mm | Bc: 17 mm | Cr: 21.9 kN | C0r: 41.0 kN | Mass: 0.025 kg
K37X42X27F Fw: 37 mm | Ew: 42 mm | Bc: 27 mm | Cr: 32.1 kN | C0r: 66.9 kN | Mass: 0.039 kg
K37X44X19H Fw: 37 mm | Ew: 44 mm | Bc: 19 mm | Cr: 29.7 kN | C0r: 48.0 kN | Mass: 0.039 kg
K38X41X9TN Fw: 38 mm | Ew: 41 mm | Bc: 9 mm | Cr: 5.93 kN | C0r: 11.0 kN | Mass: 0.004 kg
K38X43X17H Fw: 38 mm | Ew: 43 mm | Bc: 17 mm | Cr: 21.8 kN | C0r: 41.0 kN | Mass: 0.032 kg
K38X43X27 Fw: 38 mm | Ew: 43 mm | Bc: 27 mm | Cr: 31.9 kN | C0r: 67.0 kN | Mass: 0.041 kg
K38X46X20H Fw: 38 mm | Ew: 46 mm | Bc: 19.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.055 kg
K38X46X32H Fw: 38 mm | Ew: 46 mm | Bc: 32 mm | Cr: 55.2 kN | C0r: 98.1 kN | Mass: 0.090 kg
K38X50X25 Fw: 38 mm | Ew: 50 mm | Bc: 25 mm | Cr: 53.0 kN | C0r: 70.8 kN | Mass: 0.100 kg
K38X50X33H Fw: 38 mm | Ew: 50 mm | Bc: 33 mm | Cr: 68.3 kN | C0r: 98.2 kN | Mass: 0.126 kg
K38X50X40FH Fw: 38 mm | Ew: 50 mm | Bc: 40 mm | Cr: 76.2 kN | C0r: 113 kN | Mass: 0.170 kg
K40X45X13H Fw: 40 mm | Ew: 45 mm | Bc: 13 mm | Cr: 17.6 kN | C0r: 31.7 kN | Mass: 0.022 kg
K40X45X18H Fw: 40 mm | Ew: 45 mm | Bc: 18 mm | Cr: 25.1 kN | C0r: 50.4 kN | Mass: 0.031 kg
K40X45X21H Fw: 40 mm | Ew: 45 mm | Bc: 21 mm | Cr: 23.3 kN | C0r: 45.2 kN | Mass: 0.033 kg
K40X45X27H Fw: 40 mm | Ew: 45 mm | Bc: 27 mm | Cr: 32.7 kN | C0r: 70.2 kN | Mass: 0.040 kg
K40X45X27TN Fw: 40 mm | Ew: 45 mm | Bc: 27 mm | Cr: 33.3 kN | C0r: 72.1 kN | Mass: 0.030 kg
K40X45X29H Fw: 40 mm | Ew: 45 mm | Bc: 29 mm | Cr: 34.7 kN | C0r: 75.9 kN | Mass: 0.050 kg
K40X46X17 Fw: 40 mm | Ew: 46 mm | Bc: 17 mm | Cr: 25.2 kN | C0r: 44.0 kN | Mass: 0.033 kg
K40X47X18 Fw: 40 mm | Ew: 47 mm | Bc: 18 mm | Cr: 28.0 kN | C0r: 45.6 kN | Mass: 0.041 kg
K40X47X20 Fw: 40 mm | Ew: 47 mm | Bc: 20 mm | Cr: 31.1 kN | C0r: 52.1 kN | Mass: 0.042 kg
K40X48X20FV1 Fw: 40 mm | Ew: 48 mm | Bc: 20 mm | Cr: 35.5 kN | C0r: 56.3 kN | Mass: 0.052 kg
K40X48X20H Fw: 40 mm | Ew: 48 mm | Bc: 20 mm | Cr: 35.5 kN | C0r: 56.3 kN | Mass: 0.050 kg
K40X48X35H Fw: 40 mm | Ew: 48 mm | Bc: 35 mm | Cr: 57.3 kN | C0r: 104 kN | Mass: 0.098 kg
K40X50X27H Fw: 40 mm | Ew: 50 mm | Bc: 27 mm | Cr: 53.0 kN | C0r: 81.0 kN | Mass: 0.084 kg
K40X55X45H Fw: 40 mm | Ew: 55 mm | Bc: 45 mm | Cr: 103 kN | C0r: 146 kN | Mass: 0.221 kg
K40X56X26H Fw: 40 mm | Ew: 56 mm | Bc: 26 mm | Cr: 63.7 kN | C0r: 75.7 kN | Mass: 0.138 kg
K41X48X31HZW Fw: 41 mm | Ew: 48 mm | Bc: 31 mm | Cr: 38.0 kN | C0r: 68.1 kN | Mass: 0.067 kg
K42X47X13H Fw: 42 mm | Ew: 47 mm | Bc: 13 mm | Cr: 18.7 kN | C0r: 34.9 kN | Mass: 0.027 kg
K42X47X17H Fw: 42 mm | Ew: 47 mm | Bc: 17 mm | Cr: 22.8 kN | C0r: 45.2 kN | Mass: 0.028 kg
K42X47X27H Fw: 42 mm | Ew: 47 mm | Bc: 27 mm | Cr: 33.8 kN | C0r: 74.7 kN | Mass: 0.041 kg
K42X48X24F Fw: 42 mm | Ew: 48 mm | Bc: 24 mm | Cr: 33.1 kN | C0r: 63.9 kN | Mass: 0.046 kg
K42X50X13H Fw: 42 mm | Ew: 50 mm | Bc: 13 mm | Cr: 20.9 kN | C0r: 28.9 kN | Mass: 0.035 kg
K42X50X20H Fw: 42 mm | Ew: 50 mm | Bc: 20 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.054 kg
K42X50X30H Fw: 42 mm | Ew: 50 mm | Bc: 30 mm | Cr: 51.3 kN | C0r: 91.9 kN | Mass: 0.080 kg
K43X48X17FH Fw: 43 mm | Ew: 48 mm | Bc: 17 mm | Cr: 23.0 kN | C0r: 45.8 kN | Mass: 0.036 kg
K43X48X27H Fw: 43 mm | Ew: 48 mm | Bc: 27 mm | Cr: 34.8 kN | C0r: 78.0 kN | Mass: 0.050 kg
K44X50X22H Fw: 44 mm | Ew: 50 mm | Bc: 22 mm | Cr: 31.6 kN | C0r: 60.6 kN | Mass: 0.046 kg
K44X50X30,5HZW Fw: 44 mm | Ew: 50 mm | Bc: 30 mm | Cr: 35.5 kN | C0r: 70.5 kN | Mass: 0.068 kg
K45X50X13H Fw: 45 mm | Ew: 50 mm | Bc: 13 mm | Cr: 18.4 kN | C0r: 35.1 kN | Mass: 0.022 kg
K45X50X15H Fw: 45 mm | Ew: 50 mm | Bc: 15 mm | Cr: 19.4 kN | C0r: 37.3 kN | Mass: 0.028 kg
K45X50X17H Fw: 45 mm | Ew: 50 mm | Bc: 17 mm | Cr: 24.9 kN | C0r: 51.8 kN | Mass: 0.030 kg
K45X50X20F Fw: 45 mm | Ew: 50 mm | Bc: 20 mm | Cr: 27.0 kN | C0r: 57.4 kN | Mass: 0.040 kg
K45X50X21CH Fw: 45 mm | Ew: 50 mm | Bc: 21 mm | Cr: 24.6 kN | C0r: 50.4 kN | Mass: 0.036 kg
K45X50X27FH Fw: 45 mm | Ew: 50 mm | Bc: 27 mm | Cr: 34.2 kN | C0r: 77.4 kN | Mass: 0.043 kg
K45X50X27TN Fw: 45 mm | Ew: 50 mm | Bc: 27 mm | Cr: 31.8 kN | C0r: 70.7 kN | Mass: 0.048 kg
K45X52X18H Fw: 45 mm | Ew: 52 mm | Bc: 18 mm | Cr: 30.1 kN | C0r: 52.0 kN | Mass: 0.045 kg
K45X52X21F Fw: 45 mm | Ew: 52 mm | Bc: 21 mm | Cr: 35.0 kN | C0r: 63.2 kN | Mass: 0.055 kg
K45X53X20H Fw: 45 mm | Ew: 53 mm | Bc: 20 mm | Cr: 36.0 kN | C0r: 59.5 kN | Mass: 0.054 kg
K45X53X25H Fw: 45 mm | Ew: 53 mm | Bc: 24.8 mm | Cr: 45.9 kN | C0r: 81.5 kN | Mass: 0.072 kg
K45X53X25F Fw: 45 mm | Ew: 53 mm | Bc: 25 mm | Cr: 42.5 kN | C0r: 73.7 kN | Mass: 0.075 kg
K45X53X28H Fw: 45 mm | Ew: 53 mm | Bc: 28 mm | Cr: 49.3 kN | C0r: 89.2 kN | Mass: 0.078 kg
K45X55X20H Fw: 45 mm | Ew: 55 mm | Bc: 20 mm | Cr: 42.0 kN | C0r: 62.2 kN | Mass: 0.074 kg
K45X59X18H Fw: 45 mm | Ew: 59 mm | Bc: 18 mm | Cr: 47.8 kN | C0r: 58.9 kN | Mass: 0.107 kg
K45X59X18TN Fw: 45 mm | Ew: 59 mm | Bc: 18 mm | Cr: 45.7 kN | C0r: 55.4 kN | Mass: 0.097 kg
K45X59X36H Fw: 45 mm | Ew: 59 mm | Bc: 36 mm | Cr: 82.4 kN | C0r: 118 kN | Mass: 0.181 kg
K45X60X30H Fw: 45 mm | Ew: 60 mm | Bc: 30 mm | Cr: 75.5 kN | C0r: 101 kN | Mass: 0.171 kg
K45X60X45H Fw: 45 mm | Ew: 60 mm | Bc: 45 mm | Cr: 108 kN | C0r: 160 kN | Mass: 0.280 kg
K46X53X36HZW Fw: 46 mm | Ew: 53 mm | Bc: 36 mm | Cr: 48.6 kN | C0r: 96.7 kN | Mass: 0.100 kg
K47X52X15FH Fw: 47 mm | Ew: 52 mm | Bc: 15 mm | Cr: 20.1 kN | C0r: 39.8 kN | Mass: 0.030 kg
K47X52X17H Fw: 47 mm | Ew: 52 mm | Bc: 17 mm | Cr: 24.2 kN | C0r: 50.4 kN | Mass: 0.032 kg
K47X52X27H Fw: 47 mm | Ew: 52 mm | Bc: 27 mm | Cr: 36.6 kN | C0r: 85.9 kN | Mass: 0.045 kg
K47X55X28FV1 Fw: 47 mm | Ew: 55 mm | Bc: 28 mm | Cr: 48.9 kN | C0r: 89.5 kN | Mass: 0.092 kg
K48X53X17H Fw: 48 mm | Ew: 53 mm | Bc: 17 mm | Cr: 25.7 kN | C0r: 54.9 kN | Mass: 0.032 kg
K48X54X19H Fw: 48 mm | Ew: 54 mm | Bc: 19 mm | Cr: 30.9 kN | C0r: 61.2 kN | Mass: 0.042 kg
K49X55X32HZW Fw: 49 mm | Ew: 55 mm | Bc: 32 mm | Cr: 40.2 kN | C0r: 86.4 kN | Mass: 0.080 kg
K49X65X38H Fw: 49 mm | Ew: 65 mm | Bc: 38 mm | Cr: 100 kN | C0r: 142 kN | Mass: 0.244 kg
K50X55X17H Fw: 50 mm | Ew: 55 mm | Bc: 17 mm | Cr: 25.5 kN | C0r: 55.0 kN | Mass: 0.032 kg
K50X55X20H Fw: 50 mm | Ew: 55 mm | Bc: 20 mm | Cr: 30.2 kN | C0r: 68.5 kN | Mass: 0.038 kg
K50X55X30 Fw: 50 mm | Ew: 55 mm | Bc: 30 mm | Cr: 38.2 kN | C0r: 92.4 kN | Mass: 0.057 kg
K50X55X30FV1 Fw: 50 mm | Ew: 55 mm | Bc: 30 mm | Cr: 38.2 kN | C0r: 92.4 kN | Mass: 0.057 kg
K50X56X23 Fw: 50 mm | Ew: 56 mm | Bc: 23 mm | Cr: 35.5 kN | C0r: 74.1 kN | Mass: 0.051 kg
K50X57X18FH Fw: 50 mm | Ew: 57 mm | Bc: 18 mm | Cr: 31.3 kN | C0r: 56.4 kN | Mass: 0.050 kg
K50X58X20H Fw: 50 mm | Ew: 58 mm | Bc: 20 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.065 kg
K50X58X25H Fw: 50 mm | Ew: 58 mm | Bc: 25 mm | Cr: 46.5 kN | C0r: 85.6 kN | Mass: 0.081 kg
K50X58X35H Fw: 50 mm | Ew: 58 mm | Bc: 35 mm | Cr: 64.9 kN | C0r: 131 kN | Mass: 0.105 kg
K50X62X30H Fw: 50 mm | Ew: 62 mm | Bc: 30 mm | Cr: 64.6 kN | C0r: 98.1 kN | Mass: 0.136 kg
K50X66X30H Fw: 50 mm | Ew: 66 mm | Bc: 30 mm | Cr: 80.9 kN | C0r: 109 kN | Mass: 0.192 kg
K50X70X32H Fw: 50 mm | Ew: 70 mm | Bc: 32 mm | Cr: 103 kN | C0r: 129 kN | Mass: 0.224 kg
K52X57X12 Fw: 52 mm | Ew: 57 mm | Bc: 12 mm | Cr: 18.4 kN | C0r: 36.7 kN | Mass: 0.022 kg
K52X57X17H Fw: 52 mm | Ew: 57 mm | Bc: 17 mm | Cr: 21.4 kN | C0r: 44.3 kN | Mass: 0.035 kg
K52X60X24 Fw: 52 mm | Ew: 60 mm | Bc: 24 mm | Cr: 47.1 kN | C0r: 88.3 kN | Mass: 0.078 kg
K55X60X17 Fw: 55 mm | Ew: 60 mm | Bc: 17 mm | Cr: 26.0 kN | C0r: 58.3 kN | Mass: 0.037 kg
K55X60X20H Fw: 55 mm | Ew: 60 mm | Bc: 20 mm | Cr: 30.7 kN | C0r: 72.4 kN | Mass: 0.042 kg
K55X60X27H Fw: 55 mm | Ew: 60 mm | Bc: 27 mm | Cr: 40.1 kN | C0r: 102 kN | Mass: 0.055 kg
K55X60X30FH Fw: 55 mm | Ew: 60 mm | Bc: 30 mm | Cr: 40.6 kN | C0r: 103 kN | Mass: 0.068 kg
K55X61X26H Fw: 55 mm | Ew: 61 mm | Bc: 26 mm | Cr: 44.3 kN | C0r: 102 kN | Mass: 0.063 kg
K55X62X18H Fw: 55 mm | Ew: 62 mm | Bc: 18 mm | Cr: 33.2 kN | C0r: 62.8 kN | Mass: 0.055 kg
K55X63X15F Fw: 55 mm | Ew: 63 mm | Bc: 15 mm | Cr: 30.5 kN | C0r: 51.5 kN | Mass: 0.054 kg
K55X63X20 Fw: 55 mm | Ew: 63 mm | Bc: 20 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.072 kg
K55X63X25 Fw: 55 mm | Ew: 63 mm | Bc: 25 mm | Cr: 49.8 kN | C0r: 96.5 kN | Mass: 0.080 kg
K55X63X32 Fw: 55 mm | Ew: 63 mm | Bc: 32 mm | Cr: 62.3 kN | C0r: 129 kN | Mass: 0.108 kg
K58X63X17F Fw: 58 mm | Ew: 63 mm | Bc: 17 mm | Cr: 27.0 kN | C0r: 62.6 kN | Mass: 0.037 kg
K58X64X19H Fw: 58 mm | Ew: 64 mm | Bc: 19 mm | Cr: 32.9 kN | C0r: 70.6 kN | Mass: 0.037 kg
K58X65X18H Fw: 58 mm | Ew: 65 mm | Bc: 18 mm | Cr: 34.3 kN | C0r: 67.1 kN | Mass: 0.058 kg
K60X65X20H Fw: 60 mm | Ew: 65 mm | Bc: 20 mm | Cr: 31.9 kN | C0r: 78.1 kN | Mass: 0.046 kg
K60X65X27FH Fw: 60 mm | Ew: 65 mm | Bc: 26.8 mm | Cr: 39.5 kN | C0r: 103 kN | Mass: 0.059 kg
K60X65X30FH Fw: 60 mm | Ew: 65 mm | Bc: 29.8 mm | Cr: 42.9 kN | C0r: 114 kN | Mass: 0.085 kg
K60X65X30 Fw: 60 mm | Ew: 65 mm | Bc: 30 mm | Cr: 42.9 kN | C0r: 114 kN | Mass: 0.070 kg
K60X68X17F Fw: 60 mm | Ew: 68 mm | Bc: 17 mm | Cr: 34.2 kN | C0r: 61.4 kN | Mass: 0.066 kg
K60X68X20H Fw: 60 mm | Ew: 68 mm | Bc: 20 mm | Cr: 41.8 kN | C0r: 79.2 kN | Mass: 0.066 kg
K60X68X23H Fw: 60 mm | Ew: 68 mm | Bc: 23 mm | Cr: 49.0 kN | C0r: 97.2 kN | Mass: 0.089 kg
K60X68X25 Fw: 60 mm | Ew: 68 mm | Bc: 25 mm | Cr: 51.6 kN | C0r: 104 kN | Mass: 0.091 kg
K60X68X30ZW Fw: 60 mm | Ew: 68 mm | Bc: 30 mm | Cr: 46.4 kN | C0r: 90.1 kN | Mass: 0.119 kg
K63X71X20 Fw: 63 mm | Ew: 71 mm | Bc: 20 mm | Cr: 41.4 kN | C0r: 79.4 kN | Mass: 0.070 kg
K64X70X16 Fw: 64 mm | Ew: 70 mm | Bc: 16 mm | Cr: 26.4 kN | C0r: 55.1 kN | Mass: 0.049 kg
K65X70X20CH Fw: 65 mm | Ew: 70 mm | Bc: 20 mm | Cr: 28.6 kN | C0r: 69.2 kN | Mass: 0.050 kg
K65X70X30 Fw: 65 mm | Ew: 70 mm | Bc: 30 mm | Cr: 44.4 kN | C0r: 123 kN | Mass: 0.075 kg
K65X73X23H Fw: 65 mm | Ew: 73 mm | Bc: 23 mm | Cr: 48.2 kN | C0r: 97.7 kN | Mass: 0.091 kg
K65X73X30H Fw: 65 mm | Ew: 73 mm | Bc: 30 mm | Cr: 60.1 kN | C0r: 129 kN | Mass: 0.116 kg
K68X74X20FH Fw: 68 mm | Ew: 74 mm | Bc: 20 mm | Cr: 37.5 kN | C0r: 88.1 kN | Mass: 0.062 kg
K68X74X28CH Fw: 68 mm | Ew: 74 mm | Bc: 28 mm | Cr: 44.8 kN | C0r: 110 kN | Mass: 0.082 kg
K68X74X30H Fw: 68 mm | Ew: 74 mm | Bc: 30 mm | Cr: 47.6 kN | C0r: 119 kN | Mass: 0.098 kg
K68X74X35HZW Fw: 68 mm | Ew: 74 mm | Bc: 35 mm | Cr: 45.1 kN | C0r: 111 kN | Mass: 0.120 kg
K68X76X20 Fw: 68 mm | Ew: 76 mm | Bc: 20 mm | Cr: 43.8 kN | C0r: 87.8 kN | Mass: 0.086 kg
K70X76X20 Fw: 70 mm | Ew: 76 mm | Bc: 20 mm | Cr: 36.1 kN | C0r: 84.7 kN | Mass: 0.065 kg
K70X76X30 Fw: 70 mm | Ew: 76 mm | Bc: 30 mm | Cr: 51.6 kN | C0r: 134.0 kN | Mass: 0.097 kg
K70X78X20H Fw: 70 mm | Ew: 78 mm | Bc: 20 mm | Cr: 43.6 kN | C0r: 87.9 kN | Mass: 0.090 kg
K70X78X23F Fw: 70 mm | Ew: 78 mm | Bc: 23 mm | Cr: 49.8 kN | C0r: 104.0 kN | Mass: 0.115 kg
K70X78X25F Fw: 70 mm | Ew: 78 mm | Bc: 24.8 mm | Cr: 49.8 kN | C0r: 104.0 kN | Mass: 0.115 kg
K70X78X30H Fw: 70 mm | Ew: 78 mm | Bc: 30 mm | Cr: 62.2 kN | C0r: 139.0 kN | Mass: 0.140 kg
K70X78X46ZW Fw: 70 mm | Ew: 78 mm | Bc: 46 mm | Cr: 78.4 kN | C0r: 187.0 kN | Mass: 0.188 kg
K70X85X40F Fw: 70 mm | Ew: 85 mm | Bc: 40 mm | Cr: 118 kN | C0r: 203 kN | Mass: 0.338 kg
K70X88X30H Fw: 70 mm | Ew: 88 mm | Bc: 30 mm | Cr: 115 kN | C0r: 175 kN | Mass: 0.205 kg
K72X80X20 Fw: 72 mm | Ew: 80 mm | Bc: 20 mm | Cr: 44.4 kN | C0r: 90.7 kN | Mass: 0.084 kg
K73X79X20 Fw: 73 mm | Ew: 79 mm | Bc: 20 mm | Cr: 37.0 kN | C0r: 88.7 kN | Mass: 0.068 kg
K75X81X20F Fw: 75 mm | Ew: 81 mm | Bc: 20 mm | Cr: 37.4 kN | C0r: 90.7 kN | Mass: 0.075 kg
K75X83X23 Fw: 75 mm | Ew: 83 mm | Bc: 23 mm | Cr: 52.5 kN | C0r: 114.0 kN | Mass: 0.104 kg
K75X83X30 Fw: 75 mm | Ew: 83 mm | Bc: 30 mm | Cr: 60.9 kN | C0r: 138 kN | Mass: 0.141 kg
K75X83X30FH Fw: 75 mm | Ew: 83 mm | Bc: 30 mm | Cr: 60.9 kN | C0r: 138 kN | Mass: 0.141 kg
K80X86X20H Fw: 80 mm | Ew: 86 mm | Bc: 20 mm | Cr: 38.6 kN | C0r: 96.7 kN | Mass: 0.072 kg
K80X88X25FV1 Fw: 80 mm | Ew: 88 mm | Bc: 25 mm | Cr: 54.0 kN | C0r: 121 kN | Mass: 0.134 kg
K80X88X30 Fw: 80 mm | Ew: 88 mm | Bc: 30 mm | Cr: 67.5 kN | C0r: 161 kN | Mass: 0.153 kg
K85X92X20H Fw: 85 mm | Ew: 92 mm | Bc: 20 mm | Cr: 39.9 kN | C0r: 91.7 kN | Mass: 0.085 kg
K85X93X25F Fw: 85 mm | Ew: 93 mm | Bc: 25 mm | Cr: 58.8 kN | C0r: 138 kN | Mass: 0.000 kg
K85X93X30H Fw: 85 mm | Ew: 93 mm | Bc: 30 mm | Cr: 31024 kN | C0r: 3200 kN | Mass: 0.166 kg
K90X97X20 Fw: 90 mm | Ew: 97 mm | Bc: 20 mm | Cr: 46.3 kN | C0r: 114 kN | Mass: 0.095 kg
K90X98X25F Fw: 90 mm | Ew: 98 mm | Bc: 25 mm | Cr: 54.8 kN | C0r: 128 kN | Mass: 0.134 kg
K90X98X30 Fw: 90 mm | Ew: 98 mm | Bc: 30 mm | Cr: 63.6 kN | C0r: 155 kN | Mass: 0.168 kg
K95X103X20 Fw: 95 mm | Ew: 103 mm | Bc: 20 mm | Cr: 49.3 kN | C0r: 114 kN | Mass: 0.130 kg
K95X103X30F Fw: 95 mm | Ew: 103 mm | Bc: 30 mm | Cr: 71.0 kN | C0r: 183 kN | Mass: 0.180 kg
K100X108X30 Fw: 100 mm | Ew: 108 mm | Bc: 30 mm | Cr: 72.4 kN | C0r: 191 kN | Mass: 0.210 kg
K110X118X24 Fw: 110 mm | Ew: 118 mm | Bc: 24 mm | Cr: 64.0 kN | C0r: 168 kN | Mass: 0.165 kg
K110X118X30H Fw: 110 mm | Ew: 118 mm | Bc: 30 mm | Cr: 75.3 kN | C0r: 207 kN | Mass: 0.200 kg
Needle Roller BearingsKOYO
355 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO K, K ZW Series Radial Needle Roller and Cage Assemblies (Metric)

Brand KOYO·Needle Roller Bearings

Available part numbers (355)

K3X5X7TN, K4X7X7TN, K5X8X8TN, K5X8X10TN, K5X9X13TN, K6X9X8H, K6X9X8TN, K6X9X10TN, K7X10X8TN, K7X10X10TN + 345 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K3X5X7TNFw: 3 mm | Ew: 5 mm | Bc: 7 mm | Cr: 1.56 kN | C0r: 1.29 kN | Mass: 0.0002 kg
K4X7X7TNFw: 4 mm | Ew: 7 mm | Bc: 7 mm | Cr: 1.83 kN | C0r: 1.32 kN | Mass: 0.0005 kg
K5X8X8TNFw: 5 mm | Ew: 8 mm | Bc: 8 mm | Cr: 2.18 kN | C0r: 1.71 kN | Mass: 0.0007 kg
K5X8X10TNFw: 5 mm | Ew: 8 mm | Bc: 10 mm | Cr: 3.04 kN | C0r: 2.63 kN | Mass: 0.0008 kg
K5X9X13TNFw: 5 mm | Ew: 9 mm | Bc: 13 mm | Cr: 4.29 kN | C0r: 3.55 kN | Mass: 0.002 kg
K6X9X8HFw: 6 mm | Ew: 9 mm | Bc: 8 mm | Cr: 3.19 kN | C0r: 2.90 kN | Mass: 0.0008 kg
K6X9X8TNFw: 6 mm | Ew: 9 mm | Bc: 8 mm | Cr: 2.47 kN | C0r: 2.07 kN | Mass: 0.001 kg
K6X9X10TNFw: 6 mm | Ew: 9 mm | Bc: 10 mm | Cr: 3.07 kN | C0r: 2.74 kN | Mass: 0.001 kg
K7X10X8TNFw: 7 mm | Ew: 10 mm | Bc: 8 mm | Cr: 2.74 kN | C0r: 2.44 kN | Mass: 0.001 kg
K7X10X10TNFw: 7 mm | Ew: 10 mm | Bc: 10 mm | Cr: 3.40 kN | C0r: 3.22 kN | Mass: 0.001 kg
K7X11X15TNFw: 7 mm | Ew: 11 mm | Bc: 15 mm | Cr: 6.44 kN | C0r: 6.24 kN | Mass: 0.003 kg
K8X11X8FVFw: 8 mm | Ew: 11 mm | Bc: 8 mm | Cr: 3.23 kN | C0r: 3.11 kN | Mass: 0.002 kg
K8X11X8TNFw: 8 mm | Ew: 11 mm | Bc: 8 mm | Cr: 2.34 kN | C0r: 2.05 kN | Mass: 0.001 kg
K8X11X10HFw: 8 mm | Ew: 11 mm | Bc: 10 mm | Cr: 4.57 kN | C0r: 4.89 kN | Mass: 0.002 kg
K8X11X10FVFw: 8 mm | Ew: 11 mm | Bc: 10 mm | Cr: 4.01 kN | C0r: 4.11 kN | Mass: 0.002 kg
K8x11x10TNFw: 8 mm | Ew: 11 mm | Bc: 10 mm | Cr: 3.84 kN | C0r: 3.91 kN | Mass: 0.001 kg
K8x11x13TNFw: 8 mm | Ew: 11 mm | Bc: 13 mm | Cr: 5.18 kN | C0r: 5.75 kN | Mass: 0.002 kg
K8X11X13HFw: 8 mm | Ew: 11 mm | Bc: 13 mm | Cr: 5.22 kN | C0r: 5.78 kN | Mass: 0.003 kg
K9X12X10FHFw: 9 mm | Ew: 12 mm | Bc: 10 mm | Cr: 4.27 kN | C0r: 4.60 kN | Mass: 0.003 kg
K9X12X10FVFw: 9 mm | Ew: 12 mm | Bc: 10 mm | Cr: 4.27 kN | C0r: 4.60 kN | Mass: 0.002 kg
K9X12X13FHFw: 9 mm | Ew: 12 mm | Bc: 13 mm | Cr: 5.57 kN | C0r: 6.47 kN | Mass: 0.003 kg
K9X12X13FVFw: 9 mm | Ew: 12 mm | Bc: 13 mm | Cr: 5.57 kN | C0r: 6.47 kN | Mass: 0.003 kg
K9X13X8HFw: 9 mm | Ew: 13 mm | Bc: 8 mm | Cr: 3.96 kN | C0r: 3.50 kN | Mass: 0.003 kg
K10X13X10HFw: 10 mm | Ew: 13 mm | Bc: 10 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.002 kg
K10X13X10TNFw: 10 mm | Ew: 13 mm | Bc: 10 mm | Cr: 4.29 kN | C0r: 4.77 kN | Mass: 0.002 kg
K10X13X13Fw: 10 mm | Ew: 13 mm | Bc: 13 mm | Cr: 5.90 kN | C0r: 7.16 kN | Mass: 0.003 kg
K10X13X16Fw: 10 mm | Ew: 13 mm | Bc: 16 mm | Cr: 7.43 kN | C0r: 9.64 kN | Mass: 0.004 kg
K10X14X10HFw: 10 mm | Ew: 14 mm | Bc: 10 mm | Cr: 6.12 kN | C0r: 6.29 kN | Mass: 0.003 kg
K10X14X13HFw: 10 mm | Ew: 14 mm | Bc: 13 mm | Cr: 7.88 kN | C0r: 8.71 kN | Mass: 0.004 kg
K10X16X12FFw: 10 mm | Ew: 16 mm | Bc: 12 mm | Cr: 8.39 kN | C0r: 7.47 kN | Mass: 0.006 kg
K10X16X12TNFw: 10 mm | Ew: 16 mm | Bc: 12 mm | Cr: 7.50 kN | C0r: 6.40 kN | Mass: 0.005 kg
K12X15X10HFw: 12 mm | Ew: 15 mm | Bc: 10 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.003 kg
K12X15X13HFw: 12 mm | Ew: 15 mm | Bc: 13 mm | Cr: 6.78 kN | C0r: 9.03 kN | Mass: 0.004 kg
K12X16X13HFw: 12 mm | Ew: 16 mm | Bc: 13 mm | Cr: 7.49 kN | C0r: 8.51 kN | Mass: 0.006 kg
K12X17X13Fw: 12 mm | Ew: 17 mm | Bc: 13 mm | Cr: 8.93 kN | C0r: 9.29 kN | Mass: 0.008 kg
K12X18X12HFw: 12 mm | Ew: 18 mm | Bc: 12 mm | Cr: 9.76 kN | C0r: 9.40 kN | Mass: 0.009 kg
K13X17X10Fw: 13 mm | Ew: 17 mm | Bc: 10 mm | Cr: 7.22 kN | C0r: 8.33 kN | Mass: 0.004 kg
K13X18X15FFw: 13 mm | Ew: 18 mm | Bc: 15 mm | Cr: 10.8 kN | C0r: 12.1 kN | Mass: 0.008 kg
K14X18X8Fw: 14 mm | Ew: 18 mm | Bc: 8 mm | Cr: 5.39 kN | C0r: 5.82 kN | Mass: 0.004 kg
K14X18X10Fw: 14 mm | Ew: 18 mm | Bc: 10 mm | Cr: 7.17 kN | C0r: 8.41 kN | Mass: 0.005 kg
K14X18X13Fw: 14 mm | Ew: 18 mm | Bc: 13 mm | Cr: 9.73 kN | C0r: 12.5 kN | Mass: 0.006 kg
K14X18X15Fw: 14 mm | Ew: 18 mm | Bc: 15 mm | Cr: 10.5 kN | C0r: 13.8 kN | Mass: 0.007 kg
K14X18X17HFw: 14 mm | Ew: 18 mm | Bc: 17 mm | Cr: 12.4 kN | C0r: 17.1 kN | Mass: 0.008 kg
K14X19X13HFw: 14 mm | Ew: 19 mm | Bc: 13 mm | Cr: 10.2 kN | C0r: 11.4 kN | Mass: 0.008 kg
K14X19X18FFw: 14 mm | Ew: 19 mm | Bc: 18 mm | Cr: 13.2 kN | C0r: 16.0 kN | Mass: 0.011 kg
K14X20X12Fw: 14 mm | Ew: 20 mm | Bc: 12 mm | Cr: 10.5 kN | C0r: 10.6 kN | Mass: 0.009 kg
K15X18X14TNFw: 15 mm | Ew: 18 mm | Bc: 14 mm | Cr: 7.92 kN | C0r: 11.9 kN | Mass: 0.003 kg
K15X18X16FFw: 15 mm | Ew: 18 mm | Bc: 16 mm | Cr: 8.36 kN | C0r: 12.6 kN | Mass: 0.005 kg
K15X18X17Fw: 15 mm | Ew: 18 mm | Bc: 17 mm | Cr: 8.08 kN | C0r: 12.1 kN | Mass: 0.005 kg
K15X19X10Fw: 15 mm | Ew: 19 mm | Bc: 10 mm | Cr: 7.87 kN | C0r: 9.69 kN | Mass: 0.005 kg
K15X19X13Fw: 15 mm | Ew: 19 mm | Bc: 13 mm | Cr: 9.66 kN | C0r: 12.6 kN | Mass: 0.007 kg
K15X19X17HFw: 15 mm | Ew: 19 mm | Bc: 17 mm | Cr: 12.3 kN | C0r: 17.2 kN | Mass: 0.009 kg
K15X19X22ZWFw: 15 mm | Ew: 19 mm | Bc: 22 mm | Cr: 12.2 kN | C0r: 17.0 kN | Mass: 0.010 kg
K15X20X13HFw: 15 mm | Ew: 20 mm | Bc: 13 mm | Cr: 9.93 kN | C0r: 11.3 kN | Mass: 0.008 kg
K15X21X15Fw: 15 mm | Ew: 21 mm | Bc: 15 mm | Cr: 13.4 kN | C0r: 14.8 kN | Mass: 0.013 kg
K15X21X21HFw: 15 mm | Ew: 21 mm | Bc: 21 mm | Cr: 18.0 kN | C0r: 21.7 kN | Mass: 0.018 kg
K16X20X8FFw: 16 mm | Ew: 20 mm | Bc: 8 mm | Cr: 6.37 kN | C0r: 7.51 kN | Mass: 0.005 kg
K16X20X10HFw: 16 mm | Ew: 20 mm | Bc: 10 mm | Cr: 7.82 kN | C0r: 9.76 kN | Mass: 0.006 kg
K16X20X13Fw: 16 mm | Ew: 20 mm | Bc: 13 mm | Cr: 10.1 kN | C0r: 13.5 kN | Mass: 0.007 kg
K16X20X14Fw: 16 mm | Ew: 20 mm | Bc: 14 mm | Cr: 10.8 kN | C0r: 14.8 kN | Mass: 0.007 kg
K16X20X17HFw: 16 mm | Ew: 20 mm | Bc: 17 mm | Cr: 12.9 kN | C0r: 18.5 kN | Mass: 0.008 kg
K16X20X20Fw: 16 mm | Ew: 20 mm | Bc: 20 mm | Cr: 13.4 kN | C0r: 19.5 kN | Mass: 0.011 kg
K16X22X12Fw: 16 mm | Ew: 22 mm | Bc: 12 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.010 kg
K16X22X16HFw: 16 mm | Ew: 22 mm | Bc: 16 mm | Cr: 14.9 kN | C0r: 17.2 kN | Mass: 0.014 kg
K16X22X20Fw: 16 mm | Ew: 22 mm | Bc: 20 mm | Cr: 18.6 kN | C0r: 22.9 kN | Mass: 0.017 kg
K16X24X20Fw: 16 mm | Ew: 24 mm | Bc: 20 mm | Cr: 20.2 kN | C0r: 21.4 kN | Mass: 0.025 kg
K17X20X10Fw: 17 mm | Ew: 20 mm | Bc: 10 mm | Cr: 5.96 kN | C0r: 8.53 kN | Mass: 0.004 kg
K17X21X10Fw: 17 mm | Ew: 21 mm | Bc: 10 mm | Cr: 8.12 kN | C0r: 10.4 kN | Mass: 0.006 kg
K17X21X13HFw: 17 mm | Ew: 21 mm | Bc: 12.8 mm | Cr: 10.5 kN | C0r: 14.5 kN | Mass: 0.008 kg
K17X21X15Fw: 17 mm | Ew: 21 mm | Bc: 15 mm | Cr: 11.4 kN | C0r: 16.1 kN | Mass: 0.008 kg
K17X21X17HFw: 17 mm | Ew: 21 mm | Bc: 17 mm | Cr: 13.4 kN | C0r: 19.8 kN | Mass: 0.011 kg
K17X22X20FHFw: 17 mm | Ew: 22 mm | Bc: 20 mm | Cr: 17.0 kN | C0r: 23.3 kN | Mass: 0.015 kg
K17X23X15FFw: 17 mm | Ew: 23 mm | Bc: 15 mm | Cr: 14.1 kN | C0r: 16.3 kN | Mass: 0.010 kg
K18X22X8FFw: 18 mm | Ew: 22 mm | Bc: 8 mm | Cr: 6.32 kN | C0r: 7.70 kN | Mass: 0.005 kg
K18X22X10HFw: 18 mm | Ew: 22 mm | Bc: 10 mm | Cr: 8.41 kN | C0r: 11.1 kN | Mass: 0.006 kg
K18X22X13HFw: 18 mm | Ew: 22 mm | Bc: 13 mm | Cr: 10.8 kN | C0r: 15.4 kN | Mass: 0.008 kg
K18X22X14Fw: 18 mm | Ew: 22 mm | Bc: 14 mm | Cr: 11.6 kN | C0r: 16.8 kN | Mass: 0.009 kg
K18X22X14FVFw: 18 mm | Ew: 22 mm | Bc: 14 mm | Cr: 11.3 kN | C0r: 16.3 kN | Mass: 0.009 kg
K18X22X17HFw: 18 mm | Ew: 22 mm | Bc: 17 mm | Cr: 13.3 kN | C0r: 19.9 kN | Mass: 0.009 kg
K18X22X20FFw: 18 mm | Ew: 22 mm | Bc: 20 mm | Cr: 15.0 kN | C0r: 23.4 kN | Mass: 0.011 kg
K18X24X12Fw: 18 mm | Ew: 24 mm | Bc: 12 mm | Cr: 11.8 kN | C0r: 13.1 kN | Mass: 0.011 kg
K18X24X20HFw: 18 mm | Ew: 24 mm | Bc: 20 mm | Cr: 19.4 kN | C0r: 24.9 kN | Mass: 0.019 kg
K18X25X22HFw: 18 mm | Ew: 25 mm | Bc: 22 mm | Cr: 23.3 kN | C0r: 28.6 kN | Mass: 0.025 kg
K18X26X12FVFw: 18 mm | Ew: 26 mm | Bc: 12 mm | Cr: 13.8 kN | C0r: 13.5 kN | Mass: 0.020 kg
K18X26X20FFw: 18 mm | Ew: 26 mm | Bc: 20 mm | Cr: 21.7 kN | C0r: 24.1 kN | Mass: 0.027 kg
K19X23X13Fw: 19 mm | Ew: 23 mm | Bc: 13 mm | Cr: 10.8 kN | C0r: 15.5 kN | Mass: 0.008 kg
K19X23X17Fw: 19 mm | Ew: 23 mm | Bc: 17 mm | Cr: 13.4 kN | C0r: 20.6 kN | Mass: 0.011 kg
K20X24X8FFw: 20 mm | Ew: 24 mm | Bc: 8 mm | Cr: 7.31 kN | C0r: 9.60 kN | Mass: 0.005 kg
K20X24X10HFw: 20 mm | Ew: 24 mm | Bc: 10 mm | Cr: 8.97 kN | C0r: 12.5 kN | Mass: 0.006 kg
K20X24X12Fw: 20 mm | Ew: 24 mm | Bc: 12 mm | Cr: 10.7 kN | C0r: 15.7 kN | Mass: 0.008 kg
K20X24X13HFw: 20 mm | Ew: 24 mm | Bc: 13 mm | Cr: 11.5 kN | C0r: 17.3 kN | Mass: 0.009 kg
K20X24X14Fw: 20 mm | Ew: 24 mm | Bc: 14 mm | Cr: 12.4 kN | C0r: 18.9 kN | Mass: 0.009 kg
K20X24X17HFw: 20 mm | Ew: 24 mm | Bc: 17 mm | Cr: 14.8 kN | C0r: 23.7 kN | Mass: 0.011 kg
K20X26X12Fw: 20 mm | Ew: 26 mm | Bc: 12 mm | Cr: 13.0 kN | C0r: 15.3 kN | Mass: 0.012 kg
K20X26X13HFw: 20 mm | Ew: 26 mm | Bc: 13 mm | Cr: 13.4 kN | C0r: 15.9 kN | Mass: 0.014 kg
K20X26X17HFw: 20 mm | Ew: 26 mm | Bc: 17 mm | Cr: 19.3 kN | C0r: 25.5 kN | Mass: 0.017 kg
K20X26X20Fw: 20 mm | Ew: 26 mm | Bc: 20 mm | Cr: 20.3 kN | C0r: 27.2 kN | Mass: 0.020 kg
K20X28X20HFw: 20 mm | Ew: 28 mm | Bc: 20 mm | Cr: 24.6 kN | C0r: 29.0 kN | Mass: 0.028 kg
K20X28X25HFw: 20 mm | Ew: 28 mm | Bc: 25 mm | Cr: 29.7 kN | C0r: 37.0 kN | Mass: 0.036 kg
K20X30X30HFw: 20 mm | Ew: 30 mm | Bc: 30 mm | Cr: 38.9 kN | C0r: 45.8 kN | Mass: 0.055 kg
K20X32X36HFw: 20 mm | Ew: 32 mm | Bc: 36 mm | Cr: 49.9 kN | C0r: 57.0 kN | Mass: 0.082 kg
K21X25X17HFw: 21 mm | Ew: 25 mm | Bc: 17 mm | Cr: 14.3 kN | C0r: 23.1 kN | Mass: 0.013 kg
K22X26X10HFw: 22 mm | Ew: 26 mm | Bc: 10 mm | Cr: 9.81 kN | C0r: 14.5 kN | Mass: 0.007 kg
K22X26X13HFw: 22 mm | Ew: 26 mm | Bc: 13 mm | Cr: 11.8 kN | C0r: 18.3 kN | Mass: 0.012 kg
K22X26X17HFw: 22 mm | Ew: 26 mm | Bc: 17 mm | Cr: 15.6 kN | C0r: 26.3 kN | Mass: 0.012 kg
K22X26X18HFw: 22 mm | Ew: 26 mm | Bc: 18 mm | Cr: 15.3 kN | C0r: 25.5 kN | Mass: 0.017 kg
K22X28X13Fw: 22 mm | Ew: 28 mm | Bc: 13 mm | Cr: 13.9 kN | C0r: 17.1 kN | Mass: 0.015 kg
K22X28X17HFw: 22 mm | Ew: 28 mm | Bc: 17 mm | Cr: 18.2 kN | C0r: 24.2 kN | Mass: 0.020 kg
K22X30X15HFw: 22 mm | Ew: 30 mm | Bc: 15 mm | Cr: 19.7 kN | C0r: 22.3 kN | Mass: 0.023 kg
K22X30X20FVFw: 22 mm | Ew: 30 mm | Bc: 20 mm | Cr: 24.4 kN | C0r: 29.4 kN | Mass: 0.031 kg
K22X32X24FFw: 22 mm | Ew: 32 mm | Bc: 24 mm | Cr: 33.1 kN | C0r: 37.9 kN | Mass: 0.046 kg
K22X32X30HFw: 22 mm | Ew: 32 mm | Bc: 30 mm | Cr: 41.8 kN | C0r: 51.3 kN | Mass: 0.057 kg
K23X28X24FFw: 23 mm | Ew: 28 mm | Bc: 24 mm | Cr: 22.4 kN | C0r: 36.2 kN | Mass: 0.023 kg
K23X35X16HFw: 23 mm | Ew: 35 mm | Bc: 16 mm | Cr: 25.9 kN | C0r: 25.1 kN | Mass: 0.040 kg
K24X28X10HFw: 24 mm | Ew: 28 mm | Bc: 10 mm | Cr: 9.67 kN | C0r: 14.6 kN | Mass: 0.027 kg
K24X28X13HFw: 24 mm | Ew: 28 mm | Bc: 13 mm | Cr: 12.5 kN | C0r: 20.2 kN | Mass: 0.010 kg
K24X28X16FFw: 24 mm | Ew: 28 mm | Bc: 16 mm | Cr: 12.6 kN | C0r: 20.4 kN | Mass: 0.012 kg
K24X28X17HFw: 24 mm | Ew: 28 mm | Bc: 17 mm | Cr: 15.4 kN | C0r: 26.4 kN | Mass: 0.013 kg
K24X30X10TNFw: 24 mm | Ew: 30 mm | Bc: 10 mm | Cr: 11.3 kN | C0r: 13.5 kN | Mass: 0.008 kg
K24X30X17HFw: 24 mm | Ew: 30 mm | Bc: 17 mm | Cr: 19.8 kN | C0r: 27.7 kN | Mass: 0.020 kg
K24X30X22Fw: 24 mm | Ew: 30 mm | Bc: 22 mm | Cr: 25.0 kN | C0r: 37.3 kN | Mass: 0.024 kg
K24X36X23HFw: 24 mm | Ew: 36 mm | Bc: 23 mm | Cr: 37.1 kN | C0r: 40.1 kN | Mass: 0.070 kg
K25X29X10HFw: 25 mm | Ew: 29 mm | Bc: 10 mm | Cr: 9.61 kN | C0r: 14.6 kN | Mass: 0.008 kg
K25X29X13HFw: 25 mm | Ew: 29 mm | Bc: 13 mm | Cr: 12.8 kN | C0r: 21.1 kN | Mass: 0.010 kg
K25X29X17HFw: 25 mm | Ew: 29 mm | Bc: 17 mm | Cr: 15.1 kN | C0r: 26.2 kN | Mass: 0.016 kg
K25X30X13Fw: 25 mm | Ew: 30 mm | Bc: 13 mm | Cr: 14.6 kN | C0r: 21.4 kN | Mass: 0.012 kg
K25X30X17HFw: 25 mm | Ew: 30 mm | Bc: 17 mm | Cr: 18.8 kN | C0r: 29.8 kN | Mass: 0.016 kg
K25X30X18Fw: 25 mm | Ew: 30 mm | Bc: 18 mm | Cr: 20.6 kN | C0r: 33.4 kN | Mass: 0.017 kg
K25X30X20HFw: 25 mm | Ew: 30 mm | Bc: 20 mm | Cr: 21.9 kN | C0r: 36.1 kN | Mass: 0.019 kg
K25X30X24HFw: 25 mm | Ew: 30 mm | Bc: 24 mm | Cr: 24.8 kN | C0r: 42.4 kN | Mass: 0.024 kg
K25X30X26ZWFw: 25 mm | Ew: 30 mm | Bc: 26 mm | Cr: 23.0 kN | C0r: 38.6 kN | Mass: 0.027 kg
K25X31X14HFw: 25 mm | Ew: 31 mm | Bc: 14 mm | Cr: 16.8 kN | C0r: 22.7 kN | Mass: 0.017 kg
K25X31X17HFw: 25 mm | Ew: 31 mm | Bc: 17 mm | Cr: 19.7 kN | C0r: 27.8 kN | Mass: 0.020 kg
K25X31X21HFw: 25 mm | Ew: 31 mm | Bc: 21 mm | Cr: 25.1 kN | C0r: 38.0 kN | Mass: 0.026 kg
K25X31X24FHFw: 25 mm | Ew: 31 mm | Bc: 24 mm | Cr: 25.3 kN | C0r: 38.5 kN | Mass: 0.031 kg
K25X32X16Fw: 25 mm | Ew: 32 mm | Bc: 16 mm | Cr: 19.8 kN | C0r: 25.3 kN | Mass: 0.027 kg
K25X33X20HFw: 25 mm | Ew: 33 mm | Bc: 20 mm | Cr: 28.8 kN | C0r: 37.6 kN | Mass: 0.035 kg
K25X33X24HFw: 25 mm | Ew: 33 mm | Bc: 24 mm | Cr: 32.3 kN | C0r: 43.5 kN | Mass: 0.038 kg
K25X33X25HFw: 25 mm | Ew: 33 mm | Bc: 25 mm | Cr: 33.0 kN | C0r: 44.6 kN | Mass: 0.041 kg
K25X35X23,7HFw: 25 mm | Ew: 35 mm | Bc: 23.7 mm | Cr: 35.9 kN | C0r: 42.3 kN | Mass: 0.050 kg
K25X35X25HFw: 25 mm | Ew: 35 mm | Bc: 25 mm | Cr: 37.8 kN | C0r: 46.2 kN | Mass: 0.054 kg
K25X35X30HFw: 25 mm | Ew: 35 mm | Bc: 30 mm | Cr: 44.6 kN | C0r: 57.2 kN | Mass: 0.060 kg
K25X35X36HFw: 25 mm | Ew: 35 mm | Bc: 36 mm | Cr: 52.4 kN | C0r: 70.4 kN | Mass: 0.074 kg
K25X37X20HFw: 25 mm | Ew: 37 mm | Bc: 20 mm | Cr: 32.5 kN | C0r: 34.1 kN | Mass: 0.055 kg
K26X30X10FFw: 26 mm | Ew: 30 mm | Bc: 10 mm | Cr: 9.46 kN | C0r: 14.5 kN | Mass: 0.007 kg
K26X30X13Fw: 26 mm | Ew: 30 mm | Bc: 13 mm | Cr: 12.3 kN | C0r: 20.4 kN | Mass: 0.011 kg
K26X30X17Fw: 26 mm | Ew: 30 mm | Bc: 17 mm | Cr: 15.0 kN | C0r: 26.3 kN | Mass: 0.014 kg
K26X30X22ZWFw: 26 mm | Ew: 30 mm | Bc: 22 mm | Cr: 16.7 kN | C0r: 30.2 kN | Mass: 0.018 kg
K28X32X21FFw: 28 mm | Ew: 32 mm | Bc: 21 mm | Cr: 18.7 kN | C0r: 35.7 kN | Mass: 0.018 kg
K28X33X13FFw: 28 mm | Ew: 33 mm | Bc: 13 mm | Cr: 14.1 kN | C0r: 21.4 kN | Mass: 0.015 kg
K28X33X17HFw: 28 mm | Ew: 33 mm | Bc: 17 mm | Cr: 19.8 kN | C0r: 33.0 kN | Mass: 0.018 kg
K28X33X27Fw: 28 mm | Ew: 33 mm | Bc: 27 mm | Cr: 29.0 kN | C0r: 53.8 kN | Mass: 0.027 kg
K28X34X17Fw: 28 mm | Ew: 34 mm | Bc: 17 mm | Cr: 21.1 kN | C0r: 31.5 kN | Mass: 0.022 kg
K28X34X20HFw: 28 mm | Ew: 34 mm | Bc: 20 mm | Cr: 24.4 kN | C0r: 37.8 kN | Mass: 0.025 kg
K28X35X15HFw: 28 mm | Ew: 35 mm | Bc: 15 mm | Cr: 19.5 kN | C0r: 25.6 kN | Mass: 0.025 kg
K28X35X16HFw: 28 mm | Ew: 35 mm | Bc: 16 mm | Cr: 21.5 kN | C0r: 29.1 kN | Mass: 0.026 kg
K28X35X27HFw: 28 mm | Ew: 35 mm | Bc: 27 mm | Cr: 35.2 kN | C0r: 54.7 kN | Mass: 0.042 kg
K28X36X20FVFw: 28 mm | Ew: 36 mm | Bc: 20 mm | Cr: 27.8 kN | C0r: 37.0 kN | Mass: 0.039 kg
K28X38X25,5Fw: 28 mm | Ew: 38 mm | Bc: 25 mm | Cr: 40.9 kN | C0r: 52.7 kN | Mass: 0.059 kg
K28X40X18HFw: 28 mm | Ew: 40 mm | Bc: 18 mm | Cr: 33.6 kN | C0r: 36.5 kN | Mass: 0.060 kg
K28X40X25HFw: 28 mm | Ew: 40 mm | Bc: 25 mm | Cr: 45.5 kN | C0r: 54.0 kN | Mass: 0.072 kg
K28X40X30HFw: 28 mm | Ew: 40 mm | Bc: 30 mm | Cr: 54.3 kN | C0r: 67.8 kN | Mass: 0.100 kg
K28X41X25HFw: 28 mm | Ew: 41 mm | Bc: 25 mm | Cr: 49.2 kN | C0r: 57.1 kN | Mass: 0.082 kg
K29X34X27FFw: 29 mm | Ew: 34 mm | Bc: 27 mm | Cr: 28.9 kN | C0r: 54.0 kN | Mass: 0.033 kg
K30X34X13Fw: 30 mm | Ew: 34 mm | Bc: 13 mm | Cr: 13.5 kN | C0r: 24.1 kN | Mass: 0.011 kg
K30X35X13HFw: 30 mm | Ew: 35 mm | Bc: 13 mm | Cr: 15.6 kN | C0r: 24.9 kN | Mass: 0.017 kg
K30X35X17HFw: 30 mm | Ew: 35 mm | Bc: 17 mm | Cr: 20.2 kN | C0r: 34.6 kN | Mass: 0.022 kg
K30X35X20HFw: 30 mm | Ew: 35 mm | Bc: 20 mm | Cr: 23.5 kN | C0r: 41.9 kN | Mass: 0.023 kg
K30X35X23FFw: 30 mm | Ew: 35 mm | Bc: 22.8 mm | Cr: 25.6 kN | C0r: 46.8 kN | Mass: 0.028 kg
K30X35X27HFw: 30 mm | Ew: 35 mm | Bc: 27 mm | Cr: 30.6 kN | C0r: 59.0 kN | Mass: 0.032 kg
K30X35X27HZWFw: 30 mm | Ew: 35 mm | Bc: 27 mm | Cr: 19.9 kN | C0r: 33.6 kN | Mass: 0.033 kg
K30X36X14Fw: 30 mm | Ew: 36 mm | Bc: 14 mm | Cr: 18.0 kN | C0r: 26.2 kN | Mass: 0.020 kg
K30X37X18Fw: 30 mm | Ew: 37 mm | Bc: 17.8 mm | Cr: 24.3 kN | C0r: 34.8 kN | Mass: 0.033 kg
K30X40X30HFw: 30 mm | Ew: 40 mm | Bc: 30 mm | Cr: 49.2 kN | C0r: 67.8 kN | Mass: 0.077 kg
K30X42X30HFw: 30 mm | Ew: 42 mm | Bc: 30 mm | Cr: 54.2 kN | C0r: 68.6 kN | Mass: 0.096 kg
K30X44X26HFw: 30 mm | Ew: 44 mm | Bc: 26 mm | Cr: 52.4 kN | C0r: 59.9 kN | Mass: 0.095 kg
K32X36X15FFw: 32 mm | Ew: 36 mm | Bc: 15 mm | Cr: 11.6 kN | C0r: 20.2 kN | Mass: 0.015 kg
K32X37X13Fw: 32 mm | Ew: 37 mm | Bc: 13 mm | Cr: 15.2 kN | C0r: 24.4 kN | Mass: 0.018 kg
K32X37X17HFw: 32 mm | Ew: 37 mm | Bc: 17 mm | Cr: 20.0 kN | C0r: 34.8 kN | Mass: 0.020 kg
K32X37X27Fw: 32 mm | Ew: 37 mm | Bc: 27 mm | Cr: 29.3 kN | C0r: 56.8 kN | Mass: 0.035 kg
K32X38X20HFw: 32 mm | Ew: 38 mm | Bc: 20 mm | Cr: 27.3 kN | C0r: 45.7 kN | Mass: 0.030 kg
K32X38X26HFw: 32 mm | Ew: 38 mm | Bc: 26 mm | Cr: 33.2 kN | C0r: 58.8 kN | Mass: 0.037 kg
K32X39X16HFw: 32 mm | Ew: 39 mm | Bc: 16 mm | Cr: 23.0 kN | C0r: 33.0 kN | Mass: 0.030 kg
K32X39X18HFw: 32 mm | Ew: 39 mm | Bc: 18 mm | Cr: 25.8 kN | C0r: 38.2 kN | Mass: 0.033 kg
K32X40X25HFw: 32 mm | Ew: 40 mm | Bc: 25 mm | Cr: 37.9 kN | C0r: 57.2 kN | Mass: 0.052 kg
K32X40X36HFw: 32 mm | Ew: 40 mm | Bc: 36 mm | Cr: 52.3 kN | C0r: 86.4 kN | Mass: 0.080 kg
K32X42X42HFw: 32 mm | Ew: 42 mm | Bc: 42 mm | Cr: 69.2 kN | C0r: 108 kN | Mass: 0.110 kg
K32X46X18HFw: 32 mm | Ew: 46 mm | Bc: 18 mm | Cr: 39.2 kN | C0r: 41.9 kN | Mass: 0.075 kg
K32X46X32HFw: 32 mm | Ew: 46 mm | Bc: 32 mm | Cr: 67.0 kN | C0r: 83.4 kN | Mass: 0.140 kg
K32X46X40HFw: 32 mm | Ew: 46 mm | Bc: 40 mm | Cr: 81.7 kN | C0r: 108 kN | Mass: 0.158 kg
K33X51X23HFw: 33 mm | Ew: 51 mm | Bc: 23 mm | Cr: 55.9 kN | C0r: 57.6 kN | Mass: 0.140 kg
K34X38X11Fw: 34 mm | Ew: 38 mm | Bc: 11 mm | Cr: 12.2 kN | C0r: 21.9 kN | Mass: 0.011 kg
K34X44X26FHFw: 34 mm | Ew: 44 mm | Bc: 26 mm | Cr: 42.9 kN | C0r: 58.9 kN | Mass: 0.080 kg
K35X40X13HFw: 35 mm | Ew: 40 mm | Bc: 13 mm | Cr: 16.2 kN | C0r: 27.2 kN | Mass: 0.018 kg
K35X40X17HFw: 35 mm | Ew: 40 mm | Bc: 17 mm | Cr: 22.1 kN | C0r: 40.8 kN | Mass: 0.025 kg
K35X40X19HFw: 35 mm | Ew: 40 mm | Bc: 19 mm | Cr: 23.2 kN | C0r: 43.2 kN | Mass: 0.025 kg
K35X40X25HFw: 35 mm | Ew: 40 mm | Bc: 25 mm | Cr: 28.4 kN | C0r: 56.2 kN | Mass: 0.035 kg
K35X40X27HFw: 35 mm | Ew: 40 mm | Bc: 27 mm | Cr: 29.8 kN | C0r: 59.6 kN | Mass: 0.037 kg
K35X42X16AHFw: 35 mm | Ew: 42 mm | Bc: 16 mm | Cr: 24.5 kN | C0r: 36.8 kN | Mass: 0.031 kg
K35X42X18Fw: 35 mm | Ew: 42 mm | Bc: 18 mm | Cr: 27.5 kN | C0r: 42.6 kN | Mass: 0.035 kg
K35X42X20HFw: 35 mm | Ew: 42 mm | Bc: 20 mm | Cr: 30.4 kN | C0r: 48.5 kN | Mass: 0.037 kg
K35X42X30FHFw: 35 mm | Ew: 42 mm | Bc: 30 mm | Cr: 40.5 kN | C0r: 70.0 kN | Mass: 0.061 kg
K35X45X20FHFw: 35 mm | Ew: 45 mm | Bc: 20 mm | Cr: 36.5 kN | C0r: 49.9 kN | Mass: 0.059 kg
K35X45X30FFw: 35 mm | Ew: 45 mm | Bc: 30 mm | Cr: 51.2 kN | C0r: 74.5 kN | Mass: 0.100 kg
K35X45X35HFw: 35 mm | Ew: 45 mm | Bc: 35 mm | Cr: 62.1 kN | C0r: 95.5 kN | Mass: 0.085 kg
K35X45X41Fw: 35 mm | Ew: 45 mm | Bc: 41 mm | Cr: 70.8 kN | C0r: 113 kN | Mass: 0.120 kg
K35X45X49HFw: 35 mm | Ew: 45 mm | Bc: 49 mm | Cr: 82.5 kN | C0r: 138 kN | Mass: 0.143 kg
K35X45X49HZWFw: 35 mm | Ew: 45 mm | Bc: 49 mm | Cr: 71.8 kN | C0r: 115 kN | Mass: 0.143 kg
K35X50X40FFw: 35 mm | Ew: 50 mm | Bc: 40 mm | Cr: 79.7 kN | C0r: 102 kN | Mass: 0.200 kg
K36X40X29TNFw: 36 mm | Ew: 40 mm | Bc: 29 mm | Cr: 21.2 kN | C0r: 45.2 kN | Mass: 0.029 kg
K36X42X16Fw: 36 mm | Ew: 42 mm | Bc: 16 mm | Cr: 22.8 kN | C0r: 37.7 kN | Mass: 0.027 kg
K37X42X13HFw: 37 mm | Ew: 42 mm | Bc: 13 mm | Cr: 16.9 kN | C0r: 29.4 kN | Mass: 0.017 kg
K37X42X17HFw: 37 mm | Ew: 42 mm | Bc: 17 mm | Cr: 21.9 kN | C0r: 41.0 kN | Mass: 0.025 kg
K37X42X27FFw: 37 mm | Ew: 42 mm | Bc: 27 mm | Cr: 32.1 kN | C0r: 66.9 kN | Mass: 0.039 kg
K37X44X19HFw: 37 mm | Ew: 44 mm | Bc: 19 mm | Cr: 29.7 kN | C0r: 48.0 kN | Mass: 0.039 kg
K38X41X9TNFw: 38 mm | Ew: 41 mm | Bc: 9 mm | Cr: 5.93 kN | C0r: 11.0 kN | Mass: 0.004 kg
K38X43X17HFw: 38 mm | Ew: 43 mm | Bc: 17 mm | Cr: 21.8 kN | C0r: 41.0 kN | Mass: 0.032 kg
K38X43X27Fw: 38 mm | Ew: 43 mm | Bc: 27 mm | Cr: 31.9 kN | C0r: 67.0 kN | Mass: 0.041 kg
K38X46X20HFw: 38 mm | Ew: 46 mm | Bc: 19.8 mm | Cr: 33.3 kN | C0r: 51.0 kN | Mass: 0.055 kg
K38X46X32HFw: 38 mm | Ew: 46 mm | Bc: 32 mm | Cr: 55.2 kN | C0r: 98.1 kN | Mass: 0.090 kg
K38X50X25Fw: 38 mm | Ew: 50 mm | Bc: 25 mm | Cr: 53.0 kN | C0r: 70.8 kN | Mass: 0.100 kg
K38X50X33HFw: 38 mm | Ew: 50 mm | Bc: 33 mm | Cr: 68.3 kN | C0r: 98.2 kN | Mass: 0.126 kg
K38X50X40FHFw: 38 mm | Ew: 50 mm | Bc: 40 mm | Cr: 76.2 kN | C0r: 113 kN | Mass: 0.170 kg
K40X45X13HFw: 40 mm | Ew: 45 mm | Bc: 13 mm | Cr: 17.6 kN | C0r: 31.7 kN | Mass: 0.022 kg
K40X45X18HFw: 40 mm | Ew: 45 mm | Bc: 18 mm | Cr: 25.1 kN | C0r: 50.4 kN | Mass: 0.031 kg
K40X45X21HFw: 40 mm | Ew: 45 mm | Bc: 21 mm | Cr: 23.3 kN | C0r: 45.2 kN | Mass: 0.033 kg
K40X45X27HFw: 40 mm | Ew: 45 mm | Bc: 27 mm | Cr: 32.7 kN | C0r: 70.2 kN | Mass: 0.040 kg
K40X45X27TNFw: 40 mm | Ew: 45 mm | Bc: 27 mm | Cr: 33.3 kN | C0r: 72.1 kN | Mass: 0.030 kg
K40X45X29HFw: 40 mm | Ew: 45 mm | Bc: 29 mm | Cr: 34.7 kN | C0r: 75.9 kN | Mass: 0.050 kg
K40X46X17Fw: 40 mm | Ew: 46 mm | Bc: 17 mm | Cr: 25.2 kN | C0r: 44.0 kN | Mass: 0.033 kg
K40X47X18Fw: 40 mm | Ew: 47 mm | Bc: 18 mm | Cr: 28.0 kN | C0r: 45.6 kN | Mass: 0.041 kg
K40X47X20Fw: 40 mm | Ew: 47 mm | Bc: 20 mm | Cr: 31.1 kN | C0r: 52.1 kN | Mass: 0.042 kg
K40X48X20FV1Fw: 40 mm | Ew: 48 mm | Bc: 20 mm | Cr: 35.5 kN | C0r: 56.3 kN | Mass: 0.052 kg
K40X48X20HFw: 40 mm | Ew: 48 mm | Bc: 20 mm | Cr: 35.5 kN | C0r: 56.3 kN | Mass: 0.050 kg
K40X48X35HFw: 40 mm | Ew: 48 mm | Bc: 35 mm | Cr: 57.3 kN | C0r: 104 kN | Mass: 0.098 kg
K40X50X27HFw: 40 mm | Ew: 50 mm | Bc: 27 mm | Cr: 53.0 kN | C0r: 81.0 kN | Mass: 0.084 kg
K40X55X45HFw: 40 mm | Ew: 55 mm | Bc: 45 mm | Cr: 103 kN | C0r: 146 kN | Mass: 0.221 kg
K40X56X26HFw: 40 mm | Ew: 56 mm | Bc: 26 mm | Cr: 63.7 kN | C0r: 75.7 kN | Mass: 0.138 kg
K41X48X31HZWFw: 41 mm | Ew: 48 mm | Bc: 31 mm | Cr: 38.0 kN | C0r: 68.1 kN | Mass: 0.067 kg
K42X47X13HFw: 42 mm | Ew: 47 mm | Bc: 13 mm | Cr: 18.7 kN | C0r: 34.9 kN | Mass: 0.027 kg
K42X47X17HFw: 42 mm | Ew: 47 mm | Bc: 17 mm | Cr: 22.8 kN | C0r: 45.2 kN | Mass: 0.028 kg
K42X47X27HFw: 42 mm | Ew: 47 mm | Bc: 27 mm | Cr: 33.8 kN | C0r: 74.7 kN | Mass: 0.041 kg
K42X48X24FFw: 42 mm | Ew: 48 mm | Bc: 24 mm | Cr: 33.1 kN | C0r: 63.9 kN | Mass: 0.046 kg
K42X50X13HFw: 42 mm | Ew: 50 mm | Bc: 13 mm | Cr: 20.9 kN | C0r: 28.9 kN | Mass: 0.035 kg
K42X50X20HFw: 42 mm | Ew: 50 mm | Bc: 20 mm | Cr: 35.2 kN | C0r: 56.6 kN | Mass: 0.054 kg
K42X50X30HFw: 42 mm | Ew: 50 mm | Bc: 30 mm | Cr: 51.3 kN | C0r: 91.9 kN | Mass: 0.080 kg
K43X48X17FHFw: 43 mm | Ew: 48 mm | Bc: 17 mm | Cr: 23.0 kN | C0r: 45.8 kN | Mass: 0.036 kg
K43X48X27HFw: 43 mm | Ew: 48 mm | Bc: 27 mm | Cr: 34.8 kN | C0r: 78.0 kN | Mass: 0.050 kg
K44X50X22HFw: 44 mm | Ew: 50 mm | Bc: 22 mm | Cr: 31.6 kN | C0r: 60.6 kN | Mass: 0.046 kg
K44X50X30,5HZWFw: 44 mm | Ew: 50 mm | Bc: 30 mm | Cr: 35.5 kN | C0r: 70.5 kN | Mass: 0.068 kg
K45X50X13HFw: 45 mm | Ew: 50 mm | Bc: 13 mm | Cr: 18.4 kN | C0r: 35.1 kN | Mass: 0.022 kg
K45X50X15HFw: 45 mm | Ew: 50 mm | Bc: 15 mm | Cr: 19.4 kN | C0r: 37.3 kN | Mass: 0.028 kg
K45X50X17HFw: 45 mm | Ew: 50 mm | Bc: 17 mm | Cr: 24.9 kN | C0r: 51.8 kN | Mass: 0.030 kg
K45X50X20FFw: 45 mm | Ew: 50 mm | Bc: 20 mm | Cr: 27.0 kN | C0r: 57.4 kN | Mass: 0.040 kg
K45X50X21CHFw: 45 mm | Ew: 50 mm | Bc: 21 mm | Cr: 24.6 kN | C0r: 50.4 kN | Mass: 0.036 kg
K45X50X27FHFw: 45 mm | Ew: 50 mm | Bc: 27 mm | Cr: 34.2 kN | C0r: 77.4 kN | Mass: 0.043 kg
K45X50X27TNFw: 45 mm | Ew: 50 mm | Bc: 27 mm | Cr: 31.8 kN | C0r: 70.7 kN | Mass: 0.048 kg
K45X52X18HFw: 45 mm | Ew: 52 mm | Bc: 18 mm | Cr: 30.1 kN | C0r: 52.0 kN | Mass: 0.045 kg
K45X52X21FFw: 45 mm | Ew: 52 mm | Bc: 21 mm | Cr: 35.0 kN | C0r: 63.2 kN | Mass: 0.055 kg
K45X53X20HFw: 45 mm | Ew: 53 mm | Bc: 20 mm | Cr: 36.0 kN | C0r: 59.5 kN | Mass: 0.054 kg
K45X53X25HFw: 45 mm | Ew: 53 mm | Bc: 24.8 mm | Cr: 45.9 kN | C0r: 81.5 kN | Mass: 0.072 kg
K45X53X25FFw: 45 mm | Ew: 53 mm | Bc: 25 mm | Cr: 42.5 kN | C0r: 73.7 kN | Mass: 0.075 kg
K45X53X28HFw: 45 mm | Ew: 53 mm | Bc: 28 mm | Cr: 49.3 kN | C0r: 89.2 kN | Mass: 0.078 kg
K45X55X20HFw: 45 mm | Ew: 55 mm | Bc: 20 mm | Cr: 42.0 kN | C0r: 62.2 kN | Mass: 0.074 kg
K45X59X18HFw: 45 mm | Ew: 59 mm | Bc: 18 mm | Cr: 47.8 kN | C0r: 58.9 kN | Mass: 0.107 kg
K45X59X18TNFw: 45 mm | Ew: 59 mm | Bc: 18 mm | Cr: 45.7 kN | C0r: 55.4 kN | Mass: 0.097 kg
K45X59X36HFw: 45 mm | Ew: 59 mm | Bc: 36 mm | Cr: 82.4 kN | C0r: 118 kN | Mass: 0.181 kg
K45X60X30HFw: 45 mm | Ew: 60 mm | Bc: 30 mm | Cr: 75.5 kN | C0r: 101 kN | Mass: 0.171 kg
K45X60X45HFw: 45 mm | Ew: 60 mm | Bc: 45 mm | Cr: 108 kN | C0r: 160 kN | Mass: 0.280 kg
K46X53X36HZWFw: 46 mm | Ew: 53 mm | Bc: 36 mm | Cr: 48.6 kN | C0r: 96.7 kN | Mass: 0.100 kg
K47X52X15FHFw: 47 mm | Ew: 52 mm | Bc: 15 mm | Cr: 20.1 kN | C0r: 39.8 kN | Mass: 0.030 kg
K47X52X17HFw: 47 mm | Ew: 52 mm | Bc: 17 mm | Cr: 24.2 kN | C0r: 50.4 kN | Mass: 0.032 kg
K47X52X27HFw: 47 mm | Ew: 52 mm | Bc: 27 mm | Cr: 36.6 kN | C0r: 85.9 kN | Mass: 0.045 kg
K47X55X28FV1Fw: 47 mm | Ew: 55 mm | Bc: 28 mm | Cr: 48.9 kN | C0r: 89.5 kN | Mass: 0.092 kg
K48X53X17HFw: 48 mm | Ew: 53 mm | Bc: 17 mm | Cr: 25.7 kN | C0r: 54.9 kN | Mass: 0.032 kg
K48X54X19HFw: 48 mm | Ew: 54 mm | Bc: 19 mm | Cr: 30.9 kN | C0r: 61.2 kN | Mass: 0.042 kg
K49X55X32HZWFw: 49 mm | Ew: 55 mm | Bc: 32 mm | Cr: 40.2 kN | C0r: 86.4 kN | Mass: 0.080 kg
K49X65X38HFw: 49 mm | Ew: 65 mm | Bc: 38 mm | Cr: 100 kN | C0r: 142 kN | Mass: 0.244 kg
K50X55X17HFw: 50 mm | Ew: 55 mm | Bc: 17 mm | Cr: 25.5 kN | C0r: 55.0 kN | Mass: 0.032 kg
K50X55X20HFw: 50 mm | Ew: 55 mm | Bc: 20 mm | Cr: 30.2 kN | C0r: 68.5 kN | Mass: 0.038 kg
K50X55X30Fw: 50 mm | Ew: 55 mm | Bc: 30 mm | Cr: 38.2 kN | C0r: 92.4 kN | Mass: 0.057 kg
K50X55X30FV1Fw: 50 mm | Ew: 55 mm | Bc: 30 mm | Cr: 38.2 kN | C0r: 92.4 kN | Mass: 0.057 kg
K50X56X23Fw: 50 mm | Ew: 56 mm | Bc: 23 mm | Cr: 35.5 kN | C0r: 74.1 kN | Mass: 0.051 kg
K50X57X18FHFw: 50 mm | Ew: 57 mm | Bc: 18 mm | Cr: 31.3 kN | C0r: 56.4 kN | Mass: 0.050 kg
K50X58X20HFw: 50 mm | Ew: 58 mm | Bc: 20 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.065 kg
K50X58X25HFw: 50 mm | Ew: 58 mm | Bc: 25 mm | Cr: 46.5 kN | C0r: 85.6 kN | Mass: 0.081 kg
K50X58X35HFw: 50 mm | Ew: 58 mm | Bc: 35 mm | Cr: 64.9 kN | C0r: 131 kN | Mass: 0.105 kg
K50X62X30HFw: 50 mm | Ew: 62 mm | Bc: 30 mm | Cr: 64.6 kN | C0r: 98.1 kN | Mass: 0.136 kg
K50X66X30HFw: 50 mm | Ew: 66 mm | Bc: 30 mm | Cr: 80.9 kN | C0r: 109 kN | Mass: 0.192 kg
K50X70X32HFw: 50 mm | Ew: 70 mm | Bc: 32 mm | Cr: 103 kN | C0r: 129 kN | Mass: 0.224 kg
K52X57X12Fw: 52 mm | Ew: 57 mm | Bc: 12 mm | Cr: 18.4 kN | C0r: 36.7 kN | Mass: 0.022 kg
K52X57X17HFw: 52 mm | Ew: 57 mm | Bc: 17 mm | Cr: 21.4 kN | C0r: 44.3 kN | Mass: 0.035 kg
K52X60X24Fw: 52 mm | Ew: 60 mm | Bc: 24 mm | Cr: 47.1 kN | C0r: 88.3 kN | Mass: 0.078 kg
K55X60X17Fw: 55 mm | Ew: 60 mm | Bc: 17 mm | Cr: 26.0 kN | C0r: 58.3 kN | Mass: 0.037 kg
K55X60X20HFw: 55 mm | Ew: 60 mm | Bc: 20 mm | Cr: 30.7 kN | C0r: 72.4 kN | Mass: 0.042 kg
K55X60X27HFw: 55 mm | Ew: 60 mm | Bc: 27 mm | Cr: 40.1 kN | C0r: 102 kN | Mass: 0.055 kg
K55X60X30FHFw: 55 mm | Ew: 60 mm | Bc: 30 mm | Cr: 40.6 kN | C0r: 103 kN | Mass: 0.068 kg
K55X61X26HFw: 55 mm | Ew: 61 mm | Bc: 26 mm | Cr: 44.3 kN | C0r: 102 kN | Mass: 0.063 kg
K55X62X18HFw: 55 mm | Ew: 62 mm | Bc: 18 mm | Cr: 33.2 kN | C0r: 62.8 kN | Mass: 0.055 kg
K55X63X15FFw: 55 mm | Ew: 63 mm | Bc: 15 mm | Cr: 30.5 kN | C0r: 51.5 kN | Mass: 0.054 kg
K55X63X20Fw: 55 mm | Ew: 63 mm | Bc: 20 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.072 kg
K55X63X25Fw: 55 mm | Ew: 63 mm | Bc: 25 mm | Cr: 49.8 kN | C0r: 96.5 kN | Mass: 0.080 kg
K55X63X32Fw: 55 mm | Ew: 63 mm | Bc: 32 mm | Cr: 62.3 kN | C0r: 129 kN | Mass: 0.108 kg
K58X63X17FFw: 58 mm | Ew: 63 mm | Bc: 17 mm | Cr: 27.0 kN | C0r: 62.6 kN | Mass: 0.037 kg
K58X64X19HFw: 58 mm | Ew: 64 mm | Bc: 19 mm | Cr: 32.9 kN | C0r: 70.6 kN | Mass: 0.037 kg
K58X65X18HFw: 58 mm | Ew: 65 mm | Bc: 18 mm | Cr: 34.3 kN | C0r: 67.1 kN | Mass: 0.058 kg
K60X65X20HFw: 60 mm | Ew: 65 mm | Bc: 20 mm | Cr: 31.9 kN | C0r: 78.1 kN | Mass: 0.046 kg
K60X65X27FHFw: 60 mm | Ew: 65 mm | Bc: 26.8 mm | Cr: 39.5 kN | C0r: 103 kN | Mass: 0.059 kg
K60X65X30FHFw: 60 mm | Ew: 65 mm | Bc: 29.8 mm | Cr: 42.9 kN | C0r: 114 kN | Mass: 0.085 kg
K60X65X30Fw: 60 mm | Ew: 65 mm | Bc: 30 mm | Cr: 42.9 kN | C0r: 114 kN | Mass: 0.070 kg
K60X68X17FFw: 60 mm | Ew: 68 mm | Bc: 17 mm | Cr: 34.2 kN | C0r: 61.4 kN | Mass: 0.066 kg
K60X68X20HFw: 60 mm | Ew: 68 mm | Bc: 20 mm | Cr: 41.8 kN | C0r: 79.2 kN | Mass: 0.066 kg
K60X68X23HFw: 60 mm | Ew: 68 mm | Bc: 23 mm | Cr: 49.0 kN | C0r: 97.2 kN | Mass: 0.089 kg
K60X68X25Fw: 60 mm | Ew: 68 mm | Bc: 25 mm | Cr: 51.6 kN | C0r: 104 kN | Mass: 0.091 kg
K60X68X30ZWFw: 60 mm | Ew: 68 mm | Bc: 30 mm | Cr: 46.4 kN | C0r: 90.1 kN | Mass: 0.119 kg
K63X71X20Fw: 63 mm | Ew: 71 mm | Bc: 20 mm | Cr: 41.4 kN | C0r: 79.4 kN | Mass: 0.070 kg
K64X70X16Fw: 64 mm | Ew: 70 mm | Bc: 16 mm | Cr: 26.4 kN | C0r: 55.1 kN | Mass: 0.049 kg
K65X70X20CHFw: 65 mm | Ew: 70 mm | Bc: 20 mm | Cr: 28.6 kN | C0r: 69.2 kN | Mass: 0.050 kg
K65X70X30Fw: 65 mm | Ew: 70 mm | Bc: 30 mm | Cr: 44.4 kN | C0r: 123 kN | Mass: 0.075 kg
K65X73X23HFw: 65 mm | Ew: 73 mm | Bc: 23 mm | Cr: 48.2 kN | C0r: 97.7 kN | Mass: 0.091 kg
K65X73X30HFw: 65 mm | Ew: 73 mm | Bc: 30 mm | Cr: 60.1 kN | C0r: 129 kN | Mass: 0.116 kg
K68X74X20FHFw: 68 mm | Ew: 74 mm | Bc: 20 mm | Cr: 37.5 kN | C0r: 88.1 kN | Mass: 0.062 kg
K68X74X28CHFw: 68 mm | Ew: 74 mm | Bc: 28 mm | Cr: 44.8 kN | C0r: 110 kN | Mass: 0.082 kg
K68X74X30HFw: 68 mm | Ew: 74 mm | Bc: 30 mm | Cr: 47.6 kN | C0r: 119 kN | Mass: 0.098 kg
K68X74X35HZWFw: 68 mm | Ew: 74 mm | Bc: 35 mm | Cr: 45.1 kN | C0r: 111 kN | Mass: 0.120 kg
K68X76X20Fw: 68 mm | Ew: 76 mm | Bc: 20 mm | Cr: 43.8 kN | C0r: 87.8 kN | Mass: 0.086 kg
K70X76X20Fw: 70 mm | Ew: 76 mm | Bc: 20 mm | Cr: 36.1 kN | C0r: 84.7 kN | Mass: 0.065 kg
K70X76X30Fw: 70 mm | Ew: 76 mm | Bc: 30 mm | Cr: 51.6 kN | C0r: 134.0 kN | Mass: 0.097 kg
K70X78X20HFw: 70 mm | Ew: 78 mm | Bc: 20 mm | Cr: 43.6 kN | C0r: 87.9 kN | Mass: 0.090 kg
K70X78X23FFw: 70 mm | Ew: 78 mm | Bc: 23 mm | Cr: 49.8 kN | C0r: 104.0 kN | Mass: 0.115 kg
K70X78X25FFw: 70 mm | Ew: 78 mm | Bc: 24.8 mm | Cr: 49.8 kN | C0r: 104.0 kN | Mass: 0.115 kg
K70X78X30HFw: 70 mm | Ew: 78 mm | Bc: 30 mm | Cr: 62.2 kN | C0r: 139.0 kN | Mass: 0.140 kg
K70X78X46ZWFw: 70 mm | Ew: 78 mm | Bc: 46 mm | Cr: 78.4 kN | C0r: 187.0 kN | Mass: 0.188 kg
K70X85X40FFw: 70 mm | Ew: 85 mm | Bc: 40 mm | Cr: 118 kN | C0r: 203 kN | Mass: 0.338 kg
K70X88X30HFw: 70 mm | Ew: 88 mm | Bc: 30 mm | Cr: 115 kN | C0r: 175 kN | Mass: 0.205 kg
K72X80X20Fw: 72 mm | Ew: 80 mm | Bc: 20 mm | Cr: 44.4 kN | C0r: 90.7 kN | Mass: 0.084 kg
K73X79X20Fw: 73 mm | Ew: 79 mm | Bc: 20 mm | Cr: 37.0 kN | C0r: 88.7 kN | Mass: 0.068 kg
K75X81X20FFw: 75 mm | Ew: 81 mm | Bc: 20 mm | Cr: 37.4 kN | C0r: 90.7 kN | Mass: 0.075 kg
K75X83X23Fw: 75 mm | Ew: 83 mm | Bc: 23 mm | Cr: 52.5 kN | C0r: 114.0 kN | Mass: 0.104 kg
K75X83X30Fw: 75 mm | Ew: 83 mm | Bc: 30 mm | Cr: 60.9 kN | C0r: 138 kN | Mass: 0.141 kg
K75X83X30FHFw: 75 mm | Ew: 83 mm | Bc: 30 mm | Cr: 60.9 kN | C0r: 138 kN | Mass: 0.141 kg
K80X86X20HFw: 80 mm | Ew: 86 mm | Bc: 20 mm | Cr: 38.6 kN | C0r: 96.7 kN | Mass: 0.072 kg
K80X88X25FV1Fw: 80 mm | Ew: 88 mm | Bc: 25 mm | Cr: 54.0 kN | C0r: 121 kN | Mass: 0.134 kg
K80X88X30Fw: 80 mm | Ew: 88 mm | Bc: 30 mm | Cr: 67.5 kN | C0r: 161 kN | Mass: 0.153 kg
K85X92X20HFw: 85 mm | Ew: 92 mm | Bc: 20 mm | Cr: 39.9 kN | C0r: 91.7 kN | Mass: 0.085 kg
K85X93X25FFw: 85 mm | Ew: 93 mm | Bc: 25 mm | Cr: 58.8 kN | C0r: 138 kN | Mass: 0.000 kg
K85X93X30HFw: 85 mm | Ew: 93 mm | Bc: 30 mm | Cr: 31024 kN | C0r: 3200 kN | Mass: 0.166 kg
K90X97X20Fw: 90 mm | Ew: 97 mm | Bc: 20 mm | Cr: 46.3 kN | C0r: 114 kN | Mass: 0.095 kg
K90X98X25FFw: 90 mm | Ew: 98 mm | Bc: 25 mm | Cr: 54.8 kN | C0r: 128 kN | Mass: 0.134 kg
K90X98X30Fw: 90 mm | Ew: 98 mm | Bc: 30 mm | Cr: 63.6 kN | C0r: 155 kN | Mass: 0.168 kg
K95X103X20Fw: 95 mm | Ew: 103 mm | Bc: 20 mm | Cr: 49.3 kN | C0r: 114 kN | Mass: 0.130 kg
K95X103X30FFw: 95 mm | Ew: 103 mm | Bc: 30 mm | Cr: 71.0 kN | C0r: 183 kN | Mass: 0.180 kg
K100X108X30Fw: 100 mm | Ew: 108 mm | Bc: 30 mm | Cr: 72.4 kN | C0r: 191 kN | Mass: 0.210 kg
K110X118X24Fw: 110 mm | Ew: 118 mm | Bc: 24 mm | Cr: 64.0 kN | C0r: 168 kN | Mass: 0.165 kg
K110X118X30HFw: 110 mm | Ew: 118 mm | Bc: 30 mm | Cr: 75.3 kN | C0r: 207 kN | Mass: 0.200 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
