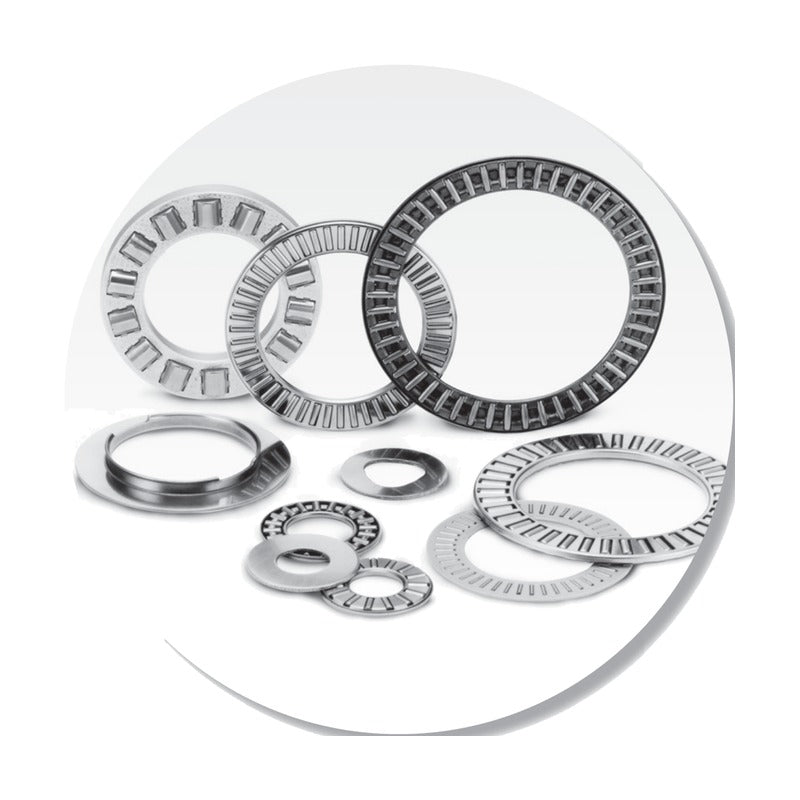

KOYO K.811, K.812 Thrust Cylindrical Roller and Cage Assemblies

KOYO K.811, K.812 Thrust Cylindrical Roller and Cage Assemblies

Metric thrust cylindrical roller and cage assemblies of the K.811 and K.812 series (TVP polyamide or LPB brass cages) for high axial loads, used with WS and GS washers.

Key features

  • Cylindrical rollers for high axial load capacity
  • K.811 and K.812 dimension series
  • TVP polyamide or LPB machined brass cages
  • Use with WS shaft and GS housing washers

Specifications

Bearing type Thrust cylindrical roller and cage assembly
Series K.811, K.812
Source KOYO Needle Roller Bearings catalogue, p. B-6-34 to B-6-37
K.81102LPB d: 15 mm | D: 28 mm | Ca: 12.8 kN | C0a: 28.6 kN | Mass: 0.006 kg
K.81102TVP d: 15 mm | D: 28 mm | Ca: 12.8 kN | C0a: 28.6 kN | Mass: 0.006 kg
K.81103LPB d: 17 mm | D: 30 mm | Ca: 14.2 kN | C0a: 33.4 kN | Mass: 0.008 kg
K.81103TVP d: 17 mm | D: 30 mm | Ca: 14.2 kN | C0a: 33.4 kN | Mass: 0.008 kg
K.81104TVP d: 20 mm | D: 35 mm | Ca: 23.6 kN | C0a: 56.8 kN | Mass: 0.009 kg
K.81105TVP d: 25 mm | D: 42 mm | Ca: 31.2 kN | C0a: 81.0 kN | Mass: 0.014 kg
K.81106LPB d: 30 mm | D: 47 mm | Ca: 33.0 kN | C0a: 91.1 kN | Mass: 0.026 kg
K.81106TVP d: 30 mm | D: 47 mm | Ca: 33.0 kN | C0a: 91.1 kN | Mass: 0.016 kg
K.81206LPB d: 30 mm | D: 52 mm | Ca: 56.9 kN | C0a: 141 kN | Mass: 0.052 kg
K.81206TVP d: 30 mm | D: 52 mm | Ca: 56.9 kN | C0a: 141 kN | Mass: 0.034 kg
K.81107LPB d: 35 mm | D: 52 mm | Ca: 34.8 kN | C0a: 101 kN | Mass: 0.025 kg
K.81107TVP d: 35 mm | D: 52 mm | Ca: 34.8 kN | C0a: 101 kN | Mass: 0.020 kg
K.81207LPB d: 35 mm | D: 62 mm | Ca: 61.6 kN | C0a: 164 kN | Mass: 0.073 kg
K.81207TVP d: 35 mm | D: 62 mm | Ca: 61.6 kN | C0a: 164 kN | Mass: 0.055 kg
K.81108LPB d: 40 mm | D: 60 mm | Ca: 49.8 kN | C0a: 148 kN | Mass: 0.044 kg
K.81108TVP d: 40 mm | D: 60 mm | Ca: 49.8 kN | C0a: 148 kN | Mass: 0.031 kg
K.81208TVP d: 40 mm | D: 68 mm | Ca: 86.8 kN | C0a: 233 kN | Mass: 0.076 kg
K.81109LPB d: 45 mm | D: 65 mm | Ca: 52.3 kN | C0a: 163 kN | Mass: 0.035 kg
K.81109TVP d: 45 mm | D: 65 mm | Ca: 52.3 kN | C0a: 163 kN | Mass: 0.035 kg
K.81209TVP d: 45 mm | D: 73 mm | Ca: 94.2 kN | C0a: 266 kN | Mass: 0.083 kg
K.81110LPB d: 50 mm | D: 70 mm | Ca: 54.8 kN | C0a: 177 kN | Mass: 0.052 kg
K.81110TVP d: 50 mm | D: 70 mm | Ca: 54.8 kN | C0a: 177 kN | Mass: 0.042 kg
K.81210TVP d: 50 mm | D: 78 mm | Ca: 101 kN | C0a: 299 kN | Mass: 0.089 kg
K.81111TVP d: 55 mm | D: 78 mm | Ca: 60.3 kN | C0a: 207 kN | Mass: 0.066 kg
K.81211LPB d: 55 mm | D: 90 mm | Ca: 138 kN | C0a: 403 kN | Mass: 0.156 kg
K.81211TVP d: 55 mm | D: 90 mm | Ca: 138 kN | C0a: 403 kN | Mass: 0.140 kg
K.81112TVP d: 60 mm | D: 85 mm | Ca: 84.4 kN | C0a: 281 kN | Mass: 0.103 kg
K.81212LPB d: 60 mm | D: 95 mm | Ca: 129 kN | C0a: 378 kN | Mass: 0.166 kg
K.81113TVP d: 65 mm | D: 90 mm | Ca: 88.3 kN | C0a: 305 kN | Mass: 0.109 kg
K.81213LPB d: 65 mm | D: 100 mm | Ca: 134 kN | C0a: 403 kN | Mass: 0.176 kg
K.81114TVP d: 70 mm | D: 95 mm | Ca: 92.1 kN | C0a: 328 kN | Mass: 0.056 kg
K.81214LPB d: 70 mm | D: 105 mm | Ca: 138 kN | C0a: 428 kN | Mass: 0.186 kg
K.81115LPB d: 75 mm | D: 100 mm | Ca: 86.1 kN | C0a: 305 kN | Mass: 0.091 kg
K.81215LPB d: 75 mm | D: 110 mm | Ca: 143 kN | C0a: 453 kN | Mass: 0.197 kg
K.81116LPB d: 80 mm | D: 105 mm | Ca: 87.5 kN | C0a: 316 kN | Mass: 0.103 kg
K.81216LPB d: 80 mm | D: 115 mm | Ca: 147 kN | C0a: 478 kN | Mass: 0.208 kg
K.81117LPB d: 85 mm | D: 110 mm | Ca: 88.9 kN | C0a: 328 kN | Mass: 0.108 kg
K.81217LPB d: 85 mm | D: 125 mm | Ca: 174 kN | C0a: 572 kN | Mass: 0.376 kg
K.81118LPB d: 90 mm | D: 120 mm | Ca: 119 kN | C0a: 432 kN | Mass: 0.156 kg
K.81218LPB d: 90 mm | D: 135 mm | Ca: 215 kN | C0a: 691 kN | Mass: 0.540 kg
Thrust BearingsKOYO
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO K.811, K.812 Thrust Cylindrical Roller and Cage Assemblies

Brand KOYO·Thrust Bearings

Available part numbers (40)

K.81102LPB, K.81102TVP, K.81103LPB, K.81103TVP, K.81104TVP, K.81105TVP, K.81106LPB, K.81106TVP, K.81206LPB, K.81206TVP + 30 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
