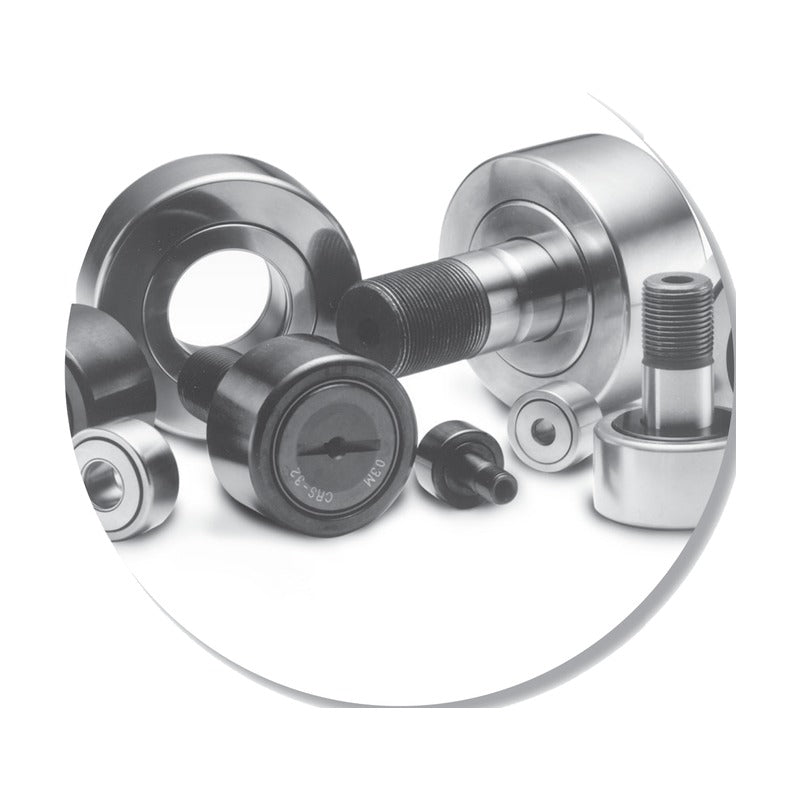

KOYO KM Stud Type Track Rollers / Cam Followers (Caged)

KOYO KM Stud Type Track Rollers / Cam Followers (Caged)

KM stud type track rollers (cam followers), caged design, with cylindrical (M) or crowned (RM) outer ring, without seals or with seals (UUM, UURM). Outer diameter 13 to 90 mm.

Key features

  • Thick outer ring rolls directly on tracks and cams
  • Cylindrical (M) or crowned R500 (RM) outer ring
  • Sealed versions UUM / UURM
  • Threaded stud with hexagon or slot for mounting
  • Track roller load ratings and track capacity listed

Specifications

Product type Stud type track roller (cam follower)
Design Caged
Outer ring Cylindrical or crowned (R500 mm)
Seals Without (M, RM) / with (UUM, UURM)
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B452-B453
KM5M D: 13 mm | C: 9 mm | Stud d: 5 mm | L: 23 mm | Cr: 2.65 kN | Mass: 0.010 kg
KM5RM D: 13 mm | C: 9 mm | Stud d: 5 mm | L: 23 mm | Cr: 2.65 kN | Mass: 0.010 kg
KM5UUM D: 13 mm | C: 9 mm | Stud d: 5 mm | L: 23 mm | Cr: 2.65 kN | Mass: 0.010 kg
KM5UURM D: 13 mm | C: 9 mm | Stud d: 5 mm | L: 23 mm | Cr: 2.65 kN | Mass: 0.010 kg
KM6M D: 16 mm | C: 11 mm | Stud d: 6 mm | L: 28 mm | Cr: 4.10 kN | Mass: 0.018 kg
KM6RM D: 16 mm | C: 11 mm | Stud d: 6 mm | L: 28 mm | Cr: 4.10 kN | Mass: 0.018 kg
KM6UUM D: 16 mm | C: 11 mm | Stud d: 6 mm | L: 28 mm | Cr: 4.10 kN | Mass: 0.018 kg
KM6UURM D: 16 mm | C: 11 mm | Stud d: 6 mm | L: 28 mm | Cr: 4.10 kN | Mass: 0.018 kg
KM8M D: 19 mm | C: 11 mm | Stud d: 8 mm | L: 32 mm | Cr: 4.55 kN | Mass: 0.028 kg
KM8RM D: 19 mm | C: 11 mm | Stud d: 8 mm | L: 32 mm | Cr: 4.55 kN | Mass: 0.028 kg
KM8UUM D: 19 mm | C: 11 mm | Stud d: 8 mm | L: 32 mm | Cr: 4.55 kN | Mass: 0.028 kg
KM8UURM D: 19 mm | C: 11 mm | Stud d: 8 mm | L: 32 mm | Cr: 4.55 kN | Mass: 0.028 kg
KM10M D: 22 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 6.25 kN | Mass: 0.043 kg
KM10RM D: 22 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 6.25 kN | Mass: 0.043 kg
KM10UUM D: 22 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 6.25 kN | Mass: 0.043 kg
KM10UURM D: 22 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 6.25 kN | Mass: 0.043 kg
KM10-1M D: 26 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 6.25 kN | Mass: 0.055 kg
KM10-1RM D: 26 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 6.25 kN | Mass: 0.055 kg
KM10-1UUM D: 26 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 6.25 kN | Mass: 0.055 kg
KM10-1UURM D: 26 mm | C: 12 mm | Stud d: 10 mm | L: 36 mm | Cr: 6.25 kN | Mass: 0.055 kg
KM12M D: 30 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 8.20 kN | Mass: 0.087 kg
KM12RM D: 30 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 8.20 kN | Mass: 0.087 kg
KM12UUM D: 30 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 8.20 kN | Mass: 0.087 kg
KM12UURM D: 30 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 8.20 kN | Mass: 0.087 kg
KM12-1M D: 32 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 8.20 kN | Mass: 0.096 kg
KM12-1RM D: 32 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 8.20 kN | Mass: 0.096 kg
KM12-1UUM D: 32 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 8.20 kN | Mass: 0.096 kg
KM12-1UURM D: 32 mm | C: 14 mm | Stud d: 12 mm | L: 40 mm | Cr: 8.20 kN | Mass: 0.096 kg
KM16M D: 35 mm | C: 18 mm | Stud d: 16 mm | L: 52 mm | Cr: 13.0 kN | Mass: 0.166 kg
KM16RM D: 35 mm | C: 18 mm | Stud d: 16 mm | L: 52 mm | Cr: 13.0 kN | Mass: 0.166 kg
KM16UUM D: 35 mm | C: 18 mm | Stud d: 16 mm | L: 52 mm | Cr: 13.0 kN | Mass: 0.166 kg
KM16UURM D: 35 mm | C: 18 mm | Stud d: 16 mm | L: 52 mm | Cr: 13.0 kN | Mass: 0.166 kg
KM18M D: 40 mm | C: 20 mm | Stud d: 18 mm | L: 58 mm | Cr: 15.9 kN | Mass: 0.245 kg
KM18RM D: 40 mm | C: 20 mm | Stud d: 18 mm | L: 58 mm | Cr: 15.9 kN | Mass: 0.245 kg
KM18UUM D: 40 mm | C: 20 mm | Stud d: 18 mm | L: 58 mm | Cr: 15.9 kN | Mass: 0.245 kg
KM18UURM D: 40 mm | C: 20 mm | Stud d: 18 mm | L: 58 mm | Cr: 15.9 kN | Mass: 0.245 kg
KM20M D: 47 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 21.3 kN | Mass: 0.387 kg
KM20RM D: 47 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 21.3 kN | Mass: 0.387 kg
KM20UUM D: 47 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 21.3 kN | Mass: 0.387 kg
KM20UURM D: 47 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 21.3 kN | Mass: 0.387 kg
KM20-1M D: 52 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 21.3 kN | Mass: 0.453 kg
KM20-1RM D: 52 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 21.3 kN | Mass: 0.453 kg
KM20-1UUM D: 52 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 21.3 kN | Mass: 0.453 kg
KM20-1UURM D: 52 mm | C: 24 mm | Stud d: 20 mm | L: 66 mm | Cr: 21.3 kN | Mass: 0.453 kg
KM24M D: 62 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 31.6 kN | Mass: 0.801 kg
KM24RM D: 62 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 31.6 kN | Mass: 0.801 kg
KM24UUM D: 62 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 31.6 kN | Mass: 0.801 kg
KM24UURM D: 62 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 31.6 kN | Mass: 0.801 kg
KM24-1M D: 72 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 31.6 kN | Mass: 1.04 kg
KM24-1RM D: 72 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 31.6 kN | Mass: 1.04 kg
KM24-1UUM D: 72 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 31.6 kN | Mass: 1.04 kg
KM24-1UURM D: 72 mm | C: 29 mm | Stud d: 24 mm | L: 80 mm | Cr: 31.6 kN | Mass: 1.04 kg
KM30M D: 80 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.62 kg
KM30RM D: 80 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.62 kg
KM30UUM D: 80 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.62 kg
KM30UURM D: 80 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.62 kg
KM30-1M D: 85 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.79 kg
KM30-1RM D: 85 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.79 kg
KM30-1UUM D: 85 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.79 kg
KM30-1UURM D: 85 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.79 kg
KM30-2M D: 90 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.98 kg
KM30-2RM D: 90 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.98 kg
KM30-2UUM D: 90 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.98 kg
KM30-2UURM D: 90 mm | C: 35 mm | Stud d: 30 mm | L: 100 mm | Cr: 55.8 kN | Mass: 1.98 kg
Track RollersKOYO
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO KM Stud Type Track Rollers / Cam Followers (Caged)

Brand KOYO·Track Rollers

Available part numbers (64)

KM5M, KM5RM, KM5UUM, KM5UURM, KM6M, KM6RM, KM6UUM, KM6UURM, KM8M, KM8RM + 54 more — see full table ↓
