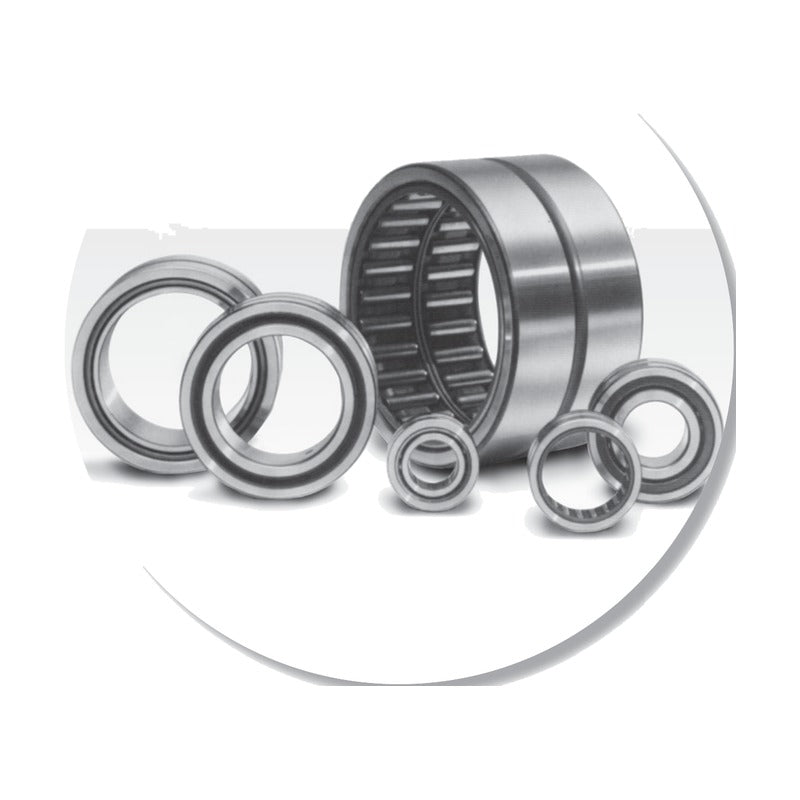

KOYO Needle Roller Bearings with Inner Ring (NKJ, NA48, NA49, NA69)

KOYO Needle Roller Bearings with Inner Ring (NKJ, NA48, NA49, NA69)

Heavy-duty machined ring needle roller bearings with inner ring: NKJ, NKJS, NA48, NA49, NA69 and NQI series, metric dimensions.

Key features

  • Machined outer ring with integral ribs
  • High radial load capacity in a small section
  • Suitable for high speeds with caged rollers
  • Lubrication groove and hole in outer ring
  • Metric ISO dimension series
  • Supplied complete with inner ring

Specifications

Bearing type Needle roller bearing with inner ring
Series NKJ, NKJS, NA48, NA49, NA69, NQI
Source KOYO Needle Roller Bearings catalogue, p. B-4-14 to B-4-22
NKJ5/12 d: 5 mm | D: 15 mm | B: 12 mm | Cr: 4.57 kN | C0r: 4.89 kN | Mass: 0.014 kg
NKJ5/16 d: 5 mm | D: 15 mm | B: 16 mm | Cr: 5.22 kN | C0r: 5.78 kN | Mass: 0.017 kg
NKJ6/12 d: 6 mm | D: 16 mm | B: 12 mm | Cr: 4.27 kN | C0r: 4.6 kN | Mass: 0.015 kg
NKJ6/16 d: 6 mm | D: 16 mm | B: 16 mm | Cr: 5.57 kN | C0r: 6.47 kN | Mass: 0.019 kg
NKJ7/12 d: 7 mm | D: 17 mm | B: 12 mm | Cr: 5.4 kN | C0r: 6.43 kN | Mass: 0.017 kg
NKJ7/16TN d: 7 mm | D: 17 mm | B: 16 mm | Cr: 5.3 kN | C0r: 6.27 kN | Mass: 0.021 kg
NKJ9/12 d: 9 mm | D: 19 mm | B: 12 mm | Cr: 6.86 kN | C0r: 7.6 kN | Mass: 0.018 kg
NKJ9/16 d: 9 mm | D: 19 mm | B: 16 mm | Cr: 6.78 kN | C0r: 9.03 kN | Mass: 0.024 kg
NKJ10/16 d: 10 mm | D: 22 mm | B: 16 mm | Cr: 12.4 kN | C0r: 14.8 kN | Mass: 0.032 kg
NKJ10/20 d: 10 mm | D: 22 mm | B: 20 mm | Cr: 14.7 kN | C0r: 18.4 kN | Mass: 0.04 kg
NKJ12/16 d: 12 mm | D: 24 mm | B: 16 mm | Cr: 13 kN | C0r: 16.2 kN | Mass: 0.036 kg
NKJ12/20 d: 12 mm | D: 24 mm | B: 20 mm | Cr: 15.4 kN | C0r: 20.2 kN | Mass: 0.046 kg
NKJ15/16 d: 15 mm | D: 27 mm | B: 16 mm | Cr: 14.1 kN | C0r: 19 kN | Mass: 0.042 kg
NKJ15/20 d: 15 mm | D: 27 mm | B: 20 mm | Cr: 16.8 kN | C0r: 23.6 kN | Mass: 0.054 kg
NA6902 d: 15 mm | D: 28 mm | B: 23 mm | Cr: 18.4 kN | C0r: 26.9 kN | Mass: 0.067 kg
NKJ17/16 d: 17 mm | D: 29 mm | B: 16 mm | Cr: 15.3 kN | C0r: 21.6 kN | Mass: 0.047 kg
NKJ17/20 d: 17 mm | D: 29 mm | B: 20 mm | Cr: 18.1 kN | C0r: 23.9 kN | Mass: 0.059 kg
NKJS17 d: 17 mm | D: 37 mm | B: 20 mm | Cr: 29.1 kN | C0r: 32.8 kN | Mass: 0.108 kg
NKJ20/16 d: 20 mm | D: 32 mm | B: 16 mm | Cr: 16.2 kN | C0r: 24.3 kN | Mass: 0.053 kg
NKJ20/20 d: 20 mm | D: 32 mm | B: 20 mm | Cr: 19.3 kN | C0r: 30.3 kN | Mass: 0.067 kg
NKJS20 d: 20 mm | D: 42 mm | B: 20 mm | Cr: 30.3 kN | C0r: 38.4 kN | Mass: 0.13 kg
NKJ22/16 d: 22 mm | D: 34 mm | B: 16 mm | Cr: 16.6 kN | C0r: 25.7 kN | Mass: 0.058 kg
NKJ22/20 d: 22 mm | D: 34 mm | B: 20 mm | Cr: 19.7 kN | C0r: 32 kN | Mass: 0.071 kg
NKJ25/20 d: 25 mm | D: 38 mm | B: 20 mm | Cr: 23.4 kN | C0r: 36.4 kN | Mass: 0.086 kg
NKJ25/30 d: 25 mm | D: 38 mm | B: 30 mm | Cr: 29.8 kN | C0r: 56.4 kN | Mass: 0.13 kg
NKJS25 d: 25 mm | D: 47 mm | B: 22 mm | Cr: 36 kN | C0r: 36.2 kN | Mass: 0.174 kg
NKJ28/20 d: 28 mm | D: 42 mm | B: 20 mm | Cr: 24.8 kN | C0r: 40.4 kN | Mass: 0.104 kg
NKJ28/30 d: 28 mm | D: 42 mm | B: 30 mm | Cr: 35.6 kN | C0r: 64.3 kN | Mass: 0.156 kg
NA69/28 d: 28 mm | D: 45 mm | B: 30 mm | Cr: 37.1 kN | C0r: 55.4 kN | Mass: 0.19 kg
NKJ30/20 d: 30 mm | D: 45 mm | B: 20 mm | Cr: 26.1 kN | C0r: 44.4 kN | Mass: 0.12 kg
NKJ30/30 d: 30 mm | D: 45 mm | B: 30 mm | Cr: 37.4 kN | C0r: 70.6 kN | Mass: 0.179 kg
NA4906 d: 30 mm | D: 47 mm | B: 17 mm | Cr: 25.9 kN | C0r: 36 kN | Mass: 0.114 kg
NA6906 d: 30 mm | D: 47 mm | B: 30 mm | Cr: 42.6 kN | C0r: 68.2 kN | Mass: 0.205 kg
NKJS30 d: 30 mm | D: 52 mm | B: 22 mm | Cr: 39 kN | C0r: 53.4 kN | Mass: 0.198 kg
NKJ32/20 d: 32 mm | D: 47 mm | B: 20 mm | Cr: 26.6 kN | C0r: 46.4 kN | Mass: 0.127 kg
NKJ32/30 d: 32 mm | D: 47 mm | B: 30 mm | Cr: 38.2 kN | C0r: 73.9 kN | Mass: 0.192 kg
NA49/32 d: 32 mm | D: 52 mm | B: 20 mm | Cr: 32 kN | C0r: 49.3 kN | Mass: 0.169 kg
NA69/32 d: 32 mm | D: 52 mm | B: 36 mm | Cr: 48.6 kN | C0r: 84.5 kN | Mass: 0.313 kg
NKJ35/20 d: 35 mm | D: 50 mm | B: 20 mm | Cr: 27.8 kN | C0r: 50.4 kN | Mass: 0.135 kg
NKJ35/30 d: 35 mm | D: 50 mm | B: 30 mm | Cr: 40 kN | C0r: 80.2 kN | Mass: 0.208 kg
NKJS35 d: 35 mm | D: 58 mm | B: 22 mm | Cr: 41.6 kN | C0r: 60.7 kN | Mass: 0.235 kg
NKJ38/20 d: 38 mm | D: 53 mm | B: 20 mm | Cr: 29 kN | C0r: 54.4 kN | Mass: 0.146 kg
NKJ38/30 d: 38 mm | D: 53 mm | B: 30 mm | Cr: 41.6 kN | C0r: 86.6 kN | Mass: 0.196 kg
NKJ40/20 d: 40 mm | D: 55 mm | B: 20 mm | Cr: 29.5 kN | C0r: 56.4 kN | Mass: 0.152 kg
NKJ40/30 d: 40 mm | D: 55 mm | B: 30 mm | Cr: 42.3 kN | C0r: 89.8 kN | Mass: 0.229 kg
NKJS40 d: 40 mm | D: 65 mm | B: 22 mm | Cr: 45.5 kN | C0r: 71.3 kN | Mass: 0.292 kg
NKJ42/20 d: 42 mm | D: 57 mm | B: 20 mm | Cr: 30 kN | C0r: 58.5 kN | Mass: 0.159 kg
NKJ42/30 d: 42 mm | D: 57 mm | B: 30 mm | Cr: 39.9 kN | C0r: 84.1 kN | Mass: 0.241 kg
NKJ45/25 d: 45 mm | D: 62 mm | B: 25 mm | Cr: 40.7 kN | C0r: 79.3 kN | Mass: 0.223 kg
NKJ45/35 d: 45 mm | D: 62 mm | B: 35 mm | Cr: 55 kN | C0r: 117 kN | Mass: 0.345 kg
NKJS45 d: 45 mm | D: 72 mm | B: 22 mm | Cr: 47.9 kN | C0r: 78.4 kN | Mass: 0.36 kg
NKJ50/25 d: 50 mm | D: 68 mm | B: 25 mm | Cr: 46.1 kN | C0r: 87.3 kN | Mass: 0.288 kg
NKJ50/35 d: 50 mm | D: 68 mm | B: 35 mm | Cr: 62.3 kN | C0r: 129 kN | Mass: 0.406 kg
NKJS50 d: 50 mm | D: 80 mm | B: 28 mm | Cr: 66.9 kN | C0r: 103 kN | Mass: 0.523 kg
NKJ55/25 d: 55 mm | D: 72 mm | B: 25 mm | Cr: 44.3 kN | C0r: 94 kN | Mass: 0.29 kg
NKJ55/35 d: 55 mm | D: 72 mm | B: 35 mm | Cr: 59.9 kN | C0r: 139 kN | Mass: 0.41 kg
NKJS55 d: 55 mm | D: 85 mm | B: 28 mm | Cr: 71 kN | C0r: 114 kN | Mass: 0.569 kg
NKJ60/25 d: 60 mm | D: 82 mm | B: 25 mm | Cr: 49 kN | C0r: 101 kN | Mass: 0.44 kg
NKJ60/35 d: 60 mm | D: 82 mm | B: 35 mm | Cr: 66.2 kN | C0r: 149 kN | Mass: 0.52 kg
NA6912 d: 60 mm | D: 85 mm | B: 45 mm | Cr: 99.3 kN | C0r: 189 kN | Mass: 0.829 kg
NKJS60 d: 60 mm | D: 90 mm | B: 28 mm | Cr: 72.6 kN | C0r: 120 kN | Mass: 0.607 kg
NKJ65/35 d: 65 mm | D: 90 mm | B: 35 mm | Cr: 82.5 kN | C0r: 173 kN | Mass: 0.69 kg
NKJS65 d: 65 mm | D: 95 mm | B: 28 mm | Cr: 76.5 kN | C0r: 132 kN | Mass: 0.655 kg
NKJ70/25 d: 70 mm | D: 95 mm | B: 25 mm | Cr: 65 kN | C0r: 131 kN | Mass: 0.561 kg
NKJ70/35 d: 70 mm | D: 95 mm | B: 35 mm | Cr: 79.7 kN | C0r: 184 kN | Mass: 0.779 kg
NKJS70 d: 70 mm | D: 100 mm | B: 28 mm | Cr: 80.1 kN | C0r: 143 kN | Mass: 0.772 kg
NKJ75/25 d: 75 mm | D: 105 mm | B: 25 mm | Cr: 76.4 kN | C0r: 137 kN | Mass: 0.64 kg
NKJS75 d: 75 mm | D: 105 mm | B: 32 mm | Cr: 91.5 kN | C0r: 176 kN | Mass: 1.06 kg
NKJ75/35 d: 75 mm | D: 105 mm | B: 35 mm | Cr: 108 kN | C0r: 214 kN | Mass: 1.05 kg
NKJ80/25 d: 80 mm | D: 110 mm | B: 25 mm | Cr: 79.5 kN | C0r: 147 kN | Mass: 0.79 kg
NKJS80 d: 80 mm | D: 110 mm | B: 32 mm | Cr: 95.1 kN | C0r: 188 kN | Mass: 1.14 kg
NKJ80/35 d: 80 mm | D: 110 mm | B: 35 mm | Cr: 113 kN | C0r: 230 kN | Mass: 0.98 kg
NKJ85/26 d: 85 mm | D: 115 mm | B: 26 mm | Cr: 49.3 kN | C0r: 114 kN | Mass: 0.862 kg
NKJ85/36 d: 85 mm | D: 115 mm | B: 36 mm | Cr: 114 kN | C0r: 238 kN | Mass: 1.04 kg
NKJ90/26 d: 90 mm | D: 120 mm | B: 26 mm | Cr: 83.6 kN | C0r: 163 kN | Mass: 0.78 kg
NKJ90/36 d: 90 mm | D: 120 mm | B: 36 mm | Cr: 118 kN | C0r: 254 kN | Mass: 1.08 kg
NKJ95/26 d: 95 mm | D: 125 mm | B: 26 mm | Cr: 52.2 kN | C0r: 127 kN | Mass: 0.935 kg
NKJ95/36 d: 95 mm | D: 125 mm | B: 36 mm | Cr: 72.8 kN | C0r: 195 kN | Mass: 1.3 kg
NKJ100/30 d: 100 mm | D: 130 mm | B: 30 mm | Cr: 103 kN | C0r: 220 kN | Mass: 0.984 kg
NKJ100/40 d: 100 mm | D: 130 mm | B: 40 mm | Cr: 132 kN | C0r: 301 kN | Mass: 1.41 kg
NKJS100 d: 100 mm | D: 135 mm | B: 32 mm | Cr: 104 kN | C0r: 226 kN | Mass: 2.01 kg
NA4822 d: 110 mm | D: 140 mm | B: 30 mm | Cr: 90.3 kN | C0r: 230 kN | Mass: 1.21 kg
NA4824 d: 120 mm | D: 150 mm | B: 30 mm | Cr: 94.2 kN | C0r: 249 kN | Mass: 1.31 kg
NA4826 d: 130 mm | D: 165 mm | B: 35 mm | Cr: 112 kN | C0r: 323 kN | Mass: 1.99 kg
NA4828 d: 140 mm | D: 175 mm | B: 35 mm | Cr: 116 kN | C0r: 346 kN | Mass: 2.12 kg
NA4830 d: 150 mm | D: 190 mm | B: 40 mm | Cr: 142 kN | C0r: 402 kN | Mass: 2.7 kg
NA4832 d: 160 mm | D: 200 mm | B: 40 mm | Cr: 146 kN | C0r: 425 kN | Mass: 3.15 kg
NA4901C3 d: 12 mm | D: 24 mm | B: 13 mm | Cr: 8.65 kN | C0r: 11.1 kN | Mass: 0.027 kg
NA4904NA d: 20 mm | D: 37 mm | B: 17 mm | Cr: 16.2 kN | C0r: 21.5 kN | Mass: 0.083 kg
Needle Roller BearingsKOYO
89 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Needle Roller Bearings with Inner Ring (NKJ, NA48, NA49, NA69)

Brand KOYO·Needle Roller Bearings

Available part numbers (89)

NKJ5/12, NKJ5/16, NKJ6/12, NKJ6/16, NKJ7/12, NKJ7/16TN, NKJ9/12, NKJ9/16, NKJ10/16, NKJ10/20 + 79 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
