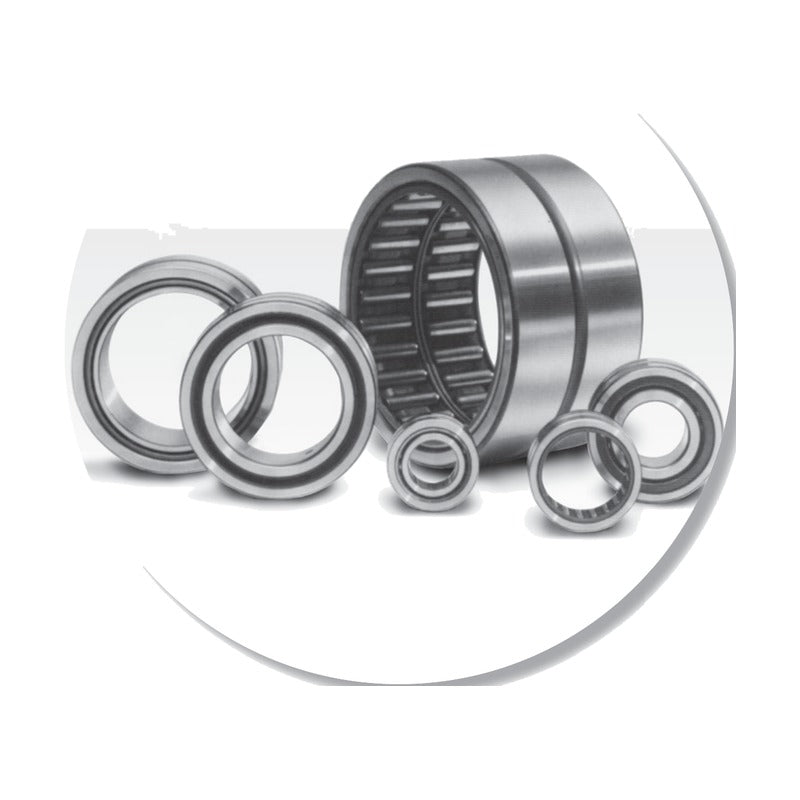

KOYO NAO, RNAO Needle Roller Bearings without Flanges

KOYO NAO, RNAO Needle Roller Bearings without Flanges

Machined ring needle roller bearings without flanges (ribless), with inner ring (NAO) or without inner ring (RNAO), single or double row; axial location by end washers.

Key features

  • Ribless outer ring, rollers guided by cage
  • With (NAO) or without (RNAO) inner ring
  • Single and double row designs
  • Axial location with SNSH end washers

Specifications

Bearing type Needle roller bearing without flanges
Series NAO, RNAO
Designation Bore x OD x width (mm)
Source KOYO Needle Roller Bearings catalogue, p. B-4-34 to B-4-38
NAO6X17X10 d: 6 mm | D: 17 mm | B: 10 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.014 kg
NAO8X19X10 d: 8 mm | D: 19 mm | B: 10 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.017 kg
NAO10X22X13 d: 10 mm | D: 22 mm | B: 13 mm | Cr: 9.73 kN | C0r: 12.5 kN | Mass: 0.026 kg
NAO10X22X20 d: 10 mm | D: 22 mm | B: 20 mm | Cr: 12.3 kN | C0r: 16.8 kN | Mass: 0.041 kg
NAO10X26X12 d: 10 mm | D: 26 mm | B: 12 mm | Cr: 10.5 kN | C0r: 10.6 kN | Mass: 0.036 kg
NAO12X24X13 d: 12 mm | D: 24 mm | B: 13 mm | C0r: 13.5 kN | Mass: 0.030 kg
NAO12X24X20 d: 12 mm | D: 24 mm | B: 20 mm | Cr: 13.4 kN | C0r: 19.5 kN | Mass: 0.046 kg
NAO12X28X12 d: 12 mm | D: 28 mm | B: 12 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.041 kg
NAO15X28X13 d: 15 mm | D: 28 mm | B: 13 mm | Cr: 11.5 kN | C0r: 17.3 kN | Mass: 0.039 kg
NAO15X28X26 d: 15 mm | D: 28 mm | B: 26 mm | Cr: 19.8 kN | C0r: 34.6 kN | Mass: 0.078 kg
NAO15X32X12 d: 15 mm | D: 32 mm | B: 12 mm | Cr: 13.0 kN | C0r: 15.0 kN | Mass: 0.050 kg
NAO17X30X13 d: 17 mm | D: 30 mm | B: 13 mm | Cr: 11.8 kN | C0r: 18.3 kN | Mass: 0.043 kg
NAO17X30X26 d: 17 mm | D: 30 mm | B: 26 mm | Cr: 20.2 kN | C0r: 36.6 kN | Mass: 0.084 kg
NAO17X35X16 d: 17 mm | D: 35 mm | B: 16 mm | Cr: 19.0 kN | C0r: 23.3 kN | Mass: 0.078 kg
NAO17X35X32 d: 17 mm | D: 35 mm | B: 32 mm | Cr: 32.7 kN | C0r: 46.5 kN | Mass: 0.154 kg
NAO20X35X17 d: 20 mm | D: 35 mm | B: 17 mm | Cr: 18.8 kN | C0r: 29.8 kN | Mass: 0.073 kg
NAO20X35X26 d: 20 mm | D: 35 mm | B: 26 mm | Cr: 25.0 kN | C0r: 42.8 kN | Mass: 0.112 kg
NAO20X37X16 d: 20 mm | D: 37 mm | B: 16 mm | Cr: 19.8 kN | C0r: 25.3 kN | Mass: 0.080 kg
NAO50X78X40 d: 50 mm | D: 78 mm | B: 40 mm | Cr: 71.7 kN | C0r: 158 kN | Mass: 0.746 kg
NAO55X85X30 d: 55 mm | D: 85 mm | B: 30 mm | Cr: 60.1 kN | C0r: 129 kN | Mass: 0.690 kg
NAO55X85X60 d: 55 mm | D: 85 mm | B: 60 mm | Cr: 103 kN | C0r: 259 kN | Mass: 1.320 kg
NAO60X90X30 d: 60 mm | D: 90 mm | B: 30 mm | Cr: 62.2 kN | C0r: 139 kN | Mass: 0.745 kg
NAO60X90X60 d: 60 mm | D: 90 mm | B: 60 mm | Cr: 107 kN | C0r: 277 kN | Mass: 1.405 kg
NAO65X95X30 d: 65 mm | D: 95 mm | B: 30 mm | Cr: 60.9 kN | C0r: 138 kN | Mass: 0.770 kg
NAO65X95X60 d: 65 mm | D: 95 mm | B: 60 mm | Cr: 116 kN | C0r: 277 kN | Mass: 1.500 kg
NAO70X100X30 d: 70 mm | D: 100 mm | B: 30 mm | Cr: 67.5 kN | C0r: 161 kN | Mass: 0.850 kg
NAO70X100X60 d: 70 mm | D: 100 mm | B: 60 mm | Cr: 116 kN | C0r: 322 kN | Mass: 1.600 kg
NAO80X110X30 d: 80 mm | D: 110 mm | B: 30 mm | Cr: 63.6 kN | C0r: 155 kN | Mass: 0.920 kg
NAO85X115X30 d: 85 mm | D: 115 mm | B: 30 mm | Cr: 71.0 kN | C0r: 183 kN | Mass: 0.985 kg
NAO90X120X30 d: 90 mm | D: 120 mm | B: 30 mm | Cr: 72.4 kN | C0r: 191 kN | Mass: 1.010 kg
RNAO6X13X8TN Fw: 6 mm | D: 13 mm | B: 8 mm | Cr: 2.47 kN | C0r: 2.07 kN | Mass: 0.005 kg
RNAO7X14X8TN Fw: 7 mm | D: 14 mm | B: 8 mm | Cr: 2.74 kN | C0r: 2.44 kN | Mass: 0.007 kg
RNAO8X15X10 Fw: 8 mm | D: 15 mm | B: 10 mm | Cr: 4.57 kN | C0r: 4.89 kN | Mass: 0.008 kg
RNAO9X16X10 Fw: 9 mm | D: 16 mm | B: 10 mm | Cr: 4.27 kN | C0r: 4.60 kN | Mass: 0.009 kg
RNAO10X17X10 Fw: 10 mm | D: 17 mm | B: 10 mm | Cr: 5.40 kN | C0r: 6.43 kN | Mass: 0.010 kg
RNAO10X17X20 Fw: 10 mm | D: 17 mm | B: 20 mm | Cr: 9.25 kN | C0r: 12.9 kN | Mass: 0.019 kg
RNAO12X19X10 Fw: 12 mm | D: 19 mm | B: 10 mm | Cr: 5.85 kN | C0r: 7.51 kN | Mass: 0.012 kg
RNAO14X22X13 Fw: 14 mm | D: 22 mm | B: 13 mm | Cr: 9.73 kN | C0r: 12.5 kN | Mass: 0.018 kg
RNAO14X22X20 Fw: 14 mm | D: 22 mm | B: 20 mm | Cr: 12.3 kN | C0r: 16.8 kN | Mass: 0.029 kg
RNAO14X26X12 Fw: 14 mm | D: 26 mm | B: 12 mm | Cr: 10.5 kN | C0r: 10.6 kN | Mass: 0.029 kg
RNAO15X23X13 Fw: 15 mm | D: 23 mm | B: 13 mm | Cr: 9.66 kN | C0r: 12.6 kN | Mass: 0.019 kg
RNAO15X23X20 Fw: 15 mm | D: 23 mm | B: 20 mm | Cr: 13.5 kN | C0r: 19.4 kN | Mass: 0.029 kg
RNAO16X24X13 Fw: 16 mm | D: 24 mm | B: 13 mm | Cr: 10.1 kN | C0r: 13.5 kN | Mass: 0.022 kg
RNAO16X24X20 Fw: 16 mm | D: 24 mm | B: 20 mm | Cr: 13.4 kN | C0r: 19.5 kN | Mass: 0.032 kg
RNAO16X28X12 Fw: 16 mm | D: 28 mm | B: 12 mm | Cr: 11.2 kN | C0r: 11.9 kN | Mass: 0.033 kg
RNAO17X25X13 Fw: 17 mm | D: 25 mm | B: 13 mm | Cr: 10.5 kN | C0r: 14.5 kN | Mass: 0.022 kg
RNAO17X25X20 Fw: 17 mm | D: 25 mm | B: 20 mm | Cr: 14.7 kN | C0r: 22.5 kN | Mass: 0.032 kg
RNAO18X26X13 Fw: 18 mm | D: 26 mm | B: 13 mm | Cr: 10.8 kN | C0r: 15.4 kN | Mass: 0.024 kg
RNAO18X26X13ASR1 Fw: 18 mm | D: 26 mm | B: 13 mm | Cr: 10.8 kN | C0r: 15.4 kN | Mass: 0.024 kg
RNAO18X26X20 Fw: 18 mm | D: 26 mm | B: 20 mm | Cr: 14.4 kN | C0r: 22.2 kN | Mass: 0.034 kg
RNAO18X30X24 Fw: 18 mm | D: 30 mm | B: 24 mm | Cr: 20.2 kN | C0r: 26.2 kN | Mass: 0.070 kg
RNAO20X28X13 Fw: 20 mm | D: 28 mm | B: 13 mm | Cr: 11.5 kN | C0r: 17.3 kN | Mass: 0.025 kg
RNAO20X28X26 Fw: 20 mm | D: 28 mm | B: 26 mm | Cr: 19.8 kN | C0r: 34.6 kN | Mass: 0.050 kg
RNAO20X32X12 Fw: 20 mm | D: 32 mm | B: 12 mm | Cr: 13.0 kN | C0r: 15.3 kN | Mass: 0.038 kg
RNAO20X32X24 Fw: 20 mm | D: 32 mm | B: 24 mm | Cr: 22.3 kN | C0r: 30.6 kN | Mass: 0.080 kg
RNAO22X30X13 Fw: 22 mm | D: 30 mm | B: 13 mm | Cr: 11.8 kN | C0r: 18.3 kN | Mass: 0.028 kg
RNAO22X30X26 Fw: 22 mm | D: 30 mm | B: 26 mm | Cr: 20.2 kN | C0r: 36.6 kN | Mass: 0.053 kg
RNAO22X35X16 Fw: 22 mm | D: 35 mm | B: 16 mm | Cr: 19.1 kN | C0r: 23.3 kN | Mass: 0.059 kg
RNAO22X35X32 Fw: 22 mm | D: 35 mm | B: 32 mm | Cr: 32.7 kN | C0r: 46.5 kN | Mass: 0.116 kg
RNAO25X35X17 Fw: 25 mm | D: 35 mm | B: 17 mm | Cr: 18.8 kN | C0r: 29.8 kN | Mass: 0.050 kg
RNAO25X35X26 Fw: 25 mm | D: 35 mm | B: 26 mm | Cr: 25.0 kN | C0r: 42.8 kN | Mass: 0.076 kg
RNAO25X37X16 Fw: 25 mm | D: 37 mm | B: 16 mm | Cr: 19.8 kN | C0r: 25.3 kN | Mass: 0.058 kg
RNAO25X37X32 Fw: 25 mm | D: 37 mm | B: 32 mm | Cr: 19.2 kN | C0r: 23.6 kN | Mass: 0.118 kg
RNAO28X40X16 Fw: 28 mm | D: 40 mm | B: 16 mm | Cr: 20.9 kN | C0r: 27.9 kN | Mass: 0.063 kg
RNAO28X40X32 Fw: 28 mm | D: 40 mm | B: 32 mm | Cr: 35.8 kN | C0r: 55.9 kN | Mass: 0.128 kg
RNAO30X40X17 Fw: 30 mm | D: 40 mm | B: 17 mm | Cr: 20.2 kN | C0r: 34.6 kN | Mass: 0.060 kg
RNAO30X40X26 Fw: 30 mm | D: 40 mm | B: 26 mm | Cr: 26.8 kN | C0r: 49.7 kN | Mass: 0.088 kg
RNAO30X42X16 Fw: 30 mm | D: 42 mm | B: 16 mm | Cr: 22.3 kN | C0r: 31.0 kN | Mass: 0.069 kg
RNAO30X42X32 Fw: 30 mm | D: 42 mm | B: 32 mm | Cr: 38.2 kN | C0r: 62.1 kN | Mass: 0.131 kg
RNAO35X45X17 Fw: 35 mm | D: 45 mm | B: 17 mm | Cr: 22.1 kN | C0r: 40.8 kN | Mass: 0.069 kg
RNAO35X45X26 Fw: 35 mm | D: 45 mm | B: 26 mm | Cr: 27.7 kN | C0r: 54.5 kN | Mass: 0.091 kg
RNAO35X47X16 Fw: 35 mm | D: 47 mm | B: 16 mm | Cr: 24.5 kN | C0r: 36.8 kN | Mass: 0.075 kg
RNAO35X47X32 Fw: 35 mm | D: 47 mm | B: 32 mm | Cr: 42.0 kN | C0r: 73.5 kN | Mass: 0.156 kg
RNAO40X50X17 Fw: 40 mm | D: 50 mm | B: 17 mm | Cr: 23.8 kN | C0r: 47.0 kN | Mass: 0.086 kg
RNAO40X55X20 Fw: 40 mm | D: 55 mm | B: 20 mm | Cr: 35.5 kN | C0r: 56.3 kN | Mass: 0.139 kg
RNAO40X55X40 Fw: 40 mm | D: 55 mm | B: 40 mm | Cr: 60.8 kN | C0r: 113 kN | Mass: 0.276 kg
RNAO45X55X17 Fw: 45 mm | D: 55 mm | B: 17 mm | Cr: 24.9 kN | C0r: 51.8 kN | Mass: 0.089 kg
RNAO45X55X34 Fw: 45 mm | D: 55 mm | B: 34 mm | Cr: 42.7 kN | C0r: 104 kN | Mass: 0.168 kg
RNAO45X62X20 Fw: 45 mm | D: 62 mm | B: 20 mm | Cr: 30.8 kN | C0r: 68.1 kN | Mass: 0.163 kg
RNAO45X62X40 Fw: 45 mm | D: 62 mm | B: 40 mm | Cr: 61.7 kN | C0r: 119 kN | Mass: 0.325 kg
RNAO50X62X20 Fw: 50 mm | D: 62 mm | B: 20 mm | Cr: 30.2 kN | C0r: 68.5 kN | Mass: 0.142 kg
RNAO50X62X40 Fw: 50 mm | D: 62 mm | B: 40 mm | Cr: 51.7 kN | C0r: 137 kN | Mass: 0.269 kg
RNAO50X65X20 Fw: 50 mm | D: 65 mm | B: 20 mm | Cr: 38.8 kN | C0r: 67.8 kN | Mass: 0.167 kg
RNAO50X65X40 Fw: 50 mm | D: 65 mm | B: 40 mm | Cr: 66.5 kN | C0r: 136 kN | Mass: 0.342 kg
RNAO55X68X20 Fw: 55 mm | D: 68 mm | B: 20 mm | Cr: 30.7 kN | C0r: 72.4 kN | Mass: 0.165 kg
RNAO55X68X40 Fw: 55 mm | D: 68 mm | B: 40 mm | Cr: 52.7 kN | C0r: 145 kN | Mass: 0.320 kg
RNAO55X72X20 Fw: 55 mm | D: 72 mm | B: 20 mm | Cr: 40.3 kN | C0r: 73.5 kN | Mass: 0.212 kg
RNAO55X72X40 Fw: 55 mm | D: 72 mm | B: 40 mm | Cr: 69.1 kN | C0r: 127 kN | Mass: 0.433 kg
RNAO60X78X20 Fw: 60 mm | D: 78 mm | B: 20 mm | Cr: 41.8 kN | C0r: 79.2 kN | Mass: 0.230 kg
RNAO60X78X40 Fw: 60 mm | D: 78 mm | B: 40 mm | Cr: 71.7 kN | C0r: 158 kN | Mass: 0.436 kg
RNAO65X85X30 Fw: 65 mm | D: 85 mm | B: 30 mm | Cr: 60.1 kN | C0r: 129 kN | Mass: 0.468 kg
RNAO65X85X60 Fw: 65 mm | D: 85 mm | B: 60 mm | Cr: 103 kN | C0r: 259 kN | Mass: 0.876 kg
RNAO70X90X30 Fw: 70 mm | D: 90 mm | B: 30 mm | Cr: 62.2 kN | C0r: 139 kN | Mass: 0.505 kg
RNAO70X90X60 Fw: 70 mm | D: 90 mm | B: 60 mm | Cr: 107 kN | C0r: 277 kN | Mass: 0.925 kg
RNAO75X95X30 Fw: 75 mm | D: 95 mm | B: 30 mm | Cr: 60.9 kN | C0r: 138 kN | Mass: 0.510 kg
RNAO75X95X60 Fw: 75 mm | D: 95 mm | B: 60 mm | Cr: 104 kN | C0r: 277 kN | Mass: 0.980 kg
RNAO80X100X30 Fw: 80 mm | D: 100 mm | B: 30 mm | Cr: 67.5 kN | C0r: 161 kN | Mass: 0.580 kg
RNAO80X100X60 Fw: 80 mm | D: 100 mm | B: 60 mm | Cr: 116 kN | C0r: 322 kN | Mass: 1.044 kg
RNAO85X105X30 Fw: 85 mm | D: 105 mm | B: 30 mm | Cr: 69.4 kN | C0r: 170 kN | Mass: 0.586 kg
RNAO100X120X30 Fw: 100 mm | D: 120 mm | B: 30 mm | Cr: 72.4 kN | C0r: 191 kN | Mass: 0.660 kg
