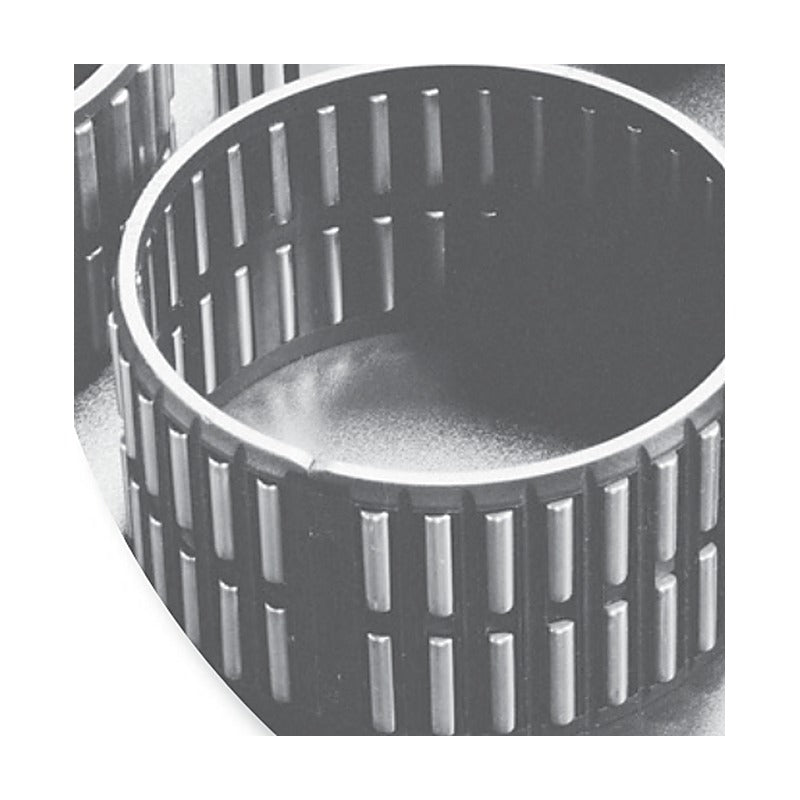

KOYO Needle Roller and Cage Assemblies (RS, R, RP, RV, V, VS, VP)

Radial needle roller and cage assemblies (RS, R, RP, RV, V, VS, VP types) for use directly on hardened shafts and housing bores, roller set bore Fw 9 mm and above.

Key features

Very compact radial section
Run directly on hardened shaft and housing raceways
Single-row and double-row designs
Steel, welded or polyamide cages
High rigidity and load capacity for size

Specifications

Bearing type	Needle roller and cage assembly
Types	RS, R, RP, RV, V, VS, VP
Fw	Roller set bore diameter
Ew	Roller set outside diameter
Source	KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B388-B401

RS091210		Fw: 9 mm \| Ew: 12 mm \| B: 10 mm \| Cr: 3.8 kN \| C0r: 4.0 kN \| Mass: 2.9 g
RV152109-4		Fw: 15 mm \| Ew: 21 mm \| B: 9 mm \| Cr: 7.4 kN \| C0r: 6.9 kN \| Mass: 7.8 g
RF091418		Fw: 9 mm \| Ew: 14 mm \| B: 18 mm \| Cr: 9.1 kN \| C0r: 9.0 kN \| Mass: 5.3 g
RS152117		Fw: 15 mm \| Ew: 21 mm \| B: 17 mm \| Cr: 13.4 kN \| C0r: 14.8 kN \| Mass: 16 g
R10/13		Fw: 10 mm \| Ew: 13 mm \| B: 13 mm \| Cr: 5.8 kN \| C0r: 7.0 kN \| Mass: 4.0 g
R16/13		Fw: 16 mm \| Ew: 20 mm \| B: 13 mm \| Cr: 9.4 kN \| C0r: 12.5 kN \| Mass: 8.5 g
RF101320		Fw: 10 mm \| Ew: 13 mm \| B: 20 mm \| Cr: 5.0 kN \| C0r: 5.8 kN \| Mass: 2.4 g
16VP2126		Fw: 16 mm \| Ew: 21 mm \| B: 26 mm \| Cr: 19.9 kN \| C0r: 28.0 kN \| Mass: 16 g
RS10/8-1		Fw: 10 mm \| Ew: 14 mm \| B: 8 mm \| Cr: 4.5 kN \| C0r: 4.3 kN \| Mass: 3.5 g
16VS2212-2		Fw: 16 mm \| Ew: 22 mm \| B: 12 mm \| Cr: 9.6 kN \| C0r: 9.6 kN \| Mass: 11 g
RS10/10		Fw: 10 mm \| Ew: 14 mm \| B: 10 mm \| Cr: 5.1 kN \| C0r: 5.0 kN \| Mass: 4.3 g
RS16/24		Fw: 16 mm \| Ew: 22 mm \| B: 24 mm \| Cr: 20.4 kN \| C0r: 25.6 kN \| Mass: 23 g
RS10/13		Fw: 10 mm \| Ew: 14 mm \| B: 13 mm \| Cr: 7.0 kN \| C0r: 7.4 kN \| Mass: 5.5 g
VPS16/28A		Fw: 16 mm \| Ew: 22 mm \| B: 28.4 mm \| Cr: 21.7 kN \| C0r: 27.9 kN \| Mass: 24 g
RP101518		Fw: 10 mm \| Ew: 15 mm \| B: 18 mm \| Cr: 10.5 kN \| C0r: 10.9 kN \| Mass: 7.8 g
RF172006		Fw: 17 mm \| Ew: 20 mm \| B: 6 mm \| Cr: 3.1 kN \| C0r: 3.6 kN \| Mass: 1.3 g
R12/13		Fw: 12 mm \| Ew: 15 mm \| B: 13 mm \| Cr: 6.3 kN \| C0r: 8.2 kN \| Mass: 4.7 g
RF172008A-2		Fw: 17 mm \| Ew: 20 mm \| B: 8 mm \| Cr: 3.8 kN \| C0r: 4.7 kN \| Mass: 1.7 g
12R1620A		Fw: 12 mm \| Ew: 16 mm \| B: 20 mm \| Cr: 9.5 kN \| C0r: 11.5 kN \| Mass: 10 g
R17/10		Fw: 17 mm \| Ew: 21 mm \| B: 10 mm \| Cr: 6.8 kN \| C0r: 8.3 kN \| Mass: 6.8 g
RV121712A-2		Fw: 12 mm \| Ew: 17 mm \| B: 11.5 mm \| Cr: 8.2 kN \| C0r: 8.3 kN \| Mass: 6.6 g
R17/13		Fw: 17 mm \| Ew: 21 mm \| B: 13 mm \| Cr: 9.4 kN \| C0r: 12.6 kN \| Mass: 8.8 g
R17/15		Fw: 17 mm \| Ew: 21 mm \| B: 15 mm \| Cr: 10.7 kN \| C0r: 15.0 kN \| Mass: 10 g
RS131710-2		Fw: 13 mm \| Ew: 17 mm \| B: 10 mm \| Cr: 5.9 kN \| C0r: 6.4 kN \| Mass: 5.5 g
RS172117		Fw: 17 mm \| Ew: 21 mm \| B: 17 mm \| Cr: 11.3 kN \| C0r: 16.1 kN \| Mass: 11 g
RS131712		Fw: 13 mm \| Ew: 17 mm \| B: 12 mm \| Cr: 7.3 kN \| C0r: 8.4 kN \| Mass: 6.5 g
13R1815		Fw: 13 mm \| Ew: 18 mm \| B: 15 mm \| Cr: 10.2 kN \| C0r: 11.2 kN \| Mass: 10 g
17R2220		Fw: 17 mm \| Ew: 22 mm \| B: 20 mm \| Cr: 15.2 kN \| C0r: 20.2 kN \| Mass: 17 g
RS17/13		Fw: 17 mm \| Ew: 23 mm \| B: 13 mm \| Cr: 11.4 kN \| C0r: 12.4 kN \| Mass: 14 g
RS141810Q2		Fw: 14 mm \| Ew: 18 mm \| B: 10 mm \| Cr: 5.8 kN \| C0r: 6.5 kN \| Mass: 6.0 g
RS141815		Fw: 14 mm \| Ew: 18 mm \| B: 15 mm \| Cr: 9.6 kN \| C0r: 12.3 kN \| Mass: 8.5 g
R18/13		Fw: 18 mm \| Ew: 22 mm \| B: 13 mm \| Cr: 9.5 kN \| C0r: 13.1 kN \| Mass: 9.2 g
R14/17A		Fw: 14 mm \| Ew: 18 mm \| B: 17 mm \| Cr: 10.1 kN \| C0r: 13.2 kN \| Mass: 10 g
R18/16-8		Fw: 18 mm \| Ew: 22 mm \| B: 16 mm \| Cr: 11.1 kN \| C0r: 16.0 kN \| Mass: 11 g
R18/17		Fw: 18 mm \| Ew: 22 mm \| B: 17 mm \| Cr: 11.9 kN \| C0r: 17.4 kN \| Mass: 12 g
RV141909P1		Fw: 14 mm \| Ew: 19 mm \| B: 9 mm \| Cr: 7.0 kN \| C0r: 7.1 kN \| Mass: 5.7 g
RS141918		Fw: 14 mm \| Ew: 19 mm \| B: 18 mm \| Cr: 12.3 kN \| C0r: 14.6 kN \| Mass: 13 g
RS182417		Fw: 18 mm \| Ew: 24 mm \| B: 17 mm \| Cr: 15.1 kN \| C0r: 17.9 kN \| Mass: 19 g
RP182517		Fw: 18 mm \| Ew: 25 mm \| B: 17 mm \| Cr: 17.8 kN \| C0r: 20.1 kN \| Mass: 19 g
RS151908A		Fw: 15 mm \| Ew: 19 mm \| B: 7.8 mm \| Cr: 4.7 kN \| C0r: 5.0 kN \| Mass: 5.0 g
RF182622A-1		Fw: 18 mm \| Ew: 26 mm \| B: 21.9 mm \| Cr: 19.1 kN \| C0r: 20.3 kN \| Mass: 19 g
R15/10-1		Fw: 15 mm \| Ew: 19 mm \| B: 10 mm \| Cr: 6.3 kN \| C0r: 7.2 kN \| Mass: 6.1 g
RV182622A-2		Fw: 18 mm \| Ew: 26 mm \| B: 21.9 mm \| Cr: 22.7 kN \| C0r: 25.5 kN \| Mass: 31 g
R15/13		Fw: 15 mm \| Ew: 19 mm \| B: 13 mm \| Cr: 8.7 kN \| C0r: 10.9 kN \| Mass: 7.9 g
R15/17		Fw: 15 mm \| Ew: 19 mm \| B: 17 mm \| Cr: 10.5 kN \| C0r: 14.0 kN \| Mass: 10 g
RS192422		Fw: 19 mm \| Ew: 24 mm \| B: 22 mm \| Cr: 16.6 kN \| C0r: 23.3 kN \| Mass: 21 g
R15/20		Fw: 15 mm \| Ew: 19 mm \| B: 20 mm \| Cr: 12.6 kN \| C0r: 17.7 kN \| Mass: 12 g
VS15/13		Fw: 15 mm \| Ew: 20 mm \| B: 13 mm \| Cr: 10.4 kN \| C0r: 11.9 kN \| Mass: 8.6 g
R20/10		Fw: 20 mm \| Ew: 24 mm \| B: 10 mm \| Cr: 7.2 kN \| C0r: 9.4 kN \| Mass: 7.9 g
R20/13P		Fw: 20 mm \| Ew: 24 mm \| B: 13 mm \| Cr: 9.8 kN \| C0r: 14.0 kN \| Mass: 10 g
RS15/18A		Fw: 15 mm \| Ew: 20 mm \| B: 18 mm \| Cr: 13.8 kN \| C0r: 17.2 kN \| Mass: 14 g
RF202525		Fw: 20 mm \| Ew: 25 mm \| B: 25 mm \| Cr: 18.8 kN \| C0r: 27.9 kN \| Mass: 14 g
VS15/20		Fw: 15 mm \| Ew: 20 mm \| B: 20 mm \| Cr: 16.2 kN \| C0r: 21.2 kN \| Mass: 12 g
20VS2612		Fw: 20 mm \| Ew: 26 mm \| B: 11.6 mm \| Cr: 10.7 kN \| C0r: 11.9 kN \| Mass: 12 g
RV223230		Fw: 22 mm \| Ew: 32 mm \| B: 30 mm \| Cr: 40.4 kN \| C0r: 48.9 kN \| Mass: 62 g
RV202612-4		Fw: 20 mm \| Ew: 26 mm \| B: 12 mm \| Cr: 12.8 kN \| C0r: 15.1 kN \| Mass: 14 g
23V2930		Fw: 23 mm \| Ew: 29 mm \| B: 30 mm \| Cr: 26.0 kN \| C0r: 39.0 kN \| Mass: 35 g
VS20/14A		Fw: 20 mm \| Ew: 26 mm \| B: 14 mm \| Cr: 14.1 kN \| C0r: 17.0 kN \| Mass: 15 g
RV233015		Fw: 23 mm \| Ew: 30 mm \| B: 15 mm \| Cr: 17.4 kN \| C0r: 21.0 kN \| Mass: 21 g
RS20/17		Fw: 20 mm \| Ew: 26 mm \| B: 17 mm \| Cr: 15.8 kN \| C0r: 19.6 kN \| Mass: 21 g
23V3320-1		Fw: 23 mm \| Ew: 33 mm \| B: 20 mm \| Cr: 27.0 kN \| C0r: 29.4 kN \| Mass: 44 g
RP202619A		Fw: 20 mm \| Ew: 26 mm \| B: 18.8 mm \| Cr: 17.4 kN \| C0r: 22.3 kN \| Mass: 17 g
VP20/20-1		Fw: 20 mm \| Ew: 26 mm \| B: 20 mm \| Cr: 18.9 kN \| C0r: 24.7 kN \| Mass: 19 g
RS242813		Fw: 24 mm \| Ew: 28 mm \| B: 13 mm \| Cr: 11.1 kN \| C0r: 17.4 kN \| Mass: 12 g
RS202630		Fw: 20 mm \| Ew: 26 mm \| B: 30 mm \| Cr: 26.8 kN \| C0r: 38.9 kN \| Mass: 39 g
R24/17A		Fw: 24 mm \| Ew: 28 mm \| B: 17 mm \| Cr: 13.7 kN \| C0r: 22.8 kN \| Mass: 16 g
20V2715		Fw: 20 mm \| Ew: 27 mm \| B: 15 mm \| Cr: 16.2 kN \| C0r: 18.3 kN \| Mass: 19 g
RS242823		Fw: 24 mm \| Ew: 28 mm \| B: 23 mm \| Cr: 18.2 kN \| C0r: 32.9 kN \| Mass: 21 g
20V2729		Fw: 20 mm \| Ew: 27 mm \| B: 29 mm \| Cr: 25.4 kN \| C0r: 32.6 kN \| Mass: 37 g
RV243215-4		Fw: 24 mm \| Ew: 32 mm \| B: 15 mm \| Cr: 20.0 kN \| C0r: 23.2 kN \| Mass: 27 g
RP202820		Fw: 20 mm \| Ew: 28 mm \| B: 20 mm \| Cr: 24.1 kN \| C0r: 28.2 kN \| Mass: 28 g
R25/10A		Fw: 25 mm \| Ew: 29 mm \| B: 9.9 mm \| Cr: 7.1 kN \| C0r: 9.8 kN \| Mass: 10 g
20V2825B		Fw: 20 mm \| Ew: 28 mm \| B: 25 mm \| Cr: 28.8 kN \| C0r: 35.4 kN \| Mass: 37 g
RV203015		Fw: 20 mm \| Ew: 30 mm \| B: 15 mm \| Cr: 18.2 kN \| C0r: 17.1 kN \| Mass: 30 g
R25/13-1		Fw: 25 mm \| Ew: 29 mm \| B: 13 mm \| Cr: 11.5 kN \| C0r: 18.4 kN \| Mass: 13 g
25R3010A		Fw: 25 mm \| Ew: 30 mm \| B: 9.9 mm \| Cr: 9.3 kN \| C0r: 12.0 kN \| Mass: 13 g
RF212923A		Fw: 21 mm \| Ew: 29 mm \| B: 22.5 mm \| Cr: 23.7 kN \| C0r: 27.6 kN \| Mass: 24 g
25R3012		Fw: 25 mm \| Ew: 30 mm \| B: 12 mm \| Cr: 10.5 kN \| C0r: 14.1 kN \| Mass: 15 g
25V3017		Fw: 25 mm \| Ew: 30 mm \| B: 17 mm \| Cr: 15.7 kN \| C0r: 23.6 kN \| Mass: 18 g
RS222612		Fw: 22 mm \| Ew: 26 mm \| B: 12 mm \| Cr: 9.6 kN \| C0r: 14.1 kN \| Mass: 10 g
25R3020-1		Fw: 25 mm \| Ew: 30 mm \| B: 20 mm \| Cr: 19.0 kN \| C0r: 30.1 kN \| Mass: 24 g
R22/13-1		Fw: 22 mm \| Ew: 26 mm \| B: 13 mm \| Cr: 10.4 kN \| C0r: 15.6 kN \| Mass: 11 g
R22/17		Fw: 22 mm \| Ew: 26 mm \| B: 17 mm \| Cr: 13.0 kN \| C0r: 20.7 kN \| Mass: 14 g
25VPU3020B		Fw: 25 mm \| Ew: 30 mm \| B: 20 mm \| Cr: 16.6 kN \| C0r: 25.3 kN \| Mass: 16 g
VPS25/18		Fw: 25 mm \| Ew: 31 mm \| B: 17.5 mm \| Cr: 17.4 kN \| C0r: 23.8 kN \| Mass: 18 g
RS222720		Fw: 22 mm \| Ew: 27 mm \| B: 20 mm \| Cr: 17.0 kN \| C0r: 25.2 kN \| Mass: 21 g
RS25/18		Fw: 25 mm \| Ew: 31 mm \| B: 18 mm \| Cr: 17.4 kN \| C0r: 23.8 kN \| Mass: 27 g
RS222811		Fw: 22 mm \| Ew: 28 mm \| B: 11 mm \| Cr: 9.5 kN \| C0r: 10.5 kN \| Mass: 15 g
VS25/20		Fw: 25 mm \| Ew: 31 mm \| B: 20 mm \| Cr: 21.0 kN \| C0r: 30.5 kN \| Mass: 26 g
22VS2814E		Fw: 22 mm \| Ew: 28 mm \| B: 14 mm \| Cr: 13.2 kN \| C0r: 15.9 kN \| Mass: 16 g
25R3124		Fw: 25 mm \| Ew: 31 mm \| B: 24 mm \| Cr: 24.9 kN \| C0r: 37.8 kN \| Mass: 35 g
RS22/17		Fw: 22 mm \| Ew: 28 mm \| B: 17 mm \| Cr: 16.1 kN \| C0r: 20.7 kN \| Mass: 22 g
25V3216		Fw: 25 mm \| Ew: 32 mm \| B: 16 mm \| Cr: 18.9 kN \| C0r: 23.8 kN \| Mass: 25 g
RP222823A		Fw: 22 mm \| Ew: 28 mm \| B: 22.5 mm \| Cr: 21.3 kN \| C0r: 29.6 kN \| Mass: 25 g
VS22/23B		Fw: 22 mm \| Ew: 28 mm \| B: 23 mm \| Cr: 24.2 kN \| C0r: 35.1 kN \| Mass: 25 g
RS253224		Fw: 25 mm \| Ew: 32 mm \| B: 24 mm \| Cr: 26.4 kN \| C0r: 36.7 kN \| Mass: 43 g
RPU253232F-1		Fw: 25 mm \| Ew: 32 mm \| B: 32 mm \| Cr: 37.8 kN \| C0r: 58.4 kN \| Mass: 51 g
RV222917		Fw: 22 mm \| Ew: 29 mm \| B: 17 mm \| Cr: 17.0 kN \| C0r: 20.0 kN \| Mass: 23 g
RV253232		Fw: 25 mm \| Ew: 32 mm \| B: 32 mm \| Cr: 39.6 kN \| C0r: 62.0 kN \| Mass: 49 g
RV223015		Fw: 22 mm \| Ew: 30 mm \| B: 15 mm \| Cr: 16.7 kN \| C0r: 17.9 kN \| Mass: 25 g
RV223018		Fw: 22 mm \| Ew: 30 mm \| B: 18 mm \| Cr: 21.8 kN \| C0r: 25.2 kN \| Mass: 30 g
RV253320		Fw: 25 mm \| Ew: 33 mm \| B: 20 mm \| Cr: 24.1 kN \| C0r: 29.8 kN \| Mass: 35 g
25R3324B-1		Fw: 25 mm \| Ew: 33 mm \| B: 23.8 mm \| Cr: 30.2 kN \| C0r: 40.0 kN \| Mass: 48 g
RV223020-1		Fw: 22 mm \| Ew: 30 mm \| B: 20 mm \| Cr: 24.1 kN \| C0r: 28.8 kN \| Mass: 31 g
RF253330		Fw: 25 mm \| Ew: 33 mm \| B: 30 mm \| Cr: 38.6 kN \| C0r: 54.8 kN \| Mass: 41 g
RV223215		Fw: 22 mm \| Ew: 32 mm \| B: 15 mm \| Cr: 21.1 kN \| C0r: 21.3 kN \| Mass: 32 g
RV223216		Fw: 22 mm \| Ew: 32 mm \| B: 16 mm \| Cr: 21.1 kN \| C0r: 21.3 kN \| Mass: 35 g
25R3525		Fw: 25 mm \| Ew: 35 mm \| B: 25 mm \| Cr: 32.5 kN \| C0r: 38.0 kN \| Mass: 65 g
25V3530A		Fw: 25 mm \| Ew: 35 mm \| B: 30 mm \| Cr: 39.6 kN \| C0r: 49.0 kN \| Mass: 69 g
30R3414A		Fw: 30 mm \| Ew: 34 mm \| B: 14 mm \| Cr: 7.7 kN \| C0r: 11.4 kN \| Mass: 16 g
25V3724		Fw: 25 mm \| Ew: 37 mm \| B: 24 mm \| Cr: 34.1 kN \| C0r: 36.2 kN \| Mass: 69 g
RFN303414		Fw: 30 mm \| Ew: 34 mm \| B: 14 mm \| Cr: 7.7 kN \| C0r: 11.5 kN \| Mass: 6.1 g
25V3725A		Fw: 25 mm \| Ew: 37 mm \| B: 25 mm \| Cr: 38.3 kN \| C0r: 42.2 kN \| Mass: 77 g
30R3429		Fw: 30 mm \| Ew: 34 mm \| B: 29 mm \| Cr: 18.1 kN \| C0r: 34.8 kN \| Mass: 34 g
RV253733		Fw: 25 mm \| Ew: 37 mm \| B: 33 mm \| Cr: 47.5 kN \| C0r: 55.7 kN \| Mass: 96 g
RSU303429		Fw: 30 mm \| Ew: 34 mm \| B: 29 mm \| Cr: 20.4 kN \| C0r: 40.8 kN \| Mass: 33 g
R30/17-1		Fw: 30 mm \| Ew: 35 mm \| B: 17 mm \| Cr: 17.7 kN \| C0r: 29.2 kN \| Mass: 24 g
RS263020		Fw: 26 mm \| Ew: 30 mm \| B: 20 mm \| Cr: 16.9 kN \| C0r: 30.6 kN \| Mass: 20 g
RS303521A		Fw: 30 mm \| Ew: 35 mm \| B: 21.1 mm \| Cr: 22.2 kN \| C0r: 39.0 kN \| Mass: 30 g
RS263022A		Fw: 26 mm \| Ew: 30 mm \| B: 21.9 mm \| Cr: 16.9 kN \| C0r: 30.4 kN \| Mass: 22 g
RS303524		Fw: 30 mm \| Ew: 35 mm \| B: 24 mm \| Cr: 24.9 kN \| C0r: 45.1 kN \| Mass: 34 g
RS263116		Fw: 26 mm \| Ew: 31 mm \| B: 16 mm \| Cr: 15.7 kN \| C0r: 23.8 kN \| Mass: 20 g
RV303716		Fw: 30 mm \| Ew: 37 mm \| B: 16 mm \| Cr: 21.8 kN \| C0r: 30.3 kN \| Mass: 29 g
RS263119		Fw: 26 mm \| Ew: 31 mm \| B: 19 mm \| Cr: 18.5 kN \| C0r: 29.5 kN \| Mass: 24 g
RS30/20A		Fw: 30 mm \| Ew: 37 mm \| B: 20 mm \| Cr: 25.2 kN \| C0r: 36.6 kN \| Mass: 41 g
RPU263334F		Fw: 26 mm \| Ew: 33 mm \| B: 34 mm \| Cr: 30.4 kN \| C0r: 44.0 kN \| Mass: 42 g
RV303726		Fw: 30 mm \| Ew: 37 mm \| B: 26 mm \| Cr: 34.7 kN \| C0r: 55.3 kN \| Mass: 47 g
RV263417		Fw: 26 mm \| Ew: 34 mm \| B: 17 mm \| Cr: 23.9 kN \| C0r: 30.0 kN \| Mass: 32 g
RP303822A		Fw: 30 mm \| Ew: 38 mm \| B: 22.1 mm \| Cr: 27.7 kN \| C0r: 37.5 kN \| Mass: 45 g
RPU303828AF		Fw: 30 mm \| Ew: 38 mm \| B: 28.3 mm \| Cr: 33.5 kN \| C0r: 47.8 kN \| Mass: 47 g
RFN27/27		Fw: 27 mm \| Ew: 32 mm \| B: 27 mm \| Cr: 26.2 kN \| C0r: 46.6 kN \| Mass: 20 g
VPSU27/29AF		Fw: 27 mm \| Ew: 33 mm \| B: 28.6 mm \| Cr: 30.0 kN \| C0r: 49.2 kN \| Mass: 33 g
RP303927		Fw: 30 mm \| Ew: 39 mm \| B: 27 mm \| Cr: 34.2 kN \| C0r: 45.6 kN \| Mass: 51 g
30VP3930A		Fw: 30 mm \| Ew: 39 mm \| B: 30 mm \| Cr: 38.3 kN \| C0r: 52.8 kN \| Mass: 58 g
28R3226		Fw: 28 mm \| Ew: 32 mm \| B: 26 mm \| Cr: 17.1 kN \| C0r: 31.5 kN \| Mass: 27 g
RP303932		Fw: 30 mm \| Ew: 39 mm \| B: 32 mm \| Cr: 42.6 kN \| C0r: 60.5 kN \| Mass: 63 g
28R3229		Fw: 28 mm \| Ew: 32 mm \| B: 29 mm \| Cr: 17.1 kN \| C0r: 31.5 kN \| Mass: 32 g
RV304016A-4		Fw: 30 mm \| Ew: 40 mm \| B: 15.5 mm \| Cr: 26.7 kN \| C0r: 31.1 kN \| Mass: 46 g
28R3317		Fw: 28 mm \| Ew: 33 mm \| B: 17 mm \| Cr: 17.9 kN \| C0r: 29.0 kN \| Mass: 22 g
30V4020		Fw: 30 mm \| Ew: 40 mm \| B: 20 mm \| Cr: 32.0 kN \| C0r: 39.1 kN \| Mass: 55 g
R28/23A		Fw: 28 mm \| Ew: 33 mm \| B: 23 mm \| Cr: 22.8 kN \| C0r: 39.6 kN \| Mass: 31 g
RF304215		Fw: 30 mm \| Ew: 42 mm \| B: 15 mm \| Cr: 27.0 kN \| C0r: 28.0 kN \| Mass: 36 g
R28/27		Fw: 28 mm \| Ew: 33 mm \| B: 27 mm \| Cr: 25.0 kN \| C0r: 44.5 kN \| Mass: 36 g
RV304225		Fw: 30 mm \| Ew: 42 mm \| B: 25 mm \| Cr: 44.0 kN \| C0r: 52.3 kN \| Mass: 84 g
28R3620		Fw: 28 mm \| Ew: 36 mm \| B: 20 mm \| Cr: 23.2 kN \| C0r: 29.3 kN \| Mass: 45 g
30V4232		Fw: 30 mm \| Ew: 42 mm \| B: 32 mm \| Cr: 52.7 kN \| C0r: 66.0 kN \| Mass: 108 g
RS283824		Fw: 28 mm \| Ew: 38 mm \| B: 24 mm \| Cr: 31.2 kN \| C0r: 37.1 kN \| Mass: 70 g
30V4530		Fw: 30 mm \| Ew: 45 mm \| B: 30 mm \| Cr: 54.4 kN \| C0r: 60.2 kN \| Mass: 135 g
RV284028		Fw: 28 mm \| Ew: 40 mm \| B: 28 mm \| Cr: 49.1 kN \| C0r: 59.5 kN \| Mass: 90 g
RV284125		Fw: 28 mm \| Ew: 41 mm \| B: 25 mm \| Cr: 40.2 kN \| C0r: 43.6 kN \| Mass: 86 g
RFU313620A-1		Fw: 31 mm \| Ew: 36 mm \| B: 20.3 mm \| Cr: 19.9 kN \| C0r: 34.2 kN \| Mass: 17 g
RF284251A		Fw: 28 mm \| Ew: 42 mm \| B: 50.5 mm \| Cr: 88.9 kN \| C0r: 116.5 kN \| Mass: 182 g
32R3615A		Fw: 32 mm \| Ew: 36 mm \| B: 15 mm \| Cr: 10.8 kN \| C0r: 18.3 kN \| Mass: 19 g
R32/17-1		Fw: 32 mm \| Ew: 37 mm \| B: 17 mm \| Cr: 19.0 kN \| C0r: 32.6 kN \| Mass: 26 g
R29/22A		Fw: 29 mm \| Ew: 34 mm \| B: 22 mm \| Cr: 17.3 kN \| C0r: 27.6 kN \| Mass: 30 g
R32/20		Fw: 32 mm \| Ew: 37 mm \| B: 20 mm \| Cr: 22.3 kN \| C0r: 39.9 kN \| Mass: 30 g
RFU293424A		Fw: 29 mm \| Ew: 34 mm \| B: 24.4 mm \| Cr: 19.7 kN \| C0r: 32.8 kN \| Mass: 17 g
29R3427A-1		Fw: 29 mm \| Ew: 34 mm \| B: 27 mm \| Cr: 25.7 kN \| C0r: 46.7 kN \| Mass: 37 g
RF323724A-1		Fw: 32 mm \| Ew: 37 mm \| B: 23.8 mm \| Cr: 22.6 kN \| C0r: 40.5 kN \| Mass: 20 g
RF323726		Fw: 32 mm \| Ew: 37 mm \| B: 26 mm \| Cr: 26.2 kN \| C0r: 49.0 kN \| Mass: 24 g
RV294343		Fw: 29 mm \| Ew: 43 mm \| B: 43 mm \| Cr: 73.7 kN \| C0r: 92.2 kN \| Mass: 177 g
VP32/30A		Fw: 32 mm \| Ew: 37 mm \| B: 29.5 mm \| Cr: 31.1 kN \| C0r: 61.2 kN \| Mass: 32 g
32VP3820A		Fw: 32 mm \| Ew: 38 mm \| B: 20 mm \| Cr: 24.9 kN \| C0r: 40.6 kN \| Mass: 27 g
35VP4135A		Fw: 35 mm \| Ew: 41 mm \| B: 35 mm \| Cr: 40.4 kN \| C0r: 78.0 kN \| Mass: 51 g
RP323826		Fw: 32 mm \| Ew: 38 mm \| B: 26 mm \| Cr: 27.3 kN \| C0r: 45.6 kN \| Mass: 34 g
35VP4140A		Fw: 35 mm \| Ew: 41 mm \| B: 40 mm \| Cr: 42.4 kN \| C0r: 82.6 kN \| Mass: 59 g
32VP3827		Fw: 32 mm \| Ew: 38 mm \| B: 27 mm \| Cr: 29.6 kN \| C0r: 50.7 kN \| Mass: 38 g
VS35/20		Fw: 35 mm \| Ew: 42 mm \| B: 20 mm \| Cr: 27.2 kN \| C0r: 42.0 kN \| Mass: 42 g
RS323916		Fw: 32 mm \| Ew: 39 mm \| B: 16 mm \| Cr: 21.2 kN \| C0r: 29.8 kN \| Mass: 35 g
VS35/30		Fw: 35 mm \| Ew: 42 mm \| B: 30 mm \| Cr: 39.9 kN \| C0r: 68.8 kN \| Mass: 59 g
RV324216		Fw: 32 mm \| Ew: 42 mm \| B: 16 mm \| Cr: 27.5 kN \| C0r: 32.9 kN \| Mass: 49 g
RV354818A-4		Fw: 35 mm \| Ew: 48 mm \| B: 17.5 mm \| Cr: 37.8 kN \| C0r: 42.7 kN \| Mass: 81 g
RV324221-1		Fw: 32 mm \| Ew: 42 mm \| B: 20.5 mm \| Cr: 33.5 kN \| C0r: 42.2 kN \| Mass: 64 g
RV354925-1		Fw: 35 mm \| Ew: 49 mm \| B: 25 mm \| Cr: 53.4 kN \| C0r: 63.4 kN \| Mass: 120 g
32V4528		Fw: 32 mm \| Ew: 45 mm \| B: 28 mm \| Cr: 47.9 kN \| C0r: 56.5 kN \| Mass: 112 g
36R4010		Fw: 36 mm \| Ew: 40 mm \| B: 10 mm \| Cr: 9.6 kN \| C0r: 16.5 kN \| Mass: 14 g
RF324618		Fw: 32 mm \| Ew: 46 mm \| B: 18 mm \| Cr: 37.0 kN \| C0r: 38.8 kN \| Mass: 57 g
RS364120		Fw: 36 mm \| Ew: 41 mm \| B: 20 mm \| Cr: 21.7 kN \| C0r: 40.3 kN \| Mass: 34 g
RV324618-1		Fw: 32 mm \| Ew: 46 mm \| B: 18 mm \| Cr: 30.3 kN \| C0r: 29.8 kN \| Mass: 71 g
36RFN4125A		Fw: 36 mm \| Ew: 41 mm \| B: 25 mm \| Cr: 29.9 kN \| C0r: 60.6 kN \| Mass: 27 g
RSU333722F		Fw: 33 mm \| Ew: 37 mm \| B: 22 mm \| Cr: 18.5 kN \| C0r: 37.2 kN \| Mass: 27 g
R36/31		Fw: 36 mm \| Ew: 41 mm \| B: 30.5 mm \| Cr: 33.1 kN \| C0r: 69.2 kN \| Mass: 51 g
RS364217-K		Fw: 36 mm \| Ew: 42 mm \| B: 17 mm \| Cr: 20.5 kN \| C0r: 32.8 kN \| Mass: 35 g
RFU343920A		Fw: 34 mm \| Ew: 39 mm \| B: 20.3 mm \| Cr: 19.6 kN \| C0r: 34.4 kN \| Mass: 18 g
RS364219-K		Fw: 36 mm \| Ew: 42 mm \| B: 19 mm \| Cr: 23.2 kN \| C0r: 38.6 kN \| Mass: 39 g
34R4238		Fw: 34 mm \| Ew: 42 mm \| B: 38 mm \| Cr: 49.2 kN \| C0r: 81.9 kN \| Mass: 98 g
RS364221-K		Fw: 36 mm \| Ew: 42 mm \| B: 21 mm \| Cr: 25.9 kN \| C0r: 44.4 kN \| Mass: 44 g
34VP4440-1		Fw: 34 mm \| Ew: 44 mm \| B: 40 mm \| Cr: 64.1 kN \| C0r: 99.1 kN \| Mass: 101 g
RF364225-1		Fw: 36 mm \| Ew: 42 mm \| B: 25 mm \| Cr: 33.1 kN \| C0r: 60.9 kN \| Mass: 34 g
RF364825-1		Fw: 36 mm \| Ew: 48 mm \| B: 25 mm \| Cr: 54.0 kN \| C0r: 71.7 kN \| Mass: 80 g
RF353925		Fw: 35 mm \| Ew: 39 mm \| B: 25 mm \| Cr: 22.0 kN \| C0r: 47.4 kN \| Mass: 24 g
RS354013		Fw: 35 mm \| Ew: 40 mm \| B: 13 mm \| Cr: 14.2 kN \| C0r: 23.0 kN \| Mass: 22 g
RF365230		Fw: 36 mm \| Ew: 52 mm \| B: 30 mm \| Cr: 73.9 kN \| C0r: 89.9 kN \| Mass: 139 g
RS354017		Fw: 35 mm \| Ew: 40 mm \| B: 17 mm \| Cr: 18.4 kN \| C0r: 32.0 kN \| Mass: 29 g
RS374212A		Fw: 37 mm \| Ew: 42 mm \| B: 11.6 mm \| Cr: 11.3 kN \| C0r: 17.5 kN \| Mass: 23 g
RS354022		Fw: 35 mm \| Ew: 40 mm \| B: 22 mm \| Cr: 23.6 kN \| C0r: 44.4 kN \| Mass: 37 g
VP37/13A		Fw: 37 mm \| Ew: 42 mm \| B: 12.8 mm \| Cr: 14.0 kN \| C0r: 23.2 kN \| Mass: 14 g
RS354024		Fw: 35 mm \| Ew: 40 mm \| B: 24 mm \| Cr: 25.9 kN \| C0r: 49.9 kN \| Mass: 39 g
VP37/17		Fw: 37 mm \| Ew: 42 mm \| B: 17.3 mm \| Cr: 21.3 kN \| C0r: 39.7 kN \| Mass: 21 g
RSU354025AF		Fw: 35 mm \| Ew: 40 mm \| B: 24.8 mm \| Cr: 23.7 kN \| C0r: 44.4 kN \| Mass: 39 g
37R4222		Fw: 37 mm \| Ew: 42 mm \| B: 22 mm \| Cr: 24.0 kN \| C0r: 46.3 kN \| Mass: 38 g
RS354025-1		Fw: 35 mm \| Ew: 40 mm \| B: 25 mm \| Cr: 27.0 kN \| C0r: 52.7 kN \| Mass: 41 g
RF374223-1		Fw: 37 mm \| Ew: 42 mm \| B: 23 mm \| Cr: 23.8 kN \| C0r: 45.5 kN \| Mass: 22 g
RS354026		Fw: 35 mm \| Ew: 40 mm \| B: 26 mm \| Cr: 28.7 kN \| C0r: 56.9 kN \| Mass: 41 g
RS374227		Fw: 37 mm \| Ew: 42 mm \| B: 27 mm \| Cr: 30.8 kN \| C0r: 63.6 kN \| Mass: 46 g
RF354028		Fw: 35 mm \| Ew: 40 mm \| B: 28 mm \| Cr: 28.7 kN \| C0r: 56.9 kN \| Mass: 27 g
RSU374227		Fw: 37 mm \| Ew: 42 mm \| B: 27 mm \| Cr: 30.0 kN \| C0r: 61.5 kN \| Mass: 45 g
RP354029-1		Fw: 35 mm \| Ew: 40 mm \| B: 29 mm \| Cr: 30.6 kN \| C0r: 61.7 kN \| Mass: 33 g
VP37/29		Fw: 37 mm \| Ew: 42 mm \| B: 29 mm \| Cr: 31.9 kN \| C0r: 66.5 kN \| Mass: 35 g
VP35/30		Fw: 35 mm \| Ew: 40 mm \| B: 30 mm \| Cr: 30.6 kN \| C0r: 61.7 kN \| Mass: 34 g
RS374231		Fw: 37 mm \| Ew: 42 mm \| B: 31 mm \| Cr: 33.9 kN \| C0r: 72.1 kN \| Mass: 52 g
RP354031		Fw: 35 mm \| Ew: 40 mm \| B: 31 mm \| Cr: 30.6 kN \| C0r: 61.6 kN \| Mass: 37 g
VP37/32		Fw: 37 mm \| Ew: 42 mm \| B: 32 mm \| Cr: 31.2 kN \| C0r: 64.3 kN \| Mass: 37 g
RP354033-1		Fw: 35 mm \| Ew: 40 mm \| B: 33 mm \| Cr: 31.1 kN \| C0r: 63.2 kN \| Mass: 39 g
37R4332		Fw: 37 mm \| Ew: 43 mm \| B: 32 mm \| Cr: 39.1 kN \| C0r: 75.8 kN \| Mass: 66 g
RF354035		Fw: 35 mm \| Ew: 40 mm \| B: 35 mm \| Cr: 31.8 kN \| C0r: 64.9 kN \| Mass: 32 g
RPU374337F		Fw: 37 mm \| Ew: 43 mm \| B: 36.8 mm \| Cr: 40.0 kN \| C0r: 77.9 kN \| Mass: 60 g
RF384210		Fw: 38 mm \| Ew: 42 mm \| B: 10 mm \| Cr: 8.9 kN \| C0r: 15.2 kN \| Mass: 6.6 g
RS424710-1		Fw: 42 mm \| Ew: 47 mm \| B: 10 mm \| Cr: 13.9 kN \| C0r: 23.8 kN \| Mass: 21 g
RF384423A		Fw: 38 mm \| Ew: 44 mm \| B: 23.4 mm \| Cr: 25.1 kN \| C0r: 43.1 kN \| Mass: 26 g
RS424725		Fw: 42 mm \| Ew: 47 mm \| B: 25 mm \| Cr: 29.5 kN \| C0r: 63.1 kN \| Mass: 52 g
RSU384425AF		Fw: 38 mm \| Ew: 44 mm \| B: 24.5 mm \| Cr: 27.5 kN \| C0r: 48.4 kN \| Mass: 51 g
RS424727		Fw: 42 mm \| Ew: 47 mm \| B: 27 mm \| Cr: 32.3 kN \| C0r: 70.8 kN \| Mass: 51 g
RF384426		Fw: 38 mm \| Ew: 44 mm \| B: 26 mm \| Cr: 28.7 kN \| C0r: 51.1 kN \| Mass: 29 g
RSU424730		Fw: 42 mm \| Ew: 47 mm \| B: 30 mm \| Cr: 31.9 kN \| C0r: 69.8 kN \| Mass: 58 g
RP384433		Fw: 38 mm \| Ew: 44 mm \| B: 33 mm \| Cr: 37.9 kN \| C0r: 73.4 kN \| Mass: 64 g
VP42/30		Fw: 42 mm \| Ew: 47 mm \| B: 30 mm \| Cr: 36.3 kN \| C0r: 82.4 kN \| Mass: 44 g
RP384436A		Fw: 38 mm \| Ew: 44 mm \| B: 36.2 mm \| Cr: 39.9 kN \| C0r: 78.1 kN \| Mass: 57 g
RF424922		Fw: 42 mm \| Ew: 49 mm \| B: 22 mm \| Cr: 29.3 kN \| C0r: 49.0 kN \| Mass: 35 g
RP384440A		Fw: 38 mm \| Ew: 44 mm \| B: 39.8 mm \| Cr: 43.7 kN \| C0r: 88.1 kN \| Mass: 65 g
RS434818		Fw: 43 mm \| Ew: 48 mm \| B: 18 mm \| Cr: 21.9 kN \| C0r: 43.2 kN \| Mass: 36 g
RP385239		Fw: 38 mm \| Ew: 52 mm \| B: 39 mm \| Cr: 74.8 kN \| C0r: 99.2 kN \| Mass: 155 g
RS434819A-2		Fw: 43 mm \| Ew: 48 mm \| B: 18.5 mm \| Cr: 22.1 kN \| C0r: 43.7 kN \| Mass: 38 g
RS434821A		Fw: 43 mm \| Ew: 48 mm \| B: 21.2 mm \| Cr: 25.0 kN \| C0r: 51.5 kN \| Mass: 46 g
39R4633		Fw: 39 mm \| Ew: 46 mm \| B: 32.8 mm \| Cr: 42.4 kN \| C0r: 76.9 kN \| Mass: 82 g
RF395521A		Fw: 39 mm \| Ew: 55 mm \| B: 20.5 mm \| Cr: 55.0 kN \| C0r: 62.6 kN \| Mass: 98 g
RS434823A		Fw: 43 mm \| Ew: 48 mm \| B: 23.3 mm \| Cr: 29.4 kN \| C0r: 63.2 kN \| Mass: 46 g
RV395923-1		Fw: 39 mm \| Ew: 59 mm \| B: 23 mm \| Cr: 63.8 kN \| C0r: 66.3 kN \| Mass: 196 g
RS434824A		Fw: 43 mm \| Ew: 48 mm \| B: 24.4 mm \| Cr: 28.2 kN \| C0r: 59.9 kN \| Mass: 49 g
RS434830		Fw: 43 mm \| Ew: 48 mm \| B: 30 mm \| Cr: 34.1 kN \| C0r: 76.5 kN \| Mass: 58 g
RV404513		Fw: 40 mm \| Ew: 45 mm \| B: 13 mm \| Cr: 17.1 kN \| C0r: 30.8 kN \| Mass: 22 g
43VP4931E		Fw: 43 mm \| Ew: 49 mm \| B: 31 mm \| Cr: 40.1 kN \| C0r: 82.5 kN \| Mass: 55 g
R40/17-1		Fw: 40 mm \| Ew: 45 mm \| B: 17 mm \| Cr: 19.9 kN \| C0r: 37.4 kN \| Mass: 32 g
43VP5240		Fw: 43 mm \| Ew: 52 mm \| B: 39.9 mm \| Cr: 65.2 kN \| C0r: 116 kN \| Mass: 114 g
RS404521A		Fw: 40 mm \| Ew: 45 mm \| B: 21.2 mm \| Cr: 23.6 kN \| C0r: 46.6 kN \| Mass: 40 g
RS404527		Fw: 40 mm \| Ew: 45 mm \| B: 27 mm \| Cr: 29.9 kN \| C0r: 63.0 kN \| Mass: 49 g
44RFN5028		Fw: 44 mm \| Ew: 50 mm \| B: 27.5 mm \| Cr: 36.0 kN \| C0r: 72.2 kN \| Mass: 39 g
R40/30		Fw: 40 mm \| Ew: 45 mm \| B: 30 mm \| Cr: 30.5 kN \| C0r: 64.4 kN \| Mass: 55 g
RP445039		Fw: 44 mm \| Ew: 50 mm \| B: 39 mm \| Cr: 46.4 kN \| C0r: 100 kN \| Mass: 71 g
R40/32A		Fw: 40 mm \| Ew: 45 mm \| B: 32 mm \| Cr: 14.3 kN \| C0r: 23.3 kN \| Mass: 53 g
R45/13		Fw: 45 mm \| Ew: 50 mm \| B: 13 mm \| Cr: 16.0 kN \| C0r: 29.4 kN \| Mass: 28 g
RP404615A		Fw: 40 mm \| Ew: 46 mm \| B: 14.5 mm \| Cr: 21.2 kN \| C0r: 35.5 kN \| Mass: 31 g
RS455017		Fw: 45 mm \| Ew: 50 mm \| B: 17 mm \| Cr: 22.7 kN \| C0r: 46.1 kN \| Mass: 35 g
RS404629		Fw: 40 mm \| Ew: 46 mm \| B: 29 mm \| Cr: 36.4 kN \| C0r: 70.6 kN \| Mass: 65 g
R45/19		Fw: 45 mm \| Ew: 50 mm \| B: 19 mm \| Cr: 24.1 kN \| C0r: 49.7 kN \| Mass: 39 g
RS40/20		Fw: 40 mm \| Ew: 47 mm \| B: 20 mm \| Cr: 27.6 kN \| C0r: 44.8 kN \| Mass: 54 g
RS455020A		Fw: 45 mm \| Ew: 50 mm \| B: 20.2 mm \| Cr: 24.1 kN \| C0r: 49.6 kN \| Mass: 46 g
RS40/29A		Fw: 40 mm \| Ew: 47 mm \| B: 28.5 mm \| Cr: 38.0 kN \| C0r: 67.6 kN \| Mass: 77 g
RS455024		Fw: 45 mm \| Ew: 50 mm \| B: 24 mm \| Cr: 29.3 kN \| C0r: 63.9 kN \| Mass: 50 g
40V4834		Fw: 40 mm \| Ew: 48 mm \| B: 34 mm \| Cr: 50.4 kN \| C0r: 88.3 kN \| Mass: 87 g
R45/26		Fw: 45 mm \| Ew: 50 mm \| B: 26 mm \| Cr: 31.8 kN \| C0r: 70.9 kN \| Mass: 54 g
RF405528A-1		Fw: 40 mm \| Ew: 55 mm \| B: 27.5 mm \| Cr: 68.0 kN \| C0r: 85.6 kN \| Mass: 124 g
RS455033-1		Fw: 45 mm \| Ew: 50 mm \| B: 33 mm \| Cr: 37.3 kN \| C0r: 87.0 kN \| Mass: 69 g
RV405620-4		Fw: 40 mm \| Ew: 56 mm \| B: 20 mm \| Cr: 50.8 kN \| C0r: 56.7 kN \| Mass: 122 g
45RFN5129		Fw: 45 mm \| Ew: 51 mm \| B: 28.6 mm \| Cr: 34.1 kN \| C0r: 67.7 kN \| Mass: 40 g
RF405732A		Fw: 40 mm \| Ew: 57 mm \| B: 31.5 mm \| Cr: 83.4 kN \| C0r: 103 kN \| Mass: 168 g
RP455129A		Fw: 45 mm \| Ew: 51 mm \| B: 28.9 mm \| Cr: 37.5 kN \| C0r: 76.9 kN \| Mass: 65 g
RF406032A		Fw: 40 mm \| Ew: 60 mm \| B: 31.5 mm \| Cr: 94.1 kN \| C0r: 110 kN \| Mass: 214 g
RPU455129AF		Fw: 45 mm \| Ew: 51 mm \| B: 28.9 mm \| Cr: 37.5 kN \| C0r: 76.9 kN \| Mass: 67 g
41R4624A		Fw: 41 mm \| Ew: 46 mm \| B: 24 mm \| Cr: 11.0 kN \| C0r: 16.8 kN \| Mass: 44 g
RS455222		Fw: 45 mm \| Ew: 52 mm \| B: 22 mm \| Cr: 35.4 kN \| C0r: 63.9 kN \| Mass: 66 g
RV455325P		Fw: 45 mm \| Ew: 53 mm \| B: 25 mm \| Cr: 41.4 kN \| C0r: 71.1 kN \| Mass: 73 g
RP505628		Fw: 50 mm \| Ew: 56 mm \| B: 28 mm \| Cr: 39.5 kN \| C0r: 85.5 kN \| Mass: 69 g
45V5326P		Fw: 45 mm \| Ew: 53 mm \| B: 26 mm \| Cr: 41.4 kN \| C0r: 71.1 kN \| Mass: 77 g
RF505630		Fw: 50 mm \| Ew: 56 mm \| B: 30 mm \| Cr: 41.0 kN \| C0r: 89.6 kN \| Mass: 50 g
45VP5328		Fw: 45 mm \| Ew: 53 mm \| B: 28 mm \| Cr: 42.3 kN \| C0r: 73.2 kN \| Mass: 66 g
RP505734A		Fw: 50 mm \| Ew: 57 mm \| B: 33.5 mm \| Cr: 47.8 kN \| C0r: 97.1 kN \| Mass: 79 g
RV456423-7		Fw: 45 mm \| Ew: 64 mm \| B: 23 mm \| Cr: 64.0 kN \| C0r: 70.4 kN \| Mass: 191 g
RS505739A		Fw: 50 mm \| Ew: 57 mm \| B: 38.9 mm \| Cr: 58.3 kN \| C0r: 126 kN \| Mass: 133 g
RS505741A		Fw: 50 mm \| Ew: 57 mm \| B: 40.8 mm \| Cr: 60.9 kN \| C0r: 133 kN \| Mass: 127 g
46VP5220		Fw: 46 mm \| Ew: 52 mm \| B: 20 mm \| Cr: 25.9 kN \| C0r: 48.2 kN \| Mass: 34 g
RF505825		Fw: 50 mm \| Ew: 58 mm \| B: 25 mm \| Cr: 38.5 kN \| C0r: 66.9 kN \| Mass: 53 g
46VP5237B		Fw: 46 mm \| Ew: 52 mm \| B: 37 mm \| Cr: 45.8 kN \| C0r: 100 kN \| Mass: 67 g
RF507036		Fw: 50 mm \| Ew: 70 mm \| B: 36 mm \| Cr: 114 kN \| C0r: 147 kN \| Mass: 277 g
R47/30H		Fw: 47 mm \| Ew: 52 mm \| B: 30 mm \| Cr: 36.4 kN \| C0r: 85.4 kN \| Mass: 62 g
VP51/28		Fw: 51 mm \| Ew: 56 mm \| B: 28 mm \| Cr: 34.8 kN \| C0r: 83.0 kN \| Mass: 45 g
RSU475230F-1		Fw: 47 mm \| Ew: 52 mm \| B: 30 mm \| Cr: 35.1 kN \| C0r: 81.7 kN \| Mass: 62 g
RP475329A		Fw: 47 mm \| Ew: 53 mm \| B: 28.8 mm \| Cr: 35.3 kN \| C0r: 72.3 kN \| Mass: 55 g
RF527232		Fw: 52 mm \| Ew: 72 mm \| B: 32 mm \| Cr: 108 kN \| C0r: 138 kN \| Mass: 259 g
RP475330-1		Fw: 47 mm \| Ew: 53 mm \| B: 30 mm \| Cr: 42.6 kN \| C0r: 92.1 kN \| Mass: 74 g
RP475336		Fw: 47 mm \| Ew: 53 mm \| B: 36 mm \| Cr: 47.0 kN \| C0r: 104 kN \| Mass: 68 g
RF535825		Fw: 53 mm \| Ew: 58 mm \| B: 25 mm \| Cr: 32.2 kN \| C0r: 76.0 kN \| Mass: 35 g
RS485313		Fw: 48 mm \| Ew: 53 mm \| B: 13 mm \| Cr: 16.1 kN \| C0r: 30.1 kN \| Mass: 30 g
RP546031A		Fw: 54 mm \| Ew: 60 mm \| B: 31.1 mm \| Cr: 45.3 kN \| C0r: 104 kN \| Mass: 83 g
RP546036		Fw: 54 mm \| Ew: 60 mm \| B: 36 mm \| Cr: 45.5 kN \| C0r: 105 kN \| Mass: 82 g
48R5328		Fw: 48 mm \| Ew: 53 mm \| B: 28 mm \| Cr: 34.1 kN \| C0r: 79.2 kN \| Mass: 60 g
48R5420-1		Fw: 48 mm \| Ew: 54 mm \| B: 20 mm \| Cr: 29.3 kN \| C0r: 57.3 kN \| Mass: 54 g
RPU546135AF		Fw: 54 mm \| Ew: 61 mm \| B: 34.7 mm \| Cr: 60.2 kN \| C0r: 135 kN \| Mass: 116 g
48R5427		Fw: 48 mm \| Ew: 54 mm \| B: 27 mm \| Cr: 38.1 kN \| C0r: 80.4 kN \| Mass: 72 g
RS546141A		Fw: 54 mm \| Ew: 61 mm \| B: 41.3 mm \| Cr: 63.3 kN \| C0r: 143 kN \| Mass: 145 g
RS485428		Fw: 48 mm \| Ew: 54 mm \| B: 28 mm \| Cr: 37.8 kN \| C0r: 79.3 kN \| Mass: 72 g
48R5429		Fw: 48 mm \| Ew: 54 mm \| B: 29 mm \| Cr: 39.5 kN \| C0r: 84.3 kN \| Mass: 78 g
55RFN5913A		Fw: 55 mm \| Ew: 59 mm \| B: 13 mm \| Cr: 10.8 kN \| C0r: 21.9 kN \| Mass: 11 g
R55/20		Fw: 55 mm \| Ew: 60 mm \| B: 20 mm \| Cr: 26.7 kN \| C0r: 60.6 kN \| Mass: 52 g
RP485430A-1		Fw: 48 mm \| Ew: 54 mm \| B: 30.2 mm \| Cr: 43.8 kN \| C0r: 96.2 kN \| Mass: 72 g
RS556028		Fw: 55 mm \| Ew: 60 mm \| B: 28 mm \| Cr: 35.8 kN \| C0r: 88.4 kN \| Mass: 69 g
48R5439		Fw: 48 mm \| Ew: 54 mm \| B: 39 mm \| Cr: 47.9 kN \| C0r: 108 kN \| Mass: 106 g
RP485521		Fw: 48 mm \| Ew: 55 mm \| B: 21 mm \| Cr: 32.4 kN \| C0r: 58.1 kN \| Mass: 60 g
RF566020		Fw: 56 mm \| Ew: 60 mm \| B: 20 mm \| Cr: 24.0 kN \| C0r: 62.4 kN \| Mass: 23 g
RF566111		Fw: 56 mm \| Ew: 61 mm \| B: 11 mm \| Cr: 13.6 kN \| C0r: 25.6 kN \| Mass: 14 g
RP495645A		Fw: 49 mm \| Ew: 56 mm \| B: 44.6 mm \| Cr: 61.2 kN \| C0r: 133 kN \| Mass: 120 g
RS566130		Fw: 56 mm \| Ew: 61 mm \| B: 30 mm \| Cr: 39.7 kN \| C0r: 102 kN \| Mass: 75 g
RS495645A		Fw: 49 mm \| Ew: 56 mm \| B: 44.6 mm \| Cr: 61.2 kN \| C0r: 133 kN \| Mass: 146 g
R56/34		Fw: 56 mm \| Ew: 61 mm \| B: 33.5 mm \| Cr: 42.5 kN \| C0r: 111 kN \| Mass: 85 g
RS505518A		Fw: 50 mm \| Ew: 55 mm \| B: 17.5 mm \| Cr: 22.3 kN \| C0r: 46.5 kN \| Mass: 39 g
58R6526		Fw: 58 mm \| Ew: 65 mm \| B: 26 mm \| Cr: 42.1 kN \| C0r: 87.1 kN \| Mass: 99 g
RS505520-1		Fw: 50 mm \| Ew: 55 mm \| B: 20 mm \| Cr: 25.1 kN \| C0r: 54.3 kN \| Mass: 47 g
R50/27A		Fw: 50 mm \| Ew: 55 mm \| B: 27 mm \| Cr: 11.5 kN \| C0r: 18.9 kN \| Mass: 56 g
58RFN6537A		Fw: 58 mm \| Ew: 65 mm \| B: 36.6 mm \| Cr: 55.7 kN \| C0r: 125 kN \| Mass: 80 g
RS586537A-2		Fw: 58 mm \| Ew: 65 mm \| B: 36.6 mm \| Cr: 56.4 kN \| C0r: 127 kN \| Mass: 145 g
RF505613		Fw: 50 mm \| Ew: 56 mm \| B: 13 mm \| Cr: 16.7 kN \| C0r: 28.2 kN \| Mass: 18 g
RP586538A		Fw: 58 mm \| Ew: 65 mm \| B: 37.5 mm \| Cr: 57.7 kN \| C0r: 131 kN \| Mass: 108 g
RV588072		Fw: 58 mm \| Ew: 80 mm \| B: 72 mm \| Cr: 233 kN \| C0r: 359 kN \| Mass: 889 g
R60/30		Fw: 60 mm \| Ew: 65 mm \| B: 30 mm \| Cr: 40.0 kN \| C0r: 105 kN \| Mass: 81 g
RS606619		Fw: 60 mm \| Ew: 66 mm \| B: 19 mm \| Cr: 31.5 kN \| C0r: 67.8 kN \| Mass: 63 g
60V6723		Fw: 60 mm \| Ew: 67 mm \| B: 23 mm \| Cr: 40.1 kN \| C0r: 82.8 kN \| Mass: 77 g
RF608230		Fw: 60 mm \| Ew: 82 mm \| B: 30 mm \| Cr: 118 kN \| C0r: 152 kN \| Mass: 316 g
R63/30		Fw: 63 mm \| Ew: 68 mm \| B: 30 mm \| Cr: 40.9 kN \| C0r: 110 kN \| Mass: 83 g
64R7025A		Fw: 64 mm \| Ew: 70 mm \| B: 24.5 mm \| Cr: 39.4 kN \| C0r: 92.4 kN \| Mass: 86 g
64R7035		Fw: 64 mm \| Ew: 70 mm \| B: 35 mm \| Cr: 55.7 kN \| C0r: 144 kN \| Mass: 122 g
R65/20A		Fw: 65 mm \| Ew: 70 mm \| B: 20 mm \| Cr: 12.1 kN \| C0r: 22.3 kN \| Mass: 57 g
R65/24A		Fw: 65 mm \| Ew: 70 mm \| B: 24 mm \| Cr: 12.5 kN \| C0r: 22.9 kN \| Mass: 67 g
70R7620		Fw: 70 mm \| Ew: 76 mm \| B: 20 mm \| Cr: 34.7 kN \| C0r: 80.8 kN \| Mass: 77 g
RP707632		Fw: 70 mm \| Ew: 76 mm \| B: 32 mm \| Cr: 55.1 kN \| C0r: 147 kN \| Mass: 116 g
70R7830		Fw: 70 mm \| Ew: 78 mm \| B: 30 mm \| Cr: 59.4 kN \| C0r: 132 kN \| Mass: 154 g
71V7930B		Fw: 71 mm \| Ew: 79 mm \| B: 30.15 mm \| Cr: 61.3 kN \| C0r: 138 kN \| Mass: 135 g
RS717940AZ		Fw: 71 mm \| Ew: 79 mm \| B: 39.5 mm \| Cr: 75.3 kN \| C0r: 179 kN \| Mass: 203 g
72V7921		Fw: 72 mm \| Ew: 79 mm \| B: 21 mm \| Cr: 39.6 kN \| C0r: 86.6 kN \| Mass: 84 g
R73/20		Fw: 73 mm \| Ew: 79 mm \| B: 20 mm \| Cr: 36.3 kN \| C0r: 86.8 kN \| Mass: 84 g
78R8534A		Fw: 78 mm \| Ew: 85 mm \| B: 33.75 mm \| Cr: 62.3 kN \| C0r: 159 kN \| Mass: 168 g

Needle Roller BearingsKOYO

340 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Needle Roller and Cage Assemblies (RS, R, RP, RV, V, VS, VP)

Brand KOYO·Needle Roller Bearings

Available part numbers (340)

RS091210, RV152109-4, RF091418, RS152117, R10/13, R16/13, RF101320, 16VP2126, RS10/8-1, 16VS2212-2 + 330 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	RS091210	Fw: 9 mm \| Ew: 12 mm \| B: 10 mm \| Cr: 3.8 kN \| C0r: 4.0 kN \| Mass: 2.9 g
	RV152109-4	Fw: 15 mm \| Ew: 21 mm \| B: 9 mm \| Cr: 7.4 kN \| C0r: 6.9 kN \| Mass: 7.8 g
	RF091418	Fw: 9 mm \| Ew: 14 mm \| B: 18 mm \| Cr: 9.1 kN \| C0r: 9.0 kN \| Mass: 5.3 g
	RS152117	Fw: 15 mm \| Ew: 21 mm \| B: 17 mm \| Cr: 13.4 kN \| C0r: 14.8 kN \| Mass: 16 g
	R10/13	Fw: 10 mm \| Ew: 13 mm \| B: 13 mm \| Cr: 5.8 kN \| C0r: 7.0 kN \| Mass: 4.0 g
	R16/13	Fw: 16 mm \| Ew: 20 mm \| B: 13 mm \| Cr: 9.4 kN \| C0r: 12.5 kN \| Mass: 8.5 g
	RF101320	Fw: 10 mm \| Ew: 13 mm \| B: 20 mm \| Cr: 5.0 kN \| C0r: 5.8 kN \| Mass: 2.4 g
	16VP2126	Fw: 16 mm \| Ew: 21 mm \| B: 26 mm \| Cr: 19.9 kN \| C0r: 28.0 kN \| Mass: 16 g
	RS10/8-1	Fw: 10 mm \| Ew: 14 mm \| B: 8 mm \| Cr: 4.5 kN \| C0r: 4.3 kN \| Mass: 3.5 g
	16VS2212-2	Fw: 16 mm \| Ew: 22 mm \| B: 12 mm \| Cr: 9.6 kN \| C0r: 9.6 kN \| Mass: 11 g
	RS10/10	Fw: 10 mm \| Ew: 14 mm \| B: 10 mm \| Cr: 5.1 kN \| C0r: 5.0 kN \| Mass: 4.3 g
	RS16/24	Fw: 16 mm \| Ew: 22 mm \| B: 24 mm \| Cr: 20.4 kN \| C0r: 25.6 kN \| Mass: 23 g
	RS10/13	Fw: 10 mm \| Ew: 14 mm \| B: 13 mm \| Cr: 7.0 kN \| C0r: 7.4 kN \| Mass: 5.5 g
	VPS16/28A	Fw: 16 mm \| Ew: 22 mm \| B: 28.4 mm \| Cr: 21.7 kN \| C0r: 27.9 kN \| Mass: 24 g
	RP101518	Fw: 10 mm \| Ew: 15 mm \| B: 18 mm \| Cr: 10.5 kN \| C0r: 10.9 kN \| Mass: 7.8 g
	RF172006	Fw: 17 mm \| Ew: 20 mm \| B: 6 mm \| Cr: 3.1 kN \| C0r: 3.6 kN \| Mass: 1.3 g
	R12/13	Fw: 12 mm \| Ew: 15 mm \| B: 13 mm \| Cr: 6.3 kN \| C0r: 8.2 kN \| Mass: 4.7 g
	RF172008A-2	Fw: 17 mm \| Ew: 20 mm \| B: 8 mm \| Cr: 3.8 kN \| C0r: 4.7 kN \| Mass: 1.7 g
	12R1620A	Fw: 12 mm \| Ew: 16 mm \| B: 20 mm \| Cr: 9.5 kN \| C0r: 11.5 kN \| Mass: 10 g
	R17/10	Fw: 17 mm \| Ew: 21 mm \| B: 10 mm \| Cr: 6.8 kN \| C0r: 8.3 kN \| Mass: 6.8 g
	RV121712A-2	Fw: 12 mm \| Ew: 17 mm \| B: 11.5 mm \| Cr: 8.2 kN \| C0r: 8.3 kN \| Mass: 6.6 g
	R17/13	Fw: 17 mm \| Ew: 21 mm \| B: 13 mm \| Cr: 9.4 kN \| C0r: 12.6 kN \| Mass: 8.8 g
	R17/15	Fw: 17 mm \| Ew: 21 mm \| B: 15 mm \| Cr: 10.7 kN \| C0r: 15.0 kN \| Mass: 10 g
	RS131710-2	Fw: 13 mm \| Ew: 17 mm \| B: 10 mm \| Cr: 5.9 kN \| C0r: 6.4 kN \| Mass: 5.5 g
	RS172117	Fw: 17 mm \| Ew: 21 mm \| B: 17 mm \| Cr: 11.3 kN \| C0r: 16.1 kN \| Mass: 11 g
	RS131712	Fw: 13 mm \| Ew: 17 mm \| B: 12 mm \| Cr: 7.3 kN \| C0r: 8.4 kN \| Mass: 6.5 g
	13R1815	Fw: 13 mm \| Ew: 18 mm \| B: 15 mm \| Cr: 10.2 kN \| C0r: 11.2 kN \| Mass: 10 g
	17R2220	Fw: 17 mm \| Ew: 22 mm \| B: 20 mm \| Cr: 15.2 kN \| C0r: 20.2 kN \| Mass: 17 g
	RS17/13	Fw: 17 mm \| Ew: 23 mm \| B: 13 mm \| Cr: 11.4 kN \| C0r: 12.4 kN \| Mass: 14 g
	RS141810Q2	Fw: 14 mm \| Ew: 18 mm \| B: 10 mm \| Cr: 5.8 kN \| C0r: 6.5 kN \| Mass: 6.0 g
	RS141815	Fw: 14 mm \| Ew: 18 mm \| B: 15 mm \| Cr: 9.6 kN \| C0r: 12.3 kN \| Mass: 8.5 g
	R18/13	Fw: 18 mm \| Ew: 22 mm \| B: 13 mm \| Cr: 9.5 kN \| C0r: 13.1 kN \| Mass: 9.2 g
	R14/17A	Fw: 14 mm \| Ew: 18 mm \| B: 17 mm \| Cr: 10.1 kN \| C0r: 13.2 kN \| Mass: 10 g
	R18/16-8	Fw: 18 mm \| Ew: 22 mm \| B: 16 mm \| Cr: 11.1 kN \| C0r: 16.0 kN \| Mass: 11 g
	R18/17	Fw: 18 mm \| Ew: 22 mm \| B: 17 mm \| Cr: 11.9 kN \| C0r: 17.4 kN \| Mass: 12 g
	RV141909P1	Fw: 14 mm \| Ew: 19 mm \| B: 9 mm \| Cr: 7.0 kN \| C0r: 7.1 kN \| Mass: 5.7 g
	RS141918	Fw: 14 mm \| Ew: 19 mm \| B: 18 mm \| Cr: 12.3 kN \| C0r: 14.6 kN \| Mass: 13 g
	RS182417	Fw: 18 mm \| Ew: 24 mm \| B: 17 mm \| Cr: 15.1 kN \| C0r: 17.9 kN \| Mass: 19 g
	RP182517	Fw: 18 mm \| Ew: 25 mm \| B: 17 mm \| Cr: 17.8 kN \| C0r: 20.1 kN \| Mass: 19 g
	RS151908A	Fw: 15 mm \| Ew: 19 mm \| B: 7.8 mm \| Cr: 4.7 kN \| C0r: 5.0 kN \| Mass: 5.0 g
	RF182622A-1	Fw: 18 mm \| Ew: 26 mm \| B: 21.9 mm \| Cr: 19.1 kN \| C0r: 20.3 kN \| Mass: 19 g
	R15/10-1	Fw: 15 mm \| Ew: 19 mm \| B: 10 mm \| Cr: 6.3 kN \| C0r: 7.2 kN \| Mass: 6.1 g
	RV182622A-2	Fw: 18 mm \| Ew: 26 mm \| B: 21.9 mm \| Cr: 22.7 kN \| C0r: 25.5 kN \| Mass: 31 g
	R15/13	Fw: 15 mm \| Ew: 19 mm \| B: 13 mm \| Cr: 8.7 kN \| C0r: 10.9 kN \| Mass: 7.9 g
	R15/17	Fw: 15 mm \| Ew: 19 mm \| B: 17 mm \| Cr: 10.5 kN \| C0r: 14.0 kN \| Mass: 10 g
	RS192422	Fw: 19 mm \| Ew: 24 mm \| B: 22 mm \| Cr: 16.6 kN \| C0r: 23.3 kN \| Mass: 21 g
	R15/20	Fw: 15 mm \| Ew: 19 mm \| B: 20 mm \| Cr: 12.6 kN \| C0r: 17.7 kN \| Mass: 12 g
	VS15/13	Fw: 15 mm \| Ew: 20 mm \| B: 13 mm \| Cr: 10.4 kN \| C0r: 11.9 kN \| Mass: 8.6 g
	R20/10	Fw: 20 mm \| Ew: 24 mm \| B: 10 mm \| Cr: 7.2 kN \| C0r: 9.4 kN \| Mass: 7.9 g
	R20/13P	Fw: 20 mm \| Ew: 24 mm \| B: 13 mm \| Cr: 9.8 kN \| C0r: 14.0 kN \| Mass: 10 g
	RS15/18A	Fw: 15 mm \| Ew: 20 mm \| B: 18 mm \| Cr: 13.8 kN \| C0r: 17.2 kN \| Mass: 14 g
	RF202525	Fw: 20 mm \| Ew: 25 mm \| B: 25 mm \| Cr: 18.8 kN \| C0r: 27.9 kN \| Mass: 14 g
	VS15/20	Fw: 15 mm \| Ew: 20 mm \| B: 20 mm \| Cr: 16.2 kN \| C0r: 21.2 kN \| Mass: 12 g
	20VS2612	Fw: 20 mm \| Ew: 26 mm \| B: 11.6 mm \| Cr: 10.7 kN \| C0r: 11.9 kN \| Mass: 12 g
	RV223230	Fw: 22 mm \| Ew: 32 mm \| B: 30 mm \| Cr: 40.4 kN \| C0r: 48.9 kN \| Mass: 62 g
	RV202612-4	Fw: 20 mm \| Ew: 26 mm \| B: 12 mm \| Cr: 12.8 kN \| C0r: 15.1 kN \| Mass: 14 g
	23V2930	Fw: 23 mm \| Ew: 29 mm \| B: 30 mm \| Cr: 26.0 kN \| C0r: 39.0 kN \| Mass: 35 g
	VS20/14A	Fw: 20 mm \| Ew: 26 mm \| B: 14 mm \| Cr: 14.1 kN \| C0r: 17.0 kN \| Mass: 15 g
	RV233015	Fw: 23 mm \| Ew: 30 mm \| B: 15 mm \| Cr: 17.4 kN \| C0r: 21.0 kN \| Mass: 21 g
	RS20/17	Fw: 20 mm \| Ew: 26 mm \| B: 17 mm \| Cr: 15.8 kN \| C0r: 19.6 kN \| Mass: 21 g
	23V3320-1	Fw: 23 mm \| Ew: 33 mm \| B: 20 mm \| Cr: 27.0 kN \| C0r: 29.4 kN \| Mass: 44 g
	RP202619A	Fw: 20 mm \| Ew: 26 mm \| B: 18.8 mm \| Cr: 17.4 kN \| C0r: 22.3 kN \| Mass: 17 g
	VP20/20-1	Fw: 20 mm \| Ew: 26 mm \| B: 20 mm \| Cr: 18.9 kN \| C0r: 24.7 kN \| Mass: 19 g
	RS242813	Fw: 24 mm \| Ew: 28 mm \| B: 13 mm \| Cr: 11.1 kN \| C0r: 17.4 kN \| Mass: 12 g
	RS202630	Fw: 20 mm \| Ew: 26 mm \| B: 30 mm \| Cr: 26.8 kN \| C0r: 38.9 kN \| Mass: 39 g
	R24/17A	Fw: 24 mm \| Ew: 28 mm \| B: 17 mm \| Cr: 13.7 kN \| C0r: 22.8 kN \| Mass: 16 g
	20V2715	Fw: 20 mm \| Ew: 27 mm \| B: 15 mm \| Cr: 16.2 kN \| C0r: 18.3 kN \| Mass: 19 g
	RS242823	Fw: 24 mm \| Ew: 28 mm \| B: 23 mm \| Cr: 18.2 kN \| C0r: 32.9 kN \| Mass: 21 g
	20V2729	Fw: 20 mm \| Ew: 27 mm \| B: 29 mm \| Cr: 25.4 kN \| C0r: 32.6 kN \| Mass: 37 g
	RV243215-4	Fw: 24 mm \| Ew: 32 mm \| B: 15 mm \| Cr: 20.0 kN \| C0r: 23.2 kN \| Mass: 27 g
	RP202820	Fw: 20 mm \| Ew: 28 mm \| B: 20 mm \| Cr: 24.1 kN \| C0r: 28.2 kN \| Mass: 28 g
	R25/10A	Fw: 25 mm \| Ew: 29 mm \| B: 9.9 mm \| Cr: 7.1 kN \| C0r: 9.8 kN \| Mass: 10 g
	20V2825B	Fw: 20 mm \| Ew: 28 mm \| B: 25 mm \| Cr: 28.8 kN \| C0r: 35.4 kN \| Mass: 37 g
	RV203015	Fw: 20 mm \| Ew: 30 mm \| B: 15 mm \| Cr: 18.2 kN \| C0r: 17.1 kN \| Mass: 30 g
	R25/13-1	Fw: 25 mm \| Ew: 29 mm \| B: 13 mm \| Cr: 11.5 kN \| C0r: 18.4 kN \| Mass: 13 g
	25R3010A	Fw: 25 mm \| Ew: 30 mm \| B: 9.9 mm \| Cr: 9.3 kN \| C0r: 12.0 kN \| Mass: 13 g
	RF212923A	Fw: 21 mm \| Ew: 29 mm \| B: 22.5 mm \| Cr: 23.7 kN \| C0r: 27.6 kN \| Mass: 24 g
	25R3012	Fw: 25 mm \| Ew: 30 mm \| B: 12 mm \| Cr: 10.5 kN \| C0r: 14.1 kN \| Mass: 15 g
	25V3017	Fw: 25 mm \| Ew: 30 mm \| B: 17 mm \| Cr: 15.7 kN \| C0r: 23.6 kN \| Mass: 18 g
	RS222612	Fw: 22 mm \| Ew: 26 mm \| B: 12 mm \| Cr: 9.6 kN \| C0r: 14.1 kN \| Mass: 10 g
	25R3020-1	Fw: 25 mm \| Ew: 30 mm \| B: 20 mm \| Cr: 19.0 kN \| C0r: 30.1 kN \| Mass: 24 g
	R22/13-1	Fw: 22 mm \| Ew: 26 mm \| B: 13 mm \| Cr: 10.4 kN \| C0r: 15.6 kN \| Mass: 11 g
	R22/17	Fw: 22 mm \| Ew: 26 mm \| B: 17 mm \| Cr: 13.0 kN \| C0r: 20.7 kN \| Mass: 14 g
	25VPU3020B	Fw: 25 mm \| Ew: 30 mm \| B: 20 mm \| Cr: 16.6 kN \| C0r: 25.3 kN \| Mass: 16 g
	VPS25/18	Fw: 25 mm \| Ew: 31 mm \| B: 17.5 mm \| Cr: 17.4 kN \| C0r: 23.8 kN \| Mass: 18 g
	RS222720	Fw: 22 mm \| Ew: 27 mm \| B: 20 mm \| Cr: 17.0 kN \| C0r: 25.2 kN \| Mass: 21 g
	RS25/18	Fw: 25 mm \| Ew: 31 mm \| B: 18 mm \| Cr: 17.4 kN \| C0r: 23.8 kN \| Mass: 27 g
	RS222811	Fw: 22 mm \| Ew: 28 mm \| B: 11 mm \| Cr: 9.5 kN \| C0r: 10.5 kN \| Mass: 15 g
	VS25/20	Fw: 25 mm \| Ew: 31 mm \| B: 20 mm \| Cr: 21.0 kN \| C0r: 30.5 kN \| Mass: 26 g
	22VS2814E	Fw: 22 mm \| Ew: 28 mm \| B: 14 mm \| Cr: 13.2 kN \| C0r: 15.9 kN \| Mass: 16 g
	25R3124	Fw: 25 mm \| Ew: 31 mm \| B: 24 mm \| Cr: 24.9 kN \| C0r: 37.8 kN \| Mass: 35 g
	RS22/17	Fw: 22 mm \| Ew: 28 mm \| B: 17 mm \| Cr: 16.1 kN \| C0r: 20.7 kN \| Mass: 22 g
	25V3216	Fw: 25 mm \| Ew: 32 mm \| B: 16 mm \| Cr: 18.9 kN \| C0r: 23.8 kN \| Mass: 25 g
	RP222823A	Fw: 22 mm \| Ew: 28 mm \| B: 22.5 mm \| Cr: 21.3 kN \| C0r: 29.6 kN \| Mass: 25 g
	VS22/23B	Fw: 22 mm \| Ew: 28 mm \| B: 23 mm \| Cr: 24.2 kN \| C0r: 35.1 kN \| Mass: 25 g
	RS253224	Fw: 25 mm \| Ew: 32 mm \| B: 24 mm \| Cr: 26.4 kN \| C0r: 36.7 kN \| Mass: 43 g
	RPU253232F-1	Fw: 25 mm \| Ew: 32 mm \| B: 32 mm \| Cr: 37.8 kN \| C0r: 58.4 kN \| Mass: 51 g
	RV222917	Fw: 22 mm \| Ew: 29 mm \| B: 17 mm \| Cr: 17.0 kN \| C0r: 20.0 kN \| Mass: 23 g
	RV253232	Fw: 25 mm \| Ew: 32 mm \| B: 32 mm \| Cr: 39.6 kN \| C0r: 62.0 kN \| Mass: 49 g
	RV223015	Fw: 22 mm \| Ew: 30 mm \| B: 15 mm \| Cr: 16.7 kN \| C0r: 17.9 kN \| Mass: 25 g
	RV223018	Fw: 22 mm \| Ew: 30 mm \| B: 18 mm \| Cr: 21.8 kN \| C0r: 25.2 kN \| Mass: 30 g
	RV253320	Fw: 25 mm \| Ew: 33 mm \| B: 20 mm \| Cr: 24.1 kN \| C0r: 29.8 kN \| Mass: 35 g
	25R3324B-1	Fw: 25 mm \| Ew: 33 mm \| B: 23.8 mm \| Cr: 30.2 kN \| C0r: 40.0 kN \| Mass: 48 g
	RV223020-1	Fw: 22 mm \| Ew: 30 mm \| B: 20 mm \| Cr: 24.1 kN \| C0r: 28.8 kN \| Mass: 31 g
	RF253330	Fw: 25 mm \| Ew: 33 mm \| B: 30 mm \| Cr: 38.6 kN \| C0r: 54.8 kN \| Mass: 41 g
	RV223215	Fw: 22 mm \| Ew: 32 mm \| B: 15 mm \| Cr: 21.1 kN \| C0r: 21.3 kN \| Mass: 32 g
	RV223216	Fw: 22 mm \| Ew: 32 mm \| B: 16 mm \| Cr: 21.1 kN \| C0r: 21.3 kN \| Mass: 35 g
	25R3525	Fw: 25 mm \| Ew: 35 mm \| B: 25 mm \| Cr: 32.5 kN \| C0r: 38.0 kN \| Mass: 65 g
	25V3530A	Fw: 25 mm \| Ew: 35 mm \| B: 30 mm \| Cr: 39.6 kN \| C0r: 49.0 kN \| Mass: 69 g
	30R3414A	Fw: 30 mm \| Ew: 34 mm \| B: 14 mm \| Cr: 7.7 kN \| C0r: 11.4 kN \| Mass: 16 g
	25V3724	Fw: 25 mm \| Ew: 37 mm \| B: 24 mm \| Cr: 34.1 kN \| C0r: 36.2 kN \| Mass: 69 g
	RFN303414	Fw: 30 mm \| Ew: 34 mm \| B: 14 mm \| Cr: 7.7 kN \| C0r: 11.5 kN \| Mass: 6.1 g
	25V3725A	Fw: 25 mm \| Ew: 37 mm \| B: 25 mm \| Cr: 38.3 kN \| C0r: 42.2 kN \| Mass: 77 g
	30R3429	Fw: 30 mm \| Ew: 34 mm \| B: 29 mm \| Cr: 18.1 kN \| C0r: 34.8 kN \| Mass: 34 g
	RV253733	Fw: 25 mm \| Ew: 37 mm \| B: 33 mm \| Cr: 47.5 kN \| C0r: 55.7 kN \| Mass: 96 g
	RSU303429	Fw: 30 mm \| Ew: 34 mm \| B: 29 mm \| Cr: 20.4 kN \| C0r: 40.8 kN \| Mass: 33 g
	R30/17-1	Fw: 30 mm \| Ew: 35 mm \| B: 17 mm \| Cr: 17.7 kN \| C0r: 29.2 kN \| Mass: 24 g
	RS263020	Fw: 26 mm \| Ew: 30 mm \| B: 20 mm \| Cr: 16.9 kN \| C0r: 30.6 kN \| Mass: 20 g
	RS303521A	Fw: 30 mm \| Ew: 35 mm \| B: 21.1 mm \| Cr: 22.2 kN \| C0r: 39.0 kN \| Mass: 30 g
	RS263022A	Fw: 26 mm \| Ew: 30 mm \| B: 21.9 mm \| Cr: 16.9 kN \| C0r: 30.4 kN \| Mass: 22 g
	RS303524	Fw: 30 mm \| Ew: 35 mm \| B: 24 mm \| Cr: 24.9 kN \| C0r: 45.1 kN \| Mass: 34 g
	RS263116	Fw: 26 mm \| Ew: 31 mm \| B: 16 mm \| Cr: 15.7 kN \| C0r: 23.8 kN \| Mass: 20 g
	RV303716	Fw: 30 mm \| Ew: 37 mm \| B: 16 mm \| Cr: 21.8 kN \| C0r: 30.3 kN \| Mass: 29 g
	RS263119	Fw: 26 mm \| Ew: 31 mm \| B: 19 mm \| Cr: 18.5 kN \| C0r: 29.5 kN \| Mass: 24 g
	RS30/20A	Fw: 30 mm \| Ew: 37 mm \| B: 20 mm \| Cr: 25.2 kN \| C0r: 36.6 kN \| Mass: 41 g
	RPU263334F	Fw: 26 mm \| Ew: 33 mm \| B: 34 mm \| Cr: 30.4 kN \| C0r: 44.0 kN \| Mass: 42 g
	RV303726	Fw: 30 mm \| Ew: 37 mm \| B: 26 mm \| Cr: 34.7 kN \| C0r: 55.3 kN \| Mass: 47 g
	RV263417	Fw: 26 mm \| Ew: 34 mm \| B: 17 mm \| Cr: 23.9 kN \| C0r: 30.0 kN \| Mass: 32 g
	RP303822A	Fw: 30 mm \| Ew: 38 mm \| B: 22.1 mm \| Cr: 27.7 kN \| C0r: 37.5 kN \| Mass: 45 g
	RPU303828AF	Fw: 30 mm \| Ew: 38 mm \| B: 28.3 mm \| Cr: 33.5 kN \| C0r: 47.8 kN \| Mass: 47 g
	RFN27/27	Fw: 27 mm \| Ew: 32 mm \| B: 27 mm \| Cr: 26.2 kN \| C0r: 46.6 kN \| Mass: 20 g
	VPSU27/29AF	Fw: 27 mm \| Ew: 33 mm \| B: 28.6 mm \| Cr: 30.0 kN \| C0r: 49.2 kN \| Mass: 33 g
	RP303927	Fw: 30 mm \| Ew: 39 mm \| B: 27 mm \| Cr: 34.2 kN \| C0r: 45.6 kN \| Mass: 51 g
	30VP3930A	Fw: 30 mm \| Ew: 39 mm \| B: 30 mm \| Cr: 38.3 kN \| C0r: 52.8 kN \| Mass: 58 g
	28R3226	Fw: 28 mm \| Ew: 32 mm \| B: 26 mm \| Cr: 17.1 kN \| C0r: 31.5 kN \| Mass: 27 g
	RP303932	Fw: 30 mm \| Ew: 39 mm \| B: 32 mm \| Cr: 42.6 kN \| C0r: 60.5 kN \| Mass: 63 g
	28R3229	Fw: 28 mm \| Ew: 32 mm \| B: 29 mm \| Cr: 17.1 kN \| C0r: 31.5 kN \| Mass: 32 g
	RV304016A-4	Fw: 30 mm \| Ew: 40 mm \| B: 15.5 mm \| Cr: 26.7 kN \| C0r: 31.1 kN \| Mass: 46 g
	28R3317	Fw: 28 mm \| Ew: 33 mm \| B: 17 mm \| Cr: 17.9 kN \| C0r: 29.0 kN \| Mass: 22 g
	30V4020	Fw: 30 mm \| Ew: 40 mm \| B: 20 mm \| Cr: 32.0 kN \| C0r: 39.1 kN \| Mass: 55 g
	R28/23A	Fw: 28 mm \| Ew: 33 mm \| B: 23 mm \| Cr: 22.8 kN \| C0r: 39.6 kN \| Mass: 31 g
	RF304215	Fw: 30 mm \| Ew: 42 mm \| B: 15 mm \| Cr: 27.0 kN \| C0r: 28.0 kN \| Mass: 36 g
	R28/27	Fw: 28 mm \| Ew: 33 mm \| B: 27 mm \| Cr: 25.0 kN \| C0r: 44.5 kN \| Mass: 36 g
	RV304225	Fw: 30 mm \| Ew: 42 mm \| B: 25 mm \| Cr: 44.0 kN \| C0r: 52.3 kN \| Mass: 84 g
	28R3620	Fw: 28 mm \| Ew: 36 mm \| B: 20 mm \| Cr: 23.2 kN \| C0r: 29.3 kN \| Mass: 45 g
	30V4232	Fw: 30 mm \| Ew: 42 mm \| B: 32 mm \| Cr: 52.7 kN \| C0r: 66.0 kN \| Mass: 108 g
	RS283824	Fw: 28 mm \| Ew: 38 mm \| B: 24 mm \| Cr: 31.2 kN \| C0r: 37.1 kN \| Mass: 70 g
	30V4530	Fw: 30 mm \| Ew: 45 mm \| B: 30 mm \| Cr: 54.4 kN \| C0r: 60.2 kN \| Mass: 135 g
	RV284028	Fw: 28 mm \| Ew: 40 mm \| B: 28 mm \| Cr: 49.1 kN \| C0r: 59.5 kN \| Mass: 90 g
	RV284125	Fw: 28 mm \| Ew: 41 mm \| B: 25 mm \| Cr: 40.2 kN \| C0r: 43.6 kN \| Mass: 86 g
	RFU313620A-1	Fw: 31 mm \| Ew: 36 mm \| B: 20.3 mm \| Cr: 19.9 kN \| C0r: 34.2 kN \| Mass: 17 g
	RF284251A	Fw: 28 mm \| Ew: 42 mm \| B: 50.5 mm \| Cr: 88.9 kN \| C0r: 116.5 kN \| Mass: 182 g
	32R3615A	Fw: 32 mm \| Ew: 36 mm \| B: 15 mm \| Cr: 10.8 kN \| C0r: 18.3 kN \| Mass: 19 g
	R32/17-1	Fw: 32 mm \| Ew: 37 mm \| B: 17 mm \| Cr: 19.0 kN \| C0r: 32.6 kN \| Mass: 26 g
	R29/22A	Fw: 29 mm \| Ew: 34 mm \| B: 22 mm \| Cr: 17.3 kN \| C0r: 27.6 kN \| Mass: 30 g
	R32/20	Fw: 32 mm \| Ew: 37 mm \| B: 20 mm \| Cr: 22.3 kN \| C0r: 39.9 kN \| Mass: 30 g
	RFU293424A	Fw: 29 mm \| Ew: 34 mm \| B: 24.4 mm \| Cr: 19.7 kN \| C0r: 32.8 kN \| Mass: 17 g
	29R3427A-1	Fw: 29 mm \| Ew: 34 mm \| B: 27 mm \| Cr: 25.7 kN \| C0r: 46.7 kN \| Mass: 37 g
	RF323724A-1	Fw: 32 mm \| Ew: 37 mm \| B: 23.8 mm \| Cr: 22.6 kN \| C0r: 40.5 kN \| Mass: 20 g
	RF323726	Fw: 32 mm \| Ew: 37 mm \| B: 26 mm \| Cr: 26.2 kN \| C0r: 49.0 kN \| Mass: 24 g
	RV294343	Fw: 29 mm \| Ew: 43 mm \| B: 43 mm \| Cr: 73.7 kN \| C0r: 92.2 kN \| Mass: 177 g
	VP32/30A	Fw: 32 mm \| Ew: 37 mm \| B: 29.5 mm \| Cr: 31.1 kN \| C0r: 61.2 kN \| Mass: 32 g
	32VP3820A	Fw: 32 mm \| Ew: 38 mm \| B: 20 mm \| Cr: 24.9 kN \| C0r: 40.6 kN \| Mass: 27 g
	35VP4135A	Fw: 35 mm \| Ew: 41 mm \| B: 35 mm \| Cr: 40.4 kN \| C0r: 78.0 kN \| Mass: 51 g
	RP323826	Fw: 32 mm \| Ew: 38 mm \| B: 26 mm \| Cr: 27.3 kN \| C0r: 45.6 kN \| Mass: 34 g
	35VP4140A	Fw: 35 mm \| Ew: 41 mm \| B: 40 mm \| Cr: 42.4 kN \| C0r: 82.6 kN \| Mass: 59 g
	32VP3827	Fw: 32 mm \| Ew: 38 mm \| B: 27 mm \| Cr: 29.6 kN \| C0r: 50.7 kN \| Mass: 38 g
	VS35/20	Fw: 35 mm \| Ew: 42 mm \| B: 20 mm \| Cr: 27.2 kN \| C0r: 42.0 kN \| Mass: 42 g
	RS323916	Fw: 32 mm \| Ew: 39 mm \| B: 16 mm \| Cr: 21.2 kN \| C0r: 29.8 kN \| Mass: 35 g
	VS35/30	Fw: 35 mm \| Ew: 42 mm \| B: 30 mm \| Cr: 39.9 kN \| C0r: 68.8 kN \| Mass: 59 g
	RV324216	Fw: 32 mm \| Ew: 42 mm \| B: 16 mm \| Cr: 27.5 kN \| C0r: 32.9 kN \| Mass: 49 g
	RV354818A-4	Fw: 35 mm \| Ew: 48 mm \| B: 17.5 mm \| Cr: 37.8 kN \| C0r: 42.7 kN \| Mass: 81 g
	RV324221-1	Fw: 32 mm \| Ew: 42 mm \| B: 20.5 mm \| Cr: 33.5 kN \| C0r: 42.2 kN \| Mass: 64 g
	RV354925-1	Fw: 35 mm \| Ew: 49 mm \| B: 25 mm \| Cr: 53.4 kN \| C0r: 63.4 kN \| Mass: 120 g
	32V4528	Fw: 32 mm \| Ew: 45 mm \| B: 28 mm \| Cr: 47.9 kN \| C0r: 56.5 kN \| Mass: 112 g
	36R4010	Fw: 36 mm \| Ew: 40 mm \| B: 10 mm \| Cr: 9.6 kN \| C0r: 16.5 kN \| Mass: 14 g
	RF324618	Fw: 32 mm \| Ew: 46 mm \| B: 18 mm \| Cr: 37.0 kN \| C0r: 38.8 kN \| Mass: 57 g
	RS364120	Fw: 36 mm \| Ew: 41 mm \| B: 20 mm \| Cr: 21.7 kN \| C0r: 40.3 kN \| Mass: 34 g
	RV324618-1	Fw: 32 mm \| Ew: 46 mm \| B: 18 mm \| Cr: 30.3 kN \| C0r: 29.8 kN \| Mass: 71 g
	36RFN4125A	Fw: 36 mm \| Ew: 41 mm \| B: 25 mm \| Cr: 29.9 kN \| C0r: 60.6 kN \| Mass: 27 g
	RSU333722F	Fw: 33 mm \| Ew: 37 mm \| B: 22 mm \| Cr: 18.5 kN \| C0r: 37.2 kN \| Mass: 27 g
	R36/31	Fw: 36 mm \| Ew: 41 mm \| B: 30.5 mm \| Cr: 33.1 kN \| C0r: 69.2 kN \| Mass: 51 g
	RS364217-K	Fw: 36 mm \| Ew: 42 mm \| B: 17 mm \| Cr: 20.5 kN \| C0r: 32.8 kN \| Mass: 35 g
	RFU343920A	Fw: 34 mm \| Ew: 39 mm \| B: 20.3 mm \| Cr: 19.6 kN \| C0r: 34.4 kN \| Mass: 18 g
	RS364219-K	Fw: 36 mm \| Ew: 42 mm \| B: 19 mm \| Cr: 23.2 kN \| C0r: 38.6 kN \| Mass: 39 g
	34R4238	Fw: 34 mm \| Ew: 42 mm \| B: 38 mm \| Cr: 49.2 kN \| C0r: 81.9 kN \| Mass: 98 g
	RS364221-K	Fw: 36 mm \| Ew: 42 mm \| B: 21 mm \| Cr: 25.9 kN \| C0r: 44.4 kN \| Mass: 44 g
	34VP4440-1	Fw: 34 mm \| Ew: 44 mm \| B: 40 mm \| Cr: 64.1 kN \| C0r: 99.1 kN \| Mass: 101 g
	RF364225-1	Fw: 36 mm \| Ew: 42 mm \| B: 25 mm \| Cr: 33.1 kN \| C0r: 60.9 kN \| Mass: 34 g
	RF364825-1	Fw: 36 mm \| Ew: 48 mm \| B: 25 mm \| Cr: 54.0 kN \| C0r: 71.7 kN \| Mass: 80 g
	RF353925	Fw: 35 mm \| Ew: 39 mm \| B: 25 mm \| Cr: 22.0 kN \| C0r: 47.4 kN \| Mass: 24 g
	RS354013	Fw: 35 mm \| Ew: 40 mm \| B: 13 mm \| Cr: 14.2 kN \| C0r: 23.0 kN \| Mass: 22 g
	RF365230	Fw: 36 mm \| Ew: 52 mm \| B: 30 mm \| Cr: 73.9 kN \| C0r: 89.9 kN \| Mass: 139 g
	RS354017	Fw: 35 mm \| Ew: 40 mm \| B: 17 mm \| Cr: 18.4 kN \| C0r: 32.0 kN \| Mass: 29 g
	RS374212A	Fw: 37 mm \| Ew: 42 mm \| B: 11.6 mm \| Cr: 11.3 kN \| C0r: 17.5 kN \| Mass: 23 g
	RS354022	Fw: 35 mm \| Ew: 40 mm \| B: 22 mm \| Cr: 23.6 kN \| C0r: 44.4 kN \| Mass: 37 g
	VP37/13A	Fw: 37 mm \| Ew: 42 mm \| B: 12.8 mm \| Cr: 14.0 kN \| C0r: 23.2 kN \| Mass: 14 g
	RS354024	Fw: 35 mm \| Ew: 40 mm \| B: 24 mm \| Cr: 25.9 kN \| C0r: 49.9 kN \| Mass: 39 g
	VP37/17	Fw: 37 mm \| Ew: 42 mm \| B: 17.3 mm \| Cr: 21.3 kN \| C0r: 39.7 kN \| Mass: 21 g
	RSU354025AF	Fw: 35 mm \| Ew: 40 mm \| B: 24.8 mm \| Cr: 23.7 kN \| C0r: 44.4 kN \| Mass: 39 g
	37R4222	Fw: 37 mm \| Ew: 42 mm \| B: 22 mm \| Cr: 24.0 kN \| C0r: 46.3 kN \| Mass: 38 g
	RS354025-1	Fw: 35 mm \| Ew: 40 mm \| B: 25 mm \| Cr: 27.0 kN \| C0r: 52.7 kN \| Mass: 41 g
	RF374223-1	Fw: 37 mm \| Ew: 42 mm \| B: 23 mm \| Cr: 23.8 kN \| C0r: 45.5 kN \| Mass: 22 g
	RS354026	Fw: 35 mm \| Ew: 40 mm \| B: 26 mm \| Cr: 28.7 kN \| C0r: 56.9 kN \| Mass: 41 g
	RS374227	Fw: 37 mm \| Ew: 42 mm \| B: 27 mm \| Cr: 30.8 kN \| C0r: 63.6 kN \| Mass: 46 g
	RF354028	Fw: 35 mm \| Ew: 40 mm \| B: 28 mm \| Cr: 28.7 kN \| C0r: 56.9 kN \| Mass: 27 g
	RSU374227	Fw: 37 mm \| Ew: 42 mm \| B: 27 mm \| Cr: 30.0 kN \| C0r: 61.5 kN \| Mass: 45 g
	RP354029-1	Fw: 35 mm \| Ew: 40 mm \| B: 29 mm \| Cr: 30.6 kN \| C0r: 61.7 kN \| Mass: 33 g
	VP37/29	Fw: 37 mm \| Ew: 42 mm \| B: 29 mm \| Cr: 31.9 kN \| C0r: 66.5 kN \| Mass: 35 g
	VP35/30	Fw: 35 mm \| Ew: 40 mm \| B: 30 mm \| Cr: 30.6 kN \| C0r: 61.7 kN \| Mass: 34 g
	RS374231	Fw: 37 mm \| Ew: 42 mm \| B: 31 mm \| Cr: 33.9 kN \| C0r: 72.1 kN \| Mass: 52 g
	RP354031	Fw: 35 mm \| Ew: 40 mm \| B: 31 mm \| Cr: 30.6 kN \| C0r: 61.6 kN \| Mass: 37 g
	VP37/32	Fw: 37 mm \| Ew: 42 mm \| B: 32 mm \| Cr: 31.2 kN \| C0r: 64.3 kN \| Mass: 37 g
	RP354033-1	Fw: 35 mm \| Ew: 40 mm \| B: 33 mm \| Cr: 31.1 kN \| C0r: 63.2 kN \| Mass: 39 g
	37R4332	Fw: 37 mm \| Ew: 43 mm \| B: 32 mm \| Cr: 39.1 kN \| C0r: 75.8 kN \| Mass: 66 g
	RF354035	Fw: 35 mm \| Ew: 40 mm \| B: 35 mm \| Cr: 31.8 kN \| C0r: 64.9 kN \| Mass: 32 g
	RPU374337F	Fw: 37 mm \| Ew: 43 mm \| B: 36.8 mm \| Cr: 40.0 kN \| C0r: 77.9 kN \| Mass: 60 g
	RF384210	Fw: 38 mm \| Ew: 42 mm \| B: 10 mm \| Cr: 8.9 kN \| C0r: 15.2 kN \| Mass: 6.6 g
	RS424710-1	Fw: 42 mm \| Ew: 47 mm \| B: 10 mm \| Cr: 13.9 kN \| C0r: 23.8 kN \| Mass: 21 g
	RF384423A	Fw: 38 mm \| Ew: 44 mm \| B: 23.4 mm \| Cr: 25.1 kN \| C0r: 43.1 kN \| Mass: 26 g
	RS424725	Fw: 42 mm \| Ew: 47 mm \| B: 25 mm \| Cr: 29.5 kN \| C0r: 63.1 kN \| Mass: 52 g
	RSU384425AF	Fw: 38 mm \| Ew: 44 mm \| B: 24.5 mm \| Cr: 27.5 kN \| C0r: 48.4 kN \| Mass: 51 g
	RS424727	Fw: 42 mm \| Ew: 47 mm \| B: 27 mm \| Cr: 32.3 kN \| C0r: 70.8 kN \| Mass: 51 g
	RF384426	Fw: 38 mm \| Ew: 44 mm \| B: 26 mm \| Cr: 28.7 kN \| C0r: 51.1 kN \| Mass: 29 g
	RSU424730	Fw: 42 mm \| Ew: 47 mm \| B: 30 mm \| Cr: 31.9 kN \| C0r: 69.8 kN \| Mass: 58 g
	RP384433	Fw: 38 mm \| Ew: 44 mm \| B: 33 mm \| Cr: 37.9 kN \| C0r: 73.4 kN \| Mass: 64 g
	VP42/30	Fw: 42 mm \| Ew: 47 mm \| B: 30 mm \| Cr: 36.3 kN \| C0r: 82.4 kN \| Mass: 44 g
	RP384436A	Fw: 38 mm \| Ew: 44 mm \| B: 36.2 mm \| Cr: 39.9 kN \| C0r: 78.1 kN \| Mass: 57 g
	RF424922	Fw: 42 mm \| Ew: 49 mm \| B: 22 mm \| Cr: 29.3 kN \| C0r: 49.0 kN \| Mass: 35 g
	RP384440A	Fw: 38 mm \| Ew: 44 mm \| B: 39.8 mm \| Cr: 43.7 kN \| C0r: 88.1 kN \| Mass: 65 g
	RS434818	Fw: 43 mm \| Ew: 48 mm \| B: 18 mm \| Cr: 21.9 kN \| C0r: 43.2 kN \| Mass: 36 g
	RP385239	Fw: 38 mm \| Ew: 52 mm \| B: 39 mm \| Cr: 74.8 kN \| C0r: 99.2 kN \| Mass: 155 g
	RS434819A-2	Fw: 43 mm \| Ew: 48 mm \| B: 18.5 mm \| Cr: 22.1 kN \| C0r: 43.7 kN \| Mass: 38 g
	RS434821A	Fw: 43 mm \| Ew: 48 mm \| B: 21.2 mm \| Cr: 25.0 kN \| C0r: 51.5 kN \| Mass: 46 g
	39R4633	Fw: 39 mm \| Ew: 46 mm \| B: 32.8 mm \| Cr: 42.4 kN \| C0r: 76.9 kN \| Mass: 82 g
	RF395521A	Fw: 39 mm \| Ew: 55 mm \| B: 20.5 mm \| Cr: 55.0 kN \| C0r: 62.6 kN \| Mass: 98 g
	RS434823A	Fw: 43 mm \| Ew: 48 mm \| B: 23.3 mm \| Cr: 29.4 kN \| C0r: 63.2 kN \| Mass: 46 g
	RV395923-1	Fw: 39 mm \| Ew: 59 mm \| B: 23 mm \| Cr: 63.8 kN \| C0r: 66.3 kN \| Mass: 196 g
	RS434824A	Fw: 43 mm \| Ew: 48 mm \| B: 24.4 mm \| Cr: 28.2 kN \| C0r: 59.9 kN \| Mass: 49 g
	RS434830	Fw: 43 mm \| Ew: 48 mm \| B: 30 mm \| Cr: 34.1 kN \| C0r: 76.5 kN \| Mass: 58 g
	RV404513	Fw: 40 mm \| Ew: 45 mm \| B: 13 mm \| Cr: 17.1 kN \| C0r: 30.8 kN \| Mass: 22 g
	43VP4931E	Fw: 43 mm \| Ew: 49 mm \| B: 31 mm \| Cr: 40.1 kN \| C0r: 82.5 kN \| Mass: 55 g
	R40/17-1	Fw: 40 mm \| Ew: 45 mm \| B: 17 mm \| Cr: 19.9 kN \| C0r: 37.4 kN \| Mass: 32 g
	43VP5240	Fw: 43 mm \| Ew: 52 mm \| B: 39.9 mm \| Cr: 65.2 kN \| C0r: 116 kN \| Mass: 114 g
	RS404521A	Fw: 40 mm \| Ew: 45 mm \| B: 21.2 mm \| Cr: 23.6 kN \| C0r: 46.6 kN \| Mass: 40 g
	RS404527	Fw: 40 mm \| Ew: 45 mm \| B: 27 mm \| Cr: 29.9 kN \| C0r: 63.0 kN \| Mass: 49 g
	44RFN5028	Fw: 44 mm \| Ew: 50 mm \| B: 27.5 mm \| Cr: 36.0 kN \| C0r: 72.2 kN \| Mass: 39 g
	R40/30	Fw: 40 mm \| Ew: 45 mm \| B: 30 mm \| Cr: 30.5 kN \| C0r: 64.4 kN \| Mass: 55 g
	RP445039	Fw: 44 mm \| Ew: 50 mm \| B: 39 mm \| Cr: 46.4 kN \| C0r: 100 kN \| Mass: 71 g
	R40/32A	Fw: 40 mm \| Ew: 45 mm \| B: 32 mm \| Cr: 14.3 kN \| C0r: 23.3 kN \| Mass: 53 g
	R45/13	Fw: 45 mm \| Ew: 50 mm \| B: 13 mm \| Cr: 16.0 kN \| C0r: 29.4 kN \| Mass: 28 g
	RP404615A	Fw: 40 mm \| Ew: 46 mm \| B: 14.5 mm \| Cr: 21.2 kN \| C0r: 35.5 kN \| Mass: 31 g
	RS455017	Fw: 45 mm \| Ew: 50 mm \| B: 17 mm \| Cr: 22.7 kN \| C0r: 46.1 kN \| Mass: 35 g
	RS404629	Fw: 40 mm \| Ew: 46 mm \| B: 29 mm \| Cr: 36.4 kN \| C0r: 70.6 kN \| Mass: 65 g
	R45/19	Fw: 45 mm \| Ew: 50 mm \| B: 19 mm \| Cr: 24.1 kN \| C0r: 49.7 kN \| Mass: 39 g
	RS40/20	Fw: 40 mm \| Ew: 47 mm \| B: 20 mm \| Cr: 27.6 kN \| C0r: 44.8 kN \| Mass: 54 g
	RS455020A	Fw: 45 mm \| Ew: 50 mm \| B: 20.2 mm \| Cr: 24.1 kN \| C0r: 49.6 kN \| Mass: 46 g
	RS40/29A	Fw: 40 mm \| Ew: 47 mm \| B: 28.5 mm \| Cr: 38.0 kN \| C0r: 67.6 kN \| Mass: 77 g
	RS455024	Fw: 45 mm \| Ew: 50 mm \| B: 24 mm \| Cr: 29.3 kN \| C0r: 63.9 kN \| Mass: 50 g
	40V4834	Fw: 40 mm \| Ew: 48 mm \| B: 34 mm \| Cr: 50.4 kN \| C0r: 88.3 kN \| Mass: 87 g
	R45/26	Fw: 45 mm \| Ew: 50 mm \| B: 26 mm \| Cr: 31.8 kN \| C0r: 70.9 kN \| Mass: 54 g
	RF405528A-1	Fw: 40 mm \| Ew: 55 mm \| B: 27.5 mm \| Cr: 68.0 kN \| C0r: 85.6 kN \| Mass: 124 g
	RS455033-1	Fw: 45 mm \| Ew: 50 mm \| B: 33 mm \| Cr: 37.3 kN \| C0r: 87.0 kN \| Mass: 69 g
	RV405620-4	Fw: 40 mm \| Ew: 56 mm \| B: 20 mm \| Cr: 50.8 kN \| C0r: 56.7 kN \| Mass: 122 g
	45RFN5129	Fw: 45 mm \| Ew: 51 mm \| B: 28.6 mm \| Cr: 34.1 kN \| C0r: 67.7 kN \| Mass: 40 g
	RF405732A	Fw: 40 mm \| Ew: 57 mm \| B: 31.5 mm \| Cr: 83.4 kN \| C0r: 103 kN \| Mass: 168 g
	RP455129A	Fw: 45 mm \| Ew: 51 mm \| B: 28.9 mm \| Cr: 37.5 kN \| C0r: 76.9 kN \| Mass: 65 g
	RF406032A	Fw: 40 mm \| Ew: 60 mm \| B: 31.5 mm \| Cr: 94.1 kN \| C0r: 110 kN \| Mass: 214 g
	RPU455129AF	Fw: 45 mm \| Ew: 51 mm \| B: 28.9 mm \| Cr: 37.5 kN \| C0r: 76.9 kN \| Mass: 67 g
	41R4624A	Fw: 41 mm \| Ew: 46 mm \| B: 24 mm \| Cr: 11.0 kN \| C0r: 16.8 kN \| Mass: 44 g
	RS455222	Fw: 45 mm \| Ew: 52 mm \| B: 22 mm \| Cr: 35.4 kN \| C0r: 63.9 kN \| Mass: 66 g
	RV455325P	Fw: 45 mm \| Ew: 53 mm \| B: 25 mm \| Cr: 41.4 kN \| C0r: 71.1 kN \| Mass: 73 g
	RP505628	Fw: 50 mm \| Ew: 56 mm \| B: 28 mm \| Cr: 39.5 kN \| C0r: 85.5 kN \| Mass: 69 g
	45V5326P	Fw: 45 mm \| Ew: 53 mm \| B: 26 mm \| Cr: 41.4 kN \| C0r: 71.1 kN \| Mass: 77 g
	RF505630	Fw: 50 mm \| Ew: 56 mm \| B: 30 mm \| Cr: 41.0 kN \| C0r: 89.6 kN \| Mass: 50 g
	45VP5328	Fw: 45 mm \| Ew: 53 mm \| B: 28 mm \| Cr: 42.3 kN \| C0r: 73.2 kN \| Mass: 66 g
	RP505734A	Fw: 50 mm \| Ew: 57 mm \| B: 33.5 mm \| Cr: 47.8 kN \| C0r: 97.1 kN \| Mass: 79 g
	RV456423-7	Fw: 45 mm \| Ew: 64 mm \| B: 23 mm \| Cr: 64.0 kN \| C0r: 70.4 kN \| Mass: 191 g
	RS505739A	Fw: 50 mm \| Ew: 57 mm \| B: 38.9 mm \| Cr: 58.3 kN \| C0r: 126 kN \| Mass: 133 g
	RS505741A	Fw: 50 mm \| Ew: 57 mm \| B: 40.8 mm \| Cr: 60.9 kN \| C0r: 133 kN \| Mass: 127 g
	46VP5220	Fw: 46 mm \| Ew: 52 mm \| B: 20 mm \| Cr: 25.9 kN \| C0r: 48.2 kN \| Mass: 34 g
	RF505825	Fw: 50 mm \| Ew: 58 mm \| B: 25 mm \| Cr: 38.5 kN \| C0r: 66.9 kN \| Mass: 53 g
	46VP5237B	Fw: 46 mm \| Ew: 52 mm \| B: 37 mm \| Cr: 45.8 kN \| C0r: 100 kN \| Mass: 67 g
	RF507036	Fw: 50 mm \| Ew: 70 mm \| B: 36 mm \| Cr: 114 kN \| C0r: 147 kN \| Mass: 277 g
	R47/30H	Fw: 47 mm \| Ew: 52 mm \| B: 30 mm \| Cr: 36.4 kN \| C0r: 85.4 kN \| Mass: 62 g
	VP51/28	Fw: 51 mm \| Ew: 56 mm \| B: 28 mm \| Cr: 34.8 kN \| C0r: 83.0 kN \| Mass: 45 g
	RSU475230F-1	Fw: 47 mm \| Ew: 52 mm \| B: 30 mm \| Cr: 35.1 kN \| C0r: 81.7 kN \| Mass: 62 g
	RP475329A	Fw: 47 mm \| Ew: 53 mm \| B: 28.8 mm \| Cr: 35.3 kN \| C0r: 72.3 kN \| Mass: 55 g
	RF527232	Fw: 52 mm \| Ew: 72 mm \| B: 32 mm \| Cr: 108 kN \| C0r: 138 kN \| Mass: 259 g
	RP475330-1	Fw: 47 mm \| Ew: 53 mm \| B: 30 mm \| Cr: 42.6 kN \| C0r: 92.1 kN \| Mass: 74 g
	RP475336	Fw: 47 mm \| Ew: 53 mm \| B: 36 mm \| Cr: 47.0 kN \| C0r: 104 kN \| Mass: 68 g
	RF535825	Fw: 53 mm \| Ew: 58 mm \| B: 25 mm \| Cr: 32.2 kN \| C0r: 76.0 kN \| Mass: 35 g
	RS485313	Fw: 48 mm \| Ew: 53 mm \| B: 13 mm \| Cr: 16.1 kN \| C0r: 30.1 kN \| Mass: 30 g
	RP546031A	Fw: 54 mm \| Ew: 60 mm \| B: 31.1 mm \| Cr: 45.3 kN \| C0r: 104 kN \| Mass: 83 g
	RP546036	Fw: 54 mm \| Ew: 60 mm \| B: 36 mm \| Cr: 45.5 kN \| C0r: 105 kN \| Mass: 82 g
	48R5328	Fw: 48 mm \| Ew: 53 mm \| B: 28 mm \| Cr: 34.1 kN \| C0r: 79.2 kN \| Mass: 60 g
	48R5420-1	Fw: 48 mm \| Ew: 54 mm \| B: 20 mm \| Cr: 29.3 kN \| C0r: 57.3 kN \| Mass: 54 g
	RPU546135AF	Fw: 54 mm \| Ew: 61 mm \| B: 34.7 mm \| Cr: 60.2 kN \| C0r: 135 kN \| Mass: 116 g
	48R5427	Fw: 48 mm \| Ew: 54 mm \| B: 27 mm \| Cr: 38.1 kN \| C0r: 80.4 kN \| Mass: 72 g
	RS546141A	Fw: 54 mm \| Ew: 61 mm \| B: 41.3 mm \| Cr: 63.3 kN \| C0r: 143 kN \| Mass: 145 g
	RS485428	Fw: 48 mm \| Ew: 54 mm \| B: 28 mm \| Cr: 37.8 kN \| C0r: 79.3 kN \| Mass: 72 g
	48R5429	Fw: 48 mm \| Ew: 54 mm \| B: 29 mm \| Cr: 39.5 kN \| C0r: 84.3 kN \| Mass: 78 g
	55RFN5913A	Fw: 55 mm \| Ew: 59 mm \| B: 13 mm \| Cr: 10.8 kN \| C0r: 21.9 kN \| Mass: 11 g
	R55/20	Fw: 55 mm \| Ew: 60 mm \| B: 20 mm \| Cr: 26.7 kN \| C0r: 60.6 kN \| Mass: 52 g
	RP485430A-1	Fw: 48 mm \| Ew: 54 mm \| B: 30.2 mm \| Cr: 43.8 kN \| C0r: 96.2 kN \| Mass: 72 g
	RS556028	Fw: 55 mm \| Ew: 60 mm \| B: 28 mm \| Cr: 35.8 kN \| C0r: 88.4 kN \| Mass: 69 g
	48R5439	Fw: 48 mm \| Ew: 54 mm \| B: 39 mm \| Cr: 47.9 kN \| C0r: 108 kN \| Mass: 106 g
	RP485521	Fw: 48 mm \| Ew: 55 mm \| B: 21 mm \| Cr: 32.4 kN \| C0r: 58.1 kN \| Mass: 60 g
	RF566020	Fw: 56 mm \| Ew: 60 mm \| B: 20 mm \| Cr: 24.0 kN \| C0r: 62.4 kN \| Mass: 23 g
	RF566111	Fw: 56 mm \| Ew: 61 mm \| B: 11 mm \| Cr: 13.6 kN \| C0r: 25.6 kN \| Mass: 14 g
	RP495645A	Fw: 49 mm \| Ew: 56 mm \| B: 44.6 mm \| Cr: 61.2 kN \| C0r: 133 kN \| Mass: 120 g
	RS566130	Fw: 56 mm \| Ew: 61 mm \| B: 30 mm \| Cr: 39.7 kN \| C0r: 102 kN \| Mass: 75 g
	RS495645A	Fw: 49 mm \| Ew: 56 mm \| B: 44.6 mm \| Cr: 61.2 kN \| C0r: 133 kN \| Mass: 146 g
	R56/34	Fw: 56 mm \| Ew: 61 mm \| B: 33.5 mm \| Cr: 42.5 kN \| C0r: 111 kN \| Mass: 85 g
	RS505518A	Fw: 50 mm \| Ew: 55 mm \| B: 17.5 mm \| Cr: 22.3 kN \| C0r: 46.5 kN \| Mass: 39 g
	58R6526	Fw: 58 mm \| Ew: 65 mm \| B: 26 mm \| Cr: 42.1 kN \| C0r: 87.1 kN \| Mass: 99 g
	RS505520-1	Fw: 50 mm \| Ew: 55 mm \| B: 20 mm \| Cr: 25.1 kN \| C0r: 54.3 kN \| Mass: 47 g
	R50/27A	Fw: 50 mm \| Ew: 55 mm \| B: 27 mm \| Cr: 11.5 kN \| C0r: 18.9 kN \| Mass: 56 g
	58RFN6537A	Fw: 58 mm \| Ew: 65 mm \| B: 36.6 mm \| Cr: 55.7 kN \| C0r: 125 kN \| Mass: 80 g
	RS586537A-2	Fw: 58 mm \| Ew: 65 mm \| B: 36.6 mm \| Cr: 56.4 kN \| C0r: 127 kN \| Mass: 145 g
	RF505613	Fw: 50 mm \| Ew: 56 mm \| B: 13 mm \| Cr: 16.7 kN \| C0r: 28.2 kN \| Mass: 18 g
	RP586538A	Fw: 58 mm \| Ew: 65 mm \| B: 37.5 mm \| Cr: 57.7 kN \| C0r: 131 kN \| Mass: 108 g
	RV588072	Fw: 58 mm \| Ew: 80 mm \| B: 72 mm \| Cr: 233 kN \| C0r: 359 kN \| Mass: 889 g
	R60/30	Fw: 60 mm \| Ew: 65 mm \| B: 30 mm \| Cr: 40.0 kN \| C0r: 105 kN \| Mass: 81 g
	RS606619	Fw: 60 mm \| Ew: 66 mm \| B: 19 mm \| Cr: 31.5 kN \| C0r: 67.8 kN \| Mass: 63 g
	60V6723	Fw: 60 mm \| Ew: 67 mm \| B: 23 mm \| Cr: 40.1 kN \| C0r: 82.8 kN \| Mass: 77 g
	RF608230	Fw: 60 mm \| Ew: 82 mm \| B: 30 mm \| Cr: 118 kN \| C0r: 152 kN \| Mass: 316 g
	R63/30	Fw: 63 mm \| Ew: 68 mm \| B: 30 mm \| Cr: 40.9 kN \| C0r: 110 kN \| Mass: 83 g
	64R7025A	Fw: 64 mm \| Ew: 70 mm \| B: 24.5 mm \| Cr: 39.4 kN \| C0r: 92.4 kN \| Mass: 86 g
	64R7035	Fw: 64 mm \| Ew: 70 mm \| B: 35 mm \| Cr: 55.7 kN \| C0r: 144 kN \| Mass: 122 g
	R65/20A	Fw: 65 mm \| Ew: 70 mm \| B: 20 mm \| Cr: 12.1 kN \| C0r: 22.3 kN \| Mass: 57 g
	R65/24A	Fw: 65 mm \| Ew: 70 mm \| B: 24 mm \| Cr: 12.5 kN \| C0r: 22.9 kN \| Mass: 67 g
	70R7620	Fw: 70 mm \| Ew: 76 mm \| B: 20 mm \| Cr: 34.7 kN \| C0r: 80.8 kN \| Mass: 77 g
	RP707632	Fw: 70 mm \| Ew: 76 mm \| B: 32 mm \| Cr: 55.1 kN \| C0r: 147 kN \| Mass: 116 g
	70R7830	Fw: 70 mm \| Ew: 78 mm \| B: 30 mm \| Cr: 59.4 kN \| C0r: 132 kN \| Mass: 154 g
	71V7930B	Fw: 71 mm \| Ew: 79 mm \| B: 30.15 mm \| Cr: 61.3 kN \| C0r: 138 kN \| Mass: 135 g
	RS717940AZ	Fw: 71 mm \| Ew: 79 mm \| B: 39.5 mm \| Cr: 75.3 kN \| C0r: 179 kN \| Mass: 203 g
	72V7921	Fw: 72 mm \| Ew: 79 mm \| B: 21 mm \| Cr: 39.6 kN \| C0r: 86.6 kN \| Mass: 84 g
	R73/20	Fw: 73 mm \| Ew: 79 mm \| B: 20 mm \| Cr: 36.3 kN \| C0r: 86.8 kN \| Mass: 84 g
	78R8534A	Fw: 78 mm \| Ew: 85 mm \| B: 33.75 mm \| Cr: 62.3 kN \| C0r: 159 kN \| Mass: 168 g

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

KOYO Needle Roller and Cage Assemblies (RS, R, RP, RV, V, VS, VP)
