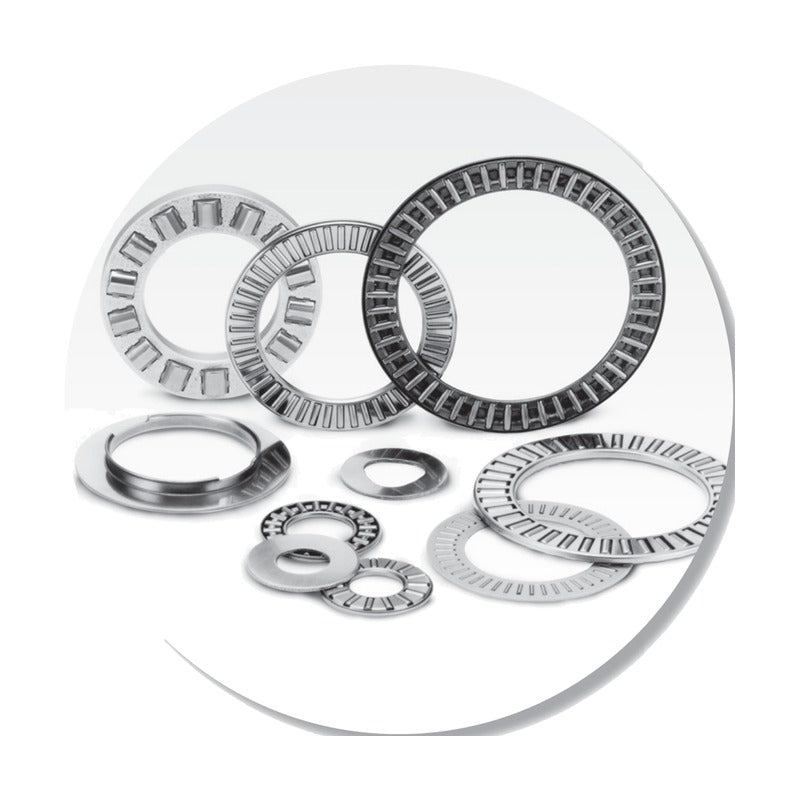

KOYO Needle Roller Thrust Bearings (TP, TV, TPK, TVK)

KOYO Needle Roller Thrust Bearings (TP, TV, TPK, TVK)

Needle roller and cage thrust assemblies (TP, TV) and non-separable unitized thrust bearings (TPK, TVK with L, J, JL races), bore 10 mm and above. Very thin axial section with high axial load capacity.

Key features

  • Extremely thin axial section
  • Separable cage assemblies (TP, TV)
  • Non-separable unitized types TPK / TVK (L, J, JL)
  • Run directly on hardened faces or on W / WS races
  • High axial load capacity and rigidity

Specifications

Bearing type Needle roller thrust bearing
Types TP, TV, TPK..L/J/JL, TVK..L/J/JL
E / F Roller set outer / inner dia
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B440-B449
TP1024-1 d: 10 mm | D: 24 mm | E: 15.2 mm | F: 21.8 mm | Ca: 6.35 kN | C0a: 18.3 kN
TV1023 d: 10 mm | D: 23 mm | E: 12.6 mm | F: 21.8 mm | Ca: 8 kN | C0a: 24 kN
TP1224 d: 12 mm | D: 24 mm | E: 14.1 mm | F: 22.1 mm | Ca: 3.75 kN | C0a: 9 kN
TP1226B d: 12 mm | D: 25.8 mm | E: 17.3 mm | F: 23.5 mm | Ca: 6.55 kN | C0a: 19.79 kN
TV1226 d: 12 mm | D: 26 mm | E: 14.6 mm | F: 23.8 mm | Ca: 8.6 kN | C0a: 27.5 kN
TP1427 d: 14 mm | D: 27 mm | E: 24.5 mm | F: 16.5 mm | Ca: 6.55 kN | C0a: 19.8 kN
TP1532-1 d: 15 mm | D: 32.3 mm | E: 22.3 mm | F: 30.3 mm | Ca: 11 kN | C0a: 42.1 kN
TV1528 d: 15 mm | D: 28 mm | E: 17.6 mm | F: 26.8 mm | Ca: 9.85 kN | C0a: 34.3 kN
TP1629 d: 16 mm | D: 29 mm | E: 26.5 mm | F: 18.5 mm | Ca: 9.15 kN | C0a: 31.4 kN
TP1730 d: 17 mm | D: 30 mm | E: 27.5 mm | F: 19.5 mm | Ca: 9.40 kN | C0a: 32.9 kN
TP1740 d: 17 mm | D: 40 mm | E: 36.5 mm | F: 22.7 mm | Ca: 17.9 kN | C0a: 69.3 kN
TV1734 d: 17 mm | D: 34 mm | E: 21.1 mm | F: 32.5 mm | Ca: 14.1 kN | C0a: 49.5 kN
TP1831 d: 18 mm | D: 31 mm | E: 20.4 mm | F: 28.4 mm | Ca: 9.65 kN | C0a: 34.4 kN
TPK1832L D: 31.6 mm | E: 22.8 mm | F: 29.4 mm | Ca: 7.45 kN | C0a: 25.2 kN
TVK1940JL E: 25 mm | F: 34.2 mm | Ca: 9.8 kN | C0a: 37.4 kN
TPK2036J-1 d: 19.6 mm | E: 21.8 mm | F: 28 mm | Ca: 6 kN | C0a: 18.7 kN
TP2035-1 d: 20 mm | D: 35 mm | E: 32.5 mm | F: 22.9 mm | Ca: 13.2 kN | C0a: 53.6 kN
TP2132D d: 20.9 mm | D: 32 mm | E: 23.5 mm | F: 29.7 mm | Ca: 8.4 kN | C0a: 29.7 kN
TP2234 d: 21.9 mm | D: 34 mm | E: 25 mm | F: 31.2 mm | Ca: 8.05 kN | C0a: 28.6 kN
TP2237-1 d: 22 mm | D: 37 mm | E: 34.5 mm | F: 22.9 mm | Ca: 12.6 kN | C0a: 51.7 kN
TPK2241L D: 41 mm | E: 28 mm | F: 38 mm | Ca: 13.2 kN | C0a: 56.8 kN
TP2236A-1 d: 22.2 mm | D: 36.1 mm | E: 25.3 mm | F: 33.3 mm | Ca: 9.95 kN | C0a: 38.2 kN
TPK2235J d: 22.7 mm | E: 25 mm | F: 31.2 mm | Ca: 8.3 kN | C0a: 29.7 kN
TVK2238J d: 22.8 mm | E: 24 mm | F: 33.2 mm | Ca: 10.6 kN | C0a: 40.9 kN
TP2542 d: 25 mm | D: 42 mm | E: 28.6 mm | F: 39.2 mm | Ca: 14.8 kN | C0a: 66.2 kN
TVK2540J d: 25 mm | E: 26.2 mm | F: 35.4 mm | Ca: 14 kN | C0a: 51.5 kN
TVK2642J d: 25.8 mm | E: 27 mm | F: 37 mm | Ca: 12.8 kN | C0a: 54.4 kN
TV2639-1 d: 26 mm | D: 38.66 mm | E: 28.2 mm | F: 37.4 mm | Ca: 10.4 kN | C0a: 41.2 kN
TPK2643JL E: 30.6 mm | F: 38.6 mm | Ca: 11.5 kN | C0a: 49 kN
TP2841C d: 28 mm | D: 41 mm | E: 31.5 mm | F: 37.7 mm | Ca: 9.4 kN | C0a: 37.4 kN
TP2845 d: 28 mm | D: 45 mm | E: 42.5 mm | F: 31.9 mm | Ca: 15.1 kN | C0a: 70.3 kN
TPK2843AJ d: 28 mm | E: 31.5 mm | F: 37.7 mm | Ca: 9.4 kN | C0a: 37.4 kN
TP2946A d: 28.5 mm | D: 46.15 mm | E: 32.4 mm | F: 40.4 mm | Ca: 12.1 kN | C0a: 52.4 kN
TP2942A-1 d: 28.9 mm | D: 42 mm | E: 31.6 mm | F: 39.6 mm | Ca: 11.7 kN | C0a: 50.4 kN
TVK2947L D: 47.21 mm | E: 34 mm | F: 45 mm | Ca: 15.9 kN | C0a: 76 kN
TVK2949L D: 48.4 mm | E: 35 mm | F: 47 mm | Ca: 21.8 kN | C0a: 87.4 kN
TP3047-1 d: 30 mm | D: 47 mm | E: 34 mm | F: 44.6 mm | Ca: 16.2 kN | C0a: 78.6 kN
TPK3046L D: 45.5 mm | E: 35 mm | F: 42.6 mm | Ca: 12.4 kN | C0a: 55.9 kN
TPK3047JL-1 E: 35 mm | F: 42.6 mm | Ca: 12.4 kN | C0a: 55.9 kN
TPK3146JL-4 E: 34.5 mm | F: 42.3 mm | Ca: 12.5 kN | C0a: 56.2 kN
TPK3146JL-5 E: 34.5 mm | F: 42.3 mm | Ca: 12.5 kN | C0a: 56.2 kN
TVK3245L D: 45.1 mm | E: 36.2 mm | F: 44.2 mm | Ca: 12.1 kN | C0a: 54.7 kN
TP3249 d: 32 mm | D: 49 mm | E: 46.5 mm | F: 35.9 mm | Ca: 17.3 kN | C0a: 86.2 kN
TVK3353L D: 53.1 mm | E: 39.8 mm | F: 51.8 mm | Ca: 18.4 kN | C0a: 97.2 kN
TP3445A d: 33.5 mm | D: 45 mm | E: 37 mm | F: 42.6 mm | Ca: 8.5 kN | C0a: 34.3 kN
TVK3448J-1 d: 33.7 mm | E: 35 mm | F: 44.2 mm | Ca: 13.6 kN | C0a: 63 kN
TPK3451JL E: 38.6 mm | F: 46.6 mm | Ca: 12.6 kN | C0a: 58.1 kN
TP3552B D: 52 mm | E: 38.4 mm | F: 49 mm | Ca: 17.1 kN | C0a: 86.9 kN
TP3558 D: 58.4 mm | E: 44 mm | F: 56 mm | Ca: 20.5 kN | C0a: 114 kN
TP3558-1 D: 58.4 mm | E: 42 mm | F: 56 mm | Ca: 22.4 kN | C0a: 128 kN
TVK3757L D: 57.3 mm | E: 44 mm | F: 56 mm | Ca: 19.3 kN | C0a: 106 kN
TPK3853JL E: 42.4 mm | F: 49 mm | Ca: 11.6 kN | C0a: 53.8 kN
TPK3858JL E: 43.2 mm | F: 53.2 mm | Ca: 24.9 kN | C0a: 91.5 kN
TVK3852J-1 E: 39.8 mm | F: 47.8 mm | Ca: 12 kN | C0a: 55.2 kN
TP3855A D: 55.29 mm | E: 40.59 mm | F: 52.59 mm | Ca: 19.9 kN | C0a: 108 kN
TP4058-1 d: 39.6 mm | D: 58.1 mm | E: 43.3 mm | F: 55.3 mm | Ca: 25.8 kN | C0a: 115 kN
TP4060 d: 40 mm | D: 60 mm | E: 44.4 mm | F: 56 mm | Ca: 23.5 kN | C0a: 103 kN
TP4168 d: 41 mm | D: 68 mm | E: 45.4 mm | F: 63.8 mm | Ca: 75.8 kN | C0a: 222 kN
TP4262 d: 42 mm | D: 62 mm | E: 47.8 mm | F: 56.4 mm | Ca: 17.5 kN | C0a: 71.4 kN
TVK4361JL-2 E: 47.6 mm | F: 56.8 mm | Ca: 15.5 kN | C0a: 81.7 kN
TVK4361JL E: 47.6 mm | F: 56.8 mm | Ca: 14.6 kN | C0a: 74.9 kN
TVK4362JL E: 47.6 mm | F: 56.8 mm | Ca: 14.6 kN | C0a: 74.9 kN
TV4562 d: 45 mm | D: 62.19 mm | E: 46.2 mm | F: 58.6 mm | Ca: 20.3 kN | C0a: 115 kN
TP4556 d: 45 mm | D: 56 mm | E: 47.5 mm | F: 53.7 mm | Ca: 9 kN | C0a: 39.6 kN
TP4565A d: 45 mm | D: 65 mm | E: 49.4 mm | F: 61 mm | Ca: 25.2 kN | C0a: 116 kN
TP4668-2 d: 46.4 mm | D: 68 mm | E: 49.4 mm | F: 65 mm | Ca: 38.4 kN | C0a: 182 kN
TVK4872JL E: 54 mm | F: 66 mm | Ca: 30.9 kN | C0a: 129 kN
TV4971 d: 49 mm | D: 70.65 mm | E: 58.4 mm | F: 68.4 mm | Ca: 18 kN | C0a: 105 kN
TP5070 d: 50 mm | D: 70 mm | E: 54.4 mm | F: 66 mm | Ca: 26.7 kN | C0a: 129 kN
TV5273 d: 52 mm | D: 72.6 mm | E: 56 mm | F: 71.2 mm | Ca: 26 kN | C0a: 169 kN
TPK5470JL-3 E: 57.4 mm | F: 65.2 mm | Ca: 15.9 kN | C0a: 89.3 kN
TPK5470JL-4 E: 57.4 mm | F: 65.2 mm | Ca: 15.9 kN | C0a: 89.3 kN
TP5578 d: 55 mm | D: 78 mm | E: 60.4 mm | F: 74 mm | Ca: 32.4 kN | C0a: 171 kN
TPK5570J E: 57.4 mm | F: 65.2 mm | Ca: 15.9 kN | C0a: 89.3 kN
TVK5676JL E: 60.6 mm | F: 69.8 mm | Ca: 16.2 kN | C0a: 91.9 kN
TVK5677JL E: 60.6 mm | F: 69.8 mm | Ca: 16.2 kN | C0a: 91.9 kN
TVK5771L D: 70.8 mm | E: 61.8 mm | F: 69.8 mm | Ca: 14.6 kN | C0a: 80.7 kN
TP6085 d: 60 mm | D: 85 mm | E: 81 mm | F: 65.4 mm | Ca: 38.3 kN | C0a: 218 kN
TPK6078JL E: 65.6 mm | F: 73.6 mm | Ca: 17.9 kN | C0a: 107 kN
TP6280A d: 62 mm | D: 80.25 mm | E: 65.2 mm | F: 76.8 mm | Ca: 23.3 kN | C0a: 151 kN
TVK6378L D: 77.73 mm | E: 68 mm | F: 76 mm | Ca: 13.6 kN | C0a: 75.5 kN
TP6590 d: 65 mm | D: 90 mm | E: 86 mm | F: 70.4 mm | Ca: 40.1 kN | C0a: 236 kN
TP7095 d: 70 mm | D: 95 mm | E: 74.2 mm | F: 90.2 mm | Ca: 52.1 kN | C0a: 275 kN
TV7092A D: 92.37 mm | E: 75 mm | F: 87.4 mm | Ca: 33.4 kN | C0a: 181 kN
TPK7286L D: 85.6 mm | E: 76.5 mm | F: 83.1 mm | Ca: 14.1 kN | C0a: 82.4 kN
TPK7490JL E: 78 mm | F: 84.6 mm | Ca: 10 kN | C0a: 52.6 kN
TP75100 d: 75 mm | D: 100 mm | E: 95 mm | F: 79.4 mm | Ca: 46.7 kN | C0a: 243 kN
TP80105 d: 80 mm | D: 105 mm | E: 100 mm | F: 84.4 mm | Ca: 47.8 kN | C0a: 255 kN
TP83114 D: 114.3 mm | E: 88.6 mm | F: 109 mm | Ca: 117 kN | C0a: 453 kN
TVK83104JL E: 88.8 mm | F: 96.8 mm | Ca: 14.7 kN | C0a: 90 kN
TP85110 d: 85 mm | D: 110 mm | E: 105 mm | F: 89.4 mm | Ca: 48.9 kN | C0a: 266 kN
TP90120 d: 90 mm | D: 120 mm | E: 115 mm | F: 95.4 mm | Ca: 60.9 kN | C0a: 362 kN
TP100135 d: 100 mm | D: 135 mm | E: 130 mm | F: 106.4 mm | Ca: 76.3 kN | C0a: 503 kN
