• KOYO R, RF, RS, RV, V, WR Series Needle Roller and Cage Assemblies
1 1

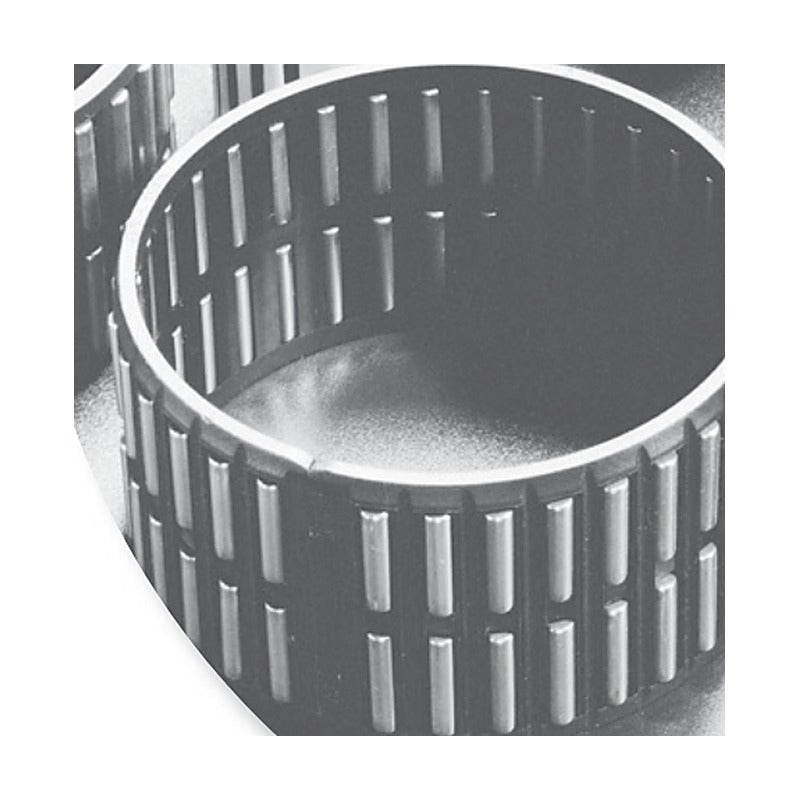

KOYO R, RF, RS, RV, V, WR Series Needle Roller and Cage Assemblies

KOYO R, RF, RS, RV, V, WR Series Needle Roller and Cage Assemblies

Metric radial needle roller and cage assemblies of the R, RF, RFN, RP, RS, RV, V, VS, WR, WRF, WRP and WRS series, including special cage designs.

Key features

  • Compact radial section, run directly on shaft and housing
  • High load capacity and rigidity for size
  • Polymer (P) or steel (S) cages
  • Roller set bore Fw and outside diameter Ew listed
  • Grease and oil speed ratings given

Specifications

Bearing type Radial needle roller and cage assembly
Series R, RF, RFN, RP, RS, RV, V, VS, WR, WRF, WRP, WRS
Cage Polymer (P) or steel (S)
Source KOYO Needle Roller Bearings catalogue, p. B-1-30 to B-1-41
RF182711-1 Fw: 18 mm | Ew: 27 mm | Bc: 11 mm | Cr: 15.5 kN | C0r: 14.6 kN | Mass: 0.014 kg
20WR2526 Fw: 20 mm | Ew: 25 mm | Bc: 26 mm | Cr: 17.1 kN | C0r: 24.4 kN | Mass: 0.027 kg
RF223211-1 Fw: 22 mm | Ew: 32 mm | Bc: 11 mm | Cr: 19.5 kN | C0r: 19.3 kN | Mass: 0.019 kg
RS242813-1 Fw: 24 mm | Ew: 28 mm | Bc: 13 mm | Cr: 11.2 kN | C0r: 17.6 kN | Mass: 0.012 kg
WR24/34 Fw: 24 mm | Ew: 28 mm | Bc: 34 mm | Cr: 22 kN | C0r: 41.6 kN | Mass: 0.031 kg
RFU253027A Fw: 24.9 mm | Ew: 29.9 mm | Bc: 26.8 mm | Cr: 20.3 kN | C0r: 32.3 kN | Mass: 0.017 kg
RF252917 Fw: 25 mm | Ew: 29 mm | Bc: 16.8 mm | Cr: 14 kN | C0r: 23.7 kN | Mass: 0.009 kg
WR25/22 Fw: 25 mm | Ew: 29 mm | Bc: 22 mm | Cr: 17 kN | C0r: 30.5 kN | Mass: 0.022 kg
RFU253020 Fw: 25 mm | Ew: 30 mm | Bc: 20 mm | Cr: 17.7 kN | C0r: 27.4 kN | Mass: 0.014 kg
25WR3026 Fw: 25 mm | Ew: 30 mm | Bc: 26 mm | Cr: 22.4 kN | C0r: 37.2 kN | Mass: 0.032 kg
RV253432 Fw: 25 mm | Ew: 34 mm | Bc: 32 mm | Cr: 46.1 kN | C0r: 63.9 kN | Mass: 0.066 kg
RFU263017 Fw: 26 mm | Ew: 30 mm | Bc: 16.8 mm | Cr: 13.9 kN | C0r: 23.7 kN | Mass: 0.009 kg
26WR3124-2 Fw: 26 mm | Ew: 31 mm | Bc: 24 mm | Cr: 22.2 kN | C0r: 37.1 kN | Mass: 0.030 kg
WRS273124A Fw: 27 mm | Ew: 31 mm | Bc: 23.8 mm | Cr: 19.1 kN | C0r: 36.2 kN | Mass: 0.025 kg
RF283227 Fw: 28 mm | Ew: 32 mm | Bc: 26.8 mm | Cr: 22 kN | C0r: 43.9 kN | Mass: 0.017 kg
RF283320 Fw: 28 mm | Ew: 33 mm | Bc: 19.8 mm | Cr: 19.5 kN | C0r: 32.2 kN | Mass: 0.016 kg
RFU283420 Fw: 28 mm | Ew: 34 mm | Bc: 19.8 mm | Cr: 20.2 kN | C0r: 29.6 kN | Mass: 0.018 kg
RPU283538A Fw: 28 mm | Ew: 35 mm | Bc: 37.5 mm | Cr: 37 kN | C0r: 57.9 kN | Mass: 0.048 kg
28VU3820 Fw: 28 mm | Ew: 38 mm | Bc: 20 mm | Cr: 23.7 kN | C0r: 25.8 kN | Mass: 0.048 kg
RFU293424A-1 Fw: 29 mm | Ew: 34 mm | Bc: 24.4 mm | Cr: 19.9 kN | C0r: 33.2 kN | Mass: 0.017 kg
30WR3429A Fw: 30 mm | Ew: 34 mm | Bc: 29 mm | Cr: 15.2 kN | C0r: 27.3 kN | Mass: 0.032 kg
RF303429 Fw: 30 mm | Ew: 34 mm | Bc: 29 mm | Cr: 20.6 kN | C0r: 41.2 kN | Mass: 0.016 kg
RS303516 Fw: 30 mm | Ew: 35 mm | Bc: 16 mm | Cr: 18 kN | C0r: 29.7 kN | Mass: 0.023 kg
WRS30/32B Fw: 30 mm | Ew: 37 mm | Bc: 32 mm | Cr: 35 kN | C0r: 55.3 kN | Mass: 0.066 kg
RFU313624A Fw: 31 mm | Ew: 36 mm | Bc: 24.4 mm | Cr: 21.3 kN | C0r: 37.1 kN | Mass: 0.019 kg
WRS323735 Fw: 32 mm | Ew: 37 mm | Bc: 35 mm | Cr: 34.6 kN | C0r: 70.4 kN | Mass: 0.053 kg
RVU323942 Fw: 32 mm | Ew: 39 mm | Bc: 42 mm | Cr: 41.3 kN | C0r: 69.3 kN | Mass: 0.078 kg
RF333726 Fw: 33 mm | Ew: 37 mm | Bc: 25.8 mm | Cr: 23 kN | C0r: 49.1 kN | Mass: 0.018 kg
WRFU343962A Fw: 34 mm | Ew: 39 mm | Bc: 62.1 mm | Cr: 46.6 kN | C0r: 105 kN | Mass: 0.052 kg
RF354818A-1 Fw: 35 mm | Ew: 48 mm | Bc: 17.5 mm | Cr: 42.5 kN | C0r: 50 kN | Mass: 0.061 kg
RFU364322A Fw: 36 mm | Ew: 43 mm | Bc: 22.4 mm | Cr: 27.4 kN | C0r: 42.4 kN | Mass: 0.029 kg
R38/17-1 Fw: 38 mm | Ew: 43 mm | Bc: 17 mm | Cr: 18.6 kN | C0r: 33.6 kN | Mass: 0.032 kg
WRPU384440F Fw: 38 mm | Ew: 44 mm | Bc: 40 mm | Cr: 44.1 kN | C0r: 89.3 kN | Mass: 0.075 kg
RS384626 Fw: 38 mm | Ew: 46 mm | Bc: 26 mm | Cr: 36.8 kN | C0r: 57.8 kN | Mass: 0.077 kg
WRS394443 Fw: 39 mm | Ew: 44 mm | Bc: 43 mm | Cr: 41.3 kN | C0r: 94.3 kN | Mass: 0.075 kg
39WR4444 Fw: 39 mm | Ew: 44 mm | Bc: 43.8 mm | Cr: 42.6 kN | C0r: 98 kN | Mass: 0.080 kg
RSU394638A Fw: 39 mm | Ew: 46 mm | Bc: 37.8 mm | Cr: 46.2 kN | C0r: 85.4 kN | Mass: 0.096 kg
WRP394644A Fw: 39 mm | Ew: 46 mm | Bc: 44.3 mm | Cr: 54.9 kN | C0r: 107 kN | Mass: 0.102 kg
RF405530 Fw: 40 mm | Ew: 55 mm | Bc: 30 mm | Cr: 73.6 kN | C0r: 94.9 kN | Mass: 0.132 kg
RFU414724A Fw: 41.3 mm | Ew: 47.3 mm | Bc: 23.6 mm | Cr: 27.9 kN | C0r: 50.8 kN | Mass: 0.030 kg
RSU424730F Fw: 42 mm | Ew: 47 mm | Bc: 30.8 mm | Cr: 32.3 kN | C0r: 70.4 kN | Mass: 0.058 kg
RF445134A Fw: 43.5 mm | Ew: 50.5 mm | Bc: 33.8 mm | Cr: 46.5 kN | C0r: 89.6 kN | Mass: 0.059 kg
RP455236A Fw: 44.5 mm | Ew: 51.5 mm | Bc: 36 mm | Cr: 49.1 kN | C0r: 96.6 kN | Mass: 0.075 kg
RP455242A Fw: 44.5 mm | Ew: 51.5 mm | Bc: 41.6 mm | Cr: 54 kN | C0r: 109 kN | Mass: 0.086 kg
RFU454925 Fw: 45 mm | Ew: 49 mm | Bc: 25 mm | Cr: 25.3 kN | C0r: 61.5 kN | Mass: 0.023 kg
R45/33 Fw: 45 mm | Ew: 50 mm | Bc: 33 mm | Cr: 38 kN | C0r: 88.7 kN | Mass: 0.068 kg
RPU465343A Fw: 46 mm | Ew: 53 mm | Bc: 42.6 mm | Cr: 48.3 kN | C0r: 95 kN | Mass: 0.084 kg
WRP475439A Fw: 47 mm | Ew: 54 mm | Bc: 38.6 mm | Cr: 49.1 kN | C0r: 98.4 kN | Mass: 0.107 kg
RF485325A-1 Fw: 47.9 mm | Ew: 52.9 mm | Bc: 25 mm | Cr: 31.2 kN | C0r: 70.4 kN | Mass: 0.033 kg
RF485334A-1 Fw: 47.9 mm | Ew: 52.9 mm | Bc: 33.8 mm | Cr: 23.7 kN | C0r: 48.3 kN | Mass: 0.030 kg
RF495645A Fw: 49 mm | Ew: 56 mm | Bc: 44.6 mm | Cr: 61.2 kN | C0r: 133 kN | Mass: 0.087 kg
50WR5640 Fw: 50 mm | Ew: 56 mm | Bc: 40 mm | Cr: 53.7 kN | C0r: 126 kN | Mass: 0.110 kg
RF516550A Fw: 50.8 mm | Ew: 64.8 mm | Bc: 50 mm | Cr: 124 kN | C0r: 207 kN | Mass: 0.258 kg
RV516560 Fw: 50.8 mm | Ew: 64.8 mm | Bc: 60 mm | Cr: 138 kN | C0r: 237 kN | Mass: 0.369 kg
RFU546136A Fw: 54 mm | Ew: 61 mm | Bc: 35.8 mm | Cr: 53.2 kN | C0r: 114 kN | Mass: 0.075 kg
RF546141A Fw: 54 mm | Ew: 61 mm | Bc: 41.3 mm | Cr: 63.5 kN | C0r: 143 kN | Mass: 0.092 kg
RF525828A Fw: 55.5 mm | Ew: 61.5 mm | Bc: 28 mm | Cr: 40.9 kN | C0r: 89.9 kN | Mass: 0.050 kg
RF525835A Fw: 55.5 mm | Ew: 61.5 mm | Bc: 28 mm | Cr: 28.2 kN | C0r: 54.3 kN | Mass: 0.041 kg
RPU566347 Fw: 56 mm | Ew: 63 mm | Bc: 47 mm | Cr: 60 kN | C0r: 135 kN | Mass: 0.119 kg
WRP586543A Fw: 58 mm | Ew: 65 mm | Bc: 42.6 mm | Cr: 60.1 kN | C0r: 137 kN | Mass: 0.144 kg
RV637538-1 Fw: 63 mm | Ew: 75 mm | Bc: 38 mm | Cr: 121 kN | C0r: 240 kN | Mass: 0.270 kg
WRS687332A Fw: 68 mm | Ew: 73 mm | Bc: 31.6 mm | Cr: 45.7 kN | C0r: 129 kN | Mass: 0.095 kg
70WR8055 Fw: 70 mm | Ew: 80 mm | Bc: 55 mm | Cr: 108 kN | C0r: 242 kN | Mass: 0.351 kg
76V8632A Fw: 76.2 mm | Ew: 85.5 mm | Bc: 31.5 mm | Cr: 76.3 kN | C0r: 167 kN | Mass: 0.177 kg
RV768633A Fw: 76.2 mm | Ew: 85.5 mm | Bc: 33 mm | Cr: 78.5 kN | C0r: 173 kN | Mass: 0.187 kg
RV768644A-2 Fw: 76.2 mm | Ew: 85.5 mm | Bc: 44 mm | Cr: 95.6 kN | C0r: 222 kN | Mass: 0.235 kg
RV768834A Fw: 76.2 mm | Ew: 88 mm | Bc: 34 mm | Cr: 91.1 kN | C0r: 177 kN | Mass: 0.250 kg
Needle Roller BearingsKOYO
67 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO R, RF, RS, RV, V, WR Series Needle Roller and Cage Assemblies

Brand KOYO·Needle Roller Bearings

Available part numbers (67)

RF182711-1, 20WR2526, RF223211-1, RS242813-1, WR24/34, RFU253027A, RF252917, WR25/22, RFU253020, 25WR3026 + 57 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF182711-1Fw: 18 mm | Ew: 27 mm | Bc: 11 mm | Cr: 15.5 kN | C0r: 14.6 kN | Mass: 0.014 kg
20WR2526Fw: 20 mm | Ew: 25 mm | Bc: 26 mm | Cr: 17.1 kN | C0r: 24.4 kN | Mass: 0.027 kg
RF223211-1Fw: 22 mm | Ew: 32 mm | Bc: 11 mm | Cr: 19.5 kN | C0r: 19.3 kN | Mass: 0.019 kg
RS242813-1Fw: 24 mm | Ew: 28 mm | Bc: 13 mm | Cr: 11.2 kN | C0r: 17.6 kN | Mass: 0.012 kg
WR24/34Fw: 24 mm | Ew: 28 mm | Bc: 34 mm | Cr: 22 kN | C0r: 41.6 kN | Mass: 0.031 kg
RFU253027AFw: 24.9 mm | Ew: 29.9 mm | Bc: 26.8 mm | Cr: 20.3 kN | C0r: 32.3 kN | Mass: 0.017 kg
RF252917Fw: 25 mm | Ew: 29 mm | Bc: 16.8 mm | Cr: 14 kN | C0r: 23.7 kN | Mass: 0.009 kg
WR25/22Fw: 25 mm | Ew: 29 mm | Bc: 22 mm | Cr: 17 kN | C0r: 30.5 kN | Mass: 0.022 kg
RFU253020Fw: 25 mm | Ew: 30 mm | Bc: 20 mm | Cr: 17.7 kN | C0r: 27.4 kN | Mass: 0.014 kg
25WR3026Fw: 25 mm | Ew: 30 mm | Bc: 26 mm | Cr: 22.4 kN | C0r: 37.2 kN | Mass: 0.032 kg
RV253432Fw: 25 mm | Ew: 34 mm | Bc: 32 mm | Cr: 46.1 kN | C0r: 63.9 kN | Mass: 0.066 kg
RFU263017Fw: 26 mm | Ew: 30 mm | Bc: 16.8 mm | Cr: 13.9 kN | C0r: 23.7 kN | Mass: 0.009 kg
26WR3124-2Fw: 26 mm | Ew: 31 mm | Bc: 24 mm | Cr: 22.2 kN | C0r: 37.1 kN | Mass: 0.030 kg
WRS273124AFw: 27 mm | Ew: 31 mm | Bc: 23.8 mm | Cr: 19.1 kN | C0r: 36.2 kN | Mass: 0.025 kg
RF283227Fw: 28 mm | Ew: 32 mm | Bc: 26.8 mm | Cr: 22 kN | C0r: 43.9 kN | Mass: 0.017 kg
RF283320Fw: 28 mm | Ew: 33 mm | Bc: 19.8 mm | Cr: 19.5 kN | C0r: 32.2 kN | Mass: 0.016 kg
RFU283420Fw: 28 mm | Ew: 34 mm | Bc: 19.8 mm | Cr: 20.2 kN | C0r: 29.6 kN | Mass: 0.018 kg
RPU283538AFw: 28 mm | Ew: 35 mm | Bc: 37.5 mm | Cr: 37 kN | C0r: 57.9 kN | Mass: 0.048 kg
28VU3820Fw: 28 mm | Ew: 38 mm | Bc: 20 mm | Cr: 23.7 kN | C0r: 25.8 kN | Mass: 0.048 kg
RFU293424A-1Fw: 29 mm | Ew: 34 mm | Bc: 24.4 mm | Cr: 19.9 kN | C0r: 33.2 kN | Mass: 0.017 kg
30WR3429AFw: 30 mm | Ew: 34 mm | Bc: 29 mm | Cr: 15.2 kN | C0r: 27.3 kN | Mass: 0.032 kg
RF303429Fw: 30 mm | Ew: 34 mm | Bc: 29 mm | Cr: 20.6 kN | C0r: 41.2 kN | Mass: 0.016 kg
RS303516Fw: 30 mm | Ew: 35 mm | Bc: 16 mm | Cr: 18 kN | C0r: 29.7 kN | Mass: 0.023 kg
WRS30/32BFw: 30 mm | Ew: 37 mm | Bc: 32 mm | Cr: 35 kN | C0r: 55.3 kN | Mass: 0.066 kg
RFU313624AFw: 31 mm | Ew: 36 mm | Bc: 24.4 mm | Cr: 21.3 kN | C0r: 37.1 kN | Mass: 0.019 kg
WRS323735Fw: 32 mm | Ew: 37 mm | Bc: 35 mm | Cr: 34.6 kN | C0r: 70.4 kN | Mass: 0.053 kg
RVU323942Fw: 32 mm | Ew: 39 mm | Bc: 42 mm | Cr: 41.3 kN | C0r: 69.3 kN | Mass: 0.078 kg
RF333726Fw: 33 mm | Ew: 37 mm | Bc: 25.8 mm | Cr: 23 kN | C0r: 49.1 kN | Mass: 0.018 kg
WRFU343962AFw: 34 mm | Ew: 39 mm | Bc: 62.1 mm | Cr: 46.6 kN | C0r: 105 kN | Mass: 0.052 kg
RF354818A-1Fw: 35 mm | Ew: 48 mm | Bc: 17.5 mm | Cr: 42.5 kN | C0r: 50 kN | Mass: 0.061 kg
RFU364322AFw: 36 mm | Ew: 43 mm | Bc: 22.4 mm | Cr: 27.4 kN | C0r: 42.4 kN | Mass: 0.029 kg
R38/17-1Fw: 38 mm | Ew: 43 mm | Bc: 17 mm | Cr: 18.6 kN | C0r: 33.6 kN | Mass: 0.032 kg
WRPU384440FFw: 38 mm | Ew: 44 mm | Bc: 40 mm | Cr: 44.1 kN | C0r: 89.3 kN | Mass: 0.075 kg
RS384626Fw: 38 mm | Ew: 46 mm | Bc: 26 mm | Cr: 36.8 kN | C0r: 57.8 kN | Mass: 0.077 kg
WRS394443Fw: 39 mm | Ew: 44 mm | Bc: 43 mm | Cr: 41.3 kN | C0r: 94.3 kN | Mass: 0.075 kg
39WR4444Fw: 39 mm | Ew: 44 mm | Bc: 43.8 mm | Cr: 42.6 kN | C0r: 98 kN | Mass: 0.080 kg
RSU394638AFw: 39 mm | Ew: 46 mm | Bc: 37.8 mm | Cr: 46.2 kN | C0r: 85.4 kN | Mass: 0.096 kg
WRP394644AFw: 39 mm | Ew: 46 mm | Bc: 44.3 mm | Cr: 54.9 kN | C0r: 107 kN | Mass: 0.102 kg
RF405530Fw: 40 mm | Ew: 55 mm | Bc: 30 mm | Cr: 73.6 kN | C0r: 94.9 kN | Mass: 0.132 kg
RFU414724AFw: 41.3 mm | Ew: 47.3 mm | Bc: 23.6 mm | Cr: 27.9 kN | C0r: 50.8 kN | Mass: 0.030 kg
RSU424730FFw: 42 mm | Ew: 47 mm | Bc: 30.8 mm | Cr: 32.3 kN | C0r: 70.4 kN | Mass: 0.058 kg
RF445134AFw: 43.5 mm | Ew: 50.5 mm | Bc: 33.8 mm | Cr: 46.5 kN | C0r: 89.6 kN | Mass: 0.059 kg
RP455236AFw: 44.5 mm | Ew: 51.5 mm | Bc: 36 mm | Cr: 49.1 kN | C0r: 96.6 kN | Mass: 0.075 kg
RP455242AFw: 44.5 mm | Ew: 51.5 mm | Bc: 41.6 mm | Cr: 54 kN | C0r: 109 kN | Mass: 0.086 kg
RFU454925Fw: 45 mm | Ew: 49 mm | Bc: 25 mm | Cr: 25.3 kN | C0r: 61.5 kN | Mass: 0.023 kg
R45/33Fw: 45 mm | Ew: 50 mm | Bc: 33 mm | Cr: 38 kN | C0r: 88.7 kN | Mass: 0.068 kg
RPU465343AFw: 46 mm | Ew: 53 mm | Bc: 42.6 mm | Cr: 48.3 kN | C0r: 95 kN | Mass: 0.084 kg
WRP475439AFw: 47 mm | Ew: 54 mm | Bc: 38.6 mm | Cr: 49.1 kN | C0r: 98.4 kN | Mass: 0.107 kg
RF485325A-1Fw: 47.9 mm | Ew: 52.9 mm | Bc: 25 mm | Cr: 31.2 kN | C0r: 70.4 kN | Mass: 0.033 kg
RF485334A-1Fw: 47.9 mm | Ew: 52.9 mm | Bc: 33.8 mm | Cr: 23.7 kN | C0r: 48.3 kN | Mass: 0.030 kg
RF495645AFw: 49 mm | Ew: 56 mm | Bc: 44.6 mm | Cr: 61.2 kN | C0r: 133 kN | Mass: 0.087 kg
50WR5640Fw: 50 mm | Ew: 56 mm | Bc: 40 mm | Cr: 53.7 kN | C0r: 126 kN | Mass: 0.110 kg
RF516550AFw: 50.8 mm | Ew: 64.8 mm | Bc: 50 mm | Cr: 124 kN | C0r: 207 kN | Mass: 0.258 kg
RV516560Fw: 50.8 mm | Ew: 64.8 mm | Bc: 60 mm | Cr: 138 kN | C0r: 237 kN | Mass: 0.369 kg
RFU546136AFw: 54 mm | Ew: 61 mm | Bc: 35.8 mm | Cr: 53.2 kN | C0r: 114 kN | Mass: 0.075 kg
RF546141AFw: 54 mm | Ew: 61 mm | Bc: 41.3 mm | Cr: 63.5 kN | C0r: 143 kN | Mass: 0.092 kg
RF525828AFw: 55.5 mm | Ew: 61.5 mm | Bc: 28 mm | Cr: 40.9 kN | C0r: 89.9 kN | Mass: 0.050 kg
RF525835AFw: 55.5 mm | Ew: 61.5 mm | Bc: 28 mm | Cr: 28.2 kN | C0r: 54.3 kN | Mass: 0.041 kg
RPU566347Fw: 56 mm | Ew: 63 mm | Bc: 47 mm | Cr: 60 kN | C0r: 135 kN | Mass: 0.119 kg
WRP586543AFw: 58 mm | Ew: 65 mm | Bc: 42.6 mm | Cr: 60.1 kN | C0r: 137 kN | Mass: 0.144 kg
RV637538-1Fw: 63 mm | Ew: 75 mm | Bc: 38 mm | Cr: 121 kN | C0r: 240 kN | Mass: 0.270 kg
WRS687332AFw: 68 mm | Ew: 73 mm | Bc: 31.6 mm | Cr: 45.7 kN | C0r: 129 kN | Mass: 0.095 kg
70WR8055Fw: 70 mm | Ew: 80 mm | Bc: 55 mm | Cr: 108 kN | C0r: 242 kN | Mass: 0.351 kg
76V8632AFw: 76.2 mm | Ew: 85.5 mm | Bc: 31.5 mm | Cr: 76.3 kN | C0r: 167 kN | Mass: 0.177 kg
RV768633AFw: 76.2 mm | Ew: 85.5 mm | Bc: 33 mm | Cr: 78.5 kN | C0r: 173 kN | Mass: 0.187 kg
RV768644A-2Fw: 76.2 mm | Ew: 85.5 mm | Bc: 44 mm | Cr: 95.6 kN | C0r: 222 kN | Mass: 0.235 kg
RV768834AFw: 76.2 mm | Ew: 88 mm | Bc: 34 mm | Cr: 91.1 kN | C0r: 177 kN | Mass: 0.250 kg

Need a different model, or a part not listed here? Send us your parts list →
