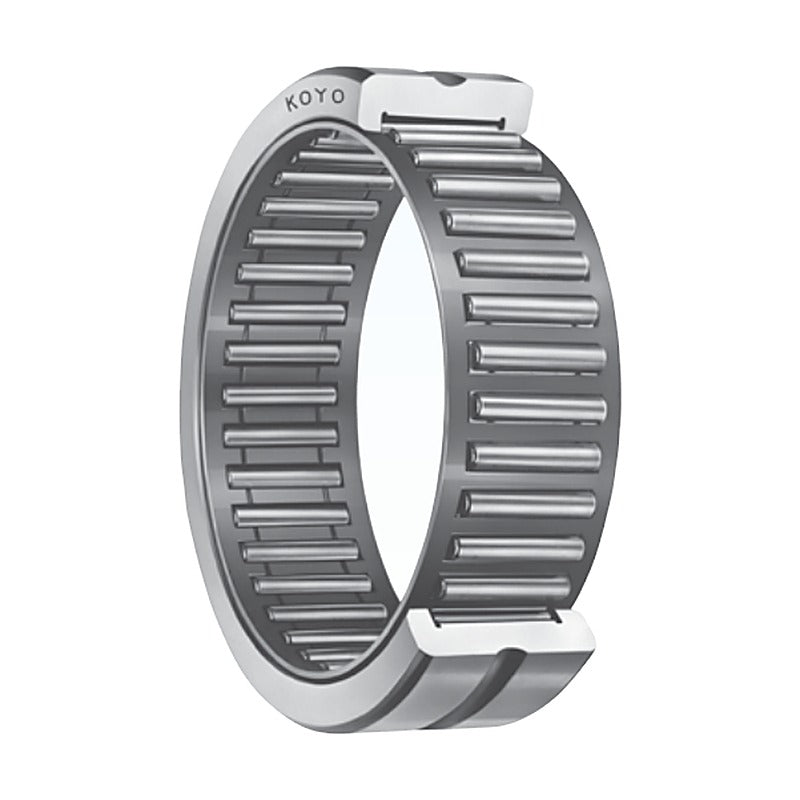

KOYO RNA, NA Full Complement Needle Roller Bearings (Metric)

KOYO RNA, NA Full Complement Needle Roller Bearings (Metric)

Full complement machined ring needle roller bearings for very high radial loads at low speeds, without inner ring (RNA 1000-3000 series) or with inner ring (NA series).

Key features

  • Full complement of needle rollers, no cage
  • Maximum radial load capacity
  • For slow-speed or oscillating applications
  • With (NA) or without (RNA) inner ring

Specifications

Bearing type Full complement needle roller bearing
Series RNA, NA (10, 20, 30 series)
Source KOYO Needle Roller Bearings catalogue, p. B-4-38 to B-4-43
RNA 2015 Fw: 22.1 mm | D: 35 mm | B: 22 mm | Cr: 23.5 kN | C0r: 37.5 kN | Mass: 0.082 kg
RNA 1020 Fw: 28.7 mm | D: 42 mm | B: 18 mm | Cr: 19.3 kN | C0r: 33.5 kN | Mass: 0.084 kg
RNA 2020 Fw: 28.7 mm | D: 42 mm | B: 22 mm | Cr: 28.5 kN | C0r: 49.0 kN | Mass: 0.104 kg
RNA 1025 Fw: 33.5 mm | D: 47 mm | B: 18 mm | Cr: 21.5 kN | C0r: 39.0 kN | Mass: 0.097 kg
RNA 2025 Fw: 33.5 mm | D: 47 mm | B: 22 mm | Cr: 33.0 kN | C0r: 60.0 kN | Mass: 0.122 kg
RNA 22025 Fw: 33.5 mm | D: 47 mm | B: 30 mm | Cr: 52.0 kN | C0r: 94.0 kN | Mass: 0.170 kg
RNA 1030 Fw: 38.2 mm | D: 52 mm | B: 18 mm | Cr: 23.5 kN | C0r: 44.5 kN | Mass: 0.107 kg
RNA 2030 Fw: 38.2 mm | D: 52 mm | B: 22 mm | Cr: 34.5 kN | C0r: 66.0 kN | Mass: 0.139 kg
RNA 22030 Fw: 38.2 mm | D: 52 mm | B: 30 mm | Cr: 57.0 kN | C0r: 108 kN | Mass: 0.193 kg
RNA 1035 Fw: 44 mm | D: 58 mm | B: 18 mm | Cr: 26.0 kN | C0r: 51.0 kN | Mass: 0.127 kg
RNA 2035 Fw: 44 mm | D: 58 mm | B: 22 mm | Cr: 38.0 kN | C0r: 75.0 kN | Mass: 0.160 kg
RNA 22035 Fw: 44 mm | D: 58 mm | B: 30 mm | Cr: 63.0 kN | C0r: 124 kN | Mass: 0.225 kg
RNA 1040 Fw: 49.7 mm | D: 65 mm | B: 18 mm | Cr: 28.5 kN | C0r: 58.0 kN | Mass: 0.160 kg
RNA 2040 Fw: 49.7 mm | D: 65 mm | B: 22 mm | Cr: 41.5 kN | C0r: 85.0 kN | Mass: 0.200 kg
RNA 22040 Fw: 49.7 mm | D: 65 mm | B: 30 mm | Cr: 68.0 kN | C0r: 140 kN | Mass: 0.278 kg
RNA 3035 Fw: 49.7 mm | D: 72 mm | B: 36 mm | Cr: 90.0 kN | C0r: 183 kN | Mass: 0.545 kg
RNA 1045 Fw: 55.4 mm | D: 72 mm | B: 18 mm | Cr: 30.5 kN | C0r: 65.0 kN | Mass: 0.193 kg
RNA 2045 Fw: 55.4 mm | D: 72 mm | B: 22 mm | Cr: 45.0 kN | C0r: 95.0 kN | Mass: 0.242 kg
RNA 3040 Fw: 55.4 mm | D: 80 mm | B: 36 mm | Cr: 97.0 kN | C0r: 204 kN | Mass: 0.672 kg
RNA 1050 Fw: 62.1 mm | D: 80 mm | B: 20 mm | Cr: 33.0 kN | C0r: 73.0 kN | Mass: 0.255 kg
RNA 2050 Fw: 62.1 mm | D: 80 mm | B: 28 mm | Cr: 64.0 kN | C0r: 142 kN | Mass: 0.375 kg
RNA 3045 Fw: 62.1 mm | D: 85 mm | B: 38 mm | Cr: 105 kN | C0r: 230 kN | Mass: 0.710 kg
RNA 1055 Fw: 68.8 mm | D: 85 mm | B: 20 mm | Cr: 35.5 kN | C0r: 80.0 kN | Mass: 0.258 kg
RNA 2055 Fw: 68.8 mm | D: 85 mm | B: 28 mm | Cr: 69.0 kN | C0r: 157 kN | Mass: 0.361 kg
RNA 3050 Fw: 68.8 mm | D: 90 mm | B: 38 mm | Cr: 113 kN | C0r: 255 kN | Mass: 0.705 kg
RNA 1060 Fw: 72.6 mm | D: 90 mm | B: 20 mm | Cr: 37.0 kN | C0r: 85.0 kN | Mass: 0.283 kg
RNA 2060 Fw: 72.6 mm | D: 90 mm | B: 28 mm | Cr: 72.0 kN | C0r: 165 kN | Mass: 0.413 kg
RNA 3055 Fw: 72.6 mm | D: 95 mm | B: 38 mm | Cr: 117 kN | C0r: 268 kN | Mass: 0.782 kg
RNA 1065 Fw: 78.3 mm | D: 95 mm | B: 20 mm | Cr: 41.5 kN | C0r: 97.0 kN | Mass: 0.306 kg
RNA 2065 Fw: 78.3 mm | D: 95 mm | B: 28 mm | Cr: 78.0 kN | C0r: 184 kN | Mass: 0.433 kg
RNA 3060 Fw: 78.3 mm | D: 100 mm | B: 38 mm | Cr: 123.0 kN | C0r: 290 kN | Mass: 0.810 kg
RNA 1070 Fw: 83.1 mm | D: 100 mm | B: 20 mm | Cr: 43.0 kN | C0r: 103 kN | Mass: 0.322 kg
RNA 2070 Fw: 83.1 mm | D: 100 mm | B: 28 mm | Cr: 81.0 kN | C0r: 195 kN | Mass: 0.470 kg
RNA 3065 Fw: 83.1 mm | D: 105 mm | B: 38 mm | Cr: 129 kN | C0r: 308 kN | Mass: 0.865 kg
RNA 1075 Fw: 88 mm | D: 110 mm | B: 24 mm | Cr: 64.0 kN | C0r: 155 kN | Mass: 0.577 kg
RNA 2075 Fw: 88 mm | D: 110 mm | B: 32 mm | Cr: 104 kN | C0r: 253 kN | Mass: 0.767 kg
RNA 3070 Fw: 88 mm | D: 110 mm | B: 38 mm | Cr: 134 kN | C0r: 325 kN | Mass: 0.906 kg
RNA 1080 Fw: 96 mm | D: 115 mm | B: 24 mm | Cr: 68.0 kN | C0r: 170 kN | Mass: 0.510 kg
RNA 2080 Fw: 96 mm | D: 115 mm | B: 32 mm | Cr: 110 kN | C0r: 275 kN | Mass: 0.694 kg
RNA 3075 Fw: 96 mm | D: 120 mm | B: 38 mm | Cr: 142 kN | C0r: 355 kN | Mass: 1.098 kg
RNA 2085 Fw: 99.5 mm | D: 120 mm | B: 32 mm | Cr: 113 kN | C0r: 285 kN | Mass: 0.787 kg
RNA 3080 Fw: 99.5 mm | D: 125 mm | B: 38 mm | Cr: 145 kN | C0r: 365 kN | Mass: 1.220 kg
RNA 2090 Fw: 104.7 mm | D: 125 mm | B: 32 mm | Cr: 117 kN | C0r: 300 kN | Mass: 0.837 kg
RNA 3085 Fw: 104.7 mm | D: 130 mm | B: 38 mm | Cr: 150 kN | C0r: 390 kN | Mass: 1.252 kg
RNA 2095 Fw: 109.1 mm | D: 130 mm | B: 32 mm | Cr: 120 kN | C0r: 315 kN | Mass: 0.882 kg
RNA 3090 Fw: 109.1 mm | D: 135 mm | B: 43 mm | Cr: 185 kN | C0r: 480 kN | Mass: 1.522 kg
RNA 2100 Fw: 114.7 mm | D: 135 mm | B: 32 mm | Cr: 125 kN | C0r: 330 kN | Mass: 0.677 kg
RNA 3095 Fw: 114.7 mm | D: 140 mm | B: 43 mm | Cr: 190 kN | C0r: 505 kN | Mass: 1.551 kg
RNA 2105 Fw: 119.2 mm | D: 140 mm | B: 32 mm | Cr: 129 kN | C0r: 340 kN | Mass: 0.941 kg
RNA 3100 Fw: 119.2 mm | D: 145 mm | B: 43 mm | Cr: 195 kN | C0r: 520 kN | Mass: 1.645 kg
RNA 2110 Fw: 124.5 mm | D: 145 mm | B: 34 mm | Cr: 133 kN | C0r: 360 kN | Mass: 1.015 kg
RNA 3105 Fw: 124.5 mm | D: 150 mm | B: 45 mm | Cr: 203 kN | C0r: 550 kN | Mass: 1.762 kg
RNA 2115 Fw: 132.5 mm | D: 155 mm | B: 34 mm | Cr: 139 kN | C0r: 380 kN | Mass: 1.205 kg
RNA 3110 Fw: 132.5 mm | D: 160 mm | B: 45 mm | Cr: 210 kN | C0r: 580 kN | Mass: 2.037 kg
RNA 3115 Fw: 137 mm | D: 165 mm | B: 45 mm | Cr: 215 kN | C0r: 600 kN | Mass: 2.140 kg
RNA 2125 Fw: 143.5 mm | D: 165 mm | B: 34 mm | Cr: 145 kN | C0r: 410 kN | Mass: 1.218 kg
RNA 3120 Fw: 143.5 mm | D: 170 mm | B: 45 mm | Cr: 224 kN | C0r: 630 kN | Mass: 2.107 kg
RNA 2130 Fw: 148 mm | D: 170 mm | B: 34 mm | Cr: 150 kN | C0r: 425 kN | Mass: 1.292 kg
RNA 2140 Fw: 158 mm | D: 180 mm | B: 36 mm | Cr: 157 kN | C0r: 455 kN | Mass: 1.478 kg
RNA 3130 Fw: 158 mm | D: 190 mm | B: 52 mm | Cr: 275 kN | C0r: 790 kN | Mass: 3.285 kg
RNA 2150 Fw: 170.5 mm | D: 195 mm | B: 36 mm | Cr: 165 kN | C0r: 490 kN | Mass: 1.790 kg
RNA 3140 Fw: 170.5 mm | D: 205 mm | B: 52 mm | Cr: 290 kN | C0r: 860 kN | Mass: 3.840 kg
RNA 2160 Fw: 179.3 mm | D: 205 mm | B: 36 mm | Cr: 170 kN | C0r: 515 kN | Mass: 1.970 kg
RNA 3150 Fw: 179.3 mm | D: 215 mm | B: 52 mm | Cr: 300 kN | C0r: 900 kN | Mass: 4.185 kg
RNA 2170 Fw: 193.8 mm | D: 220 mm | B: 42 mm | Cr: 233 kN | C0r: 720 kN | Mass: 2.570 kg
RNA 3160 Fw: 193.8 mm | D: 230 mm | B: 57 mm | Cr: 360 kN | C0r: 1110 kN | Mass: 4.955 kg
RNA 2180 Fw: 202.6 mm | D: 230 mm | B: 42 mm | Cr: 240 kN | C0r: 750 kN | Mass: 2.835 kg
RNA 2190 Fw: 216 mm | D: 245 mm | B: 42 mm | Cr: 250 kN | C0r: 800 kN | Mass: 3.210 kg
RNA 3180 Fw: 216 mm | D: 255 mm | B: 57 mm | Cr: 385 kN | C0r: 1240 kN | Mass: 6.040 kg
RNA 2200 Fw: 224.1 mm | D: 255 mm | B: 42 mm | Cr: 257 kN | C0r: 830 kN | Mass: 3.560 kg
RNA 2210 Fw: 236 mm | D: 265 mm | B: 42 mm | Cr: 279 kN | C0r: 910 kN | Mass: 3.470 kg
RNA 3220 Fw: 258.4 mm | D: 300 mm | B: 64 mm | Cr: 490 kN | C0r: 1650 kN | Mass: 8.570 kg
RNA 2240 Fw: 269.6 mm | D: 300 mm | B: 49 mm | Cr: 345 kN | C0r: 1190 kN | Mass: 4.985 kg
RNA 3240 Fw: 281.9 mm | D: 325 mm | B: 64 mm | Cr: 520 kN | C0r: 1800 kN | Mass: 9.480 kg
RNA 2300 Fw: 335 mm | D: 375 mm | B: 54 mm | Cr: 460 kN | C0r: 1690 kN | Mass: 8.600 kg
NA 2015 d: 15 mm | D: 35 mm | B: 22 mm | Cr: 23.5 kN | C0r: 37.5 kN | Mass: 0.117 kg
NA 1020 d: 20 mm | D: 42 mm | B: 18 mm | Cr: 19.3 kN | C0r: 33.5 kN | Mass: 0.130 kg
NA 2020 d: 20 mm | D: 42 mm | B: 22 mm | Cr: 28.5 kN | C0r: 49.0 kN | Mass: 0.160 kg
NA 1025 d: 25 mm | D: 47 mm | B: 18 mm | Cr: 21.5 kN | C0r: 39.0 kN | Mass: 0.151 kg
NA 2025 d: 25 mm | D: 47 mm | B: 22 mm | Cr: 33.0 kN | C0r: 60.0 kN | Mass: 0.187 kg
NA 22025 d: 25 mm | D: 47 mm | B: 30 mm | Cr: 52.0 kN | C0r: 94.0 kN | Mass: 0.259 kg
NA 1030 d: 30 mm | D: 52 mm | B: 18 mm | Cr: 23.5 kN | C0r: 44.5 kN | Mass: 0.167 kg
NA 2030 d: 30 mm | D: 52 mm | B: 22 mm | Cr: 34.5 kN | C0r: 66.0 kN | Mass: 0.213 kg
NA 22030 d: 30 mm | D: 52 mm | B: 30 mm | Cr: 57.0 kN | C0r: 108 kN | Mass: 0.293 kg
NA 3030 d: 30 mm | D: 62 mm | B: 30 mm | Cr: 64.0 kN | C0r: 125 kN | Mass: 0.497 kg
NA 1035 d: 35 mm | D: 58 mm | B: 18 mm | Cr: 26.0 kN | C0r: 51.0 kN | Mass: 0.204 kg
NA 2035 d: 35 mm | D: 58 mm | B: 22 mm | Cr: 38.0 kN | C0r: 75.0 kN | Mass: 0.253 kg
NA 22035 d: 35 mm | D: 58 mm | B: 30 mm | Cr: 63.0 kN | C0r: 124 kN | Mass: 0.352 kg
NA 3035 d: 35 mm | D: 72 mm | B: 36 mm | Cr: 90.0 kN | C0r: 183 kN | Mass: 0.815 kg
NA 1040 d: 40 mm | D: 65 mm | B: 18 mm | Cr: 28.5 kN | C0r: 58.0 kN | Mass: 0.254 kg
NA 2040 d: 40 mm | D: 65 mm | B: 22 mm | Cr: 41.5 kN | C0r: 85.0 kN | Mass: 0.315 kg
NA 22040 d: 40 mm | D: 65 mm | B: 30 mm | Cr: 68.0 kN | C0r: 140 kN | Mass: 0.434 kg
NA 3040 d: 40 mm | D: 80 mm | B: 36 mm | Cr: 97.0 kN | C0r: 204 kN | Mass: 0.993 kg
NA 1045 d: 45 mm | D: 72 mm | B: 18 mm | Cr: 30.5 kN | C0r: 65.0 kN | Mass: 0.306 kg
NA 3045 d: 45 mm | D: 85 mm | B: 38 mm | Cr: 105.0 kN | C0r: 230 kN | Mass: 1.13 kg
NA 1050 d: 50 mm | D: 80 mm | B: 20 mm | Cr: 33.0 kN | C0r: 73.0 kN | Mass: 0.418 kg
NA 2050 d: 50 mm | D: 80 mm | B: 28 mm | Cr: 64.0 kN | C0r: 142 kN | Mass: 0.603 kg
NA 3050 d: 50 mm | D: 90 mm | B: 38 mm | Cr: 113.0 kN | C0r: 255 kN | Mass: 1.22 kg
NA 1055 d: 55 mm | D: 85 mm | B: 20 mm | Cr: 35.5 kN | C0r: 80.0 kN | Mass: 0.453 kg
NA 2055 d: 55 mm | D: 85 mm | B: 28 mm | Cr: 69.0 kN | C0r: 157 kN | Mass: 0.649 kg
NA 3055 d: 55 mm | D: 95 mm | B: 38 mm | Cr: 117.0 kN | C0r: 268 kN | Mass: 1.31 kg
NA 1060 d: 60 mm | D: 90 mm | B: 20 mm | Cr: 37.0 kN | C0r: 85.0 kN | Mass: 0.485 kg
NA 2060 d: 60 mm | D: 90 mm | B: 28 mm | Cr: 72.0 kN | C0r: 165 kN | Mass: 0.695 kg
NA 3060 d: 60 mm | D: 100 mm | B: 38 mm | Cr: 123.0 kN | C0r: 290 kN | Mass: 1.39 kg
NA 2065 d: 65 mm | D: 95 mm | B: 28 mm | Cr: 78.0 kN | C0r: 184 kN | Mass: 0.757 kg
NA 3065 d: 65 mm | D: 105 mm | B: 38 mm | Cr: 129.0 kN | C0r: 308 kN | Mass: 1.49 kg
NA 1070 d: 70 mm | D: 100 mm | B: 20 mm | Cr: 43.0 kN | C0r: 103 kN | Mass: 0.567 kg
NA 2070 d: 70 mm | D: 100 mm | B: 28 mm | Cr: 81.0 kN | C0r: 195 kN | Mass: 0.805 kg
NA 3070 d: 70 mm | D: 110 mm | B: 38 mm | Cr: 134.0 kN | C0r: 325 kN | Mass: 1.57 kg
NA 2075 d: 75 mm | D: 110 mm | B: 32 mm | Cr: 104.0 kN | C0r: 253 kN | Mass: 1.18 kg
NA 3075 d: 75 mm | D: 120 mm | B: 38 mm | Cr: 142.0 kN | C0r: 355 kN | Mass: 1.92 kg
NA 1080 d: 80 mm | D: 115 mm | B: 24 mm | Cr: 68.0 kN | C0r: 170 kN | Mass: 0.920 kg
NA 2080 d: 80 mm | D: 115 mm | B: 32 mm | Cr: 110.0 kN | C0r: 275 kN | Mass: 1.24 kg
NA 3080 d: 80 mm | D: 125 mm | B: 38 mm | Cr: 145.0 kN | C0r: 365 kN | Mass: 2.03 kg
NA 2085 d: 85 mm | D: 120 mm | B: 32 mm | Cr: 113.0 kN | C0r: 285 kN | Mass: 1.30 kg
NA 3085 d: 85 mm | D: 130 mm | B: 38 mm | Cr: 150.0 kN | C0r: 390 kN | Mass: 2.12 kg
NA 2090 d: 90 mm | D: 125 mm | B: 32 mm | Cr: 117.0 kN | C0r: 300 kN | Mass: 1.37 kg
NA 3090 d: 90 mm | D: 135 mm | B: 43 mm | Cr: 185.0 kN | C0r: 480 kN | Mass: 2.51 kg
NA 2095 d: 95 mm | D: 130 mm | B: 32 mm | Cr: 120.0 kN | C0r: 315 kN | Mass: 1.43 kg
NA 3095 d: 95 mm | D: 140 mm | B: 43 mm | Cr: 190.0 kN | C0r: 505 kN | Mass: 2.63 kg
NA 2100 d: 100 mm | D: 135 mm | B: 32 mm | Cr: 125.0 kN | C0r: 330 kN | Mass: 1.50 kg
NA 3100 d: 100 mm | D: 145 mm | B: 43 mm | Cr: 195.0 kN | C0r: 520 kN | Mass: 2.74 kg
NA 2105 d: 105 mm | D: 140 mm | B: 32 mm | Cr: 129.0 kN | C0r: 340 kN | Mass: 1.56 kg
NA 3105 d: 105 mm | D: 150 mm | B: 45 mm | Cr: 203.0 kN | C0r: 550 kN | Mass: 2.99 kg
NA 2110 d: 110 mm | D: 145 mm | B: 34 mm | Cr: 133.0 kN | C0r: 360 kN | Mass: 1.72 kg
NA 3110 d: 110 mm | D: 160 mm | B: 45 mm | Cr: 210.0 kN | C0r: 580 kN | Mass: 3.53 kg
NA 2115 d: 115 mm | D: 155 mm | B: 34 mm | Cr: 139.0 kN | C0r: 380 kN | Mass: 2.10 kg
NA 3115 d: 115 mm | D: 165 mm | B: 45 mm | Cr: 215.0 kN | C0r: 600 kN | Mass: 3.66 kg
NA 2120 d: 120 mm | D: 160 mm | B: 34 mm | Cr: 142.0 kN | C0r: 395 kN | Mass: 2.17 kg
NA 3120 d: 120 mm | D: 170 mm | B: 45 mm | Cr: 224.0 kN | C0r: 630 kN | Mass: 3.79 kg
NA 2125 d: 125 mm | D: 165 mm | B: 34 mm | Cr: 145.0 kN | C0r: 410 kN | Mass: 2.24 kg
NA 2130 d: 130 mm | D: 170 mm | B: 34 mm | Cr: 150.0 kN | C0r: 425 kN | Mass: 2.33 kg
NA 2140 d: 140 mm | D: 180 mm | B: 36 mm | Cr: 157.0 kN | C0r: 455 kN | Mass: 2.64 kg
NA 3140 d: 140 mm | D: 205 mm | B: 52 mm | Cr: 290.0 kN | C0r: 860 kN | Mass: 6.84 kg
NA 2150 d: 150 mm | D: 195 mm | B: 36 mm | Cr: 165.0 kN | C0r: 490 kN | Mass: 3.23 kg
NA 2160 d: 160 mm | D: 205 mm | B: 36 mm | Cr: 170.0 kN | C0r: 515 kN | Mass: 3.40 kg
NA 2170 d: 170 mm | D: 220 mm | B: 42 mm | Cr: 233.0 kN | C0r: 720 kN | Mass: 4.77 kg
NA 2180 d: 180 mm | D: 230 mm | B: 42 mm | Cr: 240.0 kN | C0r: 750 kN | Mass: 5.01 kg
NA 2190 d: 190 mm | D: 245 mm | B: 42 mm | Cr: 250.0 kN | C0r: 800 kN | Mass: 5.89 kg
NA 2200 d: 200 mm | D: 255 mm | B: 42 mm | Cr: 257.0 kN | C0r: 830 kN | Mass: 6.15 kg
Needle Roller BearingsKOYO
140 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO RNA, NA Full Complement Needle Roller Bearings (Metric)

Brand KOYO·Needle Roller Bearings

Available part numbers (140)

RNA 2015, RNA 1020, RNA 2020, RNA 1025, RNA 2025, RNA 22025, RNA 1030, RNA 2030, RNA 22030, RNA 1035 + 130 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RNA 2015Fw: 22.1 mm | D: 35 mm | B: 22 mm | Cr: 23.5 kN | C0r: 37.5 kN | Mass: 0.082 kg
RNA 1020Fw: 28.7 mm | D: 42 mm | B: 18 mm | Cr: 19.3 kN | C0r: 33.5 kN | Mass: 0.084 kg
RNA 2020Fw: 28.7 mm | D: 42 mm | B: 22 mm | Cr: 28.5 kN | C0r: 49.0 kN | Mass: 0.104 kg
RNA 1025Fw: 33.5 mm | D: 47 mm | B: 18 mm | Cr: 21.5 kN | C0r: 39.0 kN | Mass: 0.097 kg
RNA 2025Fw: 33.5 mm | D: 47 mm | B: 22 mm | Cr: 33.0 kN | C0r: 60.0 kN | Mass: 0.122 kg
RNA 22025Fw: 33.5 mm | D: 47 mm | B: 30 mm | Cr: 52.0 kN | C0r: 94.0 kN | Mass: 0.170 kg
RNA 1030Fw: 38.2 mm | D: 52 mm | B: 18 mm | Cr: 23.5 kN | C0r: 44.5 kN | Mass: 0.107 kg
RNA 2030Fw: 38.2 mm | D: 52 mm | B: 22 mm | Cr: 34.5 kN | C0r: 66.0 kN | Mass: 0.139 kg
RNA 22030Fw: 38.2 mm | D: 52 mm | B: 30 mm | Cr: 57.0 kN | C0r: 108 kN | Mass: 0.193 kg
RNA 1035Fw: 44 mm | D: 58 mm | B: 18 mm | Cr: 26.0 kN | C0r: 51.0 kN | Mass: 0.127 kg
RNA 2035Fw: 44 mm | D: 58 mm | B: 22 mm | Cr: 38.0 kN | C0r: 75.0 kN | Mass: 0.160 kg
RNA 22035Fw: 44 mm | D: 58 mm | B: 30 mm | Cr: 63.0 kN | C0r: 124 kN | Mass: 0.225 kg
RNA 1040Fw: 49.7 mm | D: 65 mm | B: 18 mm | Cr: 28.5 kN | C0r: 58.0 kN | Mass: 0.160 kg
RNA 2040Fw: 49.7 mm | D: 65 mm | B: 22 mm | Cr: 41.5 kN | C0r: 85.0 kN | Mass: 0.200 kg
RNA 22040Fw: 49.7 mm | D: 65 mm | B: 30 mm | Cr: 68.0 kN | C0r: 140 kN | Mass: 0.278 kg
RNA 3035Fw: 49.7 mm | D: 72 mm | B: 36 mm | Cr: 90.0 kN | C0r: 183 kN | Mass: 0.545 kg
RNA 1045Fw: 55.4 mm | D: 72 mm | B: 18 mm | Cr: 30.5 kN | C0r: 65.0 kN | Mass: 0.193 kg
RNA 2045Fw: 55.4 mm | D: 72 mm | B: 22 mm | Cr: 45.0 kN | C0r: 95.0 kN | Mass: 0.242 kg
RNA 3040Fw: 55.4 mm | D: 80 mm | B: 36 mm | Cr: 97.0 kN | C0r: 204 kN | Mass: 0.672 kg
RNA 1050Fw: 62.1 mm | D: 80 mm | B: 20 mm | Cr: 33.0 kN | C0r: 73.0 kN | Mass: 0.255 kg
RNA 2050Fw: 62.1 mm | D: 80 mm | B: 28 mm | Cr: 64.0 kN | C0r: 142 kN | Mass: 0.375 kg
RNA 3045Fw: 62.1 mm | D: 85 mm | B: 38 mm | Cr: 105 kN | C0r: 230 kN | Mass: 0.710 kg
RNA 1055Fw: 68.8 mm | D: 85 mm | B: 20 mm | Cr: 35.5 kN | C0r: 80.0 kN | Mass: 0.258 kg
RNA 2055Fw: 68.8 mm | D: 85 mm | B: 28 mm | Cr: 69.0 kN | C0r: 157 kN | Mass: 0.361 kg
RNA 3050Fw: 68.8 mm | D: 90 mm | B: 38 mm | Cr: 113 kN | C0r: 255 kN | Mass: 0.705 kg
RNA 1060Fw: 72.6 mm | D: 90 mm | B: 20 mm | Cr: 37.0 kN | C0r: 85.0 kN | Mass: 0.283 kg
RNA 2060Fw: 72.6 mm | D: 90 mm | B: 28 mm | Cr: 72.0 kN | C0r: 165 kN | Mass: 0.413 kg
RNA 3055Fw: 72.6 mm | D: 95 mm | B: 38 mm | Cr: 117 kN | C0r: 268 kN | Mass: 0.782 kg
RNA 1065Fw: 78.3 mm | D: 95 mm | B: 20 mm | Cr: 41.5 kN | C0r: 97.0 kN | Mass: 0.306 kg
RNA 2065Fw: 78.3 mm | D: 95 mm | B: 28 mm | Cr: 78.0 kN | C0r: 184 kN | Mass: 0.433 kg
RNA 3060Fw: 78.3 mm | D: 100 mm | B: 38 mm | Cr: 123.0 kN | C0r: 290 kN | Mass: 0.810 kg
RNA 1070Fw: 83.1 mm | D: 100 mm | B: 20 mm | Cr: 43.0 kN | C0r: 103 kN | Mass: 0.322 kg
RNA 2070Fw: 83.1 mm | D: 100 mm | B: 28 mm | Cr: 81.0 kN | C0r: 195 kN | Mass: 0.470 kg
RNA 3065Fw: 83.1 mm | D: 105 mm | B: 38 mm | Cr: 129 kN | C0r: 308 kN | Mass: 0.865 kg
RNA 1075Fw: 88 mm | D: 110 mm | B: 24 mm | Cr: 64.0 kN | C0r: 155 kN | Mass: 0.577 kg
RNA 2075Fw: 88 mm | D: 110 mm | B: 32 mm | Cr: 104 kN | C0r: 253 kN | Mass: 0.767 kg
RNA 3070Fw: 88 mm | D: 110 mm | B: 38 mm | Cr: 134 kN | C0r: 325 kN | Mass: 0.906 kg
RNA 1080Fw: 96 mm | D: 115 mm | B: 24 mm | Cr: 68.0 kN | C0r: 170 kN | Mass: 0.510 kg
RNA 2080Fw: 96 mm | D: 115 mm | B: 32 mm | Cr: 110 kN | C0r: 275 kN | Mass: 0.694 kg
RNA 3075Fw: 96 mm | D: 120 mm | B: 38 mm | Cr: 142 kN | C0r: 355 kN | Mass: 1.098 kg
RNA 2085Fw: 99.5 mm | D: 120 mm | B: 32 mm | Cr: 113 kN | C0r: 285 kN | Mass: 0.787 kg
RNA 3080Fw: 99.5 mm | D: 125 mm | B: 38 mm | Cr: 145 kN | C0r: 365 kN | Mass: 1.220 kg
RNA 2090Fw: 104.7 mm | D: 125 mm | B: 32 mm | Cr: 117 kN | C0r: 300 kN | Mass: 0.837 kg
RNA 3085Fw: 104.7 mm | D: 130 mm | B: 38 mm | Cr: 150 kN | C0r: 390 kN | Mass: 1.252 kg
RNA 2095Fw: 109.1 mm | D: 130 mm | B: 32 mm | Cr: 120 kN | C0r: 315 kN | Mass: 0.882 kg
RNA 3090Fw: 109.1 mm | D: 135 mm | B: 43 mm | Cr: 185 kN | C0r: 480 kN | Mass: 1.522 kg
RNA 2100Fw: 114.7 mm | D: 135 mm | B: 32 mm | Cr: 125 kN | C0r: 330 kN | Mass: 0.677 kg
RNA 3095Fw: 114.7 mm | D: 140 mm | B: 43 mm | Cr: 190 kN | C0r: 505 kN | Mass: 1.551 kg
RNA 2105Fw: 119.2 mm | D: 140 mm | B: 32 mm | Cr: 129 kN | C0r: 340 kN | Mass: 0.941 kg
RNA 3100Fw: 119.2 mm | D: 145 mm | B: 43 mm | Cr: 195 kN | C0r: 520 kN | Mass: 1.645 kg
RNA 2110Fw: 124.5 mm | D: 145 mm | B: 34 mm | Cr: 133 kN | C0r: 360 kN | Mass: 1.015 kg
RNA 3105Fw: 124.5 mm | D: 150 mm | B: 45 mm | Cr: 203 kN | C0r: 550 kN | Mass: 1.762 kg
RNA 2115Fw: 132.5 mm | D: 155 mm | B: 34 mm | Cr: 139 kN | C0r: 380 kN | Mass: 1.205 kg
RNA 3110Fw: 132.5 mm | D: 160 mm | B: 45 mm | Cr: 210 kN | C0r: 580 kN | Mass: 2.037 kg
RNA 3115Fw: 137 mm | D: 165 mm | B: 45 mm | Cr: 215 kN | C0r: 600 kN | Mass: 2.140 kg
RNA 2125Fw: 143.5 mm | D: 165 mm | B: 34 mm | Cr: 145 kN | C0r: 410 kN | Mass: 1.218 kg
RNA 3120Fw: 143.5 mm | D: 170 mm | B: 45 mm | Cr: 224 kN | C0r: 630 kN | Mass: 2.107 kg
RNA 2130Fw: 148 mm | D: 170 mm | B: 34 mm | Cr: 150 kN | C0r: 425 kN | Mass: 1.292 kg
RNA 2140Fw: 158 mm | D: 180 mm | B: 36 mm | Cr: 157 kN | C0r: 455 kN | Mass: 1.478 kg
RNA 3130Fw: 158 mm | D: 190 mm | B: 52 mm | Cr: 275 kN | C0r: 790 kN | Mass: 3.285 kg
RNA 2150Fw: 170.5 mm | D: 195 mm | B: 36 mm | Cr: 165 kN | C0r: 490 kN | Mass: 1.790 kg
RNA 3140Fw: 170.5 mm | D: 205 mm | B: 52 mm | Cr: 290 kN | C0r: 860 kN | Mass: 3.840 kg
RNA 2160Fw: 179.3 mm | D: 205 mm | B: 36 mm | Cr: 170 kN | C0r: 515 kN | Mass: 1.970 kg
RNA 3150Fw: 179.3 mm | D: 215 mm | B: 52 mm | Cr: 300 kN | C0r: 900 kN | Mass: 4.185 kg
RNA 2170Fw: 193.8 mm | D: 220 mm | B: 42 mm | Cr: 233 kN | C0r: 720 kN | Mass: 2.570 kg
RNA 3160Fw: 193.8 mm | D: 230 mm | B: 57 mm | Cr: 360 kN | C0r: 1110 kN | Mass: 4.955 kg
RNA 2180Fw: 202.6 mm | D: 230 mm | B: 42 mm | Cr: 240 kN | C0r: 750 kN | Mass: 2.835 kg
RNA 2190Fw: 216 mm | D: 245 mm | B: 42 mm | Cr: 250 kN | C0r: 800 kN | Mass: 3.210 kg
RNA 3180Fw: 216 mm | D: 255 mm | B: 57 mm | Cr: 385 kN | C0r: 1240 kN | Mass: 6.040 kg
RNA 2200Fw: 224.1 mm | D: 255 mm | B: 42 mm | Cr: 257 kN | C0r: 830 kN | Mass: 3.560 kg
RNA 2210Fw: 236 mm | D: 265 mm | B: 42 mm | Cr: 279 kN | C0r: 910 kN | Mass: 3.470 kg
RNA 3220Fw: 258.4 mm | D: 300 mm | B: 64 mm | Cr: 490 kN | C0r: 1650 kN | Mass: 8.570 kg
RNA 2240Fw: 269.6 mm | D: 300 mm | B: 49 mm | Cr: 345 kN | C0r: 1190 kN | Mass: 4.985 kg
RNA 3240Fw: 281.9 mm | D: 325 mm | B: 64 mm | Cr: 520 kN | C0r: 1800 kN | Mass: 9.480 kg
RNA 2300Fw: 335 mm | D: 375 mm | B: 54 mm | Cr: 460 kN | C0r: 1690 kN | Mass: 8.600 kg
NA 2015d: 15 mm | D: 35 mm | B: 22 mm | Cr: 23.5 kN | C0r: 37.5 kN | Mass: 0.117 kg
NA 1020d: 20 mm | D: 42 mm | B: 18 mm | Cr: 19.3 kN | C0r: 33.5 kN | Mass: 0.130 kg
NA 2020d: 20 mm | D: 42 mm | B: 22 mm | Cr: 28.5 kN | C0r: 49.0 kN | Mass: 0.160 kg
NA 1025d: 25 mm | D: 47 mm | B: 18 mm | Cr: 21.5 kN | C0r: 39.0 kN | Mass: 0.151 kg
NA 2025d: 25 mm | D: 47 mm | B: 22 mm | Cr: 33.0 kN | C0r: 60.0 kN | Mass: 0.187 kg
NA 22025d: 25 mm | D: 47 mm | B: 30 mm | Cr: 52.0 kN | C0r: 94.0 kN | Mass: 0.259 kg
NA 1030d: 30 mm | D: 52 mm | B: 18 mm | Cr: 23.5 kN | C0r: 44.5 kN | Mass: 0.167 kg
NA 2030d: 30 mm | D: 52 mm | B: 22 mm | Cr: 34.5 kN | C0r: 66.0 kN | Mass: 0.213 kg
NA 22030d: 30 mm | D: 52 mm | B: 30 mm | Cr: 57.0 kN | C0r: 108 kN | Mass: 0.293 kg
NA 3030d: 30 mm | D: 62 mm | B: 30 mm | Cr: 64.0 kN | C0r: 125 kN | Mass: 0.497 kg
NA 1035d: 35 mm | D: 58 mm | B: 18 mm | Cr: 26.0 kN | C0r: 51.0 kN | Mass: 0.204 kg
NA 2035d: 35 mm | D: 58 mm | B: 22 mm | Cr: 38.0 kN | C0r: 75.0 kN | Mass: 0.253 kg
NA 22035d: 35 mm | D: 58 mm | B: 30 mm | Cr: 63.0 kN | C0r: 124 kN | Mass: 0.352 kg
NA 3035d: 35 mm | D: 72 mm | B: 36 mm | Cr: 90.0 kN | C0r: 183 kN | Mass: 0.815 kg
NA 1040d: 40 mm | D: 65 mm | B: 18 mm | Cr: 28.5 kN | C0r: 58.0 kN | Mass: 0.254 kg
NA 2040d: 40 mm | D: 65 mm | B: 22 mm | Cr: 41.5 kN | C0r: 85.0 kN | Mass: 0.315 kg
NA 22040d: 40 mm | D: 65 mm | B: 30 mm | Cr: 68.0 kN | C0r: 140 kN | Mass: 0.434 kg
NA 3040d: 40 mm | D: 80 mm | B: 36 mm | Cr: 97.0 kN | C0r: 204 kN | Mass: 0.993 kg
NA 1045d: 45 mm | D: 72 mm | B: 18 mm | Cr: 30.5 kN | C0r: 65.0 kN | Mass: 0.306 kg
NA 3045d: 45 mm | D: 85 mm | B: 38 mm | Cr: 105.0 kN | C0r: 230 kN | Mass: 1.13 kg
NA 1050d: 50 mm | D: 80 mm | B: 20 mm | Cr: 33.0 kN | C0r: 73.0 kN | Mass: 0.418 kg
NA 2050d: 50 mm | D: 80 mm | B: 28 mm | Cr: 64.0 kN | C0r: 142 kN | Mass: 0.603 kg
NA 3050d: 50 mm | D: 90 mm | B: 38 mm | Cr: 113.0 kN | C0r: 255 kN | Mass: 1.22 kg
NA 1055d: 55 mm | D: 85 mm | B: 20 mm | Cr: 35.5 kN | C0r: 80.0 kN | Mass: 0.453 kg
NA 2055d: 55 mm | D: 85 mm | B: 28 mm | Cr: 69.0 kN | C0r: 157 kN | Mass: 0.649 kg
NA 3055d: 55 mm | D: 95 mm | B: 38 mm | Cr: 117.0 kN | C0r: 268 kN | Mass: 1.31 kg
NA 1060d: 60 mm | D: 90 mm | B: 20 mm | Cr: 37.0 kN | C0r: 85.0 kN | Mass: 0.485 kg
NA 2060d: 60 mm | D: 90 mm | B: 28 mm | Cr: 72.0 kN | C0r: 165 kN | Mass: 0.695 kg
NA 3060d: 60 mm | D: 100 mm | B: 38 mm | Cr: 123.0 kN | C0r: 290 kN | Mass: 1.39 kg
NA 2065d: 65 mm | D: 95 mm | B: 28 mm | Cr: 78.0 kN | C0r: 184 kN | Mass: 0.757 kg
NA 3065d: 65 mm | D: 105 mm | B: 38 mm | Cr: 129.0 kN | C0r: 308 kN | Mass: 1.49 kg
NA 1070d: 70 mm | D: 100 mm | B: 20 mm | Cr: 43.0 kN | C0r: 103 kN | Mass: 0.567 kg
NA 2070d: 70 mm | D: 100 mm | B: 28 mm | Cr: 81.0 kN | C0r: 195 kN | Mass: 0.805 kg
NA 3070d: 70 mm | D: 110 mm | B: 38 mm | Cr: 134.0 kN | C0r: 325 kN | Mass: 1.57 kg
NA 2075d: 75 mm | D: 110 mm | B: 32 mm | Cr: 104.0 kN | C0r: 253 kN | Mass: 1.18 kg
NA 3075d: 75 mm | D: 120 mm | B: 38 mm | Cr: 142.0 kN | C0r: 355 kN | Mass: 1.92 kg
NA 1080d: 80 mm | D: 115 mm | B: 24 mm | Cr: 68.0 kN | C0r: 170 kN | Mass: 0.920 kg
NA 2080d: 80 mm | D: 115 mm | B: 32 mm | Cr: 110.0 kN | C0r: 275 kN | Mass: 1.24 kg
NA 3080d: 80 mm | D: 125 mm | B: 38 mm | Cr: 145.0 kN | C0r: 365 kN | Mass: 2.03 kg
NA 2085d: 85 mm | D: 120 mm | B: 32 mm | Cr: 113.0 kN | C0r: 285 kN | Mass: 1.30 kg
NA 3085d: 85 mm | D: 130 mm | B: 38 mm | Cr: 150.0 kN | C0r: 390 kN | Mass: 2.12 kg
NA 2090d: 90 mm | D: 125 mm | B: 32 mm | Cr: 117.0 kN | C0r: 300 kN | Mass: 1.37 kg
NA 3090d: 90 mm | D: 135 mm | B: 43 mm | Cr: 185.0 kN | C0r: 480 kN | Mass: 2.51 kg
NA 2095d: 95 mm | D: 130 mm | B: 32 mm | Cr: 120.0 kN | C0r: 315 kN | Mass: 1.43 kg
NA 3095d: 95 mm | D: 140 mm | B: 43 mm | Cr: 190.0 kN | C0r: 505 kN | Mass: 2.63 kg
NA 2100d: 100 mm | D: 135 mm | B: 32 mm | Cr: 125.0 kN | C0r: 330 kN | Mass: 1.50 kg
NA 3100d: 100 mm | D: 145 mm | B: 43 mm | Cr: 195.0 kN | C0r: 520 kN | Mass: 2.74 kg
NA 2105d: 105 mm | D: 140 mm | B: 32 mm | Cr: 129.0 kN | C0r: 340 kN | Mass: 1.56 kg
NA 3105d: 105 mm | D: 150 mm | B: 45 mm | Cr: 203.0 kN | C0r: 550 kN | Mass: 2.99 kg
NA 2110d: 110 mm | D: 145 mm | B: 34 mm | Cr: 133.0 kN | C0r: 360 kN | Mass: 1.72 kg
NA 3110d: 110 mm | D: 160 mm | B: 45 mm | Cr: 210.0 kN | C0r: 580 kN | Mass: 3.53 kg
NA 2115d: 115 mm | D: 155 mm | B: 34 mm | Cr: 139.0 kN | C0r: 380 kN | Mass: 2.10 kg
NA 3115d: 115 mm | D: 165 mm | B: 45 mm | Cr: 215.0 kN | C0r: 600 kN | Mass: 3.66 kg
NA 2120d: 120 mm | D: 160 mm | B: 34 mm | Cr: 142.0 kN | C0r: 395 kN | Mass: 2.17 kg
NA 3120d: 120 mm | D: 170 mm | B: 45 mm | Cr: 224.0 kN | C0r: 630 kN | Mass: 3.79 kg
NA 2125d: 125 mm | D: 165 mm | B: 34 mm | Cr: 145.0 kN | C0r: 410 kN | Mass: 2.24 kg
NA 2130d: 130 mm | D: 170 mm | B: 34 mm | Cr: 150.0 kN | C0r: 425 kN | Mass: 2.33 kg
NA 2140d: 140 mm | D: 180 mm | B: 36 mm | Cr: 157.0 kN | C0r: 455 kN | Mass: 2.64 kg
NA 3140d: 140 mm | D: 205 mm | B: 52 mm | Cr: 290.0 kN | C0r: 860 kN | Mass: 6.84 kg
NA 2150d: 150 mm | D: 195 mm | B: 36 mm | Cr: 165.0 kN | C0r: 490 kN | Mass: 3.23 kg
NA 2160d: 160 mm | D: 205 mm | B: 36 mm | Cr: 170.0 kN | C0r: 515 kN | Mass: 3.40 kg
NA 2170d: 170 mm | D: 220 mm | B: 42 mm | Cr: 233.0 kN | C0r: 720 kN | Mass: 4.77 kg
NA 2180d: 180 mm | D: 230 mm | B: 42 mm | Cr: 240.0 kN | C0r: 750 kN | Mass: 5.01 kg
NA 2190d: 190 mm | D: 245 mm | B: 42 mm | Cr: 250.0 kN | C0r: 800 kN | Mass: 5.89 kg
NA 2200d: 200 mm | D: 255 mm | B: 42 mm | Cr: 257.0 kN | C0r: 830 kN | Mass: 6.15 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
