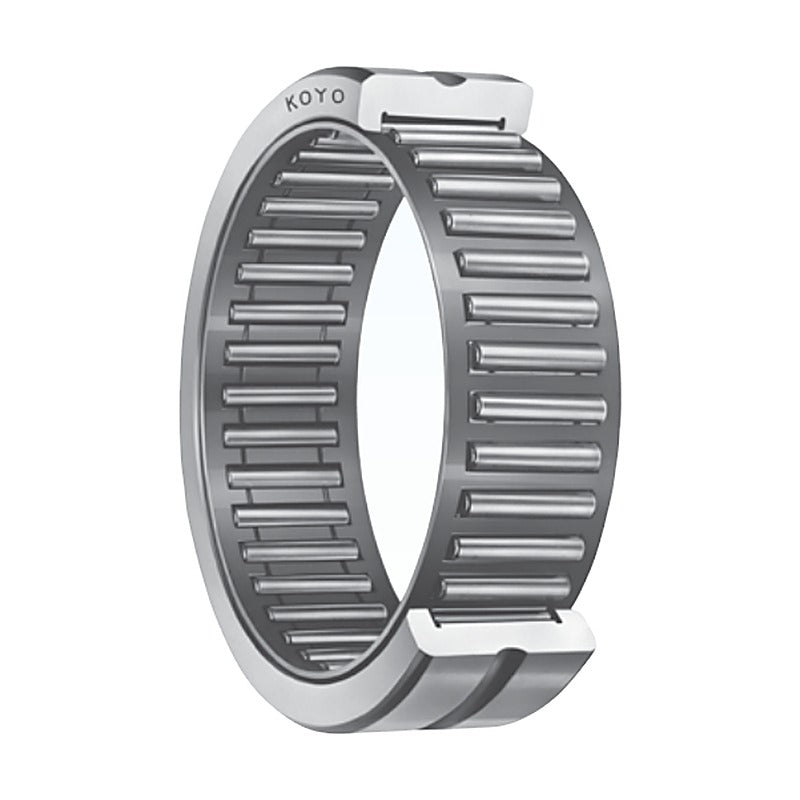

KOYO Needle Roller Bearings without Inner Ring (NK, RNA49, RNA69, NQ)

KOYO Needle Roller Bearings without Inner Ring (NK, RNA49, RNA69, NQ)

Heavy-duty machined ring needle roller bearings without inner ring for use directly on hardened shafts: NK, NKS, RNA48, RNA49, RNA69, NKTN and NQ series.

Key features

  • Machined outer ring with integral ribs
  • High radial load capacity in a small section
  • Suitable for high speeds with caged rollers
  • Lubrication groove and hole in outer ring
  • Metric ISO dimension series
  • Runs directly on hardened, ground shaft (Fw = raceway dia)

Specifications

Bearing type Needle roller bearing without inner ring
Series NK, NKS, RNA48, RNA49, RNA69, NKTN, NQ
Source KOYO Needle Roller Bearings catalogue, p. B-4-22 to B-4-30
NK5/10TN Fw: 5 mm | D: 10 mm | B: 10 mm | Cr: 2.18 kN | C0r: 1.71 kN | Mass: 0.004 kg
NK5/12TN Fw: 5 mm | D: 10 mm | B: 12 mm | Cr: 3.04 kN | C0r: 2.63 kN | Mass: 0.004 kg
NK6/10 Fw: 6 mm | D: 12 mm | B: 10 mm | Cr: 3.19 kN | C0r: 2.9 kN | Mass: 0.005 kg
NK6/12TN Fw: 6 mm | D: 12 mm | B: 12 mm | Cr: 3.07 kN | C0r: 2.74 kN | Mass: 0.006 kg
NK7/10TN Fw: 7 mm | D: 14 mm | B: 10 mm | Cr: 2.74 kN | C0r: 2.44 kN | Mass: 0.007 kg
NK7/12TN Fw: 7 mm | D: 14 mm | B: 12 mm | Cr: 3.4 kN | C0r: 3.22 kN | Mass: 0.009 kg
NK8/12 Fw: 8 mm | D: 15 mm | B: 12 mm | Cr: 4.57 kN | C0r: 4.89 kN | Mass: 0.011 kg
NK8/12ASR1 Fw: 8 mm | D: 15 mm | B: 12 mm | Cr: 4.57 kN | C0r: 4.89 kN | Mass: 0.011 kg
NK8/16 Fw: 8 mm | D: 15 mm | B: 16 mm | Cr: 5.22 kN | C0r: 5.78 kN | Mass: 0.013 kg
NK9/12 Fw: 9 mm | D: 16 mm | B: 12 mm | Cr: 4.27 kN | C0r: 4.6 kN | Mass: 0.012 kg
NK9/16 Fw: 9 mm | D: 16 mm | B: 16 mm | Cr: 5.57 kN | C0r: 6.47 kN | Mass: 0.015 kg
NK10/12 Fw: 10 mm | D: 17 mm | B: 12 mm | Cr: 5.4 kN | C0r: 6.43 kN | Mass: 0.013 kg
NK10/16TN Fw: 10 mm | D: 17 mm | B: 16 mm | Cr: 5.3 kN | C0r: 6.27 kN | Mass: 0.015 kg
NK12/12 Fw: 12 mm | D: 19 mm | B: 12 mm | Cr: 6.86 kN | C0r: 7.6 kN | Mass: 0.013 kg
NK12/16 Fw: 12 mm | D: 19 mm | B: 16 mm | Cr: 6.78 kN | C0r: 9.03 kN | Mass: 0.018 kg
NK14/16 Fw: 14 mm | D: 22 mm | B: 16 mm | Cr: 12.4 kN | C0r: 14.8 kN | Mass: 0.023 kg
NK14/20 Fw: 14 mm | D: 22 mm | B: 20 mm | Cr: 14.7 kN | C0r: 18.4 kN | Mass: 0.028 kg
NK15/16 Fw: 15 mm | D: 23 mm | B: 16 mm | Cr: 12.4 kN | C0r: 15 kN | Mass: 0.024 kg
NK15/20 Fw: 15 mm | D: 23 mm | B: 20 mm | Cr: 14.7 kN | C0r: 18.6 kN | Mass: 0.031 kg
NK16/16 Fw: 16 mm | D: 24 mm | B: 16 mm | Cr: 15.4 kN | C0r: 20.2 kN | Mass: 0.025 kg
NK17/16 Fw: 17 mm | D: 25 mm | B: 16 mm | Cr: 13.6 kN | C0r: 17.5 kN | Mass: 0.027 kg
NK17/20 Fw: 17 mm | D: 25 mm | B: 20 mm | Cr: 15.4 kN | C0r: 20.4 kN | Mass: 0.034 kg
NK18/16 Fw: 18 mm | D: 26 mm | B: 16 mm | Cr: 13.6 kN | C0r: 17.7 kN | Mass: 0.028 kg
NK18/20 Fw: 18 mm | D: 26 mm | B: 20 mm | Cr: 16.1 kN | C0r: 22 kN | Mass: 0.035 kg
NK19/16 Fw: 19 mm | D: 27 mm | B: 16 mm | Cr: 14.1 kN | C0r: 19 kN | Mass: 0.029 kg
NK19/20 Fw: 19 mm | D: 27 mm | B: 20 mm | Cr: 18.8 kN | C0r: 23.6 kN | Mass: 0.037 kg
NKS18 Fw: 19 mm | D: 30 mm | B: 16 mm | Cr: 15.9 kN | C0r: 16.2 kN | Mass: 0.045 kg
NK20/16 Fw: 20 mm | D: 28 mm | B: 16 mm | Cr: 14.1 kN | C0r: 19.1 kN | Mass: 0.030 kg
NK20/20 Fw: 20 mm | D: 28 mm | B: 20 mm | Cr: 17.5 kN | C0r: 25.3 kN | Mass: 0.038 kg
RNA6902 Fw: 20 mm | D: 28 mm | B: 23 mm | Cr: 18.4 kN | C0r: 26.9 kN | Mass: 0.042 kg
NKS20 Fw: 20 mm | D: 32 mm | B: 20 mm | Cr: 24.4 kN | C0r: 26.7 kN | Mass: 0.058 kg
NK21/16 Fw: 21 mm | D: 29 mm | B: 16 mm | Cr: 15.3 kN | C0r: 21.6 kN | Mass: 0.032 kg
NK21/20 Fw: 21 mm | D: 29 mm | B: 20 mm | Cr: 18.1 kN | C0r: 26.9 kN | Mass: 0.040 kg
RNA4903 Fw: 22 mm | D: 30 mm | B: 13 mm | Cr: 12.2 kN | C0r: 16.4 kN | Mass: 0.025 kg
NK22/16 Fw: 22 mm | D: 30 mm | B: 16 mm | Cr: 15.2 kN | C0r: 21.7 kN | Mass: 0.033 kg
NK22/20 Fw: 22 mm | D: 30 mm | B: 20 mm | Cr: 18 kN | C0r: 27 kN | Mass: 0.041 kg
NKS22 Fw: 22 mm | D: 35 mm | B: 20 mm | Cr: 22.9 kN | C0r: 27.1 kN | Mass: 0.069 kg
NK24/16 Fw: 24 mm | D: 32 mm | B: 16 mm | Cr: 16.2 kN | C0r: 24.3 kN | Mass: 0.035 kg
NK24/20 Fw: 24 mm | D: 32 mm | B: 20 mm | Cr: 19.3 kN | C0r: 30.3 kN | Mass: 0.045 kg
NKS24 Fw: 24 mm | D: 37 mm | B: 20 mm | Cr: 29.1 kN | C0r: 32.8 kN | Mass: 0.073 kg
NK25/16 Fw: 25 mm | D: 33 mm | B: 16 mm | Cr: 16.1 kN | C0r: 24.4 kN | Mass: 0.037 kg
NK25/20 Fw: 25 mm | D: 33 mm | B: 20 mm | Cr: 19.1 kN | C0r: 30.4 kN | Mass: 0.047 kg
NKS25 Fw: 25 mm | D: 38 mm | B: 20 mm | Cr: 29.1 kN | C0r: 33 kN | Mass: 0.076 kg
NK26/16 Fw: 26 mm | D: 34 mm | B: 16 mm | Cr: 16.6 kN | C0r: 25.7 kN | Mass: 0.039 kg
NK26/20 Fw: 26 mm | D: 34 mm | B: 20 mm | Cr: 19.7 kN | C0r: 32 kN | Mass: 0.048 kg
NK28/20 Fw: 28 mm | D: 37 mm | B: 20 mm | Cr: 22.6 kN | C0r: 34.4 kN | Mass: 0.057 kg
NK28/30 Fw: 28 mm | D: 37 mm | B: 30 mm | Cr: 29 kN | C0r: 53.8 kN | Mass: 0.088 kg
NKS28 Fw: 28 mm | D: 42 mm | B: 20 mm | Cr: 30.3 kN | C0r: 38.4 kN | Mass: 0.094 kg
NK29/20 Fw: 29 mm | D: 38 mm | B: 20 mm | Cr: 23.4 kN | C0r: 36.4 kN | Mass: 0.059 kg
NK29/30 Fw: 29 mm | D: 38 mm | B: 30 mm | Cr: 29.8 kN | C0r: 56.4 kN | Mass: 0.090 kg
NK30/20 Fw: 30 mm | D: 40 mm | B: 20 mm | Cr: 24.2 kN | C0r: 38.3 kN | Mass: 0.071 kg
NK30/30 Fw: 30 mm | D: 40 mm | B: 30 mm | Cr: 34.7 kN | C0r: 61 kN | Mass: 0.107 kg
NKS30 Fw: 30 mm | D: 45 mm | B: 20 mm | Cr: 34.3 kN | C0r: 42.8 kN | Mass: 0.114 kg
NK32/20 Fw: 32 mm | D: 42 mm | B: 20 mm | Cr: 24.8 kN | C0r: 40.4 kN | Mass: 0.074 kg
NK32/30 Fw: 32 mm | D: 42 mm | B: 30 mm | Cr: 35.6 kN | C0r: 64.3 kN | Mass: 0.112 kg
RNA49/28 Fw: 32 mm | D: 45 mm | B: 17 mm | Cr: 25.1 kN | C0r: 33.8 kN | Mass: 0.080 kg
RNA69/28 Fw: 32 mm | D: 45 mm | B: 30 mm | Cr: 43.2 kN | C0r: 62.5 kN | Mass: 0.140 kg
NKS32 Fw: 32 mm | D: 47 mm | B: 22 mm | Cr: 36 kN | C0r: 46.2 kN | Mass: 0.120 kg
NK35/20 Fw: 35 mm | D: 45 mm | B: 20 mm | Cr: 26.1 kN | C0r: 44.4 kN | Mass: 0.081 kg
NK35/30 Fw: 35 mm | D: 45 mm | B: 30 mm | Cr: 37.4 kN | C0r: 70.6 kN | Mass: 0.122 kg
NKS35 Fw: 35 mm | D: 50 mm | B: 22 mm | Cr: 37.5 kN | C0r: 49.9 kN | Mass: 0.130 kg
NK37/20 Fw: 37 mm | D: 47 mm | B: 20 mm | Cr: 26.6 kN | C0r: 46.4 kN | Mass: 0.084 kg
NK37/30 Fw: 37 mm | D: 47 mm | B: 30 mm | Cr: 38.2 kN | C0r: 73.9 kN | Mass: 0.128 kg
NKS37 Fw: 37 mm | D: 52 mm | B: 22 mm | Cr: 39 kN | C0r: 53.4 kN | Mass: 0.134 kg
NK38/20 Fw: 38 mm | D: 48 mm | B: 20 mm | Cr: 21.7 kN | C0r: 40.9 kN | Mass: 0.087 kg
NK38/30 Fw: 38 mm | D: 48 mm | B: 30 mm | Cr: 31.9 kN | C0r: 67 kN | Mass: 0.131 kg
NK40/20 Fw: 40 mm | D: 50 mm | B: 20 mm | Cr: 27.8 kN | C0r: 50.4 kN | Mass: 0.089 kg
NK40/30 Fw: 40 mm | D: 50 mm | B: 30 mm | Cr: 40 kN | C0r: 80.2 kN | Mass: 0.137 kg
RNA49/32 Fw: 40 mm | D: 52 mm | B: 20 mm | Cr: 32 kN | C0r: 49.3 kN | Mass: 0.100 kg
RNA69/32 Fw: 40 mm | D: 52 mm | B: 36 mm | Cr: 48.6 kN | C0r: 84.5 kN | Mass: 0.185 kg
NKS40 Fw: 40 mm | D: 55 mm | B: 22 mm | Cr: 40.3 kN | C0r: 57 kN | Mass: 0.140 kg
NK42/20 Fw: 42 mm | D: 52 mm | B: 20 mm | Cr: 28.3 kN | C0r: 52.4 kN | Mass: 0.085 kg
NK42/30 Fw: 42 mm | D: 52 mm | B: 30 mm | Cr: 40.7 kN | C0r: 83.5 kN | Mass: 0.141 kg
NK43/20 Fw: 43 mm | D: 53 mm | B: 20 mm | Cr: 29 kN | C0r: 54.4 kN | Mass: 0.096 kg
NK43/30 Fw: 43 mm | D: 53 mm | B: 30 mm | Cr: 41.6 kN | C0r: 86.6 kN | Mass: 0.134 kg
NKS43 Fw: 43 mm | D: 58 mm | B: 22 mm | Cr: 41.6 kN | C0r: 60.7 kN | Mass: 0.150 kg
NK45/20 Fw: 45 mm | D: 55 mm | B: 20 mm | Cr: 29.5 kN | C0r: 56.4 kN | Mass: 0.100 kg
NK45/30 Fw: 45 mm | D: 55 mm | B: 30 mm | Cr: 42.3 kN | C0r: 89.8 kN | Mass: 0.151 kg
NKS45 Fw: 45 mm | D: 60 mm | B: 22 mm | Cr: 43 kN | C0r: 64.2 kN | Mass: 0.156 kg
NK47/20 Fw: 47 mm | D: 57 mm | B: 20 mm | Cr: 30 kN | C0r: 58.5 kN | Mass: 0.104 kg
NK47/30 Fw: 47 mm | D: 57 mm | B: 30 mm | Cr: 43 kN | C0r: 93.1 kN | Mass: 0.158 kg
NK50/25 Fw: 50 mm | D: 62 mm | B: 25 mm | Cr: 40.7 kN | C0r: 79.3 kN | Mass: 0.171 kg
NK50/35 Fw: 50 mm | D: 62 mm | B: 35 mm | Cr: 55 kN | C0r: 117 kN | Mass: 0.242 kg
NKS50 Fw: 50 mm | D: 65 mm | B: 22 mm | Cr: 45.5 kN | C0r: 71.3 kN | Mass: 0.170 kg
NK55/25 Fw: 55 mm | D: 68 mm | B: 25 mm | Cr: 46.1 kN | C0r: 87.3 kN | Mass: 0.207 kg
NK55/35 Fw: 55 mm | D: 68 mm | B: 35 mm | Cr: 62.3 kN | C0r: 129 kN | Mass: 0.293 kg
NKS55 Fw: 55 mm | D: 72 mm | B: 22 mm | Cr: 47.9 kN | C0r: 78.4 kN | Mass: 0.225 kg
NK60/25 Fw: 60 mm | D: 72 mm | B: 25 mm | Cr: 44.3 kN | C0r: 94 kN | Mass: 0.202 kg
NK60/35 Fw: 60 mm | D: 72 mm | B: 35 mm | Cr: 59.9 kN | C0r: 139 kN | Mass: 0.286 kg
NKS60 Fw: 60 mm | D: 80 mm | B: 28 mm | Cr: 66.9 kN | C0r: 103 kN | Mass: 0.337 kg
NK65/25 Fw: 65 mm | D: 78 mm | B: 25 mm | Cr: 48.2 kN | C0r: 97.7 kN | Mass: 0.257 kg
NK65/35 Fw: 65 mm | D: 78 mm | B: 35 mm | Cr: 65.2 kN | C0r: 144 kN | Mass: 0.298 kg
NKS65 Fw: 65 mm | D: 85 mm | B: 28 mm | Cr: 71 kN | C0r: 114 kN | Mass: 0.362 kg
NK68/25 Fw: 68 mm | D: 82 mm | B: 25 mm | Cr: 49 kN | C0r: 101 kN | Mass: 0.287 kg
NK68/35 Fw: 68 mm | D: 82 mm | B: 35 mm | Cr: 66.2 kN | C0r: 149 kN | Mass: 0.350 kg
RNA6912 Fw: 68 mm | D: 85 mm | B: 45 mm | Cr: 99.3 kN | C0r: 189 kN | Mass: 0.546 kg
NK70/25 Fw: 70 mm | D: 85 mm | B: 25 mm | Cr: 43.6 kN | C0r: 87.9 kN | Mass: 0.298 kg
NKS70 Fw: 70 mm | D: 90 mm | B: 28 mm | Cr: 72.6 kN | C0r: 120 kN | Mass: 0.383 kg
NK73/25 Fw: 73 mm | D: 90 mm | B: 25 mm | Cr: 61.5 kN | C0r: 119 kN | Mass: 0.320 kg
NK73/35 Fw: 73 mm | D: 90 mm | B: 35 mm | Cr: 82.5 kN | C0r: 173 kN | Mass: 0.450 kg
NK75/25 Fw: 75 mm | D: 92 mm | B: 25 mm | Cr: 43.7 kN | C0r: 90.2 kN | Mass: 0.364 kg
NK75/35 Fw: 75 mm | D: 92 mm | B: 35 mm | Cr: 60.9 kN | C0r: 138 kN | Mass: 0.518 kg
NKS75 Fw: 75 mm | D: 95 mm | B: 28 mm | Cr: 76.5 kN | C0r: 132 kN | Mass: 0.413 kg
NK80/25 Fw: 80 mm | D: 95 mm | B: 25 mm | Cr: 65 kN | C0r: 131 kN | Mass: 0.331 kg
NK80/35 Fw: 80 mm | D: 95 mm | B: 35 mm | Cr: 79.7 kN | C0r: 184 kN | Mass: 0.380 kg
NK85/25 Fw: 85 mm | D: 105 mm | B: 25 mm | Cr: 76.4 kN | C0r: 137 kN | Mass: 0.506 kg
NK85/35 Fw: 85 mm | D: 105 mm | B: 35 mm | Cr: 108 kN | C0r: 214 kN | Mass: 0.610 kg
NK90/25 Fw: 90 mm | D: 110 mm | B: 25 mm | Cr: 79.5 kN | C0r: 147 kN | Mass: 0.450 kg
NK90/35 Fw: 90 mm | D: 110 mm | B: 35 mm | Cr: 113 kN | C0r: 230 kN | Mass: 0.745 kg
NK95/26 Fw: 95 mm | D: 115 mm | B: 26 mm | Cr: 49.3 kN | C0r: 114 kN | Mass: 0.572 kg
NK95/36 Fw: 95 mm | D: 115 mm | B: 36 mm | Cr: 114 kN | C0r: 238 kN | Mass: 0.803 kg
NK100/26 Fw: 100 mm | D: 120 mm | B: 26 mm | Cr: 83.6 kN | C0r: 163 kN | Mass: 0.530 kg
NK100/36 Fw: 100 mm | D: 120 mm | B: 36 mm | Cr: 118 kN | C0r: 254 kN | Mass: 0.658 kg
NK105/26 Fw: 105 mm | D: 125 mm | B: 26 mm | Cr: 52.2 kN | C0r: 127 kN | Mass: 0.595 kg
NK110/30 Fw: 110 mm | D: 130 mm | B: 30 mm | Cr: 103 kN | C0r: 220 kN | Mass: 0.660 kg
NK110/40 Fw: 110 mm | D: 130 mm | B: 40 mm | Cr: 132 kN | C0r: 132 kN | Mass: 0.900 kg
RNA4822 Fw: 120 mm | D: 140 mm | B: 30 mm | Cr: 90.3 kN | C0r: 230 kN | Mass: 0.785 kg
RNA4824 Fw: 130 mm | D: 150 mm | B: 30 mm | Cr: 94.1 kN | C0r: 249 kN | Mass: 0.850 kg
RNA4826 Fw: 145 mm | D: 165 mm | B: 35 mm | Cr: 112 kN | C0r: 323 kN | Mass: 1.100 kg
RNA4828 Fw: 155 mm | D: 175 mm | B: 35 mm | Cr: 116 kN | C0r: 346 kN | Mass: 1.170 kg
RNA4830 Fw: 165 mm | D: 190 mm | B: 40 mm | Cr: 142 kN | C0r: 402 kN | Mass: 1.540 kg
RNA4832 Fw: 175 mm | D: 200 mm | B: 40 mm | Cr: 146 kN | C0r: 425 kN | Mass: 1.910 kg
NQ12/12AD Fw: 12 mm | D: 19 mm | B: 12 mm | Cr: 5.4 kN | C0r: 5.5 kN | Mass: 0.012 kg
NQ132112 Fw: 13 mm | D: 21 mm | B: 12 mm | Cr: 8.25 kN | C0r: 8.4 kN | Mass: 0.015 kg
15NQ2412A Fw: 15 mm | D: 24 mm | B: 12 mm | Cr: 9.7 kN | C0r: 9.75 kN | Mass: 0.019 kg
NQ152516 Fw: 15 mm | D: 25 mm | B: 16 mm | Cr: 11.8 kN | C0r: 14 kN | Mass: 0.032 kg
15NQ2812 Fw: 15 mm | D: 28 mm | B: 12 mm | Cr: 10.7 kN | C0r: 11.1 kN | Mass: 0.034 kg
NQ152812-1 Fw: 15 mm | D: 28 mm | B: 12 mm | Cr: 10.7 kN | C0r: 11.1 kN | Mass: 0.034 kg
NQ182925-1 Fw: 18 mm | D: 29 mm | B: 25 mm | Cr: 24.2 kN | C0r: 27.5 kN | Mass: 0.056 kg
18NQ3420AD Fw: 18 mm | D: 34 mm | B: 20 mm | Cr: 17.1 kN | C0r: 21.2 kN | Mass: 0.090 kg
20NQ3015ED Fw: 20 mm | D: 30 mm | B: 15 mm | Cr: 11.4 kN | C0r: 15.4 kN | Mass: 0.037 kg
NQ203220 Fw: 20 mm | D: 32 mm | B: 20 mm | Cr: 23 kN | C0r: 26.6 kN | Mass: 0.057 kg
20NQ3315NE Fw: 20 mm | D: 33 mm | B: 15 mm | Cr: 13.8 kN | C0r: 16.5 kN | Mass: 0.093 kg
NQS22/20D Fw: 22 mm | D: 35 mm | B: 20 mm | Cr: 21.8 kN | C0r: 25.4 kN | Mass: 0.071 kg
RNA4904ARD Fw: 25 mm | D: 37 mm | B: 17 mm | Cr: 21.5 kN | C0r: 25.7 kN | Mass: 0.057 kg
Needle Roller BearingsKOYO
135 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Needle Roller Bearings without Inner Ring (NK, RNA49, RNA69, NQ)

Brand KOYO·Needle Roller Bearings

Available part numbers (135)

NK5/10TN, NK5/12TN, NK6/10, NK6/12TN, NK7/10TN, NK7/12TN, NK8/12, NK8/12ASR1, NK8/16, NK9/12 + 125 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NK5/10TNFw: 5 mm | D: 10 mm | B: 10 mm | Cr: 2.18 kN | C0r: 1.71 kN | Mass: 0.004 kg
NK5/12TNFw: 5 mm | D: 10 mm | B: 12 mm | Cr: 3.04 kN | C0r: 2.63 kN | Mass: 0.004 kg
NK6/10Fw: 6 mm | D: 12 mm | B: 10 mm | Cr: 3.19 kN | C0r: 2.9 kN | Mass: 0.005 kg
NK6/12TNFw: 6 mm | D: 12 mm | B: 12 mm | Cr: 3.07 kN | C0r: 2.74 kN | Mass: 0.006 kg
NK7/10TNFw: 7 mm | D: 14 mm | B: 10 mm | Cr: 2.74 kN | C0r: 2.44 kN | Mass: 0.007 kg
NK7/12TNFw: 7 mm | D: 14 mm | B: 12 mm | Cr: 3.4 kN | C0r: 3.22 kN | Mass: 0.009 kg
NK8/12Fw: 8 mm | D: 15 mm | B: 12 mm | Cr: 4.57 kN | C0r: 4.89 kN | Mass: 0.011 kg
NK8/12ASR1Fw: 8 mm | D: 15 mm | B: 12 mm | Cr: 4.57 kN | C0r: 4.89 kN | Mass: 0.011 kg
NK8/16Fw: 8 mm | D: 15 mm | B: 16 mm | Cr: 5.22 kN | C0r: 5.78 kN | Mass: 0.013 kg
NK9/12Fw: 9 mm | D: 16 mm | B: 12 mm | Cr: 4.27 kN | C0r: 4.6 kN | Mass: 0.012 kg
NK9/16Fw: 9 mm | D: 16 mm | B: 16 mm | Cr: 5.57 kN | C0r: 6.47 kN | Mass: 0.015 kg
NK10/12Fw: 10 mm | D: 17 mm | B: 12 mm | Cr: 5.4 kN | C0r: 6.43 kN | Mass: 0.013 kg
NK10/16TNFw: 10 mm | D: 17 mm | B: 16 mm | Cr: 5.3 kN | C0r: 6.27 kN | Mass: 0.015 kg
NK12/12Fw: 12 mm | D: 19 mm | B: 12 mm | Cr: 6.86 kN | C0r: 7.6 kN | Mass: 0.013 kg
NK12/16Fw: 12 mm | D: 19 mm | B: 16 mm | Cr: 6.78 kN | C0r: 9.03 kN | Mass: 0.018 kg
NK14/16Fw: 14 mm | D: 22 mm | B: 16 mm | Cr: 12.4 kN | C0r: 14.8 kN | Mass: 0.023 kg
NK14/20Fw: 14 mm | D: 22 mm | B: 20 mm | Cr: 14.7 kN | C0r: 18.4 kN | Mass: 0.028 kg
NK15/16Fw: 15 mm | D: 23 mm | B: 16 mm | Cr: 12.4 kN | C0r: 15 kN | Mass: 0.024 kg
NK15/20Fw: 15 mm | D: 23 mm | B: 20 mm | Cr: 14.7 kN | C0r: 18.6 kN | Mass: 0.031 kg
NK16/16Fw: 16 mm | D: 24 mm | B: 16 mm | Cr: 15.4 kN | C0r: 20.2 kN | Mass: 0.025 kg
NK17/16Fw: 17 mm | D: 25 mm | B: 16 mm | Cr: 13.6 kN | C0r: 17.5 kN | Mass: 0.027 kg
NK17/20Fw: 17 mm | D: 25 mm | B: 20 mm | Cr: 15.4 kN | C0r: 20.4 kN | Mass: 0.034 kg
NK18/16Fw: 18 mm | D: 26 mm | B: 16 mm | Cr: 13.6 kN | C0r: 17.7 kN | Mass: 0.028 kg
NK18/20Fw: 18 mm | D: 26 mm | B: 20 mm | Cr: 16.1 kN | C0r: 22 kN | Mass: 0.035 kg
NK19/16Fw: 19 mm | D: 27 mm | B: 16 mm | Cr: 14.1 kN | C0r: 19 kN | Mass: 0.029 kg
NK19/20Fw: 19 mm | D: 27 mm | B: 20 mm | Cr: 18.8 kN | C0r: 23.6 kN | Mass: 0.037 kg
NKS18Fw: 19 mm | D: 30 mm | B: 16 mm | Cr: 15.9 kN | C0r: 16.2 kN | Mass: 0.045 kg
NK20/16Fw: 20 mm | D: 28 mm | B: 16 mm | Cr: 14.1 kN | C0r: 19.1 kN | Mass: 0.030 kg
NK20/20Fw: 20 mm | D: 28 mm | B: 20 mm | Cr: 17.5 kN | C0r: 25.3 kN | Mass: 0.038 kg
RNA6902Fw: 20 mm | D: 28 mm | B: 23 mm | Cr: 18.4 kN | C0r: 26.9 kN | Mass: 0.042 kg
NKS20Fw: 20 mm | D: 32 mm | B: 20 mm | Cr: 24.4 kN | C0r: 26.7 kN | Mass: 0.058 kg
NK21/16Fw: 21 mm | D: 29 mm | B: 16 mm | Cr: 15.3 kN | C0r: 21.6 kN | Mass: 0.032 kg
NK21/20Fw: 21 mm | D: 29 mm | B: 20 mm | Cr: 18.1 kN | C0r: 26.9 kN | Mass: 0.040 kg
RNA4903Fw: 22 mm | D: 30 mm | B: 13 mm | Cr: 12.2 kN | C0r: 16.4 kN | Mass: 0.025 kg
NK22/16Fw: 22 mm | D: 30 mm | B: 16 mm | Cr: 15.2 kN | C0r: 21.7 kN | Mass: 0.033 kg
NK22/20Fw: 22 mm | D: 30 mm | B: 20 mm | Cr: 18 kN | C0r: 27 kN | Mass: 0.041 kg
NKS22Fw: 22 mm | D: 35 mm | B: 20 mm | Cr: 22.9 kN | C0r: 27.1 kN | Mass: 0.069 kg
NK24/16Fw: 24 mm | D: 32 mm | B: 16 mm | Cr: 16.2 kN | C0r: 24.3 kN | Mass: 0.035 kg
NK24/20Fw: 24 mm | D: 32 mm | B: 20 mm | Cr: 19.3 kN | C0r: 30.3 kN | Mass: 0.045 kg
NKS24Fw: 24 mm | D: 37 mm | B: 20 mm | Cr: 29.1 kN | C0r: 32.8 kN | Mass: 0.073 kg
NK25/16Fw: 25 mm | D: 33 mm | B: 16 mm | Cr: 16.1 kN | C0r: 24.4 kN | Mass: 0.037 kg
NK25/20Fw: 25 mm | D: 33 mm | B: 20 mm | Cr: 19.1 kN | C0r: 30.4 kN | Mass: 0.047 kg
NKS25Fw: 25 mm | D: 38 mm | B: 20 mm | Cr: 29.1 kN | C0r: 33 kN | Mass: 0.076 kg
NK26/16Fw: 26 mm | D: 34 mm | B: 16 mm | Cr: 16.6 kN | C0r: 25.7 kN | Mass: 0.039 kg
NK26/20Fw: 26 mm | D: 34 mm | B: 20 mm | Cr: 19.7 kN | C0r: 32 kN | Mass: 0.048 kg
NK28/20Fw: 28 mm | D: 37 mm | B: 20 mm | Cr: 22.6 kN | C0r: 34.4 kN | Mass: 0.057 kg
NK28/30Fw: 28 mm | D: 37 mm | B: 30 mm | Cr: 29 kN | C0r: 53.8 kN | Mass: 0.088 kg
NKS28Fw: 28 mm | D: 42 mm | B: 20 mm | Cr: 30.3 kN | C0r: 38.4 kN | Mass: 0.094 kg
NK29/20Fw: 29 mm | D: 38 mm | B: 20 mm | Cr: 23.4 kN | C0r: 36.4 kN | Mass: 0.059 kg
NK29/30Fw: 29 mm | D: 38 mm | B: 30 mm | Cr: 29.8 kN | C0r: 56.4 kN | Mass: 0.090 kg
NK30/20Fw: 30 mm | D: 40 mm | B: 20 mm | Cr: 24.2 kN | C0r: 38.3 kN | Mass: 0.071 kg
NK30/30Fw: 30 mm | D: 40 mm | B: 30 mm | Cr: 34.7 kN | C0r: 61 kN | Mass: 0.107 kg
NKS30Fw: 30 mm | D: 45 mm | B: 20 mm | Cr: 34.3 kN | C0r: 42.8 kN | Mass: 0.114 kg
NK32/20Fw: 32 mm | D: 42 mm | B: 20 mm | Cr: 24.8 kN | C0r: 40.4 kN | Mass: 0.074 kg
NK32/30Fw: 32 mm | D: 42 mm | B: 30 mm | Cr: 35.6 kN | C0r: 64.3 kN | Mass: 0.112 kg
RNA49/28Fw: 32 mm | D: 45 mm | B: 17 mm | Cr: 25.1 kN | C0r: 33.8 kN | Mass: 0.080 kg
RNA69/28Fw: 32 mm | D: 45 mm | B: 30 mm | Cr: 43.2 kN | C0r: 62.5 kN | Mass: 0.140 kg
NKS32Fw: 32 mm | D: 47 mm | B: 22 mm | Cr: 36 kN | C0r: 46.2 kN | Mass: 0.120 kg
NK35/20Fw: 35 mm | D: 45 mm | B: 20 mm | Cr: 26.1 kN | C0r: 44.4 kN | Mass: 0.081 kg
NK35/30Fw: 35 mm | D: 45 mm | B: 30 mm | Cr: 37.4 kN | C0r: 70.6 kN | Mass: 0.122 kg
NKS35Fw: 35 mm | D: 50 mm | B: 22 mm | Cr: 37.5 kN | C0r: 49.9 kN | Mass: 0.130 kg
NK37/20Fw: 37 mm | D: 47 mm | B: 20 mm | Cr: 26.6 kN | C0r: 46.4 kN | Mass: 0.084 kg
NK37/30Fw: 37 mm | D: 47 mm | B: 30 mm | Cr: 38.2 kN | C0r: 73.9 kN | Mass: 0.128 kg
NKS37Fw: 37 mm | D: 52 mm | B: 22 mm | Cr: 39 kN | C0r: 53.4 kN | Mass: 0.134 kg
NK38/20Fw: 38 mm | D: 48 mm | B: 20 mm | Cr: 21.7 kN | C0r: 40.9 kN | Mass: 0.087 kg
NK38/30Fw: 38 mm | D: 48 mm | B: 30 mm | Cr: 31.9 kN | C0r: 67 kN | Mass: 0.131 kg
NK40/20Fw: 40 mm | D: 50 mm | B: 20 mm | Cr: 27.8 kN | C0r: 50.4 kN | Mass: 0.089 kg
NK40/30Fw: 40 mm | D: 50 mm | B: 30 mm | Cr: 40 kN | C0r: 80.2 kN | Mass: 0.137 kg
RNA49/32Fw: 40 mm | D: 52 mm | B: 20 mm | Cr: 32 kN | C0r: 49.3 kN | Mass: 0.100 kg
RNA69/32Fw: 40 mm | D: 52 mm | B: 36 mm | Cr: 48.6 kN | C0r: 84.5 kN | Mass: 0.185 kg
NKS40Fw: 40 mm | D: 55 mm | B: 22 mm | Cr: 40.3 kN | C0r: 57 kN | Mass: 0.140 kg
NK42/20Fw: 42 mm | D: 52 mm | B: 20 mm | Cr: 28.3 kN | C0r: 52.4 kN | Mass: 0.085 kg
NK42/30Fw: 42 mm | D: 52 mm | B: 30 mm | Cr: 40.7 kN | C0r: 83.5 kN | Mass: 0.141 kg
NK43/20Fw: 43 mm | D: 53 mm | B: 20 mm | Cr: 29 kN | C0r: 54.4 kN | Mass: 0.096 kg
NK43/30Fw: 43 mm | D: 53 mm | B: 30 mm | Cr: 41.6 kN | C0r: 86.6 kN | Mass: 0.134 kg
NKS43Fw: 43 mm | D: 58 mm | B: 22 mm | Cr: 41.6 kN | C0r: 60.7 kN | Mass: 0.150 kg
NK45/20Fw: 45 mm | D: 55 mm | B: 20 mm | Cr: 29.5 kN | C0r: 56.4 kN | Mass: 0.100 kg
NK45/30Fw: 45 mm | D: 55 mm | B: 30 mm | Cr: 42.3 kN | C0r: 89.8 kN | Mass: 0.151 kg
NKS45Fw: 45 mm | D: 60 mm | B: 22 mm | Cr: 43 kN | C0r: 64.2 kN | Mass: 0.156 kg
NK47/20Fw: 47 mm | D: 57 mm | B: 20 mm | Cr: 30 kN | C0r: 58.5 kN | Mass: 0.104 kg
NK47/30Fw: 47 mm | D: 57 mm | B: 30 mm | Cr: 43 kN | C0r: 93.1 kN | Mass: 0.158 kg
NK50/25Fw: 50 mm | D: 62 mm | B: 25 mm | Cr: 40.7 kN | C0r: 79.3 kN | Mass: 0.171 kg
NK50/35Fw: 50 mm | D: 62 mm | B: 35 mm | Cr: 55 kN | C0r: 117 kN | Mass: 0.242 kg
NKS50Fw: 50 mm | D: 65 mm | B: 22 mm | Cr: 45.5 kN | C0r: 71.3 kN | Mass: 0.170 kg
NK55/25Fw: 55 mm | D: 68 mm | B: 25 mm | Cr: 46.1 kN | C0r: 87.3 kN | Mass: 0.207 kg
NK55/35Fw: 55 mm | D: 68 mm | B: 35 mm | Cr: 62.3 kN | C0r: 129 kN | Mass: 0.293 kg
NKS55Fw: 55 mm | D: 72 mm | B: 22 mm | Cr: 47.9 kN | C0r: 78.4 kN | Mass: 0.225 kg
NK60/25Fw: 60 mm | D: 72 mm | B: 25 mm | Cr: 44.3 kN | C0r: 94 kN | Mass: 0.202 kg
NK60/35Fw: 60 mm | D: 72 mm | B: 35 mm | Cr: 59.9 kN | C0r: 139 kN | Mass: 0.286 kg
NKS60Fw: 60 mm | D: 80 mm | B: 28 mm | Cr: 66.9 kN | C0r: 103 kN | Mass: 0.337 kg
NK65/25Fw: 65 mm | D: 78 mm | B: 25 mm | Cr: 48.2 kN | C0r: 97.7 kN | Mass: 0.257 kg
NK65/35Fw: 65 mm | D: 78 mm | B: 35 mm | Cr: 65.2 kN | C0r: 144 kN | Mass: 0.298 kg
NKS65Fw: 65 mm | D: 85 mm | B: 28 mm | Cr: 71 kN | C0r: 114 kN | Mass: 0.362 kg
NK68/25Fw: 68 mm | D: 82 mm | B: 25 mm | Cr: 49 kN | C0r: 101 kN | Mass: 0.287 kg
NK68/35Fw: 68 mm | D: 82 mm | B: 35 mm | Cr: 66.2 kN | C0r: 149 kN | Mass: 0.350 kg
RNA6912Fw: 68 mm | D: 85 mm | B: 45 mm | Cr: 99.3 kN | C0r: 189 kN | Mass: 0.546 kg
NK70/25Fw: 70 mm | D: 85 mm | B: 25 mm | Cr: 43.6 kN | C0r: 87.9 kN | Mass: 0.298 kg
NKS70Fw: 70 mm | D: 90 mm | B: 28 mm | Cr: 72.6 kN | C0r: 120 kN | Mass: 0.383 kg
NK73/25Fw: 73 mm | D: 90 mm | B: 25 mm | Cr: 61.5 kN | C0r: 119 kN | Mass: 0.320 kg
NK73/35Fw: 73 mm | D: 90 mm | B: 35 mm | Cr: 82.5 kN | C0r: 173 kN | Mass: 0.450 kg
NK75/25Fw: 75 mm | D: 92 mm | B: 25 mm | Cr: 43.7 kN | C0r: 90.2 kN | Mass: 0.364 kg
NK75/35Fw: 75 mm | D: 92 mm | B: 35 mm | Cr: 60.9 kN | C0r: 138 kN | Mass: 0.518 kg
NKS75Fw: 75 mm | D: 95 mm | B: 28 mm | Cr: 76.5 kN | C0r: 132 kN | Mass: 0.413 kg
NK80/25Fw: 80 mm | D: 95 mm | B: 25 mm | Cr: 65 kN | C0r: 131 kN | Mass: 0.331 kg
NK80/35Fw: 80 mm | D: 95 mm | B: 35 mm | Cr: 79.7 kN | C0r: 184 kN | Mass: 0.380 kg
NK85/25Fw: 85 mm | D: 105 mm | B: 25 mm | Cr: 76.4 kN | C0r: 137 kN | Mass: 0.506 kg
NK85/35Fw: 85 mm | D: 105 mm | B: 35 mm | Cr: 108 kN | C0r: 214 kN | Mass: 0.610 kg
NK90/25Fw: 90 mm | D: 110 mm | B: 25 mm | Cr: 79.5 kN | C0r: 147 kN | Mass: 0.450 kg
NK90/35Fw: 90 mm | D: 110 mm | B: 35 mm | Cr: 113 kN | C0r: 230 kN | Mass: 0.745 kg
NK95/26Fw: 95 mm | D: 115 mm | B: 26 mm | Cr: 49.3 kN | C0r: 114 kN | Mass: 0.572 kg
NK95/36Fw: 95 mm | D: 115 mm | B: 36 mm | Cr: 114 kN | C0r: 238 kN | Mass: 0.803 kg
NK100/26Fw: 100 mm | D: 120 mm | B: 26 mm | Cr: 83.6 kN | C0r: 163 kN | Mass: 0.530 kg
NK100/36Fw: 100 mm | D: 120 mm | B: 36 mm | Cr: 118 kN | C0r: 254 kN | Mass: 0.658 kg
NK105/26Fw: 105 mm | D: 125 mm | B: 26 mm | Cr: 52.2 kN | C0r: 127 kN | Mass: 0.595 kg
NK110/30Fw: 110 mm | D: 130 mm | B: 30 mm | Cr: 103 kN | C0r: 220 kN | Mass: 0.660 kg
NK110/40Fw: 110 mm | D: 130 mm | B: 40 mm | Cr: 132 kN | C0r: 132 kN | Mass: 0.900 kg
RNA4822Fw: 120 mm | D: 140 mm | B: 30 mm | Cr: 90.3 kN | C0r: 230 kN | Mass: 0.785 kg
RNA4824Fw: 130 mm | D: 150 mm | B: 30 mm | Cr: 94.1 kN | C0r: 249 kN | Mass: 0.850 kg
RNA4826Fw: 145 mm | D: 165 mm | B: 35 mm | Cr: 112 kN | C0r: 323 kN | Mass: 1.100 kg
RNA4828Fw: 155 mm | D: 175 mm | B: 35 mm | Cr: 116 kN | C0r: 346 kN | Mass: 1.170 kg
RNA4830Fw: 165 mm | D: 190 mm | B: 40 mm | Cr: 142 kN | C0r: 402 kN | Mass: 1.540 kg
RNA4832Fw: 175 mm | D: 200 mm | B: 40 mm | Cr: 146 kN | C0r: 425 kN | Mass: 1.910 kg
NQ12/12ADFw: 12 mm | D: 19 mm | B: 12 mm | Cr: 5.4 kN | C0r: 5.5 kN | Mass: 0.012 kg
NQ132112Fw: 13 mm | D: 21 mm | B: 12 mm | Cr: 8.25 kN | C0r: 8.4 kN | Mass: 0.015 kg
15NQ2412AFw: 15 mm | D: 24 mm | B: 12 mm | Cr: 9.7 kN | C0r: 9.75 kN | Mass: 0.019 kg
NQ152516Fw: 15 mm | D: 25 mm | B: 16 mm | Cr: 11.8 kN | C0r: 14 kN | Mass: 0.032 kg
15NQ2812Fw: 15 mm | D: 28 mm | B: 12 mm | Cr: 10.7 kN | C0r: 11.1 kN | Mass: 0.034 kg
NQ152812-1Fw: 15 mm | D: 28 mm | B: 12 mm | Cr: 10.7 kN | C0r: 11.1 kN | Mass: 0.034 kg
NQ182925-1Fw: 18 mm | D: 29 mm | B: 25 mm | Cr: 24.2 kN | C0r: 27.5 kN | Mass: 0.056 kg
18NQ3420ADFw: 18 mm | D: 34 mm | B: 20 mm | Cr: 17.1 kN | C0r: 21.2 kN | Mass: 0.090 kg
20NQ3015EDFw: 20 mm | D: 30 mm | B: 15 mm | Cr: 11.4 kN | C0r: 15.4 kN | Mass: 0.037 kg
NQ203220Fw: 20 mm | D: 32 mm | B: 20 mm | Cr: 23 kN | C0r: 26.6 kN | Mass: 0.057 kg
20NQ3315NEFw: 20 mm | D: 33 mm | B: 15 mm | Cr: 13.8 kN | C0r: 16.5 kN | Mass: 0.093 kg
NQS22/20DFw: 22 mm | D: 35 mm | B: 20 mm | Cr: 21.8 kN | C0r: 25.4 kN | Mass: 0.071 kg
RNA4904ARDFw: 25 mm | D: 37 mm | B: 17 mm | Cr: 21.5 kN | C0r: 25.7 kN | Mass: 0.057 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
