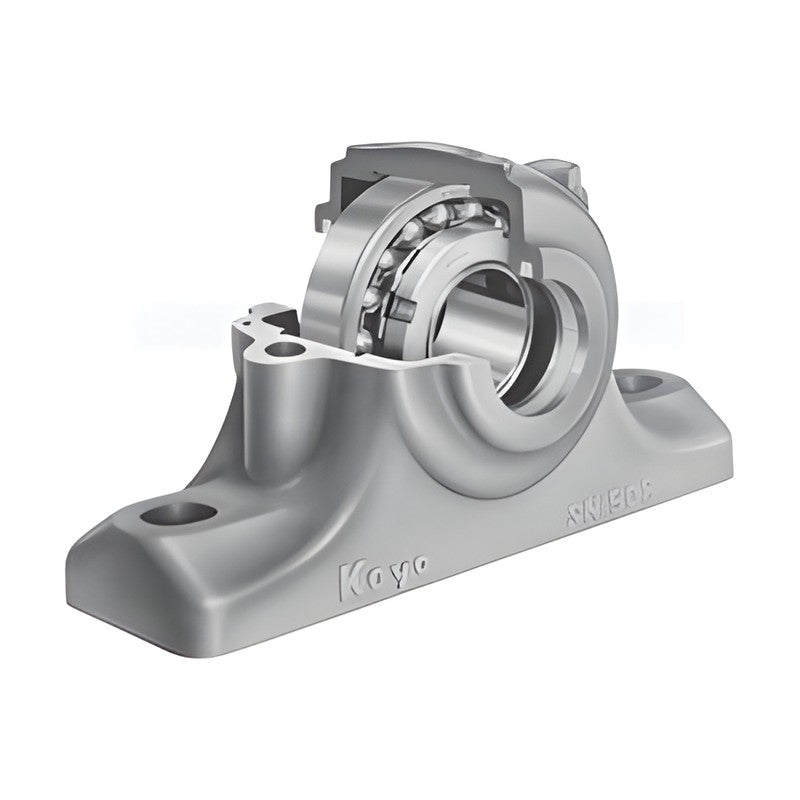

KOYO SD 5, 6, 31 Large Split Plummer Block Housings

Large size split plummer block housings of the SD 5, 6 (SD30, SD31, SD32 etc.) series for large spherical roller bearings on adapter sleeves.

Key features

Cast iron housing with grease nipple and drain plug
Fixed or free side arrangement with stabilizing rings
For self-aligning ball and spherical roller bearings
Applicable bearings, adapters and oil seals listed
Housing mass given for reference

Specifications

Product type	Plummer block housing
Series	SD
Lubrication	Grease nipple R 1/8
Supplied	Housing only (bearing, adapter, seals separate)
Source	KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B564-B569

SD3334		Shaft d1: 150 mm \| D: 260 mm \| H: 160 mm \| Bearings: 23034RHK \| Mass: 70 kg
SD534		Shaft d1: 150 mm \| D: 310 mm \| H: 180 mm \| Bearings: 22234RK \| Mass: 105 kg
SD634		Shaft d1: 150 mm \| D: 360 mm \| H: 210 mm \| Bearings: 22334RK \| Mass: 165 kg
SD3336		Shaft d1: 160 mm \| D: 280 mm \| H: 170 mm \| Bearings: 23036RHK \| Mass: 80 kg
SD536		Shaft d1: 160 mm \| D: 320 mm \| H: 190 mm \| Bearings: 22236RK \| Mass: 120 kg
SD636		Shaft d1: 160 mm \| D: 380 mm \| H: 225 mm \| Bearings: 22336RK \| Mass: 200 kg
SD3338		Shaft d1: 170 mm \| D: 290 mm \| H: 170 mm \| Bearings: 23038RK \| Mass: 90 kg
SD538		Shaft d1: 170 mm \| D: 340 mm \| H: 200 mm \| Bearings: 22238RK \| Mass: 145 kg
SD638		Shaft d1: 170 mm \| D: 400 mm \| H: 240 mm \| Bearings: 22338RK \| Mass: 220 kg
SD3340		Shaft d1: 180 mm \| D: 310 mm \| H: 180 mm \| Bearings: 23040RK \| Mass: 100 kg
SD3440		Shaft d1: 180 mm \| D: 340 mm \| H: 200 mm \| Bearings: 23140RK \| Mass: 135 kg
SD540		Shaft d1: 180 mm \| D: 360 mm \| H: 210 mm \| Bearings: 22240RK \| Mass: 170 kg
SD640		Shaft d1: 180 mm \| D: 420 mm \| H: 250 mm \| Bearings: 22340RK \| Mass: 250 kg
SD3344		Shaft d1: 200 mm \| D: 340 mm \| H: 200 mm \| Bearings: 23044RK \| Mass: 130 kg
SD3444		Shaft d1: 200 mm \| D: 370 mm \| H: 225 mm \| Bearings: 23144RK \| Mass: 185 kg
SD544		Shaft d1: 200 mm \| D: 400 mm \| H: 240 mm \| Bearings: 22244RK \| Mass: 220 kg
SD644		Shaft d1: 200 mm \| D: 460 mm \| H: 280 mm \| Bearings: 22344RK \| Mass: 320 kg
SD3348		Shaft d1: 220 mm \| D: 360 mm \| H: 210 mm \| Bearings: 23048RK \| Mass: 160 kg
SD3448		Shaft d1: 220 mm \| D: 400 mm \| H: 240 mm \| Bearings: 23148RK \| Mass: 210 kg
SD548		Shaft d1: 220 mm \| D: 440 mm \| H: 260 mm \| Bearings: 22248RK \| Mass: 260 kg
SD648		Shaft d1: 220 mm \| D: 500 mm \| H: 300 mm \| Bearings: 22348RK \| Mass: 415 kg
SD3352		Shaft d1: 240 mm \| D: 400 mm \| H: 240 mm \| Bearings: 23052RK \| Mass: 215 kg
SD3452		Shaft d1: 240 mm \| D: 440 mm \| H: 260 mm \| Bearings: 23152RK \| Mass: 245 kg
SD552		Shaft d1: 240 mm \| D: 480 mm \| H: 280 mm \| Bearings: 22252RK \| Mass: 325 kg
SD652		Shaft d1: 240 mm \| D: 540 mm \| H: 325 mm \| Bearings: 22352RK \| Mass: 490 kg
SD3356		Shaft d1: 260 mm \| D: 420 mm \| H: 250 mm \| Bearings: 23056RK \| Mass: 245 kg
SD3456		Shaft d1: 260 mm \| D: 460 mm \| H: 280 mm \| Bearings: 23156RK \| Mass: 320 kg
SD556		Shaft d1: 260 mm \| D: 500 mm \| H: 300 mm \| Bearings: 22256RK \| Mass: 395 kg
SD656		Shaft d1: 260 mm \| D: 580 mm \| H: 355 mm \| Bearings: 22356RK \| Mass: 615 kg
SD3360		Shaft d1: 280 mm \| D: 460 mm \| H: 280 mm \| Bearings: 23060RK \| Mass: 305 kg
SD3460		Shaft d1: 280 mm \| D: 500 mm \| H: 300 mm \| Bearings: 23160RK \| Mass: 400 kg
SD560		Shaft d1: 280 mm \| D: 540 mm \| H: 325 mm \| Bearings: 22260RK \| Mass: 490 kg
SD3364		Shaft d1: 300 mm \| D: 480 mm \| H: 280 mm \| Bearings: 23064RK \| Mass: 325 kg
SD3464		Shaft d1: 300 mm \| D: 540 mm \| H: 325 mm \| Bearings: 23164RK \| Mass: 480 kg
SD564		Shaft d1: 300 mm \| D: 580 mm \| H: 355 mm \| Bearings: 22264RK \| Mass: 600 kg
SD3368		Shaft d1: 320 mm \| D: 520 mm \| H: 310 mm \| Bearings: 23068RK \| Mass: 420 kg
SD3468		Shaft d1: 320 mm \| D: 580 mm \| H: 355 mm \| Bearings: 23168RK \| Mass: 645 kg
SD3372		Shaft d1: 340 mm \| D: 540 mm \| H: 325 mm \| Bearings: 23072RK \| Mass: 470 kg
SD3376		Shaft d1: 360 mm \| D: 560 mm \| H: 340 mm \| Bearings: 23076RK \| Mass: 485 kg
SD3134L		Shaft d1: 150 mm \| D: 280 mm \| H: 170 mm \| Bearings: 23134RHK \| Mass: 65 kg
SD3136L		Shaft d1: 160 mm \| D: 300 mm \| H: 180 mm \| Bearings: 23136RK \| Mass: 75 kg
SD3138L		Shaft d1: 170 mm \| D: 320 mm \| H: 190 mm \| Bearings: 23138RK \| Mass: 95 kg
SD3140L		Shaft d1: 180 mm \| D: 340 mm \| H: 210 mm \| Bearings: 23140RK \| Mass: 120 kg
SD3144L		Shaft d1: 200 mm \| D: 370 mm \| H: 220 mm \| Bearings: 23144RK \| Mass: 140 kg
SD3148L		Shaft d1: 220 mm \| D: 400 mm \| H: 240 mm \| Bearings: 23148RK \| Mass: 180 kg
SD3152L		Shaft d1: 240 mm \| D: 440 mm \| H: 260 mm \| Bearings: 23152RK \| Mass: 220 kg
SD3156L		Shaft d1: 260 mm \| D: 460 mm \| H: 280 mm \| Bearings: 23156RK \| Mass: 250 kg
SD3160L		Shaft d1: 280 mm \| D: 500 mm \| H: 300 mm \| Bearings: 23160RK \| Mass: 300 kg
SD3164L		Shaft d1: 300 mm \| D: 540 mm \| H: 320 mm \| Bearings: 23164RK \| Mass: 340 kg
