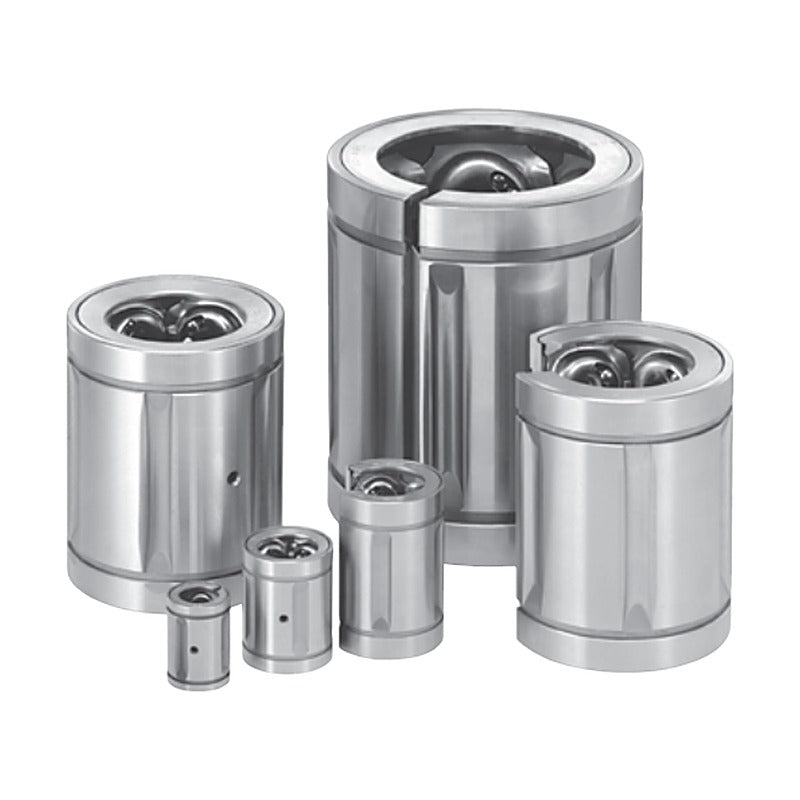

KOYO SDE, SDM Linear Ball Bearings (Standard, AJ, Open)

KOYO SDE, SDM Linear Ball Bearings (Standard, AJ, Open)

Linear ball bearings (linear bushings) for linear motion on round shafts in standard, clearance adjustable (AJ) and open (OP) types, shaft diameter 5 to 120 mm.

Key features

  • Recirculating ball linear bushing
  • Standard, clearance adjustable (AJ) and open (OP) types
  • Low friction linear motion on hardened shafts
  • Shaft diameter 5 to 120 mm
  • Load ratings in N

Specifications

Product type Linear ball bearing
Series SDE, SDM (std, AJ, OP)
Shaft range 5 - 120 mm
Source KOYO Special Bearings catalogue, p. C156-C161
SDE5 Shaft d: 5 mm | D: 12 mm | L: 22 mm | C: 108 N | C0: 183 N | Mass: 10 g
SDM6 Shaft d: 6 mm | D: 12 mm | L: 19 mm | C: 108 N | C0: 186 N | Mass: 7 g
SDM6AJ Shaft d: 6 mm | D: 12 mm | L: 19 mm | C: 108 N | C0: 186 N | Mass: 7 g
SDM6MG Shaft d: 6 mm | D: 12 mm | L: 19 mm | C: 108 N | C0: 186 N | Mass: 6 g
SDM6AJMG Shaft d: 6 mm | D: 12 mm | L: 19 mm | C: 108 N | C0: 186 N | Mass: 6 g
SDM8S Shaft d: 8 mm | D: 15 mm | L: 17 mm | C: 96 N | C0: 160 N | Mass: 10 g
SDM8SAJ Shaft d: 8 mm | D: 15 mm | L: 17 mm | C: 96 N | C0: 160 N | Mass: 10 g
SDM8SMG Shaft d: 8 mm | D: 15 mm | L: 17 mm | C: 96 N | C0: 160 N | Mass: 9 g
SDM8SAJMG Shaft d: 8 mm | D: 15 mm | L: 17 mm | C: 96 N | C0: 160 N | Mass: 9 g
SDM8 Shaft d: 8 mm | D: 15 mm | L: 24 mm | C: 122 N | C0: 223 N | Mass: 14 g
SDM8AJ Shaft d: 8 mm | D: 15 mm | L: 24 mm | C: 122 N | C0: 223 N | Mass: 14 g
SDM8MG Shaft d: 8 mm | D: 15 mm | L: 24 mm | C: 134 N | C0: 255 N | Mass: 13 g
SDM8AJMG Shaft d: 8 mm | D: 15 mm | L: 24 mm | C: 134 N | C0: 255 N | Mass: 13 g
SDE8 Shaft d: 8 mm | D: 16 mm | L: 25 mm | C: 122 N | C0: 223 N | Mass: 20 g
SDE8AJ Shaft d: 8 mm | D: 16 mm | L: 25 mm | C: 122 N | C0: 223 N | Mass: 20 g
SDE8MG Shaft d: 8 mm | D: 16 mm | L: 25 mm | C: 134 N | C0: 255 N | Mass: 18 g
SDE8AJMG Shaft d: 8 mm | D: 16 mm | L: 25 mm | C: 134 N | C0: 255 N | Mass: 18 g
SDM10 Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDM10AJ Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDM10OP Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDM10MG Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 23 g
SDE10 Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDE10AJ Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDE10OP Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDE10MG Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 23 g
SDE10AJMG Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 23 g
SDM12 Shaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 31 g
SDM12AJ Shaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 31 g
SDM12OP Shaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 31 g
SDM12MG Shaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 27 g
SDM12AJMG Shaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 27 g
SDE12 Shaft d: 12 mm | D: 22 mm | L: 32 mm | C: 289 N | C0: 503 N | Mass: 42 g
SDE12AJ Shaft d: 12 mm | D: 22 mm | L: 32 mm | C: 289 N | C0: 503 N | Mass: 42 g
SDE12OP Shaft d: 12 mm | D: 22 mm | L: 32 mm | C: 289 N | C0: 503 N | Mass: 42 g
SDE12MG Shaft d: 12 mm | D: 22 mm | L: 32 mm | C: 289 N | C0: 503 N | Mass: 37 g
SDM13 Shaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 41 g
SDM13AJ Shaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 41 g
SDM13OP Shaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 41 g
SDM13MG Shaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 35 g
SDM13AJMG Shaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 35 g
SDE16 Shaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 53 g
SDE16AJ Shaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 53 g
SDE16OP Shaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 53 g
SDE16MG Shaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 47 g
SDE16AJMG Shaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 47 g
SDM16 Shaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 69 g
SDM16AJ Shaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 69 g
SDM16OP Shaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 69 g
SDM16MG Shaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 59 g
SDM16AJMG Shaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 59 g
SDM20 Shaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 92 g
SDM20AJ Shaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 92 g
SDM20OP Shaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 92 g
SDM20MG Shaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 79 g
SDM20AJMG Shaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 79 g
SDE20 Shaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 96 g
SDE20AJ Shaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 96 g
SDE20OP Shaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 96 g
SDE20MG Shaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 88 g
SDE20AJMG Shaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 88 g
SDE25 Shaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 190 g
SDE25AJ Shaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 190 g
SDE25OP Shaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 190 g
SDE25MG Shaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 170 g
SDE25AJMG Shaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 170 g
SDM25 Shaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 200 g
SDM25AJ Shaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 200 g
SDM25OP Shaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 200 g
SDM25MG Shaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 170 g
SDM25AJMG Shaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 170 g
SDM30 Shaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 250 g
SDM30AJ Shaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 250 g
SDM30OP Shaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 250 g
SDM30MG Shaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 220 g
SDM30AJMG Shaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 220 g
SDE30 Shaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 340 g
SDE30AJ Shaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 340 g
SDE30OP Shaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 340 g
SDE30MG Shaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 320 g
SDE30AJMG Shaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 320 g
SDM35 Shaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 370 g
SDM35AJ Shaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 370 g
SDM35OP Shaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 370 g
SDM35MG Shaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 330 g
SDM35AJMG Shaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 330 g
SDM38 Shaft d: 38 mm | D: 57 mm | L: 76 mm | C: 2 020 N | C0: 3 600 N | Mass: 490 g
SDM38AJ Shaft d: 38 mm | D: 57 mm | L: 76 mm | C: 2 020 N | C0: 3 600 N | Mass: 490 g
SDM38OP Shaft d: 38 mm | D: 57 mm | L: 76 mm | C: 2 020 N | C0: 3 600 N | Mass: 490 g
SDM40 Shaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 590 g
SDM40AJ Shaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 590 g
SDM40OP Shaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 590 g
SDM40MG Shaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 530 g
SDM40AJMG Shaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 530 g
SDE40 Shaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 710 g
SDE40AJ Shaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 710 g
SDE40OP Shaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 710 g
SDE40MG Shaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 650 g
SDE40AJMG Shaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 650 g
SDE50 Shaft d: 50 mm | D: 75 mm | L: 100 mm | C: 4 020 N | C0: 7 110 N | Mass: 1 050 g
SDE50AJ Shaft d: 50 mm | D: 75 mm | L: 100 mm | C: 4 020 N | C0: 7 110 N | Mass: 1 050 g
SDE50OP Shaft d: 50 mm | D: 75 mm | L: 100 mm | C: 4 020 N | C0: 7 110 N | Mass: 1 050 g
SDM50 Shaft d: 50 mm | D: 80 mm | L: 100 mm | C: 4 420 N | C0: 7 150 N | Mass: 1 500 g
SDM50AJ Shaft d: 50 mm | D: 80 mm | L: 100 mm | C: 4 420 N | C0: 7 150 N | Mass: 1 500 g
SDM50OP Shaft d: 50 mm | D: 80 mm | L: 100 mm | C: 4 420 N | C0: 7 150 N | Mass: 1 500 g
SDM60 Shaft d: 60 mm | D: 90 mm | L: 110 mm | C: 5 170 N | C0: 9 030 N | Mass: 1 850 g
SDM60AJ Shaft d: 60 mm | D: 90 mm | L: 110 mm | C: 5 170 N | C0: 9 030 N | Mass: 1 850 g
SDM60OP Shaft d: 60 mm | D: 90 mm | L: 110 mm | C: 5 170 N | C0: 9 030 N | Mass: 1 850 g
SDE60 Shaft d: 60 mm | D: 90 mm | L: 125 mm | C: 6 470 N | C0: 11 100 N | Mass: 1 900 g
SDE60AJ Shaft d: 60 mm | D: 90 mm | L: 125 mm | C: 6 470 N | C0: 11 100 N | Mass: 1 900 g
SDE60OP Shaft d: 60 mm | D: 90 mm | L: 125 mm | C: 6 470 N | C0: 11 100 N | Mass: 1 900 g
SDM80 Shaft d: 80 mm | D: 120 mm | L: 140 mm | C: 8 180 N | C0: 12 800 N | Mass: 4 200 g
SDM80AJ Shaft d: 80 mm | D: 120 mm | L: 140 mm | C: 8 180 N | C0: 12 800 N | Mass: 4 200 g
SDM80OP Shaft d: 80 mm | D: 120 mm | L: 140 mm | C: 8 180 N | C0: 12 800 N | Mass: 4 200 g
SDE80 Shaft d: 80 mm | D: 120 mm | L: 165 mm | C: 8 890 N | C0: 14 500 N | Mass: 4 800 g
SDE80AJ Shaft d: 80 mm | D: 120 mm | L: 165 mm | C: 8 890 N | C0: 14 500 N | Mass: 4 800 g
SDE80OP Shaft d: 80 mm | D: 120 mm | L: 165 mm | C: 8 890 N | C0: 14 500 N | Mass: 4 800 g
SDM100 Shaft d: 100 mm | D: 150 mm | L: 175 mm | C: 12 300 N | C0: 19 700 N | Mass: 8 200 g
SDM100AJ Shaft d: 100 mm | D: 150 mm | L: 175 mm | C: 12 300 N | C0: 19 700 N | Mass: 8 200 g
SDM100OP Shaft d: 100 mm | D: 150 mm | L: 175 mm | C: 12 300 N | C0: 19 700 N | Mass: 8 200 g
SDM120 Shaft d: 120 mm | D: 180 mm | L: 200 mm | C: 22 300 N | C0: 39 100 N | Mass: 15 500 g
SDM120AJ Shaft d: 120 mm | D: 180 mm | L: 200 mm | C: 22 300 N | C0: 39 100 N | Mass: 15 500 g
SDM120OP Shaft d: 120 mm | D: 180 mm | L: 200 mm | C: 22 300 N | C0: 39 100 N | Mass: 15 500 g
Linear BushingsKOYO
122 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO SDE, SDM Linear Ball Bearings (Standard, AJ, Open)

Brand KOYO·Linear Bushings

Available part numbers (122)

SDE5, SDM6, SDM6AJ, SDM6MG, SDM6AJMG, SDM8S, SDM8SAJ, SDM8SMG, SDM8SAJMG, SDM8 + 112 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SDE5Shaft d: 5 mm | D: 12 mm | L: 22 mm | C: 108 N | C0: 183 N | Mass: 10 g
SDM6Shaft d: 6 mm | D: 12 mm | L: 19 mm | C: 108 N | C0: 186 N | Mass: 7 g
SDM6AJShaft d: 6 mm | D: 12 mm | L: 19 mm | C: 108 N | C0: 186 N | Mass: 7 g
SDM6MGShaft d: 6 mm | D: 12 mm | L: 19 mm | C: 108 N | C0: 186 N | Mass: 6 g
SDM6AJMGShaft d: 6 mm | D: 12 mm | L: 19 mm | C: 108 N | C0: 186 N | Mass: 6 g
SDM8SShaft d: 8 mm | D: 15 mm | L: 17 mm | C: 96 N | C0: 160 N | Mass: 10 g
SDM8SAJShaft d: 8 mm | D: 15 mm | L: 17 mm | C: 96 N | C0: 160 N | Mass: 10 g
SDM8SMGShaft d: 8 mm | D: 15 mm | L: 17 mm | C: 96 N | C0: 160 N | Mass: 9 g
SDM8SAJMGShaft d: 8 mm | D: 15 mm | L: 17 mm | C: 96 N | C0: 160 N | Mass: 9 g
SDM8Shaft d: 8 mm | D: 15 mm | L: 24 mm | C: 122 N | C0: 223 N | Mass: 14 g
SDM8AJShaft d: 8 mm | D: 15 mm | L: 24 mm | C: 122 N | C0: 223 N | Mass: 14 g
SDM8MGShaft d: 8 mm | D: 15 mm | L: 24 mm | C: 134 N | C0: 255 N | Mass: 13 g
SDM8AJMGShaft d: 8 mm | D: 15 mm | L: 24 mm | C: 134 N | C0: 255 N | Mass: 13 g
SDE8Shaft d: 8 mm | D: 16 mm | L: 25 mm | C: 122 N | C0: 223 N | Mass: 20 g
SDE8AJShaft d: 8 mm | D: 16 mm | L: 25 mm | C: 122 N | C0: 223 N | Mass: 20 g
SDE8MGShaft d: 8 mm | D: 16 mm | L: 25 mm | C: 134 N | C0: 255 N | Mass: 18 g
SDE8AJMGShaft d: 8 mm | D: 16 mm | L: 25 mm | C: 134 N | C0: 255 N | Mass: 18 g
SDM10Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDM10AJShaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDM10OPShaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDM10MGShaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 23 g
SDE10Shaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDE10AJShaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDE10OPShaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 27 g
SDE10MGShaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 23 g
SDE10AJMGShaft d: 10 mm | D: 19 mm | L: 29 mm | C: 259 N | C0: 424 N | Mass: 23 g
SDM12Shaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 31 g
SDM12AJShaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 31 g
SDM12OPShaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 31 g
SDM12MGShaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 27 g
SDM12AJMGShaft d: 12 mm | D: 21 mm | L: 30 mm | C: 260 N | C0: 431 N | Mass: 27 g
SDE12Shaft d: 12 mm | D: 22 mm | L: 32 mm | C: 289 N | C0: 503 N | Mass: 42 g
SDE12AJShaft d: 12 mm | D: 22 mm | L: 32 mm | C: 289 N | C0: 503 N | Mass: 42 g
SDE12OPShaft d: 12 mm | D: 22 mm | L: 32 mm | C: 289 N | C0: 503 N | Mass: 42 g
SDE12MGShaft d: 12 mm | D: 22 mm | L: 32 mm | C: 289 N | C0: 503 N | Mass: 37 g
SDM13Shaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 41 g
SDM13AJShaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 41 g
SDM13OPShaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 41 g
SDM13MGShaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 35 g
SDM13AJMGShaft d: 13 mm | D: 23 mm | L: 32 mm | C: 289 N | C0: 506 N | Mass: 35 g
SDE16Shaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 53 g
SDE16AJShaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 53 g
SDE16OPShaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 53 g
SDE16MGShaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 47 g
SDE16AJMGShaft d: 16 mm | D: 26 mm | L: 36 mm | C: 319 N | C0: 587 N | Mass: 47 g
SDM16Shaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 69 g
SDM16AJShaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 69 g
SDM16OPShaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 69 g
SDM16MGShaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 59 g
SDM16AJMGShaft d: 16 mm | D: 28 mm | L: 37 mm | C: 480 N | C0: 766 N | Mass: 59 g
SDM20Shaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 92 g
SDM20AJShaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 92 g
SDM20OPShaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 92 g
SDM20MGShaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 79 g
SDM20AJMGShaft d: 20 mm | D: 32 mm | L: 42 mm | C: 590 N | C0: 1 010 N | Mass: 79 g
SDE20Shaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 96 g
SDE20AJShaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 96 g
SDE20OPShaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 96 g
SDE20MGShaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 88 g
SDE20AJMGShaft d: 20 mm | D: 32 mm | L: 45 mm | C: 590 N | C0: 1 010 N | Mass: 88 g
SDE25Shaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 190 g
SDE25AJShaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 190 g
SDE25OPShaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 190 g
SDE25MGShaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 170 g
SDE25AJMGShaft d: 25 mm | D: 40 mm | L: 58 mm | C: 1 130 N | C0: 2 030 N | Mass: 170 g
SDM25Shaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 200 g
SDM25AJShaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 200 g
SDM25OPShaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 200 g
SDM25MGShaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 170 g
SDM25AJMGShaft d: 25 mm | D: 40 mm | L: 59 mm | C: 1 130 N | C0: 2 030 N | Mass: 170 g
SDM30Shaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 250 g
SDM30AJShaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 250 g
SDM30OPShaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 250 g
SDM30MGShaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 220 g
SDM30AJMGShaft d: 30 mm | D: 45 mm | L: 64 mm | C: 1 470 N | C0: 2 770 N | Mass: 220 g
SDE30Shaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 340 g
SDE30AJShaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 340 g
SDE30OPShaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 340 g
SDE30MGShaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 320 g
SDE30AJMGShaft d: 30 mm | D: 47 mm | L: 68 mm | C: 1 470 N | C0: 2 770 N | Mass: 320 g
SDM35Shaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 370 g
SDM35AJShaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 370 g
SDM35OPShaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 370 g
SDM35MGShaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 330 g
SDM35AJMGShaft d: 35 mm | D: 52 mm | L: 70 mm | C: 1 580 N | C0: 3 070 N | Mass: 330 g
SDM38Shaft d: 38 mm | D: 57 mm | L: 76 mm | C: 2 020 N | C0: 3 600 N | Mass: 490 g
SDM38AJShaft d: 38 mm | D: 57 mm | L: 76 mm | C: 2 020 N | C0: 3 600 N | Mass: 490 g
SDM38OPShaft d: 38 mm | D: 57 mm | L: 76 mm | C: 2 020 N | C0: 3 600 N | Mass: 490 g
SDM40Shaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 590 g
SDM40AJShaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 590 g
SDM40OPShaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 590 g
SDM40MGShaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 530 g
SDM40AJMGShaft d: 40 mm | D: 60 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 530 g
SDE40Shaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 710 g
SDE40AJShaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 710 g
SDE40OPShaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 710 g
SDE40MGShaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 650 g
SDE40AJMGShaft d: 40 mm | D: 62 mm | L: 80 mm | C: 2 180 N | C0: 4 010 N | Mass: 650 g
SDE50Shaft d: 50 mm | D: 75 mm | L: 100 mm | C: 4 020 N | C0: 7 110 N | Mass: 1 050 g
SDE50AJShaft d: 50 mm | D: 75 mm | L: 100 mm | C: 4 020 N | C0: 7 110 N | Mass: 1 050 g
SDE50OPShaft d: 50 mm | D: 75 mm | L: 100 mm | C: 4 020 N | C0: 7 110 N | Mass: 1 050 g
SDM50Shaft d: 50 mm | D: 80 mm | L: 100 mm | C: 4 420 N | C0: 7 150 N | Mass: 1 500 g
SDM50AJShaft d: 50 mm | D: 80 mm | L: 100 mm | C: 4 420 N | C0: 7 150 N | Mass: 1 500 g
SDM50OPShaft d: 50 mm | D: 80 mm | L: 100 mm | C: 4 420 N | C0: 7 150 N | Mass: 1 500 g
SDM60Shaft d: 60 mm | D: 90 mm | L: 110 mm | C: 5 170 N | C0: 9 030 N | Mass: 1 850 g
SDM60AJShaft d: 60 mm | D: 90 mm | L: 110 mm | C: 5 170 N | C0: 9 030 N | Mass: 1 850 g
SDM60OPShaft d: 60 mm | D: 90 mm | L: 110 mm | C: 5 170 N | C0: 9 030 N | Mass: 1 850 g
SDE60Shaft d: 60 mm | D: 90 mm | L: 125 mm | C: 6 470 N | C0: 11 100 N | Mass: 1 900 g
SDE60AJShaft d: 60 mm | D: 90 mm | L: 125 mm | C: 6 470 N | C0: 11 100 N | Mass: 1 900 g
SDE60OPShaft d: 60 mm | D: 90 mm | L: 125 mm | C: 6 470 N | C0: 11 100 N | Mass: 1 900 g
SDM80Shaft d: 80 mm | D: 120 mm | L: 140 mm | C: 8 180 N | C0: 12 800 N | Mass: 4 200 g
SDM80AJShaft d: 80 mm | D: 120 mm | L: 140 mm | C: 8 180 N | C0: 12 800 N | Mass: 4 200 g
SDM80OPShaft d: 80 mm | D: 120 mm | L: 140 mm | C: 8 180 N | C0: 12 800 N | Mass: 4 200 g
SDE80Shaft d: 80 mm | D: 120 mm | L: 165 mm | C: 8 890 N | C0: 14 500 N | Mass: 4 800 g
SDE80AJShaft d: 80 mm | D: 120 mm | L: 165 mm | C: 8 890 N | C0: 14 500 N | Mass: 4 800 g
SDE80OPShaft d: 80 mm | D: 120 mm | L: 165 mm | C: 8 890 N | C0: 14 500 N | Mass: 4 800 g
SDM100Shaft d: 100 mm | D: 150 mm | L: 175 mm | C: 12 300 N | C0: 19 700 N | Mass: 8 200 g
SDM100AJShaft d: 100 mm | D: 150 mm | L: 175 mm | C: 12 300 N | C0: 19 700 N | Mass: 8 200 g
SDM100OPShaft d: 100 mm | D: 150 mm | L: 175 mm | C: 12 300 N | C0: 19 700 N | Mass: 8 200 g
SDM120Shaft d: 120 mm | D: 180 mm | L: 200 mm | C: 22 300 N | C0: 39 100 N | Mass: 15 500 g
SDM120AJShaft d: 120 mm | D: 180 mm | L: 200 mm | C: 22 300 N | C0: 39 100 N | Mass: 15 500 g
SDM120OPShaft d: 120 mm | D: 180 mm | L: 200 mm | C: 22 300 N | C0: 39 100 N | Mass: 15 500 g

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
