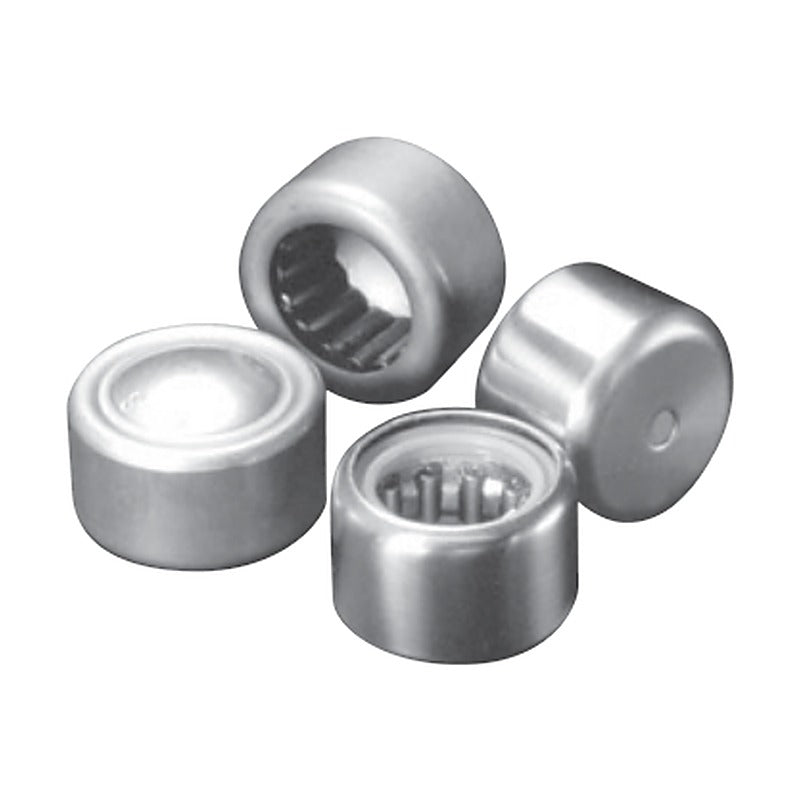

KOYO Sealed Drawn Cup Needle Roller Bearings (HK RS, BK RS, BKM UU)

KOYO Sealed Drawn Cup Needle Roller Bearings (HK RS, BK RS, BKM UU)

Metric drawn cup needle roller bearings with integral lip seals on one side (HK..RS, BK..RS) or both sides (HK..2RS, BKM..UU, BHKM..UU), pre-greased.

Key features

  • Integral lip seals, one or both sides
  • Pre-lubricated with grease
  • Saves axial space versus separate seals
  • Open end and closed end versions

Specifications

Bearing type Drawn cup needle roller bearing, sealed
Series HK..RS, HK..2RS, BK..RS, BKM..UU, BHKM..UU
Source KOYO Needle Roller Bearings catalogue, p. B-2-24 to B-2-26
HK0810RS Fw: 8 mm | D: 12 mm | Width C: 10 mm | Cr: 2.90 kN | C0r: 2.73 kN | Mass: 0.004 kg
HK1012RS Fw: 10 mm | D: 14 mm | Width C: 12 mm | Cr: 4.78 kN | C0r: 5.51 kN | Mass: 0.006 kg
HK1214RS Fw: 12 mm | D: 18 mm | Width C: 14 mm | Cr: 6.61 kN | C0r: 7.29 kN | Mass: 0.013 kg
HK1216.2RS Fw: 12 mm | D: 18 mm | Width C: 16 mm | Cr: 6.87 kN | C0r: 7.65 kN | Mass: 0.016 kg
BK1414RS Fw: 14 mm | D: 20 mm | Width C: 14 mm | Cr: 7.17 kN | C0r: 8.41 kN | Mass: 0.014 kg
HK1414RS Fw: 14 mm | D: 20 mm | Width C: 14 mm | Cr: 7.17 kN | C0r: 8.41 kN | Mass: 0.015 kg
HK1416.2RS Fw: 14 mm | D: 20 mm | Width C: 16 mm | Cr: 7.17 kN | C0r: 8.41 kN | Mass: 0.014 kg
BK1514RS Fw: 15 mm | D: 21 mm | Width C: 14 mm | Cr: 7.87 kN | C0r: 9.69 kN | Mass: 0.017 kg
HK1514RS Fw: 15 mm | D: 21 mm | Width C: 14 mm | Cr: 7.87 kN | C0r: 9.69 kN | Mass: 0.016 kg
HK1516.2RS Fw: 15 mm | D: 21 mm | Width C: 16 mm | Cr: 7.87 kN | C0r: 9.69 kN | Mass: 0.019 kg
HK1614RS Fw: 16 mm | D: 22 mm | Width C: 14 mm | Cr: 7.82 kN | C0r: 9.76 kN | Mass: 0.014 kg
HK1616.2RS Fw: 16 mm | D: 22 mm | Width C: 16 mm | Cr: 7.82 kN | C0r: 9.76 kN | Mass: 0.015 kg
HK1814RS Fw: 18 mm | D: 24 mm | Width C: 14 mm | Cr: 8.41 kN | C0r: 11.10 kN | Mass: 0.018 kg
HK1816.2RS Fw: 18 mm | D: 24 mm | Width C: 16 mm | Cr: 8.41 kN | C0r: 11.10 kN | Mass: 0.017 kg
HK2016.2RS Fw: 20 mm | D: 26 mm | Width C: 16 mm | Cr: 8.97 kN | C0r: 12.50 kN | Mass: 0.023 kg
HK2018RS Fw: 20 mm | D: 26 mm | Width C: 18 mm | Cr: 12.40 kN | C0r: 18.90 kN | Mass: 0.025 kg
HK2020.2RS Fw: 20 mm | D: 26 mm | Width C: 20 mm | Cr: 12.40 kN | C0r: 18.90 kN | Mass: 0.028 kg
HK2218RS Fw: 22 mm | D: 28 mm | Width C: 18 mm | Cr: 13.10 kN | C0r: 20.90 kN | Mass: 0.027 kg
HK2220.2RS Fw: 22 mm | D: 28 mm | Width C: 20 mm | Cr: 13.10 kN | C0r: 20.90 kN | Mass: 0.026 kg
HK2516.2RS Fw: 25 mm | D: 32 mm | Width C: 16 mm | Cr: 11.10 kN | C0r: 15.10 kN | Mass: 0.030 kg
HK2518RS Fw: 25 mm | D: 32 mm | Width C: 18 mm | Cr: 16.20 kN | C0r: 24.60 kN | Mass: 0.034 kg
HK2520.2RS Fw: 25 mm | D: 32 mm | Width C: 20 mm | Cr: 16.20 kN | C0r: 24.60 kN | Mass: 0.033 kg
HK2522RS Fw: 25 mm | D: 32 mm | Width C: 22 mm | Cr: 20.60 kN | C0r: 33.40 kN | Mass: 0.042 kg
HK2524.2RS Fw: 25 mm | D: 32 mm | Width C: 24 mm | Cr: 20.6 kN | C0r: 33.4 kN | Mass: 0.047 kg
HK2820.2RS Fw: 28 mm | D: 35 mm | Width C: 20 mm | Cr: 15.9 kN | C0r: 24.9 kN | Mass: 0.042 kg
HK3016.2RS Fw: 30 mm | D: 37 mm | Width C: 16 mm | Cr: 11.6 kN | C0r: 16.8 kN | Mass: 0.030 kg
HK3018RS Fw: 30 mm | D: 37 mm | Width C: 18 mm | Cr: 16.8 kN | C0r: 27.3 kN | Mass: 0.042 kg
HK3020.2RS Fw: 30 mm | D: 37 mm | Width C: 20 mm | Cr: 16.8 kN | C0r: 27.3 kN | Mass: 0.040 kg
HK3022RS Fw: 30 mm | D: 37 mm | Width C: 22 mm | Cr: 22.4 kN | C0r: 39.6 kN | Mass: 0.051 kg
HK3024.2RS Fw: 30 mm | D: 37 mm | Width C: 24 mm | Cr: 22.4 kN | C0r: 39.6 kN | Mass: 0.057 kg
HK3516.2RS Fw: 35 mm | D: 42 mm | Width C: 16 mm | Cr: 14.2 kN | C0r: 23.2 kN | Mass: 0.047 kg
HK3518RS Fw: 35 mm | D: 42 mm | Width C: 18 mm | Cr: 17.4 kN | C0r: 29.9 kN | Mass: 0.054 kg
HK3520.2RS Fw: 35 mm | D: 42 mm | Width C: 20 mm | Cr: 17.4 kN | C0r: 29.9 kN | Mass: 0.044 kg
HK4016.2RS Fw: 40 mm | D: 47 mm | Width C: 16 mm | Cr: 13.4 kN | C0r: 22.4 kN | Mass: 0.037 kg
HK4018RS Fw: 40 mm | D: 47 mm | Width C: 18 mm | Cr: 18.9 kN | C0r: 34.8 kN | Mass: 0.057 kg
HK4020.2RS Fw: 40 mm | D: 47 mm | Width C: 20 mm | Cr: 18.9 kN | C0r: 34.8 kN | Mass: 0.053 kg
HK4518RS Fw: 45 mm | D: 52 mm | Width C: 18 mm | Cr: 19.8 kN | C0r: 38.5 kN | Mass: 0.064 kg
HK4520.2RS Fw: 45 mm | D: 52 mm | Width C: 20 mm | Cr: 19.8 kN | C0r: 38.5 kN | Mass: 0.055 kg
HK5022RS Fw: 50 mm | D: 58 mm | Width C: 22 mm | Cr: 28.8 kN | C0r: 56.6 kN | Mass: 0.097 kg
HK5024.2RS Fw: 50 mm | D: 58 mm | Width C: 24 mm | Cr: 28.8 kN | C0r: 56.6 kN | Mass: 0.083 kg
Needle Roller BearingsKOYO
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Sealed Drawn Cup Needle Roller Bearings (HK RS, BK RS, BKM UU)

Brand KOYO·Needle Roller Bearings

Available part numbers (40)

HK0810RS, HK1012RS, HK1214RS, HK1216.2RS, BK1414RS, HK1414RS, HK1416.2RS, BK1514RS, HK1514RS, HK1516.2RS + 30 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HK0810RSFw: 8 mm | D: 12 mm | Width C: 10 mm | Cr: 2.90 kN | C0r: 2.73 kN | Mass: 0.004 kg
HK1012RSFw: 10 mm | D: 14 mm | Width C: 12 mm | Cr: 4.78 kN | C0r: 5.51 kN | Mass: 0.006 kg
HK1214RSFw: 12 mm | D: 18 mm | Width C: 14 mm | Cr: 6.61 kN | C0r: 7.29 kN | Mass: 0.013 kg
HK1216.2RSFw: 12 mm | D: 18 mm | Width C: 16 mm | Cr: 6.87 kN | C0r: 7.65 kN | Mass: 0.016 kg
BK1414RSFw: 14 mm | D: 20 mm | Width C: 14 mm | Cr: 7.17 kN | C0r: 8.41 kN | Mass: 0.014 kg
HK1414RSFw: 14 mm | D: 20 mm | Width C: 14 mm | Cr: 7.17 kN | C0r: 8.41 kN | Mass: 0.015 kg
HK1416.2RSFw: 14 mm | D: 20 mm | Width C: 16 mm | Cr: 7.17 kN | C0r: 8.41 kN | Mass: 0.014 kg
BK1514RSFw: 15 mm | D: 21 mm | Width C: 14 mm | Cr: 7.87 kN | C0r: 9.69 kN | Mass: 0.017 kg
HK1514RSFw: 15 mm | D: 21 mm | Width C: 14 mm | Cr: 7.87 kN | C0r: 9.69 kN | Mass: 0.016 kg
HK1516.2RSFw: 15 mm | D: 21 mm | Width C: 16 mm | Cr: 7.87 kN | C0r: 9.69 kN | Mass: 0.019 kg
HK1614RSFw: 16 mm | D: 22 mm | Width C: 14 mm | Cr: 7.82 kN | C0r: 9.76 kN | Mass: 0.014 kg
HK1616.2RSFw: 16 mm | D: 22 mm | Width C: 16 mm | Cr: 7.82 kN | C0r: 9.76 kN | Mass: 0.015 kg
HK1814RSFw: 18 mm | D: 24 mm | Width C: 14 mm | Cr: 8.41 kN | C0r: 11.10 kN | Mass: 0.018 kg
HK1816.2RSFw: 18 mm | D: 24 mm | Width C: 16 mm | Cr: 8.41 kN | C0r: 11.10 kN | Mass: 0.017 kg
HK2016.2RSFw: 20 mm | D: 26 mm | Width C: 16 mm | Cr: 8.97 kN | C0r: 12.50 kN | Mass: 0.023 kg
HK2018RSFw: 20 mm | D: 26 mm | Width C: 18 mm | Cr: 12.40 kN | C0r: 18.90 kN | Mass: 0.025 kg
HK2020.2RSFw: 20 mm | D: 26 mm | Width C: 20 mm | Cr: 12.40 kN | C0r: 18.90 kN | Mass: 0.028 kg
HK2218RSFw: 22 mm | D: 28 mm | Width C: 18 mm | Cr: 13.10 kN | C0r: 20.90 kN | Mass: 0.027 kg
HK2220.2RSFw: 22 mm | D: 28 mm | Width C: 20 mm | Cr: 13.10 kN | C0r: 20.90 kN | Mass: 0.026 kg
HK2516.2RSFw: 25 mm | D: 32 mm | Width C: 16 mm | Cr: 11.10 kN | C0r: 15.10 kN | Mass: 0.030 kg
HK2518RSFw: 25 mm | D: 32 mm | Width C: 18 mm | Cr: 16.20 kN | C0r: 24.60 kN | Mass: 0.034 kg
HK2520.2RSFw: 25 mm | D: 32 mm | Width C: 20 mm | Cr: 16.20 kN | C0r: 24.60 kN | Mass: 0.033 kg
HK2522RSFw: 25 mm | D: 32 mm | Width C: 22 mm | Cr: 20.60 kN | C0r: 33.40 kN | Mass: 0.042 kg
HK2524.2RSFw: 25 mm | D: 32 mm | Width C: 24 mm | Cr: 20.6 kN | C0r: 33.4 kN | Mass: 0.047 kg
HK2820.2RSFw: 28 mm | D: 35 mm | Width C: 20 mm | Cr: 15.9 kN | C0r: 24.9 kN | Mass: 0.042 kg
HK3016.2RSFw: 30 mm | D: 37 mm | Width C: 16 mm | Cr: 11.6 kN | C0r: 16.8 kN | Mass: 0.030 kg
HK3018RSFw: 30 mm | D: 37 mm | Width C: 18 mm | Cr: 16.8 kN | C0r: 27.3 kN | Mass: 0.042 kg
HK3020.2RSFw: 30 mm | D: 37 mm | Width C: 20 mm | Cr: 16.8 kN | C0r: 27.3 kN | Mass: 0.040 kg
HK3022RSFw: 30 mm | D: 37 mm | Width C: 22 mm | Cr: 22.4 kN | C0r: 39.6 kN | Mass: 0.051 kg
HK3024.2RSFw: 30 mm | D: 37 mm | Width C: 24 mm | Cr: 22.4 kN | C0r: 39.6 kN | Mass: 0.057 kg
HK3516.2RSFw: 35 mm | D: 42 mm | Width C: 16 mm | Cr: 14.2 kN | C0r: 23.2 kN | Mass: 0.047 kg
HK3518RSFw: 35 mm | D: 42 mm | Width C: 18 mm | Cr: 17.4 kN | C0r: 29.9 kN | Mass: 0.054 kg
HK3520.2RSFw: 35 mm | D: 42 mm | Width C: 20 mm | Cr: 17.4 kN | C0r: 29.9 kN | Mass: 0.044 kg
HK4016.2RSFw: 40 mm | D: 47 mm | Width C: 16 mm | Cr: 13.4 kN | C0r: 22.4 kN | Mass: 0.037 kg
HK4018RSFw: 40 mm | D: 47 mm | Width C: 18 mm | Cr: 18.9 kN | C0r: 34.8 kN | Mass: 0.057 kg
HK4020.2RSFw: 40 mm | D: 47 mm | Width C: 20 mm | Cr: 18.9 kN | C0r: 34.8 kN | Mass: 0.053 kg
HK4518RSFw: 45 mm | D: 52 mm | Width C: 18 mm | Cr: 19.8 kN | C0r: 38.5 kN | Mass: 0.064 kg
HK4520.2RSFw: 45 mm | D: 52 mm | Width C: 20 mm | Cr: 19.8 kN | C0r: 38.5 kN | Mass: 0.055 kg
HK5022RSFw: 50 mm | D: 58 mm | Width C: 22 mm | Cr: 28.8 kN | C0r: 56.6 kN | Mass: 0.097 kg
HK5024.2RSFw: 50 mm | D: 58 mm | Width C: 24 mm | Cr: 28.8 kN | C0r: 56.6 kN | Mass: 0.083 kg
