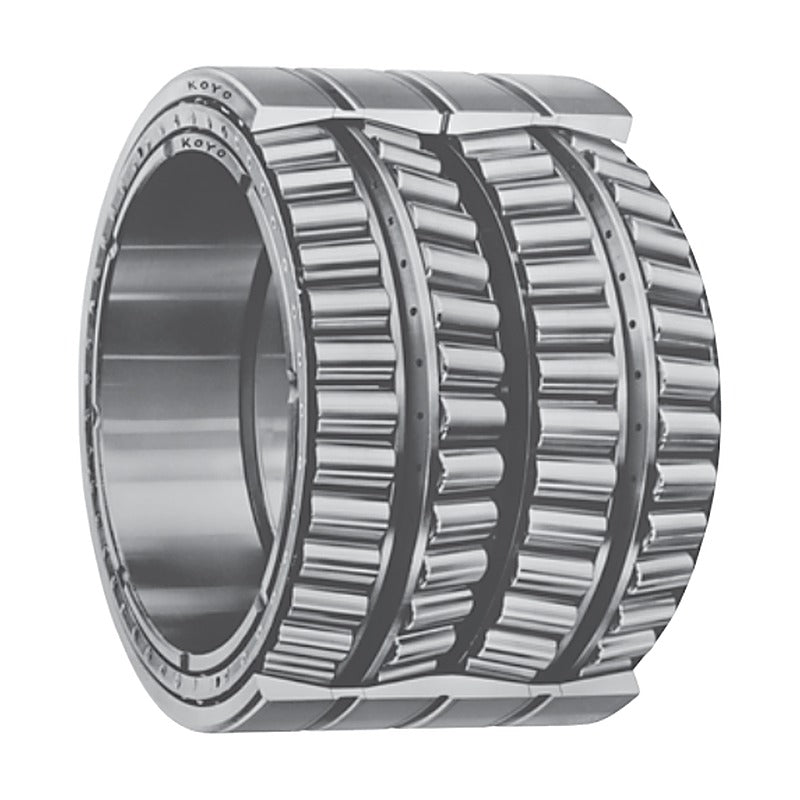

KOYO Sealed Four-Row Tapered Roller Bearings (47TS, 4TRS)

KOYO Sealed Four-Row Tapered Roller Bearings (47TS, 4TRS)

Sealed four-row tapered roller bearings (47TS, 4TRS series) for rolling mill roll necks, pre-greased with integral seals for longer life and reduced grease consumption.

Key features

  • Integral seals keep out water and scale
  • Pre-greased, reduced lubricant use
  • Four-row tapered roller design
  • Metric and inch sizes

Specifications

Bearing type Sealed four-row tapered roller bearing
Series 47TS, 4TRS
Application Rolling mill roll necks
Source KOYO Special Bearings catalogue, p. C128-C139
47TS151215 d: 75 mm | D: 120 mm | B: 150 mm | Cr: 424 kN | C0r: 764 kN | Mass: 6.4 kg
47TS151418 d: 75 mm | D: 135 mm | B: 180 mm | Cr: 455 kN | C0r: 776 kN | Mass: 10.7 kg
47TS282017 d: 140 mm | D: 198 mm | B: 174 mm | Cr: 803 kN | C0r: 1 630 kN | Mass: 16.3 kg
47TS302124 d: 150 mm | D: 210 mm | B: 240 mm | Cr: 993 kN | C0r: 2 270 kN | Mass: 23.5 kg
47TS342418 d: 170 mm | D: 240 mm | B: 175 mm | Cr: 980 kN | C0r: 1 990 kN | Mass: 23.9 kg
47TS342523 d: 170 mm | D: 250 mm | B: 230 mm | Cr: 1 370 kN | C0r: 2 860 kN | Mass: 37.7 kg
47TS382719A d: 190.500 mm | D: 266.700 mm | B: 188.913 mm | Cr: 1 060 kN | C0r: 2 270 kN | Mass: 27.6 kg
47TS392725-1 d: 195 mm | D: 270 mm | B: 250 mm | Cr: 1 420 kN | C0r: 3 550 kN | Mass: 43.6 kg
47TS403030 d: 200 mm | D: 300 mm | B: 300 mm | Cr: 2 260 kN | C0r: 4 900 kN | Mass: 73.5 kg
47TS413227 d: 203.200 mm | D: 317.500 mm | B: 266.700 mm | Cr: 2 060 kN | C0r: 4 010 kN | Mass: 76.8 kg
47TS412819 d: 206.375 mm | D: 282.575 mm | B: 190.500 mm | Cr: 1 100 kN | C0r: 2 240 kN | Mass: 33.5 kg
47TS412824 d: 206.375 mm | D: 282.575 mm | B: 240.000 mm | Cr: 1 450 kN | C0r: 3 380 kN | Mass: 39.6 kg
47TS432918 d: 215.900 mm | D: 288.925 mm | B: 177.800 mm | Cr: 1 060 kN | C0r: 2 350 kN | Mass: 30.6 kg
47TS443032A d: 220 mm | D: 295 mm | B: 315 mm | Cr: 1 540 kN | C0r: 3 910 kN | Mass: 55.8 kg
47TS443229B d: 220 mm | D: 320 mm | B: 290 mm | Cr: 2 200 kN | C0r: 4 700 kN | Mass: 73.9 kg
47TS443326 d: 220 mm | D: 330 mm | B: 260 mm | Cr: 2 100 kN | C0r: 4 220 kN | Mass: 79.5 kg
47TS443124 d: 220.663 mm | D: 314.325 mm | B: 239.713 mm | Cr: 1 680 kN | C0r: 3 410 kN | Mass: 51.9 kg
47TS443133 d: 220.663 mm | D: 314.325 mm | B: 330.000 mm | Cr: 2 360 kN | C0r: 5 650 kN | Mass: 79.2 kg
47TS453223A d: 225 mm | D: 320 mm | B: 230 mm | Cr: 1 630 kN | C0r: 3 350 kN | Mass: 56.9 kg
47TS463120-1 d: 228.600 mm | D: 311.150 mm | B: 200.025 mm | Cr: 1 330 kN | C0r: 2 850 kN | Mass: 41.3 kg
47TS473320A d: 234.950 mm | D: 327.025 mm | B: 196.850 mm | Cr: 1 490 kN | C0r: 3 310 kN | Mass: 48.1 kg
47TS483229-1 d: 240 mm | D: 320 mm | B: 294 mm | Cr: 1 880 kN | C0r: 4 760 kN | Mass: 63.6 kg
47TS483425B d: 240 mm | D: 338 mm | B: 248 mm | Cr: 1 890 kN | C0r: 4 120 kN | Mass: 66 kg
47TS483429 d: 240 mm | D: 338 mm | B: 290 mm | Cr: 2 360 kN | C0r: 5 360 kN | Mass: 78 kg
47TS483432 d: 240 mm | D: 338 mm | B: 320 mm | Cr: 2 430 kN | C0r: 5 890 kN | Mass: 87.3 kg
47TS483434A d: 240 mm | D: 338 mm | B: 340 mm | Cr: 2 450 kN | C0r: 5 930 kN | Mass: 88 kg
47TS483523A d: 241.478 mm | D: 349.148 mm | B: 228.600 mm | Cr: 2 000 kN | C0r: 4 110 kN | Mass: 67.5 kg
47TS493319 d: 244.475 mm | D: 327.025 mm | B: 193.675 mm | Cr: 1 280 kN | C0r: 2 790 kN | Mass: 41.5 kg
47TS493830 d: 244.475 mm | D: 381.000 mm | B: 304.800 mm | Cr: 2 700 kN | C0r: 5 240 kN | Mass: 124 kg
47TS493531-2 d: 245 mm | D: 345 mm | B: 310 mm | Cr: 2 520 kN | C0r: 6 020 kN | Mass: 89.9 kg
47TS503727A-1 d: 250 mm | D: 365 mm | B: 270 mm | Cr: 2 260 kN | C0r: 4 730 kN | Mass: 94.2 kg
47TS513627A-1 d: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 130 kN | C0r: 4 760 kN | Mass: 82 kg
47TS513627B d: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 520 kN | C0r: 6 010 kN | Mass: 85 kg
47TS523734-5 d: 260 mm | D: 365 mm | B: 340 mm | Cr: 2 800 kN | C0r: 6 530 kN | Mass: 110 kg
47TS523735 d: 260 mm | D: 370 mm | B: 354 mm | Cr: 3 100 kN | C0r: 7 410 kN | Mass: 120 kg
47TS533623B d: 266.700 mm | D: 355.600 mm | B: 228.600 mm | Cr: 1 940 kN | C0r: 4 880 kN | Mass: 60 kg
47TS553934 d: 275 mm | D: 385 mm | B: 340 mm | Cr: 2 970 kN | C0r: 7 400 kN | Mass: 121 kg
47TS553927-4 d: 276.225 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 350 kN | C0r: 5 040 kN | Mass: 100 kg
47TS553927A d: 276.225 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 770 kN | C0r: 6 510 kN | Mass: 105 kg
47TS563927 d: 279.400 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 350 kN | C0r: 5 040 kN | Mass: 99.5 kg
47TS563927B d: 279.400 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 770 kN | C0r: 6 510 kN | Mass: 101 kg
47TS563932-2 d: 279.400 mm | D: 393.700 mm | B: 320.000 mm | Cr: 2 880 kN | C0r: 6 900 kN | Mass: 124 kg
47TS563824 d: 279.578 mm | D: 380.898 mm | B: 244.475 mm | Cr: 2 270 kN | C0r: 5 360 kN | Mass: 78.3 kg
47TS563829A d: 280 mm | D: 380 mm | B: 290 mm | Cr: 2 720 kN | C0r: 6 940 kN | Mass: 93.8 kg
47TS564029 d: 280 mm | D: 395 mm | B: 290 mm | Cr: 2 640 kN | C0r: 5 940 kN | Mass: 110 kg
47TS564034A d: 280 mm | D: 395 mm | B: 340 mm | Cr: 2 960 kN | C0r: 7 110 kN | Mass: 130 kg
47TS564127 d: 280 mm | D: 410 mm | B: 268 mm | Cr: 2 240 kN | C0r: 4 510 kN | Mass: 118 kg
47TS564134 d: 280 mm | D: 412 mm | B: 340 mm | Cr: 3 350 kN | C0r: 7 220 kN | Mass: 154 kg
47TS564335 d: 280 mm | D: 430 mm | B: 350 mm | Cr: 3 940 kN | C0r: 8 190 kN | Mass: 178 kg
47TS574034 d: 285 mm | D: 400 mm | B: 340 mm | Cr: 3 190 kN | C0r: 7 610 kN | Mass: 131 kg
47TS573824A d: 285.750 mm | D: 380.898 mm | B: 244.475 mm | Cr: 2 000 kN | C0r: 4 600 kN | Mass: 73.2 kg
47TS584035 d: 290 mm | D: 400 mm | B: 346 mm | Cr: 3 070 kN | C0r: 7 860 kN | Mass: 128 kg
47TS584042C d: 290 mm | D: 400 mm | B: 420 mm | Cr: 3 070 kN | C0r: 7 860 kN | Mass: 155 kg
47TS584238 d: 290 mm | D: 420 mm | B: 380 mm | Cr: 3 640 kN | C0r: 8 260 kN | Mass: 175 kg
47TS584542 d: 290 mm | D: 450 mm | B: 415 mm | Cr: 4 460 kN | C0r: 9 460 kN | Mass: 238 kg
47TS604025 d: 300 mm | D: 400 mm | B: 254 mm | Cr: 2 220 kN | C0r: 5 300 kN | Mass: 84.6 kg
47TS604231 d: 300 mm | D: 420 mm | B: 310 mm | Cr: 2 890 kN | C0r: 6 670 kN | Mass: 128 kg
47TS614428B-10 d: 304.648 mm | D: 438.048 mm | B: 279.400 mm | Cr: 2 570 kN | C0r: 5 380 kN | Mass: 135 kg
47TS614428C-1 d: 304.648 mm | D: 438.048 mm | B: 279.400 mm | Cr: 3 140 kN | C0r: 6 860 kN | Mass: 135 kg
47TS614227 d: 304.800 mm | D: 419.100 mm | B: 269.875 mm | Cr: 2 490 kN | C0r: 5 420 kN | Mass: 100 kg
47TS615034 d: 304.800 mm | D: 501.650 mm | B: 336.550 mm | Cr: 4 280 kN | C0r: 8 570 kN | Mass: 257 kg
47TS614127D d: 304.902 mm | D: 412.648 mm | B: 266.700 mm | Cr: 2 750 kN | C0r: 6 820 kN | Mass: 99.5 kg
47TS624331-4 d: 310 mm | D: 430 mm | B: 310 mm | Cr: 3 010 kN | C0r: 6 880 kN | Mass: 131 kg
47TS624335A d: 310 mm | D: 430 mm | B: 350 mm | Cr: 3 280 kN | C0r: 7 870 kN | Mass: 148 kg
47TS624335B-2 d: 310 mm | D: 430 mm | B: 350 mm | Cr: 3 280 kN | C0r: 7 870 kN | Mass: 148 kg
47TS624639 d: 310 mm | D: 457.098 mm | B: 390 mm | Cr: 4 200 kN | C0r: 9 500 kN | Mass: 220 kg
47TS644537-1 d: 317.500 mm | D: 447.675 mm | B: 367.000 mm | Cr: 3 680 kN | C0r: 8 500 kN | Mass: 176 kg
47TS644434 d: 320 mm | D: 440 mm | B: 335 mm | Cr: 3 140 kN | C0r: 7 330 kN | Mass: 146 kg
47TS644836B d: 320 mm | D: 480 mm | B: 360 mm | Cr: 4 210 kN | C0r: 8 800 kN | Mass: 220 kg
47TS644842 d: 320 mm | D: 480 mm | B: 420 mm | Cr: 5 470 kN | C0r: 12 100 kN | Mass: 262 kg
47TS664425 d: 330.302 mm | D: 438.023 mm | B: 254.000 mm | Cr: 2 190 kN | C0r: 4 960 kN | Mass: 95.8 kg
47TS674634A d: 335.000 mm | D: 460.000 mm | B: 342.900 mm | Cr: 3 740 kN | C0r: 9 290 kN | Mass: 167 kg
47TS684941 d: 342.875 mm | D: 488.900 mm | B: 410.000 mm | Cr: 4 620 kN | C0r: 11 600 kN | Mass: 233 kg
47TS685650 d: 342.875 mm | D: 560 mm | B: 500 mm | Cr: 7 210 kN | C0r: 15 000 kN | Mass: 495 kg
47TS694625D-1 d: 343.052 mm | D: 457.098 mm | B: 254.000 mm | Cr: 2 870 kN | C0r: 7 030 kN | Mass: 110 kg
47TS694630B d: 343.052 mm | D: 457.098 mm | B: 299.000 mm | Cr: 3 310 kN | C0r: 9 010 kN | Mass: 135 kg
47TS694936 d: 346.075 mm | D: 488.950 mm | B: 358.775 mm | Cr: 3 780 kN | C0r: 8 310 kN | Mass: 210 kg
45DS704842C d: 350 mm | D: 480 mm | B: 420 mm | Cr: 3 700 kN | C0r: 9 100 kN | Mass: 217 kg
47TS714932 d: 355 mm | D: 490 mm | B: 316 mm | Cr: 3 540 kN | C0r: 7 920 kN | Mass: 169 kg
47TS714827 d: 355.600 mm | D: 482.600 mm | B: 269.875 mm | Cr: 2 680 kN | C0r: 6 090 kN | Mass: 134 kg
47TS724838A d: 360 mm | D: 480 mm | B: 375 mm | Cr: 4 120 kN | C0r: 10 600 kN | Mass: 181 kg
47TS755026A d: 374.650 mm | D: 501.650 mm | B: 260.350 mm | Cr: 3 120 kN | C0r: 7 470 kN | Mass: 136 kg
47TS765837 d: 380 mm | D: 580 mm | B: 370 mm | Cr: 5 690 kN | C0r: 12 300 kN | Mass: 353 kg
47TS795536A d: 395 mm | D: 545 mm | B: 360 mm | Cr: 3 790 kN | C0r: 8 930 kN | Mass: 242 kg
47TS815529D-2 d: 406.400 mm | D: 546.100 mm | B: 288.925 mm | Cr: 3 620 kN | C0r: 8 190 kN | Mass: 195 kg
47TS815533A d: 406.400 mm | D: 546.100 mm | B: 330.000 mm | Cr: 4 310 kN | C0r: 10 500 kN | Mass: 204 kg
47TS815536A d: 406.400 mm | D: 546.100 mm | B: 357.400 mm | Cr: 3 960 kN | C0r: 9 540 kN | Mass: 220 kg
47TS825540 d: 410 mm | D: 546 mm | B: 400 mm | Cr: 4 630 kN | C0r: 12 000 kN | Mass: 255 kg
47TS835944A d: 415.925 mm | D: 590.550 mm | B: 434.975 mm | Cr: 6 390 kN | C0r: 15 600 kN | Mass: 377 kg
47TS845644 d: 420 mm | D: 560 mm | B: 437 mm | Cr: 5 620 kN | C0r: 14 900 kN | Mass: 298 kg
47TS845748 d: 420 mm | D: 574 mm | B: 480 mm | Cr: 6 730 kN | C0r: 17 800 kN | Mass: 352 kg
47TS846240 d: 420 mm | D: 620 mm | B: 395 mm | Cr: 5 160 kN | C0r: 11 600 kN | Mass: 390 kg
47TS865838A d: 430 mm | D: 575 mm | B: 380 mm | Cr: 5 200 kN | C0r: 14 300 kN | Mass: 276 kg
47TS865734A d: 431.800 mm | D: 571.500 mm | B: 336.550 mm | Cr: 4 440 kN | C0r: 11 600 kN | Mass: 229 kg
47TS885948A-3 d: 440 mm | D: 590 mm | B: 480 mm | Cr: 6 870 kN | C0r: 18 700 kN | Mass: 362 kg
47TS886245-1 d: 440 mm | D: 620 mm | B: 454 mm | Cr: 6 580 kN | C0r: 16 100 kN | Mass: 430 kg
47TS886447 d: 440 mm | D: 635 mm | B: 470 mm | Cr: 6 870 kN | C0r: 15 700 kN | Mass: 461 kg
47TS906042 d: 450 mm | D: 595 mm | B: 420 mm | Cr: 6 110 kN | C0r: 16 300 kN | Mass: 308 kg
47TS916028C d: 457.200 mm | D: 596.900 mm | B: 279.400 mm | Cr: 3 760 kN | C0r: 9 520 kN | Mass: 191 kg
47TS916028D d: 457.200 mm | D: 596.900 mm | B: 279.400 mm | Cr: 3 300 kN | C0r: 8 180 kN | Mass: 187 kg
47TS926247 d: 460 mm | D: 620 mm | B: 470 mm | Cr: 7 060 kN | C0r: 19 300 kN | Mass: 412 kg
47TS966850 d: 479.425 mm | D: 679.450 mm | B: 495.300 mm | Cr: 8 030 kN | C0r: 19 600 kN | Mass: 562 kg
47TS966542 d: 480.000 mm | D: 647.700 mm | B: 417.512 mm | Cr: 6 680 kN | C0r: 17 400 kN | Mass: 391 kg
47TS967047 d: 480 mm | D: 700 mm | B: 470 mm | Cr: 8 080 kN | C0r: 18 800 kN | Mass: 621 kg
4TRS19B d: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 310 kN | C0r: 11 700 kN | Mass: 240 kg
4TRS19C d: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 360 kN | C0r: 11 800 kN | Mass: 229 kg
4TRS19D d: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 510 kN | C0r: 12 400 kN | Mass: 239 kg
47TS976239 d: 482.600 mm | D: 615.950 mm | B: 385.000 mm | Cr: 5 270 kN | C0r: 15 000 kN | Mass: 278 kg
47TS976242 d: 482.600 mm | D: 615.950 mm | B: 420.000 mm | Cr: 5 090 kN | C0r: 14 500 kN | Mass: 302 kg
47TS976243 d: 482.600 mm | D: 615.950 mm | B: 425.000 mm | Cr: 5 090 kN | C0r: 14 500 kN | Mass: 306 kg
47TS976542A d: 482.600 mm | D: 647.700 mm | B: 417.512 mm | Cr: 6 680 kN | C0r: 17 400 kN | Mass: 382 kg
47TS986236 d: 488.950 mm | D: 622.300 mm | B: 365.125 mm | Cr: 4 320 kN | C0r: 12 200 kN | Mass: 270 kg
47TS986648 d: 492 mm | D: 655 mm | B: 480 mm | Cr: 7 450 kN | C0r: 21 200 kN | Mass: 449 kg
4TRS510B d: 509.948 mm | D: 654.924 mm | B: 379.000 mm | Cr: 5 370 kN | C0r: 15 200 kN | Mass: 320 kg
4TRS530A d: 530 mm | D: 715 mm | B: 590 mm | Cr: 10 300 kN | C0r: 28 900 kN | Mass: 664 kg
4TRS559J d: 558.800 mm | D: 736.600 mm | B: 372.263 mm | Cr: 6 910 kN | C0r: 16 100 kN | Mass: 425 kg
4TRS559C d: 558.800 mm | D: 736.600 mm | B: 409.575 mm | Cr: 6 850 kN | C0r: 18 600 kN | Mass: 475 kg
4TRS559A d: 558.800 mm | D: 736.600 mm | B: 450.000 mm | Cr: 7 180 kN | C0r: 19 700 kN | Mass: 507 kg
4TRS559B d: 558.800 mm | D: 736.600 mm | B: 480.000 mm | Cr: 7 960 kN | C0r: 22 700 kN | Mass: 547 kg
4TRS559 d: 558.800 mm | D: 736.600 mm | B: 500.000 mm | Cr: 8 220 kN | C0r: 23 100 kN | Mass: 560 kg
4TRS586A d: 585.788 mm | D: 771.525 mm | B: 479.425 mm | Cr: 8 730 kN | C0r: 24 400 kN | Mass: 613 kg
4TRS595B d: 595.312 mm | D: 844.550 mm | B: 615.950 mm | Cr: 12 700 kN | C0r: 32 200 kN | Mass: 1 120 kg
4TRS600A d: 600 mm | D: 870 mm | B: 700 mm | Cr: 15 100 kN | C0r: 39 400 kN | Mass: 1 370 kg
4TRS610 d: 609.600 mm | D: 787.400 mm | B: 361.950 mm | Cr: 5 920 kN | C0r: 14 900 kN | Mass: 430 kg
4TRS610A d: 609.600 mm | D: 813.562 mm | B: 540.000 mm | Cr: 10 200 kN | C0r: 28 500 kN | Mass: 775 kg
4TRS679 d: 679.450 mm | D: 901.700 mm | B: 552.450 mm | Cr: 11 100 kN | C0r: 30 600 kN | Mass: 951 kg
4TRS686A d: 685.800 mm | D: 876.300 mm | B: 355.600 mm | Cr: 6 130 kN | C0r: 16 300 kN | Mass: 520 kg
4TRS705 d: 704.850 mm | D: 914.400 mm | B: 552.450 mm | Cr: 11 300 kN | C0r: 33 400 kN | Mass: 940 kg
4TRS711N d: 711.200 mm | D: 914.400 mm | B: 317.500 mm | Cr: 6 070 kN | C0r: 16 700 kN | Mass: 507 kg
4TRS711A d: 711.200 mm | D: 914.400 mm | B: 387.350 mm | Cr: 7 160 kN | C0r: 19 400 kN | Mass: 615 kg
4TRS711 d: 711.200 mm | D: 914.400 mm | B: 410.000 mm | Cr: 7 610 kN | C0r: 20 500 kN | Mass: 670 kg
4TRS711L d: 711.200 mm | D: 914.400 mm | B: 420.000 mm | Cr: 7 870 kN | C0r: 22 200 kN | Mass: 678 kg
4TRS800 d: 800 mm | D: 1 130 mm | B: 780 mm | Cr: 21 900 kN | C0r: 58 800 kN | Mass: 2 520 kg
Tapered Roller BearingsKOYO
133 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Sealed Four-Row Tapered Roller Bearings (47TS, 4TRS)

Brand KOYO·Tapered Roller Bearings

Available part numbers (133)

47TS151215, 47TS151418, 47TS282017, 47TS302124, 47TS342418, 47TS342523, 47TS382719A, 47TS392725-1, 47TS403030, 47TS413227 + 123 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
47TS151215d: 75 mm | D: 120 mm | B: 150 mm | Cr: 424 kN | C0r: 764 kN | Mass: 6.4 kg
47TS151418d: 75 mm | D: 135 mm | B: 180 mm | Cr: 455 kN | C0r: 776 kN | Mass: 10.7 kg
47TS282017d: 140 mm | D: 198 mm | B: 174 mm | Cr: 803 kN | C0r: 1 630 kN | Mass: 16.3 kg
47TS302124d: 150 mm | D: 210 mm | B: 240 mm | Cr: 993 kN | C0r: 2 270 kN | Mass: 23.5 kg
47TS342418d: 170 mm | D: 240 mm | B: 175 mm | Cr: 980 kN | C0r: 1 990 kN | Mass: 23.9 kg
47TS342523d: 170 mm | D: 250 mm | B: 230 mm | Cr: 1 370 kN | C0r: 2 860 kN | Mass: 37.7 kg
47TS382719Ad: 190.500 mm | D: 266.700 mm | B: 188.913 mm | Cr: 1 060 kN | C0r: 2 270 kN | Mass: 27.6 kg
47TS392725-1d: 195 mm | D: 270 mm | B: 250 mm | Cr: 1 420 kN | C0r: 3 550 kN | Mass: 43.6 kg
47TS403030d: 200 mm | D: 300 mm | B: 300 mm | Cr: 2 260 kN | C0r: 4 900 kN | Mass: 73.5 kg
47TS413227d: 203.200 mm | D: 317.500 mm | B: 266.700 mm | Cr: 2 060 kN | C0r: 4 010 kN | Mass: 76.8 kg
47TS412819d: 206.375 mm | D: 282.575 mm | B: 190.500 mm | Cr: 1 100 kN | C0r: 2 240 kN | Mass: 33.5 kg
47TS412824d: 206.375 mm | D: 282.575 mm | B: 240.000 mm | Cr: 1 450 kN | C0r: 3 380 kN | Mass: 39.6 kg
47TS432918d: 215.900 mm | D: 288.925 mm | B: 177.800 mm | Cr: 1 060 kN | C0r: 2 350 kN | Mass: 30.6 kg
47TS443032Ad: 220 mm | D: 295 mm | B: 315 mm | Cr: 1 540 kN | C0r: 3 910 kN | Mass: 55.8 kg
47TS443229Bd: 220 mm | D: 320 mm | B: 290 mm | Cr: 2 200 kN | C0r: 4 700 kN | Mass: 73.9 kg
47TS443326d: 220 mm | D: 330 mm | B: 260 mm | Cr: 2 100 kN | C0r: 4 220 kN | Mass: 79.5 kg
47TS443124d: 220.663 mm | D: 314.325 mm | B: 239.713 mm | Cr: 1 680 kN | C0r: 3 410 kN | Mass: 51.9 kg
47TS443133d: 220.663 mm | D: 314.325 mm | B: 330.000 mm | Cr: 2 360 kN | C0r: 5 650 kN | Mass: 79.2 kg
47TS453223Ad: 225 mm | D: 320 mm | B: 230 mm | Cr: 1 630 kN | C0r: 3 350 kN | Mass: 56.9 kg
47TS463120-1d: 228.600 mm | D: 311.150 mm | B: 200.025 mm | Cr: 1 330 kN | C0r: 2 850 kN | Mass: 41.3 kg
47TS473320Ad: 234.950 mm | D: 327.025 mm | B: 196.850 mm | Cr: 1 490 kN | C0r: 3 310 kN | Mass: 48.1 kg
47TS483229-1d: 240 mm | D: 320 mm | B: 294 mm | Cr: 1 880 kN | C0r: 4 760 kN | Mass: 63.6 kg
47TS483425Bd: 240 mm | D: 338 mm | B: 248 mm | Cr: 1 890 kN | C0r: 4 120 kN | Mass: 66 kg
47TS483429d: 240 mm | D: 338 mm | B: 290 mm | Cr: 2 360 kN | C0r: 5 360 kN | Mass: 78 kg
47TS483432d: 240 mm | D: 338 mm | B: 320 mm | Cr: 2 430 kN | C0r: 5 890 kN | Mass: 87.3 kg
47TS483434Ad: 240 mm | D: 338 mm | B: 340 mm | Cr: 2 450 kN | C0r: 5 930 kN | Mass: 88 kg
47TS483523Ad: 241.478 mm | D: 349.148 mm | B: 228.600 mm | Cr: 2 000 kN | C0r: 4 110 kN | Mass: 67.5 kg
47TS493319d: 244.475 mm | D: 327.025 mm | B: 193.675 mm | Cr: 1 280 kN | C0r: 2 790 kN | Mass: 41.5 kg
47TS493830d: 244.475 mm | D: 381.000 mm | B: 304.800 mm | Cr: 2 700 kN | C0r: 5 240 kN | Mass: 124 kg
47TS493531-2d: 245 mm | D: 345 mm | B: 310 mm | Cr: 2 520 kN | C0r: 6 020 kN | Mass: 89.9 kg
47TS503727A-1d: 250 mm | D: 365 mm | B: 270 mm | Cr: 2 260 kN | C0r: 4 730 kN | Mass: 94.2 kg
47TS513627A-1d: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 130 kN | C0r: 4 760 kN | Mass: 82 kg
47TS513627Bd: 254.000 mm | D: 358.775 mm | B: 269.875 mm | Cr: 2 520 kN | C0r: 6 010 kN | Mass: 85 kg
47TS523734-5d: 260 mm | D: 365 mm | B: 340 mm | Cr: 2 800 kN | C0r: 6 530 kN | Mass: 110 kg
47TS523735d: 260 mm | D: 370 mm | B: 354 mm | Cr: 3 100 kN | C0r: 7 410 kN | Mass: 120 kg
47TS533623Bd: 266.700 mm | D: 355.600 mm | B: 228.600 mm | Cr: 1 940 kN | C0r: 4 880 kN | Mass: 60 kg
47TS553934d: 275 mm | D: 385 mm | B: 340 mm | Cr: 2 970 kN | C0r: 7 400 kN | Mass: 121 kg
47TS553927-4d: 276.225 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 350 kN | C0r: 5 040 kN | Mass: 100 kg
47TS553927Ad: 276.225 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 770 kN | C0r: 6 510 kN | Mass: 105 kg
47TS563927d: 279.400 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 350 kN | C0r: 5 040 kN | Mass: 99.5 kg
47TS563927Bd: 279.400 mm | D: 393.700 mm | B: 269.875 mm | Cr: 2 770 kN | C0r: 6 510 kN | Mass: 101 kg
47TS563932-2d: 279.400 mm | D: 393.700 mm | B: 320.000 mm | Cr: 2 880 kN | C0r: 6 900 kN | Mass: 124 kg
47TS563824d: 279.578 mm | D: 380.898 mm | B: 244.475 mm | Cr: 2 270 kN | C0r: 5 360 kN | Mass: 78.3 kg
47TS563829Ad: 280 mm | D: 380 mm | B: 290 mm | Cr: 2 720 kN | C0r: 6 940 kN | Mass: 93.8 kg
47TS564029d: 280 mm | D: 395 mm | B: 290 mm | Cr: 2 640 kN | C0r: 5 940 kN | Mass: 110 kg
47TS564034Ad: 280 mm | D: 395 mm | B: 340 mm | Cr: 2 960 kN | C0r: 7 110 kN | Mass: 130 kg
47TS564127d: 280 mm | D: 410 mm | B: 268 mm | Cr: 2 240 kN | C0r: 4 510 kN | Mass: 118 kg
47TS564134d: 280 mm | D: 412 mm | B: 340 mm | Cr: 3 350 kN | C0r: 7 220 kN | Mass: 154 kg
47TS564335d: 280 mm | D: 430 mm | B: 350 mm | Cr: 3 940 kN | C0r: 8 190 kN | Mass: 178 kg
47TS574034d: 285 mm | D: 400 mm | B: 340 mm | Cr: 3 190 kN | C0r: 7 610 kN | Mass: 131 kg
47TS573824Ad: 285.750 mm | D: 380.898 mm | B: 244.475 mm | Cr: 2 000 kN | C0r: 4 600 kN | Mass: 73.2 kg
47TS584035d: 290 mm | D: 400 mm | B: 346 mm | Cr: 3 070 kN | C0r: 7 860 kN | Mass: 128 kg
47TS584042Cd: 290 mm | D: 400 mm | B: 420 mm | Cr: 3 070 kN | C0r: 7 860 kN | Mass: 155 kg
47TS584238d: 290 mm | D: 420 mm | B: 380 mm | Cr: 3 640 kN | C0r: 8 260 kN | Mass: 175 kg
47TS584542d: 290 mm | D: 450 mm | B: 415 mm | Cr: 4 460 kN | C0r: 9 460 kN | Mass: 238 kg
47TS604025d: 300 mm | D: 400 mm | B: 254 mm | Cr: 2 220 kN | C0r: 5 300 kN | Mass: 84.6 kg
47TS604231d: 300 mm | D: 420 mm | B: 310 mm | Cr: 2 890 kN | C0r: 6 670 kN | Mass: 128 kg
47TS614428B-10d: 304.648 mm | D: 438.048 mm | B: 279.400 mm | Cr: 2 570 kN | C0r: 5 380 kN | Mass: 135 kg
47TS614428C-1d: 304.648 mm | D: 438.048 mm | B: 279.400 mm | Cr: 3 140 kN | C0r: 6 860 kN | Mass: 135 kg
47TS614227d: 304.800 mm | D: 419.100 mm | B: 269.875 mm | Cr: 2 490 kN | C0r: 5 420 kN | Mass: 100 kg
47TS615034d: 304.800 mm | D: 501.650 mm | B: 336.550 mm | Cr: 4 280 kN | C0r: 8 570 kN | Mass: 257 kg
47TS614127Dd: 304.902 mm | D: 412.648 mm | B: 266.700 mm | Cr: 2 750 kN | C0r: 6 820 kN | Mass: 99.5 kg
47TS624331-4d: 310 mm | D: 430 mm | B: 310 mm | Cr: 3 010 kN | C0r: 6 880 kN | Mass: 131 kg
47TS624335Ad: 310 mm | D: 430 mm | B: 350 mm | Cr: 3 280 kN | C0r: 7 870 kN | Mass: 148 kg
47TS624335B-2d: 310 mm | D: 430 mm | B: 350 mm | Cr: 3 280 kN | C0r: 7 870 kN | Mass: 148 kg
47TS624639d: 310 mm | D: 457.098 mm | B: 390 mm | Cr: 4 200 kN | C0r: 9 500 kN | Mass: 220 kg
47TS644537-1d: 317.500 mm | D: 447.675 mm | B: 367.000 mm | Cr: 3 680 kN | C0r: 8 500 kN | Mass: 176 kg
47TS644434d: 320 mm | D: 440 mm | B: 335 mm | Cr: 3 140 kN | C0r: 7 330 kN | Mass: 146 kg
47TS644836Bd: 320 mm | D: 480 mm | B: 360 mm | Cr: 4 210 kN | C0r: 8 800 kN | Mass: 220 kg
47TS644842d: 320 mm | D: 480 mm | B: 420 mm | Cr: 5 470 kN | C0r: 12 100 kN | Mass: 262 kg
47TS664425d: 330.302 mm | D: 438.023 mm | B: 254.000 mm | Cr: 2 190 kN | C0r: 4 960 kN | Mass: 95.8 kg
47TS674634Ad: 335.000 mm | D: 460.000 mm | B: 342.900 mm | Cr: 3 740 kN | C0r: 9 290 kN | Mass: 167 kg
47TS684941d: 342.875 mm | D: 488.900 mm | B: 410.000 mm | Cr: 4 620 kN | C0r: 11 600 kN | Mass: 233 kg
47TS685650d: 342.875 mm | D: 560 mm | B: 500 mm | Cr: 7 210 kN | C0r: 15 000 kN | Mass: 495 kg
47TS694625D-1d: 343.052 mm | D: 457.098 mm | B: 254.000 mm | Cr: 2 870 kN | C0r: 7 030 kN | Mass: 110 kg
47TS694630Bd: 343.052 mm | D: 457.098 mm | B: 299.000 mm | Cr: 3 310 kN | C0r: 9 010 kN | Mass: 135 kg
47TS694936d: 346.075 mm | D: 488.950 mm | B: 358.775 mm | Cr: 3 780 kN | C0r: 8 310 kN | Mass: 210 kg
45DS704842Cd: 350 mm | D: 480 mm | B: 420 mm | Cr: 3 700 kN | C0r: 9 100 kN | Mass: 217 kg
47TS714932d: 355 mm | D: 490 mm | B: 316 mm | Cr: 3 540 kN | C0r: 7 920 kN | Mass: 169 kg
47TS714827d: 355.600 mm | D: 482.600 mm | B: 269.875 mm | Cr: 2 680 kN | C0r: 6 090 kN | Mass: 134 kg
47TS724838Ad: 360 mm | D: 480 mm | B: 375 mm | Cr: 4 120 kN | C0r: 10 600 kN | Mass: 181 kg
47TS755026Ad: 374.650 mm | D: 501.650 mm | B: 260.350 mm | Cr: 3 120 kN | C0r: 7 470 kN | Mass: 136 kg
47TS765837d: 380 mm | D: 580 mm | B: 370 mm | Cr: 5 690 kN | C0r: 12 300 kN | Mass: 353 kg
47TS795536Ad: 395 mm | D: 545 mm | B: 360 mm | Cr: 3 790 kN | C0r: 8 930 kN | Mass: 242 kg
47TS815529D-2d: 406.400 mm | D: 546.100 mm | B: 288.925 mm | Cr: 3 620 kN | C0r: 8 190 kN | Mass: 195 kg
47TS815533Ad: 406.400 mm | D: 546.100 mm | B: 330.000 mm | Cr: 4 310 kN | C0r: 10 500 kN | Mass: 204 kg
47TS815536Ad: 406.400 mm | D: 546.100 mm | B: 357.400 mm | Cr: 3 960 kN | C0r: 9 540 kN | Mass: 220 kg
47TS825540d: 410 mm | D: 546 mm | B: 400 mm | Cr: 4 630 kN | C0r: 12 000 kN | Mass: 255 kg
47TS835944Ad: 415.925 mm | D: 590.550 mm | B: 434.975 mm | Cr: 6 390 kN | C0r: 15 600 kN | Mass: 377 kg
47TS845644d: 420 mm | D: 560 mm | B: 437 mm | Cr: 5 620 kN | C0r: 14 900 kN | Mass: 298 kg
47TS845748d: 420 mm | D: 574 mm | B: 480 mm | Cr: 6 730 kN | C0r: 17 800 kN | Mass: 352 kg
47TS846240d: 420 mm | D: 620 mm | B: 395 mm | Cr: 5 160 kN | C0r: 11 600 kN | Mass: 390 kg
47TS865838Ad: 430 mm | D: 575 mm | B: 380 mm | Cr: 5 200 kN | C0r: 14 300 kN | Mass: 276 kg
47TS865734Ad: 431.800 mm | D: 571.500 mm | B: 336.550 mm | Cr: 4 440 kN | C0r: 11 600 kN | Mass: 229 kg
47TS885948A-3d: 440 mm | D: 590 mm | B: 480 mm | Cr: 6 870 kN | C0r: 18 700 kN | Mass: 362 kg
47TS886245-1d: 440 mm | D: 620 mm | B: 454 mm | Cr: 6 580 kN | C0r: 16 100 kN | Mass: 430 kg
47TS886447d: 440 mm | D: 635 mm | B: 470 mm | Cr: 6 870 kN | C0r: 15 700 kN | Mass: 461 kg
47TS906042d: 450 mm | D: 595 mm | B: 420 mm | Cr: 6 110 kN | C0r: 16 300 kN | Mass: 308 kg
47TS916028Cd: 457.200 mm | D: 596.900 mm | B: 279.400 mm | Cr: 3 760 kN | C0r: 9 520 kN | Mass: 191 kg
47TS916028Dd: 457.200 mm | D: 596.900 mm | B: 279.400 mm | Cr: 3 300 kN | C0r: 8 180 kN | Mass: 187 kg
47TS926247d: 460 mm | D: 620 mm | B: 470 mm | Cr: 7 060 kN | C0r: 19 300 kN | Mass: 412 kg
47TS966850d: 479.425 mm | D: 679.450 mm | B: 495.300 mm | Cr: 8 030 kN | C0r: 19 600 kN | Mass: 562 kg
47TS966542d: 480.000 mm | D: 647.700 mm | B: 417.512 mm | Cr: 6 680 kN | C0r: 17 400 kN | Mass: 391 kg
47TS967047d: 480 mm | D: 700 mm | B: 470 mm | Cr: 8 080 kN | C0r: 18 800 kN | Mass: 621 kg
4TRS19Bd: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 310 kN | C0r: 11 700 kN | Mass: 240 kg
4TRS19Cd: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 360 kN | C0r: 11 800 kN | Mass: 229 kg
4TRS19Dd: 482.600 mm | D: 615.950 mm | B: 330.200 mm | Cr: 4 510 kN | C0r: 12 400 kN | Mass: 239 kg
47TS976239d: 482.600 mm | D: 615.950 mm | B: 385.000 mm | Cr: 5 270 kN | C0r: 15 000 kN | Mass: 278 kg
47TS976242d: 482.600 mm | D: 615.950 mm | B: 420.000 mm | Cr: 5 090 kN | C0r: 14 500 kN | Mass: 302 kg
47TS976243d: 482.600 mm | D: 615.950 mm | B: 425.000 mm | Cr: 5 090 kN | C0r: 14 500 kN | Mass: 306 kg
47TS976542Ad: 482.600 mm | D: 647.700 mm | B: 417.512 mm | Cr: 6 680 kN | C0r: 17 400 kN | Mass: 382 kg
47TS986236d: 488.950 mm | D: 622.300 mm | B: 365.125 mm | Cr: 4 320 kN | C0r: 12 200 kN | Mass: 270 kg
47TS986648d: 492 mm | D: 655 mm | B: 480 mm | Cr: 7 450 kN | C0r: 21 200 kN | Mass: 449 kg
4TRS510Bd: 509.948 mm | D: 654.924 mm | B: 379.000 mm | Cr: 5 370 kN | C0r: 15 200 kN | Mass: 320 kg
4TRS530Ad: 530 mm | D: 715 mm | B: 590 mm | Cr: 10 300 kN | C0r: 28 900 kN | Mass: 664 kg
4TRS559Jd: 558.800 mm | D: 736.600 mm | B: 372.263 mm | Cr: 6 910 kN | C0r: 16 100 kN | Mass: 425 kg
4TRS559Cd: 558.800 mm | D: 736.600 mm | B: 409.575 mm | Cr: 6 850 kN | C0r: 18 600 kN | Mass: 475 kg
4TRS559Ad: 558.800 mm | D: 736.600 mm | B: 450.000 mm | Cr: 7 180 kN | C0r: 19 700 kN | Mass: 507 kg
4TRS559Bd: 558.800 mm | D: 736.600 mm | B: 480.000 mm | Cr: 7 960 kN | C0r: 22 700 kN | Mass: 547 kg
4TRS559d: 558.800 mm | D: 736.600 mm | B: 500.000 mm | Cr: 8 220 kN | C0r: 23 100 kN | Mass: 560 kg
4TRS586Ad: 585.788 mm | D: 771.525 mm | B: 479.425 mm | Cr: 8 730 kN | C0r: 24 400 kN | Mass: 613 kg
4TRS595Bd: 595.312 mm | D: 844.550 mm | B: 615.950 mm | Cr: 12 700 kN | C0r: 32 200 kN | Mass: 1 120 kg
4TRS600Ad: 600 mm | D: 870 mm | B: 700 mm | Cr: 15 100 kN | C0r: 39 400 kN | Mass: 1 370 kg
4TRS610d: 609.600 mm | D: 787.400 mm | B: 361.950 mm | Cr: 5 920 kN | C0r: 14 900 kN | Mass: 430 kg
4TRS610Ad: 609.600 mm | D: 813.562 mm | B: 540.000 mm | Cr: 10 200 kN | C0r: 28 500 kN | Mass: 775 kg
4TRS679d: 679.450 mm | D: 901.700 mm | B: 552.450 mm | Cr: 11 100 kN | C0r: 30 600 kN | Mass: 951 kg
4TRS686Ad: 685.800 mm | D: 876.300 mm | B: 355.600 mm | Cr: 6 130 kN | C0r: 16 300 kN | Mass: 520 kg
4TRS705d: 704.850 mm | D: 914.400 mm | B: 552.450 mm | Cr: 11 300 kN | C0r: 33 400 kN | Mass: 940 kg
4TRS711Nd: 711.200 mm | D: 914.400 mm | B: 317.500 mm | Cr: 6 070 kN | C0r: 16 700 kN | Mass: 507 kg
4TRS711Ad: 711.200 mm | D: 914.400 mm | B: 387.350 mm | Cr: 7 160 kN | C0r: 19 400 kN | Mass: 615 kg
4TRS711d: 711.200 mm | D: 914.400 mm | B: 410.000 mm | Cr: 7 610 kN | C0r: 20 500 kN | Mass: 670 kg
4TRS711Ld: 711.200 mm | D: 914.400 mm | B: 420.000 mm | Cr: 7 870 kN | C0r: 22 200 kN | Mass: 678 kg
4TRS800d: 800 mm | D: 1 130 mm | B: 780 mm | Cr: 21 900 kN | C0r: 58 800 kN | Mass: 2 520 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
