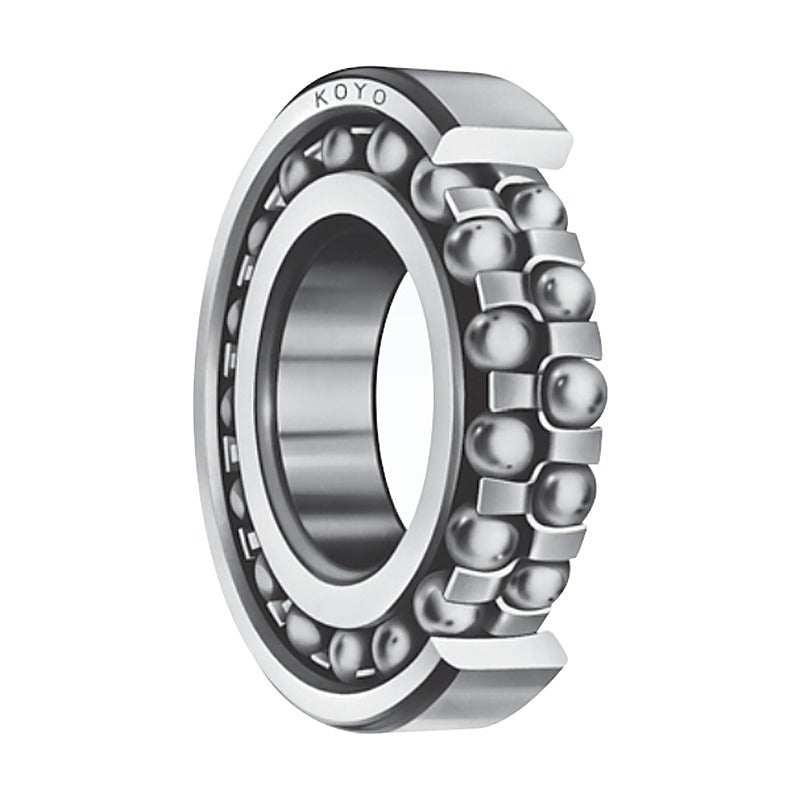

KOYO Self-Aligning Ball Bearings, Sealed (22..2RS, 23..2RS)

KOYO Self-Aligning Ball Bearings, Sealed (22..2RS, 23..2RS)

Self-aligning ball bearings sealed on both sides with contact rubber seals (2RS) in the 22 and 23 series, pre-greased for maintenance-free service.

Key features

  • Contact rubber seals both sides (2RS)
  • Pre-lubricated with grease
  • Self-aligning capability for shaft deflection
  • 22 and 23 dimension series

Specifications

Bearing type Self-aligning ball bearing
Seal / shield 2RS contact seals
Series 22, 23
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B144-B147
2200 2RS d: 10 mm | D: 30 mm | B: 14 mm | Cr: 5.40 kN | C0r: 1.20 kN | Mass: 0.047 kg
2300 2RS d: 10 mm | D: 35 mm | B: 17 mm | Cr: 7.25 kN | C0r: 1.60 kN | Mass: 0.085 kg
2201 2RS d: 12 mm | D: 32 mm | B: 14 mm | Cr: 5.60 kN | C0r: 1.25 kN | Mass: 0.053 kg
2301 2RS d: 12 mm | D: 37 mm | B: 17 mm | Cr: 9.40 kN | C0r: 2.15 kN | Mass: 0.095 kg
2202 2RS d: 15 mm | D: 35 mm | B: 14 mm | Cr: 7.45 kN | C0r: 1.75 kN | Mass: 0.060 kg
2302 2RS d: 15 mm | D: 42 mm | B: 17 mm | Cr: 9.55 kN | C0r: 2.30 kN | Mass: 0.114 kg
2203 2RS d: 17 mm | D: 40 mm | B: 16 mm | Cr: 7.90 kN | C0r: 2.00 kN | Mass: 0.088 kg
2303 2RS d: 17 mm | D: 47 mm | B: 19 mm | Cr: 12.5 kN | C0r: 3.20 kN | Mass: 0.158 kg
2204 2RS d: 20 mm | D: 47 mm | B: 18 mm | Cr: 9.90 kN | C0r: 2.60 kN | Mass: 0.140 kg
2304 2RS d: 20 mm | D: 52 mm | B: 21 mm | Cr: 12.4 kN | C0r: 3.35 kN | Mass: 0.209 kg
2205 2RS d: 25 mm | D: 52 mm | B: 18 mm | Cr: 12.1 kN | C0r: 3.30 kN | Mass: 0.163 kg
2305 2RS d: 25 mm | D: 62 mm | B: 24 mm | Cr: 17.6 kN | C0r: 4.95 kN | Mass: 0.335 kg
2206 2RS d: 30 mm | D: 62 mm | B: 20 mm | Cr: 15.6 kN | C0r: 4.65 kN | Mass: 0.260 kg
2306 2RS d: 30 mm | D: 72 mm | B: 27 mm | Cr: 21.3 kN | C0r: 6.30 kN | Mass: 0.500 kg
2207 2RS d: 35 mm | D: 72 mm | B: 23 mm | Cr: 15.8 kN | C0r: 5.10 kN | Mass: 0.403 kg
2307 2RS d: 35 mm | D: 80 mm | B: 31 mm | Cr: 25.1 kN | C0r: 7.85 kN | Mass: 0.675 kg
2208 2RS d: 40 mm | D: 80 mm | B: 23 mm | Cr: 19.2 kN | C0r: 6.50 kN | Mass: 0.505 kg
2308 2RS d: 40 mm | D: 90 mm | B: 33 mm | Cr: 29.5 kN | C0r: 9.70 kN | Mass: 0.925 kg
2209 2RS d: 45 mm | D: 85 mm | B: 23 mm | Cr: 21.8 kN | C0r: 7.35 kN | Mass: 0.545 kg
2309 2RS d: 45 mm | D: 100 mm | B: 36 mm | Cr: 38.1 kN | C0r: 12.7 kN | Mass: 1.23 kg
2210 2RS d: 50 mm | D: 90 mm | B: 23 mm | Cr: 22.7 kN | C0r: 8.10 kN | Mass: 0.590 kg
2310 2RS d: 50 mm | D: 110 mm | B: 40 mm | Cr: 43.4 kN | C0r: 14.1 kN | Mass: 1.64 kg
2211 2RS d: 55 mm | D: 100 mm | B: 25 mm | Cr: 26.8 kN | C0r: 10.0 kN | Mass: 0.810 kg
2311 2RS d: 55 mm | D: 120 mm | B: 43 mm | Cr: 51.3 kN | C0r: 17.9 kN | Mass: 2.10 kg
2212 2RS d: 60 mm | D: 110 mm | B: 28 mm | Cr: 30.2 kN | C0r: 11.5 kN | Mass: 1.09 kg
2312 2RS d: 60 mm | D: 130 mm | B: 46 mm | Cr: 57.1 kN | C0r: 20.8 kN | Mass: 2.60 kg
2213 2RS d: 65 mm | D: 120 mm | B: 31 mm | Cr: 31.0 kN | C0r: 12.5 kN | Mass: 1.46 kg
2313 2RS d: 65 mm | D: 140 mm | B: 48 mm | Cr: 62.1 kN | C0r: 22.9 kN | Mass: 3.23 kg
2214 2RS d: 70 mm | D: 125 mm | B: 31 mm | Cr: 34.6 kN | C0r: 13.8 kN | Mass: 1.52 kg
2314 2RS d: 70 mm | D: 150 mm | B: 51 mm | Cr: 74.1 kN | C0r: 27.7 kN | Mass: 4.23 kg
2215 2RS d: 75 mm | D: 130 mm | B: 31 mm | Cr: 38.8 kN | C0r: 15.7 kN | Mass: 1.62 kg
2315 2RS d: 75 mm | D: 160 mm | B: 55 mm | Cr: 81.8 kN | C0r: 30.5 kN | Mass: 5.13 kg
2216 2RS d: 80 mm | D: 140 mm | B: 33 mm | Cr: 39.8 kN | C0r: 17.0 kN | Mass: 2.01 kg
2316 2RS d: 80 mm | D: 170 mm | B: 58 mm | Cr: 88.4 kN | C0r: 33.1 kN | Mass: 6.10 kg
2217 2RS d: 85 mm | D: 150 mm | B: 36 mm | Cr: 49.2 kN | C0r: 20.8 kN | Mass: 2.52 kg
2218 2RS d: 90 mm | D: 160 mm | B: 40 mm | Cr: 54.1 kN | C0r: 23.1 kN | Mass: 3.40 kg
2219 2RS d: 95 mm | D: 170 mm | B: 43 mm | Cr: 60.8 kN | C0r: 26.8 kN | Mass: 4.10 kg
2220 2RS d: 100 mm | D: 180 mm | B: 46 mm | Cr: 69.0 kN | C0r: 29.7 kN | Mass: 4.98 kg
2221 2RS d: 105 mm | D: 190 mm | B: 50 mm | Cr: 77.0 kN | C0r: 34.0 kN | Mass: 6.07 kg
2222 2RS d: 110 mm | D: 200 mm | B: 53 mm | Cr: 80.2 kN | C0r: 35.2 kN | Mass: 7.10 kg
Self-Aligning Ball BearingsKOYO
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Self-Aligning Ball Bearings, Sealed (22..2RS, 23..2RS)

Brand KOYO·Self-Aligning Ball Bearings

Available part numbers (40)

2200 2RS, 2300 2RS, 2201 2RS, 2301 2RS, 2202 2RS, 2302 2RS, 2203 2RS, 2303 2RS, 2204 2RS, 2304 2RS + 30 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2200 2RSd: 10 mm | D: 30 mm | B: 14 mm | Cr: 5.40 kN | C0r: 1.20 kN | Mass: 0.047 kg
2300 2RSd: 10 mm | D: 35 mm | B: 17 mm | Cr: 7.25 kN | C0r: 1.60 kN | Mass: 0.085 kg
2201 2RSd: 12 mm | D: 32 mm | B: 14 mm | Cr: 5.60 kN | C0r: 1.25 kN | Mass: 0.053 kg
2301 2RSd: 12 mm | D: 37 mm | B: 17 mm | Cr: 9.40 kN | C0r: 2.15 kN | Mass: 0.095 kg
2202 2RSd: 15 mm | D: 35 mm | B: 14 mm | Cr: 7.45 kN | C0r: 1.75 kN | Mass: 0.060 kg
2302 2RSd: 15 mm | D: 42 mm | B: 17 mm | Cr: 9.55 kN | C0r: 2.30 kN | Mass: 0.114 kg
2203 2RSd: 17 mm | D: 40 mm | B: 16 mm | Cr: 7.90 kN | C0r: 2.00 kN | Mass: 0.088 kg
2303 2RSd: 17 mm | D: 47 mm | B: 19 mm | Cr: 12.5 kN | C0r: 3.20 kN | Mass: 0.158 kg
2204 2RSd: 20 mm | D: 47 mm | B: 18 mm | Cr: 9.90 kN | C0r: 2.60 kN | Mass: 0.140 kg
2304 2RSd: 20 mm | D: 52 mm | B: 21 mm | Cr: 12.4 kN | C0r: 3.35 kN | Mass: 0.209 kg
2205 2RSd: 25 mm | D: 52 mm | B: 18 mm | Cr: 12.1 kN | C0r: 3.30 kN | Mass: 0.163 kg
2305 2RSd: 25 mm | D: 62 mm | B: 24 mm | Cr: 17.6 kN | C0r: 4.95 kN | Mass: 0.335 kg
2206 2RSd: 30 mm | D: 62 mm | B: 20 mm | Cr: 15.6 kN | C0r: 4.65 kN | Mass: 0.260 kg
2306 2RSd: 30 mm | D: 72 mm | B: 27 mm | Cr: 21.3 kN | C0r: 6.30 kN | Mass: 0.500 kg
2207 2RSd: 35 mm | D: 72 mm | B: 23 mm | Cr: 15.8 kN | C0r: 5.10 kN | Mass: 0.403 kg
2307 2RSd: 35 mm | D: 80 mm | B: 31 mm | Cr: 25.1 kN | C0r: 7.85 kN | Mass: 0.675 kg
2208 2RSd: 40 mm | D: 80 mm | B: 23 mm | Cr: 19.2 kN | C0r: 6.50 kN | Mass: 0.505 kg
2308 2RSd: 40 mm | D: 90 mm | B: 33 mm | Cr: 29.5 kN | C0r: 9.70 kN | Mass: 0.925 kg
2209 2RSd: 45 mm | D: 85 mm | B: 23 mm | Cr: 21.8 kN | C0r: 7.35 kN | Mass: 0.545 kg
2309 2RSd: 45 mm | D: 100 mm | B: 36 mm | Cr: 38.1 kN | C0r: 12.7 kN | Mass: 1.23 kg
2210 2RSd: 50 mm | D: 90 mm | B: 23 mm | Cr: 22.7 kN | C0r: 8.10 kN | Mass: 0.590 kg
2310 2RSd: 50 mm | D: 110 mm | B: 40 mm | Cr: 43.4 kN | C0r: 14.1 kN | Mass: 1.64 kg
2211 2RSd: 55 mm | D: 100 mm | B: 25 mm | Cr: 26.8 kN | C0r: 10.0 kN | Mass: 0.810 kg
2311 2RSd: 55 mm | D: 120 mm | B: 43 mm | Cr: 51.3 kN | C0r: 17.9 kN | Mass: 2.10 kg
2212 2RSd: 60 mm | D: 110 mm | B: 28 mm | Cr: 30.2 kN | C0r: 11.5 kN | Mass: 1.09 kg
2312 2RSd: 60 mm | D: 130 mm | B: 46 mm | Cr: 57.1 kN | C0r: 20.8 kN | Mass: 2.60 kg
2213 2RSd: 65 mm | D: 120 mm | B: 31 mm | Cr: 31.0 kN | C0r: 12.5 kN | Mass: 1.46 kg
2313 2RSd: 65 mm | D: 140 mm | B: 48 mm | Cr: 62.1 kN | C0r: 22.9 kN | Mass: 3.23 kg
2214 2RSd: 70 mm | D: 125 mm | B: 31 mm | Cr: 34.6 kN | C0r: 13.8 kN | Mass: 1.52 kg
2314 2RSd: 70 mm | D: 150 mm | B: 51 mm | Cr: 74.1 kN | C0r: 27.7 kN | Mass: 4.23 kg
2215 2RSd: 75 mm | D: 130 mm | B: 31 mm | Cr: 38.8 kN | C0r: 15.7 kN | Mass: 1.62 kg
2315 2RSd: 75 mm | D: 160 mm | B: 55 mm | Cr: 81.8 kN | C0r: 30.5 kN | Mass: 5.13 kg
2216 2RSd: 80 mm | D: 140 mm | B: 33 mm | Cr: 39.8 kN | C0r: 17.0 kN | Mass: 2.01 kg
2316 2RSd: 80 mm | D: 170 mm | B: 58 mm | Cr: 88.4 kN | C0r: 33.1 kN | Mass: 6.10 kg
2217 2RSd: 85 mm | D: 150 mm | B: 36 mm | Cr: 49.2 kN | C0r: 20.8 kN | Mass: 2.52 kg
2218 2RSd: 90 mm | D: 160 mm | B: 40 mm | Cr: 54.1 kN | C0r: 23.1 kN | Mass: 3.40 kg
2219 2RSd: 95 mm | D: 170 mm | B: 43 mm | Cr: 60.8 kN | C0r: 26.8 kN | Mass: 4.10 kg
2220 2RSd: 100 mm | D: 180 mm | B: 46 mm | Cr: 69.0 kN | C0r: 29.7 kN | Mass: 4.98 kg
2221 2RSd: 105 mm | D: 190 mm | B: 50 mm | Cr: 77.0 kN | C0r: 34.0 kN | Mass: 6.07 kg
2222 2RSd: 110 mm | D: 200 mm | B: 53 mm | Cr: 80.2 kN | C0r: 35.2 kN | Mass: 7.10 kg
