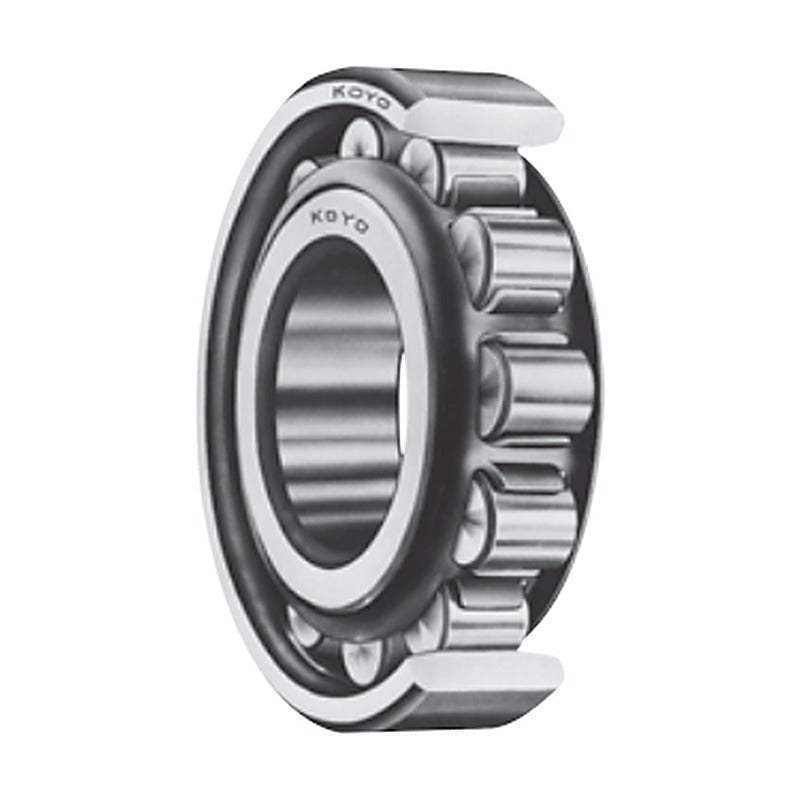

KOYO Single-Row Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

KOYO Single-Row Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

Single-row cylindrical roller bearings in NU, NJ, NUP, N and NF configurations, series 10, 2, 22, 3, 23 and 4 including high-capacity R types. High radial load capacity, suitable for high speeds.

Key features

  • NU and N types allow axial shaft displacement
  • NJ and NF types locate in one direction
  • NUP type locates in both directions
  • R-suffix high-capacity designs
  • Separable rings for easy mounting
  • Mass listed for NU type

Specifications

Bearing type Single-row cylindrical roller bearing
Configurations NU, NJ, NUP, N, NF
Series 10, 2, 22, 3, 23, 4
Mass Reference, NU type
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B158-B183
N204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Mass: 0.108 kg
NF204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Mass: 0.108 kg
NU204R d: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.112 kg
NJ204R d: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.112 kg
NUP204R d: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.112 kg
NU2204 d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Mass: 0.146 kg
NJ2204 d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Mass: 0.146 kg
NUP2204 d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Mass: 0.146 kg
NU2204R d: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.6 kN | C0r: 28.3 kN | Mass: 0.146 kg
NJ2204R d: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.6 kN | C0r: 28.3 kN | Mass: 0.146 kg
NUP2204R d: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.6 kN | C0r: 28.3 kN | Mass: 0.146 kg
N304 d: 20 mm | D: 52 mm | B: 15 mm | Cr: 23.1 kN | C0r: 19.2 kN | Mass: 0.147 kg
NF304 d: 20 mm | D: 52 mm | B: 15 mm | Cr: 23.1 kN | C0r: 19.2 kN | Mass: 0.147 kg
NU304R d: 20 mm | D: 52 mm | B: 15 mm | Cr: 31.5 kN | C0r: 26.9 kN | Mass: 0.153 kg
NJ304R d: 20 mm | D: 52 mm | B: 15 mm | Cr: 31.5 kN | C0r: 26.9 kN | Mass: 0.153 kg
NUP304R d: 20 mm | D: 52 mm | B: 15 mm | Cr: 31.5 kN | C0r: 26.9 kN | Mass: 0.153 kg
NU2304 d: 20 mm | D: 52 mm | B: 21 mm | Cr: 32.9 kN | C0r: 30.2 kN | Mass: 0.212 kg
NJ2304 d: 20 mm | D: 52 mm | B: 21 mm | Cr: 32.9 kN | C0r: 30.2 kN | Mass: 0.212 kg
NUP2304 d: 20 mm | D: 52 mm | B: 21 mm | Cr: 32.9 kN | C0r: 30.2 kN | Mass: 0.212 kg
NU2304R d: 20 mm | D: 52 mm | B: 21 mm | Cr: 42.0 kN | C0r: 38.8 kN | Mass: 0.215 kg
NJ2304R d: 20 mm | D: 52 mm | B: 21 mm | Cr: 42.0 kN | C0r: 38.8 kN | Mass: 0.215 kg
NUP2304R d: 20 mm | D: 52 mm | B: 21 mm | Cr: 42.0 kN | C0r: 38.8 kN | Mass: 0.215 kg
NU1005 d: 25 mm | D: 47 mm | B: 12 mm | Cr: 14.3 kN | C0r: 13.1 kN | Mass: 0.084 kg
NUP1005 d: 25 mm | D: 47 mm | B: 12 mm | Cr: 14.3 kN | C0r: 13.1 kN | Mass: 0.084 kg
N205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Mass: 0.132 kg
NF205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Mass: 0.132 kg
NU205R d: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.138 kg
NJ205R d: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.138 kg
NUP205R d: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.138 kg
NU2205 d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Mass: 0.163 kg
NJ2205 d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Mass: 0.163 kg
NUP2205 d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Mass: 0.163 kg
NU2205R d: 25 mm | D: 52 mm | B: 18 mm | Cr: 34.9 kN | C0r: 34.6 kN | Mass: 0.166 kg
NJ2205R d: 25 mm | D: 52 mm | B: 18 mm | Cr: 34.9 kN | C0r: 34.6 kN | Mass: 0.166 kg
NUP2205R d: 25 mm | D: 52 mm | B: 18 mm | Cr: 34.9 kN | C0r: 34.6 kN | Mass: 0.166 kg
N305 d: 25 mm | D: 62 mm | B: 17 mm | Cr: 29.3 kN | C0r: 25.2 kN | Mass: 0.235 kg
NF305 d: 25 mm | D: 62 mm | B: 17 mm | Cr: 29.3 kN | C0r: 25.2 kN | Mass: 0.235 kg
NU305R d: 25 mm | D: 62 mm | B: 17 mm | Cr: 41.6 kN | C0r: 37.4 kN | Mass: 0.243 kg
NJ305R d: 25 mm | D: 62 mm | B: 17 mm | Cr: 41.6 kN | C0r: 37.4 kN | Mass: 0.243 kg
NUP305R d: 25 mm | D: 62 mm | B: 17 mm | Cr: 41.6 kN | C0r: 37.4 kN | Mass: 0.243 kg
NU2305 d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.7 kN | C0r: 40.9 kN | Mass: 0.340 kg
NJ2305 d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.7 kN | C0r: 40.9 kN | Mass: 0.340 kg
NUP2305 d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.7 kN | C0r: 40.9 kN | Mass: 0.340 kg
NU2305R d: 25 mm | D: 62 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.1 kN | Mass: 0.350 kg
NJ2305R d: 25 mm | D: 62 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.1 kN | Mass: 0.350 kg
NUP2305R d: 25 mm | D: 62 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.1 kN | Mass: 0.350 kg
NU1006 d: 30 mm | D: 55 mm | B: 13 mm | Cr: 18.7 kN | C0r: 18.4 kN | Mass: 0.121 kg
NUP1006 d: 30 mm | D: 55 mm | B: 13 mm | Cr: 18.7 kN | C0r: 18.4 kN | Mass: 0.121 kg
N206 d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Mass: 0.206 kg
NF206 d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Mass: 0.206 kg
NU206R d: 30 mm | D: 62 mm | B: 16 mm | Cr: 39.1 kN | C0r: 37.4 kN | Mass: 0.209 kg
NJ206R d: 30 mm | D: 62 mm | B: 16 mm | Cr: 39.1 kN | C0r: 37.4 kN | Mass: 0.209 kg
NUP206R d: 30 mm | D: 62 mm | B: 16 mm | Cr: 39.1 kN | C0r: 37.4 kN | Mass: 0.209 kg
NU2206 d: 30 mm | D: 62 mm | B: 20 mm | Cr: 32.9 kN | C0r: 33.1 kN | Mass: 0.262 kg
NJ2206 d: 30 mm | D: 62 mm | B: 20 mm | Cr: 32.9 kN | C0r: 33.1 kN | Mass: 0.262 kg
NUP2206 d: 30 mm | D: 62 mm | B: 20 mm | Cr: 32.9 kN | C0r: 33.1 kN | Mass: 0.262 kg
NU2206R d: 30 mm | D: 62 mm | B: 20 mm | Cr: 48.9 kN | C0r: 49.8 kN | Mass: 0.262 kg
NJ2206R d: 30 mm | D: 62 mm | B: 20 mm | Cr: 48.9 kN | C0r: 49.8 kN | Mass: 0.262 kg
NUP2206R d: 30 mm | D: 62 mm | B: 20 mm | Cr: 48.9 kN | C0r: 49.8 kN | Mass: 0.262 kg
NU3206 d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 42.7 kN | C0r: 46.4 kN | Mass: 0.343 kg
N306 d: 30 mm | D: 72 mm | B: 19 mm | Cr: 38.6 kN | C0r: 35.2 kN | Mass: 0.353 kg
NF306 d: 30 mm | D: 72 mm | B: 19 mm | Cr: 38.6 kN | C0r: 35.2 kN | Mass: 0.353 kg
NU306R d: 30 mm | D: 72 mm | B: 19 mm | Cr: 53.1 kN | C0r: 50.2 kN | Mass: 0.361 kg
NJ306R d: 30 mm | D: 72 mm | B: 19 mm | Cr: 53.1 kN | C0r: 50.2 kN | Mass: 0.361 kg
NUP306R d: 30 mm | D: 72 mm | B: 19 mm | Cr: 53.1 kN | C0r: 50.2 kN | Mass: 0.361 kg
NU2306 d: 30 mm | D: 72 mm | B: 27 mm | Cr: 51.4 kN | C0r: 50.8 kN | Mass: 0.500 kg
NJ2306 d: 30 mm | D: 72 mm | B: 27 mm | Cr: 51.4 kN | C0r: 50.8 kN | Mass: 0.500 kg
NUP2306 d: 30 mm | D: 72 mm | B: 27 mm | Cr: 51.4 kN | C0r: 50.8 kN | Mass: 0.500 kg
NU2306R d: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.6 kN | C0r: 77.6 kN | Mass: 0.534 kg
NJ2306R d: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.6 kN | C0r: 77.6 kN | Mass: 0.534 kg
NUP2306R d: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.6 kN | C0r: 77.6 kN | Mass: 0.534 kg
NU3306 d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 69.1 kN | C0r: 74.3 kN | Mass: 0.650 kg
NU406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
NJ406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
NUP406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
N406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
NF406 d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
NU1007 d: 35 mm | D: 62 mm | B: 14 mm | Cr: 22.6 kN | C0r: 23.2 kN | Mass: 0.182 kg
NUP1007 d: 35 mm | D: 62 mm | B: 14 mm | Cr: 22.6 kN | C0r: 23.2 kN | Mass: 0.182 kg
N207 d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.6 kN | C0r: 31.5 kN | Mass: 0.293 kg
NF207 d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.6 kN | C0r: 31.5 kN | Mass: 0.293 kg
NU207R d: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.2 kN | C0r: 50.2 kN | Mass: 0.306 kg
NJ207R d: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.2 kN | C0r: 50.2 kN | Mass: 0.306 kg
NUP207R d: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.2 kN | C0r: 50.2 kN | Mass: 0.306 kg
NU2207 d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49.0 kN | C0r: 51.2 kN | Mass: 0.402 kg
NJ2207 d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49.0 kN | C0r: 51.2 kN | Mass: 0.402 kg
NUP2207 d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49.0 kN | C0r: 51.2 kN | Mass: 0.402 kg
NU2207R d: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.6 kN | C0r: 65.3 kN | Mass: 0.404 kg
NJ2207R d: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.6 kN | C0r: 65.3 kN | Mass: 0.404 kg
NUP2207R d: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.6 kN | C0r: 65.3 kN | Mass: 0.404 kg
NU3207 d: 35 mm | D: 72 mm | B: 27 mm | Cr: 54.8 kN | C0r: 59.1 kN | Mass: 0.524 kg
N307 d: 35 mm | D: 80 mm | B: 21 mm | Cr: 49.6 kN | C0r: 46.9 kN | Mass: 0.477 kg
NF307 d: 35 mm | D: 80 mm | B: 21 mm | Cr: 49.6 kN | C0r: 46.9 kN | Mass: 0.477 kg
NU307R d: 35 mm | D: 80 mm | B: 21 mm | Cr: 66.6 kN | C0r: 65.4 kN | Mass: 0.482 kg
NJ307R d: 35 mm | D: 80 mm | B: 21 mm | Cr: 66.6 kN | C0r: 65.4 kN | Mass: 0.482 kg
NUP307R d: 35 mm | D: 80 mm | B: 21 mm | Cr: 66.6 kN | C0r: 65.4 kN | Mass: 0.482 kg
NU2307 d: 35 mm | D: 80 mm | B: 31 mm | Cr: 64.4 kN | C0r: 65.7 kN | Mass: 0.696 kg
NJ2307 d: 35 mm | D: 80 mm | B: 31 mm | Cr: 64.4 kN | C0r: 65.7 kN | Mass: 0.696 kg
NUP2307 d: 35 mm | D: 80 mm | B: 31 mm | Cr: 64.4 kN | C0r: 65.7 kN | Mass: 0.696 kg
NU2307R d: 35 mm | D: 80 mm | B: 31 mm | Cr: 93.1 kN | C0r: 101 kN | Mass: 0.729 kg
NJ2307R d: 35 mm | D: 80 mm | B: 31 mm | Cr: 93.1 kN | C0r: 101 kN | Mass: 0.729 kg
NUP2307R d: 35 mm | D: 80 mm | B: 31 mm | Cr: 93.1 kN | C0r: 101 kN | Mass: 0.729 kg
NU3307 d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 81.7 kN | C0r: 89.1 kN | Mass: 0.908 kg
NU407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
NJ407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
NUP407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
N407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
NF407 d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
NU1008 d: 40 mm | D: 68 mm | B: 15 mm | Cr: 24.9 kN | C0r: 25.7 kN | Mass: 0.223 kg
NUP1008 d: 40 mm | D: 68 mm | B: 15 mm | Cr: 24.9 kN | C0r: 25.7 kN | Mass: 0.223 kg
N208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.8 kN | C0r: 42.9 kN | Mass: 0.374 kg
NF208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.8 kN | C0r: 42.9 kN | Mass: 0.374 kg
NU208R d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.7 kN | C0r: 55.4 kN | Mass: 0.384 kg
NJ208R d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.7 kN | C0r: 55.4 kN | Mass: 0.384 kg
NUP208R d: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.7 kN | C0r: 55.4 kN | Mass: 0.384 kg
NU2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58.3 kN | C0r: 62.0 kN | Mass: 0.490 kg
NJ2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58.3 kN | C0r: 62.0 kN | Mass: 0.490 kg
NUP2208 d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58.3 kN | C0r: 62.0 kN | Mass: 0.490 kg
NU2208R d: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.3 kN | C0r: 77.6 kN | Mass: 0.490 kg
NJ2208R d: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.3 kN | C0r: 77.6 kN | Mass: 0.490 kg
NUP2208R d: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.3 kN | C0r: 77.6 kN | Mass: 0.490 kg
NU3208 d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 78.3 kN | C0r: 90.6 kN | Mass: 0.711 kg
N308 d: 40 mm | D: 90 mm | B: 23 mm | Cr: 58.6 kN | C0r: 56.9 kN | Mass: 0.646 kg
NF308 d: 40 mm | D: 90 mm | B: 23 mm | Cr: 58.6 kN | C0r: 56.9 kN | Mass: 0.646 kg
NU308R d: 40 mm | D: 90 mm | B: 23 mm | Cr: 83.1 kN | C0r: 81.5 kN | Mass: 0.664 kg
NJ308R d: 40 mm | D: 90 mm | B: 23 mm | Cr: 83.1 kN | C0r: 81.5 kN | Mass: 0.664 kg
NUP308R d: 40 mm | D: 90 mm | B: 23 mm | Cr: 83.1 kN | C0r: 81.5 kN | Mass: 0.664 kg
NU2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.2 kN | C0r: 88.0 kN | Mass: 0.956 kg
NJ2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.2 kN | C0r: 88.0 kN | Mass: 0.956 kg
NUP2308 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.2 kN | C0r: 88.0 kN | Mass: 0.956 kg
NU2308R d: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 0.962 kg
NJ2308R d: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 0.962 kg
NUP2308R d: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 0.962 kg
NU3308 d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 104 kN | C0r: 119 kN | Mass: 1.19 kg
NU408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
NJ408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
NUP408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
N408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
NF408 d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
NU1009 d: 45 mm | D: 75 mm | B: 16 mm | Cr: 31.0 kN | C0r: 33.8 kN | Mass: 0.289 kg
NUP1009 d: 45 mm | D: 75 mm | B: 16 mm | Cr: 31.0 kN | C0r: 33.8 kN | Mass: 0.289 kg
N209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46.1 kN | C0r: 46.9 kN | Mass: 0.427 kg
NF209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46.1 kN | C0r: 46.9 kN | Mass: 0.427 kg
NU209R d: 45 mm | D: 85 mm | B: 19 mm | Cr: 63.1 kN | C0r: 66.4 kN | Mass: 0.439 kg
NJ209R d: 45 mm | D: 85 mm | B: 19 mm | Cr: 63.1 kN | C0r: 66.4 kN | Mass: 0.439 kg
NUP209R d: 45 mm | D: 85 mm | B: 19 mm | Cr: 63.1 kN | C0r: 66.4 kN | Mass: 0.439 kg
NU2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.4 kN | C0r: 67.8 kN | Mass: 0.536 kg
NJ2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.4 kN | C0r: 67.8 kN | Mass: 0.536 kg
NUP2209 d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.4 kN | C0r: 67.8 kN | Mass: 0.536 kg
NU2209R d: 45 mm | D: 85 mm | B: 23 mm | Cr: 76.1 kN | C0r: 84.6 kN | Mass: 0.536 kg
NJ2209R d: 45 mm | D: 85 mm | B: 23 mm | Cr: 76.1 kN | C0r: 84.6 kN | Mass: 0.536 kg
NUP2209R d: 45 mm | D: 85 mm | B: 23 mm | Cr: 76.1 kN | C0r: 84.6 kN | Mass: 0.536 kg
NU3209 d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 82.4 kN | C0r: 99.0 kN | Mass: 0.770 kg
N309 d: 45 mm | D: 100 mm | B: 25 mm | Cr: 78.8 kN | C0r: 77.5 kN | Mass: 0.865 kg
NF309 d: 45 mm | D: 100 mm | B: 25 mm | Cr: 78.8 kN | C0r: 77.5 kN | Mass: 0.865 kg
NU309R d: 45 mm | D: 100 mm | B: 25 mm | Cr: 97.4 kN | C0r: 98.3 kN | Mass: 0.909 kg
NJ309R d: 45 mm | D: 100 mm | B: 25 mm | Cr: 97.4 kN | C0r: 98.3 kN | Mass: 0.909 kg
NUP309R d: 45 mm | D: 100 mm | B: 25 mm | Cr: 97.4 kN | C0r: 98.3 kN | Mass: 0.909 kg
NU2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 106 kN | C0r: 113 kN | Mass: 1.25 kg
NJ2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 106 kN | C0r: 113 kN | Mass: 1.25 kg
NUP2309 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 106 kN | C0r: 113 kN | Mass: 1.25 kg
NU2309R d: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.32 kg
NJ2309R d: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.32 kg
NUP2309R d: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.32 kg
NU3309 d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 131 kN | C0r: 149 kN | Mass: 1.59 kg
NU409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
NJ409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
NUP409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
N409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
NF409 d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
NU1010 d: 50 mm | D: 80 mm | B: 16 mm | Cr: 33.6 kN | C0r: 36.8 kN | Mass: 0.306 kg
NUP1010 d: 50 mm | D: 80 mm | B: 16 mm | Cr: 33.6 kN | C0r: 36.8 kN | Mass: 0.306 kg
N210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48.2 kN | C0r: 51.0 kN | Mass: 0.479 kg
NF210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48.2 kN | C0r: 51.0 kN | Mass: 0.479 kg
NU210R d: 50 mm | D: 90 mm | B: 20 mm | Cr: 66.1 kN | C0r: 71.9 kN | Mass: 0.497 kg
NJ210R d: 50 mm | D: 90 mm | B: 20 mm | Cr: 66.1 kN | C0r: 71.9 kN | Mass: 0.497 kg
NUP210R d: 50 mm | D: 90 mm | B: 20 mm | Cr: 66.1 kN | C0r: 71.9 kN | Mass: 0.497 kg
NU2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64.2 kN | C0r: 73.6 kN | Mass: 0.580 kg
NJ2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64.2 kN | C0r: 73.6 kN | Mass: 0.580 kg
NUP2210 d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64.2 kN | C0r: 73.6 kN | Mass: 0.580 kg
NU2210R d: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.7 kN | C0r: 91.5 kN | Mass: 0.580 kg
NJ2210R d: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.7 kN | C0r: 91.5 kN | Mass: 0.580 kg
NUP2210R d: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.7 kN | C0r: 91.5 kN | Mass: 0.580 kg
NU3210 d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 86.2 kN | C0r: 108 kN | Mass: 0.829 kg
N310 d: 50 mm | D: 110 mm | B: 27 mm | Cr: 92.2 kN | C0r: 93.4 kN | Mass: 1.15 kg
NF310 d: 50 mm | D: 110 mm | B: 27 mm | Cr: 92.2 kN | C0r: 93.4 kN | Mass: 1.15 kg
NU310R d: 50 mm | D: 110 mm | B: 27 mm | Cr: 110 kN | C0r: 113 kN | Mass: 1.15 kg
NJ310R d: 50 mm | D: 110 mm | B: 27 mm | Cr: 110 kN | C0r: 113 kN | Mass: 1.15 kg
NUP310R d: 50 mm | D: 110 mm | B: 27 mm | Cr: 110 kN | C0r: 113 kN | Mass: 1.15 kg
NU2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 128 kN | C0r: 142 kN | Mass: 1.69 kg
NJ2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 128 kN | C0r: 142 kN | Mass: 1.69 kg
NUP2310 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 128 kN | C0r: 142 kN | Mass: 1.69 kg
NU2310R d: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.76 kg
NJ2310R d: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.76 kg
NUP2310R d: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.76 kg
NU3310 d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 156 kN | C0r: 183 kN | Mass: 2.14 kg
NU410 d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
NJ410 d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
NUP410 d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
N410 d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
NF410 d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
NU1011 d: 55 mm | D: 90 mm | B: 18 mm | Cr: 37.4 kN | C0r: 43.8 kN | Mass: 0.445 kg
NUP1011 d: 55 mm | D: 90 mm | B: 18 mm | Cr: 37.4 kN | C0r: 43.8 kN | Mass: 0.445 kg
N211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58.0 kN | C0r: 62.3 kN | Mass: 0.633 kg
NF211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58.0 kN | C0r: 62.3 kN | Mass: 0.633 kg
NU211R d: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.4 kN | C0r: 98.7 kN | Mass: 0.650 kg
NJ211R d: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.4 kN | C0r: 98.7 kN | Mass: 0.650 kg
NUP211R d: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.4 kN | C0r: 98.7 kN | Mass: 0.650 kg
NU2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.3 kN | C0r: 87.2 kN | Mass: 0.780 kg
NJ2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.3 kN | C0r: 87.2 kN | Mass: 0.780 kg
NUP2211 d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.3 kN | C0r: 87.2 kN | Mass: 0.780 kg
NU2211R d: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Mass: 0.806 kg
NJ2211R d: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Mass: 0.806 kg
NUP2211R d: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Mass: 0.806 kg
NU3211 d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 95.5 kN | C0r: 118 kN | Mass: 1.14 kg
N311 d: 55 mm | D: 120 mm | B: 29 mm | Cr: 111 kN | C0r: 111 kN | Mass: 1.44 kg
NF311 d: 55 mm | D: 120 mm | B: 29 mm | Cr: 111 kN | C0r: 111 kN | Mass: 1.44 kg
NU311R d: 55 mm | D: 120 mm | B: 29 mm | Cr: 137 kN | C0r: 143 kN | Mass: 1.50 kg
NJ311R d: 55 mm | D: 120 mm | B: 29 mm | Cr: 137 kN | C0r: 143 kN | Mass: 1.50 kg
NUP311R d: 55 mm | D: 120 mm | B: 29 mm | Cr: 137 kN | C0r: 143 kN | Mass: 1.50 kg
NU2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.10 kg
NJ2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.10 kg
NUP2311 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.10 kg
NU2311R d: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.25 kg
NJ2311R d: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.25 kg
NUP2311R d: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.25 kg
NU3311 d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 188 kN | C0r: 220 kN | Mass: 2.81 kg
NU411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
NJ411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
NUP411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
N411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
NF411 d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
NU1012 d: 60 mm | D: 95 mm | B: 18 mm | Cr: 42.1 kN | C0r: 50.0 kN | Mass: 0.477 kg
NUP1012 d: 60 mm | D: 95 mm | B: 18 mm | Cr: 42.1 kN | C0r: 50.0 kN | Mass: 0.477 kg
N212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 71.9 kN | C0r: 79.9 kN | Mass: 0.823 kg
NF212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 71.9 kN | C0r: 79.9 kN | Mass: 0.823 kg
NU212R d: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.7 kN | C0r: 107 kN | Mass: 0.830 kg
NJ212R d: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.7 kN | C0r: 107 kN | Mass: 0.830 kg
NUP212R d: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.7 kN | C0r: 107 kN | Mass: 0.830 kg
NU2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 101 kN | C0r: 123 kN | Mass: 1.07 kg
NJ2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 101 kN | C0r: 123 kN | Mass: 1.07 kg
NUP2212 d: 60 mm | D: 110 mm | B: 28 mm | Cr: 101 kN | C0r: 123 kN | Mass: 1.07 kg
NU2212R d: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.09 kg
NJ2212R d: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.09 kg
NUP2212R d: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.09 kg
NU3212 d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 128 kN | C0r: 167 kN | Mass: 1.52 kg
N312 d: 60 mm | D: 130 mm | B: 31 mm | Cr: 124 kN | C0r: 126 kN | Mass: 1.83 kg
NF312 d: 60 mm | D: 130 mm | B: 31 mm | Cr: 124 kN | C0r: 126 kN | Mass: 1.83 kg
NU312R d: 60 mm | D: 130 mm | B: 31 mm | Cr: 150 kN | C0r: 157 kN | Mass: 1.87 kg
NJ312R d: 60 mm | D: 130 mm | B: 31 mm | Cr: 150 kN | C0r: 157 kN | Mass: 1.87 kg
NUP312R d: 60 mm | D: 130 mm | B: 31 mm | Cr: 150 kN | C0r: 157 kN | Mass: 1.87 kg
NU2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 168 kN | C0r: 188 kN | Mass: 2.69 kg
NJ2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 168 kN | C0r: 188 kN | Mass: 2.69 kg
NUP2312 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 168 kN | C0r: 188 kN | Mass: 2.69 kg
NU2312R d: 60 mm | D: 130 mm | B: 46 mm | Cr: 223 kN | C0r: 262 kN | Mass: 2.81 kg
NJ2312R d: 60 mm | D: 130 mm | B: 46 mm | Cr: 223 kN | C0r: 262 kN | Mass: 2.81 kg
NUP2312R d: 60 mm | D: 130 mm | B: 46 mm | Cr: 223 kN | C0r: 262 kN | Mass: 2.81 kg
NU3312 d: 60 mm | D: 130 mm | B: 54 mm | Cr: 220 kN | C0r: 265 kN | Mass: 3.61 kg
NU412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
NJ412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
NUP412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
N412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
NF412 d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
NU1013 d: 65 mm | D: 100 mm | B: 18 mm | Cr: 43.3 kN | C0r: 52.9 kN | Mass: 0.506 kg
NUP1013 d: 65 mm | D: 100 mm | B: 18 mm | Cr: 43.3 kN | C0r: 52.9 kN | Mass: 0.506 kg
N213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 83.8 kN | C0r: 94.4 kN | Mass: 1.05 kg
NF213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 83.8 kN | C0r: 94.4 kN | Mass: 1.05 kg
NU213R d: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.05 kg
NJ213R d: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.05 kg
NUP213R d: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.05 kg
NU2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.43 kg
NJ2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.43 kg
NUP2213 d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.43 kg
NU2213R d: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.45 kg
NJ2213R d: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.45 kg
NUP2213R d: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.45 kg
NU3213 d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 148 kN | C0r: 197 kN | Mass: 1.90 kg
N313 d: 65 mm | D: 140 mm | B: 33 mm | Cr: 137 kN | C0r: 139 kN | Mass: 2.19 kg
NF313 d: 65 mm | D: 140 mm | B: 33 mm | Cr: 137 kN | C0r: 139 kN | Mass: 2.19 kg
NU313R d: 65 mm | D: 140 mm | B: 33 mm | Cr: 181 kN | C0r: 191 kN | Mass: 2.31 kg
NJ313R d: 65 mm | D: 140 mm | B: 33 mm | Cr: 181 kN | C0r: 191 kN | Mass: 2.31 kg
NUP313R d: 65 mm | D: 140 mm | B: 33 mm | Cr: 181 kN | C0r: 191 kN | Mass: 2.31 kg
NU2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 190 kN | C0r: 212 kN | Mass: 3.25 kg
NJ2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 190 kN | C0r: 212 kN | Mass: 3.25 kg
NUP2313 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 190 kN | C0r: 212 kN | Mass: 3.25 kg
NU2313R d: 65 mm | D: 140 mm | B: 48 mm | Cr: 251 kN | C0r: 287 kN | Mass: 3.36 kg
NJ2313R d: 65 mm | D: 140 mm | B: 48 mm | Cr: 251 kN | C0r: 287 kN | Mass: 3.36 kg
NUP2313R d: 65 mm | D: 140 mm | B: 48 mm | Cr: 251 kN | C0r: 287 kN | Mass: 3.36 kg
NU3313 d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 241 kN | C0r: 294 kN | Mass: 4.53 kg
NU413 d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
NJ413 d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
NUP413 d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
N413 d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
NF413 d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
NU1014 d: 70 mm | D: 110 mm | B: 20 mm | Cr: 57.9 kN | C0r: 70.4 kN | Mass: 0.702 kg
NUP1014 d: 70 mm | D: 110 mm | B: 20 mm | Cr: 57.9 kN | C0r: 70.4 kN | Mass: 0.702 kg
N214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.3 kN | C0r: 95.2 kN | Mass: 1.15 kg
NF214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.3 kN | C0r: 95.2 kN | Mass: 1.15 kg
NU214R d: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.16 kg
NJ214R d: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.16 kg
NUP214R d: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.16 kg
NU2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.52 kg
NJ2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.52 kg
NUP2214 d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.52 kg
NU2214R d: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.53 kg
NJ2214R d: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.53 kg
NUP2214R d: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.53 kg
NU3214 d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 147 kN | C0r: 198 kN | Mass: 2.09 kg
N314 d: 70 mm | D: 150 mm | B: 35 mm | Cr: 162 kN | C0r: 168 kN | Mass: 2.73 kg
NF314 d: 70 mm | D: 150 mm | B: 35 mm | Cr: 162 kN | C0r: 168 kN | Mass: 2.73 kg
NU314R d: 70 mm | D: 150 mm | B: 35 mm | Cr: 205 kN | C0r: 222 kN | Mass: 2.81 kg
NJ314R d: 70 mm | D: 150 mm | B: 35 mm | Cr: 205 kN | C0r: 222 kN | Mass: 2.81 kg
NUP314R d: 70 mm | D: 150 mm | B: 35 mm | Cr: 205 kN | C0r: 222 kN | Mass: 2.81 kg
NU2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 224 kN | C0r: 262 kN | Mass: 3.97 kg
NJ2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 224 kN | C0r: 262 kN | Mass: 3.97 kg
NUP2314 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 224 kN | C0r: 262 kN | Mass: 3.97 kg
NU2314R d: 70 mm | D: 150 mm | B: 51 mm | Cr: 275 kN | C0r: 323 kN | Mass: 4.08 kg
NJ2314R d: 70 mm | D: 150 mm | B: 51 mm | Cr: 275 kN | C0r: 323 kN | Mass: 4.08 kg
NUP2314R d: 70 mm | D: 150 mm | B: 51 mm | Cr: 275 kN | C0r: 323 kN | Mass: 4.08 kg
NU3314 d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 283 kN | C0r: 356 kN | Mass: 5.62 kg
NU414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
NJ414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
NUP414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
N414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
NF414 d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
NU1015 d: 75 mm | D: 115 mm | B: 20 mm | Cr: 63.6 kN | C0r: 78.1 kN | Mass: 0.735 kg
NUP1015 d: 75 mm | D: 115 mm | B: 20 mm | Cr: 63.6 kN | C0r: 78.1 kN | Mass: 0.735 kg
N215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 101 kN | C0r: 118 kN | Mass: 1.24 kg
NF215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 101 kN | C0r: 118 kN | Mass: 1.24 kg
NU215R d: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.29 kg
NJ215R d: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.29 kg
NUP215R d: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.29 kg
NU2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 135 kN | C0r: 172 kN | Mass: 1.57 kg
NJ2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 135 kN | C0r: 172 kN | Mass: 1.57 kg
NUP2215 d: 75 mm | D: 130 mm | B: 31 mm | Cr: 135 kN | C0r: 172 kN | Mass: 1.57 kg
NU2215R d: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.61 kg
NJ2215R d: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.61 kg
NUP2215R d: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.61 kg
NU3215 d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 167 kN | C0r: 226 kN | Mass: 2.28 kg
N315 d: 75 mm | D: 160 mm | B: 37 mm | Cr: 194 kN | C0r: 205 kN | Mass: 3.19 kg
NF315 d: 75 mm | D: 160 mm | B: 37 mm | Cr: 194 kN | C0r: 205 kN | Mass: 3.19 kg
NU315R d: 75 mm | D: 160 mm | B: 37 mm | Cr: 240 kN | C0r: 263 kN | Mass: 3.37 kg
NJ315R d: 75 mm | D: 160 mm | B: 37 mm | Cr: 240 kN | C0r: 263 kN | Mass: 3.37 kg
NUP315R d: 75 mm | D: 160 mm | B: 37 mm | Cr: 240 kN | C0r: 263 kN | Mass: 3.37 kg
NU2315 d: 75 mm | D: 160 mm | B: 55 mm | Cr: 275 kN | C0r: 327 kN | Mass: 4.84 kg
NJ2315 d: 75 mm | D: 160 mm | B: 55 mm | Cr: 275 kN | C0r: 327 kN | Mass: 4.84 kg
NUP2315 d: 75 mm | D: 160 mm | B: 55 mm | Cr: 275 kN | C0r: 327 kN | Mass: 4.84 kg
NU2315R d: 75 mm | D: 160 mm | B: 55 mm | Cr: 329 kN | C0r: 395 kN | Mass: 5.00 kg
NJ2315R d: 75 mm | D: 160 mm | B: 55 mm | Cr: 329 kN | C0r: 395 kN | Mass: 5.00 kg
NUP2315R d: 75 mm | D: 160 mm | B: 55 mm | Cr: 329 kN | C0r: 395 kN | Mass: 5.00 kg
NU3315 d: 75 mm | D: 160 mm | B: 68.3 mm | Cr: 338 kN | C0r: 430 kN | Mass: 6.86 kg
NU415 d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
NJ415 d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
NUP415 d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
N415 d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
NF415 d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
NU1016 d: 80 mm | D: 125 mm | B: 22 mm | Cr: 69.3 kN | C0r: 86.4 kN | Mass: 0.994 kg
NUP1016 d: 80 mm | D: 125 mm | B: 22 mm | Cr: 69.3 kN | C0r: 86.4 kN | Mass: 0.994 kg
N216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.51 kg
NF216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.51 kg
NU216R d: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.56 kg
NJ216R d: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.56 kg
NUP216R d: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.56 kg
NU2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 148 kN | C0r: 186 kN | Mass: 1.96 kg
NJ2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 148 kN | C0r: 186 kN | Mass: 1.96 kg
NUP2216 d: 80 mm | D: 140 mm | B: 33 mm | Cr: 148 kN | C0r: 186 kN | Mass: 1.96 kg
NU2216R d: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.03 kg
NJ2216R d: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.03 kg
NUP2216R d: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.03 kg
NU3216 d: 80 mm | D: 140 mm | B: 44.4 mm | Cr: 190 kN | C0r: 259 kN | Mass: 2.87 kg
N316 d: 80 mm | D: 170 mm | B: 39 mm | Cr: 194 kN | C0r: 207 kN | Mass: 3.83 kg
NF316 d: 80 mm | D: 170 mm | B: 39 mm | Cr: 194 kN | C0r: 207 kN | Mass: 3.83 kg
NU316R d: 80 mm | D: 170 mm | B: 39 mm | Cr: 259 kN | C0r: 282 kN | Mass: 4.00 kg
NJ316R d: 80 mm | D: 170 mm | B: 39 mm | Cr: 259 kN | C0r: 282 kN | Mass: 4.00 kg
NUP316R d: 80 mm | D: 170 mm | B: 39 mm | Cr: 259 kN | C0r: 282 kN | Mass: 4.00 kg
NU2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 275 kN | C0r: 332 kN | Mass: 5.83 kg
NJ2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 275 kN | C0r: 332 kN | Mass: 5.83 kg
NUP2316 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 275 kN | C0r: 332 kN | Mass: 5.83 kg
NU2316R d: 80 mm | D: 170 mm | B: 58 mm | Cr: 361 kN | C0r: 431 kN | Mass: 5.95 kg
NJ2316R d: 80 mm | D: 170 mm | B: 58 mm | Cr: 361 kN | C0r: 431 kN | Mass: 5.95 kg
NUP2316R d: 80 mm | D: 170 mm | B: 58 mm | Cr: 361 kN | C0r: 431 kN | Mass: 5.95 kg
NU3316 d: 80 mm | D: 170 mm | B: 68.3 mm | Cr: 338 kN | C0r: 436 kN | Mass: 7.72 kg
NU416 d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
NJ416 d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
NUP416 d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
N416 d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
NF416 d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
NU1017 d: 85 mm | D: 130 mm | B: 22 mm | Cr: 71.4 kN | C0r: 91.2 kN | Mass: 1.04 kg
NUP1017 d: 85 mm | D: 130 mm | B: 22 mm | Cr: 71.4 kN | C0r: 91.2 kN | Mass: 1.04 kg
N217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 121 kN | C0r: 140 kN | Mass: 1.90 kg
NF217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 121 kN | C0r: 140 kN | Mass: 1.90 kg
NU217R d: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 1.94 kg
NJ217R d: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 1.94 kg
NUP217R d: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 1.94 kg
NU2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 169 kN | C0r: 218 kN | Mass: 2.50 kg
NJ2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 169 kN | C0r: 218 kN | Mass: 2.50 kg
NUP2217 d: 85 mm | D: 150 mm | B: 36 mm | Cr: 169 kN | C0r: 218 kN | Mass: 2.50 kg
NU2217R d: 85 mm | D: 150 mm | B: 36 mm | Cr: 218 kN | C0r: 279 kN | Mass: 2.53 kg
NJ2217R d: 85 mm | D: 150 mm | B: 36 mm | Cr: 218 kN | C0r: 279 kN | Mass: 2.53 kg
NUP2217R d: 85 mm | D: 150 mm | B: 36 mm | Cr: 218 kN | C0r: 279 kN | Mass: 2.53 kg
NU3217 d: 85 mm | D: 150 mm | B: 49.2 mm | Cr: 215 kN | C0r: 296 kN | Mass: 3.67 kg
N317 d: 85 mm | D: 180 mm | B: 41 mm | Cr: 225 kN | C0r: 247 kN | Mass: 4.52 kg
NF317 d: 85 mm | D: 180 mm | B: 41 mm | Cr: 225 kN | C0r: 247 kN | Mass: 4.52 kg
NU317R d: 85 mm | D: 180 mm | B: 41 mm | Cr: 291 kN | C0r: 330 kN | Mass: 4.80 kg
NJ317R d: 85 mm | D: 180 mm | B: 41 mm | Cr: 291 kN | C0r: 330 kN | Mass: 4.80 kg
NUP317R d: 85 mm | D: 180 mm | B: 41 mm | Cr: 291 kN | C0r: 330 kN | Mass: 4.80 kg
NU2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 382 kN | Mass: 6.62 kg
NJ2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 382 kN | Mass: 6.62 kg
NUP2317 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 382 kN | Mass: 6.62 kg
NU2317R d: 85 mm | D: 180 mm | B: 60 mm | Cr: 394 kN | C0r: 485 kN | Mass: 6.98 kg
NJ2317R d: 85 mm | D: 180 mm | B: 60 mm | Cr: 394 kN | C0r: 485 kN | Mass: 6.98 kg
NUP2317R d: 85 mm | D: 180 mm | B: 60 mm | Cr: 394 kN | C0r: 485 kN | Mass: 6.98 kg
NU3317 d: 85 mm | D: 180 mm | B: 73 mm | Cr: 399 kN | C0r: 517 kN | Mass: 9.23 kg
NU417 d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
NJ417 d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
NUP417 d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
N417 d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
NF417 d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
NU1018 d: 90 mm | D: 140 mm | B: 24 mm | Cr: 84.7 kN | C0r: 109 kN | Mass: 1.34 kg
NUP1018 d: 90 mm | D: 140 mm | B: 24 mm | Cr: 84.7 kN | C0r: 109 kN | Mass: 1.34 kg
N218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.32 kg
NF218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.32 kg
NU218R d: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.38 kg
NJ218R d: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.38 kg
NUP218R d: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.38 kg
NU2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Mass: 3.10 kg
NJ2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Mass: 3.10 kg
NUP2218 d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Mass: 3.10 kg
NU2218R d: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 314 kN | Mass: 3.21 kg
NJ2218R d: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 314 kN | Mass: 3.21 kg
NUP2218R d: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 314 kN | Mass: 3.21 kg
NU3218 d: 90 mm | D: 160 mm | B: 52.4 mm | Cr: 270 kN | C0r: 373 kN | Mass: 4.49 kg
N318 d: 90 mm | D: 190 mm | B: 43 mm | Cr: 243 kN | C0r: 265 kN | Mass: 5.27 kg
NF318 d: 90 mm | D: 190 mm | B: 43 mm | Cr: 243 kN | C0r: 265 kN | Mass: 5.27 kg
NU318R d: 90 mm | D: 190 mm | B: 43 mm | Cr: 316 kN | C0r: 355 kN | Mass: 5.47 kg
NJ318R d: 90 mm | D: 190 mm | B: 43 mm | Cr: 316 kN | C0r: 355 kN | Mass: 5.47 kg
NUP318R d: 90 mm | D: 190 mm | B: 43 mm | Cr: 316 kN | C0r: 355 kN | Mass: 5.47 kg
NU2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 329 kN | C0r: 395 kN | Mass: 7.90 kg
NJ2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 329 kN | C0r: 395 kN | Mass: 7.90 kg
NUP2318 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 329 kN | C0r: 395 kN | Mass: 7.90 kg
NU2318R d: 90 mm | D: 190 mm | B: 64 mm | Cr: 437 kN | C0r: 534 kN | Mass: 8.12 kg
NJ2318R d: 90 mm | D: 190 mm | B: 64 mm | Cr: 437 kN | C0r: 534 kN | Mass: 8.12 kg
NUP2318R d: 90 mm | D: 190 mm | B: 64 mm | Cr: 437 kN | C0r: 534 kN | Mass: 8.12 kg
NU3318 d: 90 mm | D: 190 mm | B: 73 mm | Cr: 428 kN | C0r: 559 kN | Mass: 10.3 kg
NU418 d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
NJ418 d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
NUP418 d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
N418 d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
NF418 d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
NU1019 d: 95 mm | D: 145 mm | B: 24 mm | Cr: 87.2 kN | C0r: 115 kN | Mass: 1.40 kg
NUP1019 d: 95 mm | D: 145 mm | B: 24 mm | Cr: 87.2 kN | C0r: 115 kN | Mass: 1.40 kg
N219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 165 kN | C0r: 195 kN | Mass: 2.80 kg
NF219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 165 kN | C0r: 195 kN | Mass: 2.80 kg
NU219R d: 95 mm | D: 170 mm | B: 32 mm | Cr: 221 kN | C0r: 265 kN | Mass: 2.92 kg
NJ219R d: 95 mm | D: 170 mm | B: 32 mm | Cr: 221 kN | C0r: 265 kN | Mass: 2.92 kg
NUP219R d: 95 mm | D: 170 mm | B: 32 mm | Cr: 221 kN | C0r: 265 kN | Mass: 2.92 kg
NU2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.85 kg
NJ2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.85 kg
NUP2219 d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.85 kg
NU2219R d: 95 mm | D: 170 mm | B: 43 mm | Cr: 287 kN | C0r: 371 kN | Mass: 3.93 kg
NJ2219R d: 95 mm | D: 170 mm | B: 43 mm | Cr: 287 kN | C0r: 371 kN | Mass: 3.93 kg
NUP2219R d: 95 mm | D: 170 mm | B: 43 mm | Cr: 287 kN | C0r: 371 kN | Mass: 3.93 kg
NU3219 d: 95 mm | D: 170 mm | B: 55.6 mm | Cr: 297 kN | C0r: 412 kN | Mass: 5.42 kg
N319 d: 95 mm | D: 200 mm | B: 45 mm | Cr: 277 kN | C0r: 311 kN | Mass: 6.10 kg
NF319 d: 95 mm | D: 200 mm | B: 45 mm | Cr: 277 kN | C0r: 311 kN | Mass: 6.10 kg
NU319R d: 95 mm | D: 200 mm | B: 45 mm | Cr: 334 kN | C0r: 387 kN | Mass: 6.42 kg
NJ319R d: 95 mm | D: 200 mm | B: 45 mm | Cr: 334 kN | C0r: 387 kN | Mass: 6.42 kg
NUP319R d: 95 mm | D: 200 mm | B: 45 mm | Cr: 334 kN | C0r: 387 kN | Mass: 6.42 kg
NU2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 394 kN | C0r: 496 kN | Mass: 9.39 kg
NJ2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 394 kN | C0r: 496 kN | Mass: 9.39 kg
NUP2319 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 394 kN | C0r: 496 kN | Mass: 9.39 kg
NU3319 d: 95 mm | D: 200 mm | B: 77.8 mm | Cr: 487 kN | C0r: 654 kN | Mass: 12.1 kg
NU419 d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
NJ419 d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
NUP419 d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
N419 d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
NF419 d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
NU1020 d: 100 mm | D: 150 mm | B: 24 mm | Cr: 91.0 kN | C0r: 120 kN | Mass: 1.46 kg
NUP1020 d: 100 mm | D: 150 mm | B: 24 mm | Cr: 91.0 kN | C0r: 120 kN | Mass: 1.46 kg
N220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.38 kg
NF220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.38 kg
NU220R d: 100 mm | D: 180 mm | B: 34 mm | Cr: 250 kN | C0r: 306 kN | Mass: 3.52 kg
NJ220R d: 100 mm | D: 180 mm | B: 34 mm | Cr: 250 kN | C0r: 306 kN | Mass: 3.52 kg
NUP220R d: 100 mm | D: 180 mm | B: 34 mm | Cr: 250 kN | C0r: 306 kN | Mass: 3.52 kg
NU2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 259 kN | C0r: 338 kN | Mass: 4.67 kg
NJ2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 259 kN | C0r: 338 kN | Mass: 4.67 kg
NUP2220 d: 100 mm | D: 180 mm | B: 46 mm | Cr: 259 kN | C0r: 338 kN | Mass: 4.67 kg
NU2220R d: 100 mm | D: 180 mm | B: 46 mm | Cr: 334 kN | C0r: 444 kN | Mass: 4.82 kg
NJ2220R d: 100 mm | D: 180 mm | B: 46 mm | Cr: 334 kN | C0r: 444 kN | Mass: 4.82 kg
NUP2220R d: 100 mm | D: 180 mm | B: 46 mm | Cr: 334 kN | C0r: 444 kN | Mass: 4.82 kg
NU3220 d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 327 kN | C0r: 459 kN | Mass: 6.62 kg
N320 d: 100 mm | D: 215 mm | B: 47 mm | Cr: 323 kN | C0r: 337 kN | Mass: 7.59 kg
NF320 d: 100 mm | D: 215 mm | B: 47 mm | Cr: 323 kN | C0r: 337 kN | Mass: 7.59 kg
NU320R d: 100 mm | D: 215 mm | B: 47 mm | Cr: 379 kN | C0r: 424 kN | Mass: 7.75 kg
NJ320R d: 100 mm | D: 215 mm | B: 47 mm | Cr: 379 kN | C0r: 424 kN | Mass: 7.75 kg
NUP320R d: 100 mm | D: 215 mm | B: 47 mm | Cr: 379 kN | C0r: 424 kN | Mass: 7.75 kg
NU2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 464 kN | C0r: 548 kN | Mass: 11.9 kg
NJ2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 464 kN | C0r: 548 kN | Mass: 11.9 kg
NUP2320 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 464 kN | C0r: 548 kN | Mass: 11.9 kg
NU2320R d: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 717 kN | Mass: 12.1 kg
NJ2320R d: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 717 kN | Mass: 12.1 kg
NUP2320R d: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 717 kN | Mass: 12.1 kg
NU3320 d: 100 mm | D: 215 mm | B: 82.6 mm | Cr: 530 kN | C0r: 706 kN | Mass: 15.0 kg
NU420 d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
NJ420 d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
NUP420 d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
N420 d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
NF420 d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
NU1021 d: 105 mm | D: 160 mm | B: 26 mm | Cr: 108 kN | C0r: 149 kN | Mass: 1.85 kg
NUP1021 d: 105 mm | D: 160 mm | B: 26 mm | Cr: 108 kN | C0r: 149 kN | Mass: 1.85 kg
N221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 4.44 kg
NF221 d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 4.44 kg
NU3221 d: 105 mm | D: 190 mm | B: 65.1 mm | Cr: 344 kN | C0r: 482 kN | Mass: 8.00 kg
N321 d: 105 mm | D: 225 mm | B: 49 mm | Cr: 366 kN | C0r: 417 kN | Mass: 8.68 kg
NF321 d: 105 mm | D: 225 mm | B: 49 mm | Cr: 366 kN | C0r: 417 kN | Mass: 8.68 kg
NU2321 d: 105 mm | D: 225 mm | B: 77 mm | Cr: 568 kN | C0r: 750 kN | Mass: 15.6 kg
NUP2321 d: 105 mm | D: 225 mm | B: 77 mm | Cr: 568 kN | C0r: 750 kN | Mass: 15.6 kg
NU3321 d: 105 mm | D: 225 mm | B: 87.3 mm | Cr: 638 kN | C0r: 871 kN | Mass: 17.4 kg
NU421 d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
NJ421 d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
NUP421 d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
N421 d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
NF421 d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
NU1022 d: 110 mm | D: 170 mm | B: 28 mm | Cr: 134 kN | C0r: 171 kN | Mass: 2.31 kg
NUP1022 d: 110 mm | D: 170 mm | B: 28 mm | Cr: 134 kN | C0r: 171 kN | Mass: 2.31 kg
N222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 241 kN | C0r: 290 kN | Mass: 5.24 kg
NF222 d: 110 mm | D: 200 mm | B: 38 mm | Cr: 241 kN | C0r: 290 kN | Mass: 5.24 kg
NU222R d: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.90 kg
NJ222R d: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.90 kg
NUP222R d: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.90 kg
NU2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 334 kN | C0r: 442 kN | Mass: 6.93 kg
NJ2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 334 kN | C0r: 442 kN | Mass: 6.93 kg
NUP2222 d: 110 mm | D: 200 mm | B: 53 mm | Cr: 334 kN | C0r: 442 kN | Mass: 6.93 kg
NU2222R d: 110 mm | D: 200 mm | B: 53 mm | Cr: 384 kN | C0r: 517 kN | Mass: 6.93 kg
NJ2222R d: 110 mm | D: 200 mm | B: 53 mm | Cr: 384 kN | C0r: 517 kN | Mass: 6.93 kg
NUP2222R d: 110 mm | D: 200 mm | B: 53 mm | Cr: 384 kN | C0r: 517 kN | Mass: 6.93 kg
NU3222 d: 110 mm | D: 200 mm | B: 69.8 mm | Cr: 427 kN | C0r: 607 kN | Mass: 9.55 kg
N322 d: 110 mm | D: 240 mm | B: 50 mm | Cr: 411 kN | C0r: 467 kN | Mass: 10.4 kg
NF322 d: 110 mm | D: 240 mm | B: 50 mm | Cr: 411 kN | C0r: 467 kN | Mass: 10.4 kg
NU322R d: 110 mm | D: 240 mm | B: 50 mm | Cr: 451 kN | C0r: 525 kN | Mass: 10.7 kg
NJ322R d: 110 mm | D: 240 mm | B: 50 mm | Cr: 451 kN | C0r: 525 kN | Mass: 10.7 kg
NUP322R d: 110 mm | D: 240 mm | B: 50 mm | Cr: 451 kN | C0r: 525 kN | Mass: 10.7 kg
NU2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 604 kN | C0r: 789 kN | Mass: 18.8 kg
NJ2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 604 kN | C0r: 789 kN | Mass: 18.8 kg
NUP2322 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 604 kN | C0r: 789 kN | Mass: 18.8 kg
NU2322R d: 110 mm | D: 240 mm | B: 80 mm | Cr: 680 kN | C0r: 880 kN | Mass: 18.8 kg
NJ2322R d: 110 mm | D: 240 mm | B: 80 mm | Cr: 680 kN | C0r: 880 kN | Mass: 18.8 kg
NUP2322R d: 110 mm | D: 240 mm | B: 80 mm | Cr: 680 kN | C0r: 880 kN | Mass: 18.8 kg
NU3322 d: 110 mm | D: 240 mm | B: 92.1 mm | Cr: 678 kN | C0r: 918 kN | Mass: 21.1 kg
NU422 d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
NJ422 d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
NUP422 d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
N422 d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
NF422 d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
NU1024 d: 120 mm | D: 180 mm | B: 28 mm | Cr: 137 kN | C0r: 181 kN | Mass: 2.47 kg
NUP1024 d: 120 mm | D: 180 mm | B: 28 mm | Cr: 137 kN | C0r: 181 kN | Mass: 2.47 kg
N224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 318 kN | Mass: 6.31 kg
NF224 d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 318 kN | Mass: 6.31 kg
NU224R d: 120 mm | D: 215 mm | B: 40 mm | Cr: 336 kN | C0r: 421 kN | Mass: 5.85 kg
NJ224R d: 120 mm | D: 215 mm | B: 40 mm | Cr: 336 kN | C0r: 421 kN | Mass: 5.85 kg
NUP224R d: 120 mm | D: 215 mm | B: 40 mm | Cr: 336 kN | C0r: 421 kN | Mass: 5.85 kg
NU2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 367 kN | C0r: 492 kN | Mass: 8.56 kg
NJ2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 367 kN | C0r: 492 kN | Mass: 8.56 kg
NUP2224 d: 120 mm | D: 215 mm | B: 58 mm | Cr: 367 kN | C0r: 492 kN | Mass: 8.56 kg
NU2224R d: 120 mm | D: 215 mm | B: 58 mm | Cr: 452 kN | C0r: 619 kN | Mass: 8.56 kg
NJ2224R d: 120 mm | D: 215 mm | B: 58 mm | Cr: 452 kN | C0r: 619 kN | Mass: 8.56 kg
NUP2224R d: 120 mm | D: 215 mm | B: 58 mm | Cr: 452 kN | C0r: 619 kN | Mass: 8.56 kg
NU3224 d: 120 mm | D: 215 mm | B: 76 mm | Cr: 477 kN | C0r: 695 kN | Mass: 11.9 kg
N324 d: 120 mm | D: 260 mm | B: 55 mm | Cr: 485 kN | C0r: 551 kN | Mass: 13.1 kg
NF324 d: 120 mm | D: 260 mm | B: 55 mm | Cr: 485 kN | C0r: 551 kN | Mass: 13.1 kg
NU324R d: 120 mm | D: 260 mm | B: 55 mm | Cr: 528 kN | C0r: 610 kN | Mass: 13.4 kg
NJ324R d: 120 mm | D: 260 mm | B: 55 mm | Cr: 528 kN | C0r: 610 kN | Mass: 13.4 kg
NUP324R d: 120 mm | D: 260 mm | B: 55 mm | Cr: 528 kN | C0r: 610 kN | Mass: 13.4 kg
NU2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 708 kN | C0r: 918 kN | Mass: 23.1 kg
NJ2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 708 kN | C0r: 918 kN | Mass: 23.1 kg
NUP2324 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 708 kN | C0r: 918 kN | Mass: 23.1 kg
NU2324R d: 120 mm | D: 260 mm | B: 86 mm | Cr: 793 kN | C0r: 1 030 kN | Mass: 23.1 kg
NJ2324R d: 120 mm | D: 260 mm | B: 86 mm | Cr: 793 kN | C0r: 1 030 kN | Mass: 23.1 kg
NUP2324R d: 120 mm | D: 260 mm | B: 86 mm | Cr: 793 kN | C0r: 1 030 kN | Mass: 23.1 kg
NU3324 d: 120 mm | D: 260 mm | B: 106 mm | Cr: 826 kN | C0r: 1 120 kN | Mass: 28.3 kg
NU424 d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
NJ424 d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
NUP424 d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
N424 d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
NF424 d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
NU1026 d: 130 mm | D: 200 mm | B: 33 mm | Cr: 171 kN | C0r: 238 kN | Mass: 3.77 kg
NUP1026 d: 130 mm | D: 200 mm | B: 33 mm | Cr: 171 kN | C0r: 238 kN | Mass: 3.77 kg
N226 d: 130 mm | D: 230 mm | B: 40 mm | Cr: 282 kN | C0r: 362 kN | Mass: 7.21 kg
NF226 d: 130 mm | D: 230 mm | B: 40 mm | Cr: 282 kN | C0r: 362 kN | Mass: 7.21 kg
NU226R d: 130 mm | D: 230 mm | B: 40 mm | Cr: 364 kN | C0r: 453 kN | Mass: 6.60 kg
NJ226R d: 130 mm | D: 230 mm | B: 40 mm | Cr: 364 kN | C0r: 453 kN | Mass: 6.60 kg
NUP226R d: 130 mm | D: 230 mm | B: 40 mm | Cr: 364 kN | C0r: 453 kN | Mass: 6.60 kg
NU2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 395 kN | C0r: 560 kN | Mass: 11.2 kg
NJ2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 395 kN | C0r: 560 kN | Mass: 11.2 kg
NUP2226 d: 130 mm | D: 230 mm | B: 64 mm | Cr: 395 kN | C0r: 560 kN | Mass: 11.2 kg
NU2226R d: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 737 kN | Mass: 11.2 kg
NJ2226R d: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 737 kN | Mass: 11.2 kg
NUP2226R d: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 737 kN | Mass: 11.2 kg
NU3226 d: 130 mm | D: 230 mm | B: 80 mm | Cr: 550 kN | C0r: 857 kN | Mass: 14.1 kg
N326 d: 130 mm | D: 280 mm | B: 58 mm | Cr: 564 kN | C0r: 667 kN | Mass: 16.4 kg
NF326 d: 130 mm | D: 280 mm | B: 58 mm | Cr: 564 kN | C0r: 667 kN | Mass: 16.4 kg
NU326R d: 130 mm | D: 280 mm | B: 58 mm | Cr: 616 kN | C0r: 736 kN | Mass: 16.7 kg
NJ326R d: 130 mm | D: 280 mm | B: 58 mm | Cr: 616 kN | C0r: 736 kN | Mass: 16.7 kg
NUP326R d: 130 mm | D: 280 mm | B: 58 mm | Cr: 616 kN | C0r: 736 kN | Mass: 16.7 kg
NU2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 838 kN | C0r: 1 130 kN | Mass: 29.1 kg
NJ2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 838 kN | C0r: 1 130 kN | Mass: 29.1 kg
NUP2326 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 838 kN | C0r: 1 130 kN | Mass: 29.1 kg
NU2326R d: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1 230 kN | Mass: 29.1 kg
NJ2326R d: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1 230 kN | Mass: 29.1 kg
NUP2326R d: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1 230 kN | Mass: 29.1 kg
NU3326 d: 130 mm | D: 280 mm | B: 112 mm | Cr: 936 kN | C0r: 1 290 kN | Mass: 34.6 kg
NU426 d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
NJ426 d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
NUP426 d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
N426 d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
NF426 d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
NU1028 d: 140 mm | D: 210 mm | B: 33 mm | Cr: 175 kN | C0r: 250 kN | Mass: 4.00 kg
NUP1028 d: 140 mm | D: 210 mm | B: 33 mm | Cr: 175 kN | C0r: 250 kN | Mass: 4.00 kg
N228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 324 kN | C0r: 421 kN | Mass: 8.78 kg
NF228 d: 140 mm | D: 250 mm | B: 42 mm | Cr: 324 kN | C0r: 421 kN | Mass: 8.78 kg
NU228R d: 140 mm | D: 250 mm | B: 42 mm | Cr: 392 kN | C0r: 514 kN | Mass: 8.50 kg
NJ228R d: 140 mm | D: 250 mm | B: 42 mm | Cr: 392 kN | C0r: 514 kN | Mass: 8.50 kg
NUP228R d: 140 mm | D: 250 mm | B: 42 mm | Cr: 392 kN | C0r: 514 kN | Mass: 8.50 kg
NU2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 465 kN | C0r: 671 kN | Mass: 14.3 kg
NJ2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 465 kN | C0r: 671 kN | Mass: 14.3 kg
NUP2228 d: 140 mm | D: 250 mm | B: 68 mm | Cr: 465 kN | C0r: 671 kN | Mass: 14.3 kg
NU2228R d: 140 mm | D: 250 mm | B: 68 mm | Cr: 572 kN | C0r: 835 kN | Mass: 14.3 kg
NJ2228R d: 140 mm | D: 250 mm | B: 68 mm | Cr: 572 kN | C0r: 835 kN | Mass: 14.3 kg
NUP2228R d: 140 mm | D: 250 mm | B: 68 mm | Cr: 572 kN | C0r: 835 kN | Mass: 14.3 kg
NU3228 d: 140 mm | D: 250 mm | B: 88 mm | Cr: 604 kN | C0r: 939 kN | Mass: 18.5 kg
N328 d: 140 mm | D: 300 mm | B: 62 mm | Cr: 623 kN | C0r: 746 kN | Mass: 21.8 kg
NF328 d: 140 mm | D: 300 mm | B: 62 mm | Cr: 623 kN | C0r: 746 kN | Mass: 21.8 kg
NU328R d: 140 mm | D: 300 mm | B: 62 mm | Cr: 663 kN | C0r: 797 kN | Mass: 21.8 kg
NJ328R d: 140 mm | D: 300 mm | B: 62 mm | Cr: 663 kN | C0r: 797 kN | Mass: 21.8 kg
NUP328R d: 140 mm | D: 300 mm | B: 62 mm | Cr: 663 kN | C0r: 797 kN | Mass: 21.8 kg
NU2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1 250 kN | Mass: 36.8 kg
NJ2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1 250 kN | Mass: 36.8 kg
NUP2328 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1 250 kN | Mass: 36.8 kg
NU2328R d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1 020 kN | C0r: 1 380 kN | Mass: 36.8 kg
NJ2328R d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1 020 kN | C0r: 1 380 kN | Mass: 36.8 kg
NUP2328R d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1 020 kN | C0r: 1 380 kN | Mass: 36.8 kg
NU3328 d: 140 mm | D: 300 mm | B: 118 mm | Cr: 1 090 kN | C0r: 1 550 kN | Mass: 41.5 kg
NU428 d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
NJ428 d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
NUP428 d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
N428 d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
NF428 d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
NU1030 d: 150 mm | D: 225 mm | B: 35 mm | Cr: 201 kN | C0r: 281 kN | Mass: 4.83 kg
NUP1030 d: 150 mm | D: 225 mm | B: 35 mm | Cr: 201 kN | C0r: 281 kN | Mass: 4.83 kg
N230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 374 kN | C0r: 492 kN | Mass: 11.1 kg
NF230 d: 150 mm | D: 270 mm | B: 45 mm | Cr: 374 kN | C0r: 492 kN | Mass: 11.1 kg
NU230R d: 150 mm | D: 270 mm | B: 45 mm | Cr: 448 kN | C0r: 594 kN | Mass: 10.7 kg
NJ230R d: 150 mm | D: 270 mm | B: 45 mm | Cr: 448 kN | C0r: 594 kN | Mass: 10.7 kg
NUP230R d: 150 mm | D: 270 mm | B: 45 mm | Cr: 448 kN | C0r: 594 kN | Mass: 10.7 kg
NU2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 545 kN | C0r: 800 kN | Mass: 18.7 kg
NJ2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 545 kN | C0r: 800 kN | Mass: 18.7 kg
NUP2230 d: 150 mm | D: 270 mm | B: 73 mm | Cr: 545 kN | C0r: 800 kN | Mass: 18.7 kg
NU2230R d: 150 mm | D: 270 mm | B: 73 mm | Cr: 662 kN | C0r: 982 kN | Mass: 18.7 kg
NJ2230R d: 150 mm | D: 270 mm | B: 73 mm | Cr: 662 kN | C0r: 982 kN | Mass: 18.7 kg
NUP2230R d: 150 mm | D: 270 mm | B: 73 mm | Cr: 662 kN | C0r: 982 kN | Mass: 18.7 kg
NU3230 d: 150 mm | D: 270 mm | B: 96 mm | Cr: 749 kN | C0r: 1 200 kN | Mass: 23.7 kg
N330 d: 150 mm | D: 320 mm | B: 65 mm | Cr: 663 kN | C0r: 807 kN | Mass: 25.6 kg
NF330 d: 150 mm | D: 320 mm | B: 65 mm | Cr: 663 kN | C0r: 807 kN | Mass: 25.6 kg
NU330R d: 150 mm | D: 320 mm | B: 65 mm | Cr: 757 kN | C0r: 922 kN | Mass: 27.0 kg
NJ330R d: 150 mm | D: 320 mm | B: 65 mm | Cr: 757 kN | C0r: 922 kN | Mass: 27.0 kg
NUP330R d: 150 mm | D: 320 mm | B: 65 mm | Cr: 757 kN | C0r: 922 kN | Mass: 27.0 kg
NU2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 020 kN | C0r: 1 400 kN | Mass: 44.7 kg
NJ2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 020 kN | C0r: 1 400 kN | Mass: 44.7 kg
NUP2330 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 020 kN | C0r: 1 400 kN | Mass: 44.7 kg
NU2330R d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 180 kN | C0r: 1 600 kN | Mass: 44.7 kg
NJ2330R d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 180 kN | C0r: 1 600 kN | Mass: 44.7 kg
NUP2330R d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 180 kN | C0r: 1 600 kN | Mass: 44.7 kg
NU3330 d: 150 mm | D: 320 mm | B: 128 mm | Cr: 1 290 kN | C0r: 1 890 kN | Mass: 51.4 kg
NU430 d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
NJ430 d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
NUP430 d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
N430 d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
NF430 d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
NU1032 d: 160 mm | D: 240 mm | B: 38 mm | Cr: 236 kN | C0r: 330 kN | Mass: 5.93 kg
NUP1032 d: 160 mm | D: 240 mm | B: 38 mm | Cr: 236 kN | C0r: 330 kN | Mass: 5.93 kg
N232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 427 kN | C0r: 568 kN | Mass: 13.9 kg
NF232 d: 160 mm | D: 290 mm | B: 48 mm | Cr: 427 kN | C0r: 568 kN | Mass: 13.9 kg
NU232R d: 160 mm | D: 290 mm | B: 48 mm | Cr: 498 kN | C0r: 666 kN | Mass: 14.8 kg
NJ232R d: 160 mm | D: 290 mm | B: 48 mm | Cr: 498 kN | C0r: 666 kN | Mass: 14.8 kg
NUP232R d: 160 mm | D: 290 mm | B: 48 mm | Cr: 498 kN | C0r: 666 kN | Mass: 14.8 kg
NU2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 631 kN | C0r: 939 kN | Mass: 23.6 kg
NJ2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 631 kN | C0r: 939 kN | Mass: 23.6 kg
NUP2232 d: 160 mm | D: 290 mm | B: 80 mm | Cr: 631 kN | C0r: 939 kN | Mass: 23.6 kg
NU2232R d: 160 mm | D: 290 mm | B: 80 mm | Cr: 809 kN | C0r: 1 190 kN | Mass: 23.6 kg
NJ2232R d: 160 mm | D: 290 mm | B: 80 mm | Cr: 809 kN | C0r: 1 190 kN | Mass: 23.6 kg
NUP2232R d: 160 mm | D: 290 mm | B: 80 mm | Cr: 809 kN | C0r: 1 190 kN | Mass: 23.6 kg
NU3232 d: 160 mm | D: 290 mm | B: 104 mm | Cr: 857 kN | C0r: 1 390 kN | Mass: 29.8 kg
N332 d: 160 mm | D: 340 mm | B: 68 mm | Cr: 698 kN | C0r: 876 kN | Mass: 30.2 kg
NF332 d: 160 mm | D: 340 mm | B: 68 mm | Cr: 698 kN | C0r: 876 kN | Mass: 30.2 kg
NU332R d: 160 mm | D: 340 mm | B: 68 mm | Cr: 857 kN | C0r: 1 050 kN | Mass: 32.0 kg
NJ332R d: 160 mm | D: 340 mm | B: 68 mm | Cr: 857 kN | C0r: 1 050 kN | Mass: 32.0 kg
NUP332R d: 160 mm | D: 340 mm | B: 68 mm | Cr: 857 kN | C0r: 1 050 kN | Mass: 32.0 kg
NU2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 070 kN | C0r: 1 520 kN | Mass: 53.1 kg
NJ2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 070 kN | C0r: 1 520 kN | Mass: 53.1 kg
NUP2332 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 070 kN | C0r: 1 520 kN | Mass: 53.1 kg
NU2332R d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 310 kN | C0r: 1 820 kN | Mass: 53.1 kg
NJ2332R d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 310 kN | C0r: 1 820 kN | Mass: 53.1 kg
NUP2332R d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 310 kN | C0r: 1 820 kN | Mass: 53.1 kg
NU3332 d: 160 mm | D: 340 mm | B: 136 mm | Cr: 1 270 kN | C0r: 1 890 kN | Mass: 61.5 kg
NU1034 d: 170 mm | D: 260 mm | B: 42 mm | Cr: 276 kN | C0r: 400 kN | Mass: 7.90 kg
NUP1034 d: 170 mm | D: 260 mm | B: 42 mm | Cr: 276 kN | C0r: 400 kN | Mass: 7.90 kg
N234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 637 kN | Mass: 17.2 kg
NF234 d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 637 kN | Mass: 17.2 kg
NU234R d: 170 mm | D: 310 mm | B: 52 mm | Cr: 603 kN | C0r: 802 kN | Mass: 18.6 kg
NJ234R d: 170 mm | D: 310 mm | B: 52 mm | Cr: 603 kN | C0r: 802 kN | Mass: 18.6 kg
NUP234R d: 170 mm | D: 310 mm | B: 52 mm | Cr: 603 kN | C0r: 802 kN | Mass: 18.6 kg
NU2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1 080 kN | Mass: 29.2 kg
NJ2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1 080 kN | Mass: 29.2 kg
NUP2234 d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1 080 kN | Mass: 29.2 kg
NU2234R d: 170 mm | D: 310 mm | B: 86 mm | Cr: 967 kN | C0r: 1 410 kN | Mass: 29.2 kg
NJ2234R d: 170 mm | D: 310 mm | B: 86 mm | Cr: 967 kN | C0r: 1 410 kN | Mass: 29.2 kg
NUP2234R d: 170 mm | D: 310 mm | B: 86 mm | Cr: 967 kN | C0r: 1 410 kN | Mass: 29.2 kg
NU3234 d: 170 mm | D: 310 mm | B: 110 mm | Cr: 964 kN | C0r: 1 580 kN | Mass: 36.2 kg
NU334 d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
NJ334 d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
NUP334 d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
N334 d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
NF334 d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
NU2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1 220 kN | C0r: 1 750 kN | Mass: 62.6 kg
NJ2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1 220 kN | C0r: 1 750 kN | Mass: 62.6 kg
NUP2334 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1 220 kN | C0r: 1 750 kN | Mass: 62.6 kg
NU3334 d: 170 mm | D: 360 mm | B: 140 mm | Cr: 1 420 kN | C0r: 2 120 kN | Mass: 70.8 kg
NU1036 d: 180 mm | D: 280 mm | B: 46 mm | Cr: 356 kN | C0r: 503 kN | Mass: 10.5 kg
NUP1036 d: 180 mm | D: 280 mm | B: 46 mm | Cr: 356 kN | C0r: 503 kN | Mass: 10.5 kg
N236 d: 180 mm | D: 320 mm | B: 52 mm | Cr: 492 kN | C0r: 677 kN | Mass: 18.0 kg
NF236 d: 180 mm | D: 320 mm | B: 52 mm | Cr: 492 kN | C0r: 677 kN | Mass: 18.0 kg
NU236R d: 180 mm | D: 320 mm | B: 52 mm | Cr: 626 kN | C0r: 852 kN | Mass: 19.3 kg
NJ236R d: 180 mm | D: 320 mm | B: 52 mm | Cr: 626 kN | C0r: 852 kN | Mass: 19.3 kg
NUP236R d: 180 mm | D: 320 mm | B: 52 mm | Cr: 626 kN | C0r: 852 kN | Mass: 19.3 kg
NU2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 741 kN | C0r: 1 140 kN | Mass: 30.4 kg
NJ2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 741 kN | C0r: 1 140 kN | Mass: 30.4 kg
NUP2236 d: 180 mm | D: 320 mm | B: 86 mm | Cr: 741 kN | C0r: 1 140 kN | Mass: 30.4 kg
NU2236R d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1 010 kN | C0r: 1 510 kN | Mass: 30.4 kg
NJ2236R d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1 010 kN | C0r: 1 510 kN | Mass: 30.4 kg
NUP2236R d: 180 mm | D: 320 mm | B: 86 mm | Cr: 1 010 kN | C0r: 1 510 kN | Mass: 30.4 kg
NU3236 d: 180 mm | D: 320 mm | B: 112 mm | Cr: 999 kN | C0r: 1 680 kN | Mass: 38.4 kg
NU336 d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
NJ336 d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
NUP336 d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
N336 d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
NF336 d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
NU2336 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1 350 kN | C0r: 1 940 kN | Mass: 73.0 kg
NJ2336 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1 350 kN | C0r: 1 940 kN | Mass: 73.0 kg
NUP2336 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1 350 kN | C0r: 1 940 kN | Mass: 73.0 kg
NU3336 d: 180 mm | D: 380 mm | B: 150 mm | Cr: 1 660 kN | C0r: 2 520 kN | Mass: 84.4 kg
NU1038 d: 190 mm | D: 290 mm | B: 46 mm | Cr: 366 kN | C0r: 530 kN | Mass: 10.9 kg
NUP1038 d: 190 mm | D: 290 mm | B: 46 mm | Cr: 366 kN | C0r: 530 kN | Mass: 10.9 kg
N238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 554 kN | C0r: 768 kN | Mass: 21.5 kg
NF238 d: 190 mm | D: 340 mm | B: 55 mm | Cr: 554 kN | C0r: 768 kN | Mass: 21.5 kg
NU238R d: 190 mm | D: 340 mm | B: 55 mm | Cr: 694 kN | C0r: 954 kN | Mass: 23.3 kg
NJ238R d: 190 mm | D: 340 mm | B: 55 mm | Cr: 694 kN | C0r: 954 kN | Mass: 23.3 kg
NUP238R d: 190 mm | D: 340 mm | B: 55 mm | Cr: 694 kN | C0r: 954 kN | Mass: 23.3 kg
NU2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 828 kN | C0r: 1 290 kN | Mass: 37.0 kg
NJ2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 828 kN | C0r: 1 290 kN | Mass: 37.0 kg
NUP2238 d: 190 mm | D: 340 mm | B: 92 mm | Cr: 828 kN | C0r: 1 290 kN | Mass: 37.0 kg
NU2238R d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1 100 kN | C0r: 1 670 kN | Mass: 37.0 kg
NJ2238R d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1 100 kN | C0r: 1 670 kN | Mass: 37.0 kg
NUP2238R d: 190 mm | D: 340 mm | B: 92 mm | Cr: 1 100 kN | C0r: 1 670 kN | Mass: 37.0 kg
NU3238 d: 190 mm | D: 340 mm | B: 120 mm | Cr: 1 310 kN | C0r: 1 930 kN | Mass: 46.8 kg
NU338 d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
NJ338 d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
NUP338 d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
N338 d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
NF338 d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
NU2338 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1 520 kN | C0r: 2 220 kN | Mass: 84.7 kg
NJ2338 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1 520 kN | C0r: 2 220 kN | Mass: 84.7 kg
NUP2338 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1 520 kN | C0r: 2 220 kN | Mass: 84.7 kg
NU3338 d: 190 mm | D: 400 mm | B: 155 mm | Cr: 1 870 kN | C0r: 2 910 kN | Mass: 96.5 kg
NU1040 d: 200 mm | D: 310 mm | B: 51 mm | Cr: 388 kN | C0r: 582 kN | Mass: 14.1 kg
NUP1040 d: 200 mm | D: 310 mm | B: 51 mm | Cr: 388 kN | C0r: 582 kN | Mass: 14.1 kg
N240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 618 kN | C0r: 865 kN | Mass: 25.7 kg
NF240 d: 200 mm | D: 360 mm | B: 58 mm | Cr: 618 kN | C0r: 865 kN | Mass: 25.7 kg
NU240R d: 200 mm | D: 360 mm | B: 58 mm | Cr: 766 kN | C0r: 1 060 kN | Mass: 27.2 kg
NJ240R d: 200 mm | D: 360 mm | B: 58 mm | Cr: 766 kN | C0r: 1 060 kN | Mass: 27.2 kg
NUP240R d: 200 mm | D: 360 mm | B: 58 mm | Cr: 766 kN | C0r: 1 060 kN | Mass: 27.2 kg
NU2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 946 kN | C0r: 1 490 kN | Mass: 44.4 kg
NJ2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 946 kN | C0r: 1 490 kN | Mass: 44.4 kg
NUP2240 d: 200 mm | D: 360 mm | B: 98 mm | Cr: 946 kN | C0r: 1 490 kN | Mass: 44.4 kg
NU2240R d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1 220 kN | C0r: 1 870 kN | Mass: 44.4 kg
NJ2240R d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1 220 kN | C0r: 1 870 kN | Mass: 44.4 kg
NUP2240R d: 200 mm | D: 360 mm | B: 98 mm | Cr: 1 220 kN | C0r: 1 870 kN | Mass: 44.4 kg
NU3240 d: 200 mm | D: 360 mm | B: 128 mm | Cr: 1 200 kN | C0r: 2 020 kN | Mass: 56.2 kg
NU340 d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
NJ340 d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
NUP340 d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
N340 d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
NF340 d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
NU2340 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1 520 kN | C0r: 2 240 kN | Mass: 97.4 kg
NJ2340 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1 520 kN | C0r: 2 240 kN | Mass: 97.4 kg
NUP2340 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1 520 kN | C0r: 2 240 kN | Mass: 97.4 kg
NU3340 d: 200 mm | D: 420 mm | B: 165 mm | Cr: 1 870 kN | C0r: 2 930 kN | Mass: 113 kg
NU1044 d: 220 mm | D: 340 mm | B: 56 mm | Cr: 507 kN | C0r: 748 kN | Mass: 18.5 kg
NUP1044 d: 220 mm | D: 340 mm | B: 56 mm | Cr: 507 kN | C0r: 748 kN | Mass: 18.5 kg
NU244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
NJ244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
NUP244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
N244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
NF244 d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
NU2244 d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1 130 kN | C0r: 1 810 kN | Mass: 60.9 kg
NJ2244 d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1 130 kN | C0r: 1 810 kN | Mass: 60.9 kg
NU3244 d: 220 mm | D: 400 mm | B: 144 mm | Cr: 1 630 kN | C0r: 2 880 kN | Mass: 78.8 kg
NU344 d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
NJ344 d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
NUP344 d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
N344 d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
NF344 d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
NU2344 d: 220 mm | D: 460 mm | B: 145 mm | Cr: 1 810 kN | C0r: 2 690 kN | Mass: 119 kg
NUP2344 d: 220 mm | D: 460 mm | B: 145 mm | Cr: 1 810 kN | C0r: 2 690 kN | Mass: 119 kg
NU3344 d: 220 mm | D: 460 mm | B: 180 mm | Cr: 2 130 kN | C0r: 3 300 kN | Mass: 148 kg
NU1048 d: 240 mm | D: 360 mm | B: 56 mm | Cr: 535 kN | C0r: 822 kN | Mass: 20.1 kg
NUP1048 d: 240 mm | D: 360 mm | B: 56 mm | Cr: 535 kN | C0r: 822 kN | Mass: 20.1 kg
NU248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
NJ248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
NUP248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
N248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
NF248 d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
NU2248 d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1 430 kN | C0r: 2 320 kN | Mass: 82.5 kg
NJ2248 d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1 430 kN | C0r: 2 320 kN | Mass: 82.5 kg
NU3248 d: 240 mm | D: 440 mm | B: 160 mm | Cr: 1 950 kN | C0r: 3 460 kN | Mass: 107 kg
NU348 d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
NJ348 d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
NUP348 d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
N348 d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
NF348 d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
NU2348 d: 240 mm | D: 500 mm | B: 155 mm | Cr: 2 170 kN | C0r: 3 320 kN | Mass: 152 kg
NUP2348 d: 240 mm | D: 500 mm | B: 155 mm | Cr: 2 170 kN | C0r: 3 320 kN | Mass: 152 kg
NU3348 d: 240 mm | D: 500 mm | B: 195 mm | Cr: 2 540 kN | C0r: 4 070 kN | Mass: 189 kg
NU1052 d: 260 mm | D: 400 mm | B: 65 mm | Cr: 651 kN | C0r: 979 kN | Mass: 29.2 kg
NUP1052 d: 260 mm | D: 400 mm | B: 65 mm | Cr: 651 kN | C0r: 979 kN | Mass: 29.2 kg
NU252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
NJ252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
NUP252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
N252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
NF252 d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
NU2252 d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1 790 kN | C0r: 2 950 kN | Mass: 107 kg
NJ2252 d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1 790 kN | C0r: 2 950 kN | Mass: 107 kg
NU3252 d: 260 mm | D: 480 mm | B: 174 mm | Cr: 2 140 kN | C0r: 3 680 kN | Mass: 139 kg
NU2352 d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2 430 kN | C0r: 3 750 kN | Mass: 185 kg
NUP2352 d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2 430 kN | C0r: 3 750 kN | Mass: 185 kg
NU3352 d: 260 mm | D: 540 mm | B: 206 mm | Cr: 2 940 kN | C0r: 4 790 kN | Mass: 232 kg
NU1056 d: 280 mm | D: 420 mm | B: 65 mm | Cr: 669 kN | C0r: 1 030 kN | Mass: 35.2 kg
NUP1056 d: 280 mm | D: 420 mm | B: 65 mm | Cr: 669 kN | C0r: 1 030 kN | Mass: 35.2 kg
NU256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
NJ256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
NUP256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
N256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
NF256 d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
NU1060 d: 300 mm | D: 460 mm | B: 74 mm | Cr: 890 kN | C0r: 1 380 kN | Mass: 44.1 kg
NUP1060 d: 300 mm | D: 460 mm | B: 74 mm | Cr: 890 kN | C0r: 1 380 kN | Mass: 44.1 kg
NU260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
NJ260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
NUP260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
N260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
NF260 d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
NU1064 d: 320 mm | D: 480 mm | B: 74 mm | Cr: 913 kN | C0r: 1 450 kN | Mass: 48.4 kg
NUP1064 d: 320 mm | D: 480 mm | B: 74 mm | Cr: 913 kN | C0r: 1 450 kN | Mass: 48.4 kg
NU264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
NJ264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
NUP264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
N264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
NF264 d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
NU364 d: 320 mm | D: 670 mm | B: 112 mm | Cr: 1 970 kN | C0r: 2 880 kN | Mass: 199 kg
NU1068 d: 340 mm | D: 520 mm | B: 82 mm | Cr: 1 090 kN | C0r: 1 750 kN | Mass: 64.1 kg
NUP1068 d: 340 mm | D: 520 mm | B: 82 mm | Cr: 1 090 kN | C0r: 1 750 kN | Mass: 64.1 kg
NU1072 d: 360 mm | D: 540 mm | B: 82 mm | Cr: 1 120 kN | C0r: 1 830 kN | Mass: 67.1 kg
NUP1072 d: 360 mm | D: 540 mm | B: 82 mm | Cr: 1 120 kN | C0r: 1 830 kN | Mass: 67.1 kg
NU1076 d: 380 mm | D: 560 mm | B: 82 mm | Cr: 1 150 kN | C0r: 1 920 kN | Mass: 70.1 kg
NUP1076 d: 380 mm | D: 560 mm | B: 82 mm | Cr: 1 150 kN | C0r: 1 920 kN | Mass: 70.1 kg
NU1080 d: 400 mm | D: 600 mm | B: 90 mm | Cr: 1 400 kN | C0r: 2 310 kN | Mass: 91.0 kg
NUP1080 d: 400 mm | D: 600 mm | B: 90 mm | Cr: 1 400 kN | C0r: 2 310 kN | Mass: 91.0 kg
NU1084 d: 420 mm | D: 620 mm | B: 90 mm | Cr: 1 390 kN | C0r: 2 320 kN | Mass: 94.6 kg
NUP1084 d: 420 mm | D: 620 mm | B: 90 mm | Cr: 1 390 kN | C0r: 2 320 kN | Mass: 94.6 kg
NU1088 d: 440 mm | D: 650 mm | B: 94 mm | Cr: 1 490 kN | C0r: 2 520 kN | Mass: 109 kg
NUP1088 d: 440 mm | D: 650 mm | B: 94 mm | Cr: 1 490 kN | C0r: 2 520 kN | Mass: 109 kg
NU1092 d: 460 mm | D: 680 mm | B: 100 mm | Cr: 1 590 kN | C0r: 2 730 kN | Mass: 127 kg
NUP1092 d: 460 mm | D: 680 mm | B: 100 mm | Cr: 1 590 kN | C0r: 2 730 kN | Mass: 127 kg
Cylindrical Roller BearingsKOYO
881 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Single-Row Cylindrical Roller Bearings (NU, NJ, NUP, N, NF)

Brand KOYO·Cylindrical Roller Bearings

Available part numbers (881)

N204, NF204, NU204R, NJ204R, NUP204R, NU2204, NJ2204, NUP2204, NU2204R, NJ2204R + 871 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
N204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Mass: 0.108 kg
NF204d: 20 mm | D: 47 mm | B: 14 mm | Cr: 15.4 kN | C0r: 12.7 kN | Mass: 0.108 kg
NU204Rd: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.112 kg
NJ204Rd: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.112 kg
NUP204Rd: 20 mm | D: 47 mm | B: 14 mm | Cr: 25.7 kN | C0r: 22.6 kN | Mass: 0.112 kg
NU2204d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Mass: 0.146 kg
NJ2204d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Mass: 0.146 kg
NUP2204d: 20 mm | D: 47 mm | B: 18 mm | Cr: 20.7 kN | C0r: 18.4 kN | Mass: 0.146 kg
NU2204Rd: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.6 kN | C0r: 28.3 kN | Mass: 0.146 kg
NJ2204Rd: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.6 kN | C0r: 28.3 kN | Mass: 0.146 kg
NUP2204Rd: 20 mm | D: 47 mm | B: 18 mm | Cr: 30.6 kN | C0r: 28.3 kN | Mass: 0.146 kg
N304d: 20 mm | D: 52 mm | B: 15 mm | Cr: 23.1 kN | C0r: 19.2 kN | Mass: 0.147 kg
NF304d: 20 mm | D: 52 mm | B: 15 mm | Cr: 23.1 kN | C0r: 19.2 kN | Mass: 0.147 kg
NU304Rd: 20 mm | D: 52 mm | B: 15 mm | Cr: 31.5 kN | C0r: 26.9 kN | Mass: 0.153 kg
NJ304Rd: 20 mm | D: 52 mm | B: 15 mm | Cr: 31.5 kN | C0r: 26.9 kN | Mass: 0.153 kg
NUP304Rd: 20 mm | D: 52 mm | B: 15 mm | Cr: 31.5 kN | C0r: 26.9 kN | Mass: 0.153 kg
NU2304d: 20 mm | D: 52 mm | B: 21 mm | Cr: 32.9 kN | C0r: 30.2 kN | Mass: 0.212 kg
NJ2304d: 20 mm | D: 52 mm | B: 21 mm | Cr: 32.9 kN | C0r: 30.2 kN | Mass: 0.212 kg
NUP2304d: 20 mm | D: 52 mm | B: 21 mm | Cr: 32.9 kN | C0r: 30.2 kN | Mass: 0.212 kg
NU2304Rd: 20 mm | D: 52 mm | B: 21 mm | Cr: 42.0 kN | C0r: 38.8 kN | Mass: 0.215 kg
NJ2304Rd: 20 mm | D: 52 mm | B: 21 mm | Cr: 42.0 kN | C0r: 38.8 kN | Mass: 0.215 kg
NUP2304Rd: 20 mm | D: 52 mm | B: 21 mm | Cr: 42.0 kN | C0r: 38.8 kN | Mass: 0.215 kg
NU1005d: 25 mm | D: 47 mm | B: 12 mm | Cr: 14.3 kN | C0r: 13.1 kN | Mass: 0.084 kg
NUP1005d: 25 mm | D: 47 mm | B: 12 mm | Cr: 14.3 kN | C0r: 13.1 kN | Mass: 0.084 kg
N205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Mass: 0.132 kg
NF205d: 25 mm | D: 52 mm | B: 15 mm | Cr: 17.7 kN | C0r: 15.7 kN | Mass: 0.132 kg
NU205Rd: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.138 kg
NJ205Rd: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.138 kg
NUP205Rd: 25 mm | D: 52 mm | B: 15 mm | Cr: 29.3 kN | C0r: 27.7 kN | Mass: 0.138 kg
NU2205d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Mass: 0.163 kg
NJ2205d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Mass: 0.163 kg
NUP2205d: 25 mm | D: 52 mm | B: 18 mm | Cr: 23.7 kN | C0r: 22.8 kN | Mass: 0.163 kg
NU2205Rd: 25 mm | D: 52 mm | B: 18 mm | Cr: 34.9 kN | C0r: 34.6 kN | Mass: 0.166 kg
NJ2205Rd: 25 mm | D: 52 mm | B: 18 mm | Cr: 34.9 kN | C0r: 34.6 kN | Mass: 0.166 kg
NUP2205Rd: 25 mm | D: 52 mm | B: 18 mm | Cr: 34.9 kN | C0r: 34.6 kN | Mass: 0.166 kg
N305d: 25 mm | D: 62 mm | B: 17 mm | Cr: 29.3 kN | C0r: 25.2 kN | Mass: 0.235 kg
NF305d: 25 mm | D: 62 mm | B: 17 mm | Cr: 29.3 kN | C0r: 25.2 kN | Mass: 0.235 kg
NU305Rd: 25 mm | D: 62 mm | B: 17 mm | Cr: 41.6 kN | C0r: 37.4 kN | Mass: 0.243 kg
NJ305Rd: 25 mm | D: 62 mm | B: 17 mm | Cr: 41.6 kN | C0r: 37.4 kN | Mass: 0.243 kg
NUP305Rd: 25 mm | D: 62 mm | B: 17 mm | Cr: 41.6 kN | C0r: 37.4 kN | Mass: 0.243 kg
NU2305d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.7 kN | C0r: 40.9 kN | Mass: 0.340 kg
NJ2305d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.7 kN | C0r: 40.9 kN | Mass: 0.340 kg
NUP2305d: 25 mm | D: 62 mm | B: 24 mm | Cr: 42.7 kN | C0r: 40.9 kN | Mass: 0.340 kg
NU2305Rd: 25 mm | D: 62 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.1 kN | Mass: 0.350 kg
NJ2305Rd: 25 mm | D: 62 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.1 kN | Mass: 0.350 kg
NUP2305Rd: 25 mm | D: 62 mm | B: 24 mm | Cr: 57.0 kN | C0r: 56.1 kN | Mass: 0.350 kg
NU1006d: 30 mm | D: 55 mm | B: 13 mm | Cr: 18.7 kN | C0r: 18.4 kN | Mass: 0.121 kg
NUP1006d: 30 mm | D: 55 mm | B: 13 mm | Cr: 18.7 kN | C0r: 18.4 kN | Mass: 0.121 kg
N206d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Mass: 0.206 kg
NF206d: 30 mm | D: 62 mm | B: 16 mm | Cr: 23.5 kN | C0r: 21.5 kN | Mass: 0.206 kg
NU206Rd: 30 mm | D: 62 mm | B: 16 mm | Cr: 39.1 kN | C0r: 37.4 kN | Mass: 0.209 kg
NJ206Rd: 30 mm | D: 62 mm | B: 16 mm | Cr: 39.1 kN | C0r: 37.4 kN | Mass: 0.209 kg
NUP206Rd: 30 mm | D: 62 mm | B: 16 mm | Cr: 39.1 kN | C0r: 37.4 kN | Mass: 0.209 kg
NU2206d: 30 mm | D: 62 mm | B: 20 mm | Cr: 32.9 kN | C0r: 33.1 kN | Mass: 0.262 kg
NJ2206d: 30 mm | D: 62 mm | B: 20 mm | Cr: 32.9 kN | C0r: 33.1 kN | Mass: 0.262 kg
NUP2206d: 30 mm | D: 62 mm | B: 20 mm | Cr: 32.9 kN | C0r: 33.1 kN | Mass: 0.262 kg
NU2206Rd: 30 mm | D: 62 mm | B: 20 mm | Cr: 48.9 kN | C0r: 49.8 kN | Mass: 0.262 kg
NJ2206Rd: 30 mm | D: 62 mm | B: 20 mm | Cr: 48.9 kN | C0r: 49.8 kN | Mass: 0.262 kg
NUP2206Rd: 30 mm | D: 62 mm | B: 20 mm | Cr: 48.9 kN | C0r: 49.8 kN | Mass: 0.262 kg
NU3206d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 42.7 kN | C0r: 46.4 kN | Mass: 0.343 kg
N306d: 30 mm | D: 72 mm | B: 19 mm | Cr: 38.6 kN | C0r: 35.2 kN | Mass: 0.353 kg
NF306d: 30 mm | D: 72 mm | B: 19 mm | Cr: 38.6 kN | C0r: 35.2 kN | Mass: 0.353 kg
NU306Rd: 30 mm | D: 72 mm | B: 19 mm | Cr: 53.1 kN | C0r: 50.2 kN | Mass: 0.361 kg
NJ306Rd: 30 mm | D: 72 mm | B: 19 mm | Cr: 53.1 kN | C0r: 50.2 kN | Mass: 0.361 kg
NUP306Rd: 30 mm | D: 72 mm | B: 19 mm | Cr: 53.1 kN | C0r: 50.2 kN | Mass: 0.361 kg
NU2306d: 30 mm | D: 72 mm | B: 27 mm | Cr: 51.4 kN | C0r: 50.8 kN | Mass: 0.500 kg
NJ2306d: 30 mm | D: 72 mm | B: 27 mm | Cr: 51.4 kN | C0r: 50.8 kN | Mass: 0.500 kg
NUP2306d: 30 mm | D: 72 mm | B: 27 mm | Cr: 51.4 kN | C0r: 50.8 kN | Mass: 0.500 kg
NU2306Rd: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.6 kN | C0r: 77.6 kN | Mass: 0.534 kg
NJ2306Rd: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.6 kN | C0r: 77.6 kN | Mass: 0.534 kg
NUP2306Rd: 30 mm | D: 72 mm | B: 27 mm | Cr: 74.6 kN | C0r: 77.6 kN | Mass: 0.534 kg
NU3306d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 69.1 kN | C0r: 74.3 kN | Mass: 0.650 kg
NU406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
NJ406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
NUP406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
N406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
NF406d: 30 mm | D: 90 mm | B: 23 mm | Cr: 62.8 kN | C0r: 55.0 kN | Mass: 0.753 kg
NU1007d: 35 mm | D: 62 mm | B: 14 mm | Cr: 22.6 kN | C0r: 23.2 kN | Mass: 0.182 kg
NUP1007d: 35 mm | D: 62 mm | B: 14 mm | Cr: 22.6 kN | C0r: 23.2 kN | Mass: 0.182 kg
N207d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.6 kN | C0r: 31.5 kN | Mass: 0.293 kg
NF207d: 35 mm | D: 72 mm | B: 17 mm | Cr: 33.6 kN | C0r: 31.5 kN | Mass: 0.293 kg
NU207Rd: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.2 kN | C0r: 50.2 kN | Mass: 0.306 kg
NJ207Rd: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.2 kN | C0r: 50.2 kN | Mass: 0.306 kg
NUP207Rd: 35 mm | D: 72 mm | B: 17 mm | Cr: 50.2 kN | C0r: 50.2 kN | Mass: 0.306 kg
NU2207d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49.0 kN | C0r: 51.2 kN | Mass: 0.402 kg
NJ2207d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49.0 kN | C0r: 51.2 kN | Mass: 0.402 kg
NUP2207d: 35 mm | D: 72 mm | B: 23 mm | Cr: 49.0 kN | C0r: 51.2 kN | Mass: 0.402 kg
NU2207Rd: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.6 kN | C0r: 65.3 kN | Mass: 0.404 kg
NJ2207Rd: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.6 kN | C0r: 65.3 kN | Mass: 0.404 kg
NUP2207Rd: 35 mm | D: 72 mm | B: 23 mm | Cr: 61.6 kN | C0r: 65.3 kN | Mass: 0.404 kg
NU3207d: 35 mm | D: 72 mm | B: 27 mm | Cr: 54.8 kN | C0r: 59.1 kN | Mass: 0.524 kg
N307d: 35 mm | D: 80 mm | B: 21 mm | Cr: 49.6 kN | C0r: 46.9 kN | Mass: 0.477 kg
NF307d: 35 mm | D: 80 mm | B: 21 mm | Cr: 49.6 kN | C0r: 46.9 kN | Mass: 0.477 kg
NU307Rd: 35 mm | D: 80 mm | B: 21 mm | Cr: 66.6 kN | C0r: 65.4 kN | Mass: 0.482 kg
NJ307Rd: 35 mm | D: 80 mm | B: 21 mm | Cr: 66.6 kN | C0r: 65.4 kN | Mass: 0.482 kg
NUP307Rd: 35 mm | D: 80 mm | B: 21 mm | Cr: 66.6 kN | C0r: 65.4 kN | Mass: 0.482 kg
NU2307d: 35 mm | D: 80 mm | B: 31 mm | Cr: 64.4 kN | C0r: 65.7 kN | Mass: 0.696 kg
NJ2307d: 35 mm | D: 80 mm | B: 31 mm | Cr: 64.4 kN | C0r: 65.7 kN | Mass: 0.696 kg
NUP2307d: 35 mm | D: 80 mm | B: 31 mm | Cr: 64.4 kN | C0r: 65.7 kN | Mass: 0.696 kg
NU2307Rd: 35 mm | D: 80 mm | B: 31 mm | Cr: 93.1 kN | C0r: 101 kN | Mass: 0.729 kg
NJ2307Rd: 35 mm | D: 80 mm | B: 31 mm | Cr: 93.1 kN | C0r: 101 kN | Mass: 0.729 kg
NUP2307Rd: 35 mm | D: 80 mm | B: 31 mm | Cr: 93.1 kN | C0r: 101 kN | Mass: 0.729 kg
NU3307d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 81.7 kN | C0r: 89.1 kN | Mass: 0.908 kg
NU407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
NJ407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
NUP407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
N407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
NF407d: 35 mm | D: 100 mm | B: 25 mm | Cr: 75.2 kN | C0r: 68.9 kN | Mass: 1.02 kg
NU1008d: 40 mm | D: 68 mm | B: 15 mm | Cr: 24.9 kN | C0r: 25.7 kN | Mass: 0.223 kg
NUP1008d: 40 mm | D: 68 mm | B: 15 mm | Cr: 24.9 kN | C0r: 25.7 kN | Mass: 0.223 kg
N208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.8 kN | C0r: 42.9 kN | Mass: 0.374 kg
NF208d: 40 mm | D: 80 mm | B: 18 mm | Cr: 43.8 kN | C0r: 42.9 kN | Mass: 0.374 kg
NU208Rd: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.7 kN | C0r: 55.4 kN | Mass: 0.384 kg
NJ208Rd: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.7 kN | C0r: 55.4 kN | Mass: 0.384 kg
NUP208Rd: 40 mm | D: 80 mm | B: 18 mm | Cr: 55.7 kN | C0r: 55.4 kN | Mass: 0.384 kg
NU2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58.3 kN | C0r: 62.0 kN | Mass: 0.490 kg
NJ2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58.3 kN | C0r: 62.0 kN | Mass: 0.490 kg
NUP2208d: 40 mm | D: 80 mm | B: 23 mm | Cr: 58.3 kN | C0r: 62.0 kN | Mass: 0.490 kg
NU2208Rd: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.3 kN | C0r: 77.6 kN | Mass: 0.490 kg
NJ2208Rd: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.3 kN | C0r: 77.6 kN | Mass: 0.490 kg
NUP2208Rd: 40 mm | D: 80 mm | B: 23 mm | Cr: 72.3 kN | C0r: 77.6 kN | Mass: 0.490 kg
NU3208d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 78.3 kN | C0r: 90.6 kN | Mass: 0.711 kg
N308d: 40 mm | D: 90 mm | B: 23 mm | Cr: 58.6 kN | C0r: 56.9 kN | Mass: 0.646 kg
NF308d: 40 mm | D: 90 mm | B: 23 mm | Cr: 58.6 kN | C0r: 56.9 kN | Mass: 0.646 kg
NU308Rd: 40 mm | D: 90 mm | B: 23 mm | Cr: 83.1 kN | C0r: 81.5 kN | Mass: 0.664 kg
NJ308Rd: 40 mm | D: 90 mm | B: 23 mm | Cr: 83.1 kN | C0r: 81.5 kN | Mass: 0.664 kg
NUP308Rd: 40 mm | D: 90 mm | B: 23 mm | Cr: 83.1 kN | C0r: 81.5 kN | Mass: 0.664 kg
NU2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.2 kN | C0r: 88.0 kN | Mass: 0.956 kg
NJ2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.2 kN | C0r: 88.0 kN | Mass: 0.956 kg
NUP2308d: 40 mm | D: 90 mm | B: 33 mm | Cr: 82.2 kN | C0r: 88.0 kN | Mass: 0.956 kg
NU2308Rd: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 0.962 kg
NJ2308Rd: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 0.962 kg
NUP2308Rd: 40 mm | D: 90 mm | B: 33 mm | Cr: 114 kN | C0r: 122 kN | Mass: 0.962 kg
NU3308d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 104 kN | C0r: 119 kN | Mass: 1.19 kg
NU408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
NJ408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
NUP408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
N408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
NF408d: 40 mm | D: 110 mm | B: 27 mm | Cr: 97.1 kN | C0r: 89.1 kN | Mass: 1.30 kg
NU1009d: 45 mm | D: 75 mm | B: 16 mm | Cr: 31.0 kN | C0r: 33.8 kN | Mass: 0.289 kg
NUP1009d: 45 mm | D: 75 mm | B: 16 mm | Cr: 31.0 kN | C0r: 33.8 kN | Mass: 0.289 kg
N209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46.1 kN | C0r: 46.9 kN | Mass: 0.427 kg
NF209d: 45 mm | D: 85 mm | B: 19 mm | Cr: 46.1 kN | C0r: 46.9 kN | Mass: 0.427 kg
NU209Rd: 45 mm | D: 85 mm | B: 19 mm | Cr: 63.1 kN | C0r: 66.4 kN | Mass: 0.439 kg
NJ209Rd: 45 mm | D: 85 mm | B: 19 mm | Cr: 63.1 kN | C0r: 66.4 kN | Mass: 0.439 kg
NUP209Rd: 45 mm | D: 85 mm | B: 19 mm | Cr: 63.1 kN | C0r: 66.4 kN | Mass: 0.439 kg
NU2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.4 kN | C0r: 67.8 kN | Mass: 0.536 kg
NJ2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.4 kN | C0r: 67.8 kN | Mass: 0.536 kg
NUP2209d: 45 mm | D: 85 mm | B: 23 mm | Cr: 61.4 kN | C0r: 67.8 kN | Mass: 0.536 kg
NU2209Rd: 45 mm | D: 85 mm | B: 23 mm | Cr: 76.1 kN | C0r: 84.6 kN | Mass: 0.536 kg
NJ2209Rd: 45 mm | D: 85 mm | B: 23 mm | Cr: 76.1 kN | C0r: 84.6 kN | Mass: 0.536 kg
NUP2209Rd: 45 mm | D: 85 mm | B: 23 mm | Cr: 76.1 kN | C0r: 84.6 kN | Mass: 0.536 kg
NU3209d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 82.4 kN | C0r: 99.0 kN | Mass: 0.770 kg
N309d: 45 mm | D: 100 mm | B: 25 mm | Cr: 78.8 kN | C0r: 77.5 kN | Mass: 0.865 kg
NF309d: 45 mm | D: 100 mm | B: 25 mm | Cr: 78.8 kN | C0r: 77.5 kN | Mass: 0.865 kg
NU309Rd: 45 mm | D: 100 mm | B: 25 mm | Cr: 97.4 kN | C0r: 98.3 kN | Mass: 0.909 kg
NJ309Rd: 45 mm | D: 100 mm | B: 25 mm | Cr: 97.4 kN | C0r: 98.3 kN | Mass: 0.909 kg
NUP309Rd: 45 mm | D: 100 mm | B: 25 mm | Cr: 97.4 kN | C0r: 98.3 kN | Mass: 0.909 kg
NU2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 106 kN | C0r: 113 kN | Mass: 1.25 kg
NJ2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 106 kN | C0r: 113 kN | Mass: 1.25 kg
NUP2309d: 45 mm | D: 100 mm | B: 36 mm | Cr: 106 kN | C0r: 113 kN | Mass: 1.25 kg
NU2309Rd: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.32 kg
NJ2309Rd: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.32 kg
NUP2309Rd: 45 mm | D: 100 mm | B: 36 mm | Cr: 137 kN | C0r: 153 kN | Mass: 1.32 kg
NU3309d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 131 kN | C0r: 149 kN | Mass: 1.59 kg
NU409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
NJ409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
NUP409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
N409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
NF409d: 45 mm | D: 120 mm | B: 29 mm | Cr: 115 kN | C0r: 112 kN | Mass: 1.64 kg
NU1010d: 50 mm | D: 80 mm | B: 16 mm | Cr: 33.6 kN | C0r: 36.8 kN | Mass: 0.306 kg
NUP1010d: 50 mm | D: 80 mm | B: 16 mm | Cr: 33.6 kN | C0r: 36.8 kN | Mass: 0.306 kg
N210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48.2 kN | C0r: 51.0 kN | Mass: 0.479 kg
NF210d: 50 mm | D: 90 mm | B: 20 mm | Cr: 48.2 kN | C0r: 51.0 kN | Mass: 0.479 kg
NU210Rd: 50 mm | D: 90 mm | B: 20 mm | Cr: 66.1 kN | C0r: 71.9 kN | Mass: 0.497 kg
NJ210Rd: 50 mm | D: 90 mm | B: 20 mm | Cr: 66.1 kN | C0r: 71.9 kN | Mass: 0.497 kg
NUP210Rd: 50 mm | D: 90 mm | B: 20 mm | Cr: 66.1 kN | C0r: 71.9 kN | Mass: 0.497 kg
NU2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64.2 kN | C0r: 73.6 kN | Mass: 0.580 kg
NJ2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64.2 kN | C0r: 73.6 kN | Mass: 0.580 kg
NUP2210d: 50 mm | D: 90 mm | B: 23 mm | Cr: 64.2 kN | C0r: 73.6 kN | Mass: 0.580 kg
NU2210Rd: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.7 kN | C0r: 91.5 kN | Mass: 0.580 kg
NJ2210Rd: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.7 kN | C0r: 91.5 kN | Mass: 0.580 kg
NUP2210Rd: 50 mm | D: 90 mm | B: 23 mm | Cr: 79.7 kN | C0r: 91.5 kN | Mass: 0.580 kg
NU3210d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 86.2 kN | C0r: 108 kN | Mass: 0.829 kg
N310d: 50 mm | D: 110 mm | B: 27 mm | Cr: 92.2 kN | C0r: 93.4 kN | Mass: 1.15 kg
NF310d: 50 mm | D: 110 mm | B: 27 mm | Cr: 92.2 kN | C0r: 93.4 kN | Mass: 1.15 kg
NU310Rd: 50 mm | D: 110 mm | B: 27 mm | Cr: 110 kN | C0r: 113 kN | Mass: 1.15 kg
NJ310Rd: 50 mm | D: 110 mm | B: 27 mm | Cr: 110 kN | C0r: 113 kN | Mass: 1.15 kg
NUP310Rd: 50 mm | D: 110 mm | B: 27 mm | Cr: 110 kN | C0r: 113 kN | Mass: 1.15 kg
NU2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 128 kN | C0r: 142 kN | Mass: 1.69 kg
NJ2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 128 kN | C0r: 142 kN | Mass: 1.69 kg
NUP2310d: 50 mm | D: 110 mm | B: 40 mm | Cr: 128 kN | C0r: 142 kN | Mass: 1.69 kg
NU2310Rd: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.76 kg
NJ2310Rd: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.76 kg
NUP2310Rd: 50 mm | D: 110 mm | B: 40 mm | Cr: 163 kN | C0r: 187 kN | Mass: 1.76 kg
NU3310d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 156 kN | C0r: 183 kN | Mass: 2.14 kg
NU410d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
NJ410d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
NUP410d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
N410d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
NF410d: 50 mm | D: 130 mm | B: 31 mm | Cr: 139 kN | C0r: 136 kN | Mass: 2.01 kg
NU1011d: 55 mm | D: 90 mm | B: 18 mm | Cr: 37.4 kN | C0r: 43.8 kN | Mass: 0.445 kg
NUP1011d: 55 mm | D: 90 mm | B: 18 mm | Cr: 37.4 kN | C0r: 43.8 kN | Mass: 0.445 kg
N211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58.0 kN | C0r: 62.3 kN | Mass: 0.633 kg
NF211d: 55 mm | D: 100 mm | B: 21 mm | Cr: 58.0 kN | C0r: 62.3 kN | Mass: 0.633 kg
NU211Rd: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.4 kN | C0r: 98.7 kN | Mass: 0.650 kg
NJ211Rd: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.4 kN | C0r: 98.7 kN | Mass: 0.650 kg
NUP211Rd: 55 mm | D: 100 mm | B: 21 mm | Cr: 86.4 kN | C0r: 98.7 kN | Mass: 0.650 kg
NU2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.3 kN | C0r: 87.2 kN | Mass: 0.780 kg
NJ2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.3 kN | C0r: 87.2 kN | Mass: 0.780 kg
NUP2211d: 55 mm | D: 100 mm | B: 25 mm | Cr: 75.3 kN | C0r: 87.2 kN | Mass: 0.780 kg
NU2211Rd: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Mass: 0.806 kg
NJ2211Rd: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Mass: 0.806 kg
NUP2211Rd: 55 mm | D: 100 mm | B: 25 mm | Cr: 101 kN | C0r: 122 kN | Mass: 0.806 kg
NU3211d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 95.5 kN | C0r: 118 kN | Mass: 1.14 kg
N311d: 55 mm | D: 120 mm | B: 29 mm | Cr: 111 kN | C0r: 111 kN | Mass: 1.44 kg
NF311d: 55 mm | D: 120 mm | B: 29 mm | Cr: 111 kN | C0r: 111 kN | Mass: 1.44 kg
NU311Rd: 55 mm | D: 120 mm | B: 29 mm | Cr: 137 kN | C0r: 143 kN | Mass: 1.50 kg
NJ311Rd: 55 mm | D: 120 mm | B: 29 mm | Cr: 137 kN | C0r: 143 kN | Mass: 1.50 kg
NUP311Rd: 55 mm | D: 120 mm | B: 29 mm | Cr: 137 kN | C0r: 143 kN | Mass: 1.50 kg
NU2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.10 kg
NJ2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.10 kg
NUP2311d: 55 mm | D: 120 mm | B: 43 mm | Cr: 148 kN | C0r: 162 kN | Mass: 2.10 kg
NU2311Rd: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.25 kg
NJ2311Rd: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.25 kg
NUP2311Rd: 55 mm | D: 120 mm | B: 43 mm | Cr: 201 kN | C0r: 233 kN | Mass: 2.25 kg
NU3311d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 188 kN | C0r: 220 kN | Mass: 2.81 kg
NU411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
NJ411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
NUP411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
N411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
NF411d: 55 mm | D: 140 mm | B: 33 mm | Cr: 142 kN | C0r: 138 kN | Mass: 2.51 kg
NU1012d: 60 mm | D: 95 mm | B: 18 mm | Cr: 42.1 kN | C0r: 50.0 kN | Mass: 0.477 kg
NUP1012d: 60 mm | D: 95 mm | B: 18 mm | Cr: 42.1 kN | C0r: 50.0 kN | Mass: 0.477 kg
N212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 71.9 kN | C0r: 79.9 kN | Mass: 0.823 kg
NF212d: 60 mm | D: 110 mm | B: 22 mm | Cr: 71.9 kN | C0r: 79.9 kN | Mass: 0.823 kg
NU212Rd: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.7 kN | C0r: 107 kN | Mass: 0.830 kg
NJ212Rd: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.7 kN | C0r: 107 kN | Mass: 0.830 kg
NUP212Rd: 60 mm | D: 110 mm | B: 22 mm | Cr: 97.7 kN | C0r: 107 kN | Mass: 0.830 kg
NU2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 101 kN | C0r: 123 kN | Mass: 1.07 kg
NJ2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 101 kN | C0r: 123 kN | Mass: 1.07 kg
NUP2212d: 60 mm | D: 110 mm | B: 28 mm | Cr: 101 kN | C0r: 123 kN | Mass: 1.07 kg
NU2212Rd: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.09 kg
NJ2212Rd: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.09 kg
NUP2212Rd: 60 mm | D: 110 mm | B: 28 mm | Cr: 131 kN | C0r: 157 kN | Mass: 1.09 kg
NU3212d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 128 kN | C0r: 167 kN | Mass: 1.52 kg
N312d: 60 mm | D: 130 mm | B: 31 mm | Cr: 124 kN | C0r: 126 kN | Mass: 1.83 kg
NF312d: 60 mm | D: 130 mm | B: 31 mm | Cr: 124 kN | C0r: 126 kN | Mass: 1.83 kg
NU312Rd: 60 mm | D: 130 mm | B: 31 mm | Cr: 150 kN | C0r: 157 kN | Mass: 1.87 kg
NJ312Rd: 60 mm | D: 130 mm | B: 31 mm | Cr: 150 kN | C0r: 157 kN | Mass: 1.87 kg
NUP312Rd: 60 mm | D: 130 mm | B: 31 mm | Cr: 150 kN | C0r: 157 kN | Mass: 1.87 kg
NU2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 168 kN | C0r: 188 kN | Mass: 2.69 kg
NJ2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 168 kN | C0r: 188 kN | Mass: 2.69 kg
NUP2312d: 60 mm | D: 130 mm | B: 46 mm | Cr: 168 kN | C0r: 188 kN | Mass: 2.69 kg
NU2312Rd: 60 mm | D: 130 mm | B: 46 mm | Cr: 223 kN | C0r: 262 kN | Mass: 2.81 kg
NJ2312Rd: 60 mm | D: 130 mm | B: 46 mm | Cr: 223 kN | C0r: 262 kN | Mass: 2.81 kg
NUP2312Rd: 60 mm | D: 130 mm | B: 46 mm | Cr: 223 kN | C0r: 262 kN | Mass: 2.81 kg
NU3312d: 60 mm | D: 130 mm | B: 54 mm | Cr: 220 kN | C0r: 265 kN | Mass: 3.61 kg
NU412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
NJ412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
NUP412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
N412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
NF412d: 60 mm | D: 150 mm | B: 35 mm | Cr: 178 kN | C0r: 184 kN | Mass: 3.02 kg
NU1013d: 65 mm | D: 100 mm | B: 18 mm | Cr: 43.3 kN | C0r: 52.9 kN | Mass: 0.506 kg
NUP1013d: 65 mm | D: 100 mm | B: 18 mm | Cr: 43.3 kN | C0r: 52.9 kN | Mass: 0.506 kg
N213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 83.8 kN | C0r: 94.4 kN | Mass: 1.05 kg
NF213d: 65 mm | D: 120 mm | B: 23 mm | Cr: 83.8 kN | C0r: 94.4 kN | Mass: 1.05 kg
NU213Rd: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.05 kg
NJ213Rd: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.05 kg
NUP213Rd: 65 mm | D: 120 mm | B: 23 mm | Cr: 108 kN | C0r: 119 kN | Mass: 1.05 kg
NU2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.43 kg
NJ2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.43 kg
NUP2213d: 65 mm | D: 120 mm | B: 31 mm | Cr: 120 kN | C0r: 149 kN | Mass: 1.43 kg
NU2213Rd: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.45 kg
NJ2213Rd: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.45 kg
NUP2213Rd: 65 mm | D: 120 mm | B: 31 mm | Cr: 149 kN | C0r: 181 kN | Mass: 1.45 kg
NU3213d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 148 kN | C0r: 197 kN | Mass: 1.90 kg
N313d: 65 mm | D: 140 mm | B: 33 mm | Cr: 137 kN | C0r: 139 kN | Mass: 2.19 kg
NF313d: 65 mm | D: 140 mm | B: 33 mm | Cr: 137 kN | C0r: 139 kN | Mass: 2.19 kg
NU313Rd: 65 mm | D: 140 mm | B: 33 mm | Cr: 181 kN | C0r: 191 kN | Mass: 2.31 kg
NJ313Rd: 65 mm | D: 140 mm | B: 33 mm | Cr: 181 kN | C0r: 191 kN | Mass: 2.31 kg
NUP313Rd: 65 mm | D: 140 mm | B: 33 mm | Cr: 181 kN | C0r: 191 kN | Mass: 2.31 kg
NU2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 190 kN | C0r: 212 kN | Mass: 3.25 kg
NJ2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 190 kN | C0r: 212 kN | Mass: 3.25 kg
NUP2313d: 65 mm | D: 140 mm | B: 48 mm | Cr: 190 kN | C0r: 212 kN | Mass: 3.25 kg
NU2313Rd: 65 mm | D: 140 mm | B: 48 mm | Cr: 251 kN | C0r: 287 kN | Mass: 3.36 kg
NJ2313Rd: 65 mm | D: 140 mm | B: 48 mm | Cr: 251 kN | C0r: 287 kN | Mass: 3.36 kg
NUP2313Rd: 65 mm | D: 140 mm | B: 48 mm | Cr: 251 kN | C0r: 287 kN | Mass: 3.36 kg
NU3313d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 241 kN | C0r: 294 kN | Mass: 4.53 kg
NU413d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
NJ413d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
NUP413d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
N413d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
NF413d: 65 mm | D: 160 mm | B: 37 mm | Cr: 198 kN | C0r: 203 kN | Mass: 3.58 kg
NU1014d: 70 mm | D: 110 mm | B: 20 mm | Cr: 57.9 kN | C0r: 70.4 kN | Mass: 0.702 kg
NUP1014d: 70 mm | D: 110 mm | B: 20 mm | Cr: 57.9 kN | C0r: 70.4 kN | Mass: 0.702 kg
N214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.3 kN | C0r: 95.2 kN | Mass: 1.15 kg
NF214d: 70 mm | D: 125 mm | B: 24 mm | Cr: 83.3 kN | C0r: 95.2 kN | Mass: 1.15 kg
NU214Rd: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.16 kg
NJ214Rd: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.16 kg
NUP214Rd: 70 mm | D: 125 mm | B: 24 mm | Cr: 119 kN | C0r: 137 kN | Mass: 1.16 kg
NU2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.52 kg
NJ2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.52 kg
NUP2214d: 70 mm | D: 125 mm | B: 31 mm | Cr: 119 kN | C0r: 151 kN | Mass: 1.52 kg
NU2214Rd: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.53 kg
NJ2214Rd: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.53 kg
NUP2214Rd: 70 mm | D: 125 mm | B: 31 mm | Cr: 156 kN | C0r: 194 kN | Mass: 1.53 kg
NU3214d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 147 kN | C0r: 198 kN | Mass: 2.09 kg
N314d: 70 mm | D: 150 mm | B: 35 mm | Cr: 162 kN | C0r: 168 kN | Mass: 2.73 kg
NF314d: 70 mm | D: 150 mm | B: 35 mm | Cr: 162 kN | C0r: 168 kN | Mass: 2.73 kg
NU314Rd: 70 mm | D: 150 mm | B: 35 mm | Cr: 205 kN | C0r: 222 kN | Mass: 2.81 kg
NJ314Rd: 70 mm | D: 150 mm | B: 35 mm | Cr: 205 kN | C0r: 222 kN | Mass: 2.81 kg
NUP314Rd: 70 mm | D: 150 mm | B: 35 mm | Cr: 205 kN | C0r: 222 kN | Mass: 2.81 kg
NU2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 224 kN | C0r: 262 kN | Mass: 3.97 kg
NJ2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 224 kN | C0r: 262 kN | Mass: 3.97 kg
NUP2314d: 70 mm | D: 150 mm | B: 51 mm | Cr: 224 kN | C0r: 262 kN | Mass: 3.97 kg
NU2314Rd: 70 mm | D: 150 mm | B: 51 mm | Cr: 275 kN | C0r: 323 kN | Mass: 4.08 kg
NJ2314Rd: 70 mm | D: 150 mm | B: 51 mm | Cr: 275 kN | C0r: 323 kN | Mass: 4.08 kg
NUP2314Rd: 70 mm | D: 150 mm | B: 51 mm | Cr: 275 kN | C0r: 323 kN | Mass: 4.08 kg
NU3314d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 283 kN | C0r: 356 kN | Mass: 5.62 kg
NU414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
NJ414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
NUP414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
N414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
NF414d: 70 mm | D: 180 mm | B: 42 mm | Cr: 246 kN | C0r: 257 kN | Mass: 5.26 kg
NU1015d: 75 mm | D: 115 mm | B: 20 mm | Cr: 63.6 kN | C0r: 78.1 kN | Mass: 0.735 kg
NUP1015d: 75 mm | D: 115 mm | B: 20 mm | Cr: 63.6 kN | C0r: 78.1 kN | Mass: 0.735 kg
N215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 101 kN | C0r: 118 kN | Mass: 1.24 kg
NF215d: 75 mm | D: 130 mm | B: 25 mm | Cr: 101 kN | C0r: 118 kN | Mass: 1.24 kg
NU215Rd: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.29 kg
NJ215Rd: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.29 kg
NUP215Rd: 75 mm | D: 130 mm | B: 25 mm | Cr: 130 kN | C0r: 156 kN | Mass: 1.29 kg
NU2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 135 kN | C0r: 172 kN | Mass: 1.57 kg
NJ2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 135 kN | C0r: 172 kN | Mass: 1.57 kg
NUP2215d: 75 mm | D: 130 mm | B: 31 mm | Cr: 135 kN | C0r: 172 kN | Mass: 1.57 kg
NU2215Rd: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.61 kg
NJ2215Rd: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.61 kg
NUP2215Rd: 75 mm | D: 130 mm | B: 31 mm | Cr: 162 kN | C0r: 207 kN | Mass: 1.61 kg
NU3215d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 167 kN | C0r: 226 kN | Mass: 2.28 kg
N315d: 75 mm | D: 160 mm | B: 37 mm | Cr: 194 kN | C0r: 205 kN | Mass: 3.19 kg
NF315d: 75 mm | D: 160 mm | B: 37 mm | Cr: 194 kN | C0r: 205 kN | Mass: 3.19 kg
NU315Rd: 75 mm | D: 160 mm | B: 37 mm | Cr: 240 kN | C0r: 263 kN | Mass: 3.37 kg
NJ315Rd: 75 mm | D: 160 mm | B: 37 mm | Cr: 240 kN | C0r: 263 kN | Mass: 3.37 kg
NUP315Rd: 75 mm | D: 160 mm | B: 37 mm | Cr: 240 kN | C0r: 263 kN | Mass: 3.37 kg
NU2315d: 75 mm | D: 160 mm | B: 55 mm | Cr: 275 kN | C0r: 327 kN | Mass: 4.84 kg
NJ2315d: 75 mm | D: 160 mm | B: 55 mm | Cr: 275 kN | C0r: 327 kN | Mass: 4.84 kg
NUP2315d: 75 mm | D: 160 mm | B: 55 mm | Cr: 275 kN | C0r: 327 kN | Mass: 4.84 kg
NU2315Rd: 75 mm | D: 160 mm | B: 55 mm | Cr: 329 kN | C0r: 395 kN | Mass: 5.00 kg
NJ2315Rd: 75 mm | D: 160 mm | B: 55 mm | Cr: 329 kN | C0r: 395 kN | Mass: 5.00 kg
NUP2315Rd: 75 mm | D: 160 mm | B: 55 mm | Cr: 329 kN | C0r: 395 kN | Mass: 5.00 kg
NU3315d: 75 mm | D: 160 mm | B: 68.3 mm | Cr: 338 kN | C0r: 430 kN | Mass: 6.86 kg
NU415d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
NJ415d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
NUP415d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
N415d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
NF415d: 75 mm | D: 190 mm | B: 45 mm | Cr: 265 kN | C0r: 274 kN | Mass: 6.25 kg
NU1016d: 80 mm | D: 125 mm | B: 22 mm | Cr: 69.3 kN | C0r: 86.4 kN | Mass: 0.994 kg
NUP1016d: 80 mm | D: 125 mm | B: 22 mm | Cr: 69.3 kN | C0r: 86.4 kN | Mass: 0.994 kg
N216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.51 kg
NF216d: 80 mm | D: 140 mm | B: 26 mm | Cr: 106 kN | C0r: 122 kN | Mass: 1.51 kg
NU216Rd: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.56 kg
NJ216Rd: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.56 kg
NUP216Rd: 80 mm | D: 140 mm | B: 26 mm | Cr: 139 kN | C0r: 167 kN | Mass: 1.56 kg
NU2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 148 kN | C0r: 186 kN | Mass: 1.96 kg
NJ2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 148 kN | C0r: 186 kN | Mass: 1.96 kg
NUP2216d: 80 mm | D: 140 mm | B: 33 mm | Cr: 148 kN | C0r: 186 kN | Mass: 1.96 kg
NU2216Rd: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.03 kg
NJ2216Rd: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.03 kg
NUP2216Rd: 80 mm | D: 140 mm | B: 33 mm | Cr: 186 kN | C0r: 243 kN | Mass: 2.03 kg
NU3216d: 80 mm | D: 140 mm | B: 44.4 mm | Cr: 190 kN | C0r: 259 kN | Mass: 2.87 kg
N316d: 80 mm | D: 170 mm | B: 39 mm | Cr: 194 kN | C0r: 207 kN | Mass: 3.83 kg
NF316d: 80 mm | D: 170 mm | B: 39 mm | Cr: 194 kN | C0r: 207 kN | Mass: 3.83 kg
NU316Rd: 80 mm | D: 170 mm | B: 39 mm | Cr: 259 kN | C0r: 282 kN | Mass: 4.00 kg
NJ316Rd: 80 mm | D: 170 mm | B: 39 mm | Cr: 259 kN | C0r: 282 kN | Mass: 4.00 kg
NUP316Rd: 80 mm | D: 170 mm | B: 39 mm | Cr: 259 kN | C0r: 282 kN | Mass: 4.00 kg
NU2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 275 kN | C0r: 332 kN | Mass: 5.83 kg
NJ2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 275 kN | C0r: 332 kN | Mass: 5.83 kg
NUP2316d: 80 mm | D: 170 mm | B: 58 mm | Cr: 275 kN | C0r: 332 kN | Mass: 5.83 kg
NU2316Rd: 80 mm | D: 170 mm | B: 58 mm | Cr: 361 kN | C0r: 431 kN | Mass: 5.95 kg
NJ2316Rd: 80 mm | D: 170 mm | B: 58 mm | Cr: 361 kN | C0r: 431 kN | Mass: 5.95 kg
NUP2316Rd: 80 mm | D: 170 mm | B: 58 mm | Cr: 361 kN | C0r: 431 kN | Mass: 5.95 kg
NU3316d: 80 mm | D: 170 mm | B: 68.3 mm | Cr: 338 kN | C0r: 436 kN | Mass: 7.72 kg
NU416d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
NJ416d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
NUP416d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
N416d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
NF416d: 80 mm | D: 200 mm | B: 48 mm | Cr: 302 kN | C0r: 315 kN | Mass: 7.28 kg
NU1017d: 85 mm | D: 130 mm | B: 22 mm | Cr: 71.4 kN | C0r: 91.2 kN | Mass: 1.04 kg
NUP1017d: 85 mm | D: 130 mm | B: 22 mm | Cr: 71.4 kN | C0r: 91.2 kN | Mass: 1.04 kg
N217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 121 kN | C0r: 140 kN | Mass: 1.90 kg
NF217d: 85 mm | D: 150 mm | B: 28 mm | Cr: 121 kN | C0r: 140 kN | Mass: 1.90 kg
NU217Rd: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 1.94 kg
NJ217Rd: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 1.94 kg
NUP217Rd: 85 mm | D: 150 mm | B: 28 mm | Cr: 167 kN | C0r: 199 kN | Mass: 1.94 kg
NU2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 169 kN | C0r: 218 kN | Mass: 2.50 kg
NJ2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 169 kN | C0r: 218 kN | Mass: 2.50 kg
NUP2217d: 85 mm | D: 150 mm | B: 36 mm | Cr: 169 kN | C0r: 218 kN | Mass: 2.50 kg
NU2217Rd: 85 mm | D: 150 mm | B: 36 mm | Cr: 218 kN | C0r: 279 kN | Mass: 2.53 kg
NJ2217Rd: 85 mm | D: 150 mm | B: 36 mm | Cr: 218 kN | C0r: 279 kN | Mass: 2.53 kg
NUP2217Rd: 85 mm | D: 150 mm | B: 36 mm | Cr: 218 kN | C0r: 279 kN | Mass: 2.53 kg
NU3217d: 85 mm | D: 150 mm | B: 49.2 mm | Cr: 215 kN | C0r: 296 kN | Mass: 3.67 kg
N317d: 85 mm | D: 180 mm | B: 41 mm | Cr: 225 kN | C0r: 247 kN | Mass: 4.52 kg
NF317d: 85 mm | D: 180 mm | B: 41 mm | Cr: 225 kN | C0r: 247 kN | Mass: 4.52 kg
NU317Rd: 85 mm | D: 180 mm | B: 41 mm | Cr: 291 kN | C0r: 330 kN | Mass: 4.80 kg
NJ317Rd: 85 mm | D: 180 mm | B: 41 mm | Cr: 291 kN | C0r: 330 kN | Mass: 4.80 kg
NUP317Rd: 85 mm | D: 180 mm | B: 41 mm | Cr: 291 kN | C0r: 330 kN | Mass: 4.80 kg
NU2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 382 kN | Mass: 6.62 kg
NJ2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 382 kN | Mass: 6.62 kg
NUP2317d: 85 mm | D: 180 mm | B: 60 mm | Cr: 315 kN | C0r: 382 kN | Mass: 6.62 kg
NU2317Rd: 85 mm | D: 180 mm | B: 60 mm | Cr: 394 kN | C0r: 485 kN | Mass: 6.98 kg
NJ2317Rd: 85 mm | D: 180 mm | B: 60 mm | Cr: 394 kN | C0r: 485 kN | Mass: 6.98 kg
NUP2317Rd: 85 mm | D: 180 mm | B: 60 mm | Cr: 394 kN | C0r: 485 kN | Mass: 6.98 kg
NU3317d: 85 mm | D: 180 mm | B: 73 mm | Cr: 399 kN | C0r: 517 kN | Mass: 9.23 kg
NU417d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
NJ417d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
NUP417d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
N417d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
NF417d: 85 mm | D: 210 mm | B: 52 mm | Cr: 340 kN | C0r: 350 kN | Mass: 8.68 kg
NU1018d: 90 mm | D: 140 mm | B: 24 mm | Cr: 84.7 kN | C0r: 109 kN | Mass: 1.34 kg
NUP1018d: 90 mm | D: 140 mm | B: 24 mm | Cr: 84.7 kN | C0r: 109 kN | Mass: 1.34 kg
N218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.32 kg
NF218d: 90 mm | D: 160 mm | B: 30 mm | Cr: 152 kN | C0r: 178 kN | Mass: 2.32 kg
NU218Rd: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.38 kg
NJ218Rd: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.38 kg
NUP218Rd: 90 mm | D: 160 mm | B: 30 mm | Cr: 182 kN | C0r: 217 kN | Mass: 2.38 kg
NU2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Mass: 3.10 kg
NJ2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Mass: 3.10 kg
NUP2218d: 90 mm | D: 160 mm | B: 40 mm | Cr: 207 kN | C0r: 265 kN | Mass: 3.10 kg
NU2218Rd: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 314 kN | Mass: 3.21 kg
NJ2218Rd: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 314 kN | Mass: 3.21 kg
NUP2218Rd: 90 mm | D: 160 mm | B: 40 mm | Cr: 242 kN | C0r: 314 kN | Mass: 3.21 kg
NU3218d: 90 mm | D: 160 mm | B: 52.4 mm | Cr: 270 kN | C0r: 373 kN | Mass: 4.49 kg
N318d: 90 mm | D: 190 mm | B: 43 mm | Cr: 243 kN | C0r: 265 kN | Mass: 5.27 kg
NF318d: 90 mm | D: 190 mm | B: 43 mm | Cr: 243 kN | C0r: 265 kN | Mass: 5.27 kg
NU318Rd: 90 mm | D: 190 mm | B: 43 mm | Cr: 316 kN | C0r: 355 kN | Mass: 5.47 kg
NJ318Rd: 90 mm | D: 190 mm | B: 43 mm | Cr: 316 kN | C0r: 355 kN | Mass: 5.47 kg
NUP318Rd: 90 mm | D: 190 mm | B: 43 mm | Cr: 316 kN | C0r: 355 kN | Mass: 5.47 kg
NU2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 329 kN | C0r: 395 kN | Mass: 7.90 kg
NJ2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 329 kN | C0r: 395 kN | Mass: 7.90 kg
NUP2318d: 90 mm | D: 190 mm | B: 64 mm | Cr: 329 kN | C0r: 395 kN | Mass: 7.90 kg
NU2318Rd: 90 mm | D: 190 mm | B: 64 mm | Cr: 437 kN | C0r: 534 kN | Mass: 8.12 kg
NJ2318Rd: 90 mm | D: 190 mm | B: 64 mm | Cr: 437 kN | C0r: 534 kN | Mass: 8.12 kg
NUP2318Rd: 90 mm | D: 190 mm | B: 64 mm | Cr: 437 kN | C0r: 534 kN | Mass: 8.12 kg
NU3318d: 90 mm | D: 190 mm | B: 73 mm | Cr: 428 kN | C0r: 559 kN | Mass: 10.3 kg
NU418d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
NJ418d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
NUP418d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
N418d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
NF418d: 90 mm | D: 225 mm | B: 54 mm | Cr: 374 kN | C0r: 400 kN | Mass: 10.3 kg
NU1019d: 95 mm | D: 145 mm | B: 24 mm | Cr: 87.2 kN | C0r: 115 kN | Mass: 1.40 kg
NUP1019d: 95 mm | D: 145 mm | B: 24 mm | Cr: 87.2 kN | C0r: 115 kN | Mass: 1.40 kg
N219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 165 kN | C0r: 195 kN | Mass: 2.80 kg
NF219d: 95 mm | D: 170 mm | B: 32 mm | Cr: 165 kN | C0r: 195 kN | Mass: 2.80 kg
NU219Rd: 95 mm | D: 170 mm | B: 32 mm | Cr: 221 kN | C0r: 265 kN | Mass: 2.92 kg
NJ219Rd: 95 mm | D: 170 mm | B: 32 mm | Cr: 221 kN | C0r: 265 kN | Mass: 2.92 kg
NUP219Rd: 95 mm | D: 170 mm | B: 32 mm | Cr: 221 kN | C0r: 265 kN | Mass: 2.92 kg
NU2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.85 kg
NJ2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.85 kg
NUP2219d: 95 mm | D: 170 mm | B: 43 mm | Cr: 230 kN | C0r: 298 kN | Mass: 3.85 kg
NU2219Rd: 95 mm | D: 170 mm | B: 43 mm | Cr: 287 kN | C0r: 371 kN | Mass: 3.93 kg
NJ2219Rd: 95 mm | D: 170 mm | B: 43 mm | Cr: 287 kN | C0r: 371 kN | Mass: 3.93 kg
NUP2219Rd: 95 mm | D: 170 mm | B: 43 mm | Cr: 287 kN | C0r: 371 kN | Mass: 3.93 kg
NU3219d: 95 mm | D: 170 mm | B: 55.6 mm | Cr: 297 kN | C0r: 412 kN | Mass: 5.42 kg
N319d: 95 mm | D: 200 mm | B: 45 mm | Cr: 277 kN | C0r: 311 kN | Mass: 6.10 kg
NF319d: 95 mm | D: 200 mm | B: 45 mm | Cr: 277 kN | C0r: 311 kN | Mass: 6.10 kg
NU319Rd: 95 mm | D: 200 mm | B: 45 mm | Cr: 334 kN | C0r: 387 kN | Mass: 6.42 kg
NJ319Rd: 95 mm | D: 200 mm | B: 45 mm | Cr: 334 kN | C0r: 387 kN | Mass: 6.42 kg
NUP319Rd: 95 mm | D: 200 mm | B: 45 mm | Cr: 334 kN | C0r: 387 kN | Mass: 6.42 kg
NU2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 394 kN | C0r: 496 kN | Mass: 9.39 kg
NJ2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 394 kN | C0r: 496 kN | Mass: 9.39 kg
NUP2319d: 95 mm | D: 200 mm | B: 67 mm | Cr: 394 kN | C0r: 496 kN | Mass: 9.39 kg
NU3319d: 95 mm | D: 200 mm | B: 77.8 mm | Cr: 487 kN | C0r: 654 kN | Mass: 12.1 kg
NU419d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
NJ419d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
NUP419d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
N419d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
NF419d: 95 mm | D: 240 mm | B: 55 mm | Cr: 410 kN | C0r: 444 kN | Mass: 13.6 kg
NU1020d: 100 mm | D: 150 mm | B: 24 mm | Cr: 91.0 kN | C0r: 120 kN | Mass: 1.46 kg
NUP1020d: 100 mm | D: 150 mm | B: 24 mm | Cr: 91.0 kN | C0r: 120 kN | Mass: 1.46 kg
N220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.38 kg
NF220d: 100 mm | D: 180 mm | B: 34 mm | Cr: 183 kN | C0r: 217 kN | Mass: 3.38 kg
NU220Rd: 100 mm | D: 180 mm | B: 34 mm | Cr: 250 kN | C0r: 306 kN | Mass: 3.52 kg
NJ220Rd: 100 mm | D: 180 mm | B: 34 mm | Cr: 250 kN | C0r: 306 kN | Mass: 3.52 kg
NUP220Rd: 100 mm | D: 180 mm | B: 34 mm | Cr: 250 kN | C0r: 306 kN | Mass: 3.52 kg
NU2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 259 kN | C0r: 338 kN | Mass: 4.67 kg
NJ2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 259 kN | C0r: 338 kN | Mass: 4.67 kg
NUP2220d: 100 mm | D: 180 mm | B: 46 mm | Cr: 259 kN | C0r: 338 kN | Mass: 4.67 kg
NU2220Rd: 100 mm | D: 180 mm | B: 46 mm | Cr: 334 kN | C0r: 444 kN | Mass: 4.82 kg
NJ2220Rd: 100 mm | D: 180 mm | B: 46 mm | Cr: 334 kN | C0r: 444 kN | Mass: 4.82 kg
NUP2220Rd: 100 mm | D: 180 mm | B: 46 mm | Cr: 334 kN | C0r: 444 kN | Mass: 4.82 kg
NU3220d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 327 kN | C0r: 459 kN | Mass: 6.62 kg
N320d: 100 mm | D: 215 mm | B: 47 mm | Cr: 323 kN | C0r: 337 kN | Mass: 7.59 kg
NF320d: 100 mm | D: 215 mm | B: 47 mm | Cr: 323 kN | C0r: 337 kN | Mass: 7.59 kg
NU320Rd: 100 mm | D: 215 mm | B: 47 mm | Cr: 379 kN | C0r: 424 kN | Mass: 7.75 kg
NJ320Rd: 100 mm | D: 215 mm | B: 47 mm | Cr: 379 kN | C0r: 424 kN | Mass: 7.75 kg
NUP320Rd: 100 mm | D: 215 mm | B: 47 mm | Cr: 379 kN | C0r: 424 kN | Mass: 7.75 kg
NU2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 464 kN | C0r: 548 kN | Mass: 11.9 kg
NJ2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 464 kN | C0r: 548 kN | Mass: 11.9 kg
NUP2320d: 100 mm | D: 215 mm | B: 73 mm | Cr: 464 kN | C0r: 548 kN | Mass: 11.9 kg
NU2320Rd: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 717 kN | Mass: 12.1 kg
NJ2320Rd: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 717 kN | Mass: 12.1 kg
NUP2320Rd: 100 mm | D: 215 mm | B: 73 mm | Cr: 570 kN | C0r: 717 kN | Mass: 12.1 kg
NU3320d: 100 mm | D: 215 mm | B: 82.6 mm | Cr: 530 kN | C0r: 706 kN | Mass: 15.0 kg
NU420d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
NJ420d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
NUP420d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
N420d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
NF420d: 100 mm | D: 250 mm | B: 58 mm | Cr: 458 kN | C0r: 498 kN | Mass: 14.0 kg
NU1021d: 105 mm | D: 160 mm | B: 26 mm | Cr: 108 kN | C0r: 149 kN | Mass: 1.85 kg
NUP1021d: 105 mm | D: 160 mm | B: 26 mm | Cr: 108 kN | C0r: 149 kN | Mass: 1.85 kg
N221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 4.44 kg
NF221d: 105 mm | D: 190 mm | B: 36 mm | Cr: 201 kN | C0r: 241 kN | Mass: 4.44 kg
NU3221d: 105 mm | D: 190 mm | B: 65.1 mm | Cr: 344 kN | C0r: 482 kN | Mass: 8.00 kg
N321d: 105 mm | D: 225 mm | B: 49 mm | Cr: 366 kN | C0r: 417 kN | Mass: 8.68 kg
NF321d: 105 mm | D: 225 mm | B: 49 mm | Cr: 366 kN | C0r: 417 kN | Mass: 8.68 kg
NU2321d: 105 mm | D: 225 mm | B: 77 mm | Cr: 568 kN | C0r: 750 kN | Mass: 15.6 kg
NUP2321d: 105 mm | D: 225 mm | B: 77 mm | Cr: 568 kN | C0r: 750 kN | Mass: 15.6 kg
NU3321d: 105 mm | D: 225 mm | B: 87.3 mm | Cr: 638 kN | C0r: 871 kN | Mass: 17.4 kg
NU421d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
NJ421d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
NUP421d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
N421d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
NF421d: 105 mm | D: 260 mm | B: 60 mm | Cr: 471 kN | C0r: 510 kN | Mass: 19.1 kg
NU1022d: 110 mm | D: 170 mm | B: 28 mm | Cr: 134 kN | C0r: 171 kN | Mass: 2.31 kg
NUP1022d: 110 mm | D: 170 mm | B: 28 mm | Cr: 134 kN | C0r: 171 kN | Mass: 2.31 kg
N222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 241 kN | C0r: 290 kN | Mass: 5.24 kg
NF222d: 110 mm | D: 200 mm | B: 38 mm | Cr: 241 kN | C0r: 290 kN | Mass: 5.24 kg
NU222Rd: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.90 kg
NJ222Rd: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.90 kg
NUP222Rd: 110 mm | D: 200 mm | B: 38 mm | Cr: 293 kN | C0r: 365 kN | Mass: 4.90 kg
NU2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 334 kN | C0r: 442 kN | Mass: 6.93 kg
NJ2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 334 kN | C0r: 442 kN | Mass: 6.93 kg
NUP2222d: 110 mm | D: 200 mm | B: 53 mm | Cr: 334 kN | C0r: 442 kN | Mass: 6.93 kg
NU2222Rd: 110 mm | D: 200 mm | B: 53 mm | Cr: 384 kN | C0r: 517 kN | Mass: 6.93 kg
NJ2222Rd: 110 mm | D: 200 mm | B: 53 mm | Cr: 384 kN | C0r: 517 kN | Mass: 6.93 kg
NUP2222Rd: 110 mm | D: 200 mm | B: 53 mm | Cr: 384 kN | C0r: 517 kN | Mass: 6.93 kg
NU3222d: 110 mm | D: 200 mm | B: 69.8 mm | Cr: 427 kN | C0r: 607 kN | Mass: 9.55 kg
N322d: 110 mm | D: 240 mm | B: 50 mm | Cr: 411 kN | C0r: 467 kN | Mass: 10.4 kg
NF322d: 110 mm | D: 240 mm | B: 50 mm | Cr: 411 kN | C0r: 467 kN | Mass: 10.4 kg
NU322Rd: 110 mm | D: 240 mm | B: 50 mm | Cr: 451 kN | C0r: 525 kN | Mass: 10.7 kg
NJ322Rd: 110 mm | D: 240 mm | B: 50 mm | Cr: 451 kN | C0r: 525 kN | Mass: 10.7 kg
NUP322Rd: 110 mm | D: 240 mm | B: 50 mm | Cr: 451 kN | C0r: 525 kN | Mass: 10.7 kg
NU2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 604 kN | C0r: 789 kN | Mass: 18.8 kg
NJ2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 604 kN | C0r: 789 kN | Mass: 18.8 kg
NUP2322d: 110 mm | D: 240 mm | B: 80 mm | Cr: 604 kN | C0r: 789 kN | Mass: 18.8 kg
NU2322Rd: 110 mm | D: 240 mm | B: 80 mm | Cr: 680 kN | C0r: 880 kN | Mass: 18.8 kg
NJ2322Rd: 110 mm | D: 240 mm | B: 80 mm | Cr: 680 kN | C0r: 880 kN | Mass: 18.8 kg
NUP2322Rd: 110 mm | D: 240 mm | B: 80 mm | Cr: 680 kN | C0r: 880 kN | Mass: 18.8 kg
NU3322d: 110 mm | D: 240 mm | B: 92.1 mm | Cr: 678 kN | C0r: 918 kN | Mass: 21.1 kg
NU422d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
NJ422d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
NUP422d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
N422d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
NF422d: 110 mm | D: 280 mm | B: 65 mm | Cr: 550 kN | C0r: 621 kN | Mass: 19.9 kg
NU1024d: 120 mm | D: 180 mm | B: 28 mm | Cr: 137 kN | C0r: 181 kN | Mass: 2.47 kg
NUP1024d: 120 mm | D: 180 mm | B: 28 mm | Cr: 137 kN | C0r: 181 kN | Mass: 2.47 kg
N224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 318 kN | Mass: 6.31 kg
NF224d: 120 mm | D: 215 mm | B: 40 mm | Cr: 260 kN | C0r: 318 kN | Mass: 6.31 kg
NU224Rd: 120 mm | D: 215 mm | B: 40 mm | Cr: 336 kN | C0r: 421 kN | Mass: 5.85 kg
NJ224Rd: 120 mm | D: 215 mm | B: 40 mm | Cr: 336 kN | C0r: 421 kN | Mass: 5.85 kg
NUP224Rd: 120 mm | D: 215 mm | B: 40 mm | Cr: 336 kN | C0r: 421 kN | Mass: 5.85 kg
NU2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 367 kN | C0r: 492 kN | Mass: 8.56 kg
NJ2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 367 kN | C0r: 492 kN | Mass: 8.56 kg
NUP2224d: 120 mm | D: 215 mm | B: 58 mm | Cr: 367 kN | C0r: 492 kN | Mass: 8.56 kg
NU2224Rd: 120 mm | D: 215 mm | B: 58 mm | Cr: 452 kN | C0r: 619 kN | Mass: 8.56 kg
NJ2224Rd: 120 mm | D: 215 mm | B: 58 mm | Cr: 452 kN | C0r: 619 kN | Mass: 8.56 kg
NUP2224Rd: 120 mm | D: 215 mm | B: 58 mm | Cr: 452 kN | C0r: 619 kN | Mass: 8.56 kg
NU3224d: 120 mm | D: 215 mm | B: 76 mm | Cr: 477 kN | C0r: 695 kN | Mass: 11.9 kg
N324d: 120 mm | D: 260 mm | B: 55 mm | Cr: 485 kN | C0r: 551 kN | Mass: 13.1 kg
NF324d: 120 mm | D: 260 mm | B: 55 mm | Cr: 485 kN | C0r: 551 kN | Mass: 13.1 kg
NU324Rd: 120 mm | D: 260 mm | B: 55 mm | Cr: 528 kN | C0r: 610 kN | Mass: 13.4 kg
NJ324Rd: 120 mm | D: 260 mm | B: 55 mm | Cr: 528 kN | C0r: 610 kN | Mass: 13.4 kg
NUP324Rd: 120 mm | D: 260 mm | B: 55 mm | Cr: 528 kN | C0r: 610 kN | Mass: 13.4 kg
NU2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 708 kN | C0r: 918 kN | Mass: 23.1 kg
NJ2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 708 kN | C0r: 918 kN | Mass: 23.1 kg
NUP2324d: 120 mm | D: 260 mm | B: 86 mm | Cr: 708 kN | C0r: 918 kN | Mass: 23.1 kg
NU2324Rd: 120 mm | D: 260 mm | B: 86 mm | Cr: 793 kN | C0r: 1 030 kN | Mass: 23.1 kg
NJ2324Rd: 120 mm | D: 260 mm | B: 86 mm | Cr: 793 kN | C0r: 1 030 kN | Mass: 23.1 kg
NUP2324Rd: 120 mm | D: 260 mm | B: 86 mm | Cr: 793 kN | C0r: 1 030 kN | Mass: 23.1 kg
NU3324d: 120 mm | D: 260 mm | B: 106 mm | Cr: 826 kN | C0r: 1 120 kN | Mass: 28.3 kg
NU424d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
NJ424d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
NUP424d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
N424d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
NF424d: 120 mm | D: 310 mm | B: 72 mm | Cr: 690 kN | C0r: 770 kN | Mass: 28.0 kg
NU1026d: 130 mm | D: 200 mm | B: 33 mm | Cr: 171 kN | C0r: 238 kN | Mass: 3.77 kg
NUP1026d: 130 mm | D: 200 mm | B: 33 mm | Cr: 171 kN | C0r: 238 kN | Mass: 3.77 kg
N226d: 130 mm | D: 230 mm | B: 40 mm | Cr: 282 kN | C0r: 362 kN | Mass: 7.21 kg
NF226d: 130 mm | D: 230 mm | B: 40 mm | Cr: 282 kN | C0r: 362 kN | Mass: 7.21 kg
NU226Rd: 130 mm | D: 230 mm | B: 40 mm | Cr: 364 kN | C0r: 453 kN | Mass: 6.60 kg
NJ226Rd: 130 mm | D: 230 mm | B: 40 mm | Cr: 364 kN | C0r: 453 kN | Mass: 6.60 kg
NUP226Rd: 130 mm | D: 230 mm | B: 40 mm | Cr: 364 kN | C0r: 453 kN | Mass: 6.60 kg
NU2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 395 kN | C0r: 560 kN | Mass: 11.2 kg
NJ2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 395 kN | C0r: 560 kN | Mass: 11.2 kg
NUP2226d: 130 mm | D: 230 mm | B: 64 mm | Cr: 395 kN | C0r: 560 kN | Mass: 11.2 kg
NU2226Rd: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 737 kN | Mass: 11.2 kg
NJ2226Rd: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 737 kN | Mass: 11.2 kg
NUP2226Rd: 130 mm | D: 230 mm | B: 64 mm | Cr: 530 kN | C0r: 737 kN | Mass: 11.2 kg
NU3226d: 130 mm | D: 230 mm | B: 80 mm | Cr: 550 kN | C0r: 857 kN | Mass: 14.1 kg
N326d: 130 mm | D: 280 mm | B: 58 mm | Cr: 564 kN | C0r: 667 kN | Mass: 16.4 kg
NF326d: 130 mm | D: 280 mm | B: 58 mm | Cr: 564 kN | C0r: 667 kN | Mass: 16.4 kg
NU326Rd: 130 mm | D: 280 mm | B: 58 mm | Cr: 616 kN | C0r: 736 kN | Mass: 16.7 kg
NJ326Rd: 130 mm | D: 280 mm | B: 58 mm | Cr: 616 kN | C0r: 736 kN | Mass: 16.7 kg
NUP326Rd: 130 mm | D: 280 mm | B: 58 mm | Cr: 616 kN | C0r: 736 kN | Mass: 16.7 kg
NU2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 838 kN | C0r: 1 130 kN | Mass: 29.1 kg
NJ2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 838 kN | C0r: 1 130 kN | Mass: 29.1 kg
NUP2326d: 130 mm | D: 280 mm | B: 93 mm | Cr: 838 kN | C0r: 1 130 kN | Mass: 29.1 kg
NU2326Rd: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1 230 kN | Mass: 29.1 kg
NJ2326Rd: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1 230 kN | Mass: 29.1 kg
NUP2326Rd: 130 mm | D: 280 mm | B: 93 mm | Cr: 920 kN | C0r: 1 230 kN | Mass: 29.1 kg
NU3326d: 130 mm | D: 280 mm | B: 112 mm | Cr: 936 kN | C0r: 1 290 kN | Mass: 34.6 kg
NU426d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
NJ426d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
NUP426d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
N426d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
NF426d: 130 mm | D: 340 mm | B: 78 mm | Cr: 771 kN | C0r: 876 kN | Mass: 36.1 kg
NU1028d: 140 mm | D: 210 mm | B: 33 mm | Cr: 175 kN | C0r: 250 kN | Mass: 4.00 kg
NUP1028d: 140 mm | D: 210 mm | B: 33 mm | Cr: 175 kN | C0r: 250 kN | Mass: 4.00 kg
N228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 324 kN | C0r: 421 kN | Mass: 8.78 kg
NF228d: 140 mm | D: 250 mm | B: 42 mm | Cr: 324 kN | C0r: 421 kN | Mass: 8.78 kg
NU228Rd: 140 mm | D: 250 mm | B: 42 mm | Cr: 392 kN | C0r: 514 kN | Mass: 8.50 kg
NJ228Rd: 140 mm | D: 250 mm | B: 42 mm | Cr: 392 kN | C0r: 514 kN | Mass: 8.50 kg
NUP228Rd: 140 mm | D: 250 mm | B: 42 mm | Cr: 392 kN | C0r: 514 kN | Mass: 8.50 kg
NU2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 465 kN | C0r: 671 kN | Mass: 14.3 kg
NJ2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 465 kN | C0r: 671 kN | Mass: 14.3 kg
NUP2228d: 140 mm | D: 250 mm | B: 68 mm | Cr: 465 kN | C0r: 671 kN | Mass: 14.3 kg
NU2228Rd: 140 mm | D: 250 mm | B: 68 mm | Cr: 572 kN | C0r: 835 kN | Mass: 14.3 kg
NJ2228Rd: 140 mm | D: 250 mm | B: 68 mm | Cr: 572 kN | C0r: 835 kN | Mass: 14.3 kg
NUP2228Rd: 140 mm | D: 250 mm | B: 68 mm | Cr: 572 kN | C0r: 835 kN | Mass: 14.3 kg
NU3228d: 140 mm | D: 250 mm | B: 88 mm | Cr: 604 kN | C0r: 939 kN | Mass: 18.5 kg
N328d: 140 mm | D: 300 mm | B: 62 mm | Cr: 623 kN | C0r: 746 kN | Mass: 21.8 kg
NF328d: 140 mm | D: 300 mm | B: 62 mm | Cr: 623 kN | C0r: 746 kN | Mass: 21.8 kg
NU328Rd: 140 mm | D: 300 mm | B: 62 mm | Cr: 663 kN | C0r: 797 kN | Mass: 21.8 kg
NJ328Rd: 140 mm | D: 300 mm | B: 62 mm | Cr: 663 kN | C0r: 797 kN | Mass: 21.8 kg
NUP328Rd: 140 mm | D: 300 mm | B: 62 mm | Cr: 663 kN | C0r: 797 kN | Mass: 21.8 kg
NU2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1 250 kN | Mass: 36.8 kg
NJ2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1 250 kN | Mass: 36.8 kg
NUP2328d: 140 mm | D: 300 mm | B: 102 mm | Cr: 920 kN | C0r: 1 250 kN | Mass: 36.8 kg
NU2328Rd: 140 mm | D: 300 mm | B: 102 mm | Cr: 1 020 kN | C0r: 1 380 kN | Mass: 36.8 kg
NJ2328Rd: 140 mm | D: 300 mm | B: 102 mm | Cr: 1 020 kN | C0r: 1 380 kN | Mass: 36.8 kg
NUP2328Rd: 140 mm | D: 300 mm | B: 102 mm | Cr: 1 020 kN | C0r: 1 380 kN | Mass: 36.8 kg
NU3328d: 140 mm | D: 300 mm | B: 118 mm | Cr: 1 090 kN | C0r: 1 550 kN | Mass: 41.5 kg
NU428d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
NJ428d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
NUP428d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
N428d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
NF428d: 140 mm | D: 360 mm | B: 82 mm | Cr: 874 kN | C0r: 1 020 kN | Mass: 46.8 kg
NU1030d: 150 mm | D: 225 mm | B: 35 mm | Cr: 201 kN | C0r: 281 kN | Mass: 4.83 kg
NUP1030d: 150 mm | D: 225 mm | B: 35 mm | Cr: 201 kN | C0r: 281 kN | Mass: 4.83 kg
N230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 374 kN | C0r: 492 kN | Mass: 11.1 kg
NF230d: 150 mm | D: 270 mm | B: 45 mm | Cr: 374 kN | C0r: 492 kN | Mass: 11.1 kg
NU230Rd: 150 mm | D: 270 mm | B: 45 mm | Cr: 448 kN | C0r: 594 kN | Mass: 10.7 kg
NJ230Rd: 150 mm | D: 270 mm | B: 45 mm | Cr: 448 kN | C0r: 594 kN | Mass: 10.7 kg
NUP230Rd: 150 mm | D: 270 mm | B: 45 mm | Cr: 448 kN | C0r: 594 kN | Mass: 10.7 kg
NU2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 545 kN | C0r: 800 kN | Mass: 18.7 kg
NJ2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 545 kN | C0r: 800 kN | Mass: 18.7 kg
NUP2230d: 150 mm | D: 270 mm | B: 73 mm | Cr: 545 kN | C0r: 800 kN | Mass: 18.7 kg
NU2230Rd: 150 mm | D: 270 mm | B: 73 mm | Cr: 662 kN | C0r: 982 kN | Mass: 18.7 kg
NJ2230Rd: 150 mm | D: 270 mm | B: 73 mm | Cr: 662 kN | C0r: 982 kN | Mass: 18.7 kg
NUP2230Rd: 150 mm | D: 270 mm | B: 73 mm | Cr: 662 kN | C0r: 982 kN | Mass: 18.7 kg
NU3230d: 150 mm | D: 270 mm | B: 96 mm | Cr: 749 kN | C0r: 1 200 kN | Mass: 23.7 kg
N330d: 150 mm | D: 320 mm | B: 65 mm | Cr: 663 kN | C0r: 807 kN | Mass: 25.6 kg
NF330d: 150 mm | D: 320 mm | B: 65 mm | Cr: 663 kN | C0r: 807 kN | Mass: 25.6 kg
NU330Rd: 150 mm | D: 320 mm | B: 65 mm | Cr: 757 kN | C0r: 922 kN | Mass: 27.0 kg
NJ330Rd: 150 mm | D: 320 mm | B: 65 mm | Cr: 757 kN | C0r: 922 kN | Mass: 27.0 kg
NUP330Rd: 150 mm | D: 320 mm | B: 65 mm | Cr: 757 kN | C0r: 922 kN | Mass: 27.0 kg
NU2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 020 kN | C0r: 1 400 kN | Mass: 44.7 kg
NJ2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 020 kN | C0r: 1 400 kN | Mass: 44.7 kg
NUP2330d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 020 kN | C0r: 1 400 kN | Mass: 44.7 kg
NU2330Rd: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 180 kN | C0r: 1 600 kN | Mass: 44.7 kg
NJ2330Rd: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 180 kN | C0r: 1 600 kN | Mass: 44.7 kg
NUP2330Rd: 150 mm | D: 320 mm | B: 108 mm | Cr: 1 180 kN | C0r: 1 600 kN | Mass: 44.7 kg
NU3330d: 150 mm | D: 320 mm | B: 128 mm | Cr: 1 290 kN | C0r: 1 890 kN | Mass: 51.4 kg
NU430d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
NJ430d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
NUP430d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
N430d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
NF430d: 150 mm | D: 380 mm | B: 85 mm | Cr: 930 kN | C0r: 1 120 kN | Mass: 53.3 kg
NU1032d: 160 mm | D: 240 mm | B: 38 mm | Cr: 236 kN | C0r: 330 kN | Mass: 5.93 kg
NUP1032d: 160 mm | D: 240 mm | B: 38 mm | Cr: 236 kN | C0r: 330 kN | Mass: 5.93 kg
N232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 427 kN | C0r: 568 kN | Mass: 13.9 kg
NF232d: 160 mm | D: 290 mm | B: 48 mm | Cr: 427 kN | C0r: 568 kN | Mass: 13.9 kg
NU232Rd: 160 mm | D: 290 mm | B: 48 mm | Cr: 498 kN | C0r: 666 kN | Mass: 14.8 kg
NJ232Rd: 160 mm | D: 290 mm | B: 48 mm | Cr: 498 kN | C0r: 666 kN | Mass: 14.8 kg
NUP232Rd: 160 mm | D: 290 mm | B: 48 mm | Cr: 498 kN | C0r: 666 kN | Mass: 14.8 kg
NU2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 631 kN | C0r: 939 kN | Mass: 23.6 kg
NJ2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 631 kN | C0r: 939 kN | Mass: 23.6 kg
NUP2232d: 160 mm | D: 290 mm | B: 80 mm | Cr: 631 kN | C0r: 939 kN | Mass: 23.6 kg
NU2232Rd: 160 mm | D: 290 mm | B: 80 mm | Cr: 809 kN | C0r: 1 190 kN | Mass: 23.6 kg
NJ2232Rd: 160 mm | D: 290 mm | B: 80 mm | Cr: 809 kN | C0r: 1 190 kN | Mass: 23.6 kg
NUP2232Rd: 160 mm | D: 290 mm | B: 80 mm | Cr: 809 kN | C0r: 1 190 kN | Mass: 23.6 kg
NU3232d: 160 mm | D: 290 mm | B: 104 mm | Cr: 857 kN | C0r: 1 390 kN | Mass: 29.8 kg
N332d: 160 mm | D: 340 mm | B: 68 mm | Cr: 698 kN | C0r: 876 kN | Mass: 30.2 kg
NF332d: 160 mm | D: 340 mm | B: 68 mm | Cr: 698 kN | C0r: 876 kN | Mass: 30.2 kg
NU332Rd: 160 mm | D: 340 mm | B: 68 mm | Cr: 857 kN | C0r: 1 050 kN | Mass: 32.0 kg
NJ332Rd: 160 mm | D: 340 mm | B: 68 mm | Cr: 857 kN | C0r: 1 050 kN | Mass: 32.0 kg
NUP332Rd: 160 mm | D: 340 mm | B: 68 mm | Cr: 857 kN | C0r: 1 050 kN | Mass: 32.0 kg
NU2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 070 kN | C0r: 1 520 kN | Mass: 53.1 kg
NJ2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 070 kN | C0r: 1 520 kN | Mass: 53.1 kg
NUP2332d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 070 kN | C0r: 1 520 kN | Mass: 53.1 kg
NU2332Rd: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 310 kN | C0r: 1 820 kN | Mass: 53.1 kg
NJ2332Rd: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 310 kN | C0r: 1 820 kN | Mass: 53.1 kg
NUP2332Rd: 160 mm | D: 340 mm | B: 114 mm | Cr: 1 310 kN | C0r: 1 820 kN | Mass: 53.1 kg
NU3332d: 160 mm | D: 340 mm | B: 136 mm | Cr: 1 270 kN | C0r: 1 890 kN | Mass: 61.5 kg
NU1034d: 170 mm | D: 260 mm | B: 42 mm | Cr: 276 kN | C0r: 400 kN | Mass: 7.90 kg
NUP1034d: 170 mm | D: 260 mm | B: 42 mm | Cr: 276 kN | C0r: 400 kN | Mass: 7.90 kg
N234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 637 kN | Mass: 17.2 kg
NF234d: 170 mm | D: 310 mm | B: 52 mm | Cr: 475 kN | C0r: 637 kN | Mass: 17.2 kg
NU234Rd: 170 mm | D: 310 mm | B: 52 mm | Cr: 603 kN | C0r: 802 kN | Mass: 18.6 kg
NJ234Rd: 170 mm | D: 310 mm | B: 52 mm | Cr: 603 kN | C0r: 802 kN | Mass: 18.6 kg
NUP234Rd: 170 mm | D: 310 mm | B: 52 mm | Cr: 603 kN | C0r: 802 kN | Mass: 18.6 kg
NU2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1 080 kN | Mass: 29.2 kg
NJ2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1 080 kN | Mass: 29.2 kg
NUP2234d: 170 mm | D: 310 mm | B: 86 mm | Cr: 715 kN | C0r: 1 080 kN | Mass: 29.2 kg
NU2234Rd: 170 mm | D: 310 mm | B: 86 mm | Cr: 967 kN | C0r: 1 410 kN | Mass: 29.2 kg
NJ2234Rd: 170 mm | D: 310 mm | B: 86 mm | Cr: 967 kN | C0r: 1 410 kN | Mass: 29.2 kg
NUP2234Rd: 170 mm | D: 310 mm | B: 86 mm | Cr: 967 kN | C0r: 1 410 kN | Mass: 29.2 kg
NU3234d: 170 mm | D: 310 mm | B: 110 mm | Cr: 964 kN | C0r: 1 580 kN | Mass: 36.2 kg
NU334d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
NJ334d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
NUP334d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
N334d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
NF334d: 170 mm | D: 360 mm | B: 72 mm | Cr: 809 kN | C0r: 1 010 kN | Mass: 38.6 kg
NU2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1 220 kN | C0r: 1 750 kN | Mass: 62.6 kg
NJ2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1 220 kN | C0r: 1 750 kN | Mass: 62.6 kg
NUP2334d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1 220 kN | C0r: 1 750 kN | Mass: 62.6 kg
NU3334d: 170 mm | D: 360 mm | B: 140 mm | Cr: 1 420 kN | C0r: 2 120 kN | Mass: 70.8 kg
NU1036d: 180 mm | D: 280 mm | B: 46 mm | Cr: 356 kN | C0r: 503 kN | Mass: 10.5 kg
NUP1036d: 180 mm | D: 280 mm | B: 46 mm | Cr: 356 kN | C0r: 503 kN | Mass: 10.5 kg
N236d: 180 mm | D: 320 mm | B: 52 mm | Cr: 492 kN | C0r: 677 kN | Mass: 18.0 kg
NF236d: 180 mm | D: 320 mm | B: 52 mm | Cr: 492 kN | C0r: 677 kN | Mass: 18.0 kg
NU236Rd: 180 mm | D: 320 mm | B: 52 mm | Cr: 626 kN | C0r: 852 kN | Mass: 19.3 kg
NJ236Rd: 180 mm | D: 320 mm | B: 52 mm | Cr: 626 kN | C0r: 852 kN | Mass: 19.3 kg
NUP236Rd: 180 mm | D: 320 mm | B: 52 mm | Cr: 626 kN | C0r: 852 kN | Mass: 19.3 kg
NU2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 741 kN | C0r: 1 140 kN | Mass: 30.4 kg
NJ2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 741 kN | C0r: 1 140 kN | Mass: 30.4 kg
NUP2236d: 180 mm | D: 320 mm | B: 86 mm | Cr: 741 kN | C0r: 1 140 kN | Mass: 30.4 kg
NU2236Rd: 180 mm | D: 320 mm | B: 86 mm | Cr: 1 010 kN | C0r: 1 510 kN | Mass: 30.4 kg
NJ2236Rd: 180 mm | D: 320 mm | B: 86 mm | Cr: 1 010 kN | C0r: 1 510 kN | Mass: 30.4 kg
NUP2236Rd: 180 mm | D: 320 mm | B: 86 mm | Cr: 1 010 kN | C0r: 1 510 kN | Mass: 30.4 kg
NU3236d: 180 mm | D: 320 mm | B: 112 mm | Cr: 999 kN | C0r: 1 680 kN | Mass: 38.4 kg
NU336d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
NJ336d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
NUP336d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
N336d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
NF336d: 180 mm | D: 380 mm | B: 75 mm | Cr: 917 kN | C0r: 1 150 kN | Mass: 42.6 kg
NU2336d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1 350 kN | C0r: 1 940 kN | Mass: 73.0 kg
NJ2336d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1 350 kN | C0r: 1 940 kN | Mass: 73.0 kg
NUP2336d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1 350 kN | C0r: 1 940 kN | Mass: 73.0 kg
NU3336d: 180 mm | D: 380 mm | B: 150 mm | Cr: 1 660 kN | C0r: 2 520 kN | Mass: 84.4 kg
NU1038d: 190 mm | D: 290 mm | B: 46 mm | Cr: 366 kN | C0r: 530 kN | Mass: 10.9 kg
NUP1038d: 190 mm | D: 290 mm | B: 46 mm | Cr: 366 kN | C0r: 530 kN | Mass: 10.9 kg
N238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 554 kN | C0r: 768 kN | Mass: 21.5 kg
NF238d: 190 mm | D: 340 mm | B: 55 mm | Cr: 554 kN | C0r: 768 kN | Mass: 21.5 kg
NU238Rd: 190 mm | D: 340 mm | B: 55 mm | Cr: 694 kN | C0r: 954 kN | Mass: 23.3 kg
NJ238Rd: 190 mm | D: 340 mm | B: 55 mm | Cr: 694 kN | C0r: 954 kN | Mass: 23.3 kg
NUP238Rd: 190 mm | D: 340 mm | B: 55 mm | Cr: 694 kN | C0r: 954 kN | Mass: 23.3 kg
NU2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 828 kN | C0r: 1 290 kN | Mass: 37.0 kg
NJ2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 828 kN | C0r: 1 290 kN | Mass: 37.0 kg
NUP2238d: 190 mm | D: 340 mm | B: 92 mm | Cr: 828 kN | C0r: 1 290 kN | Mass: 37.0 kg
NU2238Rd: 190 mm | D: 340 mm | B: 92 mm | Cr: 1 100 kN | C0r: 1 670 kN | Mass: 37.0 kg
NJ2238Rd: 190 mm | D: 340 mm | B: 92 mm | Cr: 1 100 kN | C0r: 1 670 kN | Mass: 37.0 kg
NUP2238Rd: 190 mm | D: 340 mm | B: 92 mm | Cr: 1 100 kN | C0r: 1 670 kN | Mass: 37.0 kg
NU3238d: 190 mm | D: 340 mm | B: 120 mm | Cr: 1 310 kN | C0r: 1 930 kN | Mass: 46.8 kg
NU338d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
NJ338d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
NUP338d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
N338d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
NF338d: 190 mm | D: 400 mm | B: 78 mm | Cr: 987 kN | C0r: 1 260 kN | Mass: 49.9 kg
NU2338d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1 520 kN | C0r: 2 220 kN | Mass: 84.7 kg
NJ2338d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1 520 kN | C0r: 2 220 kN | Mass: 84.7 kg
NUP2338d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1 520 kN | C0r: 2 220 kN | Mass: 84.7 kg
NU3338d: 190 mm | D: 400 mm | B: 155 mm | Cr: 1 870 kN | C0r: 2 910 kN | Mass: 96.5 kg
NU1040d: 200 mm | D: 310 mm | B: 51 mm | Cr: 388 kN | C0r: 582 kN | Mass: 14.1 kg
NUP1040d: 200 mm | D: 310 mm | B: 51 mm | Cr: 388 kN | C0r: 582 kN | Mass: 14.1 kg
N240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 618 kN | C0r: 865 kN | Mass: 25.7 kg
NF240d: 200 mm | D: 360 mm | B: 58 mm | Cr: 618 kN | C0r: 865 kN | Mass: 25.7 kg
NU240Rd: 200 mm | D: 360 mm | B: 58 mm | Cr: 766 kN | C0r: 1 060 kN | Mass: 27.2 kg
NJ240Rd: 200 mm | D: 360 mm | B: 58 mm | Cr: 766 kN | C0r: 1 060 kN | Mass: 27.2 kg
NUP240Rd: 200 mm | D: 360 mm | B: 58 mm | Cr: 766 kN | C0r: 1 060 kN | Mass: 27.2 kg
NU2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 946 kN | C0r: 1 490 kN | Mass: 44.4 kg
NJ2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 946 kN | C0r: 1 490 kN | Mass: 44.4 kg
NUP2240d: 200 mm | D: 360 mm | B: 98 mm | Cr: 946 kN | C0r: 1 490 kN | Mass: 44.4 kg
NU2240Rd: 200 mm | D: 360 mm | B: 98 mm | Cr: 1 220 kN | C0r: 1 870 kN | Mass: 44.4 kg
NJ2240Rd: 200 mm | D: 360 mm | B: 98 mm | Cr: 1 220 kN | C0r: 1 870 kN | Mass: 44.4 kg
NUP2240Rd: 200 mm | D: 360 mm | B: 98 mm | Cr: 1 220 kN | C0r: 1 870 kN | Mass: 44.4 kg
NU3240d: 200 mm | D: 360 mm | B: 128 mm | Cr: 1 200 kN | C0r: 2 020 kN | Mass: 56.2 kg
NU340d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
NJ340d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
NUP340d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
N340d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
NF340d: 200 mm | D: 420 mm | B: 80 mm | Cr: 987 kN | C0r: 1 270 kN | Mass: 56.2 kg
NU2340d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1 520 kN | C0r: 2 240 kN | Mass: 97.4 kg
NJ2340d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1 520 kN | C0r: 2 240 kN | Mass: 97.4 kg
NUP2340d: 200 mm | D: 420 mm | B: 138 mm | Cr: 1 520 kN | C0r: 2 240 kN | Mass: 97.4 kg
NU3340d: 200 mm | D: 420 mm | B: 165 mm | Cr: 1 870 kN | C0r: 2 930 kN | Mass: 113 kg
NU1044d: 220 mm | D: 340 mm | B: 56 mm | Cr: 507 kN | C0r: 748 kN | Mass: 18.5 kg
NUP1044d: 220 mm | D: 340 mm | B: 56 mm | Cr: 507 kN | C0r: 748 kN | Mass: 18.5 kg
NU244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
NJ244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
NUP244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
N244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
NF244d: 220 mm | D: 400 mm | B: 65 mm | Cr: 766 kN | C0r: 1 080 kN | Mass: 38.5 kg
NU2244d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1 130 kN | C0r: 1 810 kN | Mass: 60.9 kg
NJ2244d: 220 mm | D: 400 mm | B: 108 mm | Cr: 1 130 kN | C0r: 1 810 kN | Mass: 60.9 kg
NU3244d: 220 mm | D: 400 mm | B: 144 mm | Cr: 1 630 kN | C0r: 2 880 kN | Mass: 78.8 kg
NU344d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
NJ344d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
NUP344d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
N344d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
NF344d: 220 mm | D: 460 mm | B: 88 mm | Cr: 1 200 kN | C0r: 1 570 kN | Mass: 74.4 kg
NU2344d: 220 mm | D: 460 mm | B: 145 mm | Cr: 1 810 kN | C0r: 2 690 kN | Mass: 119 kg
NUP2344d: 220 mm | D: 460 mm | B: 145 mm | Cr: 1 810 kN | C0r: 2 690 kN | Mass: 119 kg
NU3344d: 220 mm | D: 460 mm | B: 180 mm | Cr: 2 130 kN | C0r: 3 300 kN | Mass: 148 kg
NU1048d: 240 mm | D: 360 mm | B: 56 mm | Cr: 535 kN | C0r: 822 kN | Mass: 20.1 kg
NUP1048d: 240 mm | D: 360 mm | B: 56 mm | Cr: 535 kN | C0r: 822 kN | Mass: 20.1 kg
NU248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
NJ248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
NUP248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
N248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
NF248d: 240 mm | D: 440 mm | B: 72 mm | Cr: 949 kN | C0r: 1 340 kN | Mass: 52.1 kg
NU2248d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1 430 kN | C0r: 2 320 kN | Mass: 82.5 kg
NJ2248d: 240 mm | D: 440 mm | B: 120 mm | Cr: 1 430 kN | C0r: 2 320 kN | Mass: 82.5 kg
NU3248d: 240 mm | D: 440 mm | B: 160 mm | Cr: 1 950 kN | C0r: 3 460 kN | Mass: 107 kg
NU348d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
NJ348d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
NUP348d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
N348d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
NF348d: 240 mm | D: 500 mm | B: 95 mm | Cr: 1 430 kN | C0r: 1 950 kN | Mass: 94.6 kg
NU2348d: 240 mm | D: 500 mm | B: 155 mm | Cr: 2 170 kN | C0r: 3 320 kN | Mass: 152 kg
NUP2348d: 240 mm | D: 500 mm | B: 155 mm | Cr: 2 170 kN | C0r: 3 320 kN | Mass: 152 kg
NU3348d: 240 mm | D: 500 mm | B: 195 mm | Cr: 2 540 kN | C0r: 4 070 kN | Mass: 189 kg
NU1052d: 260 mm | D: 400 mm | B: 65 mm | Cr: 651 kN | C0r: 979 kN | Mass: 29.2 kg
NUP1052d: 260 mm | D: 400 mm | B: 65 mm | Cr: 651 kN | C0r: 979 kN | Mass: 29.2 kg
NU252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
NJ252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
NUP252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
N252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
NF252d: 260 mm | D: 480 mm | B: 80 mm | Cr: 1 100 kN | C0r: 1 580 kN | Mass: 69.0 kg
NU2252d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1 790 kN | C0r: 2 950 kN | Mass: 107 kg
NJ2252d: 260 mm | D: 480 mm | B: 130 mm | Cr: 1 790 kN | C0r: 2 950 kN | Mass: 107 kg
NU3252d: 260 mm | D: 480 mm | B: 174 mm | Cr: 2 140 kN | C0r: 3 680 kN | Mass: 139 kg
NU2352d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2 430 kN | C0r: 3 750 kN | Mass: 185 kg
NUP2352d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2 430 kN | C0r: 3 750 kN | Mass: 185 kg
NU3352d: 260 mm | D: 540 mm | B: 206 mm | Cr: 2 940 kN | C0r: 4 790 kN | Mass: 232 kg
NU1056d: 280 mm | D: 420 mm | B: 65 mm | Cr: 669 kN | C0r: 1 030 kN | Mass: 35.2 kg
NUP1056d: 280 mm | D: 420 mm | B: 65 mm | Cr: 669 kN | C0r: 1 030 kN | Mass: 35.2 kg
NU256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
NJ256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
NUP256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
N256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
NF256d: 280 mm | D: 500 mm | B: 80 mm | Cr: 1 140 kN | C0r: 1 680 kN | Mass: 72.7 kg
NU1060d: 300 mm | D: 460 mm | B: 74 mm | Cr: 890 kN | C0r: 1 380 kN | Mass: 44.1 kg
NUP1060d: 300 mm | D: 460 mm | B: 74 mm | Cr: 890 kN | C0r: 1 380 kN | Mass: 44.1 kg
NU260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
NJ260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
NUP260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
N260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
NF260d: 300 mm | D: 540 mm | B: 85 mm | Cr: 1 350 kN | C0r: 1 960 kN | Mass: 90.7 kg
NU1064d: 320 mm | D: 480 mm | B: 74 mm | Cr: 913 kN | C0r: 1 450 kN | Mass: 48.4 kg
NUP1064d: 320 mm | D: 480 mm | B: 74 mm | Cr: 913 kN | C0r: 1 450 kN | Mass: 48.4 kg
NU264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
NJ264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
NUP264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
N264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
NF264d: 320 mm | D: 580 mm | B: 92 mm | Cr: 1 540 kN | C0r: 2 270 kN | Mass: 114 kg
NU364d: 320 mm | D: 670 mm | B: 112 mm | Cr: 1 970 kN | C0r: 2 880 kN | Mass: 199 kg
NU1068d: 340 mm | D: 520 mm | B: 82 mm | Cr: 1 090 kN | C0r: 1 750 kN | Mass: 64.1 kg
NUP1068d: 340 mm | D: 520 mm | B: 82 mm | Cr: 1 090 kN | C0r: 1 750 kN | Mass: 64.1 kg
NU1072d: 360 mm | D: 540 mm | B: 82 mm | Cr: 1 120 kN | C0r: 1 830 kN | Mass: 67.1 kg
NUP1072d: 360 mm | D: 540 mm | B: 82 mm | Cr: 1 120 kN | C0r: 1 830 kN | Mass: 67.1 kg
NU1076d: 380 mm | D: 560 mm | B: 82 mm | Cr: 1 150 kN | C0r: 1 920 kN | Mass: 70.1 kg
NUP1076d: 380 mm | D: 560 mm | B: 82 mm | Cr: 1 150 kN | C0r: 1 920 kN | Mass: 70.1 kg
NU1080d: 400 mm | D: 600 mm | B: 90 mm | Cr: 1 400 kN | C0r: 2 310 kN | Mass: 91.0 kg
NUP1080d: 400 mm | D: 600 mm | B: 90 mm | Cr: 1 400 kN | C0r: 2 310 kN | Mass: 91.0 kg
NU1084d: 420 mm | D: 620 mm | B: 90 mm | Cr: 1 390 kN | C0r: 2 320 kN | Mass: 94.6 kg
NUP1084d: 420 mm | D: 620 mm | B: 90 mm | Cr: 1 390 kN | C0r: 2 320 kN | Mass: 94.6 kg
NU1088d: 440 mm | D: 650 mm | B: 94 mm | Cr: 1 490 kN | C0r: 2 520 kN | Mass: 109 kg
NUP1088d: 440 mm | D: 650 mm | B: 94 mm | Cr: 1 490 kN | C0r: 2 520 kN | Mass: 109 kg
NU1092d: 460 mm | D: 680 mm | B: 100 mm | Cr: 1 590 kN | C0r: 2 730 kN | Mass: 127 kg
NUP1092d: 460 mm | D: 680 mm | B: 100 mm | Cr: 1 590 kN | C0r: 2 730 kN | Mass: 127 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
