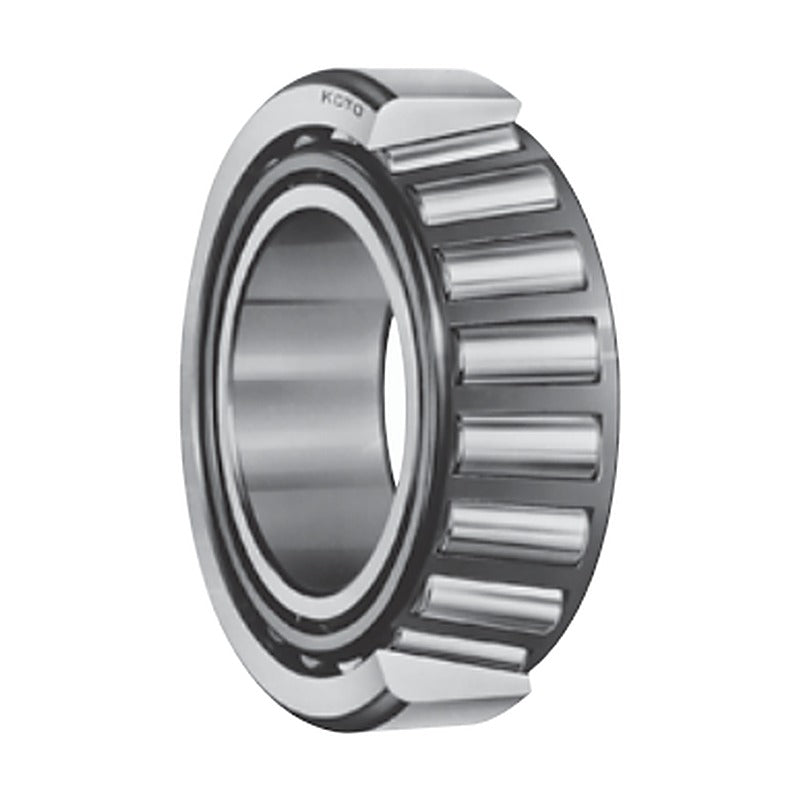

KOYO Single-Row Tapered Roller Bearings, Inch Series (Cones & Cups)

Inch-series single-row tapered roller bearings listed as separate cones (inner ring assemblies) and cups (outer rings), bore 9.525 to 133.35 mm, interchangeable with standard inch tapered roller bearing numbering.

Key features

Cone and cup ordered separately by part number
Standard inch numbering (LM, M, HM, L series etc.)
Boundary dimensions in mm (converted from inch)
Combined radial and axial load capacity
Mating part number given for each cone and cup

Specifications

Bearing type	Single-row tapered roller bearing
Dimension system	Inch
Bore range	9.525 - 133.350 mm
Parts	Cone (inner ring) / Cup (outer ring)
Source	KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B236-B279

A2037		Part: Cone (inner ring) \| d: 9.525 mm \| D: 31.991 mm \| T: 10.008 mm \| Cr: 10.7 kN \| Mating: A2126
A2126		Part: Cup (outer ring) \| d: 9.525 mm \| D: 31.991 mm \| T: 10.008 mm \| Cr: 10.7 kN \| Mating: A2037
A2047		Part: Cone (inner ring) \| d: 11.986 mm \| D: 31.991 mm \| T: 10.008 mm \| Cr: 10.7 kN \| Mating: A2126
A4050		Part: Cone (inner ring) \| d: 12.700 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.6 kN \| Mating: A4138
A4138		Part: Cup (outer ring) \| d: 12.700 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.6 kN \| Mating: A4050
A4059		Part: Cone (inner ring) \| d: 14.989 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.6 kN \| Mating: A4138
L21549		Part: Cone (inner ring) \| d: 15.875 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 14.5 kN \| Mating: L21511
L21511		Part: Cup (outer ring) \| d: 15.875 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 14.5 kN \| Mating: L21549
03062		Part: Cone (inner ring) \| d: 15.875 mm \| D: 41.275 mm \| T: 14.288 mm \| Cr: 21.8 kN \| Mating: 03162
03162		Part: Cup (outer ring) \| d: 15.875 mm \| D: 41.275 mm \| T: 14.288 mm \| Cr: 21.8 kN \| Mating: 03062
17580R		Part: Cone (inner ring) \| d: 15.875 mm \| D: 42.862 mm \| T: 16.670 mm \| Cr: 30.6 kN \| Mating: 17520
17520		Part: Cup (outer ring) \| d: 15.875 mm \| D: 42.862 mm \| T: 16.670 mm \| Cr: 30.6 kN \| Mating: 17580R
09062		Part: Cone (inner ring) \| d: 15.875 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 37.7 kN \| Mating: 09195
09195		Part: Cup (outer ring) \| d: 15.875 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 37.7 kN \| Mating: 09062
21063		Part: Cone (inner ring) \| d: 15.875 mm \| D: 53.975 mm \| T: 22.225 mm \| Cr: 42.0 kN \| Mating: 21212
21212		Part: Cup (outer ring) \| d: 15.875 mm \| D: 53.975 mm \| T: 22.225 mm \| Cr: 42.0 kN \| Mating: 21063
HM81649		Part: Cone (inner ring) \| d: 16.000 mm \| D: 47.000 mm \| T: 21.000 mm \| Cr: 36.3 kN \| Mating: HM81610
HM81610		Part: Cup (outer ring) \| d: 16.000 mm \| D: 47.000 mm \| T: 21.000 mm \| Cr: 36.3 kN \| Mating: HM81649
LM11749R		Part: Cone (inner ring) \| d: 17.462 mm \| D: 39.878 mm \| T: 13.843 mm \| Cr: 25.4 kN \| Mating: LM11710
LM11710		Part: Cup (outer ring) \| d: 17.462 mm \| D: 39.878 mm \| T: 13.843 mm \| Cr: 25.4 kN \| Mating: LM11749R
LM11949		Part: Cone (inner ring) \| d: 19.050 mm \| D: 45.237 mm \| T: 15.494 mm \| Cr: 29.4 kN \| Mating: LM11910
LM11910		Part: Cup (outer ring) \| d: 19.050 mm \| D: 45.237 mm \| T: 15.494 mm \| Cr: 29.4 kN \| Mating: LM11949
09078		Part: Cone (inner ring) \| d: 19.050 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 37.7 kN \| Mating: 09195
09067		Part: Cone (inner ring) \| d: 19.050 mm \| D: 49.225 mm \| T: 21.209 mm \| Cr: 37.7 kN \| Mating: 09196
09196		Part: Cup (outer ring) \| d: 19.050 mm \| D: 49.225 mm \| T: 21.209 mm \| Cr: 37.7 kN \| Mating: 09067
07079		Part: Cone (inner ring) \| d: 20.000 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
07196		Part: Cup (outer ring) \| d: 20.000 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07079
12580		Part: Cone (inner ring) \| d: 20.638 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 36.4 kN \| Mating: 12520
12520		Part: Cup (outer ring) \| d: 20.638 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 36.4 kN \| Mating: 12580
M12649		Part: Cone (inner ring) \| d: 21.430 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 39.1 kN \| Mating: M12610
M12610		Part: Cup (outer ring) \| d: 21.430 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 39.1 kN \| Mating: M12649
LM12749		Part: Cone (inner ring) \| d: 21.987 mm \| D: 45.974 mm \| T: 15.494 mm \| Cr: 30.1 kN \| Mating: LM12711
LM12711		Part: Cup (outer ring) \| d: 21.987 mm \| D: 45.974 mm \| T: 15.494 mm \| Cr: 30.1 kN \| Mating: LM12749
M12648		Part: Cone (inner ring) \| d: 22.225 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 39.1 kN \| Mating: M12610
1380		Part: Cone (inner ring) \| d: 22.225 mm \| D: 52.388 mm \| T: 19.368 mm \| Cr: 36.7 kN \| Mating: 1328
1328		Part: Cup (outer ring) \| d: 22.225 mm \| D: 52.388 mm \| T: 19.368 mm \| Cr: 36.7 kN \| Mating: 1380
1329		Part: Cup (outer ring) \| d: 22.225 mm \| D: 53.975 mm \| T: 19.368 mm \| Cr: 36.7 kN \| Mating: 1380
1755		Part: Cone (inner ring) \| d: 22.225 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 40.0 kN \| Mating: 1729
1729		Part: Cup (outer ring) \| d: 22.225 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 40.0 kN \| Mating: 1755
1280		Part: Cone (inner ring) \| d: 22.225 mm \| D: 57.150 mm \| T: 22.225 mm \| Cr: 52.6 kN \| Mating: 1220
2684		Part: Cone (inner ring) \| d: 22.225 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
2631		Part: Cup (outer ring) \| d: 22.225 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2684
LM72849		Part: Cone (inner ring) \| d: 22.606 mm \| D: 47.000 mm \| T: 15.500 mm \| Cr: 28.0 kN \| Mating: LM72810
LM72810		Part: Cup (outer ring) \| d: 22.606 mm \| D: 47.000 mm \| T: 15.500 mm \| Cr: 28.0 kN \| Mating: LM72849
L44640R		Part: Cone (inner ring) \| d: 23.812 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 31.2 kN \| Mating: L44610
L44610		Part: Cup (outer ring) \| d: 23.812 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 31.2 kN \| Mating: L44640R
1779		Part: Cone (inner ring) \| d: 23.812 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 40.0 kN \| Mating: 1729
07098		Part: Cone (inner ring) \| d: 24.981 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
17098		Part: Cone (inner ring) \| d: 24.981 mm \| D: 62.000 mm \| T: 16.002 mm \| Cr: 38.0 kN \| Mating: 17244
17244		Part: Cup (outer ring) \| d: 24.981 mm \| D: 62.000 mm \| T: 16.002 mm \| Cr: 38.0 kN \| Mating: 17098
07097		Part: Cone (inner ring) \| d: 25.000 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
07100		Part: Cone (inner ring) \| d: 25.400 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
07100S		Part: Cone (inner ring) \| d: 25.400 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
L44643R		Part: Cone (inner ring) \| d: 25.400 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 31.2 kN \| Mating: L44610
07204		Part: Cup (outer ring) \| d: 25.400 mm \| D: 51.994 mm \| T: 15.011 mm \| Cr: 26.7 kN \| Mating: 07100
1986R		Part: Cone (inner ring) \| d: 25.400 mm \| D: 58.738 mm \| T: 19.050 mm \| Cr: 48.8 kN \| Mating: 1932
1932		Part: Cup (outer ring) \| d: 25.400 mm \| D: 58.738 mm \| T: 19.050 mm \| Cr: 48.8 kN \| Mating: 1986R
M84249		Part: Cone (inner ring) \| d: 25.400 mm \| D: 59.530 mm \| T: 23.368 mm \| Cr: 50.4 kN \| Mating: M84210
M84210		Part: Cup (outer ring) \| d: 25.400 mm \| D: 59.530 mm \| T: 23.368 mm \| Cr: 50.4 kN \| Mating: M84249
15101		Part: Cone (inner ring) \| d: 25.400 mm \| D: 61.912 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15243
15243		Part: Cup (outer ring) \| d: 25.400 mm \| D: 61.912 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15101
15100		Part: Cone (inner ring) \| d: 25.400 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
15245		Part: Cup (outer ring) \| d: 25.400 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15100
15250R		Part: Cup (outer ring) \| d: 25.400 mm \| D: 63.500 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15101
M86643R		Part: Cone (inner ring) \| d: 25.400 mm \| D: 64.292 mm \| T: 21.432 mm \| Cr: 55.2 kN \| Mating: M86610
M86610		Part: Cup (outer ring) \| d: 25.400 mm \| D: 64.292 mm \| T: 21.432 mm \| Cr: 55.2 kN \| Mating: M86643R
2687		Part: Cone (inner ring) \| d: 25.400 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
02473		Part: Cone (inner ring) \| d: 25.400 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02420
02420		Part: Cup (outer ring) \| d: 25.400 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02473
HM88630		Part: Cone (inner ring) \| d: 25.400 mm \| D: 72.233 mm \| T: 25.400 mm \| Cr: 66.9 kN \| Mating: HM88610
HM88610		Part: Cup (outer ring) \| d: 25.400 mm \| D: 72.233 mm \| T: 25.400 mm \| Cr: 66.9 kN \| Mating: HM88630
2682		Part: Cone (inner ring) \| d: 26.162 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
L44649R		Part: Cone (inner ring) \| d: 26.988 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 31.2 kN \| Mating: L44610
15580		Part: Cone (inner ring) \| d: 26.988 mm \| D: 60.325 mm \| T: 19.842 mm \| Cr: 37.8 kN \| Mating: 15523
15523		Part: Cup (outer ring) \| d: 26.988 mm \| D: 60.325 mm \| T: 19.842 mm \| Cr: 37.8 kN \| Mating: 15580
15106		Part: Cone (inner ring) \| d: 26.988 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
2688		Part: Cone (inner ring) \| d: 26.988 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
15590		Part: Cone (inner ring) \| d: 28.575 mm \| D: 57.150 mm \| T: 17.462 mm \| Cr: 37.8 kN \| Mating: 15520
15520		Part: Cup (outer ring) \| d: 28.575 mm \| D: 57.150 mm \| T: 17.462 mm \| Cr: 37.8 kN \| Mating: 15590
1988R		Part: Cone (inner ring) \| d: 28.575 mm \| D: 57.150 mm \| T: 19.845 mm \| Cr: 48.8 kN \| Mating: 1922
1922		Part: Cup (outer ring) \| d: 28.575 mm \| D: 57.150 mm \| T: 19.845 mm \| Cr: 48.8 kN \| Mating: 1988R
15112		Part: Cone (inner ring) \| d: 28.575 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
15113		Part: Cone (inner ring) \| d: 28.575 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
M86647R		Part: Cone (inner ring) \| d: 28.575 mm \| D: 64.292 mm \| T: 21.432 mm \| Cr: 55.2 kN \| Mating: M86610
2689		Part: Cone (inner ring) \| d: 28.575 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
02474		Part: Cone (inner ring) \| d: 28.575 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02420
26112		Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.000 mm \| T: 19.000 mm \| Cr: 47.5 kN \| Mating: 26283
26283		Part: Cup (outer ring) \| d: 28.575 mm \| D: 72.000 mm \| T: 19.000 mm \| Cr: 47.5 kN \| Mating: 26112
41125		Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 24.608 mm \| Cr: 61.8 kN \| Mating: 41286
41286		Part: Cup (outer ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 24.608 mm \| Cr: 61.8 kN \| Mating: 41125
41126		Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 24.608 mm \| Cr: 61.8 kN \| Mating: 41286
3192		Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 30.162 mm \| Cr: 78.8 kN \| Mating: 3120
3120		Part: Cup (outer ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 30.162 mm \| Cr: 78.8 kN \| Mating: 3192
3198		Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 30.162 mm \| Cr: 78.8 kN \| Mating: 3120
02872		Part: Cone (inner ring) \| d: 28.575 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
02820		Part: Cup (outer ring) \| d: 28.575 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02872
L45449		Part: Cone (inner ring) \| d: 29.000 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.9 kN \| Mating: L45410
L45410		Part: Cup (outer ring) \| d: 29.000 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.9 kN \| Mating: L45449
2690		Part: Cone (inner ring) \| d: 29.367 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
17118		Part: Cone (inner ring) \| d: 29.987 mm \| D: 62.000 mm \| T: 16.002 mm \| Cr: 38.0 kN \| Mating: 17244
15117		Part: Cone (inner ring) \| d: 29.987 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
14117A		Part: Cone (inner ring) \| d: 30.000 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 46.1 kN \| Mating: 14276
14276		Part: Cup (outer ring) \| d: 30.000 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 46.1 kN \| Mating: 14117A
15116		Part: Cone (inner ring) \| d: 30.112 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
17119		Part: Cone (inner ring) \| d: 30.162 mm \| D: 62.000 mm \| T: 16.002 mm \| Cr: 38.0 kN \| Mating: 17244
M86649R		Part: Cone (inner ring) \| d: 30.162 mm \| D: 64.292 mm \| T: 21.432 mm \| Cr: 55.2 kN \| Mating: M86610
M88043		Part: Cone (inner ring) \| d: 30.162 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 56.1 kN \| Mating: M88010
M88010		Part: Cup (outer ring) \| d: 30.162 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 56.1 kN \| Mating: M88043
15118		Part: Cone (inner ring) \| d: 30.213 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
15119		Part: Cone (inner ring) \| d: 30.213 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
15120		Part: Cone (inner ring) \| d: 30.213 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
14116		Part: Cone (inner ring) \| d: 30.226 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 46.1 kN \| Mating: 14274
14274		Part: Cup (outer ring) \| d: 30.226 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 46.1 kN \| Mating: 14116
08125		Part: Cone (inner ring) \| d: 31.750 mm \| D: 58.738 mm \| T: 14.684 mm \| Cr: 29.5 kN \| Mating: 08231
08231		Part: Cup (outer ring) \| d: 31.750 mm \| D: 58.738 mm \| T: 14.684 mm \| Cr: 29.5 kN \| Mating: 08125
LM67048		Part: Cone (inner ring) \| d: 31.750 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 35.8 kN \| Mating: LM67010
LM67010		Part: Cup (outer ring) \| d: 31.750 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 35.8 kN \| Mating: LM67048
15123		Part: Cone (inner ring) \| d: 31.750 mm \| D: 62.000 mm \| T: 18.161 mm \| Cr: 44.6 kN \| Mating: 15245
15125		Part: Cone (inner ring) \| d: 31.750 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
15126		Part: Cone (inner ring) \| d: 31.750 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
2580		Part: Cone (inner ring) \| d: 31.750 mm \| D: 66.421 mm \| T: 25.400 mm \| Cr: 71.4 kN \| Mating: 2520
2520		Part: Cup (outer ring) \| d: 31.750 mm \| D: 66.421 mm \| T: 25.400 mm \| Cr: 71.4 kN \| Mating: 2580
02475		Part: Cone (inner ring) \| d: 31.750 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02420
02476		Part: Cone (inner ring) \| d: 31.750 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02420
M88046		Part: Cone (inner ring) \| d: 31.750 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 56.1 kN \| Mating: M88010
02875		Part: Cone (inner ring) \| d: 31.750 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
02876		Part: Cone (inner ring) \| d: 31.750 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
HM88542		Part: Cone (inner ring) \| d: 31.750 mm \| D: 73.025 mm \| T: 29.370 mm \| Cr: 74.3 kN \| Mating: HM88510
HM88510		Part: Cup (outer ring) \| d: 31.750 mm \| D: 73.025 mm \| T: 29.370 mm \| Cr: 74.3 kN \| Mating: HM88542
HM88512		Part: Cup (outer ring) \| d: 31.750 mm \| D: 73.812 mm \| T: 29.370 mm \| Cr: 74.3 kN \| Mating: HM88542
M88048		Part: Cone (inner ring) \| d: 33.338 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 56.1 kN \| Mating: M88010
26131		Part: Cone (inner ring) \| d: 33.338 mm \| D: 72.000 mm \| T: 19.000 mm \| Cr: 47.5 kN \| Mating: 26283
HM88547		Part: Cone (inner ring) \| d: 33.338 mm \| D: 73.025 mm \| T: 29.370 mm \| Cr: 74.3 kN \| Mating: HM88510
HM89443		Part: Cone (inner ring) \| d: 33.338 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 79.5 kN \| Mating: HM89410
HM89410		Part: Cup (outer ring) \| d: 33.338 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 79.5 kN \| Mating: HM89443
LM48548		Part: Cone (inner ring) \| d: 34.925 mm \| D: 65.088 mm \| T: 18.034 mm \| Cr: 48.0 kN \| Mating: LM48510
LM48510		Part: Cup (outer ring) \| d: 34.925 mm \| D: 65.088 mm \| T: 18.034 mm \| Cr: 48.0 kN \| Mating: LM48548
14136A		Part: Cone (inner ring) \| d: 34.925 mm \| D: 69.012 mm \| T: 26.982 mm \| Cr: 46.1 kN \| Mating: 14276
HM88649		Part: Cone (inner ring) \| d: 34.925 mm \| D: 72.233 mm \| T: 25.400 mm \| Cr: 66.9 kN \| Mating: HM88610
16137		Part: Cone (inner ring) \| d: 34.925 mm \| D: 72.238 mm \| T: 20.638 mm \| Cr: 49.7 kN \| Mating: 16284
16284		Part: Cup (outer ring) \| d: 34.925 mm \| D: 72.238 mm \| T: 20.638 mm \| Cr: 49.7 kN \| Mating: 16137
02877		Part: Cone (inner ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
02878		Part: Cone (inner ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
25877R		Part: Cone (inner ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 72.2 kN \| Mating: 25821
25821		Part: Cup (outer ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 72.2 kN \| Mating: 25877R
23690		Part: Cone (inner ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 26.988 mm \| Cr: 77.8 kN \| Mating: 23620
23620		Part: Cup (outer ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 26.988 mm \| Cr: 77.8 kN \| Mating: 23690
28137		Part: Cone (inner ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 20.638 mm \| Cr: 57.3 kN \| Mating: 28300
28300		Part: Cup (outer ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 20.638 mm \| Cr: 57.3 kN \| Mating: 28137
2796R		Part: Cone (inner ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2720
2720		Part: Cup (outer ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2796R
31594		Part: Cone (inner ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 80.9 kN \| Mating: 31520
31520		Part: Cup (outer ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 80.9 kN \| Mating: 31594
3478		Part: Cone (inner ring) \| d: 34.925 mm \| D: 79.375 mm \| T: 29.370 mm \| Cr: 87.4 kN \| Mating: 3420
3420		Part: Cup (outer ring) \| d: 34.925 mm \| D: 79.375 mm \| T: 29.370 mm \| Cr: 87.4 kN \| Mating: 3478
3581R		Part: Cone (inner ring) \| d: 34.925 mm \| D: 87.312 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3525
3525		Part: Cup (outer ring) \| d: 34.925 mm \| D: 87.312 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3581R
449		Part: Cone (inner ring) \| d: 34.925 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 103 kN \| Mating: 432
432		Part: Cup (outer ring) \| d: 34.925 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 103 kN \| Mating: 449
L68149		Part: Cone (inner ring) \| d: 34.980 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 35.7 kN \| Mating: L68110
L68110		Part: Cup (outer ring) \| d: 34.980 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 35.7 kN \| Mating: L68149
L68111		Part: Cup (outer ring) \| d: 34.980 mm \| D: 59.975 mm \| T: 15.875 mm \| Cr: 35.7 kN \| Mating: L68149
26883R		Part: Cone (inner ring) \| d: 35.000 mm \| D: 79.375 mm \| T: 23.812 mm \| Cr: 81.1 kN \| Mating: 26822
26822		Part: Cup (outer ring) \| d: 35.000 mm \| D: 79.375 mm \| T: 23.812 mm \| Cr: 81.1 kN \| Mating: 26883R
339		Part: Cone (inner ring) \| d: 35.000 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
332		Part: Cup (outer ring) \| d: 35.000 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 339
HM88648		Part: Cone (inner ring) \| d: 35.717 mm \| D: 72.233 mm \| T: 25.400 mm \| Cr: 66.9 kN \| Mating: HM88610
25880R		Part: Cone (inner ring) \| d: 36.487 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 72.2 kN \| Mating: 25821
2794R		Part: Cone (inner ring) \| d: 36.487 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2735X
2735X		Part: Cup (outer ring) \| d: 36.487 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2794R
HM89449		Part: Cone (inner ring) \| d: 36.512 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 79.5 kN \| Mating: HM89411
HM89411		Part: Cup (outer ring) \| d: 36.512 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 79.5 kN \| Mating: HM89449
26877R		Part: Cone (inner ring) \| d: 36.512 mm \| D: 79.375 mm \| T: 23.812 mm \| Cr: 81.1 kN \| Mating: 26822
3479		Part: Cone (inner ring) \| d: 36.512 mm \| D: 79.375 mm \| T: 29.370 mm \| Cr: 87.4 kN \| Mating: 3420
3878		Part: Cone (inner ring) \| d: 36.512 mm \| D: 85.725 mm \| T: 30.162 mm \| Cr: 108 kN \| Mating: 3820
3820		Part: Cup (outer ring) \| d: 36.512 mm \| D: 85.725 mm \| T: 30.162 mm \| Cr: 108 kN \| Mating: 3878
JL69349		Part: Cone (inner ring) \| d: 38.000 mm \| D: 63.000 mm \| T: 17.000 mm \| Cr: 43.5 kN \| Mating: JL69310
JL69310		Part: Cup (outer ring) \| d: 38.000 mm \| D: 63.000 mm \| T: 17.000 mm \| Cr: 43.5 kN \| Mating: JL69349
13889		Part: Cone (inner ring) \| d: 38.100 mm \| D: 63.500 mm \| T: 12.700 mm \| Cr: 25.5 kN \| Mating: 13830
13830		Part: Cup (outer ring) \| d: 38.100 mm \| D: 63.500 mm \| T: 12.700 mm \| Cr: 25.5 kN \| Mating: 13889
13836		Part: Cup (outer ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 12.700 mm \| Cr: 25.5 kN \| Mating: 13889
LM29748		Part: Cone (inner ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 18.034 mm \| Cr: 42.9 kN \| Mating: LM29710
LM29710		Part: Cup (outer ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 18.034 mm \| Cr: 42.9 kN \| Mating: LM29748
LM29749		Part: Cone (inner ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 19.812 mm \| Cr: 42.9 kN \| Mating: LM29711
LM29711		Part: Cup (outer ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 19.812 mm \| Cr: 42.9 kN \| Mating: LM29749
13687		Part: Cone (inner ring) \| d: 38.100 mm \| D: 69.012 mm \| T: 19.050 mm \| Cr: 49.2 kN \| Mating: 13621
13621		Part: Cup (outer ring) \| d: 38.100 mm \| D: 69.012 mm \| T: 19.050 mm \| Cr: 49.2 kN \| Mating: 13687
19150R		Part: Cone (inner ring) \| d: 38.100 mm \| D: 71.438 mm \| T: 15.875 mm \| Cr: 46.1 kN \| Mating: 19281
19281		Part: Cup (outer ring) \| d: 38.100 mm \| D: 71.438 mm \| T: 15.875 mm \| Cr: 46.1 kN \| Mating: 19150R
19283		Part: Cup (outer ring) \| d: 38.100 mm \| D: 71.996 mm \| T: 17.018 mm \| Cr: 46.1 kN \| Mating: 19150R
16150		Part: Cone (inner ring) \| d: 38.100 mm \| D: 71.996 mm \| T: 19.000 mm \| Cr: 49.7 kN \| Mating: 16282
16282		Part: Cup (outer ring) \| d: 38.100 mm \| D: 71.996 mm \| T: 19.000 mm \| Cr: 49.7 kN \| Mating: 16150
16283		Part: Cup (outer ring) \| d: 38.100 mm \| D: 72.238 mm \| T: 23.812 mm \| Cr: 49.7 kN \| Mating: 16150
2788R		Part: Cone (inner ring) \| d: 38.100 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2735X
2729		Part: Cup (outer ring) \| d: 38.100 mm \| D: 76.200 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2788R
3490		Part: Cone (inner ring) \| d: 38.100 mm \| D: 79.375 mm \| T: 29.370 mm \| Cr: 87.4 kN \| Mating: 3420
28150		Part: Cone (inner ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 21.432 mm \| Cr: 57.3 kN \| Mating: 28317
28317		Part: Cup (outer ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 21.432 mm \| Cr: 57.3 kN \| Mating: 28150
27880		Part: Cone (inner ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 24.608 mm \| Cr: 73.2 kN \| Mating: 27820
27820		Part: Cup (outer ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 24.608 mm \| Cr: 73.2 kN \| Mating: 27880
27881		Part: Cone (inner ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 24.608 mm \| Cr: 73.2 kN \| Mating: 27820
HM801346		Part: Cone (inner ring) \| d: 38.100 mm \| D: 82.550 mm \| T: 29.370 mm \| Cr: 87.3 kN \| Mating: HM801310
HM801310		Part: Cup (outer ring) \| d: 38.100 mm \| D: 82.550 mm \| T: 29.370 mm \| Cr: 87.3 kN \| Mating: HM801346
HM801346X HM801310		Part: Cup (outer ring) \| d: 38.100 mm \| D: 82.550 mm \| T: 29.370 mm \| Cr: 87.3 kN \| Mating: None
25572		Part: Cone (inner ring) \| d: 38.100 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25520
25520		Part: Cup (outer ring) \| d: 38.100 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25572
418		Part: Cone (inner ring) \| d: 38.100 mm \| D: 88.501 mm \| T: 26.988 mm \| Cr: 98.2 kN \| Mating: 414
414		Part: Cup (outer ring) \| d: 38.100 mm \| D: 88.501 mm \| T: 26.988 mm \| Cr: 98.2 kN \| Mating: 418
4375		Part: Cone (inner ring) \| d: 38.100 mm \| D: 90.488 mm \| T: 39.688 mm \| Cr: 132 kN \| Mating: 4335
4335		Part: Cup (outer ring) \| d: 38.100 mm \| D: 90.488 mm \| T: 39.688 mm \| Cr: 132 kN \| Mating: 4375
525		Part: Cone (inner ring) \| d: 38.100 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
522		Part: Cup (outer ring) \| d: 38.100 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 525
18587		Part: Cone (inner ring) \| d: 39.688 mm \| D: 73.025 mm \| T: 16.667 mm \| Cr: 45.9 kN \| Mating: 18520
18520		Part: Cup (outer ring) \| d: 39.688 mm \| D: 73.025 mm \| T: 16.667 mm \| Cr: 45.9 kN \| Mating: 18587
2789R		Part: Cone (inner ring) \| d: 39.688 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2735X
3386		Part: Cone (inner ring) \| d: 39.688 mm \| D: 80.167 mm \| T: 29.370 mm \| Cr: 91.0 kN \| Mating: 3320
3382		Part: Cone (inner ring) \| d: 39.688 mm \| D: 84.138 mm \| T: 29.370 mm \| Cr: 91.0 kN \| Mating: 3328
3328		Part: Cup (outer ring) \| d: 39.688 mm \| D: 84.138 mm \| T: 29.370 mm \| Cr: 91.0 kN \| Mating: 3382
28158		Part: Cone (inner ring) \| d: 40.000 mm \| D: 76.200 mm \| T: 20.638 mm \| Cr: 57.3 kN \| Mating: 28300
344		Part: Cone (inner ring) \| d: 40.000 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
344A		Part: Cone (inner ring) \| d: 40.000 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
350A		Part: Cone (inner ring) \| d: 40.000 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
354A		Part: Cup (outer ring) \| d: 40.000 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 350A
420		Part: Cone (inner ring) \| d: 40.000 mm \| D: 88.501 mm \| T: 26.988 mm \| Cr: 98.2 kN \| Mating: 414
543		Part: Cone (inner ring) \| d: 40.000 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 532X
532X		Part: Cup (outer ring) \| d: 40.000 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 543
HM801349		Part: Cone (inner ring) \| d: 40.483 mm \| D: 82.550 mm \| T: 29.370 mm \| Cr: 87.3 kN \| Mating: HM801310
18590		Part: Cone (inner ring) \| d: 41.275 mm \| D: 73.025 mm \| T: 16.667 mm \| Cr: 45.9 kN \| Mating: 18520
LM501349		Part: Cone (inner ring) \| d: 41.275 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 57.8 kN \| Mating: LM501310
LM501310		Part: Cup (outer ring) \| d: 41.275 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 57.8 kN \| Mating: LM501349
LM501314		Part: Cup (outer ring) \| d: 41.275 mm \| D: 73.431 mm \| T: 21.430 mm \| Cr: 57.8 kN \| Mating: LM501349
LM501311		Part: Cup (outer ring) \| d: 41.275 mm \| D: 73.431 mm \| T: 23.012 mm \| Cr: 57.8 kN \| Mating: LM501349
11162R		Part: Cone (inner ring) \| d: 41.275 mm \| D: 76.200 mm \| T: 18.009 mm \| Cr: 51.6 kN \| Mating: 11300
11300		Part: Cup (outer ring) \| d: 41.275 mm \| D: 76.200 mm \| T: 18.009 mm \| Cr: 51.6 kN \| Mating: 11162R
24780R		Part: Cone (inner ring) \| d: 41.275 mm \| D: 76.200 mm \| T: 22.225 mm \| Cr: 66.3 kN \| Mating: 24720
24720		Part: Cup (outer ring) \| d: 41.275 mm \| D: 76.200 mm \| T: 22.225 mm \| Cr: 66.3 kN \| Mating: 24780R
336		Part: Cone (inner ring) \| d: 41.275 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
342		Part: Cone (inner ring) \| d: 41.275 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
M802048		Part: Cone (inner ring) \| d: 41.275 mm \| D: 82.550 mm \| T: 26.543 mm \| Cr: 83.7 kN \| Mating: M802011
M802011		Part: Cup (outer ring) \| d: 41.275 mm \| D: 82.550 mm \| T: 26.543 mm \| Cr: 83.7 kN \| Mating: M802048
3877		Part: Cone (inner ring) \| d: 41.275 mm \| D: 85.725 mm \| T: 30.162 mm \| Cr: 108 kN \| Mating: 3821
3821		Part: Cup (outer ring) \| d: 41.275 mm \| D: 85.725 mm \| T: 30.162 mm \| Cr: 108 kN \| Mating: 3877
3576R		Part: Cone (inner ring) \| d: 41.275 mm \| D: 87.312 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3525
419		Part: Cone (inner ring) \| d: 41.275 mm \| D: 88.501 mm \| T: 26.988 mm \| Cr: 98.2 kN \| Mating: 414
365A		Part: Cone (inner ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
362A		Part: Cup (outer ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 365A
HM803145		Part: Cone (inner ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 30.162 mm \| Cr: 99.6 kN \| Mating: HM803110
HM803110		Part: Cup (outer ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 30.162 mm \| Cr: 99.6 kN \| Mating: HM803145
HM803146		Part: Cone (inner ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 30.162 mm \| Cr: 99.6 kN \| Mating: HM803110
4388		Part: Cone (inner ring) \| d: 41.275 mm \| D: 90.488 mm \| T: 39.688 mm \| Cr: 132 kN \| Mating: 4335
46162		Part: Cone (inner ring) \| d: 41.275 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 46368
46368		Part: Cup (outer ring) \| d: 41.275 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 46162
HM804840		Part: Cone (inner ring) \| d: 41.275 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
HM804810		Part: Cup (outer ring) \| d: 41.275 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804840
526		Part: Cone (inner ring) \| d: 41.275 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
HM807035		Part: Cone (inner ring) \| d: 41.275 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
HM807010		Part: Cup (outer ring) \| d: 41.275 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807035
4395		Part: Cone (inner ring) \| d: 42.070 mm \| D: 90.488 mm \| T: 39.688 mm \| Cr: 132 kN \| Mating: 4335
12168		Part: Cone (inner ring) \| d: 42.862 mm \| D: 76.992 mm \| T: 17.463 mm \| Cr: 48.4 kN \| Mating: 12303
12303		Part: Cup (outer ring) \| d: 42.862 mm \| D: 76.992 mm \| T: 17.463 mm \| Cr: 48.4 kN \| Mating: 12168
26884R		Part: Cone (inner ring) \| d: 42.875 mm \| D: 79.375 mm \| T: 23.812 mm \| Cr: 81.1 kN \| Mating: 26822
25577		Part: Cone (inner ring) \| d: 42.875 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25520
L102849		Part: Cone (inner ring) \| d: 44.450 mm \| D: 73.025 mm \| T: 18.258 mm \| Cr: 47.2 kN \| Mating: L102810
L102810		Part: Cup (outer ring) \| d: 44.450 mm \| D: 73.025 mm \| T: 18.258 mm \| Cr: 47.2 kN \| Mating: L102849
12175		Part: Cone (inner ring) \| d: 44.450 mm \| D: 76.992 mm \| T: 17.463 mm \| Cr: 48.4 kN \| Mating: 12303
18685		Part: Cone (inner ring) \| d: 44.450 mm \| D: 79.375 mm \| T: 17.462 mm \| Cr: 47.1 kN \| Mating: 18620
18620		Part: Cup (outer ring) \| d: 44.450 mm \| D: 79.375 mm \| T: 17.462 mm \| Cr: 47.1 kN \| Mating: 18685
25582		Part: Cone (inner ring) \| d: 44.450 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25520
3578R		Part: Cone (inner ring) \| d: 44.450 mm \| D: 84.138 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3520
3520		Part: Cup (outer ring) \| d: 44.450 mm \| D: 84.138 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3578R
355		Part: Cone (inner ring) \| d: 44.450 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
355A		Part: Cone (inner ring) \| d: 44.450 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
HM803149		Part: Cone (inner ring) \| d: 44.450 mm \| D: 88.900 mm \| T: 30.162 mm \| Cr: 99.6 kN \| Mating: HM803110
49175		Part: Cone (inner ring) \| d: 44.450 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 49368
49368		Part: Cup (outer ring) \| d: 44.450 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 49175
46175		Part: Cone (inner ring) \| d: 44.450 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 46368
46176		Part: Cone (inner ring) \| d: 44.450 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 46368
33885		Part: Cone (inner ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33821
33821		Part: Cup (outer ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33885
438		Part: Cone (inner ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 103 kN \| Mating: 432A
432A		Part: Cup (outer ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 103 kN \| Mating: 438
HM804842		Part: Cone (inner ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
HM804843		Part: Cone (inner ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
49576		Part: Cone (inner ring) \| d: 44.450 mm \| D: 98.425 mm \| T: 30.162 mm \| Cr: 114 kN \| Mating: 49520
49520		Part: Cup (outer ring) \| d: 44.450 mm \| D: 98.425 mm \| T: 30.162 mm \| Cr: 114 kN \| Mating: 49576
527		Part: Cone (inner ring) \| d: 44.450 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
HM807040		Part: Cone (inner ring) \| d: 44.450 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
535		Part: Cone (inner ring) \| d: 44.450 mm \| D: 111.125 mm \| T: 38.100 mm \| Cr: 138 kN \| Mating: 532A
532A		Part: Cup (outer ring) \| d: 44.450 mm \| D: 111.125 mm \| T: 38.100 mm \| Cr: 138 kN \| Mating: 535
615		Part: Cone (inner ring) \| d: 44.450 mm \| D: 120.650 mm \| T: 41.275 mm \| Cr: 174 kN \| Mating: 612
612		Part: Cup (outer ring) \| d: 44.450 mm \| D: 120.650 mm \| T: 41.275 mm \| Cr: 174 kN \| Mating: 615
3776		Part: Cone (inner ring) \| d: 44.983 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3720
3720		Part: Cup (outer ring) \| d: 44.983 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3776
358		Part: Cone (inner ring) \| d: 45.000 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
LM102949		Part: Cone (inner ring) \| d: 45.242 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 55.6 kN \| Mating: LM102910
LM102910		Part: Cup (outer ring) \| d: 45.242 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 55.6 kN \| Mating: LM102949
LM603049		Part: Cone (inner ring) \| d: 45.242 mm \| D: 77.788 mm \| T: 19.842 mm \| Cr: 57.1 kN \| Mating: LM603011
LM603011		Part: Cup (outer ring) \| d: 45.242 mm \| D: 77.788 mm \| T: 19.842 mm \| Cr: 57.1 kN \| Mating: LM603049
LM603012		Part: Cup (outer ring) \| d: 45.242 mm \| D: 77.788 mm \| T: 21.430 mm \| Cr: 57.1 kN \| Mating: LM603049
LM603014		Part: Cup (outer ring) \| d: 45.242 mm \| D: 79.974 mm \| T: 19.842 mm \| Cr: 57.1 kN \| Mating: LM603049
25590		Part: Cone (inner ring) \| d: 45.618 mm \| D: 85.000 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25526
25526		Part: Cup (outer ring) \| d: 45.618 mm \| D: 85.000 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25590
LM503349R LM503310		Part: Cup (outer ring) \| d: 45.987 mm \| D: 74.976 mm \| T: 18.000 mm \| Cr: 52.6 kN \| Mating: None
18690		Part: Cone (inner ring) \| d: 46.038 mm \| D: 79.375 mm \| T: 17.462 mm \| Cr: 47.1 kN \| Mating: 18620
359A		Part: Cone (inner ring) \| d: 46.038 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
359S		Part: Cone (inner ring) \| d: 46.038 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
2984		Part: Cone (inner ring) \| d: 46.038 mm \| D: 85.000 mm \| T: 25.400 mm \| Cr: 80.0 kN \| Mating: 2924
2924		Part: Cup (outer ring) \| d: 46.038 mm \| D: 85.000 mm \| T: 25.400 mm \| Cr: 80.0 kN \| Mating: 2984
369A		Part: Cone (inner ring) \| d: 47.625 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
M804049		Part: Cone (inner ring) \| d: 47.625 mm \| D: 88.900 mm \| T: 25.400 mm \| Cr: 87.1 kN \| Mating: M804010
M804010		Part: Cup (outer ring) \| d: 47.625 mm \| D: 88.900 mm \| T: 25.400 mm \| Cr: 87.1 kN \| Mating: M804049
HM804846		Part: Cone (inner ring) \| d: 47.625 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
386A		Part: Cone (inner ring) \| d: 47.625 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
382A		Part: Cup (outer ring) \| d: 47.625 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 386A
528		Part: Cone (inner ring) \| d: 47.625 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
463		Part: Cone (inner ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
453X		Part: Cup (outer ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 463
467		Part: Cone (inner ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
45282		Part: Cone (inner ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45220
45220		Part: Cup (outer ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45282
HM804848		Part: Cone (inner ring) \| d: 48.412 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
HM804849		Part: Cone (inner ring) \| d: 48.412 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
365S		Part: Cone (inner ring) \| d: 49.212 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
HM807044		Part: Cone (inner ring) \| d: 49.212 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
65390		Part: Cone (inner ring) \| d: 49.212 mm \| D: 114.300 mm \| T: 44.450 mm \| Cr: 189 kN \| Mating: 65320
65320		Part: Cup (outer ring) \| d: 49.212 mm \| D: 114.300 mm \| T: 44.450 mm \| Cr: 189 kN \| Mating: 65390
HH506348		Part: Cone (inner ring) \| d: 49.212 mm \| D: 114.300 mm \| T: 44.450 mm \| Cr: 212 kN \| Mating: HH506310
HH506310		Part: Cup (outer ring) \| d: 49.212 mm \| D: 114.300 mm \| T: 44.450 mm \| Cr: 212 kN \| Mating: HH506348
28579R		Part: Cone (inner ring) \| d: 49.987 mm \| D: 92.075 mm \| T: 24.608 mm \| Cr: 84.8 kN \| Mating: 28521
28521		Part: Cup (outer ring) \| d: 49.987 mm \| D: 92.075 mm \| T: 24.608 mm \| Cr: 84.8 kN \| Mating: 28579R
JLM104948		Part: Cup (outer ring) \| d: 50.000 mm \| D: 82.000 mm \| T: 21.501 mm \| Cr: 71.7 kN \| Mating: None
365		Part: Cone (inner ring) \| d: 50.000 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
366		Part: Cone (inner ring) \| d: 50.000 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
JM205149		Part: Cone (inner ring) \| d: 50.000 mm \| D: 90.000 mm \| T: 28.000 mm \| Cr: 105 kN \| Mating: JM205110
JM205110		Part: Cup (outer ring) \| d: 50.000 mm \| D: 90.000 mm \| T: 28.000 mm \| Cr: 105 kN \| Mating: JM205149
JHM807045		Part: Cup (outer ring) \| d: 50.000 mm \| D: 105.000 mm \| T: 37.000 mm \| Cr: 149 kN \| Mating: None
396		Part: Cone (inner ring) \| d: 50.000 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
394A		Part: Cup (outer ring) \| d: 50.000 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 396
L305649R		Part: Cone (inner ring) \| d: 50.800 mm \| D: 80.962 mm \| T: 18.258 mm \| Cr: 54.0 kN \| Mating: L305610
L305610		Part: Cup (outer ring) \| d: 50.800 mm \| D: 80.962 mm \| T: 18.258 mm \| Cr: 54.0 kN \| Mating: L305649R
LM104949		Part: Cone (inner ring) \| d: 50.800 mm \| D: 82.550 mm \| T: 21.590 mm \| Cr: 61.2 kN \| Mating: LM104911
LM104911		Part: Cup (outer ring) \| d: 50.800 mm \| D: 82.550 mm \| T: 21.590 mm \| Cr: 61.2 kN \| Mating: LM104949
18200		Part: Cone (inner ring) \| d: 50.800 mm \| D: 85.725 mm \| T: 19.050 mm \| Cr: 50.7 kN \| Mating: 18337
18337		Part: Cup (outer ring) \| d: 50.800 mm \| D: 85.725 mm \| T: 19.050 mm \| Cr: 50.7 kN \| Mating: 18200
18790		Part: Cone (inner ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 17.462 mm \| Cr: 49.7 kN \| Mating: 18724
18724		Part: Cup (outer ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 17.462 mm \| Cr: 49.7 kN \| Mating: 18790
368		Part: Cone (inner ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
368A		Part: Cone (inner ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
370A		Part: Cone (inner ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
28580R		Part: Cone (inner ring) \| d: 50.800 mm \| D: 92.075 mm \| T: 24.608 mm \| Cr: 84.8 kN \| Mating: 28521
375		Part: Cone (inner ring) \| d: 50.800 mm \| D: 93.264 mm \| T: 20.638 mm \| Cr: 84.4 kN \| Mating: 374
374		Part: Cup (outer ring) \| d: 50.800 mm \| D: 93.264 mm \| T: 20.638 mm \| Cr: 84.4 kN \| Mating: 375
3780		Part: Cone (inner ring) \| d: 50.800 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3720
3730		Part: Cup (outer ring) \| d: 50.800 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3780
33889		Part: Cone (inner ring) \| d: 50.800 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33822
33822		Part: Cup (outer ring) \| d: 50.800 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33889
385AX		Part: Cone (inner ring) \| d: 50.800 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
28678		Part: Cone (inner ring) \| d: 50.800 mm \| D: 97.630 mm \| T: 24.608 mm \| Cr: 89.6 kN \| Mating: 28622
28622		Part: Cup (outer ring) \| d: 50.800 mm \| D: 97.630 mm \| T: 24.608 mm \| Cr: 89.6 kN \| Mating: 28678
3732		Part: Cup (outer ring) \| d: 50.800 mm \| D: 98.425 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3780
49585		Part: Cone (inner ring) \| d: 50.800 mm \| D: 101.600 mm \| T: 31.750 mm \| Cr: 114 kN \| Mating: 49520
529		Part: Cone (inner ring) \| d: 50.800 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
529X		Part: Cone (inner ring) \| d: 50.800 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
45284		Part: Cone (inner ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45220
59200		Part: Cone (inner ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 148 kN \| Mating: 59412
59412		Part: Cup (outer ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 148 kN \| Mating: 59200
HM807046		Part: Cone (inner ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
4580		Part: Cone (inner ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 39.688 mm \| Cr: 151 kN \| Mating: 4535
4535		Part: Cup (outer ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 39.688 mm \| Cr: 151 kN \| Mating: 4580
537		Part: Cone (inner ring) \| d: 50.800 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 532X
39575		Part: Cone (inner ring) \| d: 50.800 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
39520		Part: Cup (outer ring) \| d: 50.800 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39575
619		Part: Cone (inner ring) \| d: 50.800 mm \| D: 120.650 mm \| T: 41.275 mm \| Cr: 174 kN \| Mating: 612
65200		Part: Cone (inner ring) \| d: 50.800 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
65500		Part: Cup (outer ring) \| d: 50.800 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65200
368S		Part: Cone (inner ring) \| d: 51.592 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
28584R		Part: Cone (inner ring) \| d: 52.388 mm \| D: 92.075 mm \| T: 24.608 mm \| Cr: 84.8 kN \| Mating: 28521
468		Part: Cone (inner ring) \| d: 52.388 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
LM806649		Part: Cone (inner ring) \| d: 53.975 mm \| D: 88.900 mm \| T: 19.050 mm \| Cr: 62.9 kN \| Mating: LM806610
LM806610		Part: Cup (outer ring) \| d: 53.975 mm \| D: 88.900 mm \| T: 19.050 mm \| Cr: 62.9 kN \| Mating: LM806649
33895		Part: Cone (inner ring) \| d: 53.975 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33822
456		Part: Cone (inner ring) \| d: 53.975 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
HM807049		Part: Cone (inner ring) \| d: 53.975 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
4595		Part: Cone (inner ring) \| d: 53.975 mm \| D: 104.775 mm \| T: 39.688 mm \| Cr: 151 kN \| Mating: 4535
539		Part: Cone (inner ring) \| d: 53.975 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 532X
539A		Part: Cone (inner ring) \| d: 53.975 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 532X
66212R		Part: Cone (inner ring) \| d: 53.975 mm \| D: 117.475 mm \| T: 33.338 mm \| Cr: 129 kN \| Mating: 66462
66462		Part: Cup (outer ring) \| d: 53.975 mm \| D: 117.475 mm \| T: 33.338 mm \| Cr: 129 kN \| Mating: 66212R
621		Part: Cone (inner ring) \| d: 53.975 mm \| D: 120.650 mm \| T: 41.275 mm \| Cr: 174 kN \| Mating: 612
66584		Part: Cone (inner ring) \| d: 53.975 mm \| D: 122.238 mm \| T: 33.338 mm \| Cr: 128 kN \| Mating: 66520
66520		Part: Cup (outer ring) \| d: 53.975 mm \| D: 122.238 mm \| T: 33.338 mm \| Cr: 128 kN \| Mating: 66584
5578R		Part: Cone (inner ring) \| d: 53.975 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
5535		Part: Cup (outer ring) \| d: 53.975 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5578R
557S		Part: Cone (inner ring) \| d: 53.975 mm \| D: 123.825 mm \| T: 38.100 mm \| Cr: 162 kN \| Mating: 552A
552A		Part: Cup (outer ring) \| d: 53.975 mm \| D: 123.825 mm \| T: 38.100 mm \| Cr: 162 kN \| Mating: 557S
65212		Part: Cone (inner ring) \| d: 53.975 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
466		Part: Cone (inner ring) \| d: 54.988 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
6381		Part: Cone (inner ring) \| d: 54.991 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
JLM506849		Part: Cup (outer ring) \| d: 55.000 mm \| D: 90.000 mm \| T: 23.000 mm \| Cr: 81.4 kN \| Mating: None
JM207049		Part: Cone (inner ring) \| d: 55.000 mm \| D: 95.000 mm \| T: 29.000 mm \| Cr: 110 kN \| Mating: JM207010
JM207010		Part: Cup (outer ring) \| d: 55.000 mm \| D: 95.000 mm \| T: 29.000 mm \| Cr: 110 kN \| Mating: JM207049
385		Part: Cone (inner ring) \| d: 55.000 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
385X		Part: Cone (inner ring) \| d: 55.000 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
JH307749		Part: Cone (inner ring) \| d: 55.000 mm \| D: 110.000 mm \| T: 39.000 mm \| Cr: 176 kN \| Mating: JH307710
JH307710		Part: Cup (outer ring) \| d: 55.000 mm \| D: 110.000 mm \| T: 39.000 mm \| Cr: 176 kN \| Mating: JH307749
28680		Part: Cone (inner ring) \| d: 55.562 mm \| D: 97.630 mm \| T: 24.608 mm \| Cr: 89.6 kN \| Mating: 28622
5566R		Part: Cone (inner ring) \| d: 55.562 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
HM813840		Part: Cone (inner ring) \| d: 55.562 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813810
HM813810		Part: Cup (outer ring) \| d: 55.562 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813840
389		Part: Cone (inner ring) \| d: 55.575 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
387		Part: Cone (inner ring) \| d: 57.150 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
387A		Part: Cone (inner ring) \| d: 57.150 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
387AS		Part: Cone (inner ring) \| d: 57.150 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
387S		Part: Cone (inner ring) \| d: 57.150 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
382		Part: Cup (outer ring) \| d: 57.150 mm \| D: 98.425 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 387
462		Part: Cone (inner ring) \| d: 57.150 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
469		Part: Cone (inner ring) \| d: 57.150 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
45291		Part: Cone (inner ring) \| d: 57.150 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45221
45221		Part: Cup (outer ring) \| d: 57.150 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45291
3979		Part: Cone (inner ring) \| d: 57.150 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 111 kN \| Mating: 3920
3920		Part: Cup (outer ring) \| d: 57.150 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 111 kN \| Mating: 3979
39580		Part: Cone (inner ring) \| d: 57.150 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
39581		Part: Cone (inner ring) \| d: 57.150 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
33225		Part: Cone (inner ring) \| d: 57.150 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
33462		Part: Cup (outer ring) \| d: 57.150 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33225
65225		Part: Cone (inner ring) \| d: 57.150 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
388A		Part: Cone (inner ring) \| d: 57.531 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
66589		Part: Cone (inner ring) \| d: 59.972 mm \| D: 122.238 mm \| T: 33.338 mm \| Cr: 128 kN \| Mating: 66520
JLM508748		Part: Cup (outer ring) \| d: 60.000 mm \| D: 95.000 mm \| T: 24.000 mm \| Cr: 86.1 kN \| Mating: None
29580		Part: Cone (inner ring) \| d: 60.000 mm \| D: 107.950 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29520
29520		Part: Cup (outer ring) \| d: 60.000 mm \| D: 107.950 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29580
397		Part: Cone (inner ring) \| d: 60.000 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
28985		Part: Cone (inner ring) \| d: 60.325 mm \| D: 100.000 mm \| T: 25.400 mm \| Cr: 91.4 kN \| Mating: 28921
28921		Part: Cup (outer ring) \| d: 60.325 mm \| D: 100.000 mm \| T: 25.400 mm \| Cr: 91.4 kN \| Mating: 28985
28920		Part: Cup (outer ring) \| d: 60.325 mm \| D: 101.600 mm \| T: 25.400 mm \| Cr: 91.4 kN \| Mating: 28985
5583R		Part: Cone (inner ring) \| d: 60.325 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
HM813841		Part: Cone (inner ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813811
HM813811		Part: Cup (outer ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813841
HM813841A HM813810		Part: Cup (outer ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: None
65237		Part: Cone (inner ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
65237A		Part: Cone (inner ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
H715332		Part: Cone (inner ring) \| d: 60.325 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
H715311		Part: Cup (outer ring) \| d: 60.325 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715332
392		Part: Cone (inner ring) \| d: 61.912 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
29586		Part: Cone (inner ring) \| d: 63.500 mm \| D: 107.950 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29520
390A		Part: Cone (inner ring) \| d: 63.500 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
395		Part: Cone (inner ring) \| d: 63.500 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
29585		Part: Cone (inner ring) \| d: 63.500 mm \| D: 110.000 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29521
29521		Part: Cup (outer ring) \| d: 63.500 mm \| D: 110.000 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29585
39585		Part: Cone (inner ring) \| d: 63.500 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
477		Part: Cone (inner ring) \| d: 63.500 mm \| D: 120.000 mm \| T: 29.794 mm \| Cr: 118 kN \| Mating: 472
472		Part: Cup (outer ring) \| d: 63.500 mm \| D: 120.000 mm \| T: 29.794 mm \| Cr: 118 kN \| Mating: 477
HM212046		Part: Cone (inner ring) \| d: 63.500 mm \| D: 122.238 mm \| T: 38.354 mm \| Cr: 191 kN \| Mating: HM212011
HM212011		Part: Cup (outer ring) \| d: 63.500 mm \| D: 122.238 mm \| T: 38.354 mm \| Cr: 191 kN \| Mating: HM212046
5584R		Part: Cone (inner ring) \| d: 63.500 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
565		Part: Cone (inner ring) \| d: 63.500 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
563		Part: Cup (outer ring) \| d: 63.500 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 565
6382		Part: Cone (inner ring) \| d: 63.500 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
H414235		Part: Cone (inner ring) \| d: 63.500 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414210
H414210		Part: Cup (outer ring) \| d: 63.500 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414235
39586		Part: Cone (inner ring) \| d: 64.986 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
JLM710949		Part: Cup (outer ring) \| d: 65.000 mm \| D: 105.000 mm \| T: 24.000 mm \| Cr: 95.3 kN \| Mating: None
JM511946		Part: Cone (inner ring) \| d: 65.000 mm \| D: 110.000 mm \| T: 28.000 mm \| Cr: 136 kN \| Mating: JM511910
JM511910		Part: Cup (outer ring) \| d: 65.000 mm \| D: 110.000 mm \| T: 28.000 mm \| Cr: 136 kN \| Mating: JM511946
JH211749		Part: Cone (inner ring) \| d: 65.000 mm \| D: 120.000 mm \| T: 39.000 mm \| Cr: 189 kN \| Mating: JH211710
JH211710		Part: Cup (outer ring) \| d: 65.000 mm \| D: 120.000 mm \| T: 39.000 mm \| Cr: 189 kN \| Mating: JH211749
JH211749A		Part: Cone (inner ring) \| d: 65.000 mm \| D: 120.000 mm \| T: 39.000 mm \| Cr: 189 kN \| Mating: JH211710
6379		Part: Cone (inner ring) \| d: 65.088 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
H715340		Part: Cone (inner ring) \| d: 65.088 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
5595R		Part: Cone (inner ring) \| d: 65.883 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
395A		Part: Cone (inner ring) \| d: 66.675 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
395S		Part: Cone (inner ring) \| d: 66.675 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
3984		Part: Cone (inner ring) \| d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 111 kN \| Mating: 3925
3925		Part: Cup (outer ring) \| d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 111 kN \| Mating: 3984
39590		Part: Cone (inner ring) \| d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
39521		Part: Cup (outer ring) \| d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39590
33262		Part: Cone (inner ring) \| d: 66.675 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
HM212049		Part: Cone (inner ring) \| d: 66.675 mm \| D: 122.238 mm \| T: 38.100 mm \| Cr: 191 kN \| Mating: HM212010
HM212010		Part: Cup (outer ring) \| d: 66.675 mm \| D: 122.238 mm \| T: 38.100 mm \| Cr: 191 kN \| Mating: HM212049
HM813844		Part: Cone (inner ring) \| d: 66.675 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813811
641		Part: Cone (inner ring) \| d: 66.675 mm \| D: 130.175 mm \| T: 41.275 mm \| Cr: 197 kN \| Mating: 633
6386		Part: Cone (inner ring) \| d: 66.675 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
6389		Part: Cone (inner ring) \| d: 66.675 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
H414242		Part: Cone (inner ring) \| d: 66.675 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414210
H715341		Part: Cone (inner ring) \| d: 66.675 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
399A		Part: Cone (inner ring) \| d: 68.262 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
399AS		Part: Cone (inner ring) \| d: 68.262 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
33269		Part: Cone (inner ring) \| d: 68.262 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
570		Part: Cone (inner ring) \| d: 68.262 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
H414245		Part: Cone (inner ring) \| d: 68.262 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414210
H715343		Part: Cone (inner ring) \| d: 68.262 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
9185		Part: Cone (inner ring) \| d: 68.262 mm \| D: 152.400 mm \| T: 47.625 mm \| Cr: 244 kN \| Mating: 9121
9121		Part: Cup (outer ring) \| d: 68.262 mm \| D: 152.400 mm \| T: 47.625 mm \| Cr: 244 kN \| Mating: 9185
LL713049		Part: Cone (inner ring) \| d: 69.850 mm \| D: 98.425 mm \| T: 13.495 mm \| Cr: 39.3 kN \| Mating: LL713010
LL713010		Part: Cup (outer ring) \| d: 69.850 mm \| D: 98.425 mm \| T: 13.495 mm \| Cr: 39.3 kN \| Mating: LL713049
LM613449		Part: Cone (inner ring) \| d: 69.850 mm \| D: 112.712 mm \| T: 22.225 mm \| Cr: 91.6 kN \| Mating: LM613410
LM613410		Part: Cup (outer ring) \| d: 69.850 mm \| D: 112.712 mm \| T: 22.225 mm \| Cr: 91.6 kN \| Mating: LM613449
29675		Part: Cone (inner ring) \| d: 69.850 mm \| D: 112.712 mm \| T: 25.400 mm \| Cr: 97.0 kN \| Mating: 29620
29620		Part: Cup (outer ring) \| d: 69.850 mm \| D: 112.712 mm \| T: 25.400 mm \| Cr: 97.0 kN \| Mating: 29675
33275		Part: Cone (inner ring) \| d: 69.850 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
482		Part: Cone (inner ring) \| d: 69.850 mm \| D: 120.000 mm \| T: 29.002 mm \| Cr: 118 kN \| Mating: 472A
472A		Part: Cup (outer ring) \| d: 69.850 mm \| D: 120.000 mm \| T: 29.002 mm \| Cr: 118 kN \| Mating: 482
47487R		Part: Cone (inner ring) \| d: 69.850 mm \| D: 120.000 mm \| T: 32.545 mm \| Cr: 150 kN \| Mating: 47420
47420		Part: Cup (outer ring) \| d: 69.850 mm \| D: 120.000 mm \| T: 32.545 mm \| Cr: 150 kN \| Mating: 47487R
47423		Part: Cup (outer ring) \| d: 69.850 mm \| D: 120.650 mm \| T: 32.545 mm \| Cr: 150 kN \| Mating: 47487R
472X		Part: Cup (outer ring) \| d: 69.850 mm \| D: 123.825 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 482
566		Part: Cone (inner ring) \| d: 69.850 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
655		Part: Cone (inner ring) \| d: 69.850 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
653		Part: Cup (outer ring) \| d: 69.850 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 655
745AR		Part: Cone (inner ring) \| d: 69.850 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
742		Part: Cup (outer ring) \| d: 69.850 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 745AR
835R		Part: Cone (inner ring) \| d: 69.850 mm \| D: 168.275 mm \| T: 53.975 mm \| Cr: 344 kN \| Mating: 832
832		Part: Cup (outer ring) \| d: 69.850 mm \| D: 168.275 mm \| T: 53.975 mm \| Cr: 344 kN \| Mating: 835R
34274		Part: Cone (inner ring) \| d: 69.952 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34478
34478		Part: Cup (outer ring) \| d: 69.952 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34274
JLM813049		Part: Cup (outer ring) \| d: 70.000 mm \| D: 110.000 mm \| T: 26.000 mm \| Cr: 103 kN \| Mating: None
JM612949		Part: Cone (inner ring) \| d: 70.000 mm \| D: 115.000 mm \| T: 29.000 mm \| Cr: 123 kN \| Mating: JM612910
JM612910		Part: Cup (outer ring) \| d: 70.000 mm \| D: 115.000 mm \| T: 29.000 mm \| Cr: 123 kN \| Mating: JM612949
33281		Part: Cone (inner ring) \| d: 71.438 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
47490R		Part: Cone (inner ring) \| d: 71.438 mm \| D: 120.000 mm \| T: 32.545 mm \| Cr: 150 kN \| Mating: 47420
567A		Part: Cone (inner ring) \| d: 71.438 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
HM813849		Part: Cone (inner ring) \| d: 71.438 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813811
H414249		Part: Cone (inner ring) \| d: 71.438 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414210
H715345		Part: Cone (inner ring) \| d: 71.438 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
29685		Part: Cone (inner ring) \| d: 73.025 mm \| D: 112.712 mm \| T: 25.400 mm \| Cr: 97.0 kN \| Mating: 29620
33287		Part: Cone (inner ring) \| d: 73.025 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
567		Part: Cone (inner ring) \| d: 73.025 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
576R		Part: Cone (inner ring) \| d: 73.025 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
572		Part: Cup (outer ring) \| d: 73.025 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 576R
657		Part: Cone (inner ring) \| d: 73.025 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
6460		Part: Cone (inner ring) \| d: 73.025 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 285 kN \| Mating: 6420
6420		Part: Cup (outer ring) \| d: 73.025 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 285 kN \| Mating: 6460
744R		Part: Cone (inner ring) \| d: 73.025 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
762		Part: Cone (inner ring) \| d: 73.025 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
752		Part: Cup (outer ring) \| d: 73.025 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 762
29688		Part: Cone (inner ring) \| d: 73.817 mm \| D: 112.712 mm \| T: 25.400 mm \| Cr: 97.0 kN \| Mating: 29620
568		Part: Cone (inner ring) \| d: 73.817 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
577R		Part: Cone (inner ring) \| d: 74.612 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
JLM714149		Part: Cup (outer ring) \| d: 75.000 mm \| D: 115.000 mm \| T: 25.000 mm \| Cr: 101 kN \| Mating: None
JM714249		Part: Cone (inner ring) \| d: 75.000 mm \| D: 120.000 mm \| T: 31.000 mm \| Cr: 145 kN \| Mating: JM714210
JM714210		Part: Cup (outer ring) \| d: 75.000 mm \| D: 120.000 mm \| T: 31.000 mm \| Cr: 145 kN \| Mating: JM714249
JH415647		Part: Cone (inner ring) \| d: 75.000 mm \| D: 145.000 mm \| T: 51.000 mm \| Cr: 290 kN \| Mating: JH415610
JH415610		Part: Cup (outer ring) \| d: 75.000 mm \| D: 145.000 mm \| T: 51.000 mm \| Cr: 290 kN \| Mating: JH415647
34301		Part: Cone (inner ring) \| d: 76.200 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34478
42687		Part: Cone (inner ring) \| d: 76.200 mm \| D: 127.000 mm \| T: 30.162 mm \| Cr: 143 kN \| Mating: 42620
42620		Part: Cup (outer ring) \| d: 76.200 mm \| D: 127.000 mm \| T: 30.162 mm \| Cr: 143 kN \| Mating: 42687
42688		Part: Cone (inner ring) \| d: 76.200 mm \| D: 127.000 mm \| T: 30.162 mm \| Cr: 143 kN \| Mating: 42620
495AX		Part: Cone (inner ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
492A		Part: Cup (outer ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 495AX
47678R		Part: Cone (inner ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47620
47620		Part: Cup (outer ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47678R
47680R		Part: Cone (inner ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47620
5760		Part: Cone (inner ring) \| d: 76.200 mm \| D: 135.733 mm \| T: 44.450 mm \| Cr: 213 kN \| Mating: 5735
5735		Part: Cup (outer ring) \| d: 76.200 mm \| D: 135.733 mm \| T: 44.450 mm \| Cr: 213 kN \| Mating: 5760
495A		Part: Cone (inner ring) \| d: 76.200 mm \| D: 136.525 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 493
493		Part: Cup (outer ring) \| d: 76.200 mm \| D: 136.525 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 495A
575R		Part: Cone (inner ring) \| d: 76.200 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
575SR		Part: Cone (inner ring) \| d: 76.200 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
6461		Part: Cone (inner ring) \| d: 76.200 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 285 kN \| Mating: 6420
6461A		Part: Cone (inner ring) \| d: 76.200 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 285 kN \| Mating: 6420
748SR		Part: Cone (inner ring) \| d: 76.200 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
659		Part: Cone (inner ring) \| d: 76.200 mm \| D: 152.400 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 652
652		Part: Cup (outer ring) \| d: 76.200 mm \| D: 152.400 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 659
HH221430		Part: Cone (inner ring) \| d: 76.200 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
HH221410		Part: Cup (outer ring) \| d: 76.200 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221430
LM814849		Part: Cone (inner ring) \| d: 77.788 mm \| D: 117.475 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: LM814810
LM814810		Part: Cup (outer ring) \| d: 77.788 mm \| D: 117.475 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: LM814849
34306		Part: Cone (inner ring) \| d: 77.788 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34478
34307		Part: Cone (inner ring) \| d: 77.788 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34478
42690		Part: Cone (inner ring) \| d: 77.788 mm \| D: 127.000 mm \| T: 30.162 mm \| Cr: 143 kN \| Mating: 42620
661		Part: Cone (inner ring) \| d: 79.375 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
756A		Part: Cone (inner ring) \| d: 79.375 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
HH221431		Part: Cone (inner ring) \| d: 79.375 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
JM515649		Part: Cone (inner ring) \| d: 80.000 mm \| D: 130.000 mm \| T: 35.000 mm \| Cr: 168 kN \| Mating: JM515610
JM515610		Part: Cup (outer ring) \| d: 80.000 mm \| D: 130.000 mm \| T: 35.000 mm \| Cr: 168 kN \| Mating: JM515649
98316		Part: Cone (inner ring) \| d: 80.000 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98788
98788		Part: Cup (outer ring) \| d: 80.000 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98316
496		Part: Cone (inner ring) \| d: 80.962 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
47681R		Part: Cone (inner ring) \| d: 80.962 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47620
581R		Part: Cone (inner ring) \| d: 80.962 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
740R		Part: Cone (inner ring) \| d: 80.962 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
27687		Part: Cone (inner ring) \| d: 82.550 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27620
27620		Part: Cup (outer ring) \| d: 82.550 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27687
495		Part: Cone (inner ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
47686R		Part: Cone (inner ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47620A
47620A		Part: Cup (outer ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47686R
HM516448		Part: Cone (inner ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 39.688 mm \| Cr: 177 kN \| Mating: HM516410
HM516410		Part: Cup (outer ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 39.688 mm \| Cr: 177 kN \| Mating: HM516448
580R		Part: Cone (inner ring) \| d: 82.550 mm \| D: 139.700 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572X
572X		Part: Cup (outer ring) \| d: 82.550 mm \| D: 139.700 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 580R
582R		Part: Cone (inner ring) \| d: 82.550 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
663		Part: Cone (inner ring) \| d: 82.550 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
749AR		Part: Cone (inner ring) \| d: 82.550 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
750AR		Part: Cone (inner ring) \| d: 82.550 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
757		Part: Cone (inner ring) \| d: 82.550 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
27689		Part: Cone (inner ring) \| d: 83.345 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27620
27690		Part: Cone (inner ring) \| d: 83.345 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27620
27691		Part: Cone (inner ring) \| d: 83.345 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27620
498		Part: Cone (inner ring) \| d: 84.138 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
JM716649		Part: Cone (inner ring) \| d: 85.000 mm \| D: 130.000 mm \| T: 30.000 mm \| Cr: 142 kN \| Mating: JM716610
JM716610		Part: Cup (outer ring) \| d: 85.000 mm \| D: 130.000 mm \| T: 30.000 mm \| Cr: 142 kN \| Mating: JM716649
JHM516849		Part: Cup (outer ring) \| d: 85.000 mm \| D: 140.000 mm \| T: 39.000 mm \| Cr: 203 kN \| Mating: None
JH217249		Part: Cone (inner ring) \| d: 85.000 mm \| D: 150.000 mm \| T: 46.000 mm \| Cr: 274 kN \| Mating: JH217210
JH217210		Part: Cup (outer ring) \| d: 85.000 mm \| D: 150.000 mm \| T: 46.000 mm \| Cr: 274 kN \| Mating: JH217249
98335		Part: Cone (inner ring) \| d: 85.000 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98788
749R		Part: Cone (inner ring) \| d: 85.026 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
749SR		Part: Cone (inner ring) \| d: 85.026 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
497		Part: Cone (inner ring) \| d: 85.725 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
497A		Part: Cone (inner ring) \| d: 85.725 mm \| D: 136.525 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 493
HM617049		Part: Cone (inner ring) \| d: 85.725 mm \| D: 142.138 mm \| T: 42.862 mm \| Cr: 219 kN \| Mating: HM617010
HM617010		Part: Cup (outer ring) \| d: 85.725 mm \| D: 142.138 mm \| T: 42.862 mm \| Cr: 219 kN \| Mating: HM617049
665		Part: Cone (inner ring) \| d: 85.725 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
665A		Part: Cone (inner ring) \| d: 85.725 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
596		Part: Cone (inner ring) \| d: 85.725 mm \| D: 152.400 mm \| T: 39.688 mm \| Cr: 183 kN \| Mating: 592A
592A		Part: Cup (outer ring) \| d: 85.725 mm \| D: 152.400 mm \| T: 39.688 mm \| Cr: 183 kN \| Mating: 596
758		Part: Cone (inner ring) \| d: 85.725 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
677		Part: Cone (inner ring) \| d: 85.725 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 224 kN \| Mating: 672
672		Part: Cup (outer ring) \| d: 85.725 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 224 kN \| Mating: 677
841R		Part: Cone (inner ring) \| d: 85.725 mm \| D: 168.275 mm \| T: 53.975 mm \| Cr: 344 kN \| Mating: 832
L217849		Part: Cone (inner ring) \| d: 88.900 mm \| D: 123.825 mm \| T: 20.638 mm \| Cr: 81.8 kN \| Mating: L217810
L217810		Part: Cup (outer ring) \| d: 88.900 mm \| D: 123.825 mm \| T: 20.638 mm \| Cr: 81.8 kN \| Mating: L217849
HM518445		Part: Cone (inner ring) \| d: 88.900 mm \| D: 152.400 mm \| T: 39.688 mm \| Cr: 248 kN \| Mating: HM518410
HM518410		Part: Cup (outer ring) \| d: 88.900 mm \| D: 152.400 mm \| T: 39.688 mm \| Cr: 248 kN \| Mating: HM518445
759		Part: Cone (inner ring) \| d: 88.900 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
766		Part: Cone (inner ring) \| d: 88.900 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
6580R		Part: Cone (inner ring) \| d: 88.900 mm \| D: 161.925 mm \| T: 53.975 mm \| Cr: 316 kN \| Mating: 6535
6535		Part: Cup (outer ring) \| d: 88.900 mm \| D: 161.925 mm \| T: 53.975 mm \| Cr: 316 kN \| Mating: 6580R
679		Part: Cone (inner ring) \| d: 88.900 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 224 kN \| Mating: 672
855R		Part: Cone (inner ring) \| d: 88.900 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 854
854		Part: Cup (outer ring) \| d: 88.900 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 855R
HH221434		Part: Cone (inner ring) \| d: 88.900 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
98350		Part: Cone (inner ring) \| d: 88.900 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98788
HM218248		Part: Cone (inner ring) \| d: 89.974 mm \| D: 146.975 mm \| T: 40.000 mm \| Cr: 206 kN \| Mating: HM218210
HM218210		Part: Cup (outer ring) \| d: 89.974 mm \| D: 146.975 mm \| T: 40.000 mm \| Cr: 206 kN \| Mating: HM218248
JM718149		Part: Cone (inner ring) \| d: 90.000 mm \| D: 145.000 mm \| T: 35.000 mm \| Cr: 194 kN \| Mating: JM718110
JM718110		Part: Cup (outer ring) \| d: 90.000 mm \| D: 145.000 mm \| T: 35.000 mm \| Cr: 194 kN \| Mating: JM718149
JHM318448		Part: Cup (outer ring) \| d: 90.000 mm \| D: 155.000 mm \| T: 44.000 mm \| Cr: 290 kN \| Mating: None
6581XR		Part: Cone (inner ring) \| d: 90.000 mm \| D: 161.925 mm \| T: 53.975 mm \| Cr: 316 kN \| Mating: 6535
760		Part: Cone (inner ring) \| d: 90.488 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
47890R		Part: Cone (inner ring) \| d: 92.075 mm \| D: 146.050 mm \| T: 33.338 mm \| Cr: 178 kN \| Mating: 47820
47820		Part: Cup (outer ring) \| d: 92.075 mm \| D: 146.050 mm \| T: 33.338 mm \| Cr: 178 kN \| Mating: 47890R
681A		Part: Cone (inner ring) \| d: 92.075 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 224 kN \| Mating: 672
778		Part: Cone (inner ring) \| d: 92.075 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
772		Part: Cup (outer ring) \| d: 92.075 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 778
857R		Part: Cone (inner ring) \| d: 92.075 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 854
JM719149		Part: Cone (inner ring) \| d: 95.000 mm \| D: 150.000 mm \| T: 35.000 mm \| Cr: 187 kN \| Mating: JM719113
JM719113		Part: Cup (outer ring) \| d: 95.000 mm \| D: 150.000 mm \| T: 35.000 mm \| Cr: 187 kN \| Mating: JM719149
LL319349		Part: Cone (inner ring) \| d: 95.250 mm \| D: 128.588 mm \| T: 15.875 mm \| Cr: 58.0 kN \| Mating: LL319310
LL319310		Part: Cup (outer ring) \| d: 95.250 mm \| D: 128.588 mm \| T: 15.875 mm \| Cr: 58.0 kN \| Mating: LL319349
L319249		Part: Cone (inner ring) \| d: 95.250 mm \| D: 130.175 mm \| T: 20.638 mm \| Cr: 97.0 kN \| Mating: L319210
L319210		Part: Cup (outer ring) \| d: 95.250 mm \| D: 130.175 mm \| T: 20.638 mm \| Cr: 97.0 kN \| Mating: L319249
47896R		Part: Cone (inner ring) \| d: 95.250 mm \| D: 146.050 mm \| T: 33.338 mm \| Cr: 178 kN \| Mating: 47820
594A		Part: Cone (inner ring) \| d: 95.250 mm \| D: 147.638 mm \| T: 35.717 mm \| Cr: 183 kN \| Mating: 592XE
592XE		Part: Cup (outer ring) \| d: 95.250 mm \| D: 147.638 mm \| T: 35.717 mm \| Cr: 183 kN \| Mating: 594A
52375		Part: Cone (inner ring) \| d: 95.250 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52618
52618		Part: Cup (outer ring) \| d: 95.250 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52375
864R		Part: Cone (inner ring) \| d: 95.250 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 854
HH221440		Part: Cone (inner ring) \| d: 95.250 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
HH221442		Part: Cone (inner ring) \| d: 98.425 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
HH224334		Part: Cone (inner ring) \| d: 99.975 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
HH224310		Part: Cup (outer ring) \| d: 99.975 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224334
HH221447		Part: Cone (inner ring) \| d: 99.982 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
JM720249		Part: Cone (inner ring) \| d: 100.000 mm \| D: 155.000 mm \| T: 36.000 mm \| Cr: 204 kN \| Mating: JM720210
JM720210		Part: Cup (outer ring) \| d: 100.000 mm \| D: 155.000 mm \| T: 36.000 mm \| Cr: 204 kN \| Mating: JM720249
JHM720249		Part: Cup (outer ring) \| d: 100.000 mm \| D: 160.000 mm \| T: 41.000 mm \| Cr: 237 kN \| Mating: None
52393		Part: Cone (inner ring) \| d: 100.012 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52618
52400		Part: Cone (inner ring) \| d: 101.600 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52618
52401		Part: Cone (inner ring) \| d: 101.600 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52618
780		Part: Cone (inner ring) \| d: 101.600 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
861R		Part: Cone (inner ring) \| d: 101.600 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 854
HH221449		Part: Cone (inner ring) \| d: 101.600 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
98400		Part: Cone (inner ring) \| d: 101.600 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98788
941		Part: Cone (inner ring) \| d: 101.600 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 450 kN \| Mating: 932
932		Part: Cup (outer ring) \| d: 101.600 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 450 kN \| Mating: 941
HH224335		Part: Cone (inner ring) \| d: 101.600 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
782		Part: Cone (inner ring) \| d: 104.775 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
786		Part: Cone (inner ring) \| d: 104.775 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
787		Part: Cone (inner ring) \| d: 104.775 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
71412		Part: Cone (inner ring) \| d: 104.775 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
71750		Part: Cup (outer ring) \| d: 104.775 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71412
56418R		Part: Cone (inner ring) \| d: 106.362 mm \| D: 165.100 mm \| T: 36.512 mm \| Cr: 195 kN \| Mating: 56650
56650		Part: Cup (outer ring) \| d: 106.362 mm \| D: 165.100 mm \| T: 36.512 mm \| Cr: 195 kN \| Mating: 56418R
L521949R		Part: Cone (inner ring) \| d: 107.950 mm \| D: 146.050 mm \| T: 21.432 mm \| Cr: 86.4 kN \| Mating: L521910
L521910		Part: Cup (outer ring) \| d: 107.950 mm \| D: 146.050 mm \| T: 21.432 mm \| Cr: 86.4 kN \| Mating: L521949R
37425		Part: Cone (inner ring) \| d: 107.950 mm \| D: 158.750 mm \| T: 23.020 mm \| Cr: 104 kN \| Mating: 37625
37625		Part: Cup (outer ring) \| d: 107.950 mm \| D: 158.750 mm \| T: 23.020 mm \| Cr: 104 kN \| Mating: 37425
LM522546		Part: Cone (inner ring) \| d: 107.950 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 184 kN \| Mating: LM522510
LM522510		Part: Cup (outer ring) \| d: 107.950 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 184 kN \| Mating: LM522546
48190		Part: Cone (inner ring) \| d: 107.950 mm \| D: 161.925 mm \| T: 34.925 mm \| Cr: 173 kN \| Mating: 48120
48120		Part: Cup (outer ring) \| d: 107.950 mm \| D: 161.925 mm \| T: 34.925 mm \| Cr: 173 kN \| Mating: 48190
56425R		Part: Cone (inner ring) \| d: 107.950 mm \| D: 165.100 mm \| T: 36.512 mm \| Cr: 195 kN \| Mating: 56650
56662		Part: Cup (outer ring) \| d: 107.950 mm \| D: 168.275 mm \| T: 36.512 mm \| Cr: 195 kN \| Mating: 56425R
71425		Part: Cone (inner ring) \| d: 107.950 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
936		Part: Cone (inner ring) \| d: 107.950 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 450 kN \| Mating: 932
HH224340		Part: Cone (inner ring) \| d: 107.950 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
37431		Part: Cone (inner ring) \| d: 109.538 mm \| D: 158.750 mm \| T: 23.020 mm \| Cr: 104 kN \| Mating: 37625
LM522548		Part: Cone (inner ring) \| d: 109.987 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 184 kN \| Mating: LM522510
LM522549		Part: Cone (inner ring) \| d: 109.987 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 184 kN \| Mating: LM522510
64433R		Part: Cone (inner ring) \| d: 109.992 mm \| D: 177.800 mm \| T: 41.275 mm \| Cr: 234 kN \| Mating: 64700
64700		Part: Cup (outer ring) \| d: 109.992 mm \| D: 177.800 mm \| T: 41.275 mm \| Cr: 234 kN \| Mating: 64433R
JM822049		Part: Cone (inner ring) \| d: 110.000 mm \| D: 165.000 mm \| T: 35.000 mm \| Cr: 195 kN \| Mating: JM822010
JM822010		Part: Cup (outer ring) \| d: 110.000 mm \| D: 165.000 mm \| T: 35.000 mm \| Cr: 195 kN \| Mating: JM822049
JHM522649		Part: Cup (outer ring) \| d: 110.000 mm \| D: 180.000 mm \| T: 47.000 mm \| Cr: 306 kN \| Mating: None
64450R		Part: Cone (inner ring) \| d: 114.300 mm \| D: 177.800 mm \| T: 41.275 mm \| Cr: 234 kN \| Mating: 64700
68450		Part: Cone (inner ring) \| d: 114.300 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 171 kN \| Mating: 68712
68712		Part: Cup (outer ring) \| d: 114.300 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 171 kN \| Mating: 68450
71450		Part: Cone (inner ring) \| d: 114.300 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
938		Part: Cone (inner ring) \| d: 114.300 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 450 kN \| Mating: 932
HH224346		Part: Cone (inner ring) \| d: 114.300 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
HH926744		Part: Cone (inner ring) \| d: 114.300 mm \| D: 273.050 mm \| T: 82.550 mm \| Cr: 707 kN \| Mating: HH926710
HH926710		Part: Cup (outer ring) \| d: 114.300 mm \| D: 273.050 mm \| T: 82.550 mm \| Cr: 707 kN \| Mating: HH926744
HH224349		Part: Cone (inner ring) \| d: 114.976 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
71453		Part: Cone (inner ring) \| d: 115.087 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
71455		Part: Cone (inner ring) \| d: 115.087 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
68462		Part: Cone (inner ring) \| d: 117.475 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 171 kN \| Mating: 68712
68463		Part: Cone (inner ring) \| d: 117.475 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 171 kN \| Mating: 68712
HM624749		Part: Cone (inner ring) \| d: 120.650 mm \| D: 190.500 mm \| T: 46.038 mm \| Cr: 313 kN \| Mating: HM624710
HM624710		Part: Cup (outer ring) \| d: 120.650 mm \| D: 190.500 mm \| T: 46.038 mm \| Cr: 313 kN \| Mating: HM624749
HH228340		Part: Cone (inner ring) \| d: 120.650 mm \| D: 254.000 mm \| T: 77.788 mm \| Cr: 717 kN \| Mating: HH228310
HH228310		Part: Cup (outer ring) \| d: 120.650 mm \| D: 254.000 mm \| T: 77.788 mm \| Cr: 717 kN \| Mating: HH228340
HH228349		Part: Cone (inner ring) \| d: 127.000 mm \| D: 254.000 mm \| T: 77.788 mm \| Cr: 717 kN \| Mating: HH228310
L327249		Part: Cone (inner ring) \| d: 133.350 mm \| D: 177.008 mm \| T: 25.400 mm \| Cr: 141 kN \| Mating: L327210
L327210		Part: Cup (outer ring) \| d: 133.350 mm \| D: 177.008 mm \| T: 25.400 mm \| Cr: 141 kN \| Mating: L327249
48684		Part: Cone (inner ring) \| d: 142.875 mm \| D: 200.025 mm \| T: 41.275 mm \| Cr: 246 kN \| Mating: 48620
48620		Part: Cup (outer ring) \| d: 142.875 mm \| D: 200.025 mm \| T: 41.275 mm \| Cr: 246 kN \| Mating: 48684
48685		Part: Cone (inner ring) \| d: 142.875 mm \| D: 200.025 mm \| T: 41.275 mm \| Cr: 246 kN \| Mating: 48620
JHM534149		Part: Cup (outer ring) \| d: 170.000 mm \| D: 230.000 mm \| T: 39.000 mm \| Cr: 291 kN \| Mating: None
JM734449		Part: Cone (inner ring) \| d: 170.000 mm \| D: 240.000 mm \| T: 46.000 mm \| Cr: 353 kN \| Mating: JM734410
JM734410		Part: Cup (outer ring) \| d: 170.000 mm \| D: 240.000 mm \| T: 46.000 mm \| Cr: 353 kN \| Mating: JM734449
L435049		Part: Cone (inner ring) \| d: 171.450 mm \| D: 222.250 mm \| T: 25.400 mm \| Cr: 157 kN \| Mating: L435010
L435010		Part: Cup (outer ring) \| d: 171.450 mm \| D: 222.250 mm \| T: 25.400 mm \| Cr: 157 kN \| Mating: L435049
JM736149		Part: Cone (inner ring) \| d: 180.000 mm \| D: 250.000 mm \| T: 47.000 mm \| Cr: 365 kN \| Mating: JM736110
JM736110		Part: Cup (outer ring) \| d: 180.000 mm \| D: 250.000 mm \| T: 47.000 mm \| Cr: 365 kN \| Mating: JM736149
JM738249		Part: Cone (inner ring) \| d: 190.000 mm \| D: 260.000 mm \| T: 46.000 mm \| Cr: 369 kN \| Mating: JM738210
JM738210		Part: Cup (outer ring) \| d: 190.000 mm \| D: 260.000 mm \| T: 46.000 mm \| Cr: 369 kN \| Mating: JM738249
L540049		Part: Cone (inner ring) \| d: 196.850 mm \| D: 254.000 mm \| T: 28.575 mm \| Cr: 188 kN \| Mating: L540010
L540010		Part: Cup (outer ring) \| d: 196.850 mm \| D: 254.000 mm \| T: 28.575 mm \| Cr: 188 kN \| Mating: L540049
JHM840449		Part: Cup (outer ring) \| d: 200.000 mm \| D: 300.000 mm \| T: 65.000 mm \| Cr: 617 kN \| Mating: None
LM245833		Part: Cone (inner ring) \| d: 220.878 mm \| D: 317.500 mm \| T: 47.625 mm \| Cr: 488 kN \| Mating: LM245810
LM245810		Part: Cup (outer ring) \| d: 220.878 mm \| D: 317.500 mm \| T: 47.625 mm \| Cr: 488 kN \| Mating: LM245833
M249732		Part: Cone (inner ring) \| d: 228.600 mm \| D: 358.775 mm \| T: 71.438 mm \| Cr: 773 kN \| Mating: M249710
M249710		Part: Cup (outer ring) \| d: 228.600 mm \| D: 358.775 mm \| T: 71.438 mm \| Cr: 773 kN \| Mating: M249732
LM245846		Part: Cone (inner ring) \| d: 230.188 mm \| D: 317.500 mm \| T: 47.625 mm \| Cr: 488 kN \| Mating: LM245810
LM245848		Part: Cone (inner ring) \| d: 231.775 mm \| D: 317.500 mm \| T: 47.625 mm \| Cr: 488 kN \| Mating: LM245810
M246942		Part: Cone (inner ring) \| d: 231.775 mm \| D: 336.550 mm \| T: 65.088 mm \| Cr: 708 kN \| Mating: M246910
M246910		Part: Cup (outer ring) \| d: 231.775 mm \| D: 336.550 mm \| T: 65.088 mm \| Cr: 708 kN \| Mating: M246942
M249734		Part: Cone (inner ring) \| d: 231.775 mm \| D: 358.775 mm \| T: 71.438 mm \| Cr: 773 kN \| Mating: M249710
M249749		Part: Cone (inner ring) \| d: 254.000 mm \| D: 358.775 mm \| T: 71.438 mm \| Cr: 773 kN \| Mating: M249710
M349549		Part: Cone (inner ring) \| d: 257.175 mm \| D: 342.900 mm \| T: 57.150 mm \| Cr: 612 kN \| Mating: M349510
M349510		Part: Cup (outer ring) \| d: 257.175 mm \| D: 342.900 mm \| T: 57.150 mm \| Cr: 612 kN \| Mating: M349549
L555249		Part: Cone (inner ring) \| d: 292.100 mm \| D: 374.650 mm \| T: 47.625 mm \| Cr: 468 kN \| Mating: L555210
L555210		Part: Cup (outer ring) \| d: 292.100 mm \| D: 374.650 mm \| T: 47.625 mm \| Cr: 468 kN \| Mating: L555249

Tapered Roller BearingsKOYO

752 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Single-Row Tapered Roller Bearings, Inch Series (Cones & Cups)

Brand KOYO·Tapered Roller Bearings

Available part numbers (752)

A2037, A2126, A2047, A4050, A4138, A4059, L21549, L21511, 03062, 03162 + 742 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	A2037	Part: Cone (inner ring) \| d: 9.525 mm \| D: 31.991 mm \| T: 10.008 mm \| Cr: 10.7 kN \| Mating: A2126
	A2126	Part: Cup (outer ring) \| d: 9.525 mm \| D: 31.991 mm \| T: 10.008 mm \| Cr: 10.7 kN \| Mating: A2037
	A2047	Part: Cone (inner ring) \| d: 11.986 mm \| D: 31.991 mm \| T: 10.008 mm \| Cr: 10.7 kN \| Mating: A2126
	A4050	Part: Cone (inner ring) \| d: 12.700 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.6 kN \| Mating: A4138
	A4138	Part: Cup (outer ring) \| d: 12.700 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.6 kN \| Mating: A4050
	A4059	Part: Cone (inner ring) \| d: 14.989 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 12.6 kN \| Mating: A4138
	L21549	Part: Cone (inner ring) \| d: 15.875 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 14.5 kN \| Mating: L21511
	L21511	Part: Cup (outer ring) \| d: 15.875 mm \| D: 34.988 mm \| T: 10.998 mm \| Cr: 14.5 kN \| Mating: L21549
	03062	Part: Cone (inner ring) \| d: 15.875 mm \| D: 41.275 mm \| T: 14.288 mm \| Cr: 21.8 kN \| Mating: 03162
	03162	Part: Cup (outer ring) \| d: 15.875 mm \| D: 41.275 mm \| T: 14.288 mm \| Cr: 21.8 kN \| Mating: 03062
	17580R	Part: Cone (inner ring) \| d: 15.875 mm \| D: 42.862 mm \| T: 16.670 mm \| Cr: 30.6 kN \| Mating: 17520
	17520	Part: Cup (outer ring) \| d: 15.875 mm \| D: 42.862 mm \| T: 16.670 mm \| Cr: 30.6 kN \| Mating: 17580R
	09062	Part: Cone (inner ring) \| d: 15.875 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 37.7 kN \| Mating: 09195
	09195	Part: Cup (outer ring) \| d: 15.875 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 37.7 kN \| Mating: 09062
	21063	Part: Cone (inner ring) \| d: 15.875 mm \| D: 53.975 mm \| T: 22.225 mm \| Cr: 42.0 kN \| Mating: 21212
	21212	Part: Cup (outer ring) \| d: 15.875 mm \| D: 53.975 mm \| T: 22.225 mm \| Cr: 42.0 kN \| Mating: 21063
	HM81649	Part: Cone (inner ring) \| d: 16.000 mm \| D: 47.000 mm \| T: 21.000 mm \| Cr: 36.3 kN \| Mating: HM81610
	HM81610	Part: Cup (outer ring) \| d: 16.000 mm \| D: 47.000 mm \| T: 21.000 mm \| Cr: 36.3 kN \| Mating: HM81649
	LM11749R	Part: Cone (inner ring) \| d: 17.462 mm \| D: 39.878 mm \| T: 13.843 mm \| Cr: 25.4 kN \| Mating: LM11710
	LM11710	Part: Cup (outer ring) \| d: 17.462 mm \| D: 39.878 mm \| T: 13.843 mm \| Cr: 25.4 kN \| Mating: LM11749R
	LM11949	Part: Cone (inner ring) \| d: 19.050 mm \| D: 45.237 mm \| T: 15.494 mm \| Cr: 29.4 kN \| Mating: LM11910
	LM11910	Part: Cup (outer ring) \| d: 19.050 mm \| D: 45.237 mm \| T: 15.494 mm \| Cr: 29.4 kN \| Mating: LM11949
	09078	Part: Cone (inner ring) \| d: 19.050 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 37.7 kN \| Mating: 09195
	09067	Part: Cone (inner ring) \| d: 19.050 mm \| D: 49.225 mm \| T: 21.209 mm \| Cr: 37.7 kN \| Mating: 09196
	09196	Part: Cup (outer ring) \| d: 19.050 mm \| D: 49.225 mm \| T: 21.209 mm \| Cr: 37.7 kN \| Mating: 09067
	07079	Part: Cone (inner ring) \| d: 20.000 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
	07196	Part: Cup (outer ring) \| d: 20.000 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07079
	12580	Part: Cone (inner ring) \| d: 20.638 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 36.4 kN \| Mating: 12520
	12520	Part: Cup (outer ring) \| d: 20.638 mm \| D: 49.225 mm \| T: 19.845 mm \| Cr: 36.4 kN \| Mating: 12580
	M12649	Part: Cone (inner ring) \| d: 21.430 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 39.1 kN \| Mating: M12610
	M12610	Part: Cup (outer ring) \| d: 21.430 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 39.1 kN \| Mating: M12649
	LM12749	Part: Cone (inner ring) \| d: 21.987 mm \| D: 45.974 mm \| T: 15.494 mm \| Cr: 30.1 kN \| Mating: LM12711
	LM12711	Part: Cup (outer ring) \| d: 21.987 mm \| D: 45.974 mm \| T: 15.494 mm \| Cr: 30.1 kN \| Mating: LM12749
	M12648	Part: Cone (inner ring) \| d: 22.225 mm \| D: 50.005 mm \| T: 17.526 mm \| Cr: 39.1 kN \| Mating: M12610
	1380	Part: Cone (inner ring) \| d: 22.225 mm \| D: 52.388 mm \| T: 19.368 mm \| Cr: 36.7 kN \| Mating: 1328
	1328	Part: Cup (outer ring) \| d: 22.225 mm \| D: 52.388 mm \| T: 19.368 mm \| Cr: 36.7 kN \| Mating: 1380
	1329	Part: Cup (outer ring) \| d: 22.225 mm \| D: 53.975 mm \| T: 19.368 mm \| Cr: 36.7 kN \| Mating: 1380
	1755	Part: Cone (inner ring) \| d: 22.225 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 40.0 kN \| Mating: 1729
	1729	Part: Cup (outer ring) \| d: 22.225 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 40.0 kN \| Mating: 1755
	1280	Part: Cone (inner ring) \| d: 22.225 mm \| D: 57.150 mm \| T: 22.225 mm \| Cr: 52.6 kN \| Mating: 1220
	2684	Part: Cone (inner ring) \| d: 22.225 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
	2631	Part: Cup (outer ring) \| d: 22.225 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2684
	LM72849	Part: Cone (inner ring) \| d: 22.606 mm \| D: 47.000 mm \| T: 15.500 mm \| Cr: 28.0 kN \| Mating: LM72810
	LM72810	Part: Cup (outer ring) \| d: 22.606 mm \| D: 47.000 mm \| T: 15.500 mm \| Cr: 28.0 kN \| Mating: LM72849
	L44640R	Part: Cone (inner ring) \| d: 23.812 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 31.2 kN \| Mating: L44610
	L44610	Part: Cup (outer ring) \| d: 23.812 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 31.2 kN \| Mating: L44640R
	1779	Part: Cone (inner ring) \| d: 23.812 mm \| D: 56.896 mm \| T: 19.368 mm \| Cr: 40.0 kN \| Mating: 1729
	07098	Part: Cone (inner ring) \| d: 24.981 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
	17098	Part: Cone (inner ring) \| d: 24.981 mm \| D: 62.000 mm \| T: 16.002 mm \| Cr: 38.0 kN \| Mating: 17244
	17244	Part: Cup (outer ring) \| d: 24.981 mm \| D: 62.000 mm \| T: 16.002 mm \| Cr: 38.0 kN \| Mating: 17098
	07097	Part: Cone (inner ring) \| d: 25.000 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
	07100	Part: Cone (inner ring) \| d: 25.400 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
	07100S	Part: Cone (inner ring) \| d: 25.400 mm \| D: 50.005 mm \| T: 13.495 mm \| Cr: 26.7 kN \| Mating: 07196
	L44643R	Part: Cone (inner ring) \| d: 25.400 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 31.2 kN \| Mating: L44610
	07204	Part: Cup (outer ring) \| d: 25.400 mm \| D: 51.994 mm \| T: 15.011 mm \| Cr: 26.7 kN \| Mating: 07100
	1986R	Part: Cone (inner ring) \| d: 25.400 mm \| D: 58.738 mm \| T: 19.050 mm \| Cr: 48.8 kN \| Mating: 1932
	1932	Part: Cup (outer ring) \| d: 25.400 mm \| D: 58.738 mm \| T: 19.050 mm \| Cr: 48.8 kN \| Mating: 1986R
	M84249	Part: Cone (inner ring) \| d: 25.400 mm \| D: 59.530 mm \| T: 23.368 mm \| Cr: 50.4 kN \| Mating: M84210
	M84210	Part: Cup (outer ring) \| d: 25.400 mm \| D: 59.530 mm \| T: 23.368 mm \| Cr: 50.4 kN \| Mating: M84249
	15101	Part: Cone (inner ring) \| d: 25.400 mm \| D: 61.912 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15243
	15243	Part: Cup (outer ring) \| d: 25.400 mm \| D: 61.912 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15101
	15100	Part: Cone (inner ring) \| d: 25.400 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	15245	Part: Cup (outer ring) \| d: 25.400 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15100
	15250R	Part: Cup (outer ring) \| d: 25.400 mm \| D: 63.500 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15101
	M86643R	Part: Cone (inner ring) \| d: 25.400 mm \| D: 64.292 mm \| T: 21.432 mm \| Cr: 55.2 kN \| Mating: M86610
	M86610	Part: Cup (outer ring) \| d: 25.400 mm \| D: 64.292 mm \| T: 21.432 mm \| Cr: 55.2 kN \| Mating: M86643R
	2687	Part: Cone (inner ring) \| d: 25.400 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
	02473	Part: Cone (inner ring) \| d: 25.400 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02420
	02420	Part: Cup (outer ring) \| d: 25.400 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02473
	HM88630	Part: Cone (inner ring) \| d: 25.400 mm \| D: 72.233 mm \| T: 25.400 mm \| Cr: 66.9 kN \| Mating: HM88610
	HM88610	Part: Cup (outer ring) \| d: 25.400 mm \| D: 72.233 mm \| T: 25.400 mm \| Cr: 66.9 kN \| Mating: HM88630
	2682	Part: Cone (inner ring) \| d: 26.162 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
	L44649R	Part: Cone (inner ring) \| d: 26.988 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 31.2 kN \| Mating: L44610
	15580	Part: Cone (inner ring) \| d: 26.988 mm \| D: 60.325 mm \| T: 19.842 mm \| Cr: 37.8 kN \| Mating: 15523
	15523	Part: Cup (outer ring) \| d: 26.988 mm \| D: 60.325 mm \| T: 19.842 mm \| Cr: 37.8 kN \| Mating: 15580
	15106	Part: Cone (inner ring) \| d: 26.988 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	2688	Part: Cone (inner ring) \| d: 26.988 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
	15590	Part: Cone (inner ring) \| d: 28.575 mm \| D: 57.150 mm \| T: 17.462 mm \| Cr: 37.8 kN \| Mating: 15520
	15520	Part: Cup (outer ring) \| d: 28.575 mm \| D: 57.150 mm \| T: 17.462 mm \| Cr: 37.8 kN \| Mating: 15590
	1988R	Part: Cone (inner ring) \| d: 28.575 mm \| D: 57.150 mm \| T: 19.845 mm \| Cr: 48.8 kN \| Mating: 1922
	1922	Part: Cup (outer ring) \| d: 28.575 mm \| D: 57.150 mm \| T: 19.845 mm \| Cr: 48.8 kN \| Mating: 1988R
	15112	Part: Cone (inner ring) \| d: 28.575 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	15113	Part: Cone (inner ring) \| d: 28.575 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	M86647R	Part: Cone (inner ring) \| d: 28.575 mm \| D: 64.292 mm \| T: 21.432 mm \| Cr: 55.2 kN \| Mating: M86610
	2689	Part: Cone (inner ring) \| d: 28.575 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
	02474	Part: Cone (inner ring) \| d: 28.575 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02420
	26112	Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.000 mm \| T: 19.000 mm \| Cr: 47.5 kN \| Mating: 26283
	26283	Part: Cup (outer ring) \| d: 28.575 mm \| D: 72.000 mm \| T: 19.000 mm \| Cr: 47.5 kN \| Mating: 26112
	41125	Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 24.608 mm \| Cr: 61.8 kN \| Mating: 41286
	41286	Part: Cup (outer ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 24.608 mm \| Cr: 61.8 kN \| Mating: 41125
	41126	Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 24.608 mm \| Cr: 61.8 kN \| Mating: 41286
	3192	Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 30.162 mm \| Cr: 78.8 kN \| Mating: 3120
	3120	Part: Cup (outer ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 30.162 mm \| Cr: 78.8 kN \| Mating: 3192
	3198	Part: Cone (inner ring) \| d: 28.575 mm \| D: 72.626 mm \| T: 30.162 mm \| Cr: 78.8 kN \| Mating: 3120
	02872	Part: Cone (inner ring) \| d: 28.575 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
	02820	Part: Cup (outer ring) \| d: 28.575 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02872
	L45449	Part: Cone (inner ring) \| d: 29.000 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.9 kN \| Mating: L45410
	L45410	Part: Cup (outer ring) \| d: 29.000 mm \| D: 50.292 mm \| T: 14.224 mm \| Cr: 28.9 kN \| Mating: L45449
	2690	Part: Cone (inner ring) \| d: 29.367 mm \| D: 66.421 mm \| T: 23.812 mm \| Cr: 67.0 kN \| Mating: 2631
	17118	Part: Cone (inner ring) \| d: 29.987 mm \| D: 62.000 mm \| T: 16.002 mm \| Cr: 38.0 kN \| Mating: 17244
	15117	Part: Cone (inner ring) \| d: 29.987 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	14117A	Part: Cone (inner ring) \| d: 30.000 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 46.1 kN \| Mating: 14276
	14276	Part: Cup (outer ring) \| d: 30.000 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 46.1 kN \| Mating: 14117A
	15116	Part: Cone (inner ring) \| d: 30.112 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	17119	Part: Cone (inner ring) \| d: 30.162 mm \| D: 62.000 mm \| T: 16.002 mm \| Cr: 38.0 kN \| Mating: 17244
	M86649R	Part: Cone (inner ring) \| d: 30.162 mm \| D: 64.292 mm \| T: 21.432 mm \| Cr: 55.2 kN \| Mating: M86610
	M88043	Part: Cone (inner ring) \| d: 30.162 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 56.1 kN \| Mating: M88010
	M88010	Part: Cup (outer ring) \| d: 30.162 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 56.1 kN \| Mating: M88043
	15118	Part: Cone (inner ring) \| d: 30.213 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	15119	Part: Cone (inner ring) \| d: 30.213 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	15120	Part: Cone (inner ring) \| d: 30.213 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	14116	Part: Cone (inner ring) \| d: 30.226 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 46.1 kN \| Mating: 14274
	14274	Part: Cup (outer ring) \| d: 30.226 mm \| D: 69.012 mm \| T: 19.845 mm \| Cr: 46.1 kN \| Mating: 14116
	08125	Part: Cone (inner ring) \| d: 31.750 mm \| D: 58.738 mm \| T: 14.684 mm \| Cr: 29.5 kN \| Mating: 08231
	08231	Part: Cup (outer ring) \| d: 31.750 mm \| D: 58.738 mm \| T: 14.684 mm \| Cr: 29.5 kN \| Mating: 08125
	LM67048	Part: Cone (inner ring) \| d: 31.750 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 35.8 kN \| Mating: LM67010
	LM67010	Part: Cup (outer ring) \| d: 31.750 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 35.8 kN \| Mating: LM67048
	15123	Part: Cone (inner ring) \| d: 31.750 mm \| D: 62.000 mm \| T: 18.161 mm \| Cr: 44.6 kN \| Mating: 15245
	15125	Part: Cone (inner ring) \| d: 31.750 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	15126	Part: Cone (inner ring) \| d: 31.750 mm \| D: 62.000 mm \| T: 19.050 mm \| Cr: 44.6 kN \| Mating: 15245
	2580	Part: Cone (inner ring) \| d: 31.750 mm \| D: 66.421 mm \| T: 25.400 mm \| Cr: 71.4 kN \| Mating: 2520
	2520	Part: Cup (outer ring) \| d: 31.750 mm \| D: 66.421 mm \| T: 25.400 mm \| Cr: 71.4 kN \| Mating: 2580
	02475	Part: Cone (inner ring) \| d: 31.750 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02420
	02476	Part: Cone (inner ring) \| d: 31.750 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 51.0 kN \| Mating: 02420
	M88046	Part: Cone (inner ring) \| d: 31.750 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 56.1 kN \| Mating: M88010
	02875	Part: Cone (inner ring) \| d: 31.750 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
	02876	Part: Cone (inner ring) \| d: 31.750 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
	HM88542	Part: Cone (inner ring) \| d: 31.750 mm \| D: 73.025 mm \| T: 29.370 mm \| Cr: 74.3 kN \| Mating: HM88510
	HM88510	Part: Cup (outer ring) \| d: 31.750 mm \| D: 73.025 mm \| T: 29.370 mm \| Cr: 74.3 kN \| Mating: HM88542
	HM88512	Part: Cup (outer ring) \| d: 31.750 mm \| D: 73.812 mm \| T: 29.370 mm \| Cr: 74.3 kN \| Mating: HM88542
	M88048	Part: Cone (inner ring) \| d: 33.338 mm \| D: 68.262 mm \| T: 22.225 mm \| Cr: 56.1 kN \| Mating: M88010
	26131	Part: Cone (inner ring) \| d: 33.338 mm \| D: 72.000 mm \| T: 19.000 mm \| Cr: 47.5 kN \| Mating: 26283
	HM88547	Part: Cone (inner ring) \| d: 33.338 mm \| D: 73.025 mm \| T: 29.370 mm \| Cr: 74.3 kN \| Mating: HM88510
	HM89443	Part: Cone (inner ring) \| d: 33.338 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 79.5 kN \| Mating: HM89410
	HM89410	Part: Cup (outer ring) \| d: 33.338 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 79.5 kN \| Mating: HM89443
	LM48548	Part: Cone (inner ring) \| d: 34.925 mm \| D: 65.088 mm \| T: 18.034 mm \| Cr: 48.0 kN \| Mating: LM48510
	LM48510	Part: Cup (outer ring) \| d: 34.925 mm \| D: 65.088 mm \| T: 18.034 mm \| Cr: 48.0 kN \| Mating: LM48548
	14136A	Part: Cone (inner ring) \| d: 34.925 mm \| D: 69.012 mm \| T: 26.982 mm \| Cr: 46.1 kN \| Mating: 14276
	HM88649	Part: Cone (inner ring) \| d: 34.925 mm \| D: 72.233 mm \| T: 25.400 mm \| Cr: 66.9 kN \| Mating: HM88610
	16137	Part: Cone (inner ring) \| d: 34.925 mm \| D: 72.238 mm \| T: 20.638 mm \| Cr: 49.7 kN \| Mating: 16284
	16284	Part: Cup (outer ring) \| d: 34.925 mm \| D: 72.238 mm \| T: 20.638 mm \| Cr: 49.7 kN \| Mating: 16137
	02877	Part: Cone (inner ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
	02878	Part: Cone (inner ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 22.225 mm \| Cr: 55.0 kN \| Mating: 02820
	25877R	Part: Cone (inner ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 72.2 kN \| Mating: 25821
	25821	Part: Cup (outer ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 72.2 kN \| Mating: 25877R
	23690	Part: Cone (inner ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 26.988 mm \| Cr: 77.8 kN \| Mating: 23620
	23620	Part: Cup (outer ring) \| d: 34.925 mm \| D: 73.025 mm \| T: 26.988 mm \| Cr: 77.8 kN \| Mating: 23690
	28137	Part: Cone (inner ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 20.638 mm \| Cr: 57.3 kN \| Mating: 28300
	28300	Part: Cup (outer ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 20.638 mm \| Cr: 57.3 kN \| Mating: 28137
	2796R	Part: Cone (inner ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2720
	2720	Part: Cup (outer ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2796R
	31594	Part: Cone (inner ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 80.9 kN \| Mating: 31520
	31520	Part: Cup (outer ring) \| d: 34.925 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 80.9 kN \| Mating: 31594
	3478	Part: Cone (inner ring) \| d: 34.925 mm \| D: 79.375 mm \| T: 29.370 mm \| Cr: 87.4 kN \| Mating: 3420
	3420	Part: Cup (outer ring) \| d: 34.925 mm \| D: 79.375 mm \| T: 29.370 mm \| Cr: 87.4 kN \| Mating: 3478
	3581R	Part: Cone (inner ring) \| d: 34.925 mm \| D: 87.312 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3525
	3525	Part: Cup (outer ring) \| d: 34.925 mm \| D: 87.312 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3581R
	449	Part: Cone (inner ring) \| d: 34.925 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 103 kN \| Mating: 432
	432	Part: Cup (outer ring) \| d: 34.925 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 103 kN \| Mating: 449
	L68149	Part: Cone (inner ring) \| d: 34.980 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 35.7 kN \| Mating: L68110
	L68110	Part: Cup (outer ring) \| d: 34.980 mm \| D: 59.131 mm \| T: 15.875 mm \| Cr: 35.7 kN \| Mating: L68149
	L68111	Part: Cup (outer ring) \| d: 34.980 mm \| D: 59.975 mm \| T: 15.875 mm \| Cr: 35.7 kN \| Mating: L68149
	26883R	Part: Cone (inner ring) \| d: 35.000 mm \| D: 79.375 mm \| T: 23.812 mm \| Cr: 81.1 kN \| Mating: 26822
	26822	Part: Cup (outer ring) \| d: 35.000 mm \| D: 79.375 mm \| T: 23.812 mm \| Cr: 81.1 kN \| Mating: 26883R
	339	Part: Cone (inner ring) \| d: 35.000 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
	332	Part: Cup (outer ring) \| d: 35.000 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 339
	HM88648	Part: Cone (inner ring) \| d: 35.717 mm \| D: 72.233 mm \| T: 25.400 mm \| Cr: 66.9 kN \| Mating: HM88610
	25880R	Part: Cone (inner ring) \| d: 36.487 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 72.2 kN \| Mating: 25821
	2794R	Part: Cone (inner ring) \| d: 36.487 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2735X
	2735X	Part: Cup (outer ring) \| d: 36.487 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2794R
	HM89449	Part: Cone (inner ring) \| d: 36.512 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 79.5 kN \| Mating: HM89411
	HM89411	Part: Cup (outer ring) \| d: 36.512 mm \| D: 76.200 mm \| T: 29.370 mm \| Cr: 79.5 kN \| Mating: HM89449
	26877R	Part: Cone (inner ring) \| d: 36.512 mm \| D: 79.375 mm \| T: 23.812 mm \| Cr: 81.1 kN \| Mating: 26822
	3479	Part: Cone (inner ring) \| d: 36.512 mm \| D: 79.375 mm \| T: 29.370 mm \| Cr: 87.4 kN \| Mating: 3420
	3878	Part: Cone (inner ring) \| d: 36.512 mm \| D: 85.725 mm \| T: 30.162 mm \| Cr: 108 kN \| Mating: 3820
	3820	Part: Cup (outer ring) \| d: 36.512 mm \| D: 85.725 mm \| T: 30.162 mm \| Cr: 108 kN \| Mating: 3878
	JL69349	Part: Cone (inner ring) \| d: 38.000 mm \| D: 63.000 mm \| T: 17.000 mm \| Cr: 43.5 kN \| Mating: JL69310
	JL69310	Part: Cup (outer ring) \| d: 38.000 mm \| D: 63.000 mm \| T: 17.000 mm \| Cr: 43.5 kN \| Mating: JL69349
	13889	Part: Cone (inner ring) \| d: 38.100 mm \| D: 63.500 mm \| T: 12.700 mm \| Cr: 25.5 kN \| Mating: 13830
	13830	Part: Cup (outer ring) \| d: 38.100 mm \| D: 63.500 mm \| T: 12.700 mm \| Cr: 25.5 kN \| Mating: 13889
	13836	Part: Cup (outer ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 12.700 mm \| Cr: 25.5 kN \| Mating: 13889
	LM29748	Part: Cone (inner ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 18.034 mm \| Cr: 42.9 kN \| Mating: LM29710
	LM29710	Part: Cup (outer ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 18.034 mm \| Cr: 42.9 kN \| Mating: LM29748
	LM29749	Part: Cone (inner ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 19.812 mm \| Cr: 42.9 kN \| Mating: LM29711
	LM29711	Part: Cup (outer ring) \| d: 38.100 mm \| D: 65.088 mm \| T: 19.812 mm \| Cr: 42.9 kN \| Mating: LM29749
	13687	Part: Cone (inner ring) \| d: 38.100 mm \| D: 69.012 mm \| T: 19.050 mm \| Cr: 49.2 kN \| Mating: 13621
	13621	Part: Cup (outer ring) \| d: 38.100 mm \| D: 69.012 mm \| T: 19.050 mm \| Cr: 49.2 kN \| Mating: 13687
	19150R	Part: Cone (inner ring) \| d: 38.100 mm \| D: 71.438 mm \| T: 15.875 mm \| Cr: 46.1 kN \| Mating: 19281
	19281	Part: Cup (outer ring) \| d: 38.100 mm \| D: 71.438 mm \| T: 15.875 mm \| Cr: 46.1 kN \| Mating: 19150R
	19283	Part: Cup (outer ring) \| d: 38.100 mm \| D: 71.996 mm \| T: 17.018 mm \| Cr: 46.1 kN \| Mating: 19150R
	16150	Part: Cone (inner ring) \| d: 38.100 mm \| D: 71.996 mm \| T: 19.000 mm \| Cr: 49.7 kN \| Mating: 16282
	16282	Part: Cup (outer ring) \| d: 38.100 mm \| D: 71.996 mm \| T: 19.000 mm \| Cr: 49.7 kN \| Mating: 16150
	16283	Part: Cup (outer ring) \| d: 38.100 mm \| D: 72.238 mm \| T: 23.812 mm \| Cr: 49.7 kN \| Mating: 16150
	2788R	Part: Cone (inner ring) \| d: 38.100 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2735X
	2729	Part: Cup (outer ring) \| d: 38.100 mm \| D: 76.200 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2788R
	3490	Part: Cone (inner ring) \| d: 38.100 mm \| D: 79.375 mm \| T: 29.370 mm \| Cr: 87.4 kN \| Mating: 3420
	28150	Part: Cone (inner ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 21.432 mm \| Cr: 57.3 kN \| Mating: 28317
	28317	Part: Cup (outer ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 21.432 mm \| Cr: 57.3 kN \| Mating: 28150
	27880	Part: Cone (inner ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 24.608 mm \| Cr: 73.2 kN \| Mating: 27820
	27820	Part: Cup (outer ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 24.608 mm \| Cr: 73.2 kN \| Mating: 27880
	27881	Part: Cone (inner ring) \| d: 38.100 mm \| D: 80.035 mm \| T: 24.608 mm \| Cr: 73.2 kN \| Mating: 27820
	HM801346	Part: Cone (inner ring) \| d: 38.100 mm \| D: 82.550 mm \| T: 29.370 mm \| Cr: 87.3 kN \| Mating: HM801310
	HM801310	Part: Cup (outer ring) \| d: 38.100 mm \| D: 82.550 mm \| T: 29.370 mm \| Cr: 87.3 kN \| Mating: HM801346
	HM801346X HM801310	Part: Cup (outer ring) \| d: 38.100 mm \| D: 82.550 mm \| T: 29.370 mm \| Cr: 87.3 kN \| Mating: None
	25572	Part: Cone (inner ring) \| d: 38.100 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25520
	25520	Part: Cup (outer ring) \| d: 38.100 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25572
	418	Part: Cone (inner ring) \| d: 38.100 mm \| D: 88.501 mm \| T: 26.988 mm \| Cr: 98.2 kN \| Mating: 414
	414	Part: Cup (outer ring) \| d: 38.100 mm \| D: 88.501 mm \| T: 26.988 mm \| Cr: 98.2 kN \| Mating: 418
	4375	Part: Cone (inner ring) \| d: 38.100 mm \| D: 90.488 mm \| T: 39.688 mm \| Cr: 132 kN \| Mating: 4335
	4335	Part: Cup (outer ring) \| d: 38.100 mm \| D: 90.488 mm \| T: 39.688 mm \| Cr: 132 kN \| Mating: 4375
	525	Part: Cone (inner ring) \| d: 38.100 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
	522	Part: Cup (outer ring) \| d: 38.100 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 525
	18587	Part: Cone (inner ring) \| d: 39.688 mm \| D: 73.025 mm \| T: 16.667 mm \| Cr: 45.9 kN \| Mating: 18520
	18520	Part: Cup (outer ring) \| d: 39.688 mm \| D: 73.025 mm \| T: 16.667 mm \| Cr: 45.9 kN \| Mating: 18587
	2789R	Part: Cone (inner ring) \| d: 39.688 mm \| D: 73.025 mm \| T: 23.812 mm \| Cr: 74.1 kN \| Mating: 2735X
	3386	Part: Cone (inner ring) \| d: 39.688 mm \| D: 80.167 mm \| T: 29.370 mm \| Cr: 91.0 kN \| Mating: 3320
	3382	Part: Cone (inner ring) \| d: 39.688 mm \| D: 84.138 mm \| T: 29.370 mm \| Cr: 91.0 kN \| Mating: 3328
	3328	Part: Cup (outer ring) \| d: 39.688 mm \| D: 84.138 mm \| T: 29.370 mm \| Cr: 91.0 kN \| Mating: 3382
	28158	Part: Cone (inner ring) \| d: 40.000 mm \| D: 76.200 mm \| T: 20.638 mm \| Cr: 57.3 kN \| Mating: 28300
	344	Part: Cone (inner ring) \| d: 40.000 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
	344A	Part: Cone (inner ring) \| d: 40.000 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
	350A	Part: Cone (inner ring) \| d: 40.000 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
	354A	Part: Cup (outer ring) \| d: 40.000 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 350A
	420	Part: Cone (inner ring) \| d: 40.000 mm \| D: 88.501 mm \| T: 26.988 mm \| Cr: 98.2 kN \| Mating: 414
	543	Part: Cone (inner ring) \| d: 40.000 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 532X
	532X	Part: Cup (outer ring) \| d: 40.000 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 543
	HM801349	Part: Cone (inner ring) \| d: 40.483 mm \| D: 82.550 mm \| T: 29.370 mm \| Cr: 87.3 kN \| Mating: HM801310
	18590	Part: Cone (inner ring) \| d: 41.275 mm \| D: 73.025 mm \| T: 16.667 mm \| Cr: 45.9 kN \| Mating: 18520
	LM501349	Part: Cone (inner ring) \| d: 41.275 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 57.8 kN \| Mating: LM501310
	LM501310	Part: Cup (outer ring) \| d: 41.275 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 57.8 kN \| Mating: LM501349
	LM501314	Part: Cup (outer ring) \| d: 41.275 mm \| D: 73.431 mm \| T: 21.430 mm \| Cr: 57.8 kN \| Mating: LM501349
	LM501311	Part: Cup (outer ring) \| d: 41.275 mm \| D: 73.431 mm \| T: 23.012 mm \| Cr: 57.8 kN \| Mating: LM501349
	11162R	Part: Cone (inner ring) \| d: 41.275 mm \| D: 76.200 mm \| T: 18.009 mm \| Cr: 51.6 kN \| Mating: 11300
	11300	Part: Cup (outer ring) \| d: 41.275 mm \| D: 76.200 mm \| T: 18.009 mm \| Cr: 51.6 kN \| Mating: 11162R
	24780R	Part: Cone (inner ring) \| d: 41.275 mm \| D: 76.200 mm \| T: 22.225 mm \| Cr: 66.3 kN \| Mating: 24720
	24720	Part: Cup (outer ring) \| d: 41.275 mm \| D: 76.200 mm \| T: 22.225 mm \| Cr: 66.3 kN \| Mating: 24780R
	336	Part: Cone (inner ring) \| d: 41.275 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
	342	Part: Cone (inner ring) \| d: 41.275 mm \| D: 80.000 mm \| T: 21.000 mm \| Cr: 68.0 kN \| Mating: 332
	M802048	Part: Cone (inner ring) \| d: 41.275 mm \| D: 82.550 mm \| T: 26.543 mm \| Cr: 83.7 kN \| Mating: M802011
	M802011	Part: Cup (outer ring) \| d: 41.275 mm \| D: 82.550 mm \| T: 26.543 mm \| Cr: 83.7 kN \| Mating: M802048
	3877	Part: Cone (inner ring) \| d: 41.275 mm \| D: 85.725 mm \| T: 30.162 mm \| Cr: 108 kN \| Mating: 3821
	3821	Part: Cup (outer ring) \| d: 41.275 mm \| D: 85.725 mm \| T: 30.162 mm \| Cr: 108 kN \| Mating: 3877
	3576R	Part: Cone (inner ring) \| d: 41.275 mm \| D: 87.312 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3525
	419	Part: Cone (inner ring) \| d: 41.275 mm \| D: 88.501 mm \| T: 26.988 mm \| Cr: 98.2 kN \| Mating: 414
	365A	Part: Cone (inner ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
	362A	Part: Cup (outer ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 365A
	HM803145	Part: Cone (inner ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 30.162 mm \| Cr: 99.6 kN \| Mating: HM803110
	HM803110	Part: Cup (outer ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 30.162 mm \| Cr: 99.6 kN \| Mating: HM803145
	HM803146	Part: Cone (inner ring) \| d: 41.275 mm \| D: 88.900 mm \| T: 30.162 mm \| Cr: 99.6 kN \| Mating: HM803110
	4388	Part: Cone (inner ring) \| d: 41.275 mm \| D: 90.488 mm \| T: 39.688 mm \| Cr: 132 kN \| Mating: 4335
	46162	Part: Cone (inner ring) \| d: 41.275 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 46368
	46368	Part: Cup (outer ring) \| d: 41.275 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 46162
	HM804840	Part: Cone (inner ring) \| d: 41.275 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
	HM804810	Part: Cup (outer ring) \| d: 41.275 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804840
	526	Part: Cone (inner ring) \| d: 41.275 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
	HM807035	Part: Cone (inner ring) \| d: 41.275 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
	HM807010	Part: Cup (outer ring) \| d: 41.275 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807035
	4395	Part: Cone (inner ring) \| d: 42.070 mm \| D: 90.488 mm \| T: 39.688 mm \| Cr: 132 kN \| Mating: 4335
	12168	Part: Cone (inner ring) \| d: 42.862 mm \| D: 76.992 mm \| T: 17.463 mm \| Cr: 48.4 kN \| Mating: 12303
	12303	Part: Cup (outer ring) \| d: 42.862 mm \| D: 76.992 mm \| T: 17.463 mm \| Cr: 48.4 kN \| Mating: 12168
	26884R	Part: Cone (inner ring) \| d: 42.875 mm \| D: 79.375 mm \| T: 23.812 mm \| Cr: 81.1 kN \| Mating: 26822
	25577	Part: Cone (inner ring) \| d: 42.875 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25520
	L102849	Part: Cone (inner ring) \| d: 44.450 mm \| D: 73.025 mm \| T: 18.258 mm \| Cr: 47.2 kN \| Mating: L102810
	L102810	Part: Cup (outer ring) \| d: 44.450 mm \| D: 73.025 mm \| T: 18.258 mm \| Cr: 47.2 kN \| Mating: L102849
	12175	Part: Cone (inner ring) \| d: 44.450 mm \| D: 76.992 mm \| T: 17.463 mm \| Cr: 48.4 kN \| Mating: 12303
	18685	Part: Cone (inner ring) \| d: 44.450 mm \| D: 79.375 mm \| T: 17.462 mm \| Cr: 47.1 kN \| Mating: 18620
	18620	Part: Cup (outer ring) \| d: 44.450 mm \| D: 79.375 mm \| T: 17.462 mm \| Cr: 47.1 kN \| Mating: 18685
	25582	Part: Cone (inner ring) \| d: 44.450 mm \| D: 82.931 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25520
	3578R	Part: Cone (inner ring) \| d: 44.450 mm \| D: 84.138 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3520
	3520	Part: Cup (outer ring) \| d: 44.450 mm \| D: 84.138 mm \| T: 30.162 mm \| Cr: 95.8 kN \| Mating: 3578R
	355	Part: Cone (inner ring) \| d: 44.450 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
	355A	Part: Cone (inner ring) \| d: 44.450 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
	HM803149	Part: Cone (inner ring) \| d: 44.450 mm \| D: 88.900 mm \| T: 30.162 mm \| Cr: 99.6 kN \| Mating: HM803110
	49175	Part: Cone (inner ring) \| d: 44.450 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 49368
	49368	Part: Cup (outer ring) \| d: 44.450 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 49175
	46175	Part: Cone (inner ring) \| d: 44.450 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 46368
	46176	Part: Cone (inner ring) \| d: 44.450 mm \| D: 93.662 mm \| T: 31.750 mm \| Cr: 105 kN \| Mating: 46368
	33885	Part: Cone (inner ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33821
	33821	Part: Cup (outer ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33885
	438	Part: Cone (inner ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 103 kN \| Mating: 432A
	432A	Part: Cup (outer ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 103 kN \| Mating: 438
	HM804842	Part: Cone (inner ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
	HM804843	Part: Cone (inner ring) \| d: 44.450 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
	49576	Part: Cone (inner ring) \| d: 44.450 mm \| D: 98.425 mm \| T: 30.162 mm \| Cr: 114 kN \| Mating: 49520
	49520	Part: Cup (outer ring) \| d: 44.450 mm \| D: 98.425 mm \| T: 30.162 mm \| Cr: 114 kN \| Mating: 49576
	527	Part: Cone (inner ring) \| d: 44.450 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
	HM807040	Part: Cone (inner ring) \| d: 44.450 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
	535	Part: Cone (inner ring) \| d: 44.450 mm \| D: 111.125 mm \| T: 38.100 mm \| Cr: 138 kN \| Mating: 532A
	532A	Part: Cup (outer ring) \| d: 44.450 mm \| D: 111.125 mm \| T: 38.100 mm \| Cr: 138 kN \| Mating: 535
	615	Part: Cone (inner ring) \| d: 44.450 mm \| D: 120.650 mm \| T: 41.275 mm \| Cr: 174 kN \| Mating: 612
	612	Part: Cup (outer ring) \| d: 44.450 mm \| D: 120.650 mm \| T: 41.275 mm \| Cr: 174 kN \| Mating: 615
	3776	Part: Cone (inner ring) \| d: 44.983 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3720
	3720	Part: Cup (outer ring) \| d: 44.983 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3776
	358	Part: Cone (inner ring) \| d: 45.000 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
	LM102949	Part: Cone (inner ring) \| d: 45.242 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 55.6 kN \| Mating: LM102910
	LM102910	Part: Cup (outer ring) \| d: 45.242 mm \| D: 73.431 mm \| T: 19.558 mm \| Cr: 55.6 kN \| Mating: LM102949
	LM603049	Part: Cone (inner ring) \| d: 45.242 mm \| D: 77.788 mm \| T: 19.842 mm \| Cr: 57.1 kN \| Mating: LM603011
	LM603011	Part: Cup (outer ring) \| d: 45.242 mm \| D: 77.788 mm \| T: 19.842 mm \| Cr: 57.1 kN \| Mating: LM603049
	LM603012	Part: Cup (outer ring) \| d: 45.242 mm \| D: 77.788 mm \| T: 21.430 mm \| Cr: 57.1 kN \| Mating: LM603049
	LM603014	Part: Cup (outer ring) \| d: 45.242 mm \| D: 79.974 mm \| T: 19.842 mm \| Cr: 57.1 kN \| Mating: LM603049
	25590	Part: Cone (inner ring) \| d: 45.618 mm \| D: 85.000 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25526
	25526	Part: Cup (outer ring) \| d: 45.618 mm \| D: 85.000 mm \| T: 23.812 mm \| Cr: 77.2 kN \| Mating: 25590
	LM503349R LM503310	Part: Cup (outer ring) \| d: 45.987 mm \| D: 74.976 mm \| T: 18.000 mm \| Cr: 52.6 kN \| Mating: None
	18690	Part: Cone (inner ring) \| d: 46.038 mm \| D: 79.375 mm \| T: 17.462 mm \| Cr: 47.1 kN \| Mating: 18620
	359A	Part: Cone (inner ring) \| d: 46.038 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
	359S	Part: Cone (inner ring) \| d: 46.038 mm \| D: 85.000 mm \| T: 20.638 mm \| Cr: 71.8 kN \| Mating: 354A
	2984	Part: Cone (inner ring) \| d: 46.038 mm \| D: 85.000 mm \| T: 25.400 mm \| Cr: 80.0 kN \| Mating: 2924
	2924	Part: Cup (outer ring) \| d: 46.038 mm \| D: 85.000 mm \| T: 25.400 mm \| Cr: 80.0 kN \| Mating: 2984
	369A	Part: Cone (inner ring) \| d: 47.625 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
	M804049	Part: Cone (inner ring) \| d: 47.625 mm \| D: 88.900 mm \| T: 25.400 mm \| Cr: 87.1 kN \| Mating: M804010
	M804010	Part: Cup (outer ring) \| d: 47.625 mm \| D: 88.900 mm \| T: 25.400 mm \| Cr: 87.1 kN \| Mating: M804049
	HM804846	Part: Cone (inner ring) \| d: 47.625 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
	386A	Part: Cone (inner ring) \| d: 47.625 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	382A	Part: Cup (outer ring) \| d: 47.625 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 386A
	528	Part: Cone (inner ring) \| d: 47.625 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
	463	Part: Cone (inner ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
	453X	Part: Cup (outer ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 463
	467	Part: Cone (inner ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
	45282	Part: Cone (inner ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45220
	45220	Part: Cup (outer ring) \| d: 47.625 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45282
	HM804848	Part: Cone (inner ring) \| d: 48.412 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
	HM804849	Part: Cone (inner ring) \| d: 48.412 mm \| D: 95.250 mm \| T: 30.162 mm \| Cr: 104 kN \| Mating: HM804810
	365S	Part: Cone (inner ring) \| d: 49.212 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
	HM807044	Part: Cone (inner ring) \| d: 49.212 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
	65390	Part: Cone (inner ring) \| d: 49.212 mm \| D: 114.300 mm \| T: 44.450 mm \| Cr: 189 kN \| Mating: 65320
	65320	Part: Cup (outer ring) \| d: 49.212 mm \| D: 114.300 mm \| T: 44.450 mm \| Cr: 189 kN \| Mating: 65390
	HH506348	Part: Cone (inner ring) \| d: 49.212 mm \| D: 114.300 mm \| T: 44.450 mm \| Cr: 212 kN \| Mating: HH506310
	HH506310	Part: Cup (outer ring) \| d: 49.212 mm \| D: 114.300 mm \| T: 44.450 mm \| Cr: 212 kN \| Mating: HH506348
	28579R	Part: Cone (inner ring) \| d: 49.987 mm \| D: 92.075 mm \| T: 24.608 mm \| Cr: 84.8 kN \| Mating: 28521
	28521	Part: Cup (outer ring) \| d: 49.987 mm \| D: 92.075 mm \| T: 24.608 mm \| Cr: 84.8 kN \| Mating: 28579R
	JLM104948	Part: Cup (outer ring) \| d: 50.000 mm \| D: 82.000 mm \| T: 21.501 mm \| Cr: 71.7 kN \| Mating: None
	365	Part: Cone (inner ring) \| d: 50.000 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
	366	Part: Cone (inner ring) \| d: 50.000 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
	JM205149	Part: Cone (inner ring) \| d: 50.000 mm \| D: 90.000 mm \| T: 28.000 mm \| Cr: 105 kN \| Mating: JM205110
	JM205110	Part: Cup (outer ring) \| d: 50.000 mm \| D: 90.000 mm \| T: 28.000 mm \| Cr: 105 kN \| Mating: JM205149
	JHM807045	Part: Cup (outer ring) \| d: 50.000 mm \| D: 105.000 mm \| T: 37.000 mm \| Cr: 149 kN \| Mating: None
	396	Part: Cone (inner ring) \| d: 50.000 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
	394A	Part: Cup (outer ring) \| d: 50.000 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 396
	L305649R	Part: Cone (inner ring) \| d: 50.800 mm \| D: 80.962 mm \| T: 18.258 mm \| Cr: 54.0 kN \| Mating: L305610
	L305610	Part: Cup (outer ring) \| d: 50.800 mm \| D: 80.962 mm \| T: 18.258 mm \| Cr: 54.0 kN \| Mating: L305649R
	LM104949	Part: Cone (inner ring) \| d: 50.800 mm \| D: 82.550 mm \| T: 21.590 mm \| Cr: 61.2 kN \| Mating: LM104911
	LM104911	Part: Cup (outer ring) \| d: 50.800 mm \| D: 82.550 mm \| T: 21.590 mm \| Cr: 61.2 kN \| Mating: LM104949
	18200	Part: Cone (inner ring) \| d: 50.800 mm \| D: 85.725 mm \| T: 19.050 mm \| Cr: 50.7 kN \| Mating: 18337
	18337	Part: Cup (outer ring) \| d: 50.800 mm \| D: 85.725 mm \| T: 19.050 mm \| Cr: 50.7 kN \| Mating: 18200
	18790	Part: Cone (inner ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 17.462 mm \| Cr: 49.7 kN \| Mating: 18724
	18724	Part: Cup (outer ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 17.462 mm \| Cr: 49.7 kN \| Mating: 18790
	368	Part: Cone (inner ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
	368A	Part: Cone (inner ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
	370A	Part: Cone (inner ring) \| d: 50.800 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
	28580R	Part: Cone (inner ring) \| d: 50.800 mm \| D: 92.075 mm \| T: 24.608 mm \| Cr: 84.8 kN \| Mating: 28521
	375	Part: Cone (inner ring) \| d: 50.800 mm \| D: 93.264 mm \| T: 20.638 mm \| Cr: 84.4 kN \| Mating: 374
	374	Part: Cup (outer ring) \| d: 50.800 mm \| D: 93.264 mm \| T: 20.638 mm \| Cr: 84.4 kN \| Mating: 375
	3780	Part: Cone (inner ring) \| d: 50.800 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3720
	3730	Part: Cup (outer ring) \| d: 50.800 mm \| D: 93.264 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3780
	33889	Part: Cone (inner ring) \| d: 50.800 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33822
	33822	Part: Cup (outer ring) \| d: 50.800 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33889
	385AX	Part: Cone (inner ring) \| d: 50.800 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	28678	Part: Cone (inner ring) \| d: 50.800 mm \| D: 97.630 mm \| T: 24.608 mm \| Cr: 89.6 kN \| Mating: 28622
	28622	Part: Cup (outer ring) \| d: 50.800 mm \| D: 97.630 mm \| T: 24.608 mm \| Cr: 89.6 kN \| Mating: 28678
	3732	Part: Cup (outer ring) \| d: 50.800 mm \| D: 98.425 mm \| T: 30.162 mm \| Cr: 103 kN \| Mating: 3780
	49585	Part: Cone (inner ring) \| d: 50.800 mm \| D: 101.600 mm \| T: 31.750 mm \| Cr: 114 kN \| Mating: 49520
	529	Part: Cone (inner ring) \| d: 50.800 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
	529X	Part: Cone (inner ring) \| d: 50.800 mm \| D: 101.600 mm \| T: 34.925 mm \| Cr: 131 kN \| Mating: 522
	45284	Part: Cone (inner ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45220
	59200	Part: Cone (inner ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 148 kN \| Mating: 59412
	59412	Part: Cup (outer ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 148 kN \| Mating: 59200
	HM807046	Part: Cone (inner ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
	4580	Part: Cone (inner ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 39.688 mm \| Cr: 151 kN \| Mating: 4535
	4535	Part: Cup (outer ring) \| d: 50.800 mm \| D: 104.775 mm \| T: 39.688 mm \| Cr: 151 kN \| Mating: 4580
	537	Part: Cone (inner ring) \| d: 50.800 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 532X
	39575	Part: Cone (inner ring) \| d: 50.800 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
	39520	Part: Cup (outer ring) \| d: 50.800 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39575
	619	Part: Cone (inner ring) \| d: 50.800 mm \| D: 120.650 mm \| T: 41.275 mm \| Cr: 174 kN \| Mating: 612
	65200	Part: Cone (inner ring) \| d: 50.800 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
	65500	Part: Cup (outer ring) \| d: 50.800 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65200
	368S	Part: Cone (inner ring) \| d: 51.592 mm \| D: 88.900 mm \| T: 20.638 mm \| Cr: 74.3 kN \| Mating: 362A
	28584R	Part: Cone (inner ring) \| d: 52.388 mm \| D: 92.075 mm \| T: 24.608 mm \| Cr: 84.8 kN \| Mating: 28521
	468	Part: Cone (inner ring) \| d: 52.388 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
	LM806649	Part: Cone (inner ring) \| d: 53.975 mm \| D: 88.900 mm \| T: 19.050 mm \| Cr: 62.9 kN \| Mating: LM806610
	LM806610	Part: Cup (outer ring) \| d: 53.975 mm \| D: 88.900 mm \| T: 19.050 mm \| Cr: 62.9 kN \| Mating: LM806649
	33895	Part: Cone (inner ring) \| d: 53.975 mm \| D: 95.250 mm \| T: 27.783 mm \| Cr: 108 kN \| Mating: 33822
	456	Part: Cone (inner ring) \| d: 53.975 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
	HM807049	Part: Cone (inner ring) \| d: 53.975 mm \| D: 104.775 mm \| T: 36.512 mm \| Cr: 141 kN \| Mating: HM807010
	4595	Part: Cone (inner ring) \| d: 53.975 mm \| D: 104.775 mm \| T: 39.688 mm \| Cr: 151 kN \| Mating: 4535
	539	Part: Cone (inner ring) \| d: 53.975 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 532X
	539A	Part: Cone (inner ring) \| d: 53.975 mm \| D: 107.950 mm \| T: 36.512 mm \| Cr: 138 kN \| Mating: 532X
	66212R	Part: Cone (inner ring) \| d: 53.975 mm \| D: 117.475 mm \| T: 33.338 mm \| Cr: 129 kN \| Mating: 66462
	66462	Part: Cup (outer ring) \| d: 53.975 mm \| D: 117.475 mm \| T: 33.338 mm \| Cr: 129 kN \| Mating: 66212R
	621	Part: Cone (inner ring) \| d: 53.975 mm \| D: 120.650 mm \| T: 41.275 mm \| Cr: 174 kN \| Mating: 612
	66584	Part: Cone (inner ring) \| d: 53.975 mm \| D: 122.238 mm \| T: 33.338 mm \| Cr: 128 kN \| Mating: 66520
	66520	Part: Cup (outer ring) \| d: 53.975 mm \| D: 122.238 mm \| T: 33.338 mm \| Cr: 128 kN \| Mating: 66584
	5578R	Part: Cone (inner ring) \| d: 53.975 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
	5535	Part: Cup (outer ring) \| d: 53.975 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5578R
	557S	Part: Cone (inner ring) \| d: 53.975 mm \| D: 123.825 mm \| T: 38.100 mm \| Cr: 162 kN \| Mating: 552A
	552A	Part: Cup (outer ring) \| d: 53.975 mm \| D: 123.825 mm \| T: 38.100 mm \| Cr: 162 kN \| Mating: 557S
	65212	Part: Cone (inner ring) \| d: 53.975 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
	466	Part: Cone (inner ring) \| d: 54.988 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
	6381	Part: Cone (inner ring) \| d: 54.991 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
	JLM506849	Part: Cup (outer ring) \| d: 55.000 mm \| D: 90.000 mm \| T: 23.000 mm \| Cr: 81.4 kN \| Mating: None
	JM207049	Part: Cone (inner ring) \| d: 55.000 mm \| D: 95.000 mm \| T: 29.000 mm \| Cr: 110 kN \| Mating: JM207010
	JM207010	Part: Cup (outer ring) \| d: 55.000 mm \| D: 95.000 mm \| T: 29.000 mm \| Cr: 110 kN \| Mating: JM207049
	385	Part: Cone (inner ring) \| d: 55.000 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	385X	Part: Cone (inner ring) \| d: 55.000 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	JH307749	Part: Cone (inner ring) \| d: 55.000 mm \| D: 110.000 mm \| T: 39.000 mm \| Cr: 176 kN \| Mating: JH307710
	JH307710	Part: Cup (outer ring) \| d: 55.000 mm \| D: 110.000 mm \| T: 39.000 mm \| Cr: 176 kN \| Mating: JH307749
	28680	Part: Cone (inner ring) \| d: 55.562 mm \| D: 97.630 mm \| T: 24.608 mm \| Cr: 89.6 kN \| Mating: 28622
	5566R	Part: Cone (inner ring) \| d: 55.562 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
	HM813840	Part: Cone (inner ring) \| d: 55.562 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813810
	HM813810	Part: Cup (outer ring) \| d: 55.562 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813840
	389	Part: Cone (inner ring) \| d: 55.575 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	387	Part: Cone (inner ring) \| d: 57.150 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	387A	Part: Cone (inner ring) \| d: 57.150 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	387AS	Part: Cone (inner ring) \| d: 57.150 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	387S	Part: Cone (inner ring) \| d: 57.150 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	382	Part: Cup (outer ring) \| d: 57.150 mm \| D: 98.425 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 387
	462	Part: Cone (inner ring) \| d: 57.150 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
	469	Part: Cone (inner ring) \| d: 57.150 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 109 kN \| Mating: 453X
	45291	Part: Cone (inner ring) \| d: 57.150 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45221
	45221	Part: Cup (outer ring) \| d: 57.150 mm \| D: 104.775 mm \| T: 30.162 mm \| Cr: 126 kN \| Mating: 45291
	3979	Part: Cone (inner ring) \| d: 57.150 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 111 kN \| Mating: 3920
	3920	Part: Cup (outer ring) \| d: 57.150 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 111 kN \| Mating: 3979
	39580	Part: Cone (inner ring) \| d: 57.150 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
	39581	Part: Cone (inner ring) \| d: 57.150 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
	33225	Part: Cone (inner ring) \| d: 57.150 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
	33462	Part: Cup (outer ring) \| d: 57.150 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33225
	65225	Part: Cone (inner ring) \| d: 57.150 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
	388A	Part: Cone (inner ring) \| d: 57.531 mm \| D: 96.838 mm \| T: 21.000 mm \| Cr: 80.4 kN \| Mating: 382A
	66589	Part: Cone (inner ring) \| d: 59.972 mm \| D: 122.238 mm \| T: 33.338 mm \| Cr: 128 kN \| Mating: 66520
	JLM508748	Part: Cup (outer ring) \| d: 60.000 mm \| D: 95.000 mm \| T: 24.000 mm \| Cr: 86.1 kN \| Mating: None
	29580	Part: Cone (inner ring) \| d: 60.000 mm \| D: 107.950 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29520
	29520	Part: Cup (outer ring) \| d: 60.000 mm \| D: 107.950 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29580
	397	Part: Cone (inner ring) \| d: 60.000 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
	28985	Part: Cone (inner ring) \| d: 60.325 mm \| D: 100.000 mm \| T: 25.400 mm \| Cr: 91.4 kN \| Mating: 28921
	28921	Part: Cup (outer ring) \| d: 60.325 mm \| D: 100.000 mm \| T: 25.400 mm \| Cr: 91.4 kN \| Mating: 28985
	28920	Part: Cup (outer ring) \| d: 60.325 mm \| D: 101.600 mm \| T: 25.400 mm \| Cr: 91.4 kN \| Mating: 28985
	5583R	Part: Cone (inner ring) \| d: 60.325 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
	HM813841	Part: Cone (inner ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813811
	HM813811	Part: Cup (outer ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813841
	HM813841A HM813810	Part: Cup (outer ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: None
	65237	Part: Cone (inner ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
	65237A	Part: Cone (inner ring) \| d: 60.325 mm \| D: 127.000 mm \| T: 44.450 mm \| Cr: 208 kN \| Mating: 65500
	H715332	Part: Cone (inner ring) \| d: 60.325 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
	H715311	Part: Cup (outer ring) \| d: 60.325 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715332
	392	Part: Cone (inner ring) \| d: 61.912 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
	29586	Part: Cone (inner ring) \| d: 63.500 mm \| D: 107.950 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29520
	390A	Part: Cone (inner ring) \| d: 63.500 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
	395	Part: Cone (inner ring) \| d: 63.500 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
	29585	Part: Cone (inner ring) \| d: 63.500 mm \| D: 110.000 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29521
	29521	Part: Cup (outer ring) \| d: 63.500 mm \| D: 110.000 mm \| T: 25.400 mm \| Cr: 92.8 kN \| Mating: 29585
	39585	Part: Cone (inner ring) \| d: 63.500 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
	477	Part: Cone (inner ring) \| d: 63.500 mm \| D: 120.000 mm \| T: 29.794 mm \| Cr: 118 kN \| Mating: 472
	472	Part: Cup (outer ring) \| d: 63.500 mm \| D: 120.000 mm \| T: 29.794 mm \| Cr: 118 kN \| Mating: 477
	HM212046	Part: Cone (inner ring) \| d: 63.500 mm \| D: 122.238 mm \| T: 38.354 mm \| Cr: 191 kN \| Mating: HM212011
	HM212011	Part: Cup (outer ring) \| d: 63.500 mm \| D: 122.238 mm \| T: 38.354 mm \| Cr: 191 kN \| Mating: HM212046
	5584R	Part: Cone (inner ring) \| d: 63.500 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
	565	Part: Cone (inner ring) \| d: 63.500 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
	563	Part: Cup (outer ring) \| d: 63.500 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 565
	6382	Part: Cone (inner ring) \| d: 63.500 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
	H414235	Part: Cone (inner ring) \| d: 63.500 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414210
	H414210	Part: Cup (outer ring) \| d: 63.500 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414235
	39586	Part: Cone (inner ring) \| d: 64.986 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
	JLM710949	Part: Cup (outer ring) \| d: 65.000 mm \| D: 105.000 mm \| T: 24.000 mm \| Cr: 95.3 kN \| Mating: None
	JM511946	Part: Cone (inner ring) \| d: 65.000 mm \| D: 110.000 mm \| T: 28.000 mm \| Cr: 136 kN \| Mating: JM511910
	JM511910	Part: Cup (outer ring) \| d: 65.000 mm \| D: 110.000 mm \| T: 28.000 mm \| Cr: 136 kN \| Mating: JM511946
	JH211749	Part: Cone (inner ring) \| d: 65.000 mm \| D: 120.000 mm \| T: 39.000 mm \| Cr: 189 kN \| Mating: JH211710
	JH211710	Part: Cup (outer ring) \| d: 65.000 mm \| D: 120.000 mm \| T: 39.000 mm \| Cr: 189 kN \| Mating: JH211749
	JH211749A	Part: Cone (inner ring) \| d: 65.000 mm \| D: 120.000 mm \| T: 39.000 mm \| Cr: 189 kN \| Mating: JH211710
	6379	Part: Cone (inner ring) \| d: 65.088 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
	H715340	Part: Cone (inner ring) \| d: 65.088 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
	5595R	Part: Cone (inner ring) \| d: 65.883 mm \| D: 122.238 mm \| T: 43.658 mm \| Cr: 221 kN \| Mating: 5535
	395A	Part: Cone (inner ring) \| d: 66.675 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
	395S	Part: Cone (inner ring) \| d: 66.675 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
	3984	Part: Cone (inner ring) \| d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 111 kN \| Mating: 3925
	3925	Part: Cup (outer ring) \| d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 111 kN \| Mating: 3984
	39590	Part: Cone (inner ring) \| d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39520
	39521	Part: Cup (outer ring) \| d: 66.675 mm \| D: 112.712 mm \| T: 30.162 mm \| Cr: 147 kN \| Mating: 39590
	33262	Part: Cone (inner ring) \| d: 66.675 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
	HM212049	Part: Cone (inner ring) \| d: 66.675 mm \| D: 122.238 mm \| T: 38.100 mm \| Cr: 191 kN \| Mating: HM212010
	HM212010	Part: Cup (outer ring) \| d: 66.675 mm \| D: 122.238 mm \| T: 38.100 mm \| Cr: 191 kN \| Mating: HM212049
	HM813844	Part: Cone (inner ring) \| d: 66.675 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813811
	641	Part: Cone (inner ring) \| d: 66.675 mm \| D: 130.175 mm \| T: 41.275 mm \| Cr: 197 kN \| Mating: 633
	6386	Part: Cone (inner ring) \| d: 66.675 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
	6389	Part: Cone (inner ring) \| d: 66.675 mm \| D: 135.755 mm \| T: 53.975 mm \| Cr: 266 kN \| Mating: 6320
	H414242	Part: Cone (inner ring) \| d: 66.675 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414210
	H715341	Part: Cone (inner ring) \| d: 66.675 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
	399A	Part: Cone (inner ring) \| d: 68.262 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
	399AS	Part: Cone (inner ring) \| d: 68.262 mm \| D: 110.000 mm \| T: 22.000 mm \| Cr: 86.4 kN \| Mating: 394A
	33269	Part: Cone (inner ring) \| d: 68.262 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
	570	Part: Cone (inner ring) \| d: 68.262 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
	H414245	Part: Cone (inner ring) \| d: 68.262 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414210
	H715343	Part: Cone (inner ring) \| d: 68.262 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
	9185	Part: Cone (inner ring) \| d: 68.262 mm \| D: 152.400 mm \| T: 47.625 mm \| Cr: 244 kN \| Mating: 9121
	9121	Part: Cup (outer ring) \| d: 68.262 mm \| D: 152.400 mm \| T: 47.625 mm \| Cr: 244 kN \| Mating: 9185
	LL713049	Part: Cone (inner ring) \| d: 69.850 mm \| D: 98.425 mm \| T: 13.495 mm \| Cr: 39.3 kN \| Mating: LL713010
	LL713010	Part: Cup (outer ring) \| d: 69.850 mm \| D: 98.425 mm \| T: 13.495 mm \| Cr: 39.3 kN \| Mating: LL713049
	LM613449	Part: Cone (inner ring) \| d: 69.850 mm \| D: 112.712 mm \| T: 22.225 mm \| Cr: 91.6 kN \| Mating: LM613410
	LM613410	Part: Cup (outer ring) \| d: 69.850 mm \| D: 112.712 mm \| T: 22.225 mm \| Cr: 91.6 kN \| Mating: LM613449
	29675	Part: Cone (inner ring) \| d: 69.850 mm \| D: 112.712 mm \| T: 25.400 mm \| Cr: 97.0 kN \| Mating: 29620
	29620	Part: Cup (outer ring) \| d: 69.850 mm \| D: 112.712 mm \| T: 25.400 mm \| Cr: 97.0 kN \| Mating: 29675
	33275	Part: Cone (inner ring) \| d: 69.850 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
	482	Part: Cone (inner ring) \| d: 69.850 mm \| D: 120.000 mm \| T: 29.002 mm \| Cr: 118 kN \| Mating: 472A
	472A	Part: Cup (outer ring) \| d: 69.850 mm \| D: 120.000 mm \| T: 29.002 mm \| Cr: 118 kN \| Mating: 482
	47487R	Part: Cone (inner ring) \| d: 69.850 mm \| D: 120.000 mm \| T: 32.545 mm \| Cr: 150 kN \| Mating: 47420
	47420	Part: Cup (outer ring) \| d: 69.850 mm \| D: 120.000 mm \| T: 32.545 mm \| Cr: 150 kN \| Mating: 47487R
	47423	Part: Cup (outer ring) \| d: 69.850 mm \| D: 120.650 mm \| T: 32.545 mm \| Cr: 150 kN \| Mating: 47487R
	472X	Part: Cup (outer ring) \| d: 69.850 mm \| D: 123.825 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 482
	566	Part: Cone (inner ring) \| d: 69.850 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
	655	Part: Cone (inner ring) \| d: 69.850 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
	653	Part: Cup (outer ring) \| d: 69.850 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 655
	745AR	Part: Cone (inner ring) \| d: 69.850 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
	742	Part: Cup (outer ring) \| d: 69.850 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 745AR
	835R	Part: Cone (inner ring) \| d: 69.850 mm \| D: 168.275 mm \| T: 53.975 mm \| Cr: 344 kN \| Mating: 832
	832	Part: Cup (outer ring) \| d: 69.850 mm \| D: 168.275 mm \| T: 53.975 mm \| Cr: 344 kN \| Mating: 835R
	34274	Part: Cone (inner ring) \| d: 69.952 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34478
	34478	Part: Cup (outer ring) \| d: 69.952 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34274
	JLM813049	Part: Cup (outer ring) \| d: 70.000 mm \| D: 110.000 mm \| T: 26.000 mm \| Cr: 103 kN \| Mating: None
	JM612949	Part: Cone (inner ring) \| d: 70.000 mm \| D: 115.000 mm \| T: 29.000 mm \| Cr: 123 kN \| Mating: JM612910
	JM612910	Part: Cup (outer ring) \| d: 70.000 mm \| D: 115.000 mm \| T: 29.000 mm \| Cr: 123 kN \| Mating: JM612949
	33281	Part: Cone (inner ring) \| d: 71.438 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
	47490R	Part: Cone (inner ring) \| d: 71.438 mm \| D: 120.000 mm \| T: 32.545 mm \| Cr: 150 kN \| Mating: 47420
	567A	Part: Cone (inner ring) \| d: 71.438 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
	HM813849	Part: Cone (inner ring) \| d: 71.438 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 166 kN \| Mating: HM813811
	H414249	Part: Cone (inner ring) \| d: 71.438 mm \| D: 136.525 mm \| T: 41.275 mm \| Cr: 241 kN \| Mating: H414210
	H715345	Part: Cone (inner ring) \| d: 71.438 mm \| D: 136.525 mm \| T: 46.038 mm \| Cr: 231 kN \| Mating: H715311
	29685	Part: Cone (inner ring) \| d: 73.025 mm \| D: 112.712 mm \| T: 25.400 mm \| Cr: 97.0 kN \| Mating: 29620
	33287	Part: Cone (inner ring) \| d: 73.025 mm \| D: 117.475 mm \| T: 30.162 mm \| Cr: 118 kN \| Mating: 33462
	567	Part: Cone (inner ring) \| d: 73.025 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
	576R	Part: Cone (inner ring) \| d: 73.025 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
	572	Part: Cup (outer ring) \| d: 73.025 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 576R
	657	Part: Cone (inner ring) \| d: 73.025 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
	6460	Part: Cone (inner ring) \| d: 73.025 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 285 kN \| Mating: 6420
	6420	Part: Cup (outer ring) \| d: 73.025 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 285 kN \| Mating: 6460
	744R	Part: Cone (inner ring) \| d: 73.025 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
	762	Part: Cone (inner ring) \| d: 73.025 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
	752	Part: Cup (outer ring) \| d: 73.025 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 762
	29688	Part: Cone (inner ring) \| d: 73.817 mm \| D: 112.712 mm \| T: 25.400 mm \| Cr: 97.0 kN \| Mating: 29620
	568	Part: Cone (inner ring) \| d: 73.817 mm \| D: 127.000 mm \| T: 36.512 mm \| Cr: 156 kN \| Mating: 563
	577R	Part: Cone (inner ring) \| d: 74.612 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
	JLM714149	Part: Cup (outer ring) \| d: 75.000 mm \| D: 115.000 mm \| T: 25.000 mm \| Cr: 101 kN \| Mating: None
	JM714249	Part: Cone (inner ring) \| d: 75.000 mm \| D: 120.000 mm \| T: 31.000 mm \| Cr: 145 kN \| Mating: JM714210
	JM714210	Part: Cup (outer ring) \| d: 75.000 mm \| D: 120.000 mm \| T: 31.000 mm \| Cr: 145 kN \| Mating: JM714249
	JH415647	Part: Cone (inner ring) \| d: 75.000 mm \| D: 145.000 mm \| T: 51.000 mm \| Cr: 290 kN \| Mating: JH415610
	JH415610	Part: Cup (outer ring) \| d: 75.000 mm \| D: 145.000 mm \| T: 51.000 mm \| Cr: 290 kN \| Mating: JH415647
	34301	Part: Cone (inner ring) \| d: 76.200 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34478
	42687	Part: Cone (inner ring) \| d: 76.200 mm \| D: 127.000 mm \| T: 30.162 mm \| Cr: 143 kN \| Mating: 42620
	42620	Part: Cup (outer ring) \| d: 76.200 mm \| D: 127.000 mm \| T: 30.162 mm \| Cr: 143 kN \| Mating: 42687
	42688	Part: Cone (inner ring) \| d: 76.200 mm \| D: 127.000 mm \| T: 30.162 mm \| Cr: 143 kN \| Mating: 42620
	495AX	Part: Cone (inner ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
	492A	Part: Cup (outer ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 495AX
	47678R	Part: Cone (inner ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47620
	47620	Part: Cup (outer ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47678R
	47680R	Part: Cone (inner ring) \| d: 76.200 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47620
	5760	Part: Cone (inner ring) \| d: 76.200 mm \| D: 135.733 mm \| T: 44.450 mm \| Cr: 213 kN \| Mating: 5735
	5735	Part: Cup (outer ring) \| d: 76.200 mm \| D: 135.733 mm \| T: 44.450 mm \| Cr: 213 kN \| Mating: 5760
	495A	Part: Cone (inner ring) \| d: 76.200 mm \| D: 136.525 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 493
	493	Part: Cup (outer ring) \| d: 76.200 mm \| D: 136.525 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 495A
	575R	Part: Cone (inner ring) \| d: 76.200 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
	575SR	Part: Cone (inner ring) \| d: 76.200 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
	6461	Part: Cone (inner ring) \| d: 76.200 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 285 kN \| Mating: 6420
	6461A	Part: Cone (inner ring) \| d: 76.200 mm \| D: 149.225 mm \| T: 53.975 mm \| Cr: 285 kN \| Mating: 6420
	748SR	Part: Cone (inner ring) \| d: 76.200 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
	659	Part: Cone (inner ring) \| d: 76.200 mm \| D: 152.400 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 652
	652	Part: Cup (outer ring) \| d: 76.200 mm \| D: 152.400 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 659
	HH221430	Part: Cone (inner ring) \| d: 76.200 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
	HH221410	Part: Cup (outer ring) \| d: 76.200 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221430
	LM814849	Part: Cone (inner ring) \| d: 77.788 mm \| D: 117.475 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: LM814810
	LM814810	Part: Cup (outer ring) \| d: 77.788 mm \| D: 117.475 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: LM814849
	34306	Part: Cone (inner ring) \| d: 77.788 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34478
	34307	Part: Cone (inner ring) \| d: 77.788 mm \| D: 121.442 mm \| T: 24.608 mm \| Cr: 90.0 kN \| Mating: 34478
	42690	Part: Cone (inner ring) \| d: 77.788 mm \| D: 127.000 mm \| T: 30.162 mm \| Cr: 143 kN \| Mating: 42620
	661	Part: Cone (inner ring) \| d: 79.375 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
	756A	Part: Cone (inner ring) \| d: 79.375 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
	HH221431	Part: Cone (inner ring) \| d: 79.375 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
	JM515649	Part: Cone (inner ring) \| d: 80.000 mm \| D: 130.000 mm \| T: 35.000 mm \| Cr: 168 kN \| Mating: JM515610
	JM515610	Part: Cup (outer ring) \| d: 80.000 mm \| D: 130.000 mm \| T: 35.000 mm \| Cr: 168 kN \| Mating: JM515649
	98316	Part: Cone (inner ring) \| d: 80.000 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98788
	98788	Part: Cup (outer ring) \| d: 80.000 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98316
	496	Part: Cone (inner ring) \| d: 80.962 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
	47681R	Part: Cone (inner ring) \| d: 80.962 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47620
	581R	Part: Cone (inner ring) \| d: 80.962 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
	740R	Part: Cone (inner ring) \| d: 80.962 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
	27687	Part: Cone (inner ring) \| d: 82.550 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27620
	27620	Part: Cup (outer ring) \| d: 82.550 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27687
	495	Part: Cone (inner ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
	47686R	Part: Cone (inner ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47620A
	47620A	Part: Cup (outer ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 33.338 mm \| Cr: 154 kN \| Mating: 47686R
	HM516448	Part: Cone (inner ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 39.688 mm \| Cr: 177 kN \| Mating: HM516410
	HM516410	Part: Cup (outer ring) \| d: 82.550 mm \| D: 133.350 mm \| T: 39.688 mm \| Cr: 177 kN \| Mating: HM516448
	580R	Part: Cone (inner ring) \| d: 82.550 mm \| D: 139.700 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572X
	572X	Part: Cup (outer ring) \| d: 82.550 mm \| D: 139.700 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 580R
	582R	Part: Cone (inner ring) \| d: 82.550 mm \| D: 139.992 mm \| T: 36.512 mm \| Cr: 175 kN \| Mating: 572
	663	Part: Cone (inner ring) \| d: 82.550 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
	749AR	Part: Cone (inner ring) \| d: 82.550 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
	750AR	Part: Cone (inner ring) \| d: 82.550 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
	757	Part: Cone (inner ring) \| d: 82.550 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
	27689	Part: Cone (inner ring) \| d: 83.345 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27620
	27690	Part: Cone (inner ring) \| d: 83.345 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27620
	27691	Part: Cone (inner ring) \| d: 83.345 mm \| D: 125.412 mm \| T: 25.400 mm \| Cr: 101 kN \| Mating: 27620
	498	Part: Cone (inner ring) \| d: 84.138 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
	JM716649	Part: Cone (inner ring) \| d: 85.000 mm \| D: 130.000 mm \| T: 30.000 mm \| Cr: 142 kN \| Mating: JM716610
	JM716610	Part: Cup (outer ring) \| d: 85.000 mm \| D: 130.000 mm \| T: 30.000 mm \| Cr: 142 kN \| Mating: JM716649
	JHM516849	Part: Cup (outer ring) \| d: 85.000 mm \| D: 140.000 mm \| T: 39.000 mm \| Cr: 203 kN \| Mating: None
	JH217249	Part: Cone (inner ring) \| d: 85.000 mm \| D: 150.000 mm \| T: 46.000 mm \| Cr: 274 kN \| Mating: JH217210
	JH217210	Part: Cup (outer ring) \| d: 85.000 mm \| D: 150.000 mm \| T: 46.000 mm \| Cr: 274 kN \| Mating: JH217249
	98335	Part: Cone (inner ring) \| d: 85.000 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98788
	749R	Part: Cone (inner ring) \| d: 85.026 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
	749SR	Part: Cone (inner ring) \| d: 85.026 mm \| D: 150.089 mm \| T: 44.450 mm \| Cr: 264 kN \| Mating: 742
	497	Part: Cone (inner ring) \| d: 85.725 mm \| D: 133.350 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 492A
	497A	Part: Cone (inner ring) \| d: 85.725 mm \| D: 136.525 mm \| T: 30.162 mm \| Cr: 133 kN \| Mating: 493
	HM617049	Part: Cone (inner ring) \| d: 85.725 mm \| D: 142.138 mm \| T: 42.862 mm \| Cr: 219 kN \| Mating: HM617010
	HM617010	Part: Cup (outer ring) \| d: 85.725 mm \| D: 142.138 mm \| T: 42.862 mm \| Cr: 219 kN \| Mating: HM617049
	665	Part: Cone (inner ring) \| d: 85.725 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
	665A	Part: Cone (inner ring) \| d: 85.725 mm \| D: 146.050 mm \| T: 41.275 mm \| Cr: 208 kN \| Mating: 653
	596	Part: Cone (inner ring) \| d: 85.725 mm \| D: 152.400 mm \| T: 39.688 mm \| Cr: 183 kN \| Mating: 592A
	592A	Part: Cup (outer ring) \| d: 85.725 mm \| D: 152.400 mm \| T: 39.688 mm \| Cr: 183 kN \| Mating: 596
	758	Part: Cone (inner ring) \| d: 85.725 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
	677	Part: Cone (inner ring) \| d: 85.725 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 224 kN \| Mating: 672
	672	Part: Cup (outer ring) \| d: 85.725 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 224 kN \| Mating: 677
	841R	Part: Cone (inner ring) \| d: 85.725 mm \| D: 168.275 mm \| T: 53.975 mm \| Cr: 344 kN \| Mating: 832
	L217849	Part: Cone (inner ring) \| d: 88.900 mm \| D: 123.825 mm \| T: 20.638 mm \| Cr: 81.8 kN \| Mating: L217810
	L217810	Part: Cup (outer ring) \| d: 88.900 mm \| D: 123.825 mm \| T: 20.638 mm \| Cr: 81.8 kN \| Mating: L217849
	HM518445	Part: Cone (inner ring) \| d: 88.900 mm \| D: 152.400 mm \| T: 39.688 mm \| Cr: 248 kN \| Mating: HM518410
	HM518410	Part: Cup (outer ring) \| d: 88.900 mm \| D: 152.400 mm \| T: 39.688 mm \| Cr: 248 kN \| Mating: HM518445
	759	Part: Cone (inner ring) \| d: 88.900 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
	766	Part: Cone (inner ring) \| d: 88.900 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
	6580R	Part: Cone (inner ring) \| d: 88.900 mm \| D: 161.925 mm \| T: 53.975 mm \| Cr: 316 kN \| Mating: 6535
	6535	Part: Cup (outer ring) \| d: 88.900 mm \| D: 161.925 mm \| T: 53.975 mm \| Cr: 316 kN \| Mating: 6580R
	679	Part: Cone (inner ring) \| d: 88.900 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 224 kN \| Mating: 672
	855R	Part: Cone (inner ring) \| d: 88.900 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 854
	854	Part: Cup (outer ring) \| d: 88.900 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 855R
	HH221434	Part: Cone (inner ring) \| d: 88.900 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
	98350	Part: Cone (inner ring) \| d: 88.900 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98788
	HM218248	Part: Cone (inner ring) \| d: 89.974 mm \| D: 146.975 mm \| T: 40.000 mm \| Cr: 206 kN \| Mating: HM218210
	HM218210	Part: Cup (outer ring) \| d: 89.974 mm \| D: 146.975 mm \| T: 40.000 mm \| Cr: 206 kN \| Mating: HM218248
	JM718149	Part: Cone (inner ring) \| d: 90.000 mm \| D: 145.000 mm \| T: 35.000 mm \| Cr: 194 kN \| Mating: JM718110
	JM718110	Part: Cup (outer ring) \| d: 90.000 mm \| D: 145.000 mm \| T: 35.000 mm \| Cr: 194 kN \| Mating: JM718149
	JHM318448	Part: Cup (outer ring) \| d: 90.000 mm \| D: 155.000 mm \| T: 44.000 mm \| Cr: 290 kN \| Mating: None
	6581XR	Part: Cone (inner ring) \| d: 90.000 mm \| D: 161.925 mm \| T: 53.975 mm \| Cr: 316 kN \| Mating: 6535
	760	Part: Cone (inner ring) \| d: 90.488 mm \| D: 161.925 mm \| T: 47.625 mm \| Cr: 273 kN \| Mating: 752
	47890R	Part: Cone (inner ring) \| d: 92.075 mm \| D: 146.050 mm \| T: 33.338 mm \| Cr: 178 kN \| Mating: 47820
	47820	Part: Cup (outer ring) \| d: 92.075 mm \| D: 146.050 mm \| T: 33.338 mm \| Cr: 178 kN \| Mating: 47890R
	681A	Part: Cone (inner ring) \| d: 92.075 mm \| D: 168.275 mm \| T: 41.275 mm \| Cr: 224 kN \| Mating: 672
	778	Part: Cone (inner ring) \| d: 92.075 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
	772	Part: Cup (outer ring) \| d: 92.075 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 778
	857R	Part: Cone (inner ring) \| d: 92.075 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 854
	JM719149	Part: Cone (inner ring) \| d: 95.000 mm \| D: 150.000 mm \| T: 35.000 mm \| Cr: 187 kN \| Mating: JM719113
	JM719113	Part: Cup (outer ring) \| d: 95.000 mm \| D: 150.000 mm \| T: 35.000 mm \| Cr: 187 kN \| Mating: JM719149
	LL319349	Part: Cone (inner ring) \| d: 95.250 mm \| D: 128.588 mm \| T: 15.875 mm \| Cr: 58.0 kN \| Mating: LL319310
	LL319310	Part: Cup (outer ring) \| d: 95.250 mm \| D: 128.588 mm \| T: 15.875 mm \| Cr: 58.0 kN \| Mating: LL319349
	L319249	Part: Cone (inner ring) \| d: 95.250 mm \| D: 130.175 mm \| T: 20.638 mm \| Cr: 97.0 kN \| Mating: L319210
	L319210	Part: Cup (outer ring) \| d: 95.250 mm \| D: 130.175 mm \| T: 20.638 mm \| Cr: 97.0 kN \| Mating: L319249
	47896R	Part: Cone (inner ring) \| d: 95.250 mm \| D: 146.050 mm \| T: 33.338 mm \| Cr: 178 kN \| Mating: 47820
	594A	Part: Cone (inner ring) \| d: 95.250 mm \| D: 147.638 mm \| T: 35.717 mm \| Cr: 183 kN \| Mating: 592XE
	592XE	Part: Cup (outer ring) \| d: 95.250 mm \| D: 147.638 mm \| T: 35.717 mm \| Cr: 183 kN \| Mating: 594A
	52375	Part: Cone (inner ring) \| d: 95.250 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52618
	52618	Part: Cup (outer ring) \| d: 95.250 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52375
	864R	Part: Cone (inner ring) \| d: 95.250 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 854
	HH221440	Part: Cone (inner ring) \| d: 95.250 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
	HH221442	Part: Cone (inner ring) \| d: 98.425 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
	HH224334	Part: Cone (inner ring) \| d: 99.975 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
	HH224310	Part: Cup (outer ring) \| d: 99.975 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224334
	HH221447	Part: Cone (inner ring) \| d: 99.982 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
	JM720249	Part: Cone (inner ring) \| d: 100.000 mm \| D: 155.000 mm \| T: 36.000 mm \| Cr: 204 kN \| Mating: JM720210
	JM720210	Part: Cup (outer ring) \| d: 100.000 mm \| D: 155.000 mm \| T: 36.000 mm \| Cr: 204 kN \| Mating: JM720249
	JHM720249	Part: Cup (outer ring) \| d: 100.000 mm \| D: 160.000 mm \| T: 41.000 mm \| Cr: 237 kN \| Mating: None
	52393	Part: Cone (inner ring) \| d: 100.012 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52618
	52400	Part: Cone (inner ring) \| d: 101.600 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52618
	52401	Part: Cone (inner ring) \| d: 101.600 mm \| D: 157.162 mm \| T: 36.512 mm \| Cr: 180 kN \| Mating: 52618
	780	Part: Cone (inner ring) \| d: 101.600 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
	861R	Part: Cone (inner ring) \| d: 101.600 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 385 kN \| Mating: 854
	HH221449	Part: Cone (inner ring) \| d: 101.600 mm \| D: 190.500 mm \| T: 57.150 mm \| Cr: 440 kN \| Mating: HH221410
	98400	Part: Cone (inner ring) \| d: 101.600 mm \| D: 200.000 mm \| T: 52.761 mm \| Cr: 347 kN \| Mating: 98788
	941	Part: Cone (inner ring) \| d: 101.600 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 450 kN \| Mating: 932
	932	Part: Cup (outer ring) \| d: 101.600 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 450 kN \| Mating: 941
	HH224335	Part: Cone (inner ring) \| d: 101.600 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
	782	Part: Cone (inner ring) \| d: 104.775 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
	786	Part: Cone (inner ring) \| d: 104.775 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
	787	Part: Cone (inner ring) \| d: 104.775 mm \| D: 180.975 mm \| T: 47.625 mm \| Cr: 288 kN \| Mating: 772
	71412	Part: Cone (inner ring) \| d: 104.775 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
	71750	Part: Cup (outer ring) \| d: 104.775 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71412
	56418R	Part: Cone (inner ring) \| d: 106.362 mm \| D: 165.100 mm \| T: 36.512 mm \| Cr: 195 kN \| Mating: 56650
	56650	Part: Cup (outer ring) \| d: 106.362 mm \| D: 165.100 mm \| T: 36.512 mm \| Cr: 195 kN \| Mating: 56418R
	L521949R	Part: Cone (inner ring) \| d: 107.950 mm \| D: 146.050 mm \| T: 21.432 mm \| Cr: 86.4 kN \| Mating: L521910
	L521910	Part: Cup (outer ring) \| d: 107.950 mm \| D: 146.050 mm \| T: 21.432 mm \| Cr: 86.4 kN \| Mating: L521949R
	37425	Part: Cone (inner ring) \| d: 107.950 mm \| D: 158.750 mm \| T: 23.020 mm \| Cr: 104 kN \| Mating: 37625
	37625	Part: Cup (outer ring) \| d: 107.950 mm \| D: 158.750 mm \| T: 23.020 mm \| Cr: 104 kN \| Mating: 37425
	LM522546	Part: Cone (inner ring) \| d: 107.950 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 184 kN \| Mating: LM522510
	LM522510	Part: Cup (outer ring) \| d: 107.950 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 184 kN \| Mating: LM522546
	48190	Part: Cone (inner ring) \| d: 107.950 mm \| D: 161.925 mm \| T: 34.925 mm \| Cr: 173 kN \| Mating: 48120
	48120	Part: Cup (outer ring) \| d: 107.950 mm \| D: 161.925 mm \| T: 34.925 mm \| Cr: 173 kN \| Mating: 48190
	56425R	Part: Cone (inner ring) \| d: 107.950 mm \| D: 165.100 mm \| T: 36.512 mm \| Cr: 195 kN \| Mating: 56650
	56662	Part: Cup (outer ring) \| d: 107.950 mm \| D: 168.275 mm \| T: 36.512 mm \| Cr: 195 kN \| Mating: 56425R
	71425	Part: Cone (inner ring) \| d: 107.950 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
	936	Part: Cone (inner ring) \| d: 107.950 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 450 kN \| Mating: 932
	HH224340	Part: Cone (inner ring) \| d: 107.950 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
	37431	Part: Cone (inner ring) \| d: 109.538 mm \| D: 158.750 mm \| T: 23.020 mm \| Cr: 104 kN \| Mating: 37625
	LM522548	Part: Cone (inner ring) \| d: 109.987 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 184 kN \| Mating: LM522510
	LM522549	Part: Cone (inner ring) \| d: 109.987 mm \| D: 159.987 mm \| T: 34.925 mm \| Cr: 184 kN \| Mating: LM522510
	64433R	Part: Cone (inner ring) \| d: 109.992 mm \| D: 177.800 mm \| T: 41.275 mm \| Cr: 234 kN \| Mating: 64700
	64700	Part: Cup (outer ring) \| d: 109.992 mm \| D: 177.800 mm \| T: 41.275 mm \| Cr: 234 kN \| Mating: 64433R
	JM822049	Part: Cone (inner ring) \| d: 110.000 mm \| D: 165.000 mm \| T: 35.000 mm \| Cr: 195 kN \| Mating: JM822010
	JM822010	Part: Cup (outer ring) \| d: 110.000 mm \| D: 165.000 mm \| T: 35.000 mm \| Cr: 195 kN \| Mating: JM822049
	JHM522649	Part: Cup (outer ring) \| d: 110.000 mm \| D: 180.000 mm \| T: 47.000 mm \| Cr: 306 kN \| Mating: None
	64450R	Part: Cone (inner ring) \| d: 114.300 mm \| D: 177.800 mm \| T: 41.275 mm \| Cr: 234 kN \| Mating: 64700
	68450	Part: Cone (inner ring) \| d: 114.300 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 171 kN \| Mating: 68712
	68712	Part: Cup (outer ring) \| d: 114.300 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 171 kN \| Mating: 68450
	71450	Part: Cone (inner ring) \| d: 114.300 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
	938	Part: Cone (inner ring) \| d: 114.300 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 450 kN \| Mating: 932
	HH224346	Part: Cone (inner ring) \| d: 114.300 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
	HH926744	Part: Cone (inner ring) \| d: 114.300 mm \| D: 273.050 mm \| T: 82.550 mm \| Cr: 707 kN \| Mating: HH926710
	HH926710	Part: Cup (outer ring) \| d: 114.300 mm \| D: 273.050 mm \| T: 82.550 mm \| Cr: 707 kN \| Mating: HH926744
	HH224349	Part: Cone (inner ring) \| d: 114.976 mm \| D: 212.725 mm \| T: 66.675 mm \| Cr: 513 kN \| Mating: HH224310
	71453	Part: Cone (inner ring) \| d: 115.087 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
	71455	Part: Cone (inner ring) \| d: 115.087 mm \| D: 190.500 mm \| T: 47.625 mm \| Cr: 303 kN \| Mating: 71750
	68462	Part: Cone (inner ring) \| d: 117.475 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 171 kN \| Mating: 68712
	68463	Part: Cone (inner ring) \| d: 117.475 mm \| D: 180.975 mm \| T: 34.925 mm \| Cr: 171 kN \| Mating: 68712
	HM624749	Part: Cone (inner ring) \| d: 120.650 mm \| D: 190.500 mm \| T: 46.038 mm \| Cr: 313 kN \| Mating: HM624710
	HM624710	Part: Cup (outer ring) \| d: 120.650 mm \| D: 190.500 mm \| T: 46.038 mm \| Cr: 313 kN \| Mating: HM624749
	HH228340	Part: Cone (inner ring) \| d: 120.650 mm \| D: 254.000 mm \| T: 77.788 mm \| Cr: 717 kN \| Mating: HH228310
	HH228310	Part: Cup (outer ring) \| d: 120.650 mm \| D: 254.000 mm \| T: 77.788 mm \| Cr: 717 kN \| Mating: HH228340
	HH228349	Part: Cone (inner ring) \| d: 127.000 mm \| D: 254.000 mm \| T: 77.788 mm \| Cr: 717 kN \| Mating: HH228310
	L327249	Part: Cone (inner ring) \| d: 133.350 mm \| D: 177.008 mm \| T: 25.400 mm \| Cr: 141 kN \| Mating: L327210
	L327210	Part: Cup (outer ring) \| d: 133.350 mm \| D: 177.008 mm \| T: 25.400 mm \| Cr: 141 kN \| Mating: L327249
	48684	Part: Cone (inner ring) \| d: 142.875 mm \| D: 200.025 mm \| T: 41.275 mm \| Cr: 246 kN \| Mating: 48620
	48620	Part: Cup (outer ring) \| d: 142.875 mm \| D: 200.025 mm \| T: 41.275 mm \| Cr: 246 kN \| Mating: 48684
	48685	Part: Cone (inner ring) \| d: 142.875 mm \| D: 200.025 mm \| T: 41.275 mm \| Cr: 246 kN \| Mating: 48620
	JHM534149	Part: Cup (outer ring) \| d: 170.000 mm \| D: 230.000 mm \| T: 39.000 mm \| Cr: 291 kN \| Mating: None
	JM734449	Part: Cone (inner ring) \| d: 170.000 mm \| D: 240.000 mm \| T: 46.000 mm \| Cr: 353 kN \| Mating: JM734410
	JM734410	Part: Cup (outer ring) \| d: 170.000 mm \| D: 240.000 mm \| T: 46.000 mm \| Cr: 353 kN \| Mating: JM734449
	L435049	Part: Cone (inner ring) \| d: 171.450 mm \| D: 222.250 mm \| T: 25.400 mm \| Cr: 157 kN \| Mating: L435010
	L435010	Part: Cup (outer ring) \| d: 171.450 mm \| D: 222.250 mm \| T: 25.400 mm \| Cr: 157 kN \| Mating: L435049
	JM736149	Part: Cone (inner ring) \| d: 180.000 mm \| D: 250.000 mm \| T: 47.000 mm \| Cr: 365 kN \| Mating: JM736110
	JM736110	Part: Cup (outer ring) \| d: 180.000 mm \| D: 250.000 mm \| T: 47.000 mm \| Cr: 365 kN \| Mating: JM736149
	JM738249	Part: Cone (inner ring) \| d: 190.000 mm \| D: 260.000 mm \| T: 46.000 mm \| Cr: 369 kN \| Mating: JM738210
	JM738210	Part: Cup (outer ring) \| d: 190.000 mm \| D: 260.000 mm \| T: 46.000 mm \| Cr: 369 kN \| Mating: JM738249
	L540049	Part: Cone (inner ring) \| d: 196.850 mm \| D: 254.000 mm \| T: 28.575 mm \| Cr: 188 kN \| Mating: L540010
	L540010	Part: Cup (outer ring) \| d: 196.850 mm \| D: 254.000 mm \| T: 28.575 mm \| Cr: 188 kN \| Mating: L540049
	JHM840449	Part: Cup (outer ring) \| d: 200.000 mm \| D: 300.000 mm \| T: 65.000 mm \| Cr: 617 kN \| Mating: None
	LM245833	Part: Cone (inner ring) \| d: 220.878 mm \| D: 317.500 mm \| T: 47.625 mm \| Cr: 488 kN \| Mating: LM245810
	LM245810	Part: Cup (outer ring) \| d: 220.878 mm \| D: 317.500 mm \| T: 47.625 mm \| Cr: 488 kN \| Mating: LM245833
	M249732	Part: Cone (inner ring) \| d: 228.600 mm \| D: 358.775 mm \| T: 71.438 mm \| Cr: 773 kN \| Mating: M249710
	M249710	Part: Cup (outer ring) \| d: 228.600 mm \| D: 358.775 mm \| T: 71.438 mm \| Cr: 773 kN \| Mating: M249732
	LM245846	Part: Cone (inner ring) \| d: 230.188 mm \| D: 317.500 mm \| T: 47.625 mm \| Cr: 488 kN \| Mating: LM245810
	LM245848	Part: Cone (inner ring) \| d: 231.775 mm \| D: 317.500 mm \| T: 47.625 mm \| Cr: 488 kN \| Mating: LM245810
	M246942	Part: Cone (inner ring) \| d: 231.775 mm \| D: 336.550 mm \| T: 65.088 mm \| Cr: 708 kN \| Mating: M246910
	M246910	Part: Cup (outer ring) \| d: 231.775 mm \| D: 336.550 mm \| T: 65.088 mm \| Cr: 708 kN \| Mating: M246942
	M249734	Part: Cone (inner ring) \| d: 231.775 mm \| D: 358.775 mm \| T: 71.438 mm \| Cr: 773 kN \| Mating: M249710
	M249749	Part: Cone (inner ring) \| d: 254.000 mm \| D: 358.775 mm \| T: 71.438 mm \| Cr: 773 kN \| Mating: M249710
	M349549	Part: Cone (inner ring) \| d: 257.175 mm \| D: 342.900 mm \| T: 57.150 mm \| Cr: 612 kN \| Mating: M349510
	M349510	Part: Cup (outer ring) \| d: 257.175 mm \| D: 342.900 mm \| T: 57.150 mm \| Cr: 612 kN \| Mating: M349549
	L555249	Part: Cone (inner ring) \| d: 292.100 mm \| D: 374.650 mm \| T: 47.625 mm \| Cr: 468 kN \| Mating: L555210
	L555210	Part: Cup (outer ring) \| d: 292.100 mm \| D: 374.650 mm \| T: 47.625 mm \| Cr: 468 kN \| Mating: L555249

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

KOYO Single-Row Tapered Roller Bearings, Inch Series (Cones & Cups)
