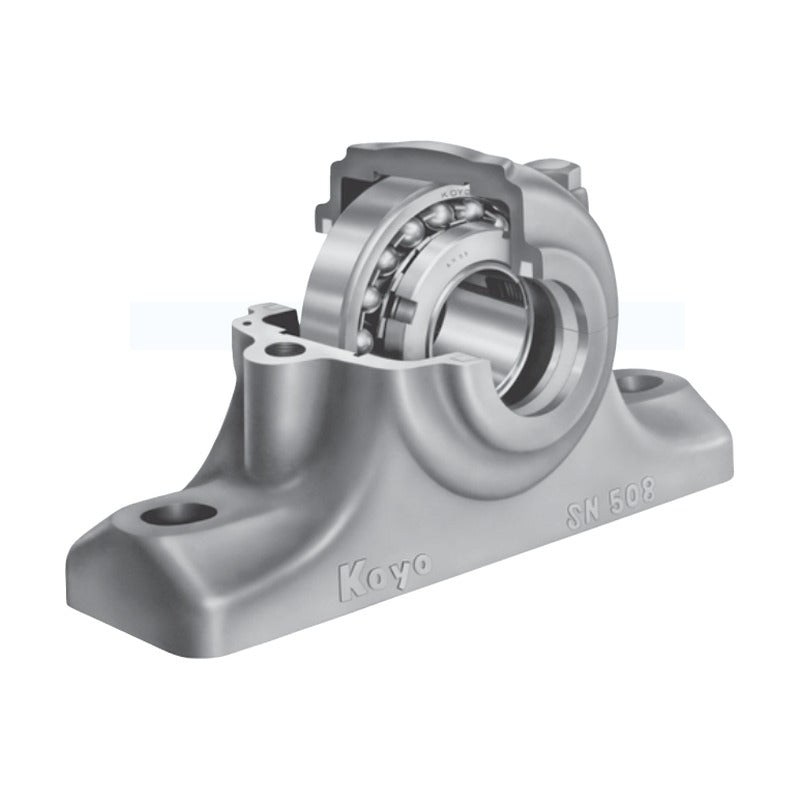

KOYO SN 5, 6, 33, 34 Split Plummer Block Housings

KOYO SN 5, 6, 33, 34 Split Plummer Block Housings

Standard split plummer block housings of the SN 5, 6, 33 and 34 series for self-aligning ball bearings and spherical roller bearings on adapter sleeves, shaft 25 to 160 mm.

Key features

  • Cast iron housing with grease nipple and drain plug
  • Fixed or free side arrangement with stabilizing rings
  • For self-aligning ball and spherical roller bearings
  • Applicable bearings, adapters and oil seals listed
  • Housing mass given for reference

Specifications

Product type Plummer block housing
Series SN
Lubrication Grease nipple R 1/8
Supplied Housing only (bearing, adapter, seals separate)
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B544-B551
SN507 Shaft d1: 30 mm | D: 72 mm | H: 50 mm | Bearings: 1207K, 2207K, 22207RHRK | Mass: 2.3 kg
SN607 Shaft d1: 30 mm | D: 80 mm | H: 60 mm | Bearings: 1307K, 2307K | Mass: 2.6 kg
SN508 Shaft d1: 35 mm | D: 80 mm | H: 60 mm | Bearings: 1208K, 2208K, 22208RHRK | Mass: 2.4 kg
SN608 Shaft d1: 35 mm | D: 90 mm | H: 60 mm | Bearings: 1308K, 21308RHK, 2308K | Mass: 2.8 kg
SN509 Shaft d1: 40 mm | D: 85 mm | H: 60 mm | Bearings: 1209K, 2209K, 22209RHRK | Mass: 2.7 kg
SN609 Shaft d1: 40 mm | D: 100 mm | H: 70 mm | Bearings: 1309K, 21309RHK, 2309K | Mass: 4.3 kg
SN510 Shaft d1: 45 mm | D: 90 mm | H: 60 mm | Bearings: 1210K, 2210K, 22210RHRK | Mass: 3.5 kg
SN610 Shaft d1: 45 mm | D: 110 mm | H: 70 mm | Bearings: 1310K, 21310RHK, 2310K | Mass: 4.7 kg
SN511 Shaft d1: 50 mm | D: 100 mm | H: 70 mm | Bearings: 1211K, 2211K, 22211RHRK | Mass: 3.7 kg
SN611 Shaft d1: 50 mm | D: 120 mm | H: 80 mm | Bearings: 1311K, 21311RHK, 2311K | Mass: 5.8 kg
SN512 Shaft d1: 55 mm | D: 110 mm | H: 70 mm | Bearings: 1212K, 2212K, 22212RHRK | Mass: 4.4 kg
SN612 Shaft d1: 55 mm | D: 130 mm | H: 80 mm | Bearings: 1312K, 21312RHK, 2312K | Mass: 6.4 kg
SN513 Shaft d1: 60 mm | D: 120 mm | H: 80 mm | Bearings: 1213K, 2213K, 22213RHRK | Mass: 5.4 kg
SN613 Shaft d1: 60 mm | D: 140 mm | H: 95 mm | Bearings: 1313K, 21313RHK, 2313K | Mass: 8.6 kg
SN515 Shaft d1: 65 mm | D: 130 mm | H: 80 mm | Bearings: 1215K, 2215K, 22215RHRK | Mass: 6.1 kg
SN615 Shaft d1: 65 mm | D: 160 mm | H: 100 mm | Bearings: 1315K, 21315RHK, 2315K | Mass: 11.8 kg
SN516 Shaft d1: 70 mm | D: 140 mm | H: 95 mm | Bearings: 1216K, 2216K, 22216RHRK | Mass: 8.2 kg
SN616 Shaft d1: 70 mm | D: 170 mm | H: 112 mm | Bearings: 1316K, 21316RHK, 2316K | Mass: 13.6 kg
SN517 Shaft d1: 75 mm | D: 150 mm | H: 95 mm | Bearings: 1217K, 2217K, 22217RHRK | Mass: 9.3 kg
SN617 Shaft d1: 75 mm | D: 180 mm | H: 112 mm | Bearings: 1317K, 21317RHK, 2317K | Mass: 16.8 kg
SN518 Shaft d1: 80 mm | D: 160 mm | H: 100 mm | Bearings: 1218K, 2218K, 22218RHRK | Mass: 12 kg
SN618 Shaft d1: 80 mm | D: 190 mm | H: 112 mm | Bearings: 1318K, 2318K, 22318RHRK | Mass: 21 kg
SN519 Shaft d1: 85 mm | D: 170 mm | H: 112 mm | Bearings: 1219K, 2219K, 22219RHRK | Mass: 13 kg
SN619 Shaft d1: 85 mm | D: 200 mm | H: 125 mm | Bearings: 1319K, 2319K, 22319RHRK | Mass: 23 kg
SN520 Shaft d1: 90 mm | D: 180 mm | H: 112 mm | Bearings: 1220K, 2220K, 22220RHRK | Mass: 17 kg
SN620 Shaft d1: 90 mm | D: 215 mm | H: 140 mm | Bearings: 1320K, 2320K, 22320RHRK | Mass: 31 kg
SN3422 Shaft d1: 100 mm | D: 180 mm | H: 112 mm | Bearings: 23122RHK | Mass: 20 kg
SN522 Shaft d1: 100 mm | D: 200 mm | H: 125 mm | Bearings: 1222K, 2222K, 22222RHRK | Mass: 20 kg
SN622 Shaft d1: 100 mm | D: 240 mm | H: 150 mm | Bearings: 1322K, 2322K, 22322RHRK | Mass: 38 kg
SN3324 Shaft d1: 110 mm | D: 180 mm | H: 112 mm | Bearings: 23024RHK | Mass: 19 kg
SN3424 Shaft d1: 110 mm | D: 200 mm | H: 125 mm | Bearings: 23124RHK | Mass: 22 kg
SN524 Shaft d1: 110 mm | D: 215 mm | H: 140 mm | Bearings: 22224RHRK, 23224RHK | Mass: 23 kg
SN624 Shaft d1: 110 mm | D: 260 mm | H: 160 mm | Bearings: 22324RHRK | Mass: 48 kg
SN3326 Shaft d1: 115 mm | D: 200 mm | H: 125 mm | Bearings: 23026RHK | Mass: 21 kg
SN3426 Shaft d1: 115 mm | D: 210 mm | H: 140 mm | Bearings: 23126RHK | Mass: 29 kg
SN526 Shaft d1: 115 mm | D: 230 mm | H: 150 mm | Bearings: 22226RHRK, 23226RHK | Mass: 33 kg
SN626 Shaft d1: 115 mm | D: 280 mm | H: 170 mm | Bearings: 22326RHRK | Mass: 78 kg
SN3328 Shaft d1: 125 mm | D: 210 mm | H: 140 mm | Bearings: 23028RHK | Mass: 28 kg
SN3428 Shaft d1: 125 mm | D: 225 mm | H: 150 mm | Bearings: 23128RHK | Mass: 36 kg
SN528 Shaft d1: 125 mm | D: 250 mm | H: 150 mm | Bearings: 22228RHRK, 23228RHK | Mass: 40 kg
SN628 Shaft d1: 125 mm | D: 300 mm | H: 180 mm | Bearings: 22328RK | Mass: 97 kg
SN3330 Shaft d1: 135 mm | D: 225 mm | H: 150 mm | Bearings: 23030RHK | Mass: 32 kg
SN3430 Shaft d1: 135 mm | D: 250 mm | H: 150 mm | Bearings: 23130RHK | Mass: 42 kg
SN530 Shaft d1: 135 mm | D: 270 mm | H: 160 mm | Bearings: 22230RHRK, 23230RHK | Mass: 45 kg
SN630 Shaft d1: 135 mm | D: 320 mm | H: 190 mm | Bearings: 22330RK | Mass: 110 kg
SN3332 Shaft d1: 140 mm | D: 240 mm | H: 150 mm | Bearings: 23032RHK | Mass: 36 kg
SN3432 Shaft d1: 140 mm | D: 270 mm | H: 160 mm | Bearings: 23132RHK | Mass: 53 kg
SN532 Shaft d1: 140 mm | D: 290 mm | H: 170 mm | Bearings: 22232RK, 23232RK | Mass: 51 kg
SN632 Shaft d1: 140 mm | D: 340 mm | H: 200 mm | Bearings: 22332RK | Mass: 120 kg
SN3334 Shaft d1: 150 mm | D: 260 mm | H: 160 mm | Bearings: 23034RHK | Mass: 45 kg
SN3434 Shaft d1: 150 mm | D: 280 mm | H: 170 mm | Bearings: 23134RHK | Mass: 61 kg
SN3336 Shaft d1: 160 mm | D: 280 mm | H: 170 mm | Bearings: 23036RHK | Mass: 57 kg
SN3436 Shaft d1: 160 mm | D: 300 mm | H: 180 mm | Bearings: 23136RK | Mass: 80 kg
SN3338 Shaft d1: 170 mm | D: 290 mm | H: 170 mm | Bearings: 23038RK | Mass: 59 kg
SN3438 Shaft d1: 170 mm | D: 320 mm | H: 190 mm | Bearings: 23138RK | Mass: 95 kg
