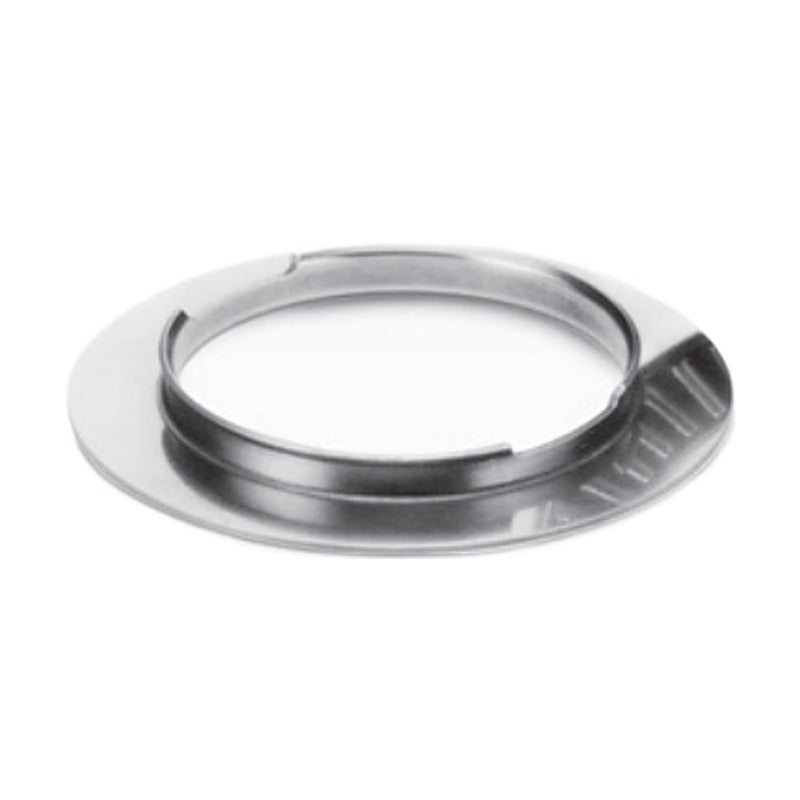

KOYO SNSH End Washers for Needle Roller Bearings

KOYO SNSH End Washers for Needle Roller Bearings

SNSH metric end washers used for axial location of NAO / RNAO needle roller bearings without flanges and of other needle bearing components.

Key features

  • Hardened steel end washers
  • Axial guidance for ribless needle bearings
  • Designated by bore x OD x thickness
  • Thin section 0.5 to 1 mm

Specifications

Product type End washer
Series SNSH
Use with NAO, RNAO needle roller bearings
Source KOYO Needle Roller Bearings catalogue, p. B-8-28
SNSH8X18X2 d: 8.0 mm | D: 18 mm | Thickness: 2.0 mm | Mass: 0.003 kg
SNSH8,5X15X0,5 d: 8.5 mm | D: 15 mm | Thickness: 0.5 mm | Mass: 0.0005 kg
SNSH10,5X17X0,5 d: 10.5 mm | D: 17 mm | Thickness: 0.5 mm | Mass: 0.0006 kg
SNSH10,5X20X0,5 d: 10.5 mm | D: 20 mm | Thickness: 0.5 mm | Mass: 0.0009 kg
SNSH12,5X19X0,5 d: 12.5 mm | D: 19 mm | Thickness: 0.5 mm | Mass: 0.0006 kg
SNSH12,5X22X0,5 d: 12.5 mm | D: 22 mm | Thickness: 0.5 mm | Mass: 0.0010 kg
SNSH14,5X22X0,5 d: 14.5 mm | D: 22 mm | Thickness: 0.5 mm | Mass: 0.0008 kg
SNSH14,5X26X0,5 d: 14.5 mm | D: 26 mm | Thickness: 0.5 mm | Mass: 0.0014 kg
SNSH15,5X23X0,5 d: 15.5 mm | D: 23 mm | Thickness: 0.5 mm | Mass: 0.0009 kg
SNSH16,5X24X0,5 d: 16.5 mm | D: 24 mm | Thickness: 0.5 mm | Mass: 0.0009 kg
SNSH16,5X28X0,5 d: 16.5 mm | D: 28 mm | Thickness: 0.5 mm | Mass: 0.0016 kg
SNSH17,5X25X0,5 d: 17.5 mm | D: 25 mm | Thickness: 0.5 mm | Mass: 0.001 kg
SNSH18,5X26X0,5 d: 18.5 mm | D: 26 mm | Thickness: 0.5 mm | Mass: 0.001 kg
SNSH18,5X30X0,5 d: 18.5 mm | D: 30 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH20,5X28X0,5 d: 20.5 mm | D: 28 mm | Thickness: 0.5 mm | Mass: 0.001 kg
SNSH20,5X32X0,5 d: 20.5 mm | D: 32 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH22,5X30X0,5 d: 22.5 mm | D: 30 mm | Thickness: 0.5 mm | Mass: 0.001 kg
SNSH22,5X35X0,5 d: 22.5 mm | D: 35 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH25,5X35X0,5 d: 25.5 mm | D: 35 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH25,5X37X0,5 d: 25.5 mm | D: 37 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH28,5X40X0,5 d: 28.5 mm | D: 40 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH30,5X40X0,5 d: 30.5 mm | D: 40 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH35,5X47X0,5 d: 35.5 mm | D: 47 mm | Thickness: 0.5 mm | Mass: 0.003 kg
SNSH40,5X50X0,5 d: 40.5 mm | D: 50 mm | Thickness: 0.5 mm | Mass: 0.003 kg
SNSH41X55X1 d: 41.0 mm | D: 55 mm | Thickness: 1.0 mm | Mass: 0.008 kg
SNSH45,5X55X0,5 d: 45.5 mm | D: 55 mm | Thickness: 0.5 mm | Mass: 0.003 kg
SNSH46X62X1 d: 46.0 mm | D: 62 mm | Thickness: 1.0 mm | Mass: 0.011 kg
SNSH51X65X1 d: 51.0 mm | D: 65 mm | Thickness: 1.0 mm | Mass: 0.010 kg
SNSH56X72X1 d: 56.0 mm | D: 72 mm | Thickness: 1.0 mm | Mass: 0.013 kg
SNSH61X78X1 d: 61.0 mm | D: 78 mm | Thickness: 1.0 mm | Mass: 0.015 kg
SNSH66X85X1 d: 66.0 mm | D: 85 mm | Thickness: 1.0 mm | Mass: 0.018 kg
Bearing AccessoriesKOYO
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO SNSH End Washers for Needle Roller Bearings

Brand KOYO·Bearing Accessories

Available part numbers (31)

SNSH8X18X2, SNSH8,5X15X0,5, SNSH10,5X17X0,5, SNSH10,5X20X0,5, SNSH12,5X19X0,5, SNSH12,5X22X0,5, SNSH14,5X22X0,5, SNSH14,5X26X0,5, SNSH15,5X23X0,5, SNSH16,5X24X0,5 + 21 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNSH8X18X2d: 8.0 mm | D: 18 mm | Thickness: 2.0 mm | Mass: 0.003 kg
SNSH8,5X15X0,5d: 8.5 mm | D: 15 mm | Thickness: 0.5 mm | Mass: 0.0005 kg
SNSH10,5X17X0,5d: 10.5 mm | D: 17 mm | Thickness: 0.5 mm | Mass: 0.0006 kg
SNSH10,5X20X0,5d: 10.5 mm | D: 20 mm | Thickness: 0.5 mm | Mass: 0.0009 kg
SNSH12,5X19X0,5d: 12.5 mm | D: 19 mm | Thickness: 0.5 mm | Mass: 0.0006 kg
SNSH12,5X22X0,5d: 12.5 mm | D: 22 mm | Thickness: 0.5 mm | Mass: 0.0010 kg
SNSH14,5X22X0,5d: 14.5 mm | D: 22 mm | Thickness: 0.5 mm | Mass: 0.0008 kg
SNSH14,5X26X0,5d: 14.5 mm | D: 26 mm | Thickness: 0.5 mm | Mass: 0.0014 kg
SNSH15,5X23X0,5d: 15.5 mm | D: 23 mm | Thickness: 0.5 mm | Mass: 0.0009 kg
SNSH16,5X24X0,5d: 16.5 mm | D: 24 mm | Thickness: 0.5 mm | Mass: 0.0009 kg
SNSH16,5X28X0,5d: 16.5 mm | D: 28 mm | Thickness: 0.5 mm | Mass: 0.0016 kg
SNSH17,5X25X0,5d: 17.5 mm | D: 25 mm | Thickness: 0.5 mm | Mass: 0.001 kg
SNSH18,5X26X0,5d: 18.5 mm | D: 26 mm | Thickness: 0.5 mm | Mass: 0.001 kg
SNSH18,5X30X0,5d: 18.5 mm | D: 30 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH20,5X28X0,5d: 20.5 mm | D: 28 mm | Thickness: 0.5 mm | Mass: 0.001 kg
SNSH20,5X32X0,5d: 20.5 mm | D: 32 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH22,5X30X0,5d: 22.5 mm | D: 30 mm | Thickness: 0.5 mm | Mass: 0.001 kg
SNSH22,5X35X0,5d: 22.5 mm | D: 35 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH25,5X35X0,5d: 25.5 mm | D: 35 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH25,5X37X0,5d: 25.5 mm | D: 37 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH28,5X40X0,5d: 28.5 mm | D: 40 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH30,5X40X0,5d: 30.5 mm | D: 40 mm | Thickness: 0.5 mm | Mass: 0.002 kg
SNSH35,5X47X0,5d: 35.5 mm | D: 47 mm | Thickness: 0.5 mm | Mass: 0.003 kg
SNSH40,5X50X0,5d: 40.5 mm | D: 50 mm | Thickness: 0.5 mm | Mass: 0.003 kg
SNSH41X55X1d: 41.0 mm | D: 55 mm | Thickness: 1.0 mm | Mass: 0.008 kg
SNSH45,5X55X0,5d: 45.5 mm | D: 55 mm | Thickness: 0.5 mm | Mass: 0.003 kg
SNSH46X62X1d: 46.0 mm | D: 62 mm | Thickness: 1.0 mm | Mass: 0.011 kg
SNSH51X65X1d: 51.0 mm | D: 65 mm | Thickness: 1.0 mm | Mass: 0.010 kg
SNSH56X72X1d: 56.0 mm | D: 72 mm | Thickness: 1.0 mm | Mass: 0.013 kg
SNSH61X78X1d: 61.0 mm | D: 78 mm | Thickness: 1.0 mm | Mass: 0.015 kg
SNSH66X85X1d: 66.0 mm | D: 85 mm | Thickness: 1.0 mm | Mass: 0.018 kg
