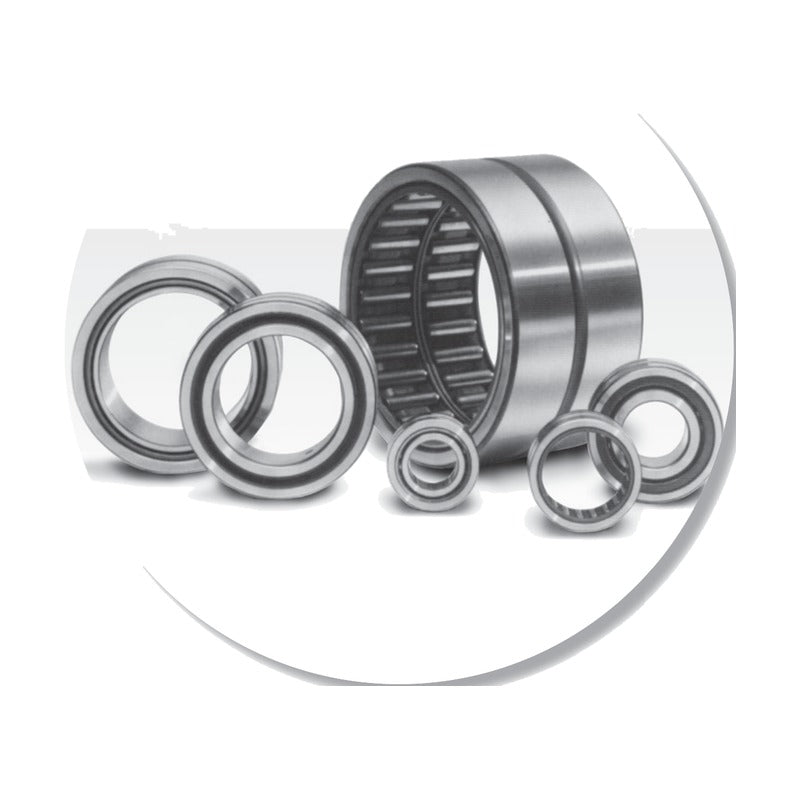

KOYO Special Inner Rings: IM Precision, BIC/BIK/BIG with Oil Holes

KOYO Special Inner Rings: IM Precision, BIC/BIK/BIG with Oil Holes

Metric inner rings for machine-tool quality precision combined bearings (IM..P / R6) and inner rings with oil holes or extra width for RNA bearings and track rollers (BIC, BIK, BIG).

Key features

  • Precision ground for machine-tool combined bearings
  • BIC / BIK / BIG with lubrication holes
  • Extra-wide versions available
  • Hardened bearing steel

Specifications

Product type Needle bearing inner ring
Series IM (precision), BIC, BIK, BIG
Source KOYO Needle Roller Bearings catalogue, p. B-8-24 to B-8-28
IM 19017 d: 17 mm | F: 20 mm | B: 27.5 mm | Mass: 0.019 kg
IM 20617 d: 17 mm | F: 20 mm | B: 32 mm | Mass: 0.021 kg
IM 19020 d: 20 mm | F: 25 mm | B: 27.5 mm | Mass: 0.038 kg
IM 20620 d: 20 mm | F: 25 mm | B: 32 mm | Mass: 0.044 kg
IM 19025 d: 25 mm | F: 30 mm | B: 27.5 mm | Mass: 0.042 kg
IM 20625 d: 25 mm | F: 30 mm | B: 32 mm | Mass: 0.052 kg
IM 19030 d: 30 mm | F: 35 mm | B: 27.5 mm | Mass: 0.053 kg
IM 20630 d: 30 mm | F: 35 mm | B: 32 mm | Mass: 0.061 kg
IM 19035 d: 35 mm | F: 40 mm | B: 27.5 mm | Mass: 0.063 kg
IM 20635 d: 35 mm | F: 40 mm | B: 32 mm | Mass: 0.072 kg
IM 19040 d: 40 mm | F: 45 mm | B: 27.5 mm | Mass: 0.069 kg
IM 20640 d: 40 mm | F: 45 mm | B: 32 mm | Mass: 0.080 kg
IM 19045 d: 45 mm | F: 50 mm | B: 30.5 mm | Mass: 0.085 kg
IM 20645 d: 45 mm | F: 50 mm | B: 35 mm | Mass: 0.096 kg
BIC 1012 d: 12 mm | F: 17.6 mm | B: 15 mm | Mass: 0.016 kg
BIP 1012 d: 12 mm | F: 17.6 mm | B: 20 mm | Mass: 0.020 kg
BIC 1015 d: 15 mm | F: 20.8 mm | B: 15 mm | Mass: 0.018 kg
BIC 2015 d: 15 mm | F: 22.1 mm | B: 22 mm | Mass: 0.035 kg
BIC 1017 d: 17 mm | F: 23.9 mm | B: 15 mm | Mass: 0.026 kg
BIC 1020 d: 20 mm | F: 28.7 mm | B: 18 mm | Mass: 0.046 kg
BIC 2020 d: 20 mm | F: 28.7 mm | B: 22 mm | Mass: 0.056 kg
BIP 1020 d: 20 mm | F: 28.7 mm | B: 22 mm | Mass: 0.056 kg
BIC 1025 d: 25 mm | F: 33.5 mm | B: 18 mm | Mass: 0.054 kg
BIC 2025 d: 25 mm | F: 33.5 mm | B: 22 mm | Mass: 0.065 kg
BIC 22025 d: 25 mm | F: 33.5 mm | B: 30 mm | Mass: 0.500 kg
BIG 2025 d: 25 mm | F: 33.5 mm | B: 32 mm | Mass: 0.095 kg
BIK 2025 d: 25 mm | F: 33.5 mm | B: 42 mm | Mass: 0.125 kg
BIC 1030 d: 30 mm | F: 38.2 mm | B: 18 mm | Mass: 0.060 kg
BIC 2030 d: 30 mm | F: 38.2 mm | B: 22 mm | Mass: 0.074 kg
BIC 3030 d: 30 mm | F: 44.0 mm | B: 30 mm | Mass: 0.188 kg
BIG 2030 d: 30 mm | F: 38.2 mm | B: 32 mm | Mass: 0.108 kg
BIG 3030 d: 30 mm | F: 44.0 mm | B: 40 mm | Mass: 0.247 kg
BIC 1035 d: 35 mm | F: 44.0 mm | B: 18 mm | Mass: 0.077 kg
BIC 2035 d: 35 mm | F: 44.0 mm | B: 22 mm | Mass: 0.093 kg
BIG 2035 d: 35 mm | F: 44.0 mm | B: 32 mm | Mass: 0.135 kg
BIC 1040 d: 40 mm | F: 49.7 mm | B: 18 mm | Mass: 0.094 kg
BIC 2040 d: 40 mm | F: 49.7 mm | B: 22 mm | Mass: 0.115 kg
BIC 3040 d: 40 mm | F: 55.4 mm | B: 36 mm | Mass: 0.321 kg
BIG 2040 d: 40 mm | F: 49.7 mm | B: 32 mm | Mass: 0.170 kg
BIP 1040 d: 40 mm | F: 49.7 mm | B: 22 mm | Mass: 0.115 kg
BIC 1045 d: 45 mm | F: 55.4 mm | B: 18 mm | Mass: 0.113 kg
BIC 2045 d: 45 mm | F: 55.4 mm | B: 22 mm | Mass: 0.139 kg
BIC 3045 d: 45 mm | F: 62.1 mm | B: 38 mm | Mass: 0.422 kg
BIG 2045 d: 45 mm | F: 55.4 mm | B: 32 mm | Mass: 0.210 kg
BIC 1050 d: 50 mm | F: 62.1 mm | B: 20 mm | Mass: 0.163 kg
BIC 11050 d: 50 mm | F: 62.1 mm | B: 24 mm | Mass: 0.196 kg
BIC 2050 d: 50 mm | F: 62.1 mm | B: 28 mm | Mass: 0.228 kg
BIC 3050 d: 50 mm | F: 68.8 mm | B: 38 mm | Mass: 0.515 kg
BIG 2050 d: 50 mm | F: 62.1 mm | B: 38 mm | Mass: 0.312 kg
BIP 1050 d: 50 mm | F: 62.1 mm | B: 28 mm | Mass: 0.228 kg
BIC 1055 d: 55 mm | F: 68.8 mm | B: 20 mm | Mass: 0.205 kg
BIC 3055 d: 55 mm | F: 72.6 mm | B: 38 mm | Mass: 0.525 kg
BICG 3055 d: 55 mm | F: 72.6 mm | B: 48 mm | Mass: 0.660 kg
BIG 2055 d: 55 mm | F: 68.8 mm | B: 38 mm | Mass: 0.390 kg
BIP 1055 d: 55 mm | F: 68.8 mm | B: 28 mm | Mass: 0.288 kg
BIC 2060 d: 60 mm | F: 72.6 mm | B: 28 mm | Mass: 0.282 kg
BIC 3060 d: 60 mm | F: 78.3 mm | B: 38 mm | Mass: 0.583 kg
BICG 2060 d: 60 mm | F: 72.6 mm | B: 38 mm | Mass: 0.385 kg
BIG 2060 d: 60 mm | F: 72.6 mm | B: 38 mm | Mass: 0.385 kg
BIC 3065 d: 65 mm | F: 83.1 mm | B: 38 mm | Mass: 0.623 kg
BIG 2065 d: 65 mm | F: 78.3 mm | B: 38 mm | Mass: 0.437 kg
BIC 3070 d: 70 mm | F: 88.0 mm | B: 38 mm | Mass: 0.662 kg
BIG 3070 d: 70 mm | F: 88.0 mm | B: 48 mm | Mass: 0.820 kg
BIK 3070 d: 70 mm | F: 88.0 mm | B: 58 mm | Mass: 1.010 kg
BIC 2075 d: 75 mm | F: 88.0 mm | B: 32 mm | Mass: 0.410 kg
BIG 2075 d: 75 mm | F: 88.0 mm | B: 42 mm | Mass: 0.538 kg
BIK 3075 d: 75 mm | F: 96.0 mm | B: 58 mm | Mass: 1.260 kg
BIC 1080 d: 80 mm | F: 96.0 mm | B: 24 mm | Mass: 0.410 kg
BIC 2080 d: 80 mm | F: 96.0 mm | B: 32 mm | Mass: 0.545 kg
BIC 3080 d: 80 mm | F: 99.5 mm | B: 38 mm | Mass: 0.805 kg
BIG 2080 d: 80 mm | F: 96.0 mm | B: 42 mm | Mass: 0.714 kg
BIC 2090 d: 90 mm | F: 104.7 mm | B: 32 mm | Mass: 0.531 kg
BIC 3090 d: 90 mm | F: 109.1 mm | B: 43 mm | Mass: 0.990 kg
BIG 3090 d: 90 mm | F: 109.1 mm | B: 53 mm | Mass: 1.220 kg
BIK 3090 d: 90 mm | F: 109.1 mm | B: 63 mm | Mass: 1.480 kg
BIC 2095 d: 95 mm | F: 109.1 mm | B: 32 mm | Mass: 0.548 kg
BIC 3095 d: 95 mm | F: 114.7 mm | B: 43 mm | Mass: 1.075 kg
BIK 3095 d: 95 mm | F: 114.7 mm | B: 63 mm | Mass: 1.585 kg
BIC 3100 d: 100 mm | F: 119.2 mm | B: 43 mm | Mass: 1.090 kg
BIG 2100 d: 100 mm | F: 114.7 mm | B: 42 mm | Mass: 0.800 kg
BIC 2105 d: 105 mm | F: 119.2 mm | B: 32 mm | Mass: 0.615 kg
BIG 3105 d: 105 mm | F: 124.7 mm | B: 55 mm | Mass: 1.505 kg
BIC 2110 d: 110 mm | F: 124.7 mm | B: 34 mm | Mass: 0.705 kg
BIG 2110 d: 110 mm | F: 124.7 mm | B: 44 mm | Mass: 0.920 kg
BICG 2125 d: 125 mm | F: 142.5 mm | B: 44 mm | Mass: 1.340 kg
BIG 2125 d: 125 mm | F: 142.5 mm | B: 44 mm | Mass: 1.325 kg
BIC 3130 d: 130 mm | F: 158.0 mm | B: 52 mm | Mass: 2.530 kg
