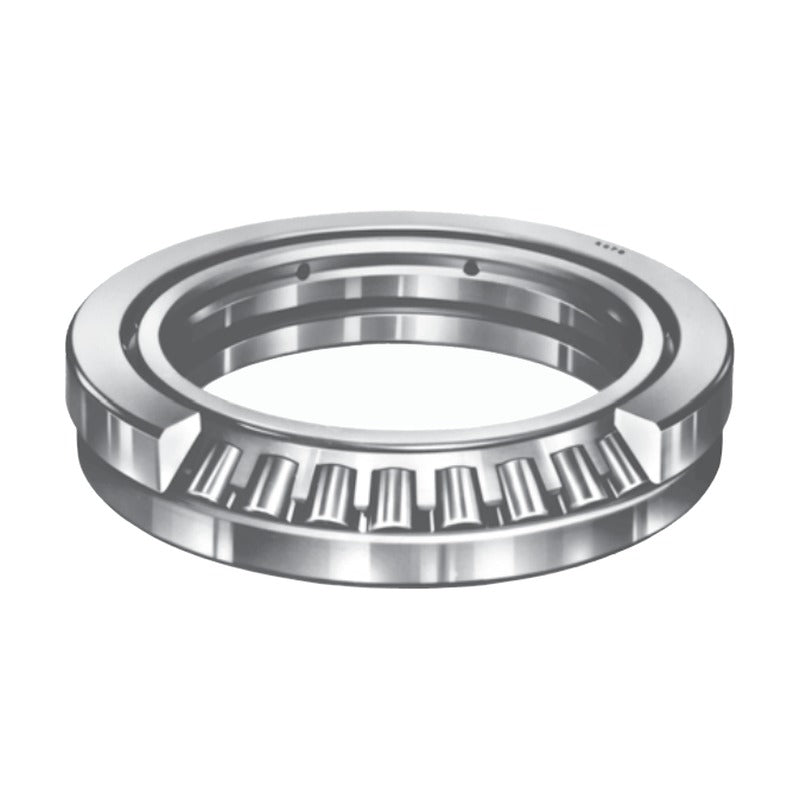

KOYO Spherical Thrust Roller Bearings (292, 293, 294 R)

KOYO Spherical Thrust Roller Bearings (292, 293, 294 R)

Spherical thrust roller bearings of the 292, 293 and 294 series (R design) with asymmetric barrel rollers, carrying very high axial loads plus some radial load, with self-alignment.

Key features

  • Very high axial load capacity
  • Can also carry radial load up to 55% of axial load
  • Self-aligning spherical housing washer raceway
  • Oil lubrication recommended
  • 292, 293, 294 series

Specifications

Bearing type Spherical thrust roller bearing
Series 292, 293, 294
Lubrication Oil (limiting speed listed for oil)
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B368-B373
29412R d: 60 mm | D: 130 mm | T: 42 mm | Ca: 319 kN | C0a: 884 kN | Mass: 2.75 kg
29413R d: 65 mm | D: 140 mm | T: 45 mm | Ca: 360 kN | C0a: 1 020 kN | Mass: 3.41 kg
29414R d: 70 mm | D: 150 mm | T: 48 mm | Ca: 387 kN | C0a: 1 100 kN | Mass: 4.16 kg
29415R d: 75 mm | D: 160 mm | T: 51 mm | Ca: 468 kN | C0a: 1 360 kN | Mass: 4.98 kg
29416R d: 80 mm | D: 170 mm | T: 54 mm | Ca: 505 kN | C0a: 1 480 kN | Mass: 5.95 kg
29317R d: 85 mm | D: 150 mm | T: 39 mm | Ca: 321 kN | C0a: 1 000 kN | Mass: 2.87 kg
29417R d: 85 mm | D: 180 mm | T: 58 mm | Ca: 572 kN | C0a: 1 700 kN | Mass: 7.19 kg
29318R d: 90 mm | D: 155 mm | T: 39 mm | Ca: 330 kN | C0a: 1 050 kN | Mass: 3.06 kg
29418R d: 90 mm | D: 190 mm | T: 60 mm | Ca: 658 kN | C0a: 2 010 kN | Mass: 8.28 kg
29320R d: 100 mm | D: 170 mm | T: 42 mm | Ca: 385 kN | C0a: 1 270 kN | Mass: 3.91 kg
29420R d: 100 mm | D: 210 mm | T: 67 mm | Ca: 730 kN | C0a: 2 220 kN | Mass: 11.2 kg
29322R d: 110 mm | D: 190 mm | T: 48 mm | Ca: 502 kN | C0a: 1 690 kN | Mass: 5.67 kg
29422R d: 110 mm | D: 230 mm | T: 73 mm | Ca: 896 kN | C0a: 2 810 kN | Mass: 14.7 kg
29324R d: 120 mm | D: 210 mm | T: 54 mm | Ca: 565 kN | C0a: 2 030 kN | Mass: 7.90 kg
29424R d: 120 mm | D: 250 mm | T: 78 mm | Ca: 1 040 kN | C0a: 3 270 kN | Mass: 18.5 kg
29326R d: 130 mm | D: 225 mm | T: 58 mm | Ca: 715 kN | C0a: 2 440 kN | Mass: 9.45 kg
29426R d: 130 mm | D: 270 mm | T: 85 mm | Ca: 1 200 kN | C0a: 3 870 kN | Mass: 23.5 kg
29328 d: 140 mm | D: 240 mm | T: 60 mm | Ca: 707 kN | C0a: 2 490 kN | Mass: 11.1 kg
29428R d: 140 mm | D: 280 mm | T: 85 mm | Ca: 1 260 kN | C0a: 4 080 kN | Mass: 24.6 kg
29330R d: 150 mm | D: 250 mm | T: 60 mm | Ca: 767 kN | C0a: 2 740 kN | Mass: 11.7 kg
29430R d: 150 mm | D: 300 mm | T: 90 mm | Ca: 1 380 kN | C0a: 4 620 kN | Mass: 29.6 kg
29332 d: 160 mm | D: 270 mm | T: 67 mm | Ca: 862 kN | C0a: 3 070 kN | Mass: 15.4 kg
29432R d: 160 mm | D: 320 mm | T: 95 mm | Ca: 1 590 kN | C0a: 5 370 kN | Mass: 35.9 kg
29334A d: 170 mm | D: 280 mm | T: 67 mm | Ca: 922 kN | C0a: 3 180 kN | Mass: 15.4 kg
29434R d: 170 mm | D: 340 mm | T: 103 mm | Ca: 1 740 kN | C0a: 5 880 kN | Mass: 44.0 kg
29336 d: 180 mm | D: 300 mm | T: 73 mm | Ca: 896 kN | C0a: 3 170 kN | Mass: 20.7 kg
29436R d: 180 mm | D: 360 mm | T: 109 mm | Ca: 1 960 kN | C0a: 6 590 kN | Mass: 52.2 kg
29338 d: 190 mm | D: 320 mm | T: 78 mm | Ca: 1 170 kN | C0a: 4 230 kN | Mass: 25.1 kg
29438R d: 190 mm | D: 380 mm | T: 115 mm | Ca: 2 230 kN | C0a: 7 690 kN | Mass: 61.4 kg
29240 d: 200 mm | D: 280 mm | T: 48 mm | Ca: 513 kN | C0a: 2 170 kN | Mass: 8.90 kg
29340 d: 200 mm | D: 340 mm | T: 85 mm | Ca: 1 360 kN | C0a: 5 040 kN | Mass: 31.2 kg
29440R d: 200 mm | D: 400 mm | T: 122 mm | Ca: 2 460 kN | C0a: 8 470 kN | Mass: 73.0 kg
29244 d: 220 mm | D: 300 mm | T: 48 mm | Ca: 536 kN | C0a: 2 340 kN | Mass: 10.0 kg
29344 d: 220 mm | D: 360 mm | T: 85 mm | Ca: 1 380 kN | C0a: 5 240 kN | Mass: 33.3 kg
29444R d: 220 mm | D: 420 mm | T: 122 mm | Ca: 2 540 kN | C0a: 8 990 kN | Mass: 74.2 kg
29248 d: 240 mm | D: 340 mm | T: 60 mm | Ca: 822 kN | C0a: 3 670 kN | Mass: 16.7 kg
29348A d: 240 mm | D: 380 mm | T: 85 mm | Ca: 1 430 kN | C0a: 5 330 kN | Mass: 35.5 kg
29448R d: 240 mm | D: 440 mm | T: 122 mm | Ca: 2 610 kN | C0a: 9 510 kN | Mass: 83.0 kg
29252 d: 260 mm | D: 360 mm | T: 60 mm | Ca: 838 kN | C0a: 3 720 kN | Mass: 18.5 kg
29352 d: 260 mm | D: 420 mm | T: 95 mm | Ca: 1 540 kN | C0a: 6 040 kN | Mass: 51.5 kg
29452R d: 260 mm | D: 480 mm | T: 132 mm | Ca: 3 100 kN | C0a: 11 100 kN | Mass: 110 kg
29256 d: 280 mm | D: 380 mm | T: 60 mm | Ca: 826 kN | C0a: 3 730 kN | Mass: 19.5 kg
29356 d: 280 mm | D: 440 mm | T: 95 mm | Ca: 1 760 kN | C0a: 6 870 kN | Mass: 53.2 kg
29456R d: 280 mm | D: 520 mm | T: 145 mm | Ca: 3 650 kN | C0a: 13 600 kN | Mass: 137 kg
29260 d: 300 mm | D: 420 mm | T: 73 mm | Ca: 1 060 kN | C0a: 4 880 kN | Mass: 30.5 kg
29360 d: 300 mm | D: 480 mm | T: 109 mm | Ca: 1 970 kN | C0a: 7 780 kN | Mass: 74.9 kg
29460R d: 300 mm | D: 540 mm | T: 145 mm | Ca: 3 880 kN | C0a: 14 900 kN | Mass: 146 kg
29264R d: 320 mm | D: 440 mm | T: 73 mm | Ca: 1 430 kN | C0a: 6 480 kN | Mass: 32.7 kg
29364 d: 320 mm | D: 500 mm | T: 109 mm | Ca: 2 310 kN | C0a: 9 380 kN | Mass: 78.0 kg
29464R d: 320 mm | D: 580 mm | T: 155 mm | Ca: 4 160 kN | C0a: 16 100 kN | Mass: 179 kg
29268R d: 340 mm | D: 460 mm | T: 73 mm | Ca: 1 390 kN | C0a: 6 420 kN | Mass: 34.7 kg
29368R d: 340 mm | D: 540 mm | T: 122 mm | Ca: 3 050 kN | C0a: 12 700 kN | Mass: 106 kg
29468R d: 340 mm | D: 620 mm | T: 170 mm | Ca: 4 960 kN | C0a: 19 400 kN | Mass: 224 kg
29272 d: 360 mm | D: 500 mm | T: 85 mm | Ca: 1 310 kN | C0a: 6 080 kN | Mass: 51.8 kg
29372R d: 360 mm | D: 560 mm | T: 122 mm | Ca: 3 120 kN | C0a: 13 200 kN | Mass: 110 kg
29472R d: 360 mm | D: 640 mm | T: 170 mm | Ca: 5 150 kN | C0a: 20 600 kN | Mass: 231 kg
29276 d: 380 mm | D: 520 mm | T: 85 mm | Ca: 1 380 kN | C0a: 6 610 kN | Mass: 52.8 kg
29376R d: 380 mm | D: 600 mm | T: 132 mm | Ca: 3 540 kN | C0a: 15 000 kN | Mass: 141 kg
29476R d: 380 mm | D: 670 mm | T: 175 mm | Ca: 5 420 kN | C0a: 22 000 kN | Mass: 263 kg
29280 d: 400 mm | D: 540 mm | T: 85 mm | Ca: 1 580 kN | C0a: 7 610 kN | Mass: 55.3 kg
29380R d: 400 mm | D: 620 mm | T: 132 mm | Ca: 3 700 kN | C0a: 16 100 kN | Mass: 144 kg
29480R d: 400 mm | D: 710 mm | T: 185 mm | Ca: 6 200 kN | C0a: 25 300 kN | Mass: 315 kg
29284 d: 420 mm | D: 580 mm | T: 95 mm | Ca: 1 850 kN | C0a: 8 750 kN | Mass: 75.4 kg
29384R d: 420 mm | D: 650 mm | T: 140 mm | Ca: 4 060 kN | C0a: 17 700 kN | Mass: 169 kg
29484R d: 420 mm | D: 730 mm | T: 185 mm | Ca: 6 380 kN | C0a: 26 500 kN | Mass: 330 kg
29288 d: 440 mm | D: 600 mm | T: 95 mm | Ca: 1 870 kN | C0a: 8 970 kN | Mass: 77.9 kg
29388R d: 440 mm | D: 680 mm | T: 145 mm | Ca: 4 290 kN | C0a: 18 800 kN | Mass: 190 kg
29488R d: 440 mm | D: 780 mm | T: 206 mm | Ca: 7 290 kN | C0a: 30 000 kN | Mass: 423 kg
29292 d: 460 mm | D: 620 mm | T: 95 mm | Ca: 1 950 kN | C0a: 9 620 kN | Mass: 81.0 kg
29392 d: 460 mm | D: 710 mm | T: 150 mm | Ca: 3 680 kN | C0a: 15 800 kN | Mass: 216 kg
29492R d: 460 mm | D: 800 mm | T: 206 mm | Ca: 7 520 kN | C0a: 31 600 kN | Mass: 438 kg
29296 d: 480 mm | D: 650 mm | T: 103 mm | Ca: 2 300 kN | C0a: 11 600 kN | Mass: 89.0 kg
29396 d: 480 mm | D: 730 mm | T: 150 mm | Ca: 3 650 kN | C0a: 15 800 kN | Mass: 218 kg
29496R d: 480 mm | D: 850 mm | T: 224 mm | Ca: 8 690 kN | C0a: 36 300 kN | Mass: 548 kg
294/500R d: 500 mm | D: 870 mm | T: 224 mm | Ca: 8 650 kN | C0a: 36 400 kN | Mass: 562 kg
Thrust BearingsKOYO
75 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Spherical Thrust Roller Bearings (292, 293, 294 R)

Brand KOYO·Thrust Bearings

Available part numbers (75)

29412R, 29413R, 29414R, 29415R, 29416R, 29317R, 29417R, 29318R, 29418R, 29320R + 65 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
