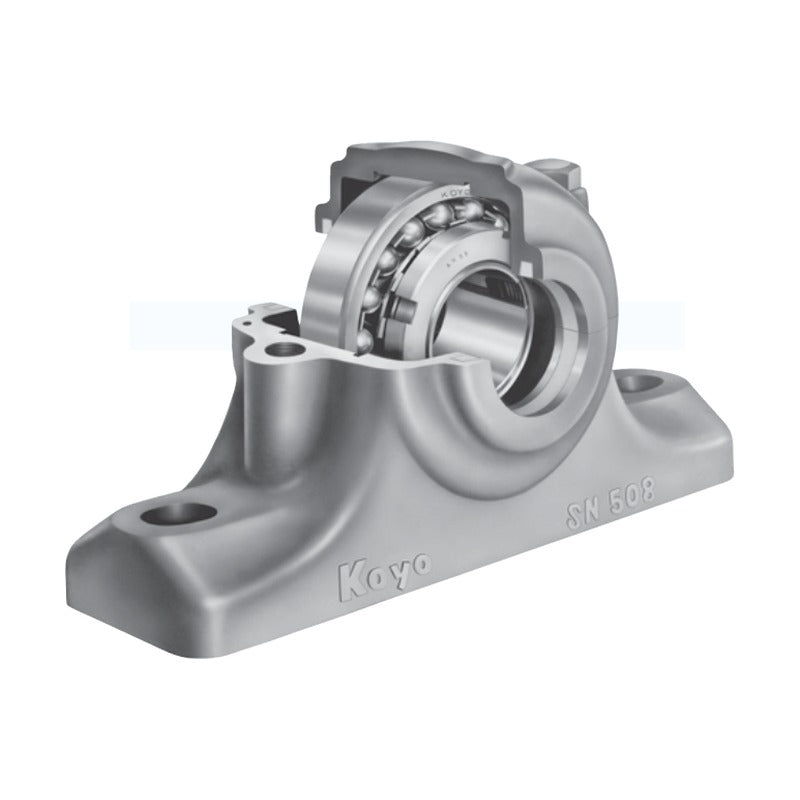

KOYO SSN 5, 6 Flat Bottom Split Plummer Block Housings

KOYO SSN 5, 6 Flat Bottom Split Plummer Block Housings

Flat bottom split plummer block housings of the SSN 5 and 6 series for self-aligning ball and spherical roller bearings with adapter sleeves.

Key features

  • Cast iron housing with grease nipple and drain plug
  • Fixed or free side arrangement with stabilizing rings
  • For self-aligning ball and spherical roller bearings
  • Applicable bearings, adapters and oil seals listed
  • Housing mass given for reference

Specifications

Product type Plummer block housing
Series SSN
Lubrication Grease nipple R 1/8
Supplied Housing only (bearing, adapter, seals separate)
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B552-B557
SSN505 Shaft d1: 20 mm | D: 52 mm | H: 40 mm | Bearings: 1205K, 2205K, 22205RHRK | Mass: 1.8 kg
SSN605 Shaft d1: 20 mm | D: 62 mm | H: 50 mm | Bearings: 1305K, 2305K | Mass: 2.6 kg
SSN506 Shaft d1: 25 mm | D: 62 mm | H: 50 mm | Bearings: 1206K, 2206K, 22206RHRK | Mass: 2.7 kg
SSN606 Shaft d1: 25 mm | D: 72 mm | H: 50 mm | Bearings: 1306K, 2306K | Mass: 2.8 kg
SSN507 Shaft d1: 30 mm | D: 72 mm | H: 50 mm | Bearings: 1207K, 2207K, 22207RHRK | Mass: 3.0 kg
SSN607 Shaft d1: 30 mm | D: 80 mm | H: 60 mm | Bearings: 1307K, 2307K | Mass: 3.8 kg
SSN508 Shaft d1: 35 mm | D: 80 mm | H: 60 mm | Bearings: 1208K, 2208K, 22208RHRK | Mass: 3.8 kg
SSN608 Shaft d1: 35 mm | D: 90 mm | H: 60 mm | Bearings: 1308K, 21308RHK, 2308K | Mass: 3.9 kg
SSN509 Shaft d1: 40 mm | D: 85 mm | H: 60 mm | Bearings: 1209K, 2209K, 22209RHRK | Mass: 4.3 kg
SSN609 Shaft d1: 40 mm | D: 100 mm | H: 70 mm | Bearings: 1309K, 21309RHK, 2309K | Mass: 6.2 kg
SSN510 Shaft d1: 45 mm | D: 90 mm | H: 60 mm | Bearings: 1210K, 2210K, 22210RHRK | Mass: 5.2 kg
SSN610 Shaft d1: 45 mm | D: 110 mm | H: 70 mm | Bearings: 1310K, 21310RHK, 2310K | Mass: 6.5 kg
SSN511 Shaft d1: 50 mm | D: 100 mm | H: 70 mm | Bearings: 1211K, 2211K, 22211RHRK | Mass: 5.5 kg
SSN611 Shaft d1: 50 mm | D: 120 mm | H: 80 mm | Bearings: 1311K, 21311RHK, 2311K | Mass: 8.5 kg
SSN512 Shaft d1: 55 mm | D: 110 mm | H: 70 mm | Bearings: 1212K, 2212K, 22212RHRK | Mass: 6.3 kg
SSN612 Shaft d1: 55 mm | D: 130 mm | H: 80 mm | Bearings: 1312K, 21312RHK, 2312K | Mass: 8.9 kg
SSN513 Shaft d1: 60 mm | D: 120 mm | H: 80 mm | Bearings: 1213K, 2213K, 22213RHRK | Mass: 6.8 kg
SSN613 Shaft d1: 60 mm | D: 140 mm | H: 95 mm | Bearings: 1313K, 21313RHK, 2313K | Mass: 12.9 kg
SSN515 Shaft d1: 65 mm | D: 130 mm | H: 80 mm | Bearings: 1215K, 2215K, 22215RHRK | Mass: 7.9 kg
SSN615 Shaft d1: 65 mm | D: 160 mm | H: 100 mm | Bearings: 1315K, 21315RHK, 2315K | Mass: 16.5 kg
SSN516 Shaft d1: 70 mm | D: 140 mm | H: 95 mm | Bearings: 1216K, 2216K, 22216RHRK | Mass: 12 kg
SSN616 Shaft d1: 70 mm | D: 170 mm | H: 112 mm | Bearings: 1316K, 21316RHK, 2316K | Mass: 18 kg
SSN517 Shaft d1: 75 mm | D: 150 mm | H: 95 mm | Bearings: 1217K, 2217K, 22217RHRK | Mass: 13 kg
SSN617 Shaft d1: 75 mm | D: 180 mm | H: 112 mm | Bearings: 1317K, 21317RHK, 2317K | Mass: 25.8 kg
SSN518 Shaft d1: 80 mm | D: 160 mm | H: 100 mm | Bearings: 1218K, 2218K, 22218RHRK | Mass: 17 kg
SSN618 Shaft d1: 80 mm | D: 190 mm | H: 112 mm | Bearings: 1318K, 2318K, 22318RHRK | Mass: 28 kg
SSN519 Shaft d1: 85 mm | D: 170 mm | H: 112 mm | Bearings: 1219K, 2219K, 22219RHRK | Mass: 18 kg
SSN619 Shaft d1: 85 mm | D: 200 mm | H: 125 mm | Bearings: 1319K, 2319K, 22319RHRK | Mass: 31 kg
SSN520 Shaft d1: 90 mm | D: 180 mm | H: 112 mm | Bearings: 1220K, 2220K, 22220RHRK | Mass: 24 kg
SSN620 Shaft d1: 90 mm | D: 215 mm | H: 140 mm | Bearings: 1320K, 2320K, 22320RHRK | Mass: 41 kg
SSN522 Shaft d1: 100 mm | D: 200 mm | H: 125 mm | Bearings: 1222K, 2222K, 22222RHRK | Mass: 28 kg
SSN622 Shaft d1: 100 mm | D: 240 mm | H: 150 mm | Bearings: 1322K, 2322K, 22322RHRK | Mass: 51 kg
SSN524 Shaft d1: 110 mm | D: 215 mm | H: 140 mm | Bearings: 22224RHRK, 23224RHK | Mass: 33 kg
SSN624 Shaft d1: 110 mm | D: 260 mm | H: 160 mm | Bearings: 22324RHRK | Mass: 63 kg
SSN526 Shaft d1: 115 mm | D: 230 mm | H: 150 mm | Bearings: 22226RHRK, 23226RHK | Mass: 45 kg
SSN626 Shaft d1: 115 mm | D: 280 mm | H: 170 mm | Bearings: 22326RHRK | Mass: 96 kg
SSN528 Shaft d1: 125 mm | D: 250 mm | H: 150 mm | Bearings: 22228RHRK, 23228RHK | Mass: 54 kg
SSN628 Shaft d1: 125 mm | D: 300 mm | H: 180 mm | Bearings: 22328RK | Mass: 117 kg
SSN530 Shaft d1: 135 mm | D: 270 mm | H: 160 mm | Bearings: 22230RHRK, 23230RHK | Mass: 60 kg
SSN630 Shaft d1: 135 mm | D: 320 mm | H: 190 mm | Bearings: 22330RK | Mass: 132 kg
SSN532 Shaft d1: 140 mm | D: 290 mm | H: 170 mm | Bearings: 22232RK, 23232RK | Mass: 69 kg
SSN632 Shaft d1: 140 mm | D: 340 mm | H: 200 mm | Bearings: 22332RK | Mass: 145 kg
