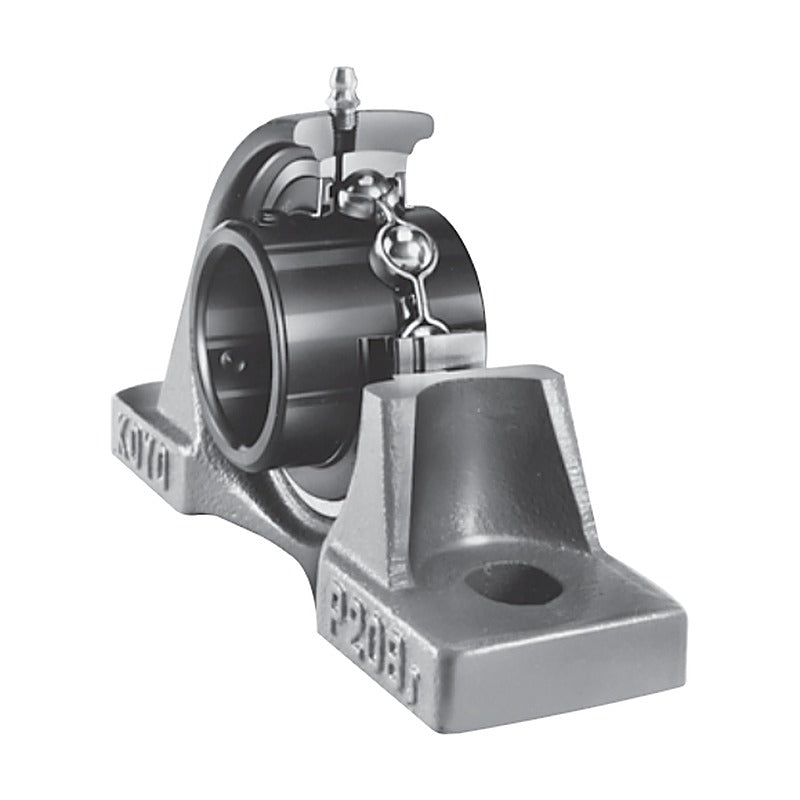

KOYO Ball Bearings for Units, UC/UCX/SU/SB Series (Set Screw)

KOYO Ball Bearings for Units, UC/UCX/SU/SB Series (Set Screw)

Insert ball bearings for bearing units with cylindrical bore and set screw locking (UC, UCX, SU, SB series), with standard or triple-lip (L3) seals. Spherical outer ring for self-alignment in the housing.

Key features

  • Extended inner ring with two set screws
  • Spherical outer surface for self-alignment
  • Pre-greased and sealed both sides
  • L3 triple-lip seal versions for contaminated environments
  • Interchangeable with standard unit housings

Specifications

Product type Insert bearing (bearing for units)
Bore Cylindrical, set screw locking
Series SU, SB, UC, UCX
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B528-B533
SU08 d: 8 mm | D: 22 mm | B: 12 mm | C: 7 mm | Cr: 3.27 kN | C0r: 1.37 kN
SU000 d: 10 mm | D: 26 mm | B: 15 mm | C: 8 mm | Cr: 4.55 kN | C0r: 1.95 kN
SU001 d: 12 mm | D: 28 mm | B: 15 mm | C: 8 mm | Cr: 5.10 kN | C0r: 2.40 kN
SB201 d: 12 mm | D: 40 mm | B: 22 mm | C: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN
UC201 d: 12 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC201L2 d: 12 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
SU002 d: 15 mm | D: 32 mm | B: 16.5 mm | C: 9 mm | Cr: 5.60 kN | C0r: 2.85 kN
SB202 d: 15 mm | D: 40 mm | B: 22 mm | C: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN
UC202 d: 15 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC202L2 d: 15 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
SU003 d: 17 mm | D: 35 mm | B: 17.5 mm | C: 10 mm | Cr: 6.00 kN | C0r: 3.25 kN
SB203 d: 17 mm | D: 40 mm | B: 22 mm | C: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN
UC203 d: 17 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC203L2 d: 17 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
SU004 d: 20 mm | D: 42 mm | B: 21 mm | C: 12 mm | Cr: 9.40 kN | C0r: 5.05 kN
SB204 d: 20 mm | D: 47 mm | B: 25 mm | C: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC204 d: 20 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC204L2 d: 20 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
SU005 d: 25 mm | D: 47 mm | B: 22 mm | C: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN
SB205 d: 25 mm | D: 52 mm | B: 27 mm | C: 15 mm | Cr: 14.0 kN | C0r: 7.85 kN
UC205 d: 25 mm | D: 52 mm | B: 34.1 mm | C: 17 mm | Cr: 14.0 kN | C0r: 7.85 kN
UC205L2 d: 25 mm | D: 52 mm | B: 34.1 mm | C: 17 mm | Cr: 14.0 kN | C0r: 7.85 kN
UC305 d: 25 mm | D: 62 mm | B: 38 mm | C: 22 mm | Cr: 21.2 kN | C0r: 10.9 kN
UCX05 d: 25 mm | D: 62 mm | B: 38.1 mm | C: 19 mm | Cr: 19.5 kN | C0r: 11.3 kN
UCX05L3 d: 25 mm | D: 62 mm | B: 38.1 mm | C: 19 mm | Cr: 19.5 kN | C0r: 11.3 kN
SU006 d: 30 mm | D: 55 mm | B: 24.5 mm | C: 13 mm | Cr: 13.2 kN | C0r: 8.25 kN
SB206 d: 30 mm | D: 62 mm | B: 30 mm | C: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN
UC206 d: 30 mm | D: 62 mm | B: 38.1 mm | C: 19 mm | Cr: 19.5 kN | C0r: 11.3 kN
UC206L3 d: 30 mm | D: 62 mm | B: 38.1 mm | C: 19 mm | Cr: 19.5 kN | C0r: 11.3 kN
UCX06 d: 30 mm | D: 72 mm | B: 42.9 mm | C: 20 mm | Cr: 25.7 kN | C0r: 15.4 kN
UCX06L3 d: 30 mm | D: 72 mm | B: 42.9 mm | C: 20 mm | Cr: 25.7 kN | C0r: 15.4 kN
UC306 d: 30 mm | D: 72 mm | B: 43 mm | C: 24 mm | Cr: 26.7 kN | C0r: 15.0 kN
SB207 d: 35 mm | D: 72 mm | B: 32 mm | C: 17 mm | Cr: 25.7 kN | C0r: 15.4 kN
UC207 d: 35 mm | D: 72 mm | B: 42.9 mm | C: 20 mm | Cr: 25.7 kN | C0r: 15.4 kN
UC207L3 d: 35 mm | D: 72 mm | B: 42.9 mm | C: 20 mm | Cr: 25.7 kN | C0r: 15.4 kN
UC307 d: 35 mm | D: 80 mm | B: 48 mm | C: 26 mm | Cr: 33.4 kN | C0r: 19.3 kN
UC307L3 d: 35 mm | D: 80 mm | B: 48 mm | C: 26 mm | Cr: 33.4 kN | C0r: 19.3 kN
UCX07 d: 35 mm | D: 80 mm | B: 49.2 mm | C: 21 mm | Cr: 29.1 kN | C0r: 17.8 kN
UCX07L3 d: 35 mm | D: 80 mm | B: 49.2 mm | C: 21 mm | Cr: 29.1 kN | C0r: 17.8 kN
SB208 d: 40 mm | D: 80 mm | B: 34 mm | C: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN
UC208 d: 40 mm | D: 80 mm | B: 49.2 mm | C: 21 mm | Cr: 29.1 kN | C0r: 17.8 kN
UC208L3 d: 40 mm | D: 80 mm | B: 49.2 mm | C: 21 mm | Cr: 29.1 kN | C0r: 17.8 kN
UCX08 d: 40 mm | D: 85 mm | B: 49.2 mm | C: 22 mm | Cr: 32.7 kN | C0r: 20.3 kN
UCX08L3 d: 40 mm | D: 85 mm | B: 49.2 mm | C: 22 mm | Cr: 32.7 kN | C0r: 20.3 kN
UC308 d: 40 mm | D: 90 mm | B: 52 mm | C: 28 mm | Cr: 40.7 kN | C0r: 24.0 kN
UC308L3 d: 40 mm | D: 90 mm | B: 52 mm | C: 28 mm | Cr: 40.7 kN | C0r: 24.0 kN
UC209 d: 45 mm | D: 85 mm | B: 49.2 mm | C: 22 mm | Cr: 32.7 kN | C0r: 20.3 kN
UC209L3 d: 45 mm | D: 85 mm | B: 49.2 mm | C: 22 mm | Cr: 32.7 kN | C0r: 20.3 kN
UCX09 d: 45 mm | D: 90 mm | B: 51.6 mm | C: 24 mm | Cr: 35.1 kN | C0r: 23.3 kN
UCX09L3 d: 45 mm | D: 90 mm | B: 51.6 mm | C: 24 mm | Cr: 35.1 kN | C0r: 23.3 kN
UC309 d: 45 mm | D: 100 mm | B: 57 mm | C: 30 mm | Cr: 48.9 kN | C0r: 29.5 kN
UC309L3 d: 45 mm | D: 100 mm | B: 57 mm | C: 30 mm | Cr: 48.9 kN | C0r: 29.5 kN
UC210 d: 50 mm | D: 90 mm | B: 51.6 mm | C: 24 mm | Cr: 35.1 kN | C0r: 23.3 kN
UC210L3 d: 50 mm | D: 90 mm | B: 51.6 mm | C: 24 mm | Cr: 35.1 kN | C0r: 23.3 kN
UCX10 d: 50 mm | D: 100 mm | B: 55.6 mm | C: 25 mm | Cr: 43.4 kN | C0r: 29.4 kN
UCX10L3 d: 50 mm | D: 100 mm | B: 55.6 mm | C: 25 mm | Cr: 43.4 kN | C0r: 29.4 kN
UC310 d: 50 mm | D: 110 mm | B: 61 mm | C: 32 mm | Cr: 62.0 kN | C0r: 38.3 kN
UC310L3 d: 50 mm | D: 110 mm | B: 61 mm | C: 32 mm | Cr: 62.0 kN | C0r: 38.3 kN
UC211 d: 55 mm | D: 100 mm | B: 55.6 mm | C: 25 mm | Cr: 43.4 kN | C0r: 29.4 kN
UC211L3 d: 55 mm | D: 100 mm | B: 55.6 mm | C: 25 mm | Cr: 43.4 kN | C0r: 29.4 kN
UCX11 d: 55 mm | D: 110 mm | B: 65.1 mm | C: 27 mm | Cr: 52.4 kN | C0r: 36.2 kN
UCX11L3 d: 55 mm | D: 110 mm | B: 65.1 mm | C: 27 mm | Cr: 52.4 kN | C0r: 36.2 kN
UC311 d: 55 mm | D: 120 mm | B: 66 mm | C: 34 mm | Cr: 71.6 kN | C0r: 45.0 kN
UC311L3 d: 55 mm | D: 120 mm | B: 66 mm | C: 34 mm | Cr: 71.6 kN | C0r: 45.0 kN
UC212 d: 60 mm | D: 110 mm | B: 65.1 mm | C: 27 mm | Cr: 52.4 kN | C0r: 36.2 kN
UC212L3 d: 60 mm | D: 110 mm | B: 65.1 mm | C: 27 mm | Cr: 52.4 kN | C0r: 36.2 kN
UCX12 d: 60 mm | D: 120 mm | B: 65.1 mm | C: 28 mm | Cr: 57.2 kN | C0r: 40.1 kN
UCX12L3 d: 60 mm | D: 120 mm | B: 65.1 mm | C: 28 mm | Cr: 57.2 kN | C0r: 40.1 kN
UC312 d: 60 mm | D: 130 mm | B: 71 mm | C: 36 mm | Cr: 81.9 kN | C0r: 52.2 kN
UC312L3 d: 60 mm | D: 130 mm | B: 71 mm | C: 36 mm | Cr: 81.9 kN | C0r: 52.2 kN
UC213 d: 65 mm | D: 120 mm | B: 65.1 mm | C: 28 mm | Cr: 57.2 kN | C0r: 40.1 kN
UC213L3 d: 65 mm | D: 120 mm | B: 65.1 mm | C: 28 mm | Cr: 57.2 kN | C0r: 40.1 kN
UCX13 d: 65 mm | D: 125 mm | B: 74.6 mm | C: 30 mm | Cr: 62.2 kN | C0r: 44.1 kN
UCX13L3 d: 65 mm | D: 125 mm | B: 74.6 mm | C: 30 mm | Cr: 62.2 kN | C0r: 44.1 kN
UC313 d: 65 mm | D: 140 mm | B: 75 mm | C: 38 mm | Cr: 92.7 kN | C0r: 59.9 kN
UC313L3 d: 65 mm | D: 140 mm | B: 75 mm | C: 38 mm | Cr: 92.7 kN | C0r: 59.9 kN
UC214 d: 70 mm | D: 125 mm | B: 74.6 mm | C: 30 mm | Cr: 62.2 kN | C0r: 44.1 kN
UC214L3 d: 70 mm | D: 125 mm | B: 74.6 mm | C: 30 mm | Cr: 62.2 kN | C0r: 44.1 kN
UCX14 d: 70 mm | D: 130 mm | B: 77.8 mm | C: 32 mm | Cr: 67.4 kN | C0r: 48.3 kN
UCX14L3 d: 70 mm | D: 130 mm | B: 77.8 mm | C: 32 mm | Cr: 67.4 kN | C0r: 48.3 kN
UC314 d: 70 mm | D: 150 mm | B: 78 mm | C: 40 mm | Cr: 104 kN | C0r: 68.2 kN
UC314L3 d: 70 mm | D: 150 mm | B: 78 mm | C: 40 mm | Cr: 104 kN | C0r: 68.2 kN
UC215 d: 75 mm | D: 130 mm | B: 77.8 mm | C: 32 mm | Cr: 67.4 kN | C0r: 48.3 kN
UC215L3 d: 75 mm | D: 130 mm | B: 77.8 mm | C: 32 mm | Cr: 67.4 kN | C0r: 48.3 kN
UCX15 d: 75 mm | D: 140 mm | B: 82.6 mm | C: 33 mm | Cr: 72.7 kN | C0r: 53.0 kN
UCX15L3 d: 75 mm | D: 140 mm | B: 82.6 mm | C: 33 mm | Cr: 72.7 kN | C0r: 53.0 kN
UC315 d: 75 mm | D: 160 mm | B: 82 mm | C: 42 mm | Cr: 113 kN | C0r: 77.2 kN
UC315L3 d: 75 mm | D: 160 mm | B: 82 mm | C: 42 mm | Cr: 113 kN | C0r: 77.2 kN
UC216 d: 80 mm | D: 140 mm | B: 82.6 mm | C: 33 mm | Cr: 72.7 kN | C0r: 53.0 kN
UC216L3 d: 80 mm | D: 140 mm | B: 82.6 mm | C: 33 mm | Cr: 72.7 kN | C0r: 53.0 kN
UCX16 d: 80 mm | D: 150 mm | B: 85.7 mm | C: 35 mm | Cr: 84.0 kN | C0r: 61.9 kN
UCX16L3 d: 80 mm | D: 150 mm | B: 85.7 mm | C: 35 mm | Cr: 84.0 kN | C0r: 61.9 kN
UC316 d: 80 mm | D: 170 mm | B: 86 mm | C: 44 mm | Cr: 123 kN | C0r: 86.7 kN
UC316L3 d: 80 mm | D: 170 mm | B: 86 mm | C: 44 mm | Cr: 123 kN | C0r: 86.7 kN
UC217 d: 85 mm | D: 150 mm | B: 85.7 mm | C: 35 mm | Cr: 84.0 kN | C0r: 61.9 kN
UC217L3 d: 85 mm | D: 150 mm | B: 85.7 mm | C: 35 mm | Cr: 84.0 kN | C0r: 61.9 kN
UCX17 d: 85 mm | D: 160 mm | B: 96 mm | C: 38 mm | Cr: 96.1 kN | C0r: 71.5 kN
UCX17L3 d: 85 mm | D: 160 mm | B: 96 mm | C: 38 mm | Cr: 96.1 kN | C0r: 71.5 kN
UC317 d: 85 mm | D: 180 mm | B: 96 mm | C: 46 mm | Cr: 133 kN | C0r: 96.8 kN
UC317L3 d: 85 mm | D: 180 mm | B: 96 mm | C: 46 mm | Cr: 133 kN | C0r: 96.8 kN
UC218 d: 90 mm | D: 160 mm | B: 96 mm | C: 38 mm | Cr: 96.1 kN | C0r: 71.5 kN
UC218L3 d: 90 mm | D: 160 mm | B: 96 mm | C: 38 mm | Cr: 96.1 kN | C0r: 71.5 kN
UCX18 d: 90 mm | D: 170 mm | B: 104 mm | C: 40 mm | Cr: 109 kN | C0r: 81.9 kN
UC318 d: 90 mm | D: 190 mm | B: 96 mm | C: 48 mm | Cr: 143 kN | C0r: 107 kN
UC318L3 d: 90 mm | D: 190 mm | B: 96 mm | C: 48 mm | Cr: 143 kN | C0r: 107 kN
UC319 d: 95 mm | D: 200 mm | B: 103 mm | C: 50 mm | Cr: 153 kN | C0r: 119 kN
UC319L3 d: 95 mm | D: 200 mm | B: 103 mm | C: 50 mm | Cr: 153 kN | C0r: 119 kN
UCX20 d: 100 mm | D: 190 mm | B: 117.5 mm | C: 43 mm | Cr: 133 kN | C0r: 105 kN
UC320 d: 100 mm | D: 215 mm | B: 108 mm | C: 54 mm | Cr: 173 kN | C0r: 141 kN
UC320L3 d: 100 mm | D: 215 mm | B: 108 mm | C: 54 mm | Cr: 173 kN | C0r: 141 kN
UC321 d: 105 mm | D: 225 mm | B: 112 mm | C: 56 mm | Cr: 184 kN | C0r: 153 kN
UC322 d: 110 mm | D: 240 mm | B: 117 mm | C: 60 mm | Cr: 205 kN | C0r: 180 kN
UC322L3 d: 110 mm | D: 240 mm | B: 117 mm | C: 60 mm | Cr: 205 kN | C0r: 180 kN
UC324 d: 120 mm | D: 260 mm | B: 126 mm | C: 64 mm | Cr: 207 kN | C0r: 185 kN
UC324L3 d: 120 mm | D: 260 mm | B: 126 mm | C: 64 mm | Cr: 207 kN | C0r: 185 kN
UC326 d: 130 mm | D: 280 mm | B: 135 mm | C: 68 mm | Cr: 229 kN | C0r: 214 kN
UC326L3 d: 130 mm | D: 280 mm | B: 135 mm | C: 68 mm | Cr: 229 kN | C0r: 214 kN
UC328 d: 140 mm | D: 300 mm | B: 145 mm | C: 72 mm | Cr: 253 kN | C0r: 246 kN
UC328L3 d: 140 mm | D: 300 mm | B: 145 mm | C: 72 mm | Cr: 253 kN | C0r: 246 kN
Insert BearingsKOYO
119 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Ball Bearings for Units, UC/UCX/SU/SB Series (Set Screw)

Brand KOYO·Insert Bearings

Available part numbers (119)

SU08, SU000, SU001, SB201, UC201, UC201L2, SU002, SB202, UC202, UC202L2 + 109 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SU08d: 8 mm | D: 22 mm | B: 12 mm | C: 7 mm | Cr: 3.27 kN | C0r: 1.37 kN
SU000d: 10 mm | D: 26 mm | B: 15 mm | C: 8 mm | Cr: 4.55 kN | C0r: 1.95 kN
SU001d: 12 mm | D: 28 mm | B: 15 mm | C: 8 mm | Cr: 5.10 kN | C0r: 2.40 kN
SB201d: 12 mm | D: 40 mm | B: 22 mm | C: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN
UC201d: 12 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC201L2d: 12 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
SU002d: 15 mm | D: 32 mm | B: 16.5 mm | C: 9 mm | Cr: 5.60 kN | C0r: 2.85 kN
SB202d: 15 mm | D: 40 mm | B: 22 mm | C: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN
UC202d: 15 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC202L2d: 15 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
SU003d: 17 mm | D: 35 mm | B: 17.5 mm | C: 10 mm | Cr: 6.00 kN | C0r: 3.25 kN
SB203d: 17 mm | D: 40 mm | B: 22 mm | C: 12 mm | Cr: 9.55 kN | C0r: 4.80 kN
UC203d: 17 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC203L2d: 17 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
SU004d: 20 mm | D: 42 mm | B: 21 mm | C: 12 mm | Cr: 9.40 kN | C0r: 5.05 kN
SB204d: 20 mm | D: 47 mm | B: 25 mm | C: 14 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC204d: 20 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
UC204L2d: 20 mm | D: 47 mm | B: 31 mm | C: 16 mm | Cr: 12.8 kN | C0r: 6.65 kN
SU005d: 25 mm | D: 47 mm | B: 22 mm | C: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN
SB205d: 25 mm | D: 52 mm | B: 27 mm | C: 15 mm | Cr: 14.0 kN | C0r: 7.85 kN
UC205d: 25 mm | D: 52 mm | B: 34.1 mm | C: 17 mm | Cr: 14.0 kN | C0r: 7.85 kN
UC205L2d: 25 mm | D: 52 mm | B: 34.1 mm | C: 17 mm | Cr: 14.0 kN | C0r: 7.85 kN
UC305d: 25 mm | D: 62 mm | B: 38 mm | C: 22 mm | Cr: 21.2 kN | C0r: 10.9 kN
UCX05d: 25 mm | D: 62 mm | B: 38.1 mm | C: 19 mm | Cr: 19.5 kN | C0r: 11.3 kN
UCX05L3d: 25 mm | D: 62 mm | B: 38.1 mm | C: 19 mm | Cr: 19.5 kN | C0r: 11.3 kN
SU006d: 30 mm | D: 55 mm | B: 24.5 mm | C: 13 mm | Cr: 13.2 kN | C0r: 8.25 kN
SB206d: 30 mm | D: 62 mm | B: 30 mm | C: 16 mm | Cr: 19.5 kN | C0r: 11.3 kN
UC206d: 30 mm | D: 62 mm | B: 38.1 mm | C: 19 mm | Cr: 19.5 kN | C0r: 11.3 kN
UC206L3d: 30 mm | D: 62 mm | B: 38.1 mm | C: 19 mm | Cr: 19.5 kN | C0r: 11.3 kN
UCX06d: 30 mm | D: 72 mm | B: 42.9 mm | C: 20 mm | Cr: 25.7 kN | C0r: 15.4 kN
UCX06L3d: 30 mm | D: 72 mm | B: 42.9 mm | C: 20 mm | Cr: 25.7 kN | C0r: 15.4 kN
UC306d: 30 mm | D: 72 mm | B: 43 mm | C: 24 mm | Cr: 26.7 kN | C0r: 15.0 kN
SB207d: 35 mm | D: 72 mm | B: 32 mm | C: 17 mm | Cr: 25.7 kN | C0r: 15.4 kN
UC207d: 35 mm | D: 72 mm | B: 42.9 mm | C: 20 mm | Cr: 25.7 kN | C0r: 15.4 kN
UC207L3d: 35 mm | D: 72 mm | B: 42.9 mm | C: 20 mm | Cr: 25.7 kN | C0r: 15.4 kN
UC307d: 35 mm | D: 80 mm | B: 48 mm | C: 26 mm | Cr: 33.4 kN | C0r: 19.3 kN
UC307L3d: 35 mm | D: 80 mm | B: 48 mm | C: 26 mm | Cr: 33.4 kN | C0r: 19.3 kN
UCX07d: 35 mm | D: 80 mm | B: 49.2 mm | C: 21 mm | Cr: 29.1 kN | C0r: 17.8 kN
UCX07L3d: 35 mm | D: 80 mm | B: 49.2 mm | C: 21 mm | Cr: 29.1 kN | C0r: 17.8 kN
SB208d: 40 mm | D: 80 mm | B: 34 mm | C: 18 mm | Cr: 29.1 kN | C0r: 17.8 kN
UC208d: 40 mm | D: 80 mm | B: 49.2 mm | C: 21 mm | Cr: 29.1 kN | C0r: 17.8 kN
UC208L3d: 40 mm | D: 80 mm | B: 49.2 mm | C: 21 mm | Cr: 29.1 kN | C0r: 17.8 kN
UCX08d: 40 mm | D: 85 mm | B: 49.2 mm | C: 22 mm | Cr: 32.7 kN | C0r: 20.3 kN
UCX08L3d: 40 mm | D: 85 mm | B: 49.2 mm | C: 22 mm | Cr: 32.7 kN | C0r: 20.3 kN
UC308d: 40 mm | D: 90 mm | B: 52 mm | C: 28 mm | Cr: 40.7 kN | C0r: 24.0 kN
UC308L3d: 40 mm | D: 90 mm | B: 52 mm | C: 28 mm | Cr: 40.7 kN | C0r: 24.0 kN
UC209d: 45 mm | D: 85 mm | B: 49.2 mm | C: 22 mm | Cr: 32.7 kN | C0r: 20.3 kN
UC209L3d: 45 mm | D: 85 mm | B: 49.2 mm | C: 22 mm | Cr: 32.7 kN | C0r: 20.3 kN
UCX09d: 45 mm | D: 90 mm | B: 51.6 mm | C: 24 mm | Cr: 35.1 kN | C0r: 23.3 kN
UCX09L3d: 45 mm | D: 90 mm | B: 51.6 mm | C: 24 mm | Cr: 35.1 kN | C0r: 23.3 kN
UC309d: 45 mm | D: 100 mm | B: 57 mm | C: 30 mm | Cr: 48.9 kN | C0r: 29.5 kN
UC309L3d: 45 mm | D: 100 mm | B: 57 mm | C: 30 mm | Cr: 48.9 kN | C0r: 29.5 kN
UC210d: 50 mm | D: 90 mm | B: 51.6 mm | C: 24 mm | Cr: 35.1 kN | C0r: 23.3 kN
UC210L3d: 50 mm | D: 90 mm | B: 51.6 mm | C: 24 mm | Cr: 35.1 kN | C0r: 23.3 kN
UCX10d: 50 mm | D: 100 mm | B: 55.6 mm | C: 25 mm | Cr: 43.4 kN | C0r: 29.4 kN
UCX10L3d: 50 mm | D: 100 mm | B: 55.6 mm | C: 25 mm | Cr: 43.4 kN | C0r: 29.4 kN
UC310d: 50 mm | D: 110 mm | B: 61 mm | C: 32 mm | Cr: 62.0 kN | C0r: 38.3 kN
UC310L3d: 50 mm | D: 110 mm | B: 61 mm | C: 32 mm | Cr: 62.0 kN | C0r: 38.3 kN
UC211d: 55 mm | D: 100 mm | B: 55.6 mm | C: 25 mm | Cr: 43.4 kN | C0r: 29.4 kN
UC211L3d: 55 mm | D: 100 mm | B: 55.6 mm | C: 25 mm | Cr: 43.4 kN | C0r: 29.4 kN
UCX11d: 55 mm | D: 110 mm | B: 65.1 mm | C: 27 mm | Cr: 52.4 kN | C0r: 36.2 kN
UCX11L3d: 55 mm | D: 110 mm | B: 65.1 mm | C: 27 mm | Cr: 52.4 kN | C0r: 36.2 kN
UC311d: 55 mm | D: 120 mm | B: 66 mm | C: 34 mm | Cr: 71.6 kN | C0r: 45.0 kN
UC311L3d: 55 mm | D: 120 mm | B: 66 mm | C: 34 mm | Cr: 71.6 kN | C0r: 45.0 kN
UC212d: 60 mm | D: 110 mm | B: 65.1 mm | C: 27 mm | Cr: 52.4 kN | C0r: 36.2 kN
UC212L3d: 60 mm | D: 110 mm | B: 65.1 mm | C: 27 mm | Cr: 52.4 kN | C0r: 36.2 kN
UCX12d: 60 mm | D: 120 mm | B: 65.1 mm | C: 28 mm | Cr: 57.2 kN | C0r: 40.1 kN
UCX12L3d: 60 mm | D: 120 mm | B: 65.1 mm | C: 28 mm | Cr: 57.2 kN | C0r: 40.1 kN
UC312d: 60 mm | D: 130 mm | B: 71 mm | C: 36 mm | Cr: 81.9 kN | C0r: 52.2 kN
UC312L3d: 60 mm | D: 130 mm | B: 71 mm | C: 36 mm | Cr: 81.9 kN | C0r: 52.2 kN
UC213d: 65 mm | D: 120 mm | B: 65.1 mm | C: 28 mm | Cr: 57.2 kN | C0r: 40.1 kN
UC213L3d: 65 mm | D: 120 mm | B: 65.1 mm | C: 28 mm | Cr: 57.2 kN | C0r: 40.1 kN
UCX13d: 65 mm | D: 125 mm | B: 74.6 mm | C: 30 mm | Cr: 62.2 kN | C0r: 44.1 kN
UCX13L3d: 65 mm | D: 125 mm | B: 74.6 mm | C: 30 mm | Cr: 62.2 kN | C0r: 44.1 kN
UC313d: 65 mm | D: 140 mm | B: 75 mm | C: 38 mm | Cr: 92.7 kN | C0r: 59.9 kN
UC313L3d: 65 mm | D: 140 mm | B: 75 mm | C: 38 mm | Cr: 92.7 kN | C0r: 59.9 kN
UC214d: 70 mm | D: 125 mm | B: 74.6 mm | C: 30 mm | Cr: 62.2 kN | C0r: 44.1 kN
UC214L3d: 70 mm | D: 125 mm | B: 74.6 mm | C: 30 mm | Cr: 62.2 kN | C0r: 44.1 kN
UCX14d: 70 mm | D: 130 mm | B: 77.8 mm | C: 32 mm | Cr: 67.4 kN | C0r: 48.3 kN
UCX14L3d: 70 mm | D: 130 mm | B: 77.8 mm | C: 32 mm | Cr: 67.4 kN | C0r: 48.3 kN
UC314d: 70 mm | D: 150 mm | B: 78 mm | C: 40 mm | Cr: 104 kN | C0r: 68.2 kN
UC314L3d: 70 mm | D: 150 mm | B: 78 mm | C: 40 mm | Cr: 104 kN | C0r: 68.2 kN
UC215d: 75 mm | D: 130 mm | B: 77.8 mm | C: 32 mm | Cr: 67.4 kN | C0r: 48.3 kN
UC215L3d: 75 mm | D: 130 mm | B: 77.8 mm | C: 32 mm | Cr: 67.4 kN | C0r: 48.3 kN
UCX15d: 75 mm | D: 140 mm | B: 82.6 mm | C: 33 mm | Cr: 72.7 kN | C0r: 53.0 kN
UCX15L3d: 75 mm | D: 140 mm | B: 82.6 mm | C: 33 mm | Cr: 72.7 kN | C0r: 53.0 kN
UC315d: 75 mm | D: 160 mm | B: 82 mm | C: 42 mm | Cr: 113 kN | C0r: 77.2 kN
UC315L3d: 75 mm | D: 160 mm | B: 82 mm | C: 42 mm | Cr: 113 kN | C0r: 77.2 kN
UC216d: 80 mm | D: 140 mm | B: 82.6 mm | C: 33 mm | Cr: 72.7 kN | C0r: 53.0 kN
UC216L3d: 80 mm | D: 140 mm | B: 82.6 mm | C: 33 mm | Cr: 72.7 kN | C0r: 53.0 kN
UCX16d: 80 mm | D: 150 mm | B: 85.7 mm | C: 35 mm | Cr: 84.0 kN | C0r: 61.9 kN
UCX16L3d: 80 mm | D: 150 mm | B: 85.7 mm | C: 35 mm | Cr: 84.0 kN | C0r: 61.9 kN
UC316d: 80 mm | D: 170 mm | B: 86 mm | C: 44 mm | Cr: 123 kN | C0r: 86.7 kN
UC316L3d: 80 mm | D: 170 mm | B: 86 mm | C: 44 mm | Cr: 123 kN | C0r: 86.7 kN
UC217d: 85 mm | D: 150 mm | B: 85.7 mm | C: 35 mm | Cr: 84.0 kN | C0r: 61.9 kN
UC217L3d: 85 mm | D: 150 mm | B: 85.7 mm | C: 35 mm | Cr: 84.0 kN | C0r: 61.9 kN
UCX17d: 85 mm | D: 160 mm | B: 96 mm | C: 38 mm | Cr: 96.1 kN | C0r: 71.5 kN
UCX17L3d: 85 mm | D: 160 mm | B: 96 mm | C: 38 mm | Cr: 96.1 kN | C0r: 71.5 kN
UC317d: 85 mm | D: 180 mm | B: 96 mm | C: 46 mm | Cr: 133 kN | C0r: 96.8 kN
UC317L3d: 85 mm | D: 180 mm | B: 96 mm | C: 46 mm | Cr: 133 kN | C0r: 96.8 kN
UC218d: 90 mm | D: 160 mm | B: 96 mm | C: 38 mm | Cr: 96.1 kN | C0r: 71.5 kN
UC218L3d: 90 mm | D: 160 mm | B: 96 mm | C: 38 mm | Cr: 96.1 kN | C0r: 71.5 kN
UCX18d: 90 mm | D: 170 mm | B: 104 mm | C: 40 mm | Cr: 109 kN | C0r: 81.9 kN
UC318d: 90 mm | D: 190 mm | B: 96 mm | C: 48 mm | Cr: 143 kN | C0r: 107 kN
UC318L3d: 90 mm | D: 190 mm | B: 96 mm | C: 48 mm | Cr: 143 kN | C0r: 107 kN
UC319d: 95 mm | D: 200 mm | B: 103 mm | C: 50 mm | Cr: 153 kN | C0r: 119 kN
UC319L3d: 95 mm | D: 200 mm | B: 103 mm | C: 50 mm | Cr: 153 kN | C0r: 119 kN
UCX20d: 100 mm | D: 190 mm | B: 117.5 mm | C: 43 mm | Cr: 133 kN | C0r: 105 kN
UC320d: 100 mm | D: 215 mm | B: 108 mm | C: 54 mm | Cr: 173 kN | C0r: 141 kN
UC320L3d: 100 mm | D: 215 mm | B: 108 mm | C: 54 mm | Cr: 173 kN | C0r: 141 kN
UC321d: 105 mm | D: 225 mm | B: 112 mm | C: 56 mm | Cr: 184 kN | C0r: 153 kN
UC322d: 110 mm | D: 240 mm | B: 117 mm | C: 60 mm | Cr: 205 kN | C0r: 180 kN
UC322L3d: 110 mm | D: 240 mm | B: 117 mm | C: 60 mm | Cr: 205 kN | C0r: 180 kN
UC324d: 120 mm | D: 260 mm | B: 126 mm | C: 64 mm | Cr: 207 kN | C0r: 185 kN
UC324L3d: 120 mm | D: 260 mm | B: 126 mm | C: 64 mm | Cr: 207 kN | C0r: 185 kN
UC326d: 130 mm | D: 280 mm | B: 135 mm | C: 68 mm | Cr: 229 kN | C0r: 214 kN
UC326L3d: 130 mm | D: 280 mm | B: 135 mm | C: 68 mm | Cr: 229 kN | C0r: 214 kN
UC328d: 140 mm | D: 300 mm | B: 145 mm | C: 72 mm | Cr: 253 kN | C0r: 246 kN
UC328L3d: 140 mm | D: 300 mm | B: 145 mm | C: 72 mm | Cr: 253 kN | C0r: 246 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
