KOYO UCP Pillow Block Units (Set Screw Locking)

KOYO UCP Pillow Block Units (Set Screw Locking)

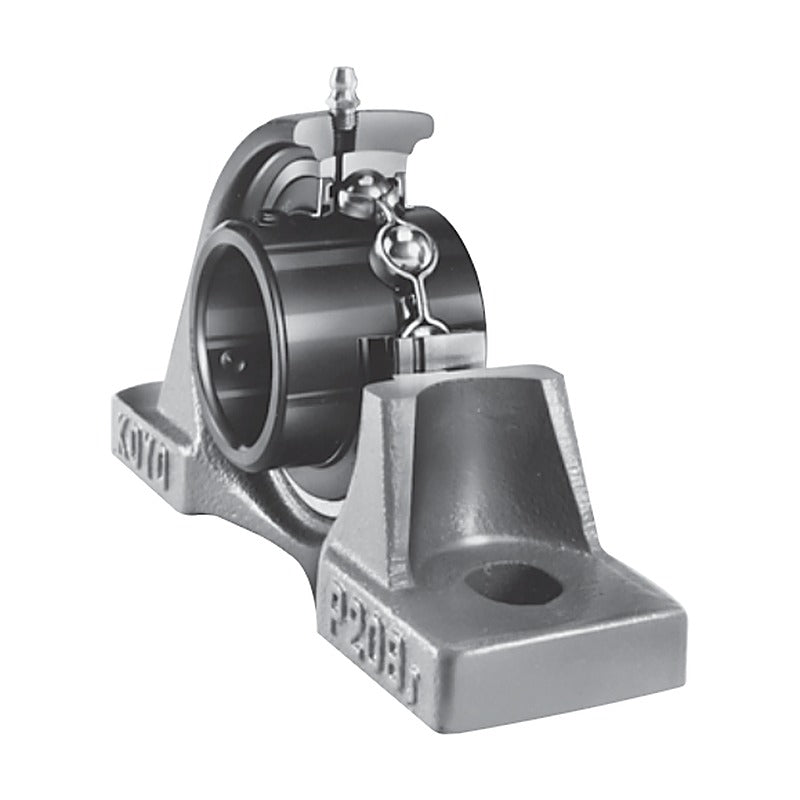

Cast iron pillow block (plummer) units with UC/UCX insert bearings fixed by set screws, shaft 12 to 140 mm, including versions with pressed steel or cast iron covers.

Key features

  • Pre-lubricated sealed ball bearing insert
  • Spherical seating compensates for shaft misalignment
  • Housing and insert replaceable separately
  • Unit number, housing number and insert bearing listed
  • Shaft diameter given in mm

Specifications

Product type Ball bearing unit
Series UCP Pillow Block Units
Seal Insert bearing sealed both sides
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B470-B475
UCP201 Shaft d: 12 mm | Housing: P203 | Bearing: UC201 | Cr: 12.8 kN
UCP201C Shaft d: 12 mm | Base unit: UCP201 | Cover, open end | Bearing: UC201 | Cr: 12.8 kN
UCP201CD Shaft d: 12 mm | Base unit: UCP201 | Cover, closed end | Bearing: UC201 | Cr: 12.8 kN
UCP202 Shaft d: 15 mm | Housing: P203 | Bearing: UC202 | Cr: 12.8 kN
UCP202C Shaft d: 15 mm | Base unit: UCP202 | Cover, open end | Bearing: UC202 | Cr: 12.8 kN
UCP202CD Shaft d: 15 mm | Base unit: UCP202 | Cover, closed end | Bearing: UC202 | Cr: 12.8 kN
UCP203 Shaft d: 17 mm | Housing: P203 | Bearing: UC203 | Cr: 12.8 kN
UCP203C Shaft d: 17 mm | Base unit: UCP203 | Cover, open end | Bearing: UC203 | Cr: 12.8 kN
UCP203CD Shaft d: 17 mm | Base unit: UCP203 | Cover, closed end | Bearing: UC203 | Cr: 12.8 kN
UCP204 Shaft d: 20 mm | Housing: P204 | Bearing: UC204 | Cr: 12.8 kN
UCP204C Shaft d: 20 mm | Base unit: UCP204 | Cover, open end | Bearing: UC204 | Cr: 12.8 kN
UCP204CD Shaft d: 20 mm | Base unit: UCP204 | Cover, closed end | Bearing: UC204 | Cr: 12.8 kN
UCP204FC Shaft d: 20 mm | Base unit: UCP204 | Cast iron cover, open end | Bearing: UC204 | Cr: 12.8 kN
UCP204FCD Shaft d: 20 mm | Base unit: UCP204 | Cast iron cover, closed end | Bearing: UC204 | Cr: 12.8 kN
UCP205 Shaft d: 25 mm | Housing: P205 | Bearing: UC205 | Cr: 14.0 kN
UCP205C Shaft d: 25 mm | Base unit: UCP205 | Cover, open end | Bearing: UC205 | Cr: 14.0 kN
UCP205CD Shaft d: 25 mm | Base unit: UCP205 | Cover, closed end | Bearing: UC205 | Cr: 14.0 kN
UCP205FC Shaft d: 25 mm | Base unit: UCP205 | Cast iron cover, open end | Bearing: UC205 | Cr: 14.0 kN
UCP205FCD Shaft d: 25 mm | Base unit: UCP205 | Cast iron cover, closed end | Bearing: UC205 | Cr: 14.0 kN
UCPX05 Shaft d: 25 mm | Housing: PX05 | Bearing: UCX05 | Cr: 19.5 kN
UCPX05C Shaft d: 25 mm | Base unit: UCPX05 | Cover, open end | Bearing: UCX05 | Cr: 19.5 kN
UCPX05CD Shaft d: 25 mm | Base unit: UCPX05 | Cover, closed end | Bearing: UCX05 | Cr: 19.5 kN
UCP305 Shaft d: 25 mm | Housing: P305 | Bearing: UC305 | Cr: 21.2 kN
UCP305C Shaft d: 25 mm | Base unit: UCP305 | Cover, open end | Bearing: UC305 | Cr: 21.2 kN
UCP305CD Shaft d: 25 mm | Base unit: UCP305 | Cover, closed end | Bearing: UC305 | Cr: 21.2 kN
UCP206 Shaft d: 30 mm | Housing: P206 | Bearing: UC206 | Cr: 19.5 kN
UCP206C Shaft d: 30 mm | Base unit: UCP206 | Cover, open end | Bearing: UC206 | Cr: 19.5 kN
UCP206CD Shaft d: 30 mm | Base unit: UCP206 | Cover, closed end | Bearing: UC206 | Cr: 19.5 kN
UCP206FC Shaft d: 30 mm | Base unit: UCP206 | Cast iron cover, open end | Bearing: UC206 | Cr: 19.5 kN
UCP206FCD Shaft d: 30 mm | Base unit: UCP206 | Cast iron cover, closed end | Bearing: UC206 | Cr: 19.5 kN
UCPX06 Shaft d: 30 mm | Housing: PX06 | Bearing: UCX06 | Cr: 25.7 kN
UCPX06C Shaft d: 30 mm | Base unit: UCPX06 | Cover, open end | Bearing: UCX06 | Cr: 25.7 kN
UCPX06CD Shaft d: 30 mm | Base unit: UCPX06 | Cover, closed end | Bearing: UCX06 | Cr: 25.7 kN
UCP306 Shaft d: 30 mm | Housing: P306 | Bearing: UC306 | Cr: 26.7 kN
UCP306C Shaft d: 30 mm | Base unit: UCP306 | Cover, open end | Bearing: UC306 | Cr: 26.7 kN
UCP306CD Shaft d: 30 mm | Base unit: UCP306 | Cover, closed end | Bearing: UC306 | Cr: 26.7 kN
UCP207 Shaft d: 35 mm | Housing: P207 | Bearing: UC207 | Cr: 25.7 kN
UCP207C Shaft d: 35 mm | Base unit: UCP207 | Cover, open end | Bearing: UC207 | Cr: 25.7 kN
UCP207CD Shaft d: 35 mm | Base unit: UCP207 | Cover, closed end | Bearing: UC207 | Cr: 25.7 kN
UCP207FC Shaft d: 35 mm | Base unit: UCP207 | Cast iron cover, open end | Bearing: UC207 | Cr: 25.7 kN
UCP207FCD Shaft d: 35 mm | Base unit: UCP207 | Cast iron cover, closed end | Bearing: UC207 | Cr: 25.7 kN
UCPX07 Shaft d: 35 mm | Housing: PX07 | Bearing: UCX07 | Cr: 29.1 kN
UCPX07C Shaft d: 35 mm | Base unit: UCPX07 | Cover, open end | Bearing: UCX07 | Cr: 29.1 kN
UCPX07CD Shaft d: 35 mm | Base unit: UCPX07 | Cover, closed end | Bearing: UCX07 | Cr: 29.1 kN
UCP307 Shaft d: 35 mm | Housing: P307 | Bearing: UC307 | Cr: 33.4 kN
UCP307C Shaft d: 35 mm | Base unit: UCP307 | Cover, open end | Bearing: UC307 | Cr: 33.4 kN
UCP307CD Shaft d: 35 mm | Base unit: UCP307 | Cover, closed end | Bearing: UC307 | Cr: 33.4 kN
UCP208 Shaft d: 40 mm | Housing: P208 | Bearing: UC208 | Cr: 29.1 kN
UCP208C Shaft d: 40 mm | Base unit: UCP208 | Cover, open end | Bearing: UC208 | Cr: 29.1 kN
UCP208CD Shaft d: 40 mm | Base unit: UCP208 | Cover, closed end | Bearing: UC208 | Cr: 29.1 kN
UCP208FC Shaft d: 40 mm | Base unit: UCP208 | Cast iron cover, open end | Bearing: UC208 | Cr: 29.1 kN
UCP208FCD Shaft d: 40 mm | Base unit: UCP208 | Cast iron cover, closed end | Bearing: UC208 | Cr: 29.1 kN
UCPX08 Shaft d: 40 mm | Housing: PX08 | Bearing: UCX08 | Cr: 32.7 kN
UCPX08C Shaft d: 40 mm | Base unit: UCPX08 | Cover, open end | Bearing: UCX08 | Cr: 32.7 kN
UCPX08CD Shaft d: 40 mm | Base unit: UCPX08 | Cover, closed end | Bearing: UCX08 | Cr: 32.7 kN
UCP308 Shaft d: 40 mm | Housing: P308 | Bearing: UC308 | Cr: 40.7 kN
UCP308C Shaft d: 40 mm | Base unit: UCP308 | Cover, open end | Bearing: UC308 | Cr: 40.7 kN
UCP308CD Shaft d: 40 mm | Base unit: UCP308 | Cover, closed end | Bearing: UC308 | Cr: 40.7 kN
UCP209 Shaft d: 45 mm | Housing: P209 | Bearing: UC209 | Cr: 32.7 kN
UCP209C Shaft d: 45 mm | Base unit: UCP209 | Cover, open end | Bearing: UC209 | Cr: 32.7 kN
UCP209CD Shaft d: 45 mm | Base unit: UCP209 | Cover, closed end | Bearing: UC209 | Cr: 32.7 kN
UCP209FC Shaft d: 45 mm | Base unit: UCP209 | Cast iron cover, open end | Bearing: UC209 | Cr: 32.7 kN
UCP209FCD Shaft d: 45 mm | Base unit: UCP209 | Cast iron cover, closed end | Bearing: UC209 | Cr: 32.7 kN
UCPX09 Shaft d: 45 mm | Housing: PX09 | Bearing: UCX09 | Cr: 35.1 kN
UCPX09C Shaft d: 45 mm | Base unit: UCPX09 | Cover, open end | Bearing: UCX09 | Cr: 35.1 kN
UCPX09CD Shaft d: 45 mm | Base unit: UCPX09 | Cover, closed end | Bearing: UCX09 | Cr: 35.1 kN
UCP309 Shaft d: 45 mm | Housing: P309 | Bearing: UC309 | Cr: 48.9 kN
UCP309C Shaft d: 45 mm | Base unit: UCP309 | Cover, open end | Bearing: UC309 | Cr: 48.9 kN
UCP309CD Shaft d: 45 mm | Base unit: UCP309 | Cover, closed end | Bearing: UC309 | Cr: 48.9 kN
UCP210 Shaft d: 50 mm | Housing: P210 | Bearing: UC210 | Cr: 35.1 kN
UCP210C Shaft d: 50 mm | Base unit: UCP210 | Cover, open end | Bearing: UC210 | Cr: 35.1 kN
UCP210CD Shaft d: 50 mm | Base unit: UCP210 | Cover, closed end | Bearing: UC210 | Cr: 35.1 kN
UCP210FC Shaft d: 50 mm | Base unit: UCP210 | Cast iron cover, open end | Bearing: UC210 | Cr: 35.1 kN
UCP210FCD Shaft d: 50 mm | Base unit: UCP210 | Cast iron cover, closed end | Bearing: UC210 | Cr: 35.1 kN
UCPX10 Shaft d: 50 mm | Housing: PX10 | Bearing: UCX10 | Cr: 43.4 kN
UCPX10C Shaft d: 50 mm | Base unit: UCPX10 | Cover, open end | Bearing: UCX10 | Cr: 43.4 kN
UCPX10CD Shaft d: 50 mm | Base unit: UCPX10 | Cover, closed end | Bearing: UCX10 | Cr: 43.4 kN
UCP310 Shaft d: 50 mm | Housing: P310 | Bearing: UC310 | Cr: 62.0 kN
UCP310C Shaft d: 50 mm | Base unit: UCP310 | Cover, open end | Bearing: UC310 | Cr: 62.0 kN
UCP310CD Shaft d: 50 mm | Base unit: UCP310 | Cover, closed end | Bearing: UC310 | Cr: 62.0 kN
UCP211 Shaft d: 55 mm | Housing: P211 | Bearing: UC211 | Cr: 43.4 kN
UCP211C Shaft d: 55 mm | Base unit: UCP211 | Cover, open end | Bearing: UC211 | Cr: 43.4 kN
UCP211CD Shaft d: 55 mm | Base unit: UCP211 | Cover, closed end | Bearing: UC211 | Cr: 43.4 kN
UCP211FC Shaft d: 55 mm | Base unit: UCP211 | Cast iron cover, open end | Bearing: UC211 | Cr: 43.4 kN
UCP211FCD Shaft d: 55 mm | Base unit: UCP211 | Cast iron cover, closed end | Bearing: UC211 | Cr: 43.4 kN
UCPX11 Shaft d: 55 mm | Housing: PX11 | Bearing: UCX11 | Cr: 52.4 kN
UCPX11C Shaft d: 55 mm | Base unit: UCPX11 | Cover, open end | Bearing: UCX11 | Cr: 52.4 kN
UCPX11CD Shaft d: 55 mm | Base unit: UCPX11 | Cover, closed end | Bearing: UCX11 | Cr: 52.4 kN
UCP311 Shaft d: 55 mm | Housing: P311 | Bearing: UC311 | Cr: 71.6 kN
UCP311C Shaft d: 55 mm | Base unit: UCP311 | Cover, open end | Bearing: UC311 | Cr: 71.6 kN
UCP311CD Shaft d: 55 mm | Base unit: UCP311 | Cover, closed end | Bearing: UC311 | Cr: 71.6 kN
UCP212 Shaft d: 60 mm | Housing: P212 | Bearing: UC212 | Cr: 52.4 kN
UCP212C Shaft d: 60 mm | Base unit: UCP212 | Cover, open end | Bearing: UC212 | Cr: 52.4 kN
UCP212CD Shaft d: 60 mm | Base unit: UCP212 | Cover, closed end | Bearing: UC212 | Cr: 52.4 kN
UCP212FC Shaft d: 60 mm | Base unit: UCP212 | Cast iron cover, open end | Bearing: UC212 | Cr: 52.4 kN
UCP212FCD Shaft d: 60 mm | Base unit: UCP212 | Cast iron cover, closed end | Bearing: UC212 | Cr: 52.4 kN
UCPX12 Shaft d: 60 mm | Housing: PX12 | Bearing: UCX12 | Cr: 57.2 kN
UCPX12C Shaft d: 60 mm | Base unit: UCPX12 | Cover, open end | Bearing: UCX12 | Cr: 57.2 kN
UCPX12CD Shaft d: 60 mm | Base unit: UCPX12 | Cover, closed end | Bearing: UCX12 | Cr: 57.2 kN
UCP312 Shaft d: 60 mm | Housing: P312 | Bearing: UC312 | Cr: 81.9 kN
UCP312C Shaft d: 60 mm | Base unit: UCP312 | Cover, open end | Bearing: UC312 | Cr: 81.9 kN
UCP312CD Shaft d: 60 mm | Base unit: UCP312 | Cover, closed end | Bearing: UC312 | Cr: 81.9 kN
UCP213 Shaft d: 65 mm | Housing: P213 | Bearing: UC213 | Cr: 57.2 kN
UCP213C Shaft d: 65 mm | Base unit: UCP213 | Cover, open end | Bearing: UC213 | Cr: 57.2 kN
UCP213CD Shaft d: 65 mm | Base unit: UCP213 | Cover, closed end | Bearing: UC213 | Cr: 57.2 kN
UCP213FC Shaft d: 65 mm | Base unit: UCP213 | Cast iron cover, open end | Bearing: UC213 | Cr: 57.2 kN
UCP213FCD Shaft d: 65 mm | Base unit: UCP213 | Cast iron cover, closed end | Bearing: UC213 | Cr: 57.2 kN
UCPX13 Shaft d: 65 mm | Housing: PX13 | Bearing: UCX13 | Cr: 62.2 kN
UCPX13C Shaft d: 65 mm | Base unit: UCPX13 | Cover, open end | Bearing: UCX13 | Cr: 62.2 kN
UCPX13CD Shaft d: 65 mm | Base unit: UCPX13 | Cover, closed end | Bearing: UCX13 | Cr: 62.2 kN
UCP313 Shaft d: 65 mm | Housing: P313 | Bearing: UC313 | Cr: 92.7 kN
UCP313C Shaft d: 65 mm | Base unit: UCP313 | Cover, open end | Bearing: UC313 | Cr: 92.7 kN
UCP313CD Shaft d: 65 mm | Base unit: UCP313 | Cover, closed end | Bearing: UC313 | Cr: 92.7 kN
UCP214 Shaft d: 70 mm | Housing: P214 | Bearing: UC214 | Cr: 62.2 kN
UCP214C Shaft d: 70 mm | Base unit: UCP214 | Cover, open end | Bearing: UC214 | Cr: 62.2 kN
UCP214CD Shaft d: 70 mm | Base unit: UCP214 | Cover, closed end | Bearing: UC214 | Cr: 62.2 kN
UCP214FC Shaft d: 70 mm | Base unit: UCP214 | Cast iron cover, open end | Bearing: UC214 | Cr: 62.2 kN
UCP214FCD Shaft d: 70 mm | Base unit: UCP214 | Cast iron cover, closed end | Bearing: UC214 | Cr: 62.2 kN
UCPX14 Shaft d: 70 mm | Housing: PX14 | Bearing: UCX14 | Cr: 67.4 kN
UCPX14C Shaft d: 70 mm | Base unit: UCPX14 | Cover, open end | Bearing: UCX14 | Cr: 67.4 kN
UCPX14CD Shaft d: 70 mm | Base unit: UCPX14 | Cover, closed end | Bearing: UCX14 | Cr: 67.4 kN
UCP314 Shaft d: 70 mm | Housing: P314 | Bearing: UC314 | Cr: 104 kN
UCP314C Shaft d: 70 mm | Base unit: UCP314 | Cover, open end | Bearing: UC314 | Cr: 104 kN
UCP314CD Shaft d: 70 mm | Base unit: UCP314 | Cover, closed end | Bearing: UC314 | Cr: 104 kN
UCP215 Shaft d: 75 mm | Housing: P215 | Bearing: UC215 | Cr: 67.4 kN
UCP215C Shaft d: 75 mm | Base unit: UCP215 | Cover, open end | Bearing: UC215 | Cr: 67.4 kN
UCP215CD Shaft d: 75 mm | Base unit: UCP215 | Cover, closed end | Bearing: UC215 | Cr: 67.4 kN
UCP215FC Shaft d: 75 mm | Base unit: UCP215 | Cast iron cover, open end | Bearing: UC215 | Cr: 67.4 kN
UCP215FCD Shaft d: 75 mm | Base unit: UCP215 | Cast iron cover, closed end | Bearing: UC215 | Cr: 67.4 kN
UCPX15 Shaft d: 75 mm | Housing: PX15 | Bearing: UCX15 | Cr: 72.7 kN
UCPX15C Shaft d: 75 mm | Base unit: UCPX15 | Cover, open end | Bearing: UCX15 | Cr: 72.7 kN
UCPX15CD Shaft d: 75 mm | Base unit: UCPX15 | Cover, closed end | Bearing: UCX15 | Cr: 72.7 kN
UCP315 Shaft d: 75 mm | Housing: P315 | Bearing: UC315 | Cr: 113 kN
UCP315C Shaft d: 75 mm | Base unit: UCP315 | Cover, open end | Bearing: UC315 | Cr: 113 kN
UCP315CD Shaft d: 75 mm | Base unit: UCP315 | Cover, closed end | Bearing: UC315 | Cr: 113 kN
UCP216 Shaft d: 80 mm | Housing: P216 | Bearing: UC216 | Cr: 72.7 kN
UCP216C Shaft d: 80 mm | Base unit: UCP216 | Cover, open end | Bearing: UC216 | Cr: 72.7 kN
UCP216CD Shaft d: 80 mm | Base unit: UCP216 | Cover, closed end | Bearing: UC216 | Cr: 72.7 kN
UCP216FC Shaft d: 80 mm | Base unit: UCP216 | Cast iron cover, open end | Bearing: UC216 | Cr: 72.7 kN
UCP216FCD Shaft d: 80 mm | Base unit: UCP216 | Cast iron cover, closed end | Bearing: UC216 | Cr: 72.7 kN
UCPX16 Shaft d: 80 mm | Housing: PX16 | Bearing: UCX16 | Cr: 84.0 kN
UCPX16C Shaft d: 80 mm | Base unit: UCPX16 | Cover, open end | Bearing: UCX16 | Cr: 84.0 kN
UCPX16CD Shaft d: 80 mm | Base unit: UCPX16 | Cover, closed end | Bearing: UCX16 | Cr: 84.0 kN
UCP316 Shaft d: 80 mm | Housing: P316 | Bearing: UC316 | Cr: 123 kN
UCP316C Shaft d: 80 mm | Base unit: UCP316 | Cover, open end | Bearing: UC316 | Cr: 123 kN
UCP316CD Shaft d: 80 mm | Base unit: UCP316 | Cover, closed end | Bearing: UC316 | Cr: 123 kN
UCP217 Shaft d: 85 mm | Housing: P217 | Bearing: UC217 | Cr: 84.0 kN
UCP217C Shaft d: 85 mm | Base unit: UCP217 | Cover, open end | Bearing: UC217 | Cr: 84.0 kN
UCP217CD Shaft d: 85 mm | Base unit: UCP217 | Cover, closed end | Bearing: UC217 | Cr: 84.0 kN
UCP217FC Shaft d: 85 mm | Base unit: UCP217 | Cast iron cover, open end | Bearing: UC217 | Cr: 84.0 kN
UCP217FCD Shaft d: 85 mm | Base unit: UCP217 | Cast iron cover, closed end | Bearing: UC217 | Cr: 84.0 kN
UCPX17 Shaft d: 85 mm | Housing: PX17 | Bearing: UCX17 | Cr: 96.1 kN
UCPX17C Shaft d: 85 mm | Base unit: UCPX17 | Cover, open end | Bearing: UCX17 | Cr: 96.1 kN
UCPX17CD Shaft d: 85 mm | Base unit: UCPX17 | Cover, closed end | Bearing: UCX17 | Cr: 96.1 kN
UCP317 Shaft d: 85 mm | Housing: P317 | Bearing: UC317 | Cr: 133 kN
UCP317C Shaft d: 85 mm | Base unit: UCP317 | Cover, open end | Bearing: UC317 | Cr: 133 kN
UCP317CD Shaft d: 85 mm | Base unit: UCP317 | Cover, closed end | Bearing: UC317 | Cr: 133 kN
UCP218 Shaft d: 90 mm | Housing: P218 | Bearing: UC218 | Cr: 96.1 kN
UCP218C Shaft d: 90 mm | Base unit: UCP218 | Cover, open end | Bearing: UC218 | Cr: 96.1 kN
UCP218CD Shaft d: 90 mm | Base unit: UCP218 | Cover, closed end | Bearing: UC218 | Cr: 96.1 kN
UCP218FC Shaft d: 90 mm | Base unit: UCP218 | Cast iron cover, open end | Bearing: UC218 | Cr: 96.1 kN
UCP218FCD Shaft d: 90 mm | Base unit: UCP218 | Cast iron cover, closed end | Bearing: UC218 | Cr: 96.1 kN
UCPX18 Shaft d: 90 mm | Housing: PX18 | Bearing: UCX18 | Cr: 109 kN
UCPX18C Shaft d: 90 mm | Base unit: UCPX18 | Cover, open end | Bearing: UCX18 | Cr: 109 kN
UCPX18CD Shaft d: 90 mm | Base unit: UCPX18 | Cover, closed end | Bearing: UCX18 | Cr: 109 kN
UCP318 Shaft d: 90 mm | Housing: P318 | Bearing: UC318 | Cr: 143 kN
UCP318C Shaft d: 90 mm | Base unit: UCP318 | Cover, open end | Bearing: UC318 | Cr: 143 kN
UCP318CD Shaft d: 90 mm | Base unit: UCP318 | Cover, closed end | Bearing: UC318 | Cr: 143 kN
UCP319 Shaft d: 95 mm | Housing: P319 | Bearing: UC319 | Cr: 153 kN
UCP319C Shaft d: 95 mm | Base unit: UCP319 | Cover, open end | Bearing: UC319 | Cr: 153 kN
UCP319CD Shaft d: 95 mm | Base unit: UCP319 | Cover, closed end | Bearing: UC319 | Cr: 153 kN
UCPX20 Shaft d: 100 mm | Housing: PX20 | Bearing: UCX20 | Cr: 133 kN
UCPX20C Shaft d: 100 mm | Base unit: UCPX20 | Cover, open end | Bearing: UCX20 | Cr: 133 kN
UCPX20CD Shaft d: 100 mm | Base unit: UCPX20 | Cover, closed end | Bearing: UCX20 | Cr: 133 kN
UCP320 Shaft d: 100 mm | Housing: P320 | Bearing: UC320 | Cr: 173 kN
UCP320C Shaft d: 100 mm | Base unit: UCP320 | Cover, open end | Bearing: UC320 | Cr: 173 kN
UCP320CD Shaft d: 100 mm | Base unit: UCP320 | Cover, closed end | Bearing: UC320 | Cr: 173 kN
UCP321 Shaft d: 105 mm | Housing: P321 | Bearing: UC321 | Cr: 184 kN
UCP321C Shaft d: 105 mm | Base unit: UCP321 | Cover, open end | Bearing: UC321 | Cr: 184 kN
UCP321CD Shaft d: 105 mm | Base unit: UCP321 | Cover, closed end | Bearing: UC321 | Cr: 184 kN
UCP322 Shaft d: 110 mm | Housing: P322 | Bearing: UC322 | Cr: 205 kN
UCP322C Shaft d: 110 mm | Base unit: UCP322 | Cover, open end | Bearing: UC322 | Cr: 205 kN
UCP322CD Shaft d: 110 mm | Base unit: UCP322 | Cover, closed end | Bearing: UC322 | Cr: 205 kN
UCP324 Shaft d: 120 mm | Housing: P324 | Bearing: UC324 | Cr: 207 kN
UCP324C Shaft d: 120 mm | Base unit: UCP324 | Cover, open end | Bearing: UC324 | Cr: 207 kN
UCP324CD Shaft d: 120 mm | Base unit: UCP324 | Cover, closed end | Bearing: UC324 | Cr: 207 kN
UCP326 Shaft d: 130 mm | Housing: P326 | Bearing: UC326 | Cr: 229 kN
UCP326C Shaft d: 130 mm | Base unit: UCP326 | Cover, open end | Bearing: UC326 | Cr: 229 kN
UCP326CD Shaft d: 130 mm | Base unit: UCP326 | Cover, closed end | Bearing: UC326 | Cr: 229 kN
UCP328 Shaft d: 140 mm | Housing: P328 | Bearing: UC328 | Cr: 253 kN
UCP328C Shaft d: 140 mm | Base unit: UCP328 | Cover, open end | Bearing: UC328 | Cr: 253 kN
UCP328CD Shaft d: 140 mm | Base unit: UCP328 | Cover, closed end | Bearing: UC328 | Cr: 253 kN
Mounted Bearing UnitsKOYO
192 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO UCP Pillow Block Units (Set Screw Locking)

Brand KOYO·Mounted Bearing Units

Available part numbers (192)

UCP201, UCP201C, UCP201CD, UCP202, UCP202C, UCP202CD, UCP203, UCP203C, UCP203CD, UCP204 + 182 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCP201Shaft d: 12 mm | Housing: P203 | Bearing: UC201 | Cr: 12.8 kN
UCP201CShaft d: 12 mm | Base unit: UCP201 | Cover, open end | Bearing: UC201 | Cr: 12.8 kN
UCP201CDShaft d: 12 mm | Base unit: UCP201 | Cover, closed end | Bearing: UC201 | Cr: 12.8 kN
UCP202Shaft d: 15 mm | Housing: P203 | Bearing: UC202 | Cr: 12.8 kN
UCP202CShaft d: 15 mm | Base unit: UCP202 | Cover, open end | Bearing: UC202 | Cr: 12.8 kN
UCP202CDShaft d: 15 mm | Base unit: UCP202 | Cover, closed end | Bearing: UC202 | Cr: 12.8 kN
UCP203Shaft d: 17 mm | Housing: P203 | Bearing: UC203 | Cr: 12.8 kN
UCP203CShaft d: 17 mm | Base unit: UCP203 | Cover, open end | Bearing: UC203 | Cr: 12.8 kN
UCP203CDShaft d: 17 mm | Base unit: UCP203 | Cover, closed end | Bearing: UC203 | Cr: 12.8 kN
UCP204Shaft d: 20 mm | Housing: P204 | Bearing: UC204 | Cr: 12.8 kN
UCP204CShaft d: 20 mm | Base unit: UCP204 | Cover, open end | Bearing: UC204 | Cr: 12.8 kN
UCP204CDShaft d: 20 mm | Base unit: UCP204 | Cover, closed end | Bearing: UC204 | Cr: 12.8 kN
UCP204FCShaft d: 20 mm | Base unit: UCP204 | Cast iron cover, open end | Bearing: UC204 | Cr: 12.8 kN
UCP204FCDShaft d: 20 mm | Base unit: UCP204 | Cast iron cover, closed end | Bearing: UC204 | Cr: 12.8 kN
UCP205Shaft d: 25 mm | Housing: P205 | Bearing: UC205 | Cr: 14.0 kN
UCP205CShaft d: 25 mm | Base unit: UCP205 | Cover, open end | Bearing: UC205 | Cr: 14.0 kN
UCP205CDShaft d: 25 mm | Base unit: UCP205 | Cover, closed end | Bearing: UC205 | Cr: 14.0 kN
UCP205FCShaft d: 25 mm | Base unit: UCP205 | Cast iron cover, open end | Bearing: UC205 | Cr: 14.0 kN
UCP205FCDShaft d: 25 mm | Base unit: UCP205 | Cast iron cover, closed end | Bearing: UC205 | Cr: 14.0 kN
UCPX05Shaft d: 25 mm | Housing: PX05 | Bearing: UCX05 | Cr: 19.5 kN
UCPX05CShaft d: 25 mm | Base unit: UCPX05 | Cover, open end | Bearing: UCX05 | Cr: 19.5 kN
UCPX05CDShaft d: 25 mm | Base unit: UCPX05 | Cover, closed end | Bearing: UCX05 | Cr: 19.5 kN
UCP305Shaft d: 25 mm | Housing: P305 | Bearing: UC305 | Cr: 21.2 kN
UCP305CShaft d: 25 mm | Base unit: UCP305 | Cover, open end | Bearing: UC305 | Cr: 21.2 kN
UCP305CDShaft d: 25 mm | Base unit: UCP305 | Cover, closed end | Bearing: UC305 | Cr: 21.2 kN
UCP206Shaft d: 30 mm | Housing: P206 | Bearing: UC206 | Cr: 19.5 kN
UCP206CShaft d: 30 mm | Base unit: UCP206 | Cover, open end | Bearing: UC206 | Cr: 19.5 kN
UCP206CDShaft d: 30 mm | Base unit: UCP206 | Cover, closed end | Bearing: UC206 | Cr: 19.5 kN
UCP206FCShaft d: 30 mm | Base unit: UCP206 | Cast iron cover, open end | Bearing: UC206 | Cr: 19.5 kN
UCP206FCDShaft d: 30 mm | Base unit: UCP206 | Cast iron cover, closed end | Bearing: UC206 | Cr: 19.5 kN
UCPX06Shaft d: 30 mm | Housing: PX06 | Bearing: UCX06 | Cr: 25.7 kN
UCPX06CShaft d: 30 mm | Base unit: UCPX06 | Cover, open end | Bearing: UCX06 | Cr: 25.7 kN
UCPX06CDShaft d: 30 mm | Base unit: UCPX06 | Cover, closed end | Bearing: UCX06 | Cr: 25.7 kN
UCP306Shaft d: 30 mm | Housing: P306 | Bearing: UC306 | Cr: 26.7 kN
UCP306CShaft d: 30 mm | Base unit: UCP306 | Cover, open end | Bearing: UC306 | Cr: 26.7 kN
UCP306CDShaft d: 30 mm | Base unit: UCP306 | Cover, closed end | Bearing: UC306 | Cr: 26.7 kN
UCP207Shaft d: 35 mm | Housing: P207 | Bearing: UC207 | Cr: 25.7 kN
UCP207CShaft d: 35 mm | Base unit: UCP207 | Cover, open end | Bearing: UC207 | Cr: 25.7 kN
UCP207CDShaft d: 35 mm | Base unit: UCP207 | Cover, closed end | Bearing: UC207 | Cr: 25.7 kN
UCP207FCShaft d: 35 mm | Base unit: UCP207 | Cast iron cover, open end | Bearing: UC207 | Cr: 25.7 kN
UCP207FCDShaft d: 35 mm | Base unit: UCP207 | Cast iron cover, closed end | Bearing: UC207 | Cr: 25.7 kN
UCPX07Shaft d: 35 mm | Housing: PX07 | Bearing: UCX07 | Cr: 29.1 kN
UCPX07CShaft d: 35 mm | Base unit: UCPX07 | Cover, open end | Bearing: UCX07 | Cr: 29.1 kN
UCPX07CDShaft d: 35 mm | Base unit: UCPX07 | Cover, closed end | Bearing: UCX07 | Cr: 29.1 kN
UCP307Shaft d: 35 mm | Housing: P307 | Bearing: UC307 | Cr: 33.4 kN
UCP307CShaft d: 35 mm | Base unit: UCP307 | Cover, open end | Bearing: UC307 | Cr: 33.4 kN
UCP307CDShaft d: 35 mm | Base unit: UCP307 | Cover, closed end | Bearing: UC307 | Cr: 33.4 kN
UCP208Shaft d: 40 mm | Housing: P208 | Bearing: UC208 | Cr: 29.1 kN
UCP208CShaft d: 40 mm | Base unit: UCP208 | Cover, open end | Bearing: UC208 | Cr: 29.1 kN
UCP208CDShaft d: 40 mm | Base unit: UCP208 | Cover, closed end | Bearing: UC208 | Cr: 29.1 kN
UCP208FCShaft d: 40 mm | Base unit: UCP208 | Cast iron cover, open end | Bearing: UC208 | Cr: 29.1 kN
UCP208FCDShaft d: 40 mm | Base unit: UCP208 | Cast iron cover, closed end | Bearing: UC208 | Cr: 29.1 kN
UCPX08Shaft d: 40 mm | Housing: PX08 | Bearing: UCX08 | Cr: 32.7 kN
UCPX08CShaft d: 40 mm | Base unit: UCPX08 | Cover, open end | Bearing: UCX08 | Cr: 32.7 kN
UCPX08CDShaft d: 40 mm | Base unit: UCPX08 | Cover, closed end | Bearing: UCX08 | Cr: 32.7 kN
UCP308Shaft d: 40 mm | Housing: P308 | Bearing: UC308 | Cr: 40.7 kN
UCP308CShaft d: 40 mm | Base unit: UCP308 | Cover, open end | Bearing: UC308 | Cr: 40.7 kN
UCP308CDShaft d: 40 mm | Base unit: UCP308 | Cover, closed end | Bearing: UC308 | Cr: 40.7 kN
UCP209Shaft d: 45 mm | Housing: P209 | Bearing: UC209 | Cr: 32.7 kN
UCP209CShaft d: 45 mm | Base unit: UCP209 | Cover, open end | Bearing: UC209 | Cr: 32.7 kN
UCP209CDShaft d: 45 mm | Base unit: UCP209 | Cover, closed end | Bearing: UC209 | Cr: 32.7 kN
UCP209FCShaft d: 45 mm | Base unit: UCP209 | Cast iron cover, open end | Bearing: UC209 | Cr: 32.7 kN
UCP209FCDShaft d: 45 mm | Base unit: UCP209 | Cast iron cover, closed end | Bearing: UC209 | Cr: 32.7 kN
UCPX09Shaft d: 45 mm | Housing: PX09 | Bearing: UCX09 | Cr: 35.1 kN
UCPX09CShaft d: 45 mm | Base unit: UCPX09 | Cover, open end | Bearing: UCX09 | Cr: 35.1 kN
UCPX09CDShaft d: 45 mm | Base unit: UCPX09 | Cover, closed end | Bearing: UCX09 | Cr: 35.1 kN
UCP309Shaft d: 45 mm | Housing: P309 | Bearing: UC309 | Cr: 48.9 kN
UCP309CShaft d: 45 mm | Base unit: UCP309 | Cover, open end | Bearing: UC309 | Cr: 48.9 kN
UCP309CDShaft d: 45 mm | Base unit: UCP309 | Cover, closed end | Bearing: UC309 | Cr: 48.9 kN
UCP210Shaft d: 50 mm | Housing: P210 | Bearing: UC210 | Cr: 35.1 kN
UCP210CShaft d: 50 mm | Base unit: UCP210 | Cover, open end | Bearing: UC210 | Cr: 35.1 kN
UCP210CDShaft d: 50 mm | Base unit: UCP210 | Cover, closed end | Bearing: UC210 | Cr: 35.1 kN
UCP210FCShaft d: 50 mm | Base unit: UCP210 | Cast iron cover, open end | Bearing: UC210 | Cr: 35.1 kN
UCP210FCDShaft d: 50 mm | Base unit: UCP210 | Cast iron cover, closed end | Bearing: UC210 | Cr: 35.1 kN
UCPX10Shaft d: 50 mm | Housing: PX10 | Bearing: UCX10 | Cr: 43.4 kN
UCPX10CShaft d: 50 mm | Base unit: UCPX10 | Cover, open end | Bearing: UCX10 | Cr: 43.4 kN
UCPX10CDShaft d: 50 mm | Base unit: UCPX10 | Cover, closed end | Bearing: UCX10 | Cr: 43.4 kN
UCP310Shaft d: 50 mm | Housing: P310 | Bearing: UC310 | Cr: 62.0 kN
UCP310CShaft d: 50 mm | Base unit: UCP310 | Cover, open end | Bearing: UC310 | Cr: 62.0 kN
UCP310CDShaft d: 50 mm | Base unit: UCP310 | Cover, closed end | Bearing: UC310 | Cr: 62.0 kN
UCP211Shaft d: 55 mm | Housing: P211 | Bearing: UC211 | Cr: 43.4 kN
UCP211CShaft d: 55 mm | Base unit: UCP211 | Cover, open end | Bearing: UC211 | Cr: 43.4 kN
UCP211CDShaft d: 55 mm | Base unit: UCP211 | Cover, closed end | Bearing: UC211 | Cr: 43.4 kN
UCP211FCShaft d: 55 mm | Base unit: UCP211 | Cast iron cover, open end | Bearing: UC211 | Cr: 43.4 kN
UCP211FCDShaft d: 55 mm | Base unit: UCP211 | Cast iron cover, closed end | Bearing: UC211 | Cr: 43.4 kN
UCPX11Shaft d: 55 mm | Housing: PX11 | Bearing: UCX11 | Cr: 52.4 kN
UCPX11CShaft d: 55 mm | Base unit: UCPX11 | Cover, open end | Bearing: UCX11 | Cr: 52.4 kN
UCPX11CDShaft d: 55 mm | Base unit: UCPX11 | Cover, closed end | Bearing: UCX11 | Cr: 52.4 kN
UCP311Shaft d: 55 mm | Housing: P311 | Bearing: UC311 | Cr: 71.6 kN
UCP311CShaft d: 55 mm | Base unit: UCP311 | Cover, open end | Bearing: UC311 | Cr: 71.6 kN
UCP311CDShaft d: 55 mm | Base unit: UCP311 | Cover, closed end | Bearing: UC311 | Cr: 71.6 kN
UCP212Shaft d: 60 mm | Housing: P212 | Bearing: UC212 | Cr: 52.4 kN
UCP212CShaft d: 60 mm | Base unit: UCP212 | Cover, open end | Bearing: UC212 | Cr: 52.4 kN
UCP212CDShaft d: 60 mm | Base unit: UCP212 | Cover, closed end | Bearing: UC212 | Cr: 52.4 kN
UCP212FCShaft d: 60 mm | Base unit: UCP212 | Cast iron cover, open end | Bearing: UC212 | Cr: 52.4 kN
UCP212FCDShaft d: 60 mm | Base unit: UCP212 | Cast iron cover, closed end | Bearing: UC212 | Cr: 52.4 kN
UCPX12Shaft d: 60 mm | Housing: PX12 | Bearing: UCX12 | Cr: 57.2 kN
UCPX12CShaft d: 60 mm | Base unit: UCPX12 | Cover, open end | Bearing: UCX12 | Cr: 57.2 kN
UCPX12CDShaft d: 60 mm | Base unit: UCPX12 | Cover, closed end | Bearing: UCX12 | Cr: 57.2 kN
UCP312Shaft d: 60 mm | Housing: P312 | Bearing: UC312 | Cr: 81.9 kN
UCP312CShaft d: 60 mm | Base unit: UCP312 | Cover, open end | Bearing: UC312 | Cr: 81.9 kN
UCP312CDShaft d: 60 mm | Base unit: UCP312 | Cover, closed end | Bearing: UC312 | Cr: 81.9 kN
UCP213Shaft d: 65 mm | Housing: P213 | Bearing: UC213 | Cr: 57.2 kN
UCP213CShaft d: 65 mm | Base unit: UCP213 | Cover, open end | Bearing: UC213 | Cr: 57.2 kN
UCP213CDShaft d: 65 mm | Base unit: UCP213 | Cover, closed end | Bearing: UC213 | Cr: 57.2 kN
UCP213FCShaft d: 65 mm | Base unit: UCP213 | Cast iron cover, open end | Bearing: UC213 | Cr: 57.2 kN
UCP213FCDShaft d: 65 mm | Base unit: UCP213 | Cast iron cover, closed end | Bearing: UC213 | Cr: 57.2 kN
UCPX13Shaft d: 65 mm | Housing: PX13 | Bearing: UCX13 | Cr: 62.2 kN
UCPX13CShaft d: 65 mm | Base unit: UCPX13 | Cover, open end | Bearing: UCX13 | Cr: 62.2 kN
UCPX13CDShaft d: 65 mm | Base unit: UCPX13 | Cover, closed end | Bearing: UCX13 | Cr: 62.2 kN
UCP313Shaft d: 65 mm | Housing: P313 | Bearing: UC313 | Cr: 92.7 kN
UCP313CShaft d: 65 mm | Base unit: UCP313 | Cover, open end | Bearing: UC313 | Cr: 92.7 kN
UCP313CDShaft d: 65 mm | Base unit: UCP313 | Cover, closed end | Bearing: UC313 | Cr: 92.7 kN
UCP214Shaft d: 70 mm | Housing: P214 | Bearing: UC214 | Cr: 62.2 kN
UCP214CShaft d: 70 mm | Base unit: UCP214 | Cover, open end | Bearing: UC214 | Cr: 62.2 kN
UCP214CDShaft d: 70 mm | Base unit: UCP214 | Cover, closed end | Bearing: UC214 | Cr: 62.2 kN
UCP214FCShaft d: 70 mm | Base unit: UCP214 | Cast iron cover, open end | Bearing: UC214 | Cr: 62.2 kN
UCP214FCDShaft d: 70 mm | Base unit: UCP214 | Cast iron cover, closed end | Bearing: UC214 | Cr: 62.2 kN
UCPX14Shaft d: 70 mm | Housing: PX14 | Bearing: UCX14 | Cr: 67.4 kN
UCPX14CShaft d: 70 mm | Base unit: UCPX14 | Cover, open end | Bearing: UCX14 | Cr: 67.4 kN
UCPX14CDShaft d: 70 mm | Base unit: UCPX14 | Cover, closed end | Bearing: UCX14 | Cr: 67.4 kN
UCP314Shaft d: 70 mm | Housing: P314 | Bearing: UC314 | Cr: 104 kN
UCP314CShaft d: 70 mm | Base unit: UCP314 | Cover, open end | Bearing: UC314 | Cr: 104 kN
UCP314CDShaft d: 70 mm | Base unit: UCP314 | Cover, closed end | Bearing: UC314 | Cr: 104 kN
UCP215Shaft d: 75 mm | Housing: P215 | Bearing: UC215 | Cr: 67.4 kN
UCP215CShaft d: 75 mm | Base unit: UCP215 | Cover, open end | Bearing: UC215 | Cr: 67.4 kN
UCP215CDShaft d: 75 mm | Base unit: UCP215 | Cover, closed end | Bearing: UC215 | Cr: 67.4 kN
UCP215FCShaft d: 75 mm | Base unit: UCP215 | Cast iron cover, open end | Bearing: UC215 | Cr: 67.4 kN
UCP215FCDShaft d: 75 mm | Base unit: UCP215 | Cast iron cover, closed end | Bearing: UC215 | Cr: 67.4 kN
UCPX15Shaft d: 75 mm | Housing: PX15 | Bearing: UCX15 | Cr: 72.7 kN
UCPX15CShaft d: 75 mm | Base unit: UCPX15 | Cover, open end | Bearing: UCX15 | Cr: 72.7 kN
UCPX15CDShaft d: 75 mm | Base unit: UCPX15 | Cover, closed end | Bearing: UCX15 | Cr: 72.7 kN
UCP315Shaft d: 75 mm | Housing: P315 | Bearing: UC315 | Cr: 113 kN
UCP315CShaft d: 75 mm | Base unit: UCP315 | Cover, open end | Bearing: UC315 | Cr: 113 kN
UCP315CDShaft d: 75 mm | Base unit: UCP315 | Cover, closed end | Bearing: UC315 | Cr: 113 kN
UCP216Shaft d: 80 mm | Housing: P216 | Bearing: UC216 | Cr: 72.7 kN
UCP216CShaft d: 80 mm | Base unit: UCP216 | Cover, open end | Bearing: UC216 | Cr: 72.7 kN
UCP216CDShaft d: 80 mm | Base unit: UCP216 | Cover, closed end | Bearing: UC216 | Cr: 72.7 kN
UCP216FCShaft d: 80 mm | Base unit: UCP216 | Cast iron cover, open end | Bearing: UC216 | Cr: 72.7 kN
UCP216FCDShaft d: 80 mm | Base unit: UCP216 | Cast iron cover, closed end | Bearing: UC216 | Cr: 72.7 kN
UCPX16Shaft d: 80 mm | Housing: PX16 | Bearing: UCX16 | Cr: 84.0 kN
UCPX16CShaft d: 80 mm | Base unit: UCPX16 | Cover, open end | Bearing: UCX16 | Cr: 84.0 kN
UCPX16CDShaft d: 80 mm | Base unit: UCPX16 | Cover, closed end | Bearing: UCX16 | Cr: 84.0 kN
UCP316Shaft d: 80 mm | Housing: P316 | Bearing: UC316 | Cr: 123 kN
UCP316CShaft d: 80 mm | Base unit: UCP316 | Cover, open end | Bearing: UC316 | Cr: 123 kN
UCP316CDShaft d: 80 mm | Base unit: UCP316 | Cover, closed end | Bearing: UC316 | Cr: 123 kN
UCP217Shaft d: 85 mm | Housing: P217 | Bearing: UC217 | Cr: 84.0 kN
UCP217CShaft d: 85 mm | Base unit: UCP217 | Cover, open end | Bearing: UC217 | Cr: 84.0 kN
UCP217CDShaft d: 85 mm | Base unit: UCP217 | Cover, closed end | Bearing: UC217 | Cr: 84.0 kN
UCP217FCShaft d: 85 mm | Base unit: UCP217 | Cast iron cover, open end | Bearing: UC217 | Cr: 84.0 kN
UCP217FCDShaft d: 85 mm | Base unit: UCP217 | Cast iron cover, closed end | Bearing: UC217 | Cr: 84.0 kN
UCPX17Shaft d: 85 mm | Housing: PX17 | Bearing: UCX17 | Cr: 96.1 kN
UCPX17CShaft d: 85 mm | Base unit: UCPX17 | Cover, open end | Bearing: UCX17 | Cr: 96.1 kN
UCPX17CDShaft d: 85 mm | Base unit: UCPX17 | Cover, closed end | Bearing: UCX17 | Cr: 96.1 kN
UCP317Shaft d: 85 mm | Housing: P317 | Bearing: UC317 | Cr: 133 kN
UCP317CShaft d: 85 mm | Base unit: UCP317 | Cover, open end | Bearing: UC317 | Cr: 133 kN
UCP317CDShaft d: 85 mm | Base unit: UCP317 | Cover, closed end | Bearing: UC317 | Cr: 133 kN
UCP218Shaft d: 90 mm | Housing: P218 | Bearing: UC218 | Cr: 96.1 kN
UCP218CShaft d: 90 mm | Base unit: UCP218 | Cover, open end | Bearing: UC218 | Cr: 96.1 kN
UCP218CDShaft d: 90 mm | Base unit: UCP218 | Cover, closed end | Bearing: UC218 | Cr: 96.1 kN
UCP218FCShaft d: 90 mm | Base unit: UCP218 | Cast iron cover, open end | Bearing: UC218 | Cr: 96.1 kN
UCP218FCDShaft d: 90 mm | Base unit: UCP218 | Cast iron cover, closed end | Bearing: UC218 | Cr: 96.1 kN
UCPX18Shaft d: 90 mm | Housing: PX18 | Bearing: UCX18 | Cr: 109 kN
UCPX18CShaft d: 90 mm | Base unit: UCPX18 | Cover, open end | Bearing: UCX18 | Cr: 109 kN
UCPX18CDShaft d: 90 mm | Base unit: UCPX18 | Cover, closed end | Bearing: UCX18 | Cr: 109 kN
UCP318Shaft d: 90 mm | Housing: P318 | Bearing: UC318 | Cr: 143 kN
UCP318CShaft d: 90 mm | Base unit: UCP318 | Cover, open end | Bearing: UC318 | Cr: 143 kN
UCP318CDShaft d: 90 mm | Base unit: UCP318 | Cover, closed end | Bearing: UC318 | Cr: 143 kN
UCP319Shaft d: 95 mm | Housing: P319 | Bearing: UC319 | Cr: 153 kN
UCP319CShaft d: 95 mm | Base unit: UCP319 | Cover, open end | Bearing: UC319 | Cr: 153 kN
UCP319CDShaft d: 95 mm | Base unit: UCP319 | Cover, closed end | Bearing: UC319 | Cr: 153 kN
UCPX20Shaft d: 100 mm | Housing: PX20 | Bearing: UCX20 | Cr: 133 kN
UCPX20CShaft d: 100 mm | Base unit: UCPX20 | Cover, open end | Bearing: UCX20 | Cr: 133 kN
UCPX20CDShaft d: 100 mm | Base unit: UCPX20 | Cover, closed end | Bearing: UCX20 | Cr: 133 kN
UCP320Shaft d: 100 mm | Housing: P320 | Bearing: UC320 | Cr: 173 kN
UCP320CShaft d: 100 mm | Base unit: UCP320 | Cover, open end | Bearing: UC320 | Cr: 173 kN
UCP320CDShaft d: 100 mm | Base unit: UCP320 | Cover, closed end | Bearing: UC320 | Cr: 173 kN
UCP321Shaft d: 105 mm | Housing: P321 | Bearing: UC321 | Cr: 184 kN
UCP321CShaft d: 105 mm | Base unit: UCP321 | Cover, open end | Bearing: UC321 | Cr: 184 kN
UCP321CDShaft d: 105 mm | Base unit: UCP321 | Cover, closed end | Bearing: UC321 | Cr: 184 kN
UCP322Shaft d: 110 mm | Housing: P322 | Bearing: UC322 | Cr: 205 kN
UCP322CShaft d: 110 mm | Base unit: UCP322 | Cover, open end | Bearing: UC322 | Cr: 205 kN
UCP322CDShaft d: 110 mm | Base unit: UCP322 | Cover, closed end | Bearing: UC322 | Cr: 205 kN
UCP324Shaft d: 120 mm | Housing: P324 | Bearing: UC324 | Cr: 207 kN
UCP324CShaft d: 120 mm | Base unit: UCP324 | Cover, open end | Bearing: UC324 | Cr: 207 kN
UCP324CDShaft d: 120 mm | Base unit: UCP324 | Cover, closed end | Bearing: UC324 | Cr: 207 kN
UCP326Shaft d: 130 mm | Housing: P326 | Bearing: UC326 | Cr: 229 kN
UCP326CShaft d: 130 mm | Base unit: UCP326 | Cover, open end | Bearing: UC326 | Cr: 229 kN
UCP326CDShaft d: 130 mm | Base unit: UCP326 | Cover, closed end | Bearing: UC326 | Cr: 229 kN
UCP328Shaft d: 140 mm | Housing: P328 | Bearing: UC328 | Cr: 253 kN
UCP328CShaft d: 140 mm | Base unit: UCP328 | Cover, open end | Bearing: UC328 | Cr: 253 kN
UCP328CDShaft d: 140 mm | Base unit: UCP328 | Cover, closed end | Bearing: UC328 | Cr: 253 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
