KOYO UCSP-H1S6 Stainless Pillow Block Units

KOYO UCSP-H1S6 Stainless Pillow Block Units

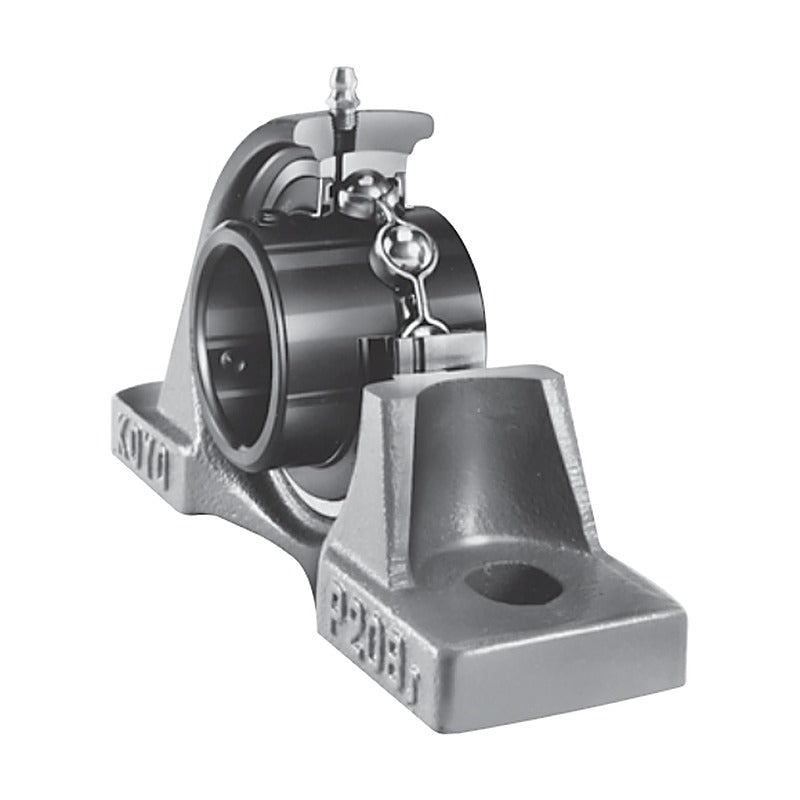

Stainless steel series pillow block units (stainless housing and stainless UC..S6 insert bearing) for food, chemical and wet environments.

Key features

  • Pre-lubricated sealed ball bearing insert
  • Spherical seating compensates for shaft misalignment
  • Housing and insert replaceable separately
  • Unit number, housing number and insert bearing listed
  • Shaft diameter given in mm

Specifications

Product type Ball bearing unit
Series UCSP Stainless Pillow Blocks
Seal Insert bearing sealed both sides
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B486-B487
UCSP201XH1S6 Shaft d: 12 mm | Housing: SP203H1 | Bearing: UC201XS6 | Cr: 8.15 kN
UCSP202XH1S6 Shaft d: 15 mm | Housing: SP203H1 | Bearing: UC202XS6 | Cr: 8.15 kN
UCSP203XH1S6 Shaft d: 17 mm | Housing: SP203H1 | Bearing: UC203XS6 | Cr: 8.15 kN
UCSP204H1S6 Shaft d: 20 mm | Housing: SP204H1 | Bearing: UC204S6 | Cr: 10.9 kN
UCSP204H1CS6 Shaft d: 20 mm | Base unit: UCSP204H1S6 | With cover | Bearing: UC204S6 | Cr: 10.9 kN
UCSP204H1CDS6 Shaft d: 20 mm | Base unit: UCSP204H1S6 | With cover | Bearing: UC204S6 | Cr: 10.9 kN
UCSP205H1S6 Shaft d: 25 mm | Housing: SP205H1 | Bearing: UC205S6 | Cr: 11.9 kN
UCSP205H1CS6 Shaft d: 25 mm | Base unit: UCSP205H1S6 | With cover | Bearing: UC205S6 | Cr: 11.9 kN
UCSP205H1CDS6 Shaft d: 25 mm | Base unit: UCSP205H1S6 | With cover | Bearing: UC205S6 | Cr: 11.9 kN
UCSP206H1S6 Shaft d: 30 mm | Housing: SP206H1 | Bearing: UC206S6 | Cr: 16.5 kN
UCSP206H1CS6 Shaft d: 30 mm | Base unit: UCSP206H1S6 | With cover | Bearing: UC206S6 | Cr: 16.5 kN
UCSP206H1CDS6 Shaft d: 30 mm | Base unit: UCSP206H1S6 | With cover | Bearing: UC206S6 | Cr: 16.5 kN
UCSP207H1S6 Shaft d: 35 mm | Housing: SP207H1 | Bearing: UC207S6 | Cr: 21.8 kN
UCSP207H1CS6 Shaft d: 35 mm | Base unit: UCSP207H1S6 | With cover | Bearing: UC207S6 | Cr: 21.8 kN
UCSP207H1CDS6 Shaft d: 35 mm | Base unit: UCSP207H1S6 | With cover | Bearing: UC207S6 | Cr: 21.8 kN
UCSP208H1S6 Shaft d: 40 mm | Housing: SP208H1 | Bearing: UC208S6 | Cr: 24.8 kN
UCSP208H1CS6 Shaft d: 40 mm | Base unit: UCSP208H1S6 | With cover | Bearing: UC208S6 | Cr: 24.8 kN
UCSP208H1CDS6 Shaft d: 40 mm | Base unit: UCSP208H1S6 | With cover | Bearing: UC208S6 | Cr: 24.8 kN
UCSP209H1S6 Shaft d: 45 mm | Housing: SP209H1 | Bearing: UC209S6 | Cr: 27.8 kN
UCSP209H1CS6 Shaft d: 45 mm | Base unit: UCSP209H1S6 | With cover | Bearing: UC209S6 | Cr: 27.8 kN
UCSP209H1CDS6 Shaft d: 45 mm | Base unit: UCSP209H1S6 | With cover | Bearing: UC209S6 | Cr: 27.8 kN
UCSP210H1S6 Shaft d: 50 mm | Housing: SP210H1 | Bearing: UC210S6 | Cr: 29.8 kN
UCSP210H1CS6 Shaft d: 50 mm | Base unit: UCSP210H1S6 | With cover | Bearing: UC210S6 | Cr: 29.8 kN
UCSP210H1CDS6 Shaft d: 50 mm | Base unit: UCSP210H1S6 | With cover | Bearing: UC210S6 | Cr: 29.8 kN
Mounted Bearing UnitsKOYO
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO UCSP-H1S6 Stainless Pillow Block Units

Brand KOYO·Mounted Bearing Units

Available part numbers (24)

UCSP201XH1S6, UCSP202XH1S6, UCSP203XH1S6, UCSP204H1S6, UCSP204H1CS6, UCSP204H1CDS6, UCSP205H1S6, UCSP205H1CS6, UCSP205H1CDS6, UCSP206H1S6 + 14 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCSP201XH1S6Shaft d: 12 mm | Housing: SP203H1 | Bearing: UC201XS6 | Cr: 8.15 kN
UCSP202XH1S6Shaft d: 15 mm | Housing: SP203H1 | Bearing: UC202XS6 | Cr: 8.15 kN
UCSP203XH1S6Shaft d: 17 mm | Housing: SP203H1 | Bearing: UC203XS6 | Cr: 8.15 kN
UCSP204H1S6Shaft d: 20 mm | Housing: SP204H1 | Bearing: UC204S6 | Cr: 10.9 kN
UCSP204H1CS6Shaft d: 20 mm | Base unit: UCSP204H1S6 | With cover | Bearing: UC204S6 | Cr: 10.9 kN
UCSP204H1CDS6Shaft d: 20 mm | Base unit: UCSP204H1S6 | With cover | Bearing: UC204S6 | Cr: 10.9 kN
UCSP205H1S6Shaft d: 25 mm | Housing: SP205H1 | Bearing: UC205S6 | Cr: 11.9 kN
UCSP205H1CS6Shaft d: 25 mm | Base unit: UCSP205H1S6 | With cover | Bearing: UC205S6 | Cr: 11.9 kN
UCSP205H1CDS6Shaft d: 25 mm | Base unit: UCSP205H1S6 | With cover | Bearing: UC205S6 | Cr: 11.9 kN
UCSP206H1S6Shaft d: 30 mm | Housing: SP206H1 | Bearing: UC206S6 | Cr: 16.5 kN
UCSP206H1CS6Shaft d: 30 mm | Base unit: UCSP206H1S6 | With cover | Bearing: UC206S6 | Cr: 16.5 kN
UCSP206H1CDS6Shaft d: 30 mm | Base unit: UCSP206H1S6 | With cover | Bearing: UC206S6 | Cr: 16.5 kN
UCSP207H1S6Shaft d: 35 mm | Housing: SP207H1 | Bearing: UC207S6 | Cr: 21.8 kN
UCSP207H1CS6Shaft d: 35 mm | Base unit: UCSP207H1S6 | With cover | Bearing: UC207S6 | Cr: 21.8 kN
UCSP207H1CDS6Shaft d: 35 mm | Base unit: UCSP207H1S6 | With cover | Bearing: UC207S6 | Cr: 21.8 kN
UCSP208H1S6Shaft d: 40 mm | Housing: SP208H1 | Bearing: UC208S6 | Cr: 24.8 kN
UCSP208H1CS6Shaft d: 40 mm | Base unit: UCSP208H1S6 | With cover | Bearing: UC208S6 | Cr: 24.8 kN
UCSP208H1CDS6Shaft d: 40 mm | Base unit: UCSP208H1S6 | With cover | Bearing: UC208S6 | Cr: 24.8 kN
UCSP209H1S6Shaft d: 45 mm | Housing: SP209H1 | Bearing: UC209S6 | Cr: 27.8 kN
UCSP209H1CS6Shaft d: 45 mm | Base unit: UCSP209H1S6 | With cover | Bearing: UC209S6 | Cr: 27.8 kN
UCSP209H1CDS6Shaft d: 45 mm | Base unit: UCSP209H1S6 | With cover | Bearing: UC209S6 | Cr: 27.8 kN
UCSP210H1S6Shaft d: 50 mm | Housing: SP210H1 | Bearing: UC210S6 | Cr: 29.8 kN
UCSP210H1CS6Shaft d: 50 mm | Base unit: UCSP210H1S6 | With cover | Bearing: UC210S6 | Cr: 29.8 kN
UCSP210H1CDS6Shaft d: 50 mm | Base unit: UCSP210H1S6 | With cover | Bearing: UC210S6 | Cr: 29.8 kN
