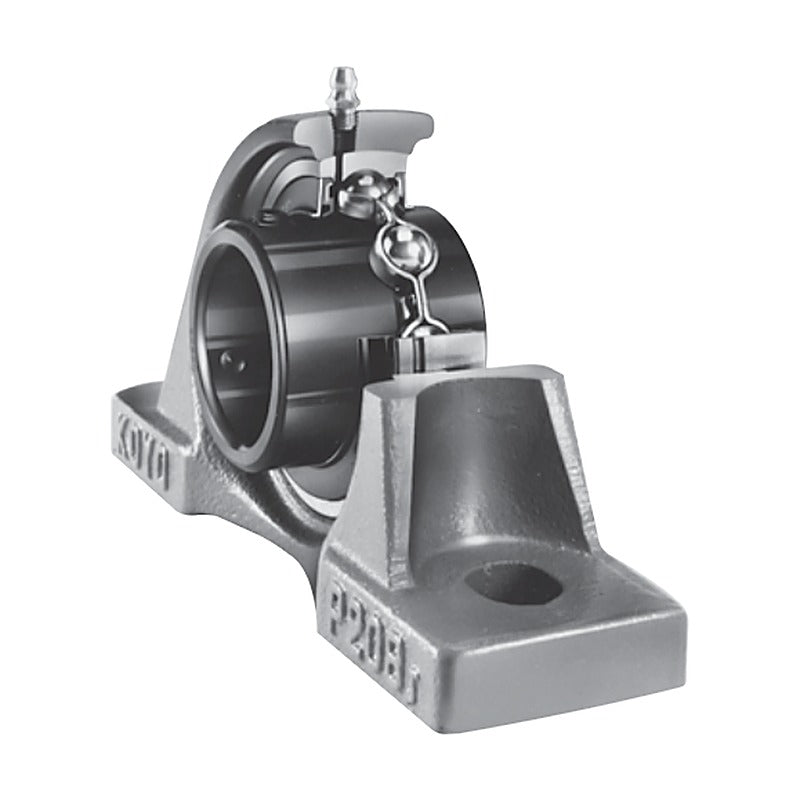

KOYO Ball Bearings for Units, UK Series (Tapered Bore, Adapter)

KOYO Ball Bearings for Units, UK Series (Tapered Bore, Adapter)

Insert ball bearings for bearing units with tapered bore (UK series) for mounting with H..X adapter sleeves, including L2 / L3 multi-lip seal versions.

Key features

  • Tapered bore mounted on adapter sleeve
  • Secure fixing on plain shafts without set screws
  • Spherical outer surface for self-alignment
  • Pre-greased and sealed both sides
  • L2 / L3 multi-lip seal options

Specifications

Product type Insert bearing (bearing for units)
Bore Tapered, adapter mounting
Series UK2, UK3
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B534-B537
UK205 d: 25 mm | Shaft d1: 20 mm | D: 52 mm | B: 21 mm | Cr: 14.0 kN | C0r: 7.85 kN
UK205L2 d: 25 mm | Shaft d1: 20 mm | D: 52 mm | B: 21 mm | Cr: 14.0 kN | C0r: 7.85 kN
UKX05 d: 25 mm | Shaft d1: 20 mm | D: 62 mm | B: 23 mm | Cr: 19.5 kN | C0r: 11.3 kN
UK305 d: 25 mm | Shaft d1: 20 mm | D: 62 mm | B: 27 mm | Cr: 21.2 kN | C0r: 10.9 kN
UK206 d: 30 mm | Shaft d1: 25 mm | D: 62 mm | B: 23 mm | Cr: 19.5 kN | C0r: 11.3 kN
UK206L3 d: 30 mm | Shaft d1: 25 mm | D: 62 mm | B: 23 mm | Cr: 19.5 kN | C0r: 11.3 kN
UKX06 d: 30 mm | Shaft d1: 25 mm | D: 72 mm | B: 26 mm | Cr: 25.7 kN | C0r: 15.4 kN
UK306 d: 30 mm | Shaft d1: 25 mm | D: 72 mm | B: 30 mm | Cr: 26.7 kN | C0r: 15.0 kN
UK207 d: 35 mm | Shaft d1: 30 mm | D: 72 mm | B: 26 mm | Cr: 25.7 kN | C0r: 15.4 kN
UK207L3 d: 35 mm | Shaft d1: 30 mm | D: 72 mm | B: 26 mm | Cr: 25.7 kN | C0r: 15.4 kN
UKX07 d: 35 mm | Shaft d1: 30 mm | D: 80 mm | B: 27 mm | Cr: 29.1 kN | C0r: 17.8 kN
UK307 d: 35 mm | Shaft d1: 30 mm | D: 80 mm | B: 33 mm | Cr: 33.4 kN | C0r: 19.3 kN
UK307L3 d: 35 mm | Shaft d1: 30 mm | D: 80 mm | B: 33 mm | Cr: 33.4 kN | C0r: 19.3 kN
UK208 d: 40 mm | Shaft d1: 35 mm | D: 80 mm | B: 27 mm | Cr: 29.1 kN | C0r: 17.8 kN
UK208L3 d: 40 mm | Shaft d1: 35 mm | D: 80 mm | B: 27 mm | Cr: 29.1 kN | C0r: 17.8 kN
UKX08 d: 40 mm | Shaft d1: 35 mm | D: 85 mm | B: 29 mm | Cr: 32.7 kN | C0r: 20.3 kN
UK308 d: 40 mm | Shaft d1: 35 mm | D: 90 mm | B: 35 mm | Cr: 40.7 kN | C0r: 24.0 kN
UK308L3 d: 40 mm | Shaft d1: 35 mm | D: 90 mm | B: 35 mm | Cr: 40.7 kN | C0r: 24.0 kN
UK209 d: 45 mm | Shaft d1: 40 mm | D: 85 mm | B: 29 mm | Cr: 32.7 kN | C0r: 20.3 kN
UK209L3 d: 45 mm | Shaft d1: 40 mm | D: 85 mm | B: 29 mm | Cr: 32.7 kN | C0r: 20.3 kN
UKX09 d: 45 mm | Shaft d1: 40 mm | D: 90 mm | B: 29 mm | Cr: 35.1 kN | C0r: 23.3 kN
UK309 d: 45 mm | Shaft d1: 40 mm | D: 100 mm | B: 38 mm | Cr: 48.9 kN | C0r: 29.5 kN
UK309L3 d: 45 mm | Shaft d1: 40 mm | D: 100 mm | B: 38 mm | Cr: 48.9 kN | C0r: 29.5 kN
UK210 d: 50 mm | Shaft d1: 45 mm | D: 90 mm | B: 29 mm | Cr: 35.1 kN | C0r: 23.3 kN
UK210L3 d: 50 mm | Shaft d1: 45 mm | D: 90 mm | B: 29 mm | Cr: 35.1 kN | C0r: 23.3 kN
UKX10 d: 50 mm | Shaft d1: 45 mm | D: 100 mm | B: 31 mm | Cr: 43.4 kN | C0r: 29.4 kN
UK310 d: 50 mm | Shaft d1: 45 mm | D: 110 mm | B: 40 mm | Cr: 62.0 kN | C0r: 38.3 kN
UK310L3 d: 50 mm | Shaft d1: 45 mm | D: 110 mm | B: 40 mm | Cr: 62.0 kN | C0r: 38.3 kN
UK211 d: 55 mm | Shaft d1: 50 mm | D: 100 mm | B: 31 mm | Cr: 43.4 kN | C0r: 29.4 kN
UK211L3 d: 55 mm | Shaft d1: 50 mm | D: 100 mm | B: 31 mm | Cr: 43.4 kN | C0r: 29.4 kN
UKX11 d: 55 mm | Shaft d1: 50 mm | D: 110 mm | B: 33 mm | Cr: 52.4 kN | C0r: 36.2 kN
UK311 d: 55 mm | Shaft d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 71.6 kN | C0r: 45.0 kN
UK311L3 d: 55 mm | Shaft d1: 50 mm | D: 120 mm | B: 43 mm | Cr: 71.6 kN | C0r: 45.0 kN
UK212 d: 60 mm | Shaft d1: 55 mm | D: 110 mm | B: 33 mm | Cr: 52.4 kN | C0r: 36.2 kN
UK212L3 d: 60 mm | Shaft d1: 55 mm | D: 110 mm | B: 33 mm | Cr: 52.4 kN | C0r: 36.2 kN
UKX12 d: 60 mm | Shaft d1: 55 mm | D: 120 mm | B: 36 mm | Cr: 57.2 kN | C0r: 40.1 kN
UK312 d: 60 mm | Shaft d1: 55 mm | D: 130 mm | B: 47 mm | Cr: 81.9 kN | C0r: 52.2 kN
UK312L3 d: 60 mm | Shaft d1: 55 mm | D: 130 mm | B: 47 mm | Cr: 81.9 kN | C0r: 52.2 kN
UK213 d: 65 mm | Shaft d1: 60 mm | D: 120 mm | B: 36 mm | Cr: 57.2 kN | C0r: 40.1 kN
UK213L3 d: 65 mm | Shaft d1: 60 mm | D: 120 mm | B: 36 mm | Cr: 57.2 kN | C0r: 40.1 kN
UKX13 d: 65 mm | Shaft d1: 60 mm | D: 125 mm | B: 40 mm | Cr: 62.2 kN | C0r: 44.1 kN
UK313 d: 65 mm | Shaft d1: 60 mm | D: 140 mm | B: 49 mm | Cr: 92.7 kN | C0r: 59.9 kN
UK313L3 d: 65 mm | Shaft d1: 60 mm | D: 140 mm | B: 49 mm | Cr: 92.7 kN | C0r: 59.9 kN
UK215 d: 75 mm | Shaft d1: 65 mm | D: 130 mm | B: 40 mm | Cr: 67.4 kN | C0r: 48.3 kN
UK215L3 d: 75 mm | Shaft d1: 65 mm | D: 130 mm | B: 40 mm | Cr: 67.4 kN | C0r: 48.3 kN
UKX15 d: 75 mm | Shaft d1: 65 mm | D: 140 mm | B: 42 mm | Cr: 72.7 kN | C0r: 53.0 kN
UK315 d: 75 mm | Shaft d1: 65 mm | D: 160 mm | B: 55 mm | Cr: 113 kN | C0r: 77.2 kN
UK315L3 d: 75 mm | Shaft d1: 65 mm | D: 160 mm | B: 55 mm | Cr: 113 kN | C0r: 77.2 kN
UK216 d: 80 mm | Shaft d1: 70 mm | D: 140 mm | B: 42 mm | Cr: 72.7 kN | C0r: 53.0 kN
UK216L3 d: 80 mm | Shaft d1: 70 mm | D: 140 mm | B: 42 mm | Cr: 72.7 kN | C0r: 53.0 kN
UKX16 d: 80 mm | Shaft d1: 70 mm | D: 150 mm | B: 44 mm | Cr: 84.0 kN | C0r: 61.9 kN
UK316 d: 80 mm | Shaft d1: 70 mm | D: 170 mm | B: 55 mm | Cr: 123 kN | C0r: 86.7 kN
UK316L3 d: 80 mm | Shaft d1: 70 mm | D: 170 mm | B: 55 mm | Cr: 123 kN | C0r: 86.7 kN
UK217 d: 85 mm | Shaft d1: 75 mm | D: 150 mm | B: 44 mm | Cr: 84.0 kN | C0r: 61.9 kN
UK217L3 d: 85 mm | Shaft d1: 75 mm | D: 150 mm | B: 44 mm | Cr: 84.0 kN | C0r: 61.9 kN
UKX17 d: 85 mm | Shaft d1: 75 mm | D: 160 mm | B: 48 mm | Cr: 96.1 kN | C0r: 71.5 kN
UK317 d: 85 mm | Shaft d1: 75 mm | D: 180 mm | B: 60 mm | Cr: 133 kN | C0r: 96.8 kN
UK317L3 d: 85 mm | Shaft d1: 75 mm | D: 180 mm | B: 60 mm | Cr: 133 kN | C0r: 96.8 kN
UK218 d: 90 mm | Shaft d1: 80 mm | D: 160 mm | B: 48 mm | Cr: 96.1 kN | C0r: 71.5 kN
UK218L3 d: 90 mm | Shaft d1: 80 mm | D: 160 mm | B: 48 mm | Cr: 96.1 kN | C0r: 71.5 kN
UKX18 d: 90 mm | Shaft d1: 80 mm | D: 170 mm | B: 50 mm | Cr: 109 kN | C0r: 81.9 kN
UK318 d: 90 mm | Shaft d1: 80 mm | D: 190 mm | B: 60 mm | Cr: 143 kN | C0r: 107 kN
UK318L3 d: 90 mm | Shaft d1: 80 mm | D: 190 mm | B: 60 mm | Cr: 143 kN | C0r: 107 kN
UK319 d: 95 mm | Shaft d1: 85 mm | D: 200 mm | B: 66 mm | Cr: 153 kN | C0r: 119 kN
UK319L3 d: 95 mm | Shaft d1: 85 mm | D: 200 mm | B: 66 mm | Cr: 153 kN | C0r: 119 kN
UKX20 d: 100 mm | Shaft d1: 90 mm | D: 190 mm | B: 54 mm | Cr: 133 kN | C0r: 105 kN
UK320 d: 100 mm | Shaft d1: 90 mm | D: 215 mm | B: 68 mm | Cr: 173 kN | C0r: 141 kN
UK320L3 d: 100 mm | Shaft d1: 90 mm | D: 215 mm | B: 68 mm | Cr: 173 kN | C0r: 141 kN
UK322 d: 110 mm | Shaft d1: 100 mm | D: 240 mm | B: 78 mm | Cr: 205 kN | C0r: 180 kN
UK322L3 d: 110 mm | Shaft d1: 100 mm | D: 240 mm | B: 78 mm | Cr: 205 kN | C0r: 180 kN
UK324 d: 120 mm | Shaft d1: 110 mm | D: 260 mm | B: 87 mm | Cr: 207 kN | C0r: 185 kN
UK324L3 d: 120 mm | Shaft d1: 110 mm | D: 260 mm | B: 87 mm | Cr: 207 kN | C0r: 185 kN
UK326 d: 130 mm | Shaft d1: 115 mm | D: 280 mm | B: 87 mm | Cr: 229 kN | C0r: 214 kN
UK326L3 d: 130 mm | Shaft d1: 115 mm | D: 280 mm | B: 87 mm | Cr: 229 kN | C0r: 214 kN
UK328 d: 140 mm | Shaft d1: 125 mm | D: 300 mm | B: 97 mm | Cr: 253 kN | C0r: 246 kN
UK328L3 d: 140 mm | Shaft d1: 125 mm | D: 300 mm | B: 97 mm | Cr: 253 kN | C0r: 246 kN
