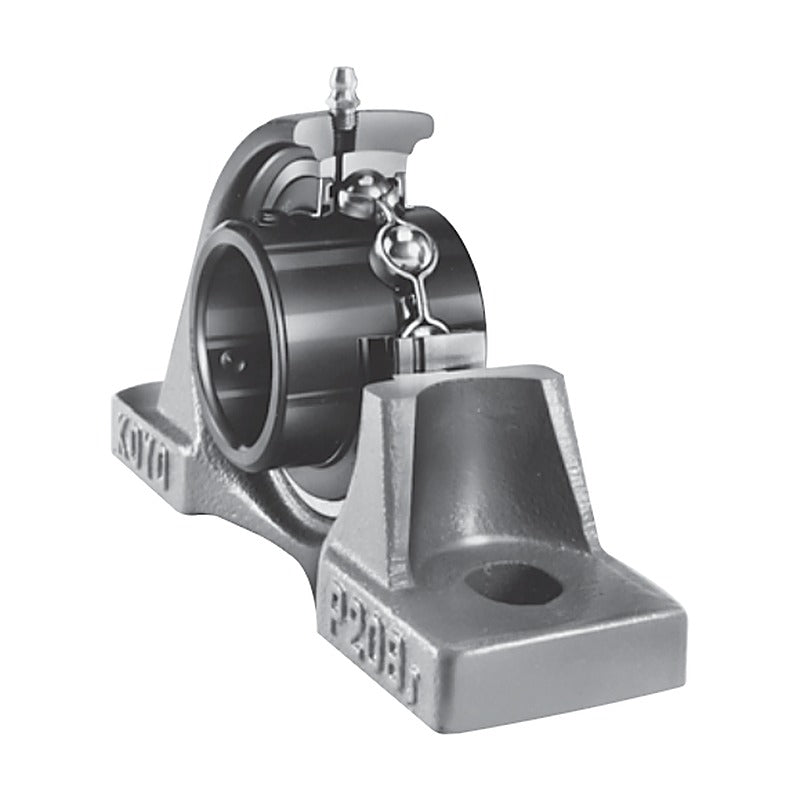

KOYO UKP Pillow Block Units (Adapter Mounting)

KOYO UKP Pillow Block Units (Adapter Mounting)

Cast iron pillow block units with UK tapered-bore insert bearings mounted on adapter sleeves, shaft 20 mm and above, with optional covers.

Key features

  • Pre-lubricated sealed ball bearing insert
  • Spherical seating compensates for shaft misalignment
  • Housing and insert replaceable separately
  • Unit number, housing number and insert bearing listed
  • Shaft diameter given in mm

Specifications

Product type Ball bearing unit
Series UKP Pillow Block Units
Seal Insert bearing sealed both sides
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B476-B479
UKP205 Shaft d: 20 mm | Housing: P205 | Bearing: UK205 | Adapter: H305X(H2305X) | Cr: 14.0 kN
UKP205C Shaft d: 20 mm | Base unit: UKP205 | Cover, open end | Bearing: UK205 | Adapter: H305X(H2305X) | Cr: 14.0 kN
UKP205CD Shaft d: 20 mm | Base unit: UKP205 | Cover, closed end | Bearing: UK205 | Adapter: H305X(H2305X) | Cr: 14.0 kN
UKP205FC Shaft d: 20 mm | Base unit: UKP205 | Cast iron cover, open end | Bearing: UK205 | Adapter: H305X(H2305X) | Cr: 14.0 kN
UKP205FCD Shaft d: 20 mm | Base unit: UKP205 | Cast iron cover, closed end | Bearing: UK205 | Adapter: H305X(H2305X) | Cr: 14.0 kN
UKP305 Shaft d: 20 mm | Housing: P305 | Bearing: UK305 | Adapter: H2305X | Cr: 21.2 kN
UKP305C Shaft d: 20 mm | Base unit: UKP305 | Cover, open end | Bearing: UK305 | Adapter: H2305X | Cr: 21.2 kN
UKP305CD Shaft d: 20 mm | Base unit: UKP305 | Cover, closed end | Bearing: UK305 | Adapter: H2305X | Cr: 21.2 kN
UKP206 Shaft d: 25 mm | Housing: P206 | Bearing: UK206 | Adapter: H306X(H2306X) | Cr: 19.5 kN
UKP206C Shaft d: 25 mm | Base unit: UKP206 | Cover, open end | Bearing: UK206 | Adapter: H306X(H2306X) | Cr: 19.5 kN
UKP206CD Shaft d: 25 mm | Base unit: UKP206 | Cover, closed end | Bearing: UK206 | Adapter: H306X(H2306X) | Cr: 19.5 kN
UKP206FC Shaft d: 25 mm | Base unit: UKP206 | Cast iron cover, open end | Bearing: UK206 | Adapter: H306X(H2306X) | Cr: 19.5 kN
UKP206FCD Shaft d: 25 mm | Base unit: UKP206 | Cast iron cover, closed end | Bearing: UK206 | Adapter: H306X(H2306X) | Cr: 19.5 kN
UKP306 Shaft d: 25 mm | Housing: P306 | Bearing: UK306 | Adapter: H2306X | Cr: 26.7 kN
UKP306C Shaft d: 25 mm | Base unit: UKP306 | Cover, open end | Bearing: UK306 | Adapter: H2306X | Cr: 26.7 kN
UKP306CD Shaft d: 25 mm | Base unit: UKP306 | Cover, closed end | Bearing: UK306 | Adapter: H2306X | Cr: 26.7 kN
UKP207 Shaft d: 30 mm | Housing: P207 | Bearing: UK207 | Adapter: H307X(H2307X) | Cr: 25.7 kN
UKP207C Shaft d: 30 mm | Base unit: UKP207 | Cover, open end | Bearing: UK207 | Adapter: H307X(H2307X) | Cr: 25.7 kN
UKP207CD Shaft d: 30 mm | Base unit: UKP207 | Cover, closed end | Bearing: UK207 | Adapter: H307X(H2307X) | Cr: 25.7 kN
UKP207FC Shaft d: 30 mm | Base unit: UKP207 | Cast iron cover, open end | Bearing: UK207 | Adapter: H307X(H2307X) | Cr: 25.7 kN
UKP207FCD Shaft d: 30 mm | Base unit: UKP207 | Cast iron cover, closed end | Bearing: UK207 | Adapter: H307X(H2307X) | Cr: 25.7 kN
UKP307 Shaft d: 30 mm | Housing: P307 | Bearing: UK307 | Adapter: H2307X | Cr: 33.4 kN
UKP307C Shaft d: 30 mm | Base unit: UKP307 | Cover, open end | Bearing: UK307 | Adapter: H2307X | Cr: 33.4 kN
UKP307CD Shaft d: 30 mm | Base unit: UKP307 | Cover, closed end | Bearing: UK307 | Adapter: H2307X | Cr: 33.4 kN
UKP208 Shaft d: 35 mm | Housing: P208 | Bearing: UK208 | Adapter: H308X(H2308X) | Cr: 29.1 kN
UKP208C Shaft d: 35 mm | Base unit: UKP208 | Cover, open end | Bearing: UK208 | Adapter: H308X(H2308X) | Cr: 29.1 kN
UKP208CD Shaft d: 35 mm | Base unit: UKP208 | Cover, closed end | Bearing: UK208 | Adapter: H308X(H2308X) | Cr: 29.1 kN
UKP208FC Shaft d: 35 mm | Base unit: UKP208 | Cast iron cover, open end | Bearing: UK208 | Adapter: H308X(H2308X) | Cr: 29.1 kN
UKP208FCD Shaft d: 35 mm | Base unit: UKP208 | Cast iron cover, closed end | Bearing: UK208 | Adapter: H308X(H2308X) | Cr: 29.1 kN
UKP308 Shaft d: 35 mm | Housing: P308 | Bearing: UK308 | Adapter: H2308X | Cr: 40.7 kN
UKP308C Shaft d: 35 mm | Base unit: UKP308 | Cover, open end | Bearing: UK308 | Adapter: H2308X | Cr: 40.7 kN
UKP308CD Shaft d: 35 mm | Base unit: UKP308 | Cover, closed end | Bearing: UK308 | Adapter: H2308X | Cr: 40.7 kN
UKP209 Shaft d: 40 mm | Housing: P209 | Bearing: UK209 | Adapter: H309X(H2309X) | Cr: 32.7 kN
UKP209C Shaft d: 40 mm | Base unit: UKP209 | Cover, open end | Bearing: UK209 | Adapter: H309X(H2309X) | Cr: 32.7 kN
UKP209CD Shaft d: 40 mm | Base unit: UKP209 | Cover, closed end | Bearing: UK209 | Adapter: H309X(H2309X) | Cr: 32.7 kN
UKP209FC Shaft d: 40 mm | Base unit: UKP209 | Cast iron cover, open end | Bearing: UK209 | Adapter: H309X(H2309X) | Cr: 32.7 kN
UKP209FCD Shaft d: 40 mm | Base unit: UKP209 | Cast iron cover, closed end | Bearing: UK209 | Adapter: H309X(H2309X) | Cr: 32.7 kN
UKP309 Shaft d: 40 mm | Housing: P309 | Bearing: UK309 | Adapter: H2309X | Cr: 48.9 kN
UKP309C Shaft d: 40 mm | Base unit: UKP309 | Cover, open end | Bearing: UK309 | Adapter: H2309X | Cr: 48.9 kN
UKP309CD Shaft d: 40 mm | Base unit: UKP309 | Cover, closed end | Bearing: UK309 | Adapter: H2309X | Cr: 48.9 kN
UKP210 Shaft d: 45 mm | Housing: P210 | Bearing: UK210 | Adapter: H310X(H2310X) | Cr: 35.1 kN
UKP210C Shaft d: 45 mm | Base unit: UKP210 | Cover, open end | Bearing: UK210 | Adapter: H310X(H2310X) | Cr: 35.1 kN
UKP210CD Shaft d: 45 mm | Base unit: UKP210 | Cover, closed end | Bearing: UK210 | Adapter: H310X(H2310X) | Cr: 35.1 kN
UKP210FC Shaft d: 45 mm | Base unit: UKP210 | Cast iron cover, open end | Bearing: UK210 | Adapter: H310X(H2310X) | Cr: 35.1 kN
UKP210FCD Shaft d: 45 mm | Base unit: UKP210 | Cast iron cover, closed end | Bearing: UK210 | Adapter: H310X(H2310X) | Cr: 35.1 kN
UKP310 Shaft d: 45 mm | Housing: P310 | Bearing: UK310 | Adapter: H2310X | Cr: 62.0 kN
UKP310C Shaft d: 45 mm | Base unit: UKP310 | Cover, open end | Bearing: UK310 | Adapter: H2310X | Cr: 62.0 kN
UKP310CD Shaft d: 45 mm | Base unit: UKP310 | Cover, closed end | Bearing: UK310 | Adapter: H2310X | Cr: 62.0 kN
UKP211 Shaft d: 50 mm | Housing: P211 | Bearing: UK211 | Adapter: H311X(H2311X) | Cr: 43.4 kN
UKP211C Shaft d: 50 mm | Base unit: UKP211 | Cover, open end | Bearing: UK211 | Adapter: H311X(H2311X) | Cr: 43.4 kN
UKP211CD Shaft d: 50 mm | Base unit: UKP211 | Cover, closed end | Bearing: UK211 | Adapter: H311X(H2311X) | Cr: 43.4 kN
UKP211FC Shaft d: 50 mm | Base unit: UKP211 | Cast iron cover, open end | Bearing: UK211 | Adapter: H311X(H2311X) | Cr: 43.4 kN
UKP211FCD Shaft d: 50 mm | Base unit: UKP211 | Cast iron cover, closed end | Bearing: UK211 | Adapter: H311X(H2311X) | Cr: 43.4 kN
UKP311 Shaft d: 50 mm | Housing: P311 | Bearing: UK311 | Adapter: H2311X | Cr: 71.6 kN
UKP311C Shaft d: 50 mm | Base unit: UKP311 | Cover, open end | Bearing: UK311 | Adapter: H2311X | Cr: 71.6 kN
UKP311CD Shaft d: 50 mm | Base unit: UKP311 | Cover, closed end | Bearing: UK311 | Adapter: H2311X | Cr: 71.6 kN
UKP212 Shaft d: 55 mm | Housing: P212 | Bearing: UK212 | Adapter: H312X(H2312X) | Cr: 52.4 kN
UKP212C Shaft d: 55 mm | Base unit: UKP212 | Cover, open end | Bearing: UK212 | Adapter: H312X(H2312X) | Cr: 52.4 kN
UKP212CD Shaft d: 55 mm | Base unit: UKP212 | Cover, closed end | Bearing: UK212 | Adapter: H312X(H2312X) | Cr: 52.4 kN
UKP212FC Shaft d: 55 mm | Base unit: UKP212 | Cast iron cover, open end | Bearing: UK212 | Adapter: H312X(H2312X) | Cr: 52.4 kN
UKP212FCD Shaft d: 55 mm | Base unit: UKP212 | Cast iron cover, closed end | Bearing: UK212 | Adapter: H312X(H2312X) | Cr: 52.4 kN
UKP312 Shaft d: 55 mm | Housing: P312 | Bearing: UK312 | Adapter: H2312X | Cr: 81.9 kN
UKP312C Shaft d: 55 mm | Base unit: UKP312 | Cover, open end | Bearing: UK312 | Adapter: H2312X | Cr: 81.9 kN
UKP312CD Shaft d: 55 mm | Base unit: UKP312 | Cover, closed end | Bearing: UK312 | Adapter: H2312X | Cr: 81.9 kN
UKP213 Shaft d: 60 mm | Housing: P213 | Bearing: UK213 | Adapter: H313X(H2313X) | Cr: 57.2 kN
UKP213C Shaft d: 60 mm | Base unit: UKP213 | Cover, open end | Bearing: UK213 | Adapter: H313X(H2313X) | Cr: 57.2 kN
UKP213CD Shaft d: 60 mm | Base unit: UKP213 | Cover, closed end | Bearing: UK213 | Adapter: H313X(H2313X) | Cr: 57.2 kN
UKP213FC Shaft d: 60 mm | Base unit: UKP213 | Cast iron cover, open end | Bearing: UK213 | Adapter: H313X(H2313X) | Cr: 57.2 kN
UKP213FCD Shaft d: 60 mm | Base unit: UKP213 | Cast iron cover, closed end | Bearing: UK213 | Adapter: H313X(H2313X) | Cr: 57.2 kN
UKP313 Shaft d: 60 mm | Housing: P313 | Bearing: UK313 | Adapter: H2313X | Cr: 92.7 kN
UKP313C Shaft d: 60 mm | Base unit: UKP313 | Cover, open end | Bearing: UK313 | Adapter: H2313X | Cr: 92.7 kN
UKP313CD Shaft d: 60 mm | Base unit: UKP313 | Cover, closed end | Bearing: UK313 | Adapter: H2313X | Cr: 92.7 kN
UKP215 Shaft d: 65 mm | Housing: P215 | Bearing: UK215 | Adapter: H315X(H2315X) | Cr: 67.4 kN
UKP215C Shaft d: 65 mm | Base unit: UKP215 | Cover, open end | Bearing: UK215 | Adapter: H315X(H2315X) | Cr: 67.4 kN
UKP215CD Shaft d: 65 mm | Base unit: UKP215 | Cover, closed end | Bearing: UK215 | Adapter: H315X(H2315X) | Cr: 67.4 kN
UKP215FC Shaft d: 65 mm | Base unit: UKP215 | Cast iron cover, open end | Bearing: UK215 | Adapter: H315X(H2315X) | Cr: 67.4 kN
UKP215FCD Shaft d: 65 mm | Base unit: UKP215 | Cast iron cover, closed end | Bearing: UK215 | Adapter: H315X(H2315X) | Cr: 67.4 kN
UKP315 Shaft d: 65 mm | Housing: P315 | Bearing: UK315 | Adapter: H2315X | Cr: 113 kN
UKP315C Shaft d: 65 mm | Base unit: UKP315 | Cover, open end | Bearing: UK315 | Adapter: H2315X | Cr: 113 kN
UKP315CD Shaft d: 65 mm | Base unit: UKP315 | Cover, closed end | Bearing: UK315 | Adapter: H2315X | Cr: 113 kN
UKP216 Shaft d: 70 mm | Housing: P216 | Bearing: UK216 | Adapter: H316X(H2316X) | Cr: 72.7 kN
UKP216C Shaft d: 70 mm | Base unit: UKP216 | Cover, open end | Bearing: UK216 | Adapter: H316X(H2316X) | Cr: 72.7 kN
UKP216CD Shaft d: 70 mm | Base unit: UKP216 | Cover, closed end | Bearing: UK216 | Adapter: H316X(H2316X) | Cr: 72.7 kN
UKP216FC Shaft d: 70 mm | Base unit: UKP216 | Cast iron cover, open end | Bearing: UK216 | Adapter: H316X(H2316X) | Cr: 72.7 kN
UKP216FCD Shaft d: 70 mm | Base unit: UKP216 | Cast iron cover, closed end | Bearing: UK216 | Adapter: H316X(H2316X) | Cr: 72.7 kN
UKP316 Shaft d: 70 mm | Housing: P316 | Bearing: UK316 | Adapter: H2316X | Cr: 123 kN
UKP316C Shaft d: 70 mm | Base unit: UKP316 | Cover, open end | Bearing: UK316 | Adapter: H2316X | Cr: 123 kN
UKP316CD Shaft d: 70 mm | Base unit: UKP316 | Cover, closed end | Bearing: UK316 | Adapter: H2316X | Cr: 123 kN
UKP217 Shaft d: 75 mm | Housing: P217 | Bearing: UK217 | Adapter: H317X(H2317X) | Cr: 84.0 kN
UKP217C Shaft d: 75 mm | Base unit: UKP217 | Cover, open end | Bearing: UK217 | Adapter: H317X(H2317X) | Cr: 84.0 kN
UKP217CD Shaft d: 75 mm | Base unit: UKP217 | Cover, closed end | Bearing: UK217 | Adapter: H317X(H2317X) | Cr: 84.0 kN
UKP217FC Shaft d: 75 mm | Base unit: UKP217 | Cast iron cover, open end | Bearing: UK217 | Adapter: H317X(H2317X) | Cr: 84.0 kN
UKP217FCD Shaft d: 75 mm | Base unit: UKP217 | Cast iron cover, closed end | Bearing: UK217 | Adapter: H317X(H2317X) | Cr: 84.0 kN
UKP317 Shaft d: 75 mm | Housing: P317 | Bearing: UK317 | Adapter: H2317X | Cr: 133 kN
UKP317C Shaft d: 75 mm | Base unit: UKP317 | Cover, open end | Bearing: UK317 | Adapter: H2317X | Cr: 133 kN
UKP317CD Shaft d: 75 mm | Base unit: UKP317 | Cover, closed end | Bearing: UK317 | Adapter: H2317X | Cr: 133 kN
UKP218 Shaft d: 80 mm | Housing: P218 | Bearing: UK218 | Adapter: H318X(H2318X) | Cr: 96.1 kN
UKP218C Shaft d: 80 mm | Base unit: UKP218 | Cover, open end | Bearing: UK218 | Adapter: H318X(H2318X) | Cr: 96.1 kN
UKP218CD Shaft d: 80 mm | Base unit: UKP218 | Cover, closed end | Bearing: UK218 | Adapter: H318X(H2318X) | Cr: 96.1 kN
UKP218FC Shaft d: 80 mm | Base unit: UKP218 | Cast iron cover, open end | Bearing: UK218 | Adapter: H318X(H2318X) | Cr: 96.1 kN
UKP218FCD Shaft d: 80 mm | Base unit: UKP218 | Cast iron cover, closed end | Bearing: UK218 | Adapter: H318X(H2318X) | Cr: 96.1 kN
UKP318 Shaft d: 80 mm | Housing: P318 | Bearing: UK318 | Adapter: H2318X | Cr: 143 kN
UKP318C Shaft d: 80 mm | Base unit: UKP318 | Cover, open end | Bearing: UK318 | Adapter: H2318X | Cr: 143 kN
UKP318CD Shaft d: 80 mm | Base unit: UKP318 | Cover, closed end | Bearing: UK318 | Adapter: H2318X | Cr: 143 kN
UKP319 Shaft d: 85 mm | Housing: P319 | Bearing: UK319 | Adapter: H2319X | Cr: 153 kN
UKP319C Shaft d: 85 mm | Base unit: UKP319 | Cover, open end | Bearing: UK319 | Adapter: H2319X | Cr: 153 kN
UKP319CD Shaft d: 85 mm | Base unit: UKP319 | Cover, closed end | Bearing: UK319 | Adapter: H2319X | Cr: 153 kN
UKP320 Shaft d: 90 mm | Housing: P320 | Bearing: UK320 | Adapter: H2320X | Cr: 173 kN
UKP320C Shaft d: 90 mm | Base unit: UKP320 | Cover, open end | Bearing: UK320 | Adapter: H2320X | Cr: 173 kN
UKP320CD Shaft d: 90 mm | Base unit: UKP320 | Cover, closed end | Bearing: UK320 | Adapter: H2320X | Cr: 173 kN
UKP322 Shaft d: 100 mm | Housing: P322 | Bearing: UK322 | Adapter: H2322X | Cr: 205 kN
UKP322C Shaft d: 100 mm | Base unit: UKP322 | Cover, open end | Bearing: UK322 | Adapter: H2322X | Cr: 205 kN
UKP322CD Shaft d: 100 mm | Base unit: UKP322 | Cover, closed end | Bearing: UK322 | Adapter: H2322X | Cr: 205 kN
UKP324 Shaft d: 110 mm | Housing: P324 | Bearing: UK324 | Cr: 207 kN
UKP324C Shaft d: 110 mm | Base unit: UKP324 | Cover, open end | Bearing: UK324 | Cr: 207 kN
UKP324CD Shaft d: 110 mm | Base unit: UKP324 | Cover, closed end | Bearing: UK324 | Cr: 207 kN
UKP326 Shaft d: 115 mm | Housing: P326 | Bearing: UK326 | Cr: 229 kN
UKP326C Shaft d: 115 mm | Base unit: UKP326 | Cover, open end | Bearing: UK326 | Cr: 229 kN
UKP326CD Shaft d: 115 mm | Base unit: UKP326 | Cover, closed end | Bearing: UK326 | Cr: 229 kN
UKP328 Shaft d: 125 mm | Housing: P328 | Bearing: UK328 | Cr: 253 kN
UKP328C Shaft d: 125 mm | Base unit: UKP328 | Cover, open end | Bearing: UK328 | Cr: 253 kN
UKP328CD Shaft d: 125 mm | Base unit: UKP328 | Cover, closed end | Bearing: UK328 | Cr: 253 kN
