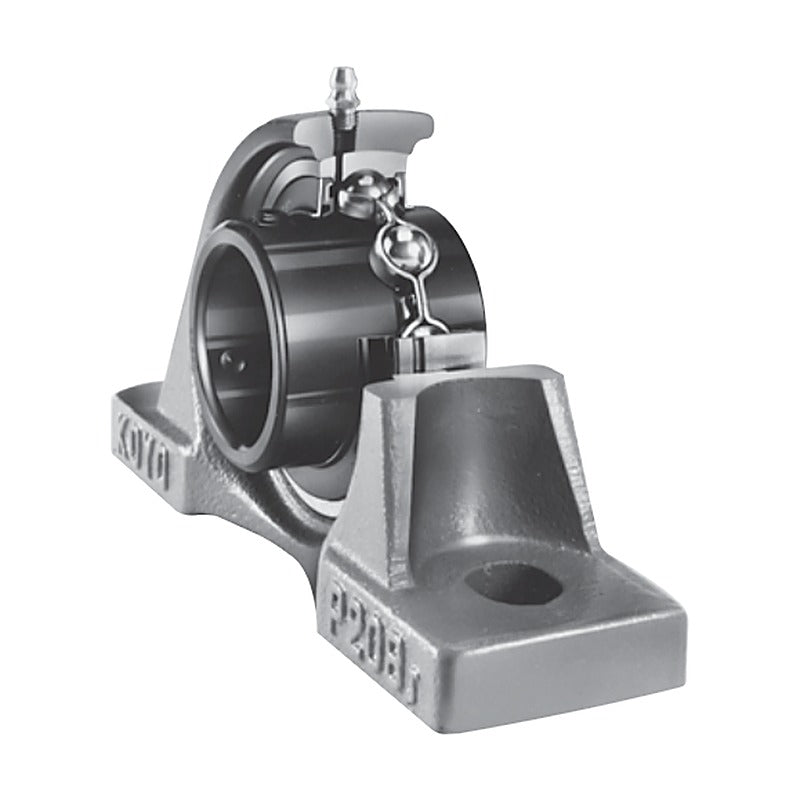

KOYO UP Compact Series Pillow Block Units

KOYO UP Compact Series Pillow Block Units

"Compact" series pillow block units with light alloy housing and SU insert bearings, shaft 10 to 30 mm, with optional covers.

Key features

  • Pre-lubricated sealed ball bearing insert
  • Spherical seating compensates for shaft misalignment
  • Housing and insert replaceable separately
  • Unit number, housing number and insert bearing listed
  • Shaft diameter given in mm

Specifications

Product type Ball bearing unit
Series UP Compact Pillow Blocks
Seal Insert bearing sealed both sides
Source KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B484-B485
UP000 Shaft d: 10 mm | Housing: P000 | Bearing: SU000 | Cr: 4.55 kN
UP000C Shaft d: 10 mm | Base unit: UP000 | Cover, open end | Bearing: SU000 | Cr: 4.55 kN
UP000CD Shaft d: 10 mm | Base unit: UP000 | Cover, closed end | Bearing: SU000 | Cr: 4.55 kN
UP001 Shaft d: 12 mm | Housing: P001 | Bearing: SU001 | Cr: 5.10 kN
UP001C Shaft d: 12 mm | Base unit: UP001 | Cover, open end | Bearing: SU001 | Cr: 5.10 kN
UP001CD Shaft d: 12 mm | Base unit: UP001 | Cover, closed end | Bearing: SU001 | Cr: 5.10 kN
UP002 Shaft d: 15 mm | Housing: P002 | Bearing: SU002 | Cr: 5.60 kN
UP002C Shaft d: 15 mm | Base unit: UP002 | Cover, open end | Bearing: SU002 | Cr: 5.60 kN
UP002CD Shaft d: 15 mm | Base unit: UP002 | Cover, closed end | Bearing: SU002 | Cr: 5.60 kN
UP003 Shaft d: 17 mm | Housing: P003 | Bearing: SU003 | Cr: 6.00 kN
UP003C Shaft d: 17 mm | Base unit: UP003 | Cover, open end | Bearing: SU003 | Cr: 6.00 kN
UP003CD Shaft d: 17 mm | Base unit: UP003 | Cover, closed end | Bearing: SU003 | Cr: 6.00 kN
UP004 Shaft d: 20 mm | Housing: P004 | Bearing: SU004 | Cr: 9.40 kN
UP004C Shaft d: 20 mm | Base unit: UP004 | Cover, open end | Bearing: SU004 | Cr: 9.40 kN
UP004CD Shaft d: 20 mm | Base unit: UP004 | Cover, closed end | Bearing: SU004 | Cr: 9.40 kN
UP005 Shaft d: 25 mm | Housing: P005 | Bearing: SU005 | Cr: 10.1 kN
UP005C Shaft d: 25 mm | Base unit: UP005 | Cover, open end | Bearing: SU005 | Cr: 10.1 kN
UP005CD Shaft d: 25 mm | Base unit: UP005 | Cover, closed end | Bearing: SU005 | Cr: 10.1 kN
UP006 Shaft d: 30 mm | Housing: P006 | Bearing: SU006 | Cr: 13.2 kN
UP006C Shaft d: 30 mm | Base unit: UP006 | Cover, open end | Bearing: SU006 | Cr: 13.2 kN
UP006CD Shaft d: 30 mm | Base unit: UP006 | Cover, closed end | Bearing: SU006 | Cr: 13.2 kN
