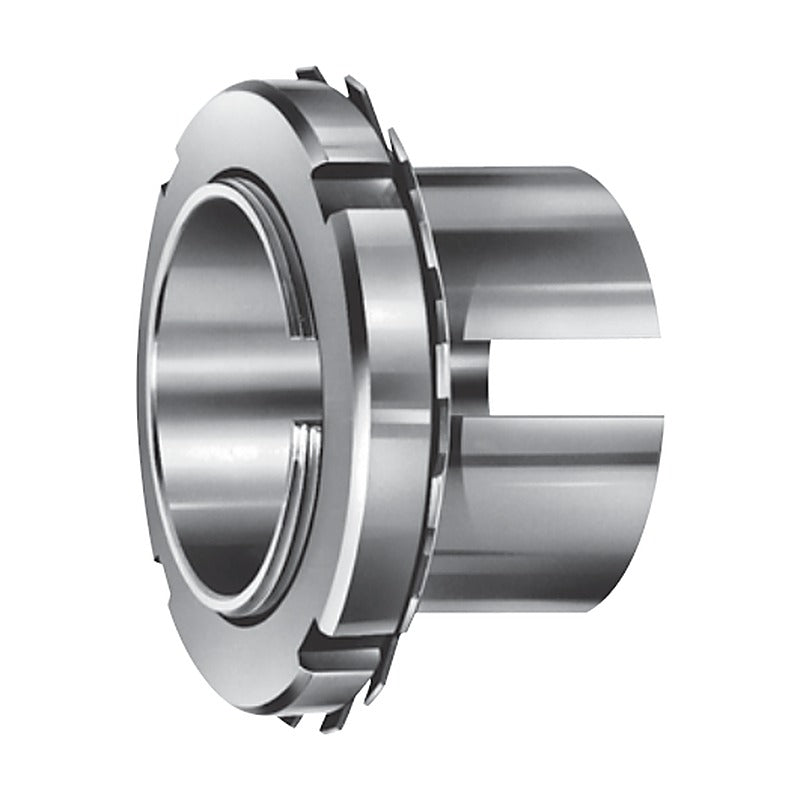

KOYO Withdrawal Sleeves for Spherical Roller Bearings (AH, AHX)

AH and AHX withdrawal sleeves for mounting and dismounting tapered-bore spherical roller bearings on stepped shafts, shaft diameter 35 mm and above.

Key features

Mounting and dismounting of K-bore spherical roller bearings
Pressed in using a locknut; removed with a withdrawal nut
AH and AHX series to JIS
Metric (M) or trapezoidal (Tr) thread

Specifications

Product type	Withdrawal sleeve
Use with	Spherical roller bearings, K bore
Thread	M or Tr per JIS B 0205 / B 0216
Source	KOYO Ball & Roller Bearings catalogue (Bearing specification tables), p. B338-B347

AH308		d1: 35 mm \| B1: 29 mm \| B2: 32 mm \| Thread: M45x1.5 \| For: 22208RHRK, 21308RHK \| Nut: AN09
AHX2316		d1: 75 mm \| B1: 71 mm \| B2: 75 mm \| Thread: M90x2 \| For: 22316RHRK \| Nut: AN18
AH2308		d1: 35 mm \| B1: 40 mm \| B2: 43 mm \| Thread: M45x1.5 \| For: 22308RHRK \| Nut: AN09
AHX317		d1: 80 mm \| B1: 52 mm \| B2: 56 mm \| Thread: M95x2 \| For: 22217RHRK, 21317RHK \| Nut: AN19
AH309		d1: 40 mm \| B1: 31 mm \| B2: 34 mm \| Thread: M50x1.5 \| For: 22209RHRK, 21309RHK \| Nut: AN10
AHX2317		d1: 80 mm \| B1: 74 mm \| B2: 78 mm \| Thread: M95x2 \| For: 22317RHRK \| Nut: AN19
AH2309		d1: 40 mm \| B1: 44 mm \| B2: 47 mm \| Thread: M50x1.5 \| For: 22309RHRK \| Nut: AN10
AHX318		d1: 85 mm \| B1: 53 mm \| B2: 57 mm \| Thread: M100x2 \| For: 22218RHRK, 21318RHK \| Nut: AN20
AHX3218		d1: 85 mm \| B1: 63 mm \| B2: 67 mm \| Thread: M100x2 \| For: 23218RHK \| Nut: AN20
AHX310		d1: 45 mm \| B1: 35 mm \| B2: 38 mm \| Thread: M55x2 \| For: 22210RHRK, 21310RHK \| Nut: AN11
AHX2318		d1: 85 mm \| B1: 79 mm \| B2: 83 mm \| Thread: M100x2 \| For: 22318RHRK \| Nut: AN20
AHX2310		d1: 45 mm \| B1: 50 mm \| B2: 53 mm \| Thread: M55x2 \| For: 22310RHRK \| Nut: AN11
AHX319		d1: 90 mm \| B1: 57 mm \| B2: 61 mm \| Thread: M105x2 \| For: 22219RHRK, 21319RHK \| Nut: AN21
AHX311		d1: 50 mm \| B1: 37 mm \| B2: 40 mm \| Thread: M60x2 \| For: 22211RHRK, 21311RHK \| Nut: AN12
AHX2319		d1: 90 mm \| B1: 85 mm \| B2: 89 mm \| Thread: M105x2 \| For: 22319RHRK \| Nut: AN21
AHX2311		d1: 50 mm \| B1: 54 mm \| B2: 57 mm \| Thread: M60x2 \| For: 22311RHRK \| Nut: AN12
AHX320		d1: 95 mm \| B1: 59 mm \| B2: 63 mm \| Thread: M110x2 \| For: 22220RHRK, 21320RHK \| Nut: AN22
AHX312		d1: 55 mm \| B1: 40 mm \| B2: 43 mm \| Thread: M65x2 \| For: 22212RHRK, 21312RHK \| Nut: AN13
AHX3220		d1: 95 mm \| B1: 73 mm \| B2: 77 mm \| Thread: M110x2 \| For: 23220RHK \| Nut: AN22
AHX2312		d1: 55 mm \| B1: 58 mm \| B2: 61 mm \| Thread: M65x2 \| For: 22312RHRK \| Nut: AN13
AHX2320		d1: 95 mm \| B1: 90 mm \| B2: 94 mm \| Thread: M110x2 \| For: 22320RHRK \| Nut: AN22
AH313		d1: 60 mm \| B1: 42 mm \| B2: 45 mm \| Thread: M75x2 \| For: 22213RHRK, 21313RHK \| Nut: AN15
AHX3122		d1: 105 mm \| B1: 68 mm \| B2: 72 mm \| Thread: M120x2 \| For: 23122RHK, 22222RHRK \| Nut: AN24
AH2313		d1: 60 mm \| B1: 61 mm \| B2: 64 mm \| Thread: M75x2 \| For: 22313RHRK \| Nut: AN15
AH24122		d1: 105 mm \| B1: 82 mm \| B2: 91 mm \| Thread: M115x2 \| For: 24122RHK30 \| Nut: AN23
AH314		d1: 65 mm \| B1: 43 mm \| B2: 47 mm \| Thread: M80x2 \| For: 22214RHRK, 21314RHK \| Nut: AN16
AHX3222		d1: 105 mm \| B1: 82 mm \| B2: 86 mm \| Thread: M125x2 \| For: 23222RHK \| Nut: AN25
AHX322		d1: 105 mm \| B1: 63 mm \| B2: 67 mm \| Thread: M120x2 \| For: 21322RHK \| Nut: AN24
AHX2314		d1: 65 mm \| B1: 64 mm \| B2: 68 mm \| Thread: M80x2 \| For: 22314RHRK \| Nut: AN16
AHX2322		d1: 105 mm \| B1: 98 mm \| B2: 102 mm \| Thread: M125x2 \| For: 22322RHRK \| Nut: AN25
AH315		d1: 70 mm \| B1: 45 mm \| B2: 49 mm \| Thread: M85x2 \| For: 22215RHRK, 21315RHK \| Nut: AN17
AHX3024		d1: 115 mm \| B1: 60 mm \| B2: 64 mm \| Thread: M130x2 \| For: 23024RHK \| Nut: AN26
AH24024		d1: 115 mm \| B1: 73 mm \| B2: 82 mm \| Thread: M125x2 \| For: 24024RHK30 \| Nut: AN25
AHX2315		d1: 70 mm \| B1: 68 mm \| B2: 72 mm \| Thread: M85x2 \| For: 22315RHRK \| Nut: AN17
AHX3124		d1: 115 mm \| B1: 75 mm \| B2: 79 mm \| Thread: M130x2 \| For: 23124RHK, 22224RHRK \| Nut: AN26
AH316		d1: 75 mm \| B1: 48 mm \| B2: 52 mm \| Thread: M90x2 \| For: 22216RHRK, 21316RHK \| Nut: AN18
AH24124		d1: 115 mm \| B1: 93 mm \| B2: 102 mm \| Thread: M130x2 \| For: 24124RHK30 \| Nut: AN26
AHX3224		d1: 115 mm \| B1: 90 mm \| B2: 94 mm \| Thread: M135x2 \| For: 23224RHK \| Nut: AN27
AH3132		d1: 150 mm \| B1: 103 mm \| B2: 108 mm \| Thread: M180x3 \| For: 22232RK, 22232RHAK, 23132RHK \| Nut: AN36
AHX2324		d1: 115 mm \| B1: 105 mm \| B2: 109 mm \| Thread: M135x2 \| For: 22324RHRK \| Nut: AN27
AH3232		d1: 150 mm \| B1: 124 mm \| B2: 130 mm \| Thread: M180x3 \| For: 23232RK, 23232RHAK \| Nut: AN36
AHX3026		d1: 125 mm \| B1: 67 mm \| B2: 71 mm \| Thread: M140x2 \| For: 23026RHK \| Nut: AN28
AH24026		d1: 125 mm \| B1: 83 mm \| B2: 93 mm \| Thread: M135x2 \| For: 24026RHK30 \| Nut: AN27
AH2332		d1: 150 mm \| B1: 140 mm \| B2: 146 mm \| Thread: M180x3 \| For: 22332RK, 22332RHAK \| Nut: AN36
AHX3126		d1: 125 mm \| B1: 78 mm \| B2: 82 mm \| Thread: M140x2 \| For: 23126RHK, 22226RHRK \| Nut: AN28
AH24126		d1: 125 mm \| B1: 94 mm \| B2: 104 mm \| Thread: M140x2 \| For: 24126RHK30 \| Nut: AN28
AH3034		d1: 160 mm \| B1: 85 mm \| B2: 90 mm \| Thread: M180x3 \| For: 23034RHK \| Nut: AN36
AHX3226		d1: 125 mm \| B1: 98 mm \| B2: 102 mm \| Thread: M145x2 \| For: 23226RHK \| Nut: AN29
AH24034		d1: 160 mm \| B1: 106 mm \| B2: 117 mm \| Thread: M180x3 \| For: 24034RHK30 \| Nut: AN36
AH3134		d1: 160 mm \| B1: 104 mm \| B2: 109 mm \| Thread: M190x3 \| For: 23134RHK, 22234RK, 22234RHAK \| Nut: AN38
AHX2326		d1: 125 mm \| B1: 115 mm \| B2: 119 mm \| Thread: M145x2 \| For: 22326RHRK \| Nut: AN29
AH24134		d1: 160 mm \| B1: 125 mm \| B2: 136 mm \| Thread: M180x3 \| For: 24134RRK30 \| Nut: AN36
AHX3028		d1: 135 mm \| B1: 68 mm \| B2: 73 mm \| Thread: M150x2 \| For: 23028RHK \| Nut: AN30
AH24028		d1: 135 mm \| B1: 83 mm \| B2: 93 mm \| Thread: M145x2 \| For: 24028RHK30 \| Nut: AN29
AHX3128		d1: 135 mm \| B1: 83 mm \| B2: 88 mm \| Thread: M150x2 \| For: 23128RHK, 22228RHRK \| Nut: AN30
AH3234		d1: 160 mm \| B1: 134 mm \| B2: 140 mm \| Thread: M190x3 \| For: 23234RRK, 23234RHAK \| Nut: AN38
AH24128		d1: 135 mm \| B1: 99 mm \| B2: 109 mm \| Thread: M150x2 \| For: 24128RHK30 \| Nut: AN30
AH2334		d1: 160 mm \| B1: 146 mm \| B2: 152 mm \| Thread: M190x3 \| For: 22334RK, 22334RHAK \| Nut: AN38
AHX3228		d1: 135 mm \| B1: 104 mm \| B2: 109 mm \| Thread: M155x3 \| For: 23228RHK \| Nut: AN31
AHX2328		d1: 135 mm \| B1: 125 mm \| B2: 130 mm \| Thread: M155x3 \| For: 22328RHK \| Nut: AN31
AH3036		d1: 170 mm \| B1: 92 mm \| B2: 98 mm \| Thread: M190x3 \| For: 23036RHK \| Nut: AN38
AHX3030		d1: 145 mm \| B1: 72 mm \| B2: 77 mm \| Thread: M160x3 \| For: 23030RHK \| Nut: AN32
AH24036		d1: 170 mm \| B1: 116 mm \| B2: 127 mm \| Thread: M190x3 \| For: 24036RRK30 \| Nut: AN38
AH24030		d1: 145 mm \| B1: 90 mm \| B2: 101 mm \| Thread: M155x3 \| For: 24030RHK30 \| Nut: AN31
AH3136		d1: 170 mm \| B1: 116 mm \| B2: 122 mm \| Thread: M200x3 \| For: 23136RK, 23136RHAK \| Nut: AN40
AHX3130		d1: 145 mm \| B1: 96 mm \| B2: 101 mm \| Thread: M165x3 \| For: 23130RHK, 22230RHRK \| Nut: AN33
AH24130		d1: 145 mm \| B1: 115 mm \| B2: 126 mm \| Thread: M160x3 \| For: 24130RHK30 \| Nut: AN32
AH24136		d1: 170 mm \| B1: 134 mm \| B2: 145 mm \| Thread: M190x3 \| For: 24136RRK30, 24136RHAK30 \| Nut: AN38
AHX3230		d1: 145 mm \| B1: 114 mm \| B2: 119 mm \| Thread: M165x3 \| For: 23230RHK \| Nut: AN33
AH2236		d1: 170 mm \| B1: 105 mm \| B2: 110 mm \| Thread: M200x3 \| For: 22236RK, 22236RHAK \| Nut: AN40
AHX2330		d1: 145 mm \| B1: 135 mm \| B2: 140 mm \| Thread: M165x3 \| For: 22330RK, 22330RHAK \| Nut: AN33
AH3236		d1: 170 mm \| B1: 140 mm \| B2: 146 mm \| Thread: M200x3 \| For: 23236RRK, 23236RHAK \| Nut: AN40
AH3032		d1: 150 mm \| B1: 77 mm \| B2: 82 mm \| Thread: M170x3 \| For: 23032RHK \| Nut: AN34
AH2336		d1: 170 mm \| B1: 154 mm \| B2: 160 mm \| Thread: M200x3 \| For: 22336RK, 22336RHAK \| Nut: AN40
AH24032		d1: 150 mm \| B1: 95 mm \| B2: 106 mm \| Thread: M170x3 \| For: 24032RHK30 \| Nut: AN34
AH3038		d1: 180 mm \| B1: 96 mm \| B2: 102 mm \| Thread: Tr205x4 \| For: 23038RK, 23038RHAK \| Nut: HNL41
AH3044		d1: 200 mm \| B1: 111 mm \| B2: 117 mm \| Thread: Tr235x4 \| For: 23044RK, 23044RHAK \| Nut: HNL47
AH24038		d1: 180 mm \| B1: 118 mm \| B2: 131 mm \| Thread: M200x3 \| For: 24038RRK30, 24038RHAK30 \| Nut: AN40
AH24044		d1: 200 mm \| B1: 138 mm \| B2: 152 mm \| Thread: Tr230x4 \| For: 24044RRK30, 24044RHAK30
AH3138		d1: 180 mm \| B1: 125 mm \| B2: 131 mm \| Thread: Tr210x4 \| For: 23138RK, 23138RHAK \| Nut: HN42
AH3144		d1: 200 mm \| B1: 145 mm \| B2: 151 mm \| Thread: Tr240x4 \| For: 23144RK, 23144RHAK \| Nut: HN48
AH24138		d1: 180 mm \| B1: 146 mm \| B2: 159 mm \| Thread: M200x3 \| For: 24138RRK30, 24138RHAK30 \| Nut: AN40
AH24144		d1: 200 mm \| B1: 170 mm \| B2: 184 mm \| Thread: Tr230x4 \| For: 24144RRK30, 24144RHAK30
AH2238		d1: 180 mm \| B1: 112 mm \| B2: 117 mm \| Thread: Tr210x4 \| For: 22238RK, 22238RHAK \| Nut: HN42
AH2244		d1: 200 mm \| B1: 130 mm \| B2: 136 mm \| Thread: Tr240x4 \| For: 22244RRK, 22244RHAK \| Nut: HN48
AH3238		d1: 180 mm \| B1: 145 mm \| B2: 152 mm \| Thread: Tr210x4 \| For: 23238RRK, 23238RHAK \| Nut: HN42
AH2344		d1: 200 mm \| B1: 181 mm \| B2: 189 mm \| Thread: Tr240x4 \| For: 23244RK, 23244RHAK, 22344RK \| Nut: HN48
AH2338		d1: 180 mm \| B1: 160 mm \| B2: 167 mm \| Thread: Tr210x4 \| For: 22338RK, 22338RHAK \| Nut: HN42
AH3040		d1: 190 mm \| B1: 102 mm \| B2: 108 mm \| Thread: Tr215x4 \| For: 23040RK, 23040RHAK \| Nut: HNL43
AH3048		d1: 220 mm \| B1: 116 mm \| B2: 123 mm \| Thread: Tr260x4 \| For: 23048RRK, 23048RHAK \| Nut: HNL52
AH24040		d1: 190 mm \| B1: 127 mm \| B2: 140 mm \| Thread: Tr210x4 \| For: 24040RRK30, 24040RHAK30 \| Nut: HN42
AH24048		d1: 220 mm \| B1: 138 mm \| B2: 153 mm \| Thread: Tr250x4 \| For: 24048RRK30, 24048RHAK30
AH3140		d1: 190 mm \| B1: 134 mm \| B2: 140 mm \| Thread: Tr220x4 \| For: 23140RRK, 23140RHAK \| Nut: HN44
AH3148		d1: 220 mm \| B1: 154 mm \| B2: 161 mm \| Thread: Tr260x4 \| For: 23148RRK, 23148RHAK \| Nut: HN52
AH24140		d1: 190 mm \| B1: 158 mm \| B2: 171 mm \| Thread: Tr210x4 \| For: 24140RRK30, 24140RHAK30 \| Nut: HN42
AH24148		d1: 220 mm \| B1: 180 mm \| B2: 195 mm \| Thread: Tr260x4 \| For: 24148RRK30, 24148RHAK30 \| Nut: HN52
AH2240		d1: 190 mm \| B1: 118 mm \| B2: 123 mm \| Thread: Tr220x4 \| For: 22240RRK, 22240RHAK \| Nut: HN44
AH2248		d1: 220 mm \| B1: 144 mm \| B2: 150 mm \| Thread: Tr260x4 \| For: 22248RK, 22248RHAK \| Nut: HN52
AH3240		d1: 190 mm \| B1: 153 mm \| B2: 160 mm \| Thread: Tr220x4 \| For: 23240RK, 23240RHAK \| Nut: HN44
AH2348		d1: 220 mm \| B1: 189 mm \| B2: 197 mm \| Thread: Tr260x4 \| For: 23248RRK, 23248RHAK, 22348RK \| Nut: HN52
AH2340		d1: 190 mm \| B1: 170 mm \| B2: 177 mm \| Thread: Tr220x4 \| For: 22340RK, 22340RHAK \| Nut: HN44
AH3052		d1: 240 mm \| B1: 128 mm \| B2: 135 mm \| Thread: Tr280x4 \| For: 23052RK, 23052RHAK \| Nut: HNL56
AH3060		d1: 280 mm \| B1: 145 mm \| B2: 153 mm \| Thread: Tr320x5 \| For: 23060RK, 23060RHAK \| Nut: HNL64
AH24052		d1: 240 mm \| B1: 162 mm \| B2: 178 mm \| Thread: Tr270x4 \| For: 24052RRK30, 24052RHAK30
AH24060		d1: 280 mm \| B1: 184 mm \| B2: 202 mm \| Thread: Tr310x5 \| For: 24060RRK30, 24060RHAK30 \| Nut: HN62
AH3152		d1: 240 mm \| B1: 172 mm \| B2: 179 mm \| Thread: Tr290x4 \| For: 23152RK, 23152RHAK \| Nut: HN58
AH3160		d1: 280 mm \| B1: 192 mm \| B2: 200 mm \| Thread: Tr330x5 \| For: 23160RRK, 23160RHAK \| Nut: HN66
AH24152		d1: 240 mm \| B1: 202 mm \| B2: 218 mm \| Thread: Tr280x4 \| For: 24152RRK30, 24152RHAK30
AH24160		d1: 280 mm \| B1: 224 mm \| B2: 242 mm \| Thread: Tr320x5 \| For: 24160RRK30, 24160RHAK30
AH2252		d1: 240 mm \| B1: 155 mm \| B2: 161 mm \| Thread: Tr290x4 \| For: 22252RK, 22252RHAK \| Nut: HN58
AH2260		d1: 280 mm \| B1: 170 mm \| B2: 178 mm \| Thread: Tr330x5 \| For: 22260RK, 22260RHAK \| Nut: HN66
AH2352		d1: 240 mm \| B1: 205 mm \| B2: 213 mm \| Thread: Tr290x4 \| For: 23252RK, 23252RHAK, 22352RK \| Nut: HN58
AH3260		d1: 280 mm \| B1: 228 mm \| B2: 236 mm \| Thread: Tr330x5 \| For: 23260RK, 23260RHAK \| Nut: HN66
AH3064		d1: 300 mm \| B1: 149 mm \| B2: 157 mm \| Thread: Tr345x5 \| For: 23064RK, 23064RHAK \| Nut: HNL69
AH24064		d1: 300 mm \| B1: 184 mm \| B2: 202 mm \| Thread: Tr330x5 \| For: 24064RRK30, 24064RHAK30 \| Nut: HN66
AH3056		d1: 260 mm \| B1: 131 mm \| B2: 139 mm \| Thread: Tr300x4 \| For: 23056RK, 23056RHAK \| Nut: HNL60
AH24056		d1: 260 mm \| B1: 162 mm \| B2: 179 mm \| Thread: Tr290x4 \| For: 24056RRK30, 24056RHAK30 \| Nut: HN58
AH3164		d1: 300 mm \| B1: 209 mm \| B2: 217 mm \| Thread: Tr350x5 \| For: 23164RK, 23164RHAK \| Nut: HN70
AH3156		d1: 260 mm \| B1: 175 mm \| B2: 183 mm \| Thread: Tr310x5 \| For: 23156RRK, 23156RHAK \| Nut: HN62
AH24164		d1: 300 mm \| B1: 242 mm \| B2: 260 mm \| Thread: Tr340x5 \| For: 24164RRK30, 24164RHAK30
AH2264		d1: 300 mm \| B1: 180 mm \| B2: 190 mm \| Thread: Tr350x5 \| For: 22264RK \| Nut: HN70
AH24156		d1: 260 mm \| B1: 202 mm \| B2: 219 mm \| Thread: Tr300x4 \| For: 24156RRK30, 24156RHAK30
AH3264		d1: 300 mm \| B1: 246 mm \| B2: 254 mm \| Thread: Tr350x5 \| For: 23264RK, 23264RHAK \| Nut: HN70
AH2256		d1: 260 mm \| B1: 155 mm \| B2: 163 mm \| Thread: Tr310x5 \| For: 22256RK, 22256RHAK \| Nut: HN62
AH3068		d1: 320 mm \| B1: 162 mm \| B2: 171 mm \| Thread: Tr365x5 \| For: 23068RK, 23068RHAK \| Nut: HNL73
AH2356		d1: 260 mm \| B1: 212 mm \| B2: 220 mm \| Thread: Tr310x5 \| For: 23256RK, 23256RHAK, 22356RK \| Nut: HN62
AH3168		d1: 320 mm \| B1: 225 mm \| B2: 234 mm \| Thread: Tr370x5 \| For: 23168RK, 23168RHAK \| Nut: HN74
AH24168		d1: 320 mm \| B1: 269 mm \| B2: 288 mm \| Thread: Tr360x5 \| For: 24168RRK30, 24168RHAK30
AH3084		d1: 400 mm \| B1: 186 mm \| B2: 196 mm \| Thread: Tr450x5 \| For: 23084RK, 23084RHAK \| Nut: HNL90
AH3268		d1: 320 mm \| B1: 264 mm \| B2: 273 mm \| Thread: Tr370x5 \| For: 23268RK, 23268RHAK \| Nut: HN74
AH3184		d1: 400 mm \| B1: 266 mm \| B2: 276 mm \| Thread: Tr460x5 \| For: 23184RK, 23184RHAK \| Nut: HN92
AH3072		d1: 340 mm \| B1: 167 mm \| B2: 176 mm \| Thread: Tr385x5 \| For: 23072RK, 23072RHAK \| Nut: HNL77
AH3284		d1: 400 mm \| B1: 321 mm \| B2: 331 mm \| Thread: Tr460x5 \| For: 23284RK, 23284RHAK \| Nut: HN92
AH3172		d1: 340 mm \| B1: 229 mm \| B2: 238 mm \| Thread: Tr400x5 \| For: 23172RK, 23172RHAK \| Nut: HN80
AHX3088		d1: 420 mm \| B1: 194 mm \| B2: 205 mm \| Thread: Tr470x5 \| For: 23088RK, 23088RHAK \| Nut: HNL94
AH24172		d1: 340 mm \| B1: 269 mm \| B2: 289 mm \| Thread: Tr380x5 \| For: 24172RK30, 24172RHAK30
AHX3188		d1: 420 mm \| B1: 270 mm \| B2: 281 mm \| Thread: Tr480x5 \| For: 23188RK, 23188RHAK \| Nut: HN96
AH3272		d1: 340 mm \| B1: 274 mm \| B2: 283 mm \| Thread: Tr400x5 \| For: 23272RK, 23272RHAK \| Nut: HN80
AHX3288		d1: 420 mm \| B1: 330 mm \| B2: 341 mm \| Thread: Tr480x5 \| For: 23288RK, 23288RHAK \| Nut: HN96
AH3076		d1: 360 mm \| B1: 170 mm \| B2: 180 mm \| Thread: Tr410x5 \| For: 23076RK, 23076RHAK \| Nut: HNL82
AHX3092		d1: 440 mm \| B1: 202 mm \| B2: 213 mm \| Thread: Tr490x5 \| For: 23092RK, 23092RHAK \| Nut: HNL98
AH3176		d1: 360 mm \| B1: 232 mm \| B2: 242 mm \| Thread: Tr420x5 \| For: 23176RK, 23176RHAK \| Nut: HN84
AHX3192		d1: 440 mm \| B1: 285 mm \| B2: 296 mm \| Thread: Tr510x6 \| For: 23192RK, 23192RHAK \| Nut: HN102
AH24176		d1: 360 mm \| B1: 271 mm \| B2: 291 mm \| Thread: Tr400x5 \| For: 24176RK30, 24176RHAK30 \| Nut: HN80
AHX3292		d1: 440 mm \| B1: 349 mm \| B2: 360 mm \| Thread: Tr510x6 \| For: 23292RK, 23292RHAK \| Nut: HN102
AH3276		d1: 360 mm \| B1: 284 mm \| B2: 294 mm \| Thread: Tr420x5 \| For: 23276RK, 23276RHAK \| Nut: HN84
AHX3096		d1: 460 mm \| B1: 205 mm \| B2: 217 mm \| Thread: Tr520x6 \| For: 23096RK, 23096RHAK \| Nut: HNL104
AH3080		d1: 380 mm \| B1: 183 mm \| B2: 193 mm \| Thread: Tr430x5 \| For: 23080RK, 23080RHAK \| Nut: HNL86
AHX3196		d1: 460 mm \| B1: 295 mm \| B2: 307 mm \| Thread: Tr530x6 \| For: 23196RK, 23196RHAK \| Nut: HN106
AH3180		d1: 380 mm \| B1: 240 mm \| B2: 250 mm \| Thread: Tr440x5 \| For: 23180RK, 23180RHAK \| Nut: HN88
AHX3296		d1: 460 mm \| B1: 364 mm \| B2: 376 mm \| Thread: Tr530x6 \| For: 23296RK, 23296RHAK \| Nut: HN106
AH24180		d1: 380 mm \| B1: 278 mm \| B2: 298 mm \| Thread: Tr420x5 \| For: 24180RK30, 24180RHAK30 \| Nut: HN84
AHX30/500		d1: 480 mm \| B1: 209 mm \| B2: 221 mm \| Thread: Tr540x6 \| For: 230/500RK \| Nut: HNL108
AH3280		d1: 380 mm \| B1: 302 mm \| B2: 312 mm \| Thread: Tr440x5 \| For: 23280RK, 23280RHAK \| Nut: HN88
AHX31/500		d1: 480 mm \| B1: 313 mm \| B2: 325 mm \| Thread: Tr550x6 \| For: 231/500RK \| Nut: HN110
AHX32/500		d1: 480 mm \| B1: 393 mm \| B2: 405 mm \| Thread: Tr550x6 \| For: 232/500RK \| Nut: HN110

Bearing AccessoriesKOYO

156 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOYO Withdrawal Sleeves for Spherical Roller Bearings (AH, AHX)

Brand KOYO·Bearing Accessories

Available part numbers (156)

AH308, AHX2316, AH2308, AHX317, AH309, AHX2317, AH2309, AHX318, AHX3218, AHX310 + 146 more — see full table ↓

How to order

Send the KOYO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AH308	d1: 35 mm \| B1: 29 mm \| B2: 32 mm \| Thread: M45x1.5 \| For: 22208RHRK, 21308RHK \| Nut: AN09
	AHX2316	d1: 75 mm \| B1: 71 mm \| B2: 75 mm \| Thread: M90x2 \| For: 22316RHRK \| Nut: AN18
	AH2308	d1: 35 mm \| B1: 40 mm \| B2: 43 mm \| Thread: M45x1.5 \| For: 22308RHRK \| Nut: AN09
	AHX317	d1: 80 mm \| B1: 52 mm \| B2: 56 mm \| Thread: M95x2 \| For: 22217RHRK, 21317RHK \| Nut: AN19
	AH309	d1: 40 mm \| B1: 31 mm \| B2: 34 mm \| Thread: M50x1.5 \| For: 22209RHRK, 21309RHK \| Nut: AN10
	AHX2317	d1: 80 mm \| B1: 74 mm \| B2: 78 mm \| Thread: M95x2 \| For: 22317RHRK \| Nut: AN19
	AH2309	d1: 40 mm \| B1: 44 mm \| B2: 47 mm \| Thread: M50x1.5 \| For: 22309RHRK \| Nut: AN10
	AHX318	d1: 85 mm \| B1: 53 mm \| B2: 57 mm \| Thread: M100x2 \| For: 22218RHRK, 21318RHK \| Nut: AN20
	AHX3218	d1: 85 mm \| B1: 63 mm \| B2: 67 mm \| Thread: M100x2 \| For: 23218RHK \| Nut: AN20
	AHX310	d1: 45 mm \| B1: 35 mm \| B2: 38 mm \| Thread: M55x2 \| For: 22210RHRK, 21310RHK \| Nut: AN11
	AHX2318	d1: 85 mm \| B1: 79 mm \| B2: 83 mm \| Thread: M100x2 \| For: 22318RHRK \| Nut: AN20
	AHX2310	d1: 45 mm \| B1: 50 mm \| B2: 53 mm \| Thread: M55x2 \| For: 22310RHRK \| Nut: AN11
	AHX319	d1: 90 mm \| B1: 57 mm \| B2: 61 mm \| Thread: M105x2 \| For: 22219RHRK, 21319RHK \| Nut: AN21
	AHX311	d1: 50 mm \| B1: 37 mm \| B2: 40 mm \| Thread: M60x2 \| For: 22211RHRK, 21311RHK \| Nut: AN12
	AHX2319	d1: 90 mm \| B1: 85 mm \| B2: 89 mm \| Thread: M105x2 \| For: 22319RHRK \| Nut: AN21
	AHX2311	d1: 50 mm \| B1: 54 mm \| B2: 57 mm \| Thread: M60x2 \| For: 22311RHRK \| Nut: AN12
	AHX320	d1: 95 mm \| B1: 59 mm \| B2: 63 mm \| Thread: M110x2 \| For: 22220RHRK, 21320RHK \| Nut: AN22
	AHX312	d1: 55 mm \| B1: 40 mm \| B2: 43 mm \| Thread: M65x2 \| For: 22212RHRK, 21312RHK \| Nut: AN13
	AHX3220	d1: 95 mm \| B1: 73 mm \| B2: 77 mm \| Thread: M110x2 \| For: 23220RHK \| Nut: AN22
	AHX2312	d1: 55 mm \| B1: 58 mm \| B2: 61 mm \| Thread: M65x2 \| For: 22312RHRK \| Nut: AN13
	AHX2320	d1: 95 mm \| B1: 90 mm \| B2: 94 mm \| Thread: M110x2 \| For: 22320RHRK \| Nut: AN22
	AH313	d1: 60 mm \| B1: 42 mm \| B2: 45 mm \| Thread: M75x2 \| For: 22213RHRK, 21313RHK \| Nut: AN15
	AHX3122	d1: 105 mm \| B1: 68 mm \| B2: 72 mm \| Thread: M120x2 \| For: 23122RHK, 22222RHRK \| Nut: AN24
	AH2313	d1: 60 mm \| B1: 61 mm \| B2: 64 mm \| Thread: M75x2 \| For: 22313RHRK \| Nut: AN15
	AH24122	d1: 105 mm \| B1: 82 mm \| B2: 91 mm \| Thread: M115x2 \| For: 24122RHK30 \| Nut: AN23
	AH314	d1: 65 mm \| B1: 43 mm \| B2: 47 mm \| Thread: M80x2 \| For: 22214RHRK, 21314RHK \| Nut: AN16
	AHX3222	d1: 105 mm \| B1: 82 mm \| B2: 86 mm \| Thread: M125x2 \| For: 23222RHK \| Nut: AN25
	AHX322	d1: 105 mm \| B1: 63 mm \| B2: 67 mm \| Thread: M120x2 \| For: 21322RHK \| Nut: AN24
	AHX2314	d1: 65 mm \| B1: 64 mm \| B2: 68 mm \| Thread: M80x2 \| For: 22314RHRK \| Nut: AN16
	AHX2322	d1: 105 mm \| B1: 98 mm \| B2: 102 mm \| Thread: M125x2 \| For: 22322RHRK \| Nut: AN25
	AH315	d1: 70 mm \| B1: 45 mm \| B2: 49 mm \| Thread: M85x2 \| For: 22215RHRK, 21315RHK \| Nut: AN17
	AHX3024	d1: 115 mm \| B1: 60 mm \| B2: 64 mm \| Thread: M130x2 \| For: 23024RHK \| Nut: AN26
	AH24024	d1: 115 mm \| B1: 73 mm \| B2: 82 mm \| Thread: M125x2 \| For: 24024RHK30 \| Nut: AN25
	AHX2315	d1: 70 mm \| B1: 68 mm \| B2: 72 mm \| Thread: M85x2 \| For: 22315RHRK \| Nut: AN17
	AHX3124	d1: 115 mm \| B1: 75 mm \| B2: 79 mm \| Thread: M130x2 \| For: 23124RHK, 22224RHRK \| Nut: AN26
	AH316	d1: 75 mm \| B1: 48 mm \| B2: 52 mm \| Thread: M90x2 \| For: 22216RHRK, 21316RHK \| Nut: AN18
	AH24124	d1: 115 mm \| B1: 93 mm \| B2: 102 mm \| Thread: M130x2 \| For: 24124RHK30 \| Nut: AN26
	AHX3224	d1: 115 mm \| B1: 90 mm \| B2: 94 mm \| Thread: M135x2 \| For: 23224RHK \| Nut: AN27
	AH3132	d1: 150 mm \| B1: 103 mm \| B2: 108 mm \| Thread: M180x3 \| For: 22232RK, 22232RHAK, 23132RHK \| Nut: AN36
	AHX2324	d1: 115 mm \| B1: 105 mm \| B2: 109 mm \| Thread: M135x2 \| For: 22324RHRK \| Nut: AN27
	AH3232	d1: 150 mm \| B1: 124 mm \| B2: 130 mm \| Thread: M180x3 \| For: 23232RK, 23232RHAK \| Nut: AN36
	AHX3026	d1: 125 mm \| B1: 67 mm \| B2: 71 mm \| Thread: M140x2 \| For: 23026RHK \| Nut: AN28
	AH24026	d1: 125 mm \| B1: 83 mm \| B2: 93 mm \| Thread: M135x2 \| For: 24026RHK30 \| Nut: AN27
	AH2332	d1: 150 mm \| B1: 140 mm \| B2: 146 mm \| Thread: M180x3 \| For: 22332RK, 22332RHAK \| Nut: AN36
	AHX3126	d1: 125 mm \| B1: 78 mm \| B2: 82 mm \| Thread: M140x2 \| For: 23126RHK, 22226RHRK \| Nut: AN28
	AH24126	d1: 125 mm \| B1: 94 mm \| B2: 104 mm \| Thread: M140x2 \| For: 24126RHK30 \| Nut: AN28
	AH3034	d1: 160 mm \| B1: 85 mm \| B2: 90 mm \| Thread: M180x3 \| For: 23034RHK \| Nut: AN36
	AHX3226	d1: 125 mm \| B1: 98 mm \| B2: 102 mm \| Thread: M145x2 \| For: 23226RHK \| Nut: AN29
	AH24034	d1: 160 mm \| B1: 106 mm \| B2: 117 mm \| Thread: M180x3 \| For: 24034RHK30 \| Nut: AN36
	AH3134	d1: 160 mm \| B1: 104 mm \| B2: 109 mm \| Thread: M190x3 \| For: 23134RHK, 22234RK, 22234RHAK \| Nut: AN38
	AHX2326	d1: 125 mm \| B1: 115 mm \| B2: 119 mm \| Thread: M145x2 \| For: 22326RHRK \| Nut: AN29
	AH24134	d1: 160 mm \| B1: 125 mm \| B2: 136 mm \| Thread: M180x3 \| For: 24134RRK30 \| Nut: AN36
	AHX3028	d1: 135 mm \| B1: 68 mm \| B2: 73 mm \| Thread: M150x2 \| For: 23028RHK \| Nut: AN30
	AH24028	d1: 135 mm \| B1: 83 mm \| B2: 93 mm \| Thread: M145x2 \| For: 24028RHK30 \| Nut: AN29
	AHX3128	d1: 135 mm \| B1: 83 mm \| B2: 88 mm \| Thread: M150x2 \| For: 23128RHK, 22228RHRK \| Nut: AN30
	AH3234	d1: 160 mm \| B1: 134 mm \| B2: 140 mm \| Thread: M190x3 \| For: 23234RRK, 23234RHAK \| Nut: AN38
	AH24128	d1: 135 mm \| B1: 99 mm \| B2: 109 mm \| Thread: M150x2 \| For: 24128RHK30 \| Nut: AN30
	AH2334	d1: 160 mm \| B1: 146 mm \| B2: 152 mm \| Thread: M190x3 \| For: 22334RK, 22334RHAK \| Nut: AN38
	AHX3228	d1: 135 mm \| B1: 104 mm \| B2: 109 mm \| Thread: M155x3 \| For: 23228RHK \| Nut: AN31
	AHX2328	d1: 135 mm \| B1: 125 mm \| B2: 130 mm \| Thread: M155x3 \| For: 22328RHK \| Nut: AN31
	AH3036	d1: 170 mm \| B1: 92 mm \| B2: 98 mm \| Thread: M190x3 \| For: 23036RHK \| Nut: AN38
	AHX3030	d1: 145 mm \| B1: 72 mm \| B2: 77 mm \| Thread: M160x3 \| For: 23030RHK \| Nut: AN32
	AH24036	d1: 170 mm \| B1: 116 mm \| B2: 127 mm \| Thread: M190x3 \| For: 24036RRK30 \| Nut: AN38
	AH24030	d1: 145 mm \| B1: 90 mm \| B2: 101 mm \| Thread: M155x3 \| For: 24030RHK30 \| Nut: AN31
	AH3136	d1: 170 mm \| B1: 116 mm \| B2: 122 mm \| Thread: M200x3 \| For: 23136RK, 23136RHAK \| Nut: AN40
	AHX3130	d1: 145 mm \| B1: 96 mm \| B2: 101 mm \| Thread: M165x3 \| For: 23130RHK, 22230RHRK \| Nut: AN33
	AH24130	d1: 145 mm \| B1: 115 mm \| B2: 126 mm \| Thread: M160x3 \| For: 24130RHK30 \| Nut: AN32
	AH24136	d1: 170 mm \| B1: 134 mm \| B2: 145 mm \| Thread: M190x3 \| For: 24136RRK30, 24136RHAK30 \| Nut: AN38
	AHX3230	d1: 145 mm \| B1: 114 mm \| B2: 119 mm \| Thread: M165x3 \| For: 23230RHK \| Nut: AN33
	AH2236	d1: 170 mm \| B1: 105 mm \| B2: 110 mm \| Thread: M200x3 \| For: 22236RK, 22236RHAK \| Nut: AN40
	AHX2330	d1: 145 mm \| B1: 135 mm \| B2: 140 mm \| Thread: M165x3 \| For: 22330RK, 22330RHAK \| Nut: AN33
	AH3236	d1: 170 mm \| B1: 140 mm \| B2: 146 mm \| Thread: M200x3 \| For: 23236RRK, 23236RHAK \| Nut: AN40
	AH3032	d1: 150 mm \| B1: 77 mm \| B2: 82 mm \| Thread: M170x3 \| For: 23032RHK \| Nut: AN34
	AH2336	d1: 170 mm \| B1: 154 mm \| B2: 160 mm \| Thread: M200x3 \| For: 22336RK, 22336RHAK \| Nut: AN40
	AH24032	d1: 150 mm \| B1: 95 mm \| B2: 106 mm \| Thread: M170x3 \| For: 24032RHK30 \| Nut: AN34
	AH3038	d1: 180 mm \| B1: 96 mm \| B2: 102 mm \| Thread: Tr205x4 \| For: 23038RK, 23038RHAK \| Nut: HNL41
	AH3044	d1: 200 mm \| B1: 111 mm \| B2: 117 mm \| Thread: Tr235x4 \| For: 23044RK, 23044RHAK \| Nut: HNL47
	AH24038	d1: 180 mm \| B1: 118 mm \| B2: 131 mm \| Thread: M200x3 \| For: 24038RRK30, 24038RHAK30 \| Nut: AN40
	AH24044	d1: 200 mm \| B1: 138 mm \| B2: 152 mm \| Thread: Tr230x4 \| For: 24044RRK30, 24044RHAK30
	AH3138	d1: 180 mm \| B1: 125 mm \| B2: 131 mm \| Thread: Tr210x4 \| For: 23138RK, 23138RHAK \| Nut: HN42
	AH3144	d1: 200 mm \| B1: 145 mm \| B2: 151 mm \| Thread: Tr240x4 \| For: 23144RK, 23144RHAK \| Nut: HN48
	AH24138	d1: 180 mm \| B1: 146 mm \| B2: 159 mm \| Thread: M200x3 \| For: 24138RRK30, 24138RHAK30 \| Nut: AN40
	AH24144	d1: 200 mm \| B1: 170 mm \| B2: 184 mm \| Thread: Tr230x4 \| For: 24144RRK30, 24144RHAK30
	AH2238	d1: 180 mm \| B1: 112 mm \| B2: 117 mm \| Thread: Tr210x4 \| For: 22238RK, 22238RHAK \| Nut: HN42
	AH2244	d1: 200 mm \| B1: 130 mm \| B2: 136 mm \| Thread: Tr240x4 \| For: 22244RRK, 22244RHAK \| Nut: HN48
	AH3238	d1: 180 mm \| B1: 145 mm \| B2: 152 mm \| Thread: Tr210x4 \| For: 23238RRK, 23238RHAK \| Nut: HN42
	AH2344	d1: 200 mm \| B1: 181 mm \| B2: 189 mm \| Thread: Tr240x4 \| For: 23244RK, 23244RHAK, 22344RK \| Nut: HN48
	AH2338	d1: 180 mm \| B1: 160 mm \| B2: 167 mm \| Thread: Tr210x4 \| For: 22338RK, 22338RHAK \| Nut: HN42
	AH3040	d1: 190 mm \| B1: 102 mm \| B2: 108 mm \| Thread: Tr215x4 \| For: 23040RK, 23040RHAK \| Nut: HNL43
	AH3048	d1: 220 mm \| B1: 116 mm \| B2: 123 mm \| Thread: Tr260x4 \| For: 23048RRK, 23048RHAK \| Nut: HNL52
	AH24040	d1: 190 mm \| B1: 127 mm \| B2: 140 mm \| Thread: Tr210x4 \| For: 24040RRK30, 24040RHAK30 \| Nut: HN42
	AH24048	d1: 220 mm \| B1: 138 mm \| B2: 153 mm \| Thread: Tr250x4 \| For: 24048RRK30, 24048RHAK30
	AH3140	d1: 190 mm \| B1: 134 mm \| B2: 140 mm \| Thread: Tr220x4 \| For: 23140RRK, 23140RHAK \| Nut: HN44
	AH3148	d1: 220 mm \| B1: 154 mm \| B2: 161 mm \| Thread: Tr260x4 \| For: 23148RRK, 23148RHAK \| Nut: HN52
	AH24140	d1: 190 mm \| B1: 158 mm \| B2: 171 mm \| Thread: Tr210x4 \| For: 24140RRK30, 24140RHAK30 \| Nut: HN42
	AH24148	d1: 220 mm \| B1: 180 mm \| B2: 195 mm \| Thread: Tr260x4 \| For: 24148RRK30, 24148RHAK30 \| Nut: HN52
	AH2240	d1: 190 mm \| B1: 118 mm \| B2: 123 mm \| Thread: Tr220x4 \| For: 22240RRK, 22240RHAK \| Nut: HN44
	AH2248	d1: 220 mm \| B1: 144 mm \| B2: 150 mm \| Thread: Tr260x4 \| For: 22248RK, 22248RHAK \| Nut: HN52
	AH3240	d1: 190 mm \| B1: 153 mm \| B2: 160 mm \| Thread: Tr220x4 \| For: 23240RK, 23240RHAK \| Nut: HN44
	AH2348	d1: 220 mm \| B1: 189 mm \| B2: 197 mm \| Thread: Tr260x4 \| For: 23248RRK, 23248RHAK, 22348RK \| Nut: HN52
	AH2340	d1: 190 mm \| B1: 170 mm \| B2: 177 mm \| Thread: Tr220x4 \| For: 22340RK, 22340RHAK \| Nut: HN44
	AH3052	d1: 240 mm \| B1: 128 mm \| B2: 135 mm \| Thread: Tr280x4 \| For: 23052RK, 23052RHAK \| Nut: HNL56
	AH3060	d1: 280 mm \| B1: 145 mm \| B2: 153 mm \| Thread: Tr320x5 \| For: 23060RK, 23060RHAK \| Nut: HNL64
	AH24052	d1: 240 mm \| B1: 162 mm \| B2: 178 mm \| Thread: Tr270x4 \| For: 24052RRK30, 24052RHAK30
	AH24060	d1: 280 mm \| B1: 184 mm \| B2: 202 mm \| Thread: Tr310x5 \| For: 24060RRK30, 24060RHAK30 \| Nut: HN62
	AH3152	d1: 240 mm \| B1: 172 mm \| B2: 179 mm \| Thread: Tr290x4 \| For: 23152RK, 23152RHAK \| Nut: HN58
	AH3160	d1: 280 mm \| B1: 192 mm \| B2: 200 mm \| Thread: Tr330x5 \| For: 23160RRK, 23160RHAK \| Nut: HN66
	AH24152	d1: 240 mm \| B1: 202 mm \| B2: 218 mm \| Thread: Tr280x4 \| For: 24152RRK30, 24152RHAK30
	AH24160	d1: 280 mm \| B1: 224 mm \| B2: 242 mm \| Thread: Tr320x5 \| For: 24160RRK30, 24160RHAK30
	AH2252	d1: 240 mm \| B1: 155 mm \| B2: 161 mm \| Thread: Tr290x4 \| For: 22252RK, 22252RHAK \| Nut: HN58
	AH2260	d1: 280 mm \| B1: 170 mm \| B2: 178 mm \| Thread: Tr330x5 \| For: 22260RK, 22260RHAK \| Nut: HN66
	AH2352	d1: 240 mm \| B1: 205 mm \| B2: 213 mm \| Thread: Tr290x4 \| For: 23252RK, 23252RHAK, 22352RK \| Nut: HN58
	AH3260	d1: 280 mm \| B1: 228 mm \| B2: 236 mm \| Thread: Tr330x5 \| For: 23260RK, 23260RHAK \| Nut: HN66
	AH3064	d1: 300 mm \| B1: 149 mm \| B2: 157 mm \| Thread: Tr345x5 \| For: 23064RK, 23064RHAK \| Nut: HNL69
	AH24064	d1: 300 mm \| B1: 184 mm \| B2: 202 mm \| Thread: Tr330x5 \| For: 24064RRK30, 24064RHAK30 \| Nut: HN66
	AH3056	d1: 260 mm \| B1: 131 mm \| B2: 139 mm \| Thread: Tr300x4 \| For: 23056RK, 23056RHAK \| Nut: HNL60
	AH24056	d1: 260 mm \| B1: 162 mm \| B2: 179 mm \| Thread: Tr290x4 \| For: 24056RRK30, 24056RHAK30 \| Nut: HN58
	AH3164	d1: 300 mm \| B1: 209 mm \| B2: 217 mm \| Thread: Tr350x5 \| For: 23164RK, 23164RHAK \| Nut: HN70
	AH3156	d1: 260 mm \| B1: 175 mm \| B2: 183 mm \| Thread: Tr310x5 \| For: 23156RRK, 23156RHAK \| Nut: HN62
	AH24164	d1: 300 mm \| B1: 242 mm \| B2: 260 mm \| Thread: Tr340x5 \| For: 24164RRK30, 24164RHAK30
	AH2264	d1: 300 mm \| B1: 180 mm \| B2: 190 mm \| Thread: Tr350x5 \| For: 22264RK \| Nut: HN70
	AH24156	d1: 260 mm \| B1: 202 mm \| B2: 219 mm \| Thread: Tr300x4 \| For: 24156RRK30, 24156RHAK30
	AH3264	d1: 300 mm \| B1: 246 mm \| B2: 254 mm \| Thread: Tr350x5 \| For: 23264RK, 23264RHAK \| Nut: HN70
	AH2256	d1: 260 mm \| B1: 155 mm \| B2: 163 mm \| Thread: Tr310x5 \| For: 22256RK, 22256RHAK \| Nut: HN62
	AH3068	d1: 320 mm \| B1: 162 mm \| B2: 171 mm \| Thread: Tr365x5 \| For: 23068RK, 23068RHAK \| Nut: HNL73
	AH2356	d1: 260 mm \| B1: 212 mm \| B2: 220 mm \| Thread: Tr310x5 \| For: 23256RK, 23256RHAK, 22356RK \| Nut: HN62
	AH3168	d1: 320 mm \| B1: 225 mm \| B2: 234 mm \| Thread: Tr370x5 \| For: 23168RK, 23168RHAK \| Nut: HN74
	AH24168	d1: 320 mm \| B1: 269 mm \| B2: 288 mm \| Thread: Tr360x5 \| For: 24168RRK30, 24168RHAK30
	AH3084	d1: 400 mm \| B1: 186 mm \| B2: 196 mm \| Thread: Tr450x5 \| For: 23084RK, 23084RHAK \| Nut: HNL90
	AH3268	d1: 320 mm \| B1: 264 mm \| B2: 273 mm \| Thread: Tr370x5 \| For: 23268RK, 23268RHAK \| Nut: HN74
	AH3184	d1: 400 mm \| B1: 266 mm \| B2: 276 mm \| Thread: Tr460x5 \| For: 23184RK, 23184RHAK \| Nut: HN92
	AH3072	d1: 340 mm \| B1: 167 mm \| B2: 176 mm \| Thread: Tr385x5 \| For: 23072RK, 23072RHAK \| Nut: HNL77
	AH3284	d1: 400 mm \| B1: 321 mm \| B2: 331 mm \| Thread: Tr460x5 \| For: 23284RK, 23284RHAK \| Nut: HN92
	AH3172	d1: 340 mm \| B1: 229 mm \| B2: 238 mm \| Thread: Tr400x5 \| For: 23172RK, 23172RHAK \| Nut: HN80
	AHX3088	d1: 420 mm \| B1: 194 mm \| B2: 205 mm \| Thread: Tr470x5 \| For: 23088RK, 23088RHAK \| Nut: HNL94
	AH24172	d1: 340 mm \| B1: 269 mm \| B2: 289 mm \| Thread: Tr380x5 \| For: 24172RK30, 24172RHAK30
	AHX3188	d1: 420 mm \| B1: 270 mm \| B2: 281 mm \| Thread: Tr480x5 \| For: 23188RK, 23188RHAK \| Nut: HN96
	AH3272	d1: 340 mm \| B1: 274 mm \| B2: 283 mm \| Thread: Tr400x5 \| For: 23272RK, 23272RHAK \| Nut: HN80
	AHX3288	d1: 420 mm \| B1: 330 mm \| B2: 341 mm \| Thread: Tr480x5 \| For: 23288RK, 23288RHAK \| Nut: HN96
	AH3076	d1: 360 mm \| B1: 170 mm \| B2: 180 mm \| Thread: Tr410x5 \| For: 23076RK, 23076RHAK \| Nut: HNL82
	AHX3092	d1: 440 mm \| B1: 202 mm \| B2: 213 mm \| Thread: Tr490x5 \| For: 23092RK, 23092RHAK \| Nut: HNL98
	AH3176	d1: 360 mm \| B1: 232 mm \| B2: 242 mm \| Thread: Tr420x5 \| For: 23176RK, 23176RHAK \| Nut: HN84
	AHX3192	d1: 440 mm \| B1: 285 mm \| B2: 296 mm \| Thread: Tr510x6 \| For: 23192RK, 23192RHAK \| Nut: HN102
	AH24176	d1: 360 mm \| B1: 271 mm \| B2: 291 mm \| Thread: Tr400x5 \| For: 24176RK30, 24176RHAK30 \| Nut: HN80
	AHX3292	d1: 440 mm \| B1: 349 mm \| B2: 360 mm \| Thread: Tr510x6 \| For: 23292RK, 23292RHAK \| Nut: HN102
	AH3276	d1: 360 mm \| B1: 284 mm \| B2: 294 mm \| Thread: Tr420x5 \| For: 23276RK, 23276RHAK \| Nut: HN84
	AHX3096	d1: 460 mm \| B1: 205 mm \| B2: 217 mm \| Thread: Tr520x6 \| For: 23096RK, 23096RHAK \| Nut: HNL104
	AH3080	d1: 380 mm \| B1: 183 mm \| B2: 193 mm \| Thread: Tr430x5 \| For: 23080RK, 23080RHAK \| Nut: HNL86
	AHX3196	d1: 460 mm \| B1: 295 mm \| B2: 307 mm \| Thread: Tr530x6 \| For: 23196RK, 23196RHAK \| Nut: HN106
	AH3180	d1: 380 mm \| B1: 240 mm \| B2: 250 mm \| Thread: Tr440x5 \| For: 23180RK, 23180RHAK \| Nut: HN88
	AHX3296	d1: 460 mm \| B1: 364 mm \| B2: 376 mm \| Thread: Tr530x6 \| For: 23296RK, 23296RHAK \| Nut: HN106
	AH24180	d1: 380 mm \| B1: 278 mm \| B2: 298 mm \| Thread: Tr420x5 \| For: 24180RK30, 24180RHAK30 \| Nut: HN84
	AHX30/500	d1: 480 mm \| B1: 209 mm \| B2: 221 mm \| Thread: Tr540x6 \| For: 230/500RK \| Nut: HNL108
	AH3280	d1: 380 mm \| B1: 302 mm \| B2: 312 mm \| Thread: Tr440x5 \| For: 23280RK, 23280RHAK \| Nut: HN88
	AHX31/500	d1: 480 mm \| B1: 313 mm \| B2: 325 mm \| Thread: Tr550x6 \| For: 231/500RK \| Nut: HN110
	AHX32/500	d1: 480 mm \| B1: 393 mm \| B2: 405 mm \| Thread: Tr550x6 \| For: 232/500RK \| Nut: HN110

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

KOYO Withdrawal Sleeves for Spherical Roller Bearings (AH, AHX)
