KYK 223 Series Spherical Roller Bearings (CC, CK, MBW33, KMBW33)

KYK 223 Series Spherical Roller Bearings (CC, CK, MBW33, KMBW33)

KYK 223 series double-row spherical roller bearings, bore 35 to 280 mm, with cylindrical or tapered bore and pressed steel (CC) or machined brass (MB) cages.

Key features

  • Self-aligning double-row spherical roller design for heavy radial and axial loads

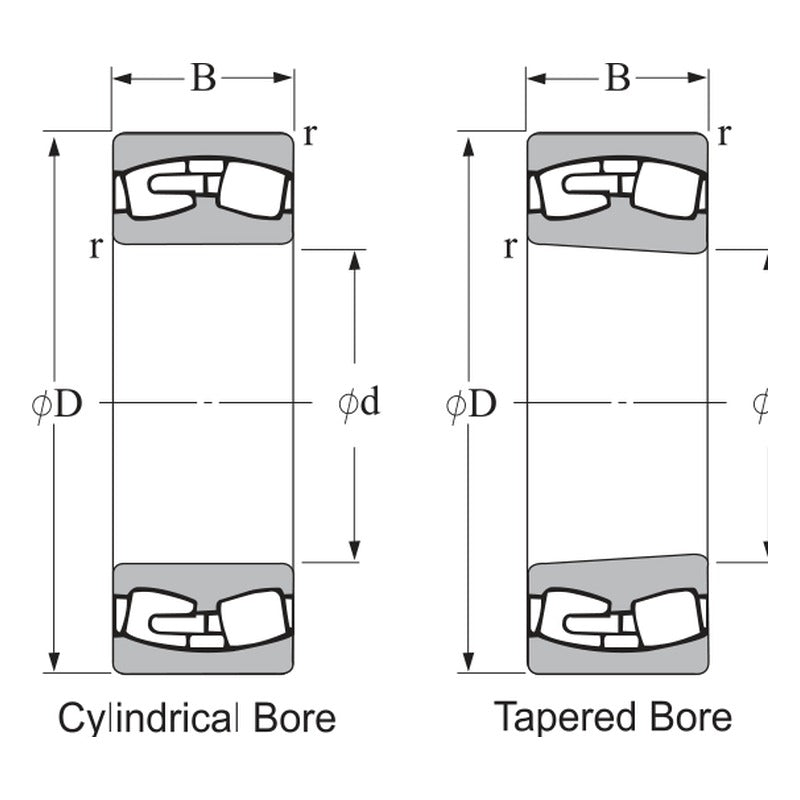

  • Cylindrical bore (CC, MB) and tapered bore 1:12 (CK, KMB) versions; K30 indicates 1:30 taper where listed
  • MB versions with machined brass cage; W33 indicates lubricating holes and groove in the outer ring
  • Adapter sleeve designation listed for tapered-bore bearings
  • Limiting speeds listed for grease and oil lubrication

Specifications

Brand KYK
Series 223
Bearing type Double-row spherical roller bearing
Bore range 35 - 280 mm
Bore Cylindrical or tapered (K 1:12, K30 1:30)
Cage CC pressed steel / MB machined brass
Load ratings Basic dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 64-76
22307CC d: 35 mm | D: 80 mm | B: 31 mm | Cr: 105 kN | C0r: 107 kN | Mass: 0.733 kg
22307CK d: 35 mm | D: 80 mm | B: 31 mm | Cr: 105 kN | C0r: 107 kN | Mass: 0.733 kg
22307KMBW33 d: 35 mm | D: 80 mm | B: 31 mm | Cr: 105 kN | C0r: 107 kN | Mass: 0.733 kg
22307MBW33 d: 35 mm | D: 80 mm | B: 31 mm | Cr: 105 kN | C0r: 107 kN | Mass: 0.733 kg
22308CC d: 40 mm | D: 90 mm | B: 33 mm | Cr: 125 kN | C0r: 134 kN | Mass: 1.100 kg
22308CK d: 40 mm | D: 90 mm | B: 33 mm | Cr: 125 kN | C0r: 134 kN | Mass: 1.000 kg
22308KMBW33 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 125 kN | C0r: 134 kN | Mass: 1.200 kg
22308MBW33 d: 40 mm | D: 90 mm | B: 33 mm | Cr: 125 kN | C0r: 134 kN | Mass: 1.200 kg
22309CC d: 45 mm | D: 100 mm | B: 36 mm | Cr: 150 kN | C0r: 156 kN | Mass: 1.350 kg
22309CK d: 45 mm | D: 100 mm | B: 36 mm | Cr: 150 kN | C0r: 156 kN | Mass: 1.300 kg
22309KMBW33 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 150 kN | C0r: 156 kN | Mass: 1.360 kg
22309MBW33 d: 45 mm | D: 100 mm | B: 36 mm | Cr: 150 kN | C0r: 156 kN | Mass: 1.360 kg
22310CC d: 50 mm | D: 110 mm | B: 40 mm | Cr: 184 kN | C0r: 203 kN | Mass: 1.850 kg
22310CK d: 50 mm | D: 110 mm | B: 40 mm | Cr: 184 kN | C0r: 203 kN | Mass: 1.800 kg
22310KMBW33 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 184 kN | C0r: 203 kN | Mass: 1.840 kg
22310MBW33 d: 50 mm | D: 110 mm | B: 40 mm | Cr: 184 kN | C0r: 203 kN | Mass: 1.840 kg
22311CC d: 55 mm | D: 120 mm | B: 43 mm | Cr: 205 kN | C0r: 241 kN | Mass: 2.350 kg
22311CK d: 55 mm | D: 120 mm | B: 43 mm | Cr: 205 kN | C0r: 241 kN | Mass: 2.300 kg
22311KMBW33 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 205 kN | C0r: 241 kN | Mass: 2.430 kg
22311MBW33 d: 55 mm | D: 120 mm | B: 43 mm | Cr: 205 kN | C0r: 241 kN | Mass: 2.430 kg
22312CC d: 60 mm | D: 130 mm | B: 46 mm | Cr: 239 kN | C0r: 279 kN | Mass: 2.950 kg
22312CK d: 60 mm | D: 130 mm | B: 46 mm | Cr: 239 kN | C0r: 279 kN | Mass: 2.850 kg
22312KMBW33 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 239 kN | C0r: 279 kN | Mass: 2.980 kg
22312MBW33 d: 60 mm | D: 130 mm | B: 46 mm | Cr: 239 kN | C0r: 279 kN | Mass: 2.980 kg
22313CC d: 65 mm | D: 140 mm | B: 48 mm | Cr: 262 kN | C0r: 309 kN | Mass: 3.550 kg
22313CK d: 65 mm | D: 140 mm | B: 48 mm | Cr: 262 kN | C0r: 309 kN | Mass: 3.450 kg
22313KMBW33 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 262 kN | C0r: 309 kN | Mass: 3.510 kg
22313MBW33 d: 65 mm | D: 140 mm | B: 48 mm | Cr: 262 kN | C0r: 309 kN | Mass: 3.510 kg
22314CC d: 70 mm | D: 150 mm | B: 51 mm | Cr: 311 kN | C0r: 364 kN | Mass: 4.350 kg
22314CK d: 70 mm | D: 150 mm | B: 51 mm | Cr: 311 kN | C0r: 364 kN | Mass: 4.300 kg
22314KMBW33 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 311 kN | C0r: 364 kN | Mass: 4.300 kg
22314MBW33 d: 70 mm | D: 150 mm | B: 51 mm | Cr: 311 kN | C0r: 364 kN | Mass: 4.300 kg
22315CC d: 75 mm | D: 160 mm | B: 55 mm | Cr: 342 kN | C0r: 412 kN | Mass: 5.250 kg
22315CK d: 75 mm | D: 160 mm | B: 55 mm | Cr: 342 kN | C0r: 412 kN | Mass: 5.150 kg
22315KMBW33 d: 75 mm | D: 160 mm | B: 55 mm | Cr: 342 kN | C0r: 412 kN | Mass: 5.260 kg
22315MBW33 d: 75 mm | D: 160 mm | B: 55 mm | Cr: 342 kN | C0r: 412 kN | Mass: 5.260 kg
22316CC d: 80 mm | D: 170 mm | B: 58 mm | Cr: 392 kN | C0r: 480 kN | Mass: 6.290 kg
22316CK d: 80 mm | D: 170 mm | B: 58 mm | Cr: 392 kN | C0r: 480 kN | Mass: 6.290 kg
22316KMBW33 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 392 kN | C0r: 480 kN | Mass: 6.100 kg
22316MBW33 d: 80 mm | D: 170 mm | B: 58 mm | Cr: 392 kN | C0r: 480 kN | Mass: 6.200 kg
22317CC d: 85 mm | D: 180 mm | B: 60 mm | Cr: 397 kN | C0r: 481 kN | Mass: 8.590 kg
22317CK d: 85 mm | D: 180 mm | B: 60 mm | Cr: 397 kN | C0r: 481 kN | Mass: 8.590 kg
22317KMBW33 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 397 kN | C0r: 481 kN | Mass: 7.200 kg
22317MBW33 d: 85 mm | D: 180 mm | B: 60 mm | Cr: 397 kN | C0r: 481 kN | Mass: 7.220 kg
22318CC d: 90 mm | D: 190 mm | B: 64 mm | Cr: 458 kN | C0r: 556 kN | Mass: 8.700 kg
22318CK d: 90 mm | D: 190 mm | B: 64 mm | Cr: 458 kN | C0r: 556 kN | Mass: 8.500 kg
22318KMBW33 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 458 kN | C0r: 556 kN | Mass: 8.690 kg
22318MBW33 d: 90 mm | D: 190 mm | B: 64 mm | Cr: 458 kN | C0r: 556 kN | Mass: 8.690 kg
22319CC d: 95 mm | D: 200 mm | B: 67 mm | Cr: 504 kN | C0r: 623 kN | Mass: 11.300 kg
22319CK d: 95 mm | D: 200 mm | B: 67 mm | Cr: 504 kN | C0r: 623 kN | Mass: 11.300 kg
22319KMBW33 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 504 kN | C0r: 623 kN | Mass: 10.000 kg
22319MBW33 d: 95 mm | D: 200 mm | B: 67 mm | Cr: 504 kN | C0r: 623 kN | Mass: 10.100 kg
22320CC d: 100 mm | D: 215 mm | B: 73 mm | Cr: 579 kN | C0r: 713 kN | Mass: 13.200 kg
22320CK d: 100 mm | D: 215 mm | B: 73 mm | Cr: 579 kN | C0r: 713 kN | Mass: 13.000 kg
22320KMBW33 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 579 kN | C0r: 713 kN | Mass: 12.700 kg
22320MBW33 d: 100 mm | D: 215 mm | B: 73 mm | Cr: 579 kN | C0r: 713 kN | Mass: 12.700 kg
22322CC d: 110 mm | D: 240 mm | B: 80 mm | Cr: 713 kN | C0r: 884 kN | Mass: 18.000 kg
22322CK d: 110 mm | D: 240 mm | B: 80 mm | Cr: 713 kN | C0r: 884 kN | Mass: 17.500 kg
22322KMBW33 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 713 kN | C0r: 884 kN | Mass: 17.700 kg
22322MBW33 d: 110 mm | D: 240 mm | B: 80 mm | Cr: 713 kN | C0r: 884 kN | Mass: 17.700 kg
22324CC d: 120 mm | D: 260 mm | B: 86 mm | Cr: 812 kN | C0r: 1050 kN | Mass: 24.500 kg
22324CK d: 120 mm | D: 260 mm | B: 86 mm | Cr: 812 kN | C0r: 1050 kN | Mass: 24.500 kg
22324KMBW33 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 812 kN | C0r: 1050 kN | Mass: 21.800 kg
22324MBW33 d: 120 mm | D: 260 mm | B: 86 mm | Cr: 812 kN | C0r: 1050 kN | Mass: 22.000 kg
22326CC d: 130 mm | D: 280 mm | B: 93 mm | Cr: 948 kN | C0r: 1200 kN | Mass: 34.200 kg
22326CK d: 130 mm | D: 280 mm | B: 93 mm | Cr: 948 kN | C0r: 1200 kN | Mass: 34.200 kg
22326KMBW33 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 948 kN | C0r: 1200 kN | Mass: 28.300 kg
22326MBW33 d: 130 mm | D: 280 mm | B: 93 mm | Cr: 948 kN | C0r: 1200 kN | Mass: 28.500 kg
22328CC d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1100 kN | C0r: 1410 kN | Mass: 45.700 kg
22328CK d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1100 kN | C0r: 1410 kN | Mass: 45.700 kg
22328KMBW33 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1100 kN | C0r: 1410 kN | Mass: 34.100 kg
22328MBW33 d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1100 kN | C0r: 1410 kN | Mass: 34.500 kg
22330KMBW33 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1230 kN | C0r: 1600 kN | Mass: 43.100 kg
22330MBW33 d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1230 kN | C0r: 1600 kN | Mass: 43.500 kg
22332KMBW33 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1380 kN | C0r: 1790 kN | Mass: 50.000 kg
22332MBW33 d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1380 kN | C0r: 1790 kN | Mass: 50.800 kg
22334KMBW33 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1460 kN | C0r: 1920 kN | Mass: 60.200 kg
22334MBW33 d: 170 mm | D: 360 mm | B: 120 mm | Cr: 1460 kN | C0r: 1920 kN | Mass: 62.200 kg
22336KMBW33 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1740 kN | C0r: 2360 kN | Mass: 68.200 kg
22336MBW33 d: 180 mm | D: 380 mm | B: 126 mm | Cr: 1740 kN | C0r: 2360 kN | Mass: 69.000 kg
22338KMBW33 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1900 kN | C0r: 2610 kN | Mass: 83.000 kg
22338MBW33 d: 190 mm | D: 400 mm | B: 132 mm | Cr: 1900 kN | C0r: 2610 kN | Mass: 84.800 kg
22340KMBW33 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 2010 kN | C0r: 2750 kN | Mass: 95.000 kg
22340MBW33 d: 200 mm | D: 420 mm | B: 138 mm | Cr: 2010 kN | C0r: 2750 kN | Mass: 95.000 kg
22344KMBW33 d: 220 mm | D: 460 mm | B: 145 mm | Cr: 2380 kN | C0r: 3380 kN | Mass: 120.000 kg
22344MBW33 d: 220 mm | D: 460 mm | B: 145 mm | Cr: 2380 kN | C0r: 3380 kN | Mass: 120.000 kg
22348KMBW33 d: 240 mm | D: 500 mm | B: 155 mm | Cr: 2610 kN | C0r: 4020 kN | Mass: 151.000 kg
22348MBW33 d: 240 mm | D: 500 mm | B: 155 mm | Cr: 2610 kN | C0r: 4020 kN | Mass: 151.000 kg
22352KMBW33 d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2830 kN | C0r: 4380 kN | Mass: 95.300 kg
22352MBW33 d: 260 mm | D: 540 mm | B: 165 mm | Cr: 2830 kN | C0r: 4380 kN | Mass: 95.300 kg
22356KMBW33 d: 280 mm | D: 580 mm | B: 175 mm | Cr: 3150 kN | C0r: 4910 kN | Mass: 238.000 kg
22356MBW33 d: 280 mm | D: 580 mm | B: 175 mm | Cr: 3150 kN | C0r: 4910 kN | Mass: 238.000 kg
Spherical Roller BearingsKYK
92 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KYK 223 Series Spherical Roller Bearings (CC, CK, MBW33, KMBW33)

Brand KYK·Spherical Roller Bearings

Available part numbers (92)

22307CC, 22307CK, 22307KMBW33, 22307MBW33, 22308CC, 22308CK, 22308KMBW33, 22308MBW33, 22309CC, 22309CK + 82 more — see full table ↓
