KYK 240 Series Spherical Roller Bearings (CC, CK, MBW33, KMBW33)

KYK 240 Series Spherical Roller Bearings (CC, CK, MBW33, KMBW33)

KYK 240 series double-row spherical roller bearings, bore 100 to 460 mm, with cylindrical or tapered bore and pressed steel (CC) or machined brass (MB) cages.

Key features

  • Self-aligning double-row spherical roller design for heavy radial and axial loads

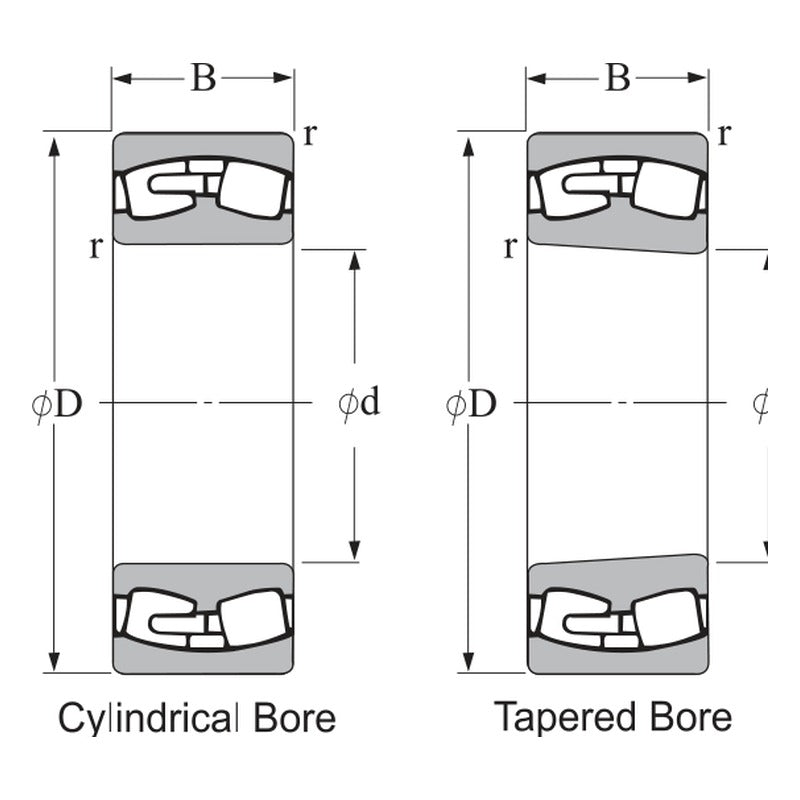

  • Cylindrical bore (CC, MB) and tapered bore 1:12 (CK, KMB) versions; K30 indicates 1:30 taper where listed
  • MB versions with machined brass cage; W33 indicates lubricating holes and groove in the outer ring
  • Adapter sleeve designation listed for tapered-bore bearings
  • Limiting speeds listed for grease and oil lubrication

Specifications

Brand KYK
Series 240
Bearing type Double-row spherical roller bearing
Bore range 100 - 460 mm
Bore Cylindrical or tapered (K 1:12, K30 1:30)
Cage CC pressed steel / MB machined brass
Load ratings Basic dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 69-79
24020CC d: 100 mm | D: 150 mm | B: 50 mm | Cr: 251 kN | C0r: 448 kN | Mass: 3.035 kg
24020CK d: 100 mm | D: 150 mm | B: 50 mm | Cr: 251 kN | C0r: 448 kN | Mass: 3.035 kg
24020K30MBW33 d: 100 mm | D: 150 mm | B: 50 mm | Cr: 251 kN | C0r: 448 kN | Mass: 3.035 kg
24020MBW33 d: 100 mm | D: 150 mm | B: 50 mm | Cr: 251 kN | C0r: 448 kN | Mass: 3.035 kg
24024CC d: 120 mm | D: 180 mm | B: 60 mm | Cr: 391 kN | C0r: 695 kN | Mass: 5.050 kg
24024CK d: 120 mm | D: 180 mm | B: 60 mm | Cr: 391 kN | C0r: 695 kN | Mass: 5.050 kg
24024K30MBW33 d: 120 mm | D: 180 mm | B: 60 mm | Cr: 391 kN | C0r: 695 kN | Mass: 5.300 kg
24024MBW33 d: 120 mm | D: 180 mm | B: 60 mm | Cr: 391 kN | C0r: 695 kN | Mass: 5.120 kg
24026CC d: 130 mm | D: 200 mm | B: 69 mm | Cr: 486 kN | C0r: 878 kN | Mass: 7.550 kg
24026CK d: 130 mm | D: 200 mm | B: 69 mm | Cr: 486 kN | C0r: 878 kN | Mass: 7.550 kg
24026K30MBW33 d: 130 mm | D: 200 mm | B: 69 mm | Cr: 486 kN | C0r: 878 kN | Mass: 7.850 kg
24026MBW33 d: 130 mm | D: 200 mm | B: 69 mm | Cr: 486 kN | C0r: 878 kN | Mass: 7.950 kg
24028CC d: 140 mm | D: 210 mm | B: 69 mm | Cr: 503 kN | C0r: 922 kN | Mass: 8.010 kg
24028CK d: 140 mm | D: 210 mm | B: 69 mm | Cr: 503 kN | C0r: 922 kN | Mass: 8.010 kg
24028K30MBW33 d: 140 mm | D: 210 mm | B: 69 mm | Cr: 503 kN | C0r: 922 kN | Mass: 8.350 kg
24028MBW33 d: 140 mm | D: 210 mm | B: 69 mm | Cr: 503 kN | C0r: 922 kN | Mass: 8.450 kg
24030CC d: 150 mm | D: 225 mm | B: 75 mm | Cr: 587 kN | C0r: 1100 kN | Mass: 10.100 kg
24030CK d: 150 mm | D: 225 mm | B: 75 mm | Cr: 587 kN | C0r: 1100 kN | Mass: 10.100 kg
24030K30MBW33 d: 150 mm | D: 225 mm | B: 75 mm | Cr: 587 kN | C0r: 1100 kN | Mass: 10.500 kg
24030MBW33 d: 150 mm | D: 225 mm | B: 75 mm | Cr: 587 kN | C0r: 1100 kN | Mass: 10.500 kg
24032K30MBW33 d: 160 mm | D: 240 mm | B: 80 mm | Cr: 670 kN | C0r: 1260 kN | Mass: 13.000 kg
24032MBW33 d: 160 mm | D: 240 mm | B: 80 mm | Cr: 670 kN | C0r: 1260 kN | Mass: 13.300 kg
24034K30MBW33 d: 170 mm | D: 260 mm | B: 90 mm | Cr: 816 kN | C0r: 1565 kN | Mass: 17.200 kg
24034MBW33 d: 170 mm | D: 260 mm | B: 90 mm | Cr: 816 kN | C0r: 1565 kN | Mass: 17.700 kg
24036K30MBW33 d: 180 mm | D: 280 mm | B: 100 mm | Cr: 955 kN | C0r: 1870 kN | Mass: 23.000 kg
24036MBW33 d: 180 mm | D: 280 mm | B: 100 mm | Cr: 955 kN | C0r: 1870 kN | Mass: 23.200 kg
24038K30MBW33 d: 190 mm | D: 290 mm | B: 100 mm | Cr: 1004 kN | C0r: 1960 kN | Mass: 24.000 kg
24038MBW33 d: 190 mm | D: 290 mm | B: 100 mm | Cr: 1004 kN | C0r: 1960 kN | Mass: 24.300 kg
24040K30MBW33 d: 200 mm | D: 310 mm | B: 109 mm | Cr: 1150 kN | C0r: 2280 kN | Mass: 30.500 kg
24040MBW33 d: 200 mm | D: 310 mm | B: 109 mm | Cr: 1150 kN | C0r: 2280 kN | Mass: 30.500 kg
24044K30MBW33 d: 220 mm | D: 340 mm | B: 118 mm | Cr: 1370 kN | C0r: 2760 kN | Mass: 39.500 kg
24044MBW33 d: 220 mm | D: 340 mm | B: 118 mm | Cr: 1370 kN | C0r: 2760 kN | Mass: 39.500 kg
24048K30MBW33 d: 240 mm | D: 360 mm | B: 118 mm | Cr: 1440 kN | C0r: 2930 kN | Mass: 42.500 kg
24048MBW33 d: 240 mm | D: 360 mm | B: 118 mm | Cr: 1440 kN | C0r: 2930 kN | Mass: 42.500 kg
24052K30MBW33 d: 260 mm | D: 400 mm | B: 140 mm | Cr: 1840 kN | C0r: 3850 kN | Mass: 66.000 kg
24052MBW33 d: 260 mm | D: 400 mm | B: 140 mm | Cr: 1840 kN | C0r: 3850 kN | Mass: 66.000 kg
24056K30MBW33 d: 280 mm | D: 420 mm | B: 140 mm | Cr: 1960 kN | C0r: 4100 kN | Mass: 68.500 kg
24056MBW33 d: 280 mm | D: 420 mm | B: 140 mm | Cr: 1960 kN | C0r: 4100 kN | Mass: 68.500 kg
24060K30MBW33 d: 300 mm | D: 460 mm | B: 160 mm | Cr: 2430 kN | C0r: 5160 kN | Mass: 97.000 kg
24060MBW33 d: 300 mm | D: 460 mm | B: 160 mm | Cr: 2430 kN | C0r: 5160 kN | Mass: 97.000 kg
24064K30MBW33 d: 320 mm | D: 480 mm | B: 160 mm | Cr: 2480 kN | C0r: 5100 kN | Mass: 106.000 kg
24064MBW33 d: 320 mm | D: 480 mm | B: 160 mm | Cr: 2480 kN | C0r: 5100 kN | Mass: 106.000 kg
24068K30MBW33 d: 340 mm | D: 520 mm | B: 180 mm | Cr: 3100 kN | C0r: 6550 kN | Mass: 143.000 kg
24068MBW33 d: 340 mm | D: 520 mm | B: 180 mm | Cr: 3100 kN | C0r: 6550 kN | Mass: 143.000 kg
24072K30MBW33 d: 360 mm | D: 540 mm | B: 180 mm | Cr: 3250 kN | C0r: 6800 kN | Mass: 145.000 kg
24072MBW33 d: 360 mm | D: 540 mm | B: 180 mm | Cr: 3250 kN | C0r: 6800 kN | Mass: 145.000 kg
24076K30MBW33 d: 380 mm | D: 560 mm | B: 180 mm | Cr: 3350 kN | C0r: 7200 kN | Mass: 152.000 kg
24076MBW33 d: 380 mm | D: 560 mm | B: 180 mm | Cr: 3350 kN | C0r: 7200 kN | Mass: 152.000 kg
24080K30MBW33 d: 400 mm | D: 600 mm | B: 200 mm | Cr: 3900 kN | C0r: 8500 kN | Mass: 205.000 kg
24080MBW33 d: 400 mm | D: 600 mm | B: 200 mm | Cr: 3900 kN | C0r: 8500 kN | Mass: 205.000 kg
24084K30MBW33 d: 420 mm | D: 620 mm | B: 200 mm | Cr: 4000 kN | C0r: 8800 kN | Mass: 210.000 kg
24084MBW33 d: 420 mm | D: 620 mm | B: 200 mm | Cr: 4000 kN | C0r: 8800 kN | Mass: 210.000 kg
24088K30MBW33 d: 440 mm | D: 650 mm | B: 212 mm | Cr: 4300 kN | C0r: 9650 kN | Mass: 245.000 kg
24088MBW33 d: 440 mm | D: 650 mm | B: 212 mm | Cr: 4300 kN | C0r: 9650 kN | Mass: 245.000 kg
24092K30MBW33 d: 460 mm | D: 680 mm | B: 218 mm | Cr: 4750 kN | C0r: 10600 kN | Mass: 280.000 kg
24092MBW33 d: 460 mm | D: 680 mm | B: 218 mm | Cr: 4750 kN | C0r: 10600 kN | Mass: 280.000 kg
