KYK 32/33 Double Row Angular Contact Ball Bearings (Filling Slot)

KYK 32/33 Double Row Angular Contact Ball Bearings (Filling Slot)

KYK 3200 and 3300 series double-row angular contact ball bearings with filling slot, bore 10 to 75 mm.

Key features

  • Double-row angular contact design equivalent to a pair of single-row bearings back-to-back
  • Filling-slot construction for a high number of balls and high radial load capacity
  • Carries combined radial and axial loads in both directions
  • Limiting speeds listed for grease and oil lubrication

Specifications

Brand KYK
Series 32, 33
Bearing type Double-row angular contact ball bearing, filling slot
Bore range 10 - 75 mm
Load ratings Basic dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 41-42

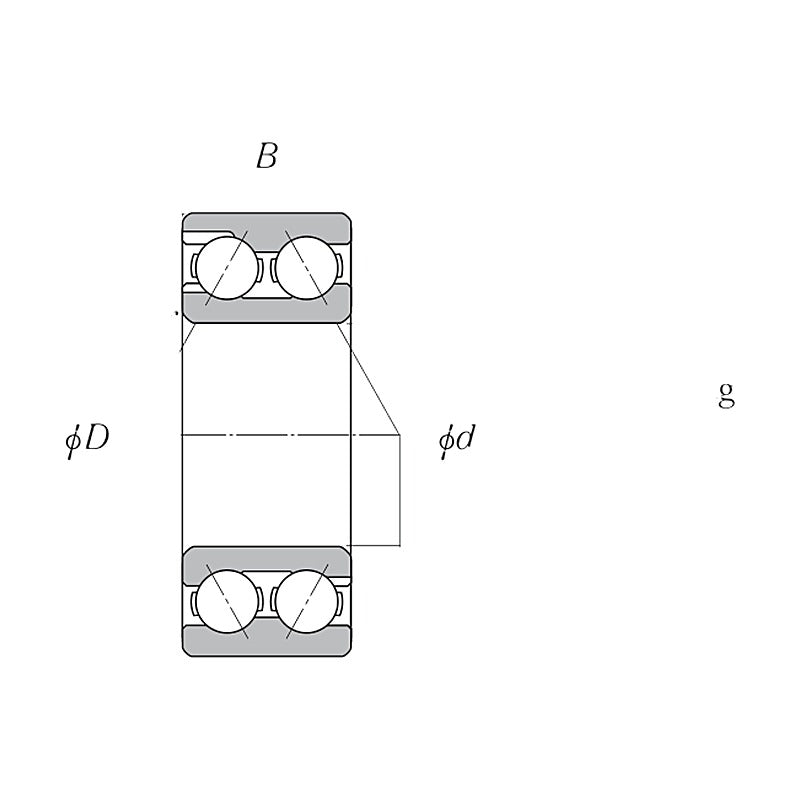

3200 d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 8 kN | C0r: 5.79 kN | Mass: 0.052 kg
3201 d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 9.65 kN | C0r: 7.13 kN | Mass: 0.063 kg
3202 d: 15 mm | D: 35 mm | B: 15.9 mm | Cr: 9.05 kN | C0r: 7.43 kN | Mass: 0.072 kg
3302 d: 15 mm | D: 42 mm | B: 19.0 mm | Cr: 15.2 kN | C0r: 11.8 kN | Mass: 0.132 kg
3203 d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 12.6 kN | C0r: 10.6 kN | Mass: 0.100 kg
3303 d: 17 mm | D: 47 mm | B: 22.2 mm | Cr: 20.7 kN | C0r: 16.4 kN | Mass: 0.192 kg
3204 d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 17.3 kN | C0r: 14.9 kN | Mass: 0.170 kg
3304 d: 20 mm | D: 52 mm | B: 22.2 mm | Cr: 20.8 kN | C0r: 18.3 kN | Mass: 0.230 kg
3205 d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 19 kN | C0r: 18.2 kN | Mass: 0.190 kg
3305 d: 25 mm | D: 62 mm | B: 25.4 mm | Cr: 28.9 kN | C0r: 26.4 kN | Mass: 0.369 kg
3206 d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 27.2 kN | C0r: 26.9 kN | Mass: 0.320 kg
3306 d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 38.2 kN | C0r: 35.9 kN | Mass: 0.585 kg
3207 d: 35 mm | D: 72 mm | B: 27 mm | Cr: 36.8 kN | C0r: 37.5 kN | Mass: 0.480 kg
3307 d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 48.6 kN | C0r: 46.8 kN | Mass: 0.816 kg
3208 d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 42 kN | C0r: 43.9 kN | Mass: 0.650 kg
3308 d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 54.1 kN | C0r: 53.8 kN | Mass: 1.070 kg
3209 d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 45.4 kN | C0r: 51.3 kN | Mass: 0.710 kg
3309 d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 66.1 kN | C0r: 67.3 kN | Mass: 1.420 kg
3210 d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 45.1 kN | C0r: 52.1 kN | Mass: 0.760 kg
3310 d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 86.1 kN | C0r: 88.6 kN | Mass: 1.950 kg
3211 d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 50.9 kN | C0r: 60.2 kN | Mass: 1.050 kg
3311 d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 94.8 kN | C0r: 107 kN | Mass: 2.530 kg
3212 d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 64 kN | C0r: 76.8 kN | Mass: 1.400 kg
3312 d: 60 mm | D: 130 mm | B: 54.0 mm | Cr: 111 kN | C0r: 127 kN | Mass: 3.240 kg
3213 d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 76.4 kN | C0r: 97.4 kN | Mass: 1.750 kg
3313 d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 129 kN | C0r: 148 kN | Mass: 4.080 kg
3214 d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 75.8 kN | C0r: 98.3 kN | Mass: 1.920 kg
3314 d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 149 kN | C0r: 165 kN | Mass: 5.040 kg
3215 d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 83.6 kN | C0r: 109 kN | Mass: 2.100 kg
3315 d: 75 mm | D: 160 mm | B: 68.3 mm | Cr: 169 kN | C0r: 189 kN | Mass: 6.160 kg
Angular Contact Ball BearingsKYK
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KYK 32/33 Double Row Angular Contact Ball Bearings (Filling Slot)

Brand KYK·Angular Contact Ball Bearings

Available part numbers (30)

3200, 3201, 3202, 3302, 3203, 3303, 3204, 3304, 3205, 3305 + 20 more — see full table ↓

How to order

Send the KYK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3200d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 8 kN | C0r: 5.79 kN | Mass: 0.052 kg
3201d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 9.65 kN | C0r: 7.13 kN | Mass: 0.063 kg
3202d: 15 mm | D: 35 mm | B: 15.9 mm | Cr: 9.05 kN | C0r: 7.43 kN | Mass: 0.072 kg
3302d: 15 mm | D: 42 mm | B: 19.0 mm | Cr: 15.2 kN | C0r: 11.8 kN | Mass: 0.132 kg
3203d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 12.6 kN | C0r: 10.6 kN | Mass: 0.100 kg
3303d: 17 mm | D: 47 mm | B: 22.2 mm | Cr: 20.7 kN | C0r: 16.4 kN | Mass: 0.192 kg
3204d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 17.3 kN | C0r: 14.9 kN | Mass: 0.170 kg
3304d: 20 mm | D: 52 mm | B: 22.2 mm | Cr: 20.8 kN | C0r: 18.3 kN | Mass: 0.230 kg
3205d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 19 kN | C0r: 18.2 kN | Mass: 0.190 kg
3305d: 25 mm | D: 62 mm | B: 25.4 mm | Cr: 28.9 kN | C0r: 26.4 kN | Mass: 0.369 kg
3206d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 27.2 kN | C0r: 26.9 kN | Mass: 0.320 kg
3306d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 38.2 kN | C0r: 35.9 kN | Mass: 0.585 kg
3207d: 35 mm | D: 72 mm | B: 27 mm | Cr: 36.8 kN | C0r: 37.5 kN | Mass: 0.480 kg
3307d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 48.6 kN | C0r: 46.8 kN | Mass: 0.816 kg
3208d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 42 kN | C0r: 43.9 kN | Mass: 0.650 kg
3308d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 54.1 kN | C0r: 53.8 kN | Mass: 1.070 kg
3209d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 45.4 kN | C0r: 51.3 kN | Mass: 0.710 kg
3309d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 66.1 kN | C0r: 67.3 kN | Mass: 1.420 kg
3210d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 45.1 kN | C0r: 52.1 kN | Mass: 0.760 kg
3310d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 86.1 kN | C0r: 88.6 kN | Mass: 1.950 kg
3211d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 50.9 kN | C0r: 60.2 kN | Mass: 1.050 kg
3311d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 94.8 kN | C0r: 107 kN | Mass: 2.530 kg
3212d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 64 kN | C0r: 76.8 kN | Mass: 1.400 kg
3312d: 60 mm | D: 130 mm | B: 54.0 mm | Cr: 111 kN | C0r: 127 kN | Mass: 3.240 kg
3213d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 76.4 kN | C0r: 97.4 kN | Mass: 1.750 kg
3313d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 129 kN | C0r: 148 kN | Mass: 4.080 kg
3214d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 75.8 kN | C0r: 98.3 kN | Mass: 1.920 kg
3314d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 149 kN | C0r: 165 kN | Mass: 5.040 kg
3215d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 83.6 kN | C0r: 109 kN | Mass: 2.100 kg
3315d: 75 mm | D: 160 mm | B: 68.3 mm | Cr: 169 kN | C0r: 189 kN | Mass: 6.160 kg
