KYK 52/53 Double Row Angular Contact Ball Bearings (Open, ZZ, LLU)

KYK 52/53 Double Row Angular Contact Ball Bearings (Open, ZZ, LLU)

KYK 5200 and 5300 series double-row angular contact ball bearings, bore 10 to 75 mm, in open, shielded (ZZ) and contact sealed (LLU) versions.

Key features

  • Double-row angular contact design for combined radial and axial loads in both directions

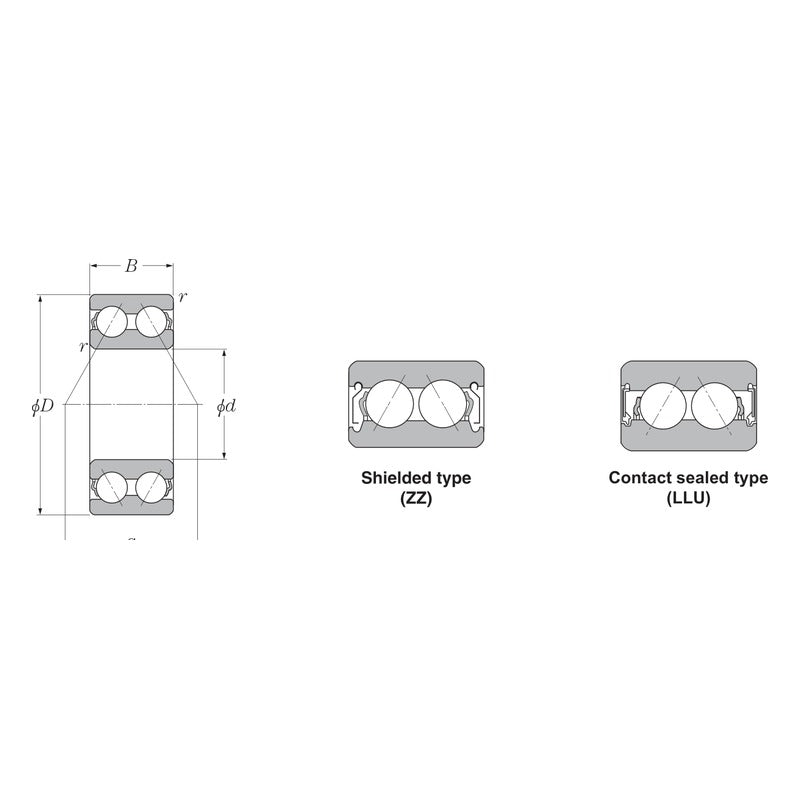

  • Open type, shielded type (ZZ) and contact sealed type (LLU) for each size
  • Load centre distance (a) listed for each size
  • Limiting speeds listed for grease and oil lubrication

Specifications

Brand KYK
Series 52, 53
Bearing type Double-row angular contact ball bearing
Bore range 10 - 75 mm
Versions Open, ZZ shielded, LLU contact sealed
Load ratings Basic dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 43-44
5200 d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 7.15 kN | C0r: 3.9 kN | Mass: 0.05 kg
5200ZZ d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 7.15 kN | C0r: 3.9 kN | Mass: 0.05 kg
5200LLU d: 10 mm | D: 30 mm | B: 14.3 mm | Cr: 7.15 kN | C0r: 3.9 kN | Mass: 0.05 kg
5201 d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 10.5 kN | C0r: 5.8 kN | Mass: 0.06 kg
5201ZZ d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 10.5 kN | C0r: 5.8 kN | Mass: 0.06 kg
5201LLU d: 12 mm | D: 32 mm | B: 15.9 mm | Cr: 10.5 kN | C0r: 5.8 kN | Mass: 0.06 kg
5202 d: 15 mm | D: 35 mm | B: 15.9 mm | Cr: 11.7 kN | C0r: 7.05 kN | Mass: 0.07 kg
5202ZZ d: 15 mm | D: 35 mm | B: 15.9 mm | Cr: 11.7 kN | C0r: 7.05 kN | Mass: 0.07 kg
5202LLU d: 15 mm | D: 35 mm | B: 15.9 mm | Cr: 11.7 kN | C0r: 7.05 kN | Mass: 0.07 kg
5302 d: 15 mm | D: 42 mm | B: 19.0 mm | Cr: 17.6 kN | C0r: 10.2 kN | Mass: 0.11 kg
5302ZZ d: 15 mm | D: 42 mm | B: 19.0 mm | Cr: 17.6 kN | C0r: 10.2 kN | Mass: 0.11 kg
5302LLU d: 15 mm | D: 42 mm | B: 19.0 mm | Cr: 17.6 kN | C0r: 10.2 kN | Mass: 0.11 kg
5203 d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 14.6 kN | C0r: 9.05 kN | Mass: 0.09 kg
5203ZZ d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 14.6 kN | C0r: 9.05 kN | Mass: 0.09 kg
5203LLU d: 17 mm | D: 40 mm | B: 17.5 mm | Cr: 14.6 kN | C0r: 9.05 kN | Mass: 0.09 kg
5303 d: 17 mm | D: 47 mm | B: 22.2 mm | Cr: 21 kN | C0r: 12.6 kN | Mass: 0.14 kg
5303ZZ d: 17 mm | D: 47 mm | B: 22.2 mm | Cr: 21 kN | C0r: 12.6 kN | Mass: 0.14 kg
5303LLU d: 17 mm | D: 47 mm | B: 22.2 mm | Cr: 21 kN | C0r: 12.6 kN | Mass: 0.14 kg
5204 d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 19.6 kN | C0r: 12.4 kN | Mass: 0.12 kg
5204ZZ d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 19.6 kN | C0r: 12.4 kN | Mass: 0.12 kg
5204LLU d: 20 mm | D: 47 mm | B: 20.6 mm | Cr: 19.6 kN | C0r: 12.4 kN | Mass: 0.12 kg
5304 d: 20 mm | D: 52 mm | B: 22.2 mm | Cr: 24.6 kN | C0r: 15 kN | Mass: 0.23 kg
5304ZZ d: 20 mm | D: 52 mm | B: 22.2 mm | Cr: 24.6 kN | C0r: 15 kN | Mass: 0.23 kg
5304LLU d: 20 mm | D: 52 mm | B: 22.2 mm | Cr: 24.6 kN | C0r: 15 kN | Mass: 0.23 kg
5205 d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 21.3 kN | C0r: 14.7 kN | Mass: 0.19 kg
5205ZZ d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 21.3 kN | C0r: 14.7 kN | Mass: 0.19 kg
5205LLU d: 25 mm | D: 52 mm | B: 20.6 mm | Cr: 21.3 kN | C0r: 14.7 kN | Mass: 0.19 kg
5305 d: 25 mm | D: 62 mm | B: 25.4 mm | Cr: 32.5 kN | C0r: 20.7 kN | Mass: 0.34 kg
5305ZZ d: 25 mm | D: 62 mm | B: 25.4 mm | Cr: 32.5 kN | C0r: 20.7 kN | Mass: 0.34 kg
5305LLU d: 25 mm | D: 62 mm | B: 25.4 mm | Cr: 32.5 kN | C0r: 20.7 kN | Mass: 0.34 kg
5206 d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 29.6 kN | C0r: 21.1 kN | Mass: 0.29 kg
5206ZZ d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 29.6 kN | C0r: 21.1 kN | Mass: 0.29 kg
5206LLU d: 30 mm | D: 62 mm | B: 23.8 mm | Cr: 29.6 kN | C0r: 21.1 kN | Mass: 0.29 kg
5306 d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 40.5 kN | C0r: 28.1 kN | Mass: 0.51 kg
5306ZZ d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 40.5 kN | C0r: 28.1 kN | Mass: 0.51 kg
5306LLU d: 30 mm | D: 72 mm | B: 30.2 mm | Cr: 40.5 kN | C0r: 28.1 kN | Mass: 0.51 kg
5207 d: 35 mm | D: 72 mm | B: 27.0 mm | Cr: 39 kN | C0r: 28.7 kN | Mass: 0.43 kg
5207ZZ d: 35 mm | D: 72 mm | B: 27.0 mm | Cr: 39 kN | C0r: 28.7 kN | Mass: 0.43 kg
5207LLU d: 35 mm | D: 72 mm | B: 27.0 mm | Cr: 39 kN | C0r: 28.7 kN | Mass: 0.43 kg
5307 d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 51 kN | C0r: 36 kN | Mass: 0.79 kg
5307ZZ d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 51 kN | C0r: 36 kN | Mass: 0.79 kg
5307LLU d: 35 mm | D: 80 mm | B: 34.9 mm | Cr: 51 kN | C0r: 36 kN | Mass: 0.79 kg
5208 d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 44 kN | C0r: 33.5 kN | Mass: 0.57 kg
5208ZZ d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 44 kN | C0r: 33.5 kN | Mass: 0.57 kg
5208LLU d: 40 mm | D: 80 mm | B: 30.2 mm | Cr: 44 kN | C0r: 33.5 kN | Mass: 0.57 kg
5308 d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 56.5 kN | C0r: 41 kN | Mass: 1.05 kg
5308ZZ d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 56.5 kN | C0r: 41 kN | Mass: 1.05 kg
5308LLU d: 40 mm | D: 90 mm | B: 36.5 mm | Cr: 56.5 kN | C0r: 41 kN | Mass: 1.05 kg
5209 d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 49.5 kN | C0r: 38 kN | Mass: 0.62 kg
5209ZZ d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 49.5 kN | C0r: 38 kN | Mass: 0.62 kg
5209LLU d: 45 mm | D: 85 mm | B: 30.2 mm | Cr: 49.5 kN | C0r: 38 kN | Mass: 0.62 kg
5309 d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 68.5 kN | C0r: 51 kN | Mass: 1.40 kg
5309ZZ d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 68.5 kN | C0r: 51 kN | Mass: 1.40 kg
5309LLU d: 45 mm | D: 100 mm | B: 39.7 mm | Cr: 68.5 kN | C0r: 51 kN | Mass: 1.40 kg
5210 d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 53 kN | C0r: 43.5 kN | Mass: 0.67 kg
5210ZZ d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 53 kN | C0r: 43.5 kN | Mass: 0.67 kg
5210LLU d: 50 mm | D: 90 mm | B: 30.2 mm | Cr: 53 kN | C0r: 43.5 kN | Mass: 0.67 kg
5310 d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 81.5 kN | C0r: 61.5 kN | Mass: 1.95 kg
5310ZZ d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 81.5 kN | C0r: 61.5 kN | Mass: 1.95 kg
5310LLU d: 50 mm | D: 110 mm | B: 44.4 mm | Cr: 81.5 kN | C0r: 61.5 kN | Mass: 1.95 kg
5211 d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 56 kN | C0r: 49 kN | Mass: 0.96 kg
5211ZZ d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 56 kN | C0r: 49 kN | Mass: 0.96 kg
5211LLU d: 55 mm | D: 100 mm | B: 33.3 mm | Cr: 56 kN | C0r: 49 kN | Mass: 0.96 kg
5311 d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 95 kN | C0r: 73 kN | Mass: 2.30 kg
5311ZZ d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 95 kN | C0r: 73 kN | Mass: 2.30 kg
5311LLU d: 55 mm | D: 120 mm | B: 49.2 mm | Cr: 95 kN | C0r: 73 kN | Mass: 2.30 kg
5212 d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 69 kN | C0r: 62 kN | Mass: 1.35 kg
5212ZZ d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 69 kN | C0r: 62 kN | Mass: 1.35 kg
5212LLU d: 60 mm | D: 110 mm | B: 36.5 mm | Cr: 69 kN | C0r: 62 kN | Mass: 1.35 kg
5312 d: 60 mm | D: 130 mm | B: 54.0 mm | Cr: 125 kN | C0r: 98.5 kN | Mass: 3.15 kg
5312ZZ d: 60 mm | D: 130 mm | B: 54.0 mm | Cr: 125 kN | C0r: 98.5 kN | Mass: 3.15 kg
5312LLU d: 60 mm | D: 130 mm | B: 54.0 mm | Cr: 125 kN | C0r: 98.5 kN | Mass: 3.15 kg
5213 d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 76.5 kN | C0r: 69 kN | Mass: 1.65 kg
5213ZZ d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 76.5 kN | C0r: 69 kN | Mass: 1.65 kg
5213LLU d: 65 mm | D: 120 mm | B: 38.1 mm | Cr: 76.5 kN | C0r: 69 kN | Mass: 1.65 kg
5313 d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 142 kN | C0r: 113 kN | Mass: 3.85 kg
5313ZZ d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 142 kN | C0r: 113 kN | Mass: 3.85 kg
5313LLU d: 65 mm | D: 140 mm | B: 58.7 mm | Cr: 142 kN | C0r: 113 kN | Mass: 3.85 kg
5214 d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 94 kN | C0r: 82 kN | Mass: 1.80 kg
5214ZZ d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 94 kN | C0r: 82 kN | Mass: 1.80 kg
5214LLU d: 70 mm | D: 125 mm | B: 39.7 mm | Cr: 94 kN | C0r: 82 kN | Mass: 1.80 kg
5314 d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 159 kN | C0r: 128 kN | Mass: 4.90 kg
5314ZZ d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 159 kN | C0r: 128 kN | Mass: 4.90 kg
5314LLU d: 70 mm | D: 150 mm | B: 63.5 mm | Cr: 159 kN | C0r: 128 kN | Mass: 4.90 kg
5215 d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 93.5 kN | C0r: 83 kN | Mass: 1.90 kg
5215ZZ d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 93.5 kN | C0r: 83 kN | Mass: 1.90 kg
5215LLU d: 75 mm | D: 130 mm | B: 41.3 mm | Cr: 93.5 kN | C0r: 83 kN | Mass: 1.90 kg
Angular Contact Ball BearingsKYK
87 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
