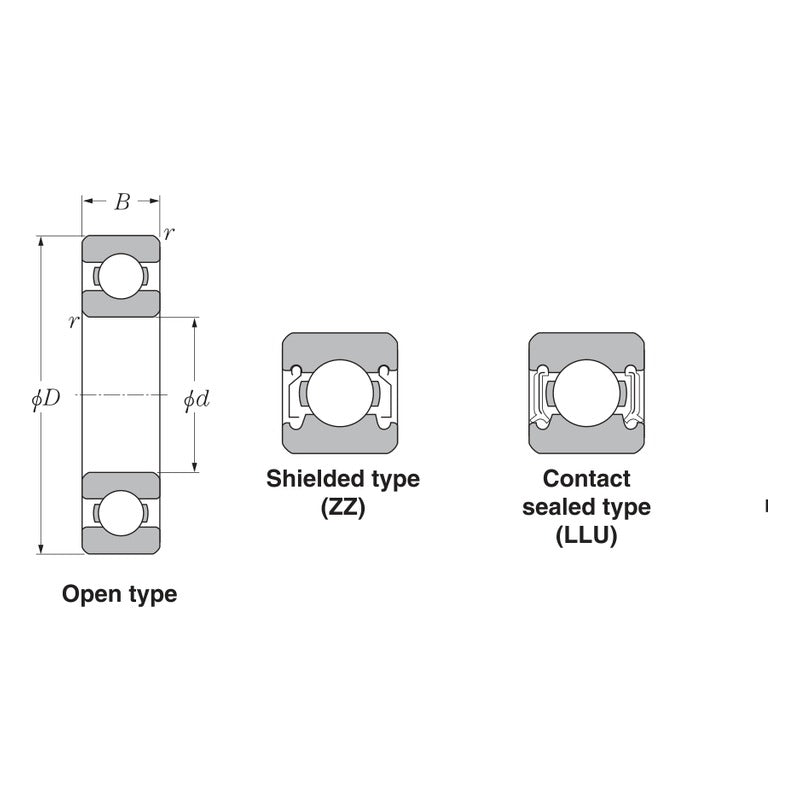

KYK 60 Series Deep Groove Ball Bearings (Open, ZZ, LLU)

KYK 60 Series Deep Groove Ball Bearings (Open, ZZ, LLU)

KYK 60 series single-row deep groove ball bearings, bore 10 to 150 mm, in open, shielded (ZZ) and contact sealed (LLU) versions.

Key features

  • Single-row deep groove design for radial and moderate axial loads in both directions
  • Shielded type (ZZ) and contact sealed type (LLU) available where listed
  • Limiting speeds listed for grease and oil lubrication
  • Basic load ratings given in kN and kgf

Specifications

Brand KYK
Series 60
Bearing type Single-row deep groove ball bearing
Bore range 10 - 150 mm
Versions Open, ZZ, LLU
Load ratings Basic dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 32-37
6000 d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.96 kN | Mass: 0.019 kg
6000ZZ d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.96 kN | Mass: 0.019 kg
6000LLU d: 10 mm | D: 26 mm | B: 8 mm | Cr: 4.55 kN | C0r: 1.96 kN | Mass: 0.019 kg
6001 d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.021 kg
6001ZZ d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.021 kg
6001LLU d: 12 mm | D: 28 mm | B: 8 mm | Cr: 5.1 kN | C0r: 2.39 kN | Mass: 0.021 kg
6002 d: 15 mm | D: 32 mm | B: 9 mm | Cr: 5.6 kN | C0r: 2.83 kN | Mass: 0.030 kg
6002ZZ d: 15 mm | D: 32 mm | B: 9 mm | Cr: 5.6 kN | C0r: 2.83 kN | Mass: 0.030 kg
6002LLU d: 15 mm | D: 32 mm | B: 9 mm | Cr: 5.6 kN | C0r: 2.83 kN | Mass: 0.030 kg
6003 d: 17 mm | D: 35 mm | B: 10 mm | Cr: 6.8 kN | C0r: 3.35 kN | Mass: 0.039 kg
6003ZZ d: 17 mm | D: 35 mm | B: 10 mm | Cr: 6.8 kN | C0r: 3.35 kN | Mass: 0.039 kg
6003LLU d: 17 mm | D: 35 mm | B: 10 mm | Cr: 6.8 kN | C0r: 3.35 kN | Mass: 0.039 kg
6004 d: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.4 kN | C0r: 5.05 kN | Mass: 0.069 kg
6004ZZ d: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.4 kN | C0r: 5.05 kN | Mass: 0.069 kg
6004LLU d: 20 mm | D: 42 mm | B: 12 mm | Cr: 9.4 kN | C0r: 5.05 kN | Mass: 0.069 kg
60/22 d: 22 mm | D: 44 mm | B: 12 mm | Cr: 9.4 kN | C0r: 5.05 kN | Mass: 0.074 kg
60/22ZZ d: 22 mm | D: 44 mm | B: 12 mm | Cr: 9.4 kN | C0r: 5.05 kN | Mass: 0.074 kg
60/22LLU d: 22 mm | D: 44 mm | B: 12 mm | Cr: 9.4 kN | C0r: 5.05 kN | Mass: 0.074 kg
6005 d: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Mass: 0.080 kg
6005ZZ d: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Mass: 0.080 kg
6005LLU d: 25 mm | D: 47 mm | B: 12 mm | Cr: 10.1 kN | C0r: 5.85 kN | Mass: 0.080 kg
60/28 d: 28 mm | D: 52 mm | B: 12 mm | Cr: 12.5 kN | C0r: 7.4 kN | Mass: 0.098 kg
60/28ZZ d: 28 mm | D: 52 mm | B: 12 mm | Cr: 12.5 kN | C0r: 7.4 kN | Mass: 0.098 kg
60/28LLU d: 28 mm | D: 52 mm | B: 12 mm | Cr: 12.5 kN | C0r: 7.4 kN | Mass: 0.098 kg
6006 d: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.3 kN | Mass: 0.116 kg
6006ZZ d: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.3 kN | Mass: 0.116 kg
6006LLU d: 30 mm | D: 55 mm | B: 13 mm | Cr: 13.2 kN | C0r: 8.3 kN | Mass: 0.116 kg
60/32 d: 32 mm | D: 58 mm | B: 13 mm | Cr: 11.8 kN | C0r: 8.05 kN | Mass: 0.129 kg
60/32ZZ d: 32 mm | D: 58 mm | B: 13 mm | Cr: 11.8 kN | C0r: 8.05 kN | Mass: 0.129 kg
60/32LLU d: 32 mm | D: 58 mm | B: 13 mm | Cr: 11.8 kN | C0r: 8.05 kN | Mass: 0.129 kg
6007 d: 35 mm | D: 62 mm | B: 14 mm | Cr: 16 kN | C0r: 10.3 kN | Mass: 0.155 kg
6007ZZ d: 35 mm | D: 62 mm | B: 14 mm | Cr: 16 kN | C0r: 10.3 kN | Mass: 0.155 kg
6007LLU d: 35 mm | D: 62 mm | B: 14 mm | Cr: 16 kN | C0r: 10.3 kN | Mass: 0.155 kg
6008 d: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.8 kN | C0r: 11.5 kN | Mass: 0.190 kg
6008ZZ d: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.8 kN | C0r: 11.5 kN | Mass: 0.190 kg
6008LLU d: 40 mm | D: 68 mm | B: 15 mm | Cr: 16.8 kN | C0r: 11.5 kN | Mass: 0.190 kg
6009 d: 45 mm | D: 75 mm | B: 16 mm | Cr: 21 kN | C0r: 15.1 kN | Mass: 0.237 kg
6009ZZ d: 45 mm | D: 75 mm | B: 16 mm | Cr: 21 kN | C0r: 15.1 kN | Mass: 0.237 kg
6009LLU d: 45 mm | D: 75 mm | B: 16 mm | Cr: 21 kN | C0r: 15.1 kN | Mass: 0.237 kg
6010 d: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Mass: 0.261 kg
6010ZZ d: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Mass: 0.261 kg
6010LLU d: 50 mm | D: 80 mm | B: 16 mm | Cr: 21.8 kN | C0r: 16.6 kN | Mass: 0.261 kg
6011 d: 55 mm | D: 90 mm | B: 18 mm | Cr: 28.3 kN | C0r: 21.2 kN | Mass: 0.388 kg
6011ZZ d: 55 mm | D: 90 mm | B: 18 mm | Cr: 28.3 kN | C0r: 21.2 kN | Mass: 0.388 kg
6011LLU d: 55 mm | D: 90 mm | B: 18 mm | Cr: 28.3 kN | C0r: 21.2 kN | Mass: 0.388 kg
6012 d: 60 mm | D: 95 mm | B: 18 mm | Cr: 29.5 kN | C0r: 23.2 kN | Mass: 0.414 kg
6012ZZ d: 60 mm | D: 95 mm | B: 18 mm | Cr: 29.5 kN | C0r: 23.2 kN | Mass: 0.414 kg
6012LLU d: 60 mm | D: 95 mm | B: 18 mm | Cr: 29.5 kN | C0r: 23.2 kN | Mass: 0.414 kg
6013 d: 65 mm | D: 100 mm | B: 18 mm | Cr: 30.5 kN | C0r: 25.2 kN | Mass: 0.421 kg
6013ZZ d: 65 mm | D: 100 mm | B: 18 mm | Cr: 30.5 kN | C0r: 25.2 kN | Mass: 0.421 kg
6013LLU d: 65 mm | D: 100 mm | B: 18 mm | Cr: 30.5 kN | C0r: 25.2 kN | Mass: 0.421 kg
6014 d: 70 mm | D: 110 mm | B: 20 mm | Cr: 38 kN | C0r: 31 kN | Mass: 0.604 kg
6014ZZ d: 70 mm | D: 110 mm | B: 20 mm | Cr: 38 kN | C0r: 31 kN | Mass: 0.604 kg
6014LLU d: 70 mm | D: 110 mm | B: 20 mm | Cr: 38 kN | C0r: 31 kN | Mass: 0.604 kg
6015 d: 75 mm | D: 115 mm | B: 20 mm | Cr: 39.5 kN | C0r: 33.5 kN | Mass: 0.649 kg
6015ZZ d: 75 mm | D: 115 mm | B: 20 mm | Cr: 39.5 kN | C0r: 33.5 kN | Mass: 0.649 kg
6015LLU d: 75 mm | D: 115 mm | B: 20 mm | Cr: 39.5 kN | C0r: 33.5 kN | Mass: 0.649 kg
6016 d: 80 mm | D: 125 mm | B: 22 mm | Cr: 47.5 kN | C0r: 40 kN | Mass: 0.854 kg
6016ZZ d: 80 mm | D: 125 mm | B: 22 mm | Cr: 47.5 kN | C0r: 40 kN | Mass: 0.854 kg
6016LLU d: 80 mm | D: 125 mm | B: 22 mm | Cr: 47.5 kN | C0r: 40 kN | Mass: 0.854 kg
6017 d: 85 mm | D: 130 mm | B: 22 mm | Cr: 49.5 kN | C0r: 43 kN | Mass: 0.890 kg
6017ZZ d: 85 mm | D: 130 mm | B: 22 mm | Cr: 49.5 kN | C0r: 43 kN | Mass: 0.890 kg
6017LLU d: 85 mm | D: 130 mm | B: 22 mm | Cr: 49.5 kN | C0r: 43 kN | Mass: 0.890 kg
6018 d: 90 mm | D: 140 mm | B: 24 mm | Cr: 58 kN | C0r: 49.5 kN | Mass: 1.020 kg
6018ZZ d: 90 mm | D: 140 mm | B: 24 mm | Cr: 58 kN | C0r: 49.5 kN | Mass: 1.020 kg
6018LLU d: 90 mm | D: 140 mm | B: 24 mm | Cr: 58 kN | C0r: 49.5 kN | Mass: 1.020 kg
6019 d: 95 mm | D: 145 mm | B: 24 mm | Cr: 60.5 kN | C0r: 54 kN | Mass: 1.080 kg
6019ZZ d: 95 mm | D: 145 mm | B: 24 mm | Cr: 60.5 kN | C0r: 54 kN | Mass: 1.080 kg
6019LLU d: 95 mm | D: 145 mm | B: 24 mm | Cr: 60.5 kN | C0r: 54 kN | Mass: 1.080 kg
6020 d: 100 mm | D: 150 mm | B: 24 mm | Cr: 60 kN | C0r: 54 kN | Mass: 1.150 kg
6020ZZ d: 100 mm | D: 150 mm | B: 24 mm | Cr: 60 kN | C0r: 54 kN | Mass: 1.150 kg
6020LLU d: 100 mm | D: 150 mm | B: 24 mm | Cr: 60 kN | C0r: 54 kN | Mass: 1.150 kg
6021 d: 105 mm | D: 160 mm | B: 26 mm | Cr: 72.5 kN | C0r: 65.5 kN | Mass: 1.590 kg
6021ZZ d: 105 mm | D: 160 mm | B: 26 mm | Cr: 72.5 kN | C0r: 65.5 kN | Mass: 1.590 kg
6021LLU d: 105 mm | D: 160 mm | B: 26 mm | Cr: 72.5 kN | C0r: 65.5 kN | Mass: 1.590 kg
6022 d: 110 mm | D: 170 mm | B: 28 mm | Cr: 82 kN | C0r: 73 kN | Mass: 1.960 kg
6022ZZ d: 110 mm | D: 170 mm | B: 28 mm | Cr: 82 kN | C0r: 73 kN | Mass: 1.960 kg
6022LLU d: 110 mm | D: 170 mm | B: 28 mm | Cr: 82 kN | C0r: 73 kN | Mass: 1.960 kg
6024 d: 120 mm | D: 180 mm | B: 28 mm | Cr: 85 kN | C0r: 79.5 kN | Mass: 2.070 kg
6024ZZ d: 120 mm | D: 180 mm | B: 28 mm | Cr: 85 kN | C0r: 79.5 kN | Mass: 2.070 kg
6024LLU d: 120 mm | D: 180 mm | B: 28 mm | Cr: 85 kN | C0r: 79.5 kN | Mass: 2.070 kg
6026 d: 130 mm | D: 200 mm | B: 33 mm | Cr: 106 kN | C0r: 101 kN | Mass: 3.160 kg
6026ZZ d: 130 mm | D: 200 mm | B: 33 mm | Cr: 106 kN | C0r: 101 kN | Mass: 3.160 kg
6026LLU d: 130 mm | D: 200 mm | B: 33 mm | Cr: 106 kN | C0r: 101 kN | Mass: 3.160 kg
6028 d: 140 mm | D: 210 mm | B: 33 mm | Cr: 110 kN | C0r: 109 kN | Mass: 3.350 kg
6028ZZ d: 140 mm | D: 210 mm | B: 33 mm | Cr: 110 kN | C0r: 109 kN | Mass: 3.350 kg
6028LLU d: 140 mm | D: 210 mm | B: 33 mm | Cr: 110 kN | C0r: 109 kN | Mass: 3.350 kg
6030 d: 150 mm | D: 225 mm | B: 35 mm | Cr: 126 kN | C0r: 126 kN | Mass: 4.080 kg
6030ZZ d: 150 mm | D: 225 mm | B: 35 mm | Cr: 126 kN | C0r: 126 kN | Mass: 4.080 kg
6030LLU d: 150 mm | D: 225 mm | B: 35 mm | Cr: 126 kN | C0r: 126 kN | Mass: 4.080 kg
