KYK 63 Series Deep Groove Ball Bearings (Open, ZZ, LLU, N, NR)

KYK 63 Series Deep Groove Ball Bearings (Open, ZZ, LLU, N, NR)

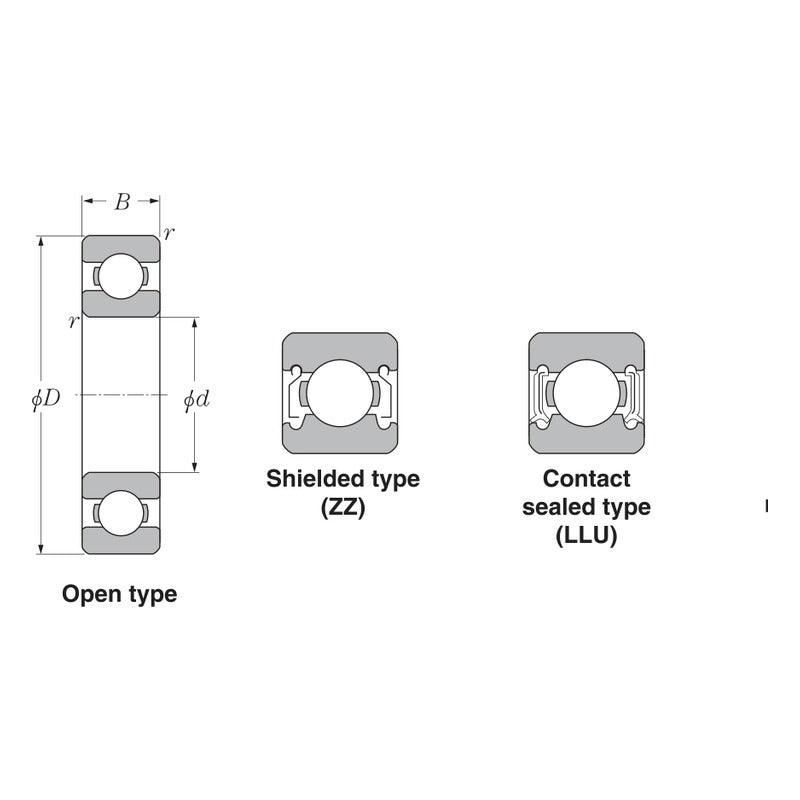

KYK 63 series single-row deep groove ball bearings, bore 10 to 150 mm, in open, shielded (ZZ) and contact sealed (LLU) versions.

Key features

  • Single-row deep groove design for radial and moderate axial loads in both directions
  • Shielded type (ZZ) and contact sealed type (LLU) available where listed
  • Snap ring groove (N) and snap ring (NR) versions for selected sizes
  • Limiting speeds listed for grease and oil lubrication; load ratings in kN and kgf

Specifications

Brand KYK
Series 63
Bearing type Single-row deep groove ball bearing
Bore range 10 - 150 mm
Versions Open, ZZ, LLU, N, NR
Load ratings Basic dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 32-37
6300 d: 10 mm | D: 35 mm | B: 11 mm | Cr: 8.2 kN | C0r: 3.5 kN | Mass: 0.053 kg
6300ZZ d: 10 mm | D: 35 mm | B: 11 mm | Cr: 8.2 kN | C0r: 3.5 kN | Mass: 0.053 kg
6300LLU d: 10 mm | D: 35 mm | B: 11 mm | Cr: 8.2 kN | C0r: 3.5 kN | Mass: 0.053 kg
6301 d: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.7 kN | C0r: 4.2 kN | Mass: 0.060 kg
6301ZZ d: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.7 kN | C0r: 4.2 kN | Mass: 0.060 kg
6301LLU d: 12 mm | D: 37 mm | B: 12 mm | Cr: 9.7 kN | C0r: 4.2 kN | Mass: 0.060 kg
6302 d: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Mass: 0.082 kg
6302ZZ d: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Mass: 0.082 kg
6302LLU d: 15 mm | D: 42 mm | B: 13 mm | Cr: 11.4 kN | C0r: 5.45 kN | Mass: 0.082 kg
6303 d: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.5 kN | C0r: 6.55 kN | Mass: 0.115 kg
6303ZZ d: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.5 kN | C0r: 6.55 kN | Mass: 0.115 kg
6303LLU d: 17 mm | D: 47 mm | B: 14 mm | Cr: 13.5 kN | C0r: 6.55 kN | Mass: 0.115 kg
6304 d: 20 mm | D: 52 mm | B: 15 mm | Cr: 15.9 kN | C0r: 7.9 kN | Mass: 0.144 kg
6304ZZ d: 20 mm | D: 52 mm | B: 15 mm | Cr: 15.9 kN | C0r: 7.9 kN | Mass: 0.144 kg
6304LLU d: 20 mm | D: 52 mm | B: 15 mm | Cr: 15.9 kN | C0r: 7.9 kN | Mass: 0.144 kg
6304N d: 20 mm | D: 52 mm | B: 15 mm | Cr: 15.9 kN | C0r: 7.9 kN | Mass: 0.144 kg
6304NR d: 20 mm | D: 52 mm | B: 15 mm | Cr: 15.9 kN | C0r: 7.9 kN | Mass: 0.144 kg
63/22 d: 22 mm | D: 56 mm | B: 16 mm | Cr: 18.4 kN | C0r: 9.25 kN | Mass: 0.176 kg
63/22ZZ d: 22 mm | D: 56 mm | B: 16 mm | Cr: 18.4 kN | C0r: 9.25 kN | Mass: 0.176 kg
63/22LLU d: 22 mm | D: 56 mm | B: 16 mm | Cr: 18.4 kN | C0r: 9.25 kN | Mass: 0.176 kg
6305 d: 25 mm | D: 62 mm | B: 17 mm | Cr: 21.2 kN | C0r: 10.9 kN | Mass: 0.232 kg
6305ZZ d: 25 mm | D: 62 mm | B: 17 mm | Cr: 21.2 kN | C0r: 10.9 kN | Mass: 0.232 kg
6305LLU d: 25 mm | D: 62 mm | B: 17 mm | Cr: 21.2 kN | C0r: 10.9 kN | Mass: 0.232 kg
6305NR d: 25 mm | D: 62 mm | B: 17 mm | Cr: 21.2 kN | C0r: 10.9 kN | Mass: 0.232 kg
63/28 d: 28 mm | D: 68 mm | B: 18 mm | Cr: 26.7 kN | C0r: 14 kN | Mass: 0.284 kg
63/28ZZ d: 28 mm | D: 68 mm | B: 18 mm | Cr: 26.7 kN | C0r: 14 kN | Mass: 0.284 kg
63/28LLU d: 28 mm | D: 68 mm | B: 18 mm | Cr: 26.7 kN | C0r: 14 kN | Mass: 0.284 kg
63/28NR d: 28 mm | D: 68 mm | B: 18 mm | Cr: 26.7 kN | C0r: 14 kN | Mass: 0.284 kg
6306 d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 15 kN | Mass: 0.360 kg
6306ZZ d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 15 kN | Mass: 0.360 kg
6306LLU d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 15 kN | Mass: 0.360 kg
6306N d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 15 kN | Mass: 0.360 kg
6306NR d: 30 mm | D: 72 mm | B: 19 mm | Cr: 26.7 kN | C0r: 15 kN | Mass: 0.360 kg
63/32 d: 32 mm | D: 75 mm | B: 20 mm | Cr: 29.8 kN | C0r: 16.9 kN | Mass: 0.382 kg
63/32ZZ d: 32 mm | D: 75 mm | B: 20 mm | Cr: 29.8 kN | C0r: 16.9 kN | Mass: 0.382 kg
63/32LLU d: 32 mm | D: 75 mm | B: 20 mm | Cr: 29.8 kN | C0r: 16.9 kN | Mass: 0.382 kg
63/32NR d: 32 mm | D: 75 mm | B: 20 mm | Cr: 29.8 kN | C0r: 16.9 kN | Mass: 0.382 kg
6307 d: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.5 kN | C0r: 19.1 kN | Mass: 0.457 kg
6307ZZ d: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.5 kN | C0r: 19.1 kN | Mass: 0.457 kg
6307LLU d: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.5 kN | C0r: 19.1 kN | Mass: 0.457 kg
6307NR d: 35 mm | D: 80 mm | B: 21 mm | Cr: 33.5 kN | C0r: 19.1 kN | Mass: 0.457 kg
6308 d: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.5 kN | C0r: 24 kN | Mass: 0.630 kg
6308ZZ d: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.5 kN | C0r: 24 kN | Mass: 0.630 kg
6308LLU d: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.5 kN | C0r: 24 kN | Mass: 0.630 kg
6308NR d: 40 mm | D: 90 mm | B: 23 mm | Cr: 40.5 kN | C0r: 24 kN | Mass: 0.630 kg
6309 d: 45 mm | D: 100 mm | B: 25 mm | Cr: 53 kN | C0r: 32 kN | Mass: 0.814 kg
6309ZZ d: 45 mm | D: 100 mm | B: 25 mm | Cr: 53 kN | C0r: 32 kN | Mass: 0.814 kg
6309LLU d: 45 mm | D: 100 mm | B: 25 mm | Cr: 53 kN | C0r: 32 kN | Mass: 0.814 kg
6309NR d: 45 mm | D: 100 mm | B: 25 mm | Cr: 53 kN | C0r: 32 kN | Mass: 0.814 kg
6310 d: 50 mm | D: 110 mm | B: 27 mm | Cr: 62 kN | C0r: 38.5 kN | Mass: 1.070 kg
6310ZZ d: 50 mm | D: 110 mm | B: 27 mm | Cr: 62 kN | C0r: 38.5 kN | Mass: 1.070 kg
6310LLU d: 50 mm | D: 110 mm | B: 27 mm | Cr: 62 kN | C0r: 38.5 kN | Mass: 1.070 kg
6310N d: 50 mm | D: 110 mm | B: 27 mm | Cr: 62 kN | C0r: 38.5 kN | Mass: 1.070 kg
6310NR d: 50 mm | D: 110 mm | B: 27 mm | Cr: 62 kN | C0r: 38.5 kN | Mass: 1.070 kg
6311 d: 55 mm | D: 120 mm | B: 29 mm | Cr: 71.5 kN | C0r: 45 kN | Mass: 1.370 kg
6311ZZ d: 55 mm | D: 120 mm | B: 29 mm | Cr: 71.5 kN | C0r: 45 kN | Mass: 1.370 kg
6311LLU d: 55 mm | D: 120 mm | B: 29 mm | Cr: 71.5 kN | C0r: 45 kN | Mass: 1.370 kg
6311NR d: 55 mm | D: 120 mm | B: 29 mm | Cr: 71.5 kN | C0r: 45 kN | Mass: 1.370 kg
6312 d: 60 mm | D: 130 mm | B: 31 mm | Cr: 82 kN | C0r: 52 kN | Mass: 1.730 kg
6312ZZ d: 60 mm | D: 130 mm | B: 31 mm | Cr: 82 kN | C0r: 52 kN | Mass: 1.730 kg
6312LLU d: 60 mm | D: 130 mm | B: 31 mm | Cr: 82 kN | C0r: 52 kN | Mass: 1.730 kg
6312NR d: 60 mm | D: 130 mm | B: 31 mm | Cr: 82 kN | C0r: 52 kN | Mass: 1.730 kg
6313 d: 65 mm | D: 140 mm | B: 33 mm | Cr: 92.5 kN | C0r: 60 kN | Mass: 2.080 kg
6313ZZ d: 65 mm | D: 140 mm | B: 33 mm | Cr: 92.5 kN | C0r: 60 kN | Mass: 2.080 kg
6313LLU d: 65 mm | D: 140 mm | B: 33 mm | Cr: 92.5 kN | C0r: 60 kN | Mass: 2.080 kg
6314 d: 70 mm | D: 150 mm | B: 35 mm | Cr: 104 kN | C0r: 68 kN | Mass: 2.520 kg
6314ZZ d: 70 mm | D: 150 mm | B: 35 mm | Cr: 104 kN | C0r: 68 kN | Mass: 2.520 kg
6314LLU d: 70 mm | D: 150 mm | B: 35 mm | Cr: 104 kN | C0r: 68 kN | Mass: 2.520 kg
6314NR d: 70 mm | D: 150 mm | B: 35 mm | Cr: 104 kN | C0r: 68 kN | Mass: 2.520 kg
6315 d: 75 mm | D: 160 mm | B: 37 mm | Cr: 113 kN | C0r: 77 kN | Mass: 3.020 kg
6315ZZ d: 75 mm | D: 160 mm | B: 37 mm | Cr: 113 kN | C0r: 77 kN | Mass: 3.020 kg
6315LLU d: 75 mm | D: 160 mm | B: 37 mm | Cr: 113 kN | C0r: 77 kN | Mass: 3.020 kg
6316 d: 80 mm | D: 170 mm | B: 39 mm | Cr: 123 kN | C0r: 86.5 kN | Mass: 3.590 kg
6316ZZ d: 80 mm | D: 170 mm | B: 39 mm | Cr: 123 kN | C0r: 86.5 kN | Mass: 3.590 kg
6316LLU d: 80 mm | D: 170 mm | B: 39 mm | Cr: 123 kN | C0r: 86.5 kN | Mass: 3.590 kg
6317 d: 85 mm | D: 180 mm | B: 41 mm | Cr: 133 kN | C0r: 97 kN | Mass: 4.230 kg
6317ZZ d: 85 mm | D: 180 mm | B: 41 mm | Cr: 133 kN | C0r: 97 kN | Mass: 4.230 kg
6317LLU d: 85 mm | D: 180 mm | B: 41 mm | Cr: 133 kN | C0r: 97 kN | Mass: 4.230 kg
6318 d: 90 mm | D: 190 mm | B: 43 mm | Cr: 143 kN | C0r: 107 kN | Mass: 4.910 kg
6318ZZ d: 90 mm | D: 190 mm | B: 43 mm | Cr: 143 kN | C0r: 107 kN | Mass: 4.910 kg
6318LLU d: 90 mm | D: 190 mm | B: 43 mm | Cr: 143 kN | C0r: 107 kN | Mass: 4.910 kg
6319 d: 95 mm | D: 200 mm | B: 45 mm | Cr: 153 kN | C0r: 119 kN | Mass: 5.670 kg
6319ZZ d: 95 mm | D: 200 mm | B: 45 mm | Cr: 153 kN | C0r: 119 kN | Mass: 5.670 kg
6320 d: 100 mm | D: 215 mm | B: 47 mm | Cr: 173 kN | C0r: 141 kN | Mass: 7.000 kg
6320ZZ d: 100 mm | D: 215 mm | B: 47 mm | Cr: 173 kN | C0r: 141 kN | Mass: 7.000 kg
6321 d: 105 mm | D: 225 mm | B: 49 mm | Cr: 184 kN | C0r: 153 kN | Mass: 8.050 kg
6321ZZ d: 105 mm | D: 225 mm | B: 49 mm | Cr: 184 kN | C0r: 153 kN | Mass: 8.050 kg
6322 d: 110 mm | D: 240 mm | B: 50 mm | Cr: 205 kN | C0r: 179 kN | Mass: 9.540 kg
6322ZZ d: 110 mm | D: 240 mm | B: 50 mm | Cr: 205 kN | C0r: 179 kN | Mass: 9.540 kg
6324 d: 120 mm | D: 260 mm | B: 55 mm | Cr: 207 kN | C0r: 185 kN | Mass: 12.400 kg
6326 d: 130 mm | D: 280 mm | B: 58 mm | Cr: 229 kN | C0r: 214 kN | Mass: 15.300 kg
6328 d: 140 mm | D: 300 mm | B: 62 mm | Cr: 253 kN | C0r: 246 kN | Mass: 18.500 kg
6330 d: 150 mm | D: 320 mm | B: 65 mm | Cr: 274 kN | C0r: 284 kN | Mass: 22.000 kg
