KYK 72/73 Single Row Angular Contact Ball Bearings (Standard, B)

KYK 72/73 Single Row Angular Contact Ball Bearings (Standard, B)

KYK 7200 and 7300 series single-row angular contact ball bearings, bore 10 to 100 mm, in standard and B (40 degree contact angle designation) versions.

Key features

  • Single-row angular contact design for combined loads with axial load in one direction

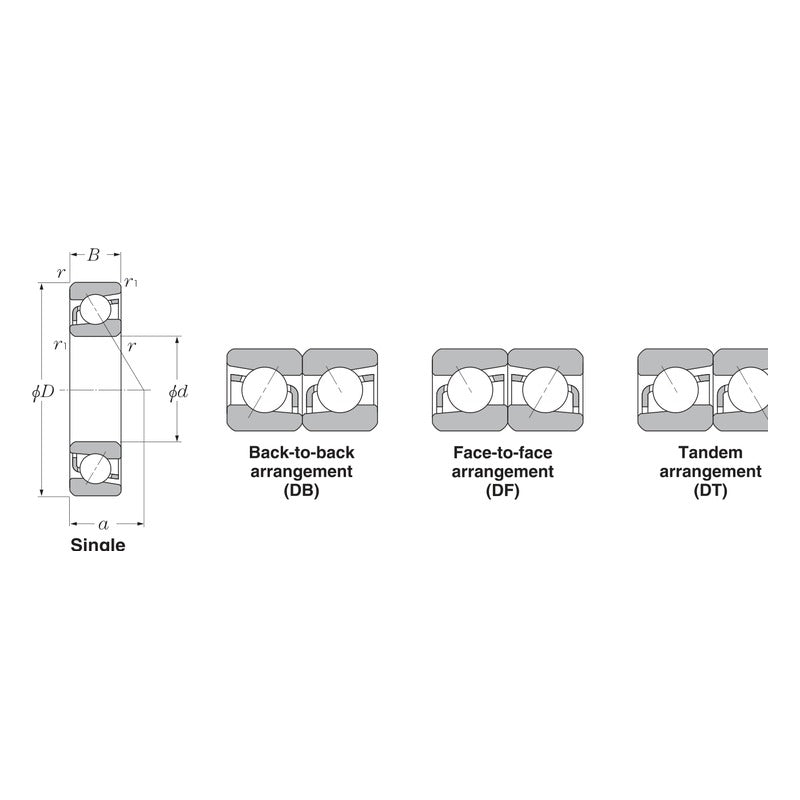

  • Suitable for back-to-back (DB), face-to-face (DF) and tandem (DT) arrangements
  • Standard and B-suffix versions listed with load centre distance (a)
  • Limiting speeds listed for grease and oil lubrication

Specifications

Brand KYK
Series 72, 73
Bearing type Single-row angular contact ball bearing
Bore range 10 - 100 mm
Arrangements Single, DB, DF, DT
Load ratings Basic dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 45-47
7200 d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5.45 kN | C0r: 2.74 kN | Mass: 0.029 kg
7200B d: 10 mm | D: 30 mm | B: 9 mm | Cr: 5 kN | C0r: 2.52 kN | Mass: 0.029 kg
7300 d: 10 mm | D: 35 mm | B: 11 mm | Cr: 10.1 kN | C0r: 4.95 kN | Mass: 0.040 kg
7300B d: 10 mm | D: 35 mm | B: 11 mm | Cr: 9.5 kN | C0r: 4.6 kN | Mass: 0.041 kg
7201 d: 12 mm | D: 32 mm | B: 10 mm | Cr: 7.6 kN | C0r: 3.95 kN | Mass: 0.035 kg
7201B d: 12 mm | D: 32 mm | B: 10 mm | Cr: 7 kN | C0r: 3.65 kN | Mass: 0.036 kg
7301 d: 12 mm | D: 37 mm | B: 12 mm | Cr: 11.2 kN | C0r: 5.25 kN | Mass: 0.044 kg
7301B d: 12 mm | D: 37 mm | B: 12 mm | Cr: 10.5 kN | C0r: 4.95 kN | Mass: 0.045 kg
7202 d: 15 mm | D: 35 mm | B: 11 mm | Cr: 9.05 kN | C0r: 4.7 kN | Mass: 0.046 kg
7202B d: 15 mm | D: 35 mm | B: 11 mm | Cr: 8.35 kN | C0r: 4.35 kN | Mass: 0.046 kg
7302 d: 15 mm | D: 42 mm | B: 13 mm | Cr: 13.5 kN | C0r: 7.2 kN | Mass: 0.055 kg
7302B d: 15 mm | D: 42 mm | B: 13 mm | Cr: 12.5 kN | C0r: 6.65 kN | Mass: 0.057 kg
7203 d: 17 mm | D: 40 mm | B: 12 mm | Cr: 12 kN | C0r: 6.6 kN | Mass: 0.064 kg
7203B d: 17 mm | D: 40 mm | B: 12 mm | Cr: 11 kN | C0r: 6.1 kN | Mass: 0.066 kg
7303 d: 17 mm | D: 47 mm | B: 14 mm | Cr: 15.9 kN | C0r: 8.65 kN | Mass: 0.107 kg
7303B d: 17 mm | D: 47 mm | B: 14 mm | Cr: 14.8 kN | C0r: 8 kN | Mass: 0.109 kg
7204 d: 20 mm | D: 47 mm | B: 14 mm | Cr: 14.5 kN | C0r: 8.4 kN | Mass: 0.100 kg
7204B d: 20 mm | D: 47 mm | B: 14 mm | Cr: 13.3 kN | C0r: 7.7 kN | Mass: 0.102 kg
7304 d: 20 mm | D: 52 mm | B: 15 mm | Cr: 18.7 kN | C0r: 10.4 kN | Mass: 0.138 kg
7304B d: 20 mm | D: 52 mm | B: 15 mm | Cr: 17.3 kN | C0r: 9.65 kN | Mass: 0.141 kg
7205 d: 25 mm | D: 52 mm | B: 15 mm | Cr: 16.2 kN | C0r: 10.3 kN | Mass: 0.125 kg
7205B d: 25 mm | D: 52 mm | B: 15 mm | Cr: 14.8 kN | C0r: 9.4 kN | Mass: 0.129 kg
7305 d: 25 mm | D: 62 mm | B: 17 mm | Cr: 26.4 kN | C0r: 15.8 kN | Mass: 0.230 kg
7305B d: 25 mm | D: 62 mm | B: 17 mm | Cr: 24.4 kN | C0r: 14.6 kN | Mass: 0.234 kg
7206 d: 30 mm | D: 62 mm | B: 16 mm | Cr: 22.5 kN | C0r: 14.8 kN | Mass: 0.193 kg
7206B d: 30 mm | D: 62 mm | B: 16 mm | Cr: 20.5 kN | C0r: 13.5 kN | Mass: 0.197 kg
7306 d: 30 mm | D: 72 mm | B: 19 mm | Cr: 33.5 kN | C0r: 22.3 kN | Mass: 0.345 kg
7306B d: 30 mm | D: 72 mm | B: 19 mm | Cr: 31 kN | C0r: 20.5 kN | Mass: 0.352 kg
7207 d: 35 mm | D: 72 mm | B: 17 mm | Cr: 29.7 kN | C0r: 20.1 kN | Mass: 0.281 kg
7207B d: 35 mm | D: 72 mm | B: 17 mm | Cr: 27.1 kN | C0r: 18.4 kN | Mass: 0.287 kg
7307 d: 35 mm | D: 80 mm | B: 21 mm | Cr: 40 kN | C0r: 26.3 kN | Mass: 0.462 kg
7307B d: 35 mm | D: 80 mm | B: 21 mm | Cr: 36.5 kN | C0r: 24.2 kN | Mass: 0.469 kg
7208 d: 40 mm | D: 80 mm | B: 18 mm | Cr: 35.5 kN | C0r: 25.1 kN | Mass: 0.355 kg
7208B d: 40 mm | D: 80 mm | B: 18 mm | Cr: 32 kN | C0r: 23 kN | Mass: 0.375 kg
7308 d: 40 mm | D: 90 mm | B: 23 mm | Cr: 49 kN | C0r: 33 kN | Mass: 0.625 kg
7308B d: 40 mm | D: 90 mm | B: 23 mm | Cr: 45 kN | C0r: 30.5 kN | Mass: 0.636 kg
7209 d: 45 mm | D: 85 mm | B: 19 mm | Cr: 39.5 kN | C0r: 28.7 kN | Mass: 0.404 kg
7209B d: 45 mm | D: 85 mm | B: 19 mm | Cr: 36 kN | C0r: 26.2 kN | Mass: 0.410 kg
7309 d: 45 mm | D: 100 mm | B: 25 mm | Cr: 63.5 kN | C0r: 44 kN | Mass: 0.837 kg
7309B d: 45 mm | D: 100 mm | B: 25 mm | Cr: 58.5 kN | C0r: 40 kN | Mass: 0.854 kg
7210 d: 50 mm | D: 90 mm | B: 20 mm | Cr: 41.5 kN | C0r: 31.5 kN | Mass: 0.457 kg
7210B d: 50 mm | D: 90 mm | B: 20 mm | Cr: 37.5 kN | C0r: 28.6 kN | Mass: 0.466 kg
7310 d: 50 mm | D: 110 mm | B: 27 mm | Cr: 74.5 kN | C0r: 52.5 kN | Mass: 1.090 kg
7310B d: 50 mm | D: 110 mm | B: 27 mm | Cr: 68 kN | C0r: 48 kN | Mass: 1.110 kg
7211 d: 55 mm | D: 100 mm | B: 21 mm | Cr: 51 kN | C0r: 39.5 kN | Mass: 0.600 kg
7211B d: 55 mm | D: 100 mm | B: 21 mm | Cr: 46.5 kN | C0r: 36 kN | Mass: 0.612 kg
7311 d: 55 mm | D: 120 mm | B: 29 mm | Cr: 86 kN | C0r: 61.5 kN | Mass: 1.390 kg
7311B d: 55 mm | D: 120 mm | B: 29 mm | Cr: 79 kN | C0r: 56.5 kN | Mass: 1.420 kg
7212 d: 60 mm | D: 110 mm | B: 22 mm | Cr: 61.5 kN | C0r: 49 kN | Mass: 0.765 kg
7212B d: 60 mm | D: 110 mm | B: 22 mm | Cr: 56 kN | C0r: 44.5 kN | Mass: 0.780 kg
7312 d: 60 mm | D: 130 mm | B: 31 mm | Cr: 98 kN | C0r: 71.5 kN | Mass: 1.740 kg
7312B d: 60 mm | D: 130 mm | B: 31 mm | Cr: 90 kN | C0r: 66 kN | Mass: 1.770 kg
7213 d: 65 mm | D: 120 mm | B: 23 mm | Cr: 70.5 kN | C0r: 58 kN | Mass: 0.962 kg
7213B d: 65 mm | D: 120 mm | B: 23 mm | Cr: 63.5 kN | C0r: 52.5 kN | Mass: 0.981 kg
7313 d: 65 mm | D: 140 mm | B: 33 mm | Cr: 111 kN | C0r: 82 kN | Mass: 2.110 kg
7313B d: 65 mm | D: 140 mm | B: 33 mm | Cr: 102 kN | C0r: 75 kN | Mass: 2.150 kg
7214 d: 70 mm | D: 125 mm | B: 24 mm | Cr: 76.5 kN | C0r: 63.5 kN | Mass: 1.090 kg
7214B d: 70 mm | D: 125 mm | B: 24 mm | Cr: 69 kN | C0r: 58 kN | Mass: 1.110 kg
7314 d: 70 mm | D: 150 mm | B: 35 mm | Cr: 125 kN | C0r: 93.5 kN | Mass: 2.560 kg
7314B d: 70 mm | D: 150 mm | B: 35 mm | Cr: 114 kN | C0r: 86 kN | Mass: 2.610 kg
7215 d: 75 mm | D: 130 mm | B: 25 mm | Cr: 79 kN | C0r: 68.5 kN | Mass: 1.170 kg
7215B d: 75 mm | D: 130 mm | B: 25 mm | Cr: 71.5 kN | C0r: 62 kN | Mass: 1.190 kg
7315 d: 75 mm | D: 160 mm | B: 37 mm | Cr: 136 kN | C0r: 106 kN | Mass: 3.070 kg
7315B d: 75 mm | D: 160 mm | B: 37 mm | Cr: 125 kN | C0r: 97.5 kN | Mass: 3.130 kg
7216 d: 80 mm | D: 140 mm | B: 26 mm | Cr: 89 kN | C0r: 76 kN | Mass: 1.390 kg
7216B d: 80 mm | D: 140 mm | B: 26 mm | Cr: 80.5 kN | C0r: 69.5 kN | Mass: 1.420 kg
7316 d: 80 mm | D: 170 mm | B: 39 mm | Cr: 147 kN | C0r: 119 kN | Mass: 3.650 kg
7316B d: 80 mm | D: 170 mm | B: 39 mm | Cr: 135 kN | C0r: 109 kN | Mass: 3.720 kg
7217 d: 85 mm | D: 150 mm | B: 28 mm | Cr: 99.5 kN | C0r: 88.5 kN | Mass: 1.780 kg
7217B d: 85 mm | D: 150 mm | B: 28 mm | Cr: 90 kN | C0r: 80.5 kN | Mass: 1.820 kg
7317 d: 85 mm | D: 180 mm | B: 41 mm | Cr: 159 kN | C0r: 133 kN | Mass: 4.340 kg
7317B d: 85 mm | D: 180 mm | B: 41 mm | Cr: 146 kN | C0r: 122 kN | Mass: 4.430 kg
7218 d: 90 mm | D: 160 mm | B: 30 mm | Cr: 118 kN | C0r: 103 kN | Mass: 2.180 kg
7218B d: 90 mm | D: 160 mm | B: 30 mm | Cr: 107 kN | C0r: 94 kN | Mass: 2.220 kg
7318 d: 90 mm | D: 190 mm | B: 43 mm | Cr: 171 kN | C0r: 147 kN | Mass: 5.060 kg
7318B d: 90 mm | D: 190 mm | B: 43 mm | Cr: 156 kN | C0r: 135 kN | Mass: 5.160 kg
7219 d: 95 mm | D: 170 mm | B: 32 mm | Cr: 133 kN | C0r: 118 kN | Mass: 2.670 kg
7219B d: 95 mm | D: 170 mm | B: 32 mm | Cr: 121 kN | C0r: 107 kN | Mass: 2.720 kg
7319 d: 95 mm | D: 200 mm | B: 45 mm | Cr: 183 kN | C0r: 162 kN | Mass: 5.890 kg
7319B d: 95 mm | D: 200 mm | B: 45 mm | Cr: 167 kN | C0r: 149 kN | Mass: 6.000 kg
7220 d: 100 mm | D: 180 mm | B: 34 mm | Cr: 144 kN | C0r: 126 kN | Mass: 3.200 kg
7220B d: 100 mm | D: 180 mm | B: 34 mm | Cr: 130 kN | C0r: 114 kN | Mass: 3.260 kg
7320 d: 100 mm | D: 215 mm | B: 47 mm | Cr: 207 kN | C0r: 193 kN | Mass: 7.180 kg
7320B d: 100 mm | D: 215 mm | B: 47 mm | Cr: 190 kN | C0r: 178 kN | Mass: 7.320 kg
