KYK GE..ES Radial Spherical Plain Bearings (ES, ES-2RS)

KYK GE..ES Radial Spherical Plain Bearings (ES, ES-2RS)

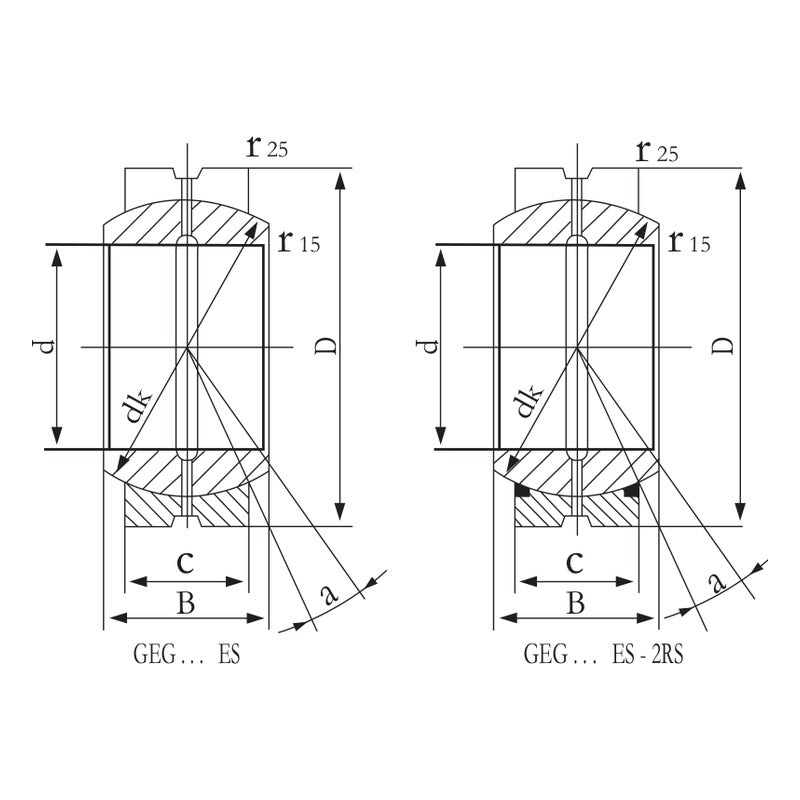

KYK GE..ES radial spherical plain bearings, bore 15 to 120 mm, in open (ES) and double-lip sealed (ES-2RS) versions.

Key features

  • Radial spherical plain bearings for oscillating and tilting movements under load
  • Open ES type and sealed ES-2RS type for each size
  • Tilting angle listed for each size
  • Basic load ratings in kN and kgf

Specifications

Brand KYK
Series GE..ES / GE..ES-2RS
Bearing type Radial spherical plain bearing
Bore range 15 - 120 mm
Load ratings Dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 96
GE15ES d: 15 mm | D: 26 mm | B: 12 mm | Cr: 17 kN | C0r: 85 kN | Mass: 0.025 kg
GE15ES-2RS d: 15 mm | D: 26 mm | B: 12 mm | Cr: 17 kN | C0r: 85 kN | Mass: 0.025 kg
GE17ES d: 17 mm | D: 30 mm | B: 14 mm | Cr: 21 kN | C0r: 106 kN | Mass: 0.041 kg
GE17ES-2RS d: 17 mm | D: 30 mm | B: 14 mm | Cr: 21 kN | C0r: 106 kN | Mass: 0.041 kg
GE20ES d: 20 mm | D: 35 mm | B: 16 mm | Cr: 30 kN | C0r: 146 kN | Mass: 0.061 kg
GE20ES-2RS d: 20 mm | D: 35 mm | B: 16 mm | Cr: 30 kN | C0r: 146 kN | Mass: 0.061 kg
GE25ES d: 25 mm | D: 42 mm | B: 20 mm | Cr: 48 kN | C0r: 240 kN | Mass: 0.110 kg
GE25ES-2RS d: 25 mm | D: 42 mm | B: 20 mm | Cr: 48 kN | C0r: 240 kN | Mass: 0.110 kg
GE30ES d: 30 mm | D: 47 mm | B: 22 mm | Cr: 62 kN | C0r: 310 kN | Mass: 0.140 kg
GE30ES-2RS d: 30 mm | D: 47 mm | B: 22 mm | Cr: 62 kN | C0r: 310 kN | Mass: 0.140 kg
GE35ES d: 35 mm | D: 55 mm | B: 25 mm | Cr: 80 kN | C0r: 400 kN | Mass: 0.220 kg
GE35ES-2RS d: 35 mm | D: 55 mm | B: 25 mm | Cr: 80 kN | C0r: 400 kN | Mass: 0.220 kg
GE40ES d: 40 mm | D: 62 mm | B: 28 mm | Cr: 100 kN | C0r: 500 kN | Mass: 0.300 kg
GE40ES-2RS d: 40 mm | D: 62 mm | B: 28 mm | Cr: 100 kN | C0r: 500 kN | Mass: 0.300 kg
GE45ES d: 45 mm | D: 68 mm | B: 32 mm | Cr: 127 kN | C0r: 640 kN | Mass: 0.400 kg
GE45ES-2RS d: 45 mm | D: 68 mm | B: 32 mm | Cr: 127 kN | C0r: 640 kN | Mass: 0.400 kg
GE50ES d: 50 mm | D: 75 mm | B: 35 mm | Cr: 156 kN | C0r: 780 kN | Mass: 0.540 kg
GE50ES-2RS d: 50 mm | D: 75 mm | B: 35 mm | Cr: 156 kN | C0r: 780 kN | Mass: 0.540 kg
GE55ES d: 55 mm | D: 85 mm | B: 40 mm | Cr: 200 kN | C0r: 1000 kN | Mass: 0.940 kg
GE55ES-2RS d: 55 mm | D: 85 mm | B: 40 mm | Cr: 200 kN | C0r: 1000 kN | Mass: 0.940 kg
GE60ES d: 60 mm | D: 90 mm | B: 44 mm | Cr: 245 kN | C0r: 1220 kN | Mass: 1.000 kg
GE60ES-2RS d: 60 mm | D: 90 mm | B: 44 mm | Cr: 245 kN | C0r: 1220 kN | Mass: 1.000 kg
GE70ES d: 70 mm | D: 105 mm | B: 49 mm | Cr: 315 kN | C0r: 1560 kN | Mass: 1.500 kg
GE70ES-2RS d: 70 mm | D: 105 mm | B: 49 mm | Cr: 315 kN | C0r: 1560 kN | Mass: 1.500 kg
GE80ES d: 80 mm | D: 120 mm | B: 55 mm | Cr: 400 kN | C0r: 2000 kN | Mass: 2.200 kg
GE80ES-2RS d: 80 mm | D: 120 mm | B: 55 mm | Cr: 400 kN | C0r: 2000 kN | Mass: 2.200 kg
GE90ES d: 90 mm | D: 130 mm | B: 60 mm | Cr: 490 kN | C0r: 2450 kN | Mass: 2.700 kg
GE90ES-2RS d: 90 mm | D: 130 mm | B: 60 mm | Cr: 490 kN | C0r: 2450 kN | Mass: 2.700 kg
GE100ES d: 100 mm | D: 150 mm | B: 70 mm | Cr: 610 kN | C0r: 3050 kN | Mass: 4.300 kg
GE100ES-2RS d: 100 mm | D: 150 mm | B: 70 mm | Cr: 610 kN | C0r: 3050 kN | Mass: 4.300 kg
GE110ES d: 110 mm | D: 160 mm | B: 70 mm | Cr: 655 kN | C0r: 3250 kN | Mass: 4.700 kg
GE110ES-2RS d: 110 mm | D: 160 mm | B: 70 mm | Cr: 655 kN | C0r: 3250 kN | Mass: 4.700 kg
GE120ES d: 120 mm | D: 180 mm | B: 85 mm | Cr: 950 kN | C0r: 4750 kN | Mass: 8.000 kg
GE120ES-2RS d: 120 mm | D: 180 mm | B: 85 mm | Cr: 950 kN | C0r: 4750 kN | Mass: 8.000 kg
