KYK H Series Adapter Sleeves (H2, H3, H23, H30, H31, H32)

KYK H Series Adapter Sleeves (H2, H3, H23, H30, H31, H32)

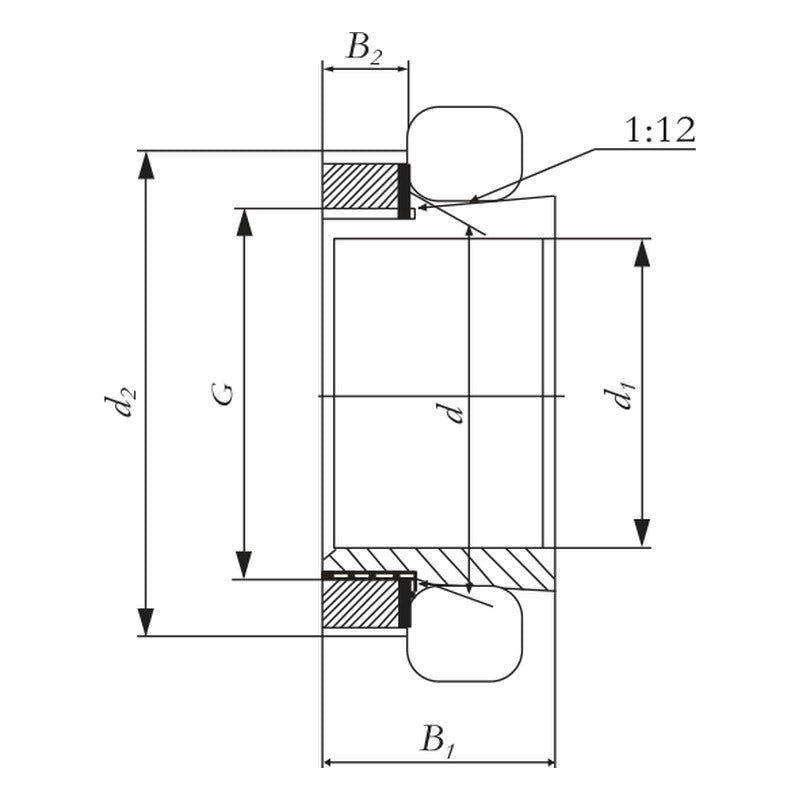

KYK adapter sleeves with 1:12 taper for mounting tapered-bore bearings on plain shafts, shaft diameter 17 to 300 mm, supplied as complete adapters (H) or sleeves only (A).

Key features

  • Adapter assembly (H) consists of sleeve, locknut and lockwasher
  • 1:12 tapered sleeve fits tapered-bore self-aligning ball and spherical roller bearings
  • Sleeve-only designation (A) listed for each adapter
  • Locknut (KM/KML) and lockwasher (MB/MBL) designations listed per adapter

Specifications

Brand KYK
Product Adapter sleeve with locknut and lockwasher
Taper 1:12
Shaft range 17 - 300 mm
Components Sleeve, locknut, lockwasher
Source KYK Bearing Catalogue, p. 80-83
H204 Shaft: 17 mm | Bearing bore: 20 mm | B1: 24 mm | Thread: M20x1 | Item: Adapter assembly, 0.04 kg
A204 Shaft: 17 mm | Bearing bore: 20 mm | B1: 24 mm | Thread: M20x1 | Item: Sleeve only
H304 Shaft: 17 mm | Bearing bore: 20 mm | B1: 28 mm | Thread: M20x1 | Item: Adapter assembly, 0.05 kg
A304 Shaft: 17 mm | Bearing bore: 20 mm | B1: 28 mm | Thread: M20x1 | Item: Sleeve only
H2304 Shaft: 17 mm | Bearing bore: 20 mm | B1: 31 mm | Thread: M20x1 | Item: Adapter assembly, 0.05 kg
A2304 Shaft: 17 mm | Bearing bore: 20 mm | B1: 31 mm | Thread: M20x1 | Item: Sleeve only
H205 Shaft: 20 mm | Bearing bore: 25 mm | B1: 26 mm | Thread: M25x1.5 | Item: Adapter assembly, 0.07 kg
A205 Shaft: 20 mm | Bearing bore: 25 mm | B1: 26 mm | Thread: M25x1.5 | Item: Sleeve only
H305 Shaft: 20 mm | Bearing bore: 25 mm | B1: 29 mm | Thread: M25x1.5 | Item: Adapter assembly, 0.08 kg
A305 Shaft: 20 mm | Bearing bore: 25 mm | B1: 29 mm | Thread: M25x1.5 | Item: Sleeve only
H2305 Shaft: 20 mm | Bearing bore: 25 mm | B1: 35 mm | Thread: M25x1.5 | Item: Adapter assembly, 0.09 kg
A2305 Shaft: 20 mm | Bearing bore: 25 mm | B1: 35 mm | Thread: M25x1.5 | Item: Sleeve only
H206 Shaft: 25 mm | Bearing bore: 30 mm | B1: 27 mm | Thread: M30x1.5 | Item: Adapter assembly, 0.10 kg
A206 Shaft: 25 mm | Bearing bore: 30 mm | B1: 27 mm | Thread: M30x1.5 | Item: Sleeve only
H306 Shaft: 25 mm | Bearing bore: 30 mm | B1: 31 mm | Thread: M30x1.5 | Item: Adapter assembly, 0.11 kg
A306 Shaft: 25 mm | Bearing bore: 30 mm | B1: 31 mm | Thread: M30x1.5 | Item: Sleeve only
H2306 Shaft: 25 mm | Bearing bore: 30 mm | B1: 38 mm | Thread: M30x1.5 | Item: Adapter assembly, 0.13 kg
A2306 Shaft: 25 mm | Bearing bore: 30 mm | B1: 38 mm | Thread: M30x1.5 | Item: Sleeve only
H207 Shaft: 30 mm | Bearing bore: 35 mm | B1: 29 mm | Thread: M35x1.5 | Item: Adapter assembly, 0.13 kg
A207 Shaft: 30 mm | Bearing bore: 35 mm | B1: 29 mm | Thread: M35x1.5 | Item: Sleeve only
H307 Shaft: 30 mm | Bearing bore: 35 mm | B1: 35 mm | Thread: M35x1.5 | Item: Adapter assembly, 0.14 kg
A307 Shaft: 30 mm | Bearing bore: 35 mm | B1: 35 mm | Thread: M35x1.5 | Item: Sleeve only
H2307 Shaft: 30 mm | Bearing bore: 35 mm | B1: 43 mm | Thread: M35x1.5 | Item: Adapter assembly, 0.17 kg
A2307 Shaft: 30 mm | Bearing bore: 35 mm | B1: 43 mm | Thread: M35x1.5 | Item: Sleeve only
H208 Shaft: 35 mm | Bearing bore: 40 mm | B1: 31 mm | Thread: M40x1.5 | Item: Adapter assembly, 0.17 kg
A208 Shaft: 35 mm | Bearing bore: 40 mm | B1: 31 mm | Thread: M40x1.5 | Item: Sleeve only
H308 Shaft: 35 mm | Bearing bore: 40 mm | B1: 36 mm | Thread: M40x1.5 | Item: Adapter assembly, 0.19 kg
A308 Shaft: 35 mm | Bearing bore: 40 mm | B1: 36 mm | Thread: M40x1.5 | Item: Sleeve only
H2308 Shaft: 35 mm | Bearing bore: 40 mm | B1: 46 mm | Thread: M40x1.5 | Item: Adapter assembly, 0.22 kg
A2308 Shaft: 35 mm | Bearing bore: 40 mm | B1: 46 mm | Thread: M40x1.5 | Item: Sleeve only
H209 Shaft: 40 mm | Bearing bore: 45 mm | B1: 33 mm | Thread: M45x1.5 | Item: Adapter assembly, 0.23 kg
A209 Shaft: 40 mm | Bearing bore: 45 mm | B1: 33 mm | Thread: M45x1.5 | Item: Sleeve only
H309 Shaft: 40 mm | Bearing bore: 45 mm | B1: 39 mm | Thread: M45x1.5 | Item: Adapter assembly, 0.25 kg
A309 Shaft: 40 mm | Bearing bore: 45 mm | B1: 39 mm | Thread: M45x1.5 | Item: Sleeve only
H2309 Shaft: 40 mm | Bearing bore: 45 mm | B1: 50 mm | Thread: M45x1.5 | Item: Adapter assembly, 0.28 kg
A2309 Shaft: 40 mm | Bearing bore: 45 mm | B1: 50 mm | Thread: M45x1.5 | Item: Sleeve only
H210 Shaft: 45 mm | Bearing bore: 50 mm | B1: 35 mm | Thread: M50x1.5 | Item: Adapter assembly, 0.27 kg
A210 Shaft: 45 mm | Bearing bore: 50 mm | B1: 35 mm | Thread: M50x1.5 | Item: Sleeve only
H310 Shaft: 45 mm | Bearing bore: 50 mm | B1: 42 mm | Thread: M50x1.5 | Item: Adapter assembly, 0.30 kg
A310 Shaft: 45 mm | Bearing bore: 50 mm | B1: 42 mm | Thread: M50x1.5 | Item: Sleeve only
H2310 Shaft: 45 mm | Bearing bore: 50 mm | B1: 55 mm | Thread: M50x1.5 | Item: Adapter assembly, 0.36 kg
A2310 Shaft: 45 mm | Bearing bore: 50 mm | B1: 55 mm | Thread: M50x1.5 | Item: Sleeve only
H211 Shaft: 50 mm | Bearing bore: 55 mm | B1: 37 mm | Thread: M55x2 | Item: Adapter assembly, 0.31 kg
A211 Shaft: 50 mm | Bearing bore: 55 mm | B1: 37 mm | Thread: M55x2 | Item: Sleeve only
H311 Shaft: 50 mm | Bearing bore: 55 mm | B1: 45 mm | Thread: M55x2 | Item: Adapter assembly, 0.35 kg
A311 Shaft: 50 mm | Bearing bore: 55 mm | B1: 45 mm | Thread: M55x2 | Item: Sleeve only
H2311 Shaft: 50 mm | Bearing bore: 55 mm | B1: 59 mm | Thread: M55x2 | Item: Adapter assembly, 0.42 kg
A2311 Shaft: 50 mm | Bearing bore: 55 mm | B1: 59 mm | Thread: M55x2 | Item: Sleeve only
H212 Shaft: 55 mm | Bearing bore: 60 mm | B1: 38 mm | Thread: M60x2 | Item: Adapter assembly, 0.35 kg
A212 Shaft: 55 mm | Bearing bore: 60 mm | B1: 38 mm | Thread: M60x2 | Item: Sleeve only
H312 Shaft: 55 mm | Bearing bore: 60 mm | B1: 47 mm | Thread: M60x2 | Item: Adapter assembly, 0.39 kg
A312 Shaft: 55 mm | Bearing bore: 60 mm | B1: 47 mm | Thread: M60x2 | Item: Sleeve only
H2312 Shaft: 55 mm | Bearing bore: 60 mm | B1: 62 mm | Thread: M60x2 | Item: Adapter assembly, 0.48 kg
A2312 Shaft: 55 mm | Bearing bore: 60 mm | B1: 62 mm | Thread: M60x2 | Item: Sleeve only
H213 Shaft: 60 mm | Bearing bore: 65 mm | B1: 40 mm | Thread: M65x2 | Item: Adapter assembly, 0.40 kg
A213 Shaft: 60 mm | Bearing bore: 65 mm | B1: 40 mm | Thread: M65x2 | Item: Sleeve only
H313 Shaft: 60 mm | Bearing bore: 65 mm | B1: 50 mm | Thread: M65x2 | Item: Adapter assembly, 0.46 kg
A313 Shaft: 60 mm | Bearing bore: 65 mm | B1: 50 mm | Thread: M65x2 | Item: Sleeve only
H2313 Shaft: 60 mm | Bearing bore: 65 mm | B1: 65 mm | Thread: M65x2 | Item: Adapter assembly, 0.56 kg
A2313 Shaft: 60 mm | Bearing bore: 65 mm | B1: 65 mm | Thread: M65x2 | Item: Sleeve only
H214 Shaft: 60 mm | Bearing bore: 70 mm | B1: 41 mm | Thread: M70x2 | Item: Adapter assembly, 0.60 kg
A214 Shaft: 60 mm | Bearing bore: 70 mm | B1: 41 mm | Thread: M70x2 | Item: Sleeve only
H314 Shaft: 60 mm | Bearing bore: 70 mm | B1: 52 mm | Thread: M70x2 | Item: Adapter assembly, 0.72 kg
A314 Shaft: 60 mm | Bearing bore: 70 mm | B1: 52 mm | Thread: M70x2 | Item: Sleeve only
H2314 Shaft: 60 mm | Bearing bore: 70 mm | B1: 68 mm | Thread: M70x2 | Item: Adapter assembly, 0.90 kg
A2314 Shaft: 60 mm | Bearing bore: 70 mm | B1: 68 mm | Thread: M70x2 | Item: Sleeve only
H215 Shaft: 65 mm | Bearing bore: 75 mm | B1: 43 mm | Thread: M75x2 | Item: Adapter assembly, 0.71 kg
A215 Shaft: 65 mm | Bearing bore: 75 mm | B1: 43 mm | Thread: M75x2 | Item: Sleeve only
H315 Shaft: 65 mm | Bearing bore: 75 mm | B1: 55 mm | Thread: M75x2 | Item: Adapter assembly, 0.83 kg
A315 Shaft: 65 mm | Bearing bore: 75 mm | B1: 55 mm | Thread: M75x2 | Item: Sleeve only
H2315 Shaft: 65 mm | Bearing bore: 75 mm | B1: 73 mm | Thread: M75x2 | Item: Adapter assembly, 1.05 kg
A2315 Shaft: 65 mm | Bearing bore: 75 mm | B1: 73 mm | Thread: M75x2 | Item: Sleeve only
H216 Shaft: 70 mm | Bearing bore: 80 mm | B1: 46 mm | Thread: M80x2 | Item: Adapter assembly, 0.88 kg
A216 Shaft: 70 mm | Bearing bore: 80 mm | B1: 46 mm | Thread: M80x2 | Item: Sleeve only
H316 Shaft: 70 mm | Bearing bore: 80 mm | B1: 59 mm | Thread: M80x2 | Item: Adapter assembly, 1.00 kg
A316 Shaft: 70 mm | Bearing bore: 80 mm | B1: 59 mm | Thread: M80x2 | Item: Sleeve only
H2316 Shaft: 70 mm | Bearing bore: 80 mm | B1: 78 mm | Thread: M80x2 | Item: Adapter assembly, 1.28 kg
A2316 Shaft: 70 mm | Bearing bore: 80 mm | B1: 78 mm | Thread: M80x2 | Item: Sleeve only
H217 Shaft: 75 mm | Bearing bore: 85 mm | B1: 50 mm | Thread: M85x2 | Item: Adapter assembly, 1.02 kg
A217 Shaft: 75 mm | Bearing bore: 85 mm | B1: 50 mm | Thread: M85x2 | Item: Sleeve only
H317 Shaft: 75 mm | Bearing bore: 85 mm | B1: 63 mm | Thread: M85x2 | Item: Adapter assembly, 1.20 kg
A317 Shaft: 75 mm | Bearing bore: 85 mm | B1: 63 mm | Thread: M85x2 | Item: Sleeve only
H2317 Shaft: 75 mm | Bearing bore: 85 mm | B1: 82 mm | Thread: M85x2 | Item: Adapter assembly, 1.45 kg
A2317 Shaft: 75 mm | Bearing bore: 85 mm | B1: 82 mm | Thread: M85x2 | Item: Sleeve only
H218 Shaft: 80 mm | Bearing bore: 90 mm | B1: 52 mm | Thread: M90x2 | Item: Adapter assembly, 1.20 kg
A218 Shaft: 80 mm | Bearing bore: 90 mm | B1: 52 mm | Thread: M90x2 | Item: Sleeve only
H318 Shaft: 80 mm | Bearing bore: 90 mm | B1: 65 mm | Thread: M90x2 | Item: Adapter assembly, 1.35 kg
A318 Shaft: 80 mm | Bearing bore: 90 mm | B1: 65 mm | Thread: M90x2 | Item: Sleeve only
H2318 Shaft: 80 mm | Bearing bore: 90 mm | B1: 86 mm | Thread: M90x2 | Item: Adapter assembly, 1.69 kg
A2318 Shaft: 80 mm | Bearing bore: 90 mm | B1: 86 mm | Thread: M90x2 | Item: Sleeve only
H219 Shaft: 85 mm | Bearing bore: 95 mm | B1: 55 mm | Thread: M95x2 | Item: Adapter assembly, 1.35 kg
A219 Shaft: 85 mm | Bearing bore: 95 mm | B1: 55 mm | Thread: M95x2 | Item: Sleeve only
H319 Shaft: 85 mm | Bearing bore: 95 mm | B1: 68 mm | Thread: M95x2 | Item: Adapter assembly, 1.55 kg
A319 Shaft: 85 mm | Bearing bore: 95 mm | B1: 68 mm | Thread: M95x2 | Item: Sleeve only
H2319 Shaft: 85 mm | Bearing bore: 95 mm | B1: 90 mm | Thread: M95x2 | Item: Adapter assembly, 1.92 kg
A2319 Shaft: 85 mm | Bearing bore: 95 mm | B1: 90 mm | Thread: M95x2 | Item: Sleeve only
H220 Shaft: 90 mm | Bearing bore: 100 mm | B1: 58 mm | Thread: M100x2 | Item: Adapter assembly, 1.50 kg
A220 Shaft: 90 mm | Bearing bore: 100 mm | B1: 58 mm | Thread: M100x2 | Item: Sleeve only
H320 Shaft: 90 mm | Bearing bore: 100 mm | B1: 71 mm | Thread: M100x2 | Item: Adapter assembly, 1.70 kg
A320 Shaft: 90 mm | Bearing bore: 100 mm | B1: 71 mm | Thread: M100x2 | Item: Sleeve only
H3120 Shaft: 90 mm | Bearing bore: 100 mm | B1: 76 mm | Thread: M100x2 | Item: Adapter assembly, 1.80 kg
A3120 Shaft: 90 mm | Bearing bore: 100 mm | B1: 76 mm | Thread: M100x2 | Item: Sleeve only
H2320 Shaft: 90 mm | Bearing bore: 100 mm | B1: 97 mm | Thread: M100x2 | Item: Adapter assembly, 2.15 kg
A2320 Shaft: 90 mm | Bearing bore: 100 mm | B1: 97 mm | Thread: M100x2 | Item: Sleeve only
H221 Shaft: 95 mm | Bearing bore: 105 mm | B1: 60 mm | Thread: M105x2 | Item: Adapter assembly, 1.70 kg
A221 Shaft: 95 mm | Bearing bore: 105 mm | B1: 60 mm | Thread: M105x2 | Item: Sleeve only
H321 Shaft: 95 mm | Bearing bore: 105 mm | B1: 74 mm | Thread: M105x2 | Item: Adapter assembly, 1.95 kg
A321 Shaft: 95 mm | Bearing bore: 105 mm | B1: 74 mm | Thread: M105x2 | Item: Sleeve only
H2321 Shaft: 95 mm | Bearing bore: 105 mm | B1: 101 mm | Thread: M105x2 | Item: Adapter assembly, 2.46 kg
A2321 Shaft: 95 mm | Bearing bore: 105 mm | B1: 101 mm | Thread: M105x2 | Item: Sleeve only
H222 Shaft: 100 mm | Bearing bore: 110 mm | B1: 63 mm | Thread: M110x2 | Item: Adapter assembly, 1.90 kg
A222 Shaft: 100 mm | Bearing bore: 110 mm | B1: 63 mm | Thread: M110x2 | Item: Sleeve only
H322 Shaft: 100 mm | Bearing bore: 110 mm | B1: 77 mm | Thread: M110x2 | Item: Adapter assembly, 2.20 kg
A322 Shaft: 100 mm | Bearing bore: 110 mm | B1: 77 mm | Thread: M110x2 | Item: Sleeve only
H3122 Shaft: 100 mm | Bearing bore: 110 mm | B1: 81 mm | Thread: M110x2 | Item: Adapter assembly, 2.40 kg
A3122 Shaft: 100 mm | Bearing bore: 110 mm | B1: 81 mm | Thread: M110x2 | Item: Sleeve only
H2322 Shaft: 100 mm | Bearing bore: 110 mm | B1: 105 mm | Thread: M110x2 | Item: Adapter assembly, 2.75 kg
A2322 Shaft: 100 mm | Bearing bore: 110 mm | B1: 105 mm | Thread: M110x2 | Item: Sleeve only
H3024 Shaft: 110 mm | Bearing bore: 120 mm | B1: 72 mm | Thread: M120x2 | Item: Adapter assembly, 1.95 kg
A3024 Shaft: 110 mm | Bearing bore: 120 mm | B1: 72 mm | Thread: M120x2 | Item: Sleeve only
H3124 Shaft: 110 mm | Bearing bore: 120 mm | B1: 88 mm | Thread: M120x2 | Item: Adapter assembly, 2.65 kg
A3124 Shaft: 110 mm | Bearing bore: 120 mm | B1: 88 mm | Thread: M120x2 | Item: Sleeve only
H2324 Shaft: 110 mm | Bearing bore: 120 mm | B1: 112 mm | Thread: M120x2 | Item: Adapter assembly, 3.20 kg
A2324 Shaft: 110 mm | Bearing bore: 120 mm | B1: 112 mm | Thread: M120x2 | Item: Sleeve only
H3026 Shaft: 115 mm | Bearing bore: 130 mm | B1: 80 mm | Thread: M130x2 | Item: Adapter assembly, 2.85 kg
A3026 Shaft: 115 mm | Bearing bore: 130 mm | B1: 80 mm | Thread: M130x2 | Item: Sleeve only
H3126 Shaft: 115 mm | Bearing bore: 130 mm | B1: 92 mm | Thread: M130x2 | Item: Adapter assembly, 3.65 kg
A3126 Shaft: 115 mm | Bearing bore: 130 mm | B1: 92 mm | Thread: M130x2 | Item: Sleeve only
H2326 Shaft: 115 mm | Bearing bore: 130 mm | B1: 121 mm | Thread: M130x2 | Item: Adapter assembly, 4.60 kg
A2326 Shaft: 115 mm | Bearing bore: 130 mm | B1: 121 mm | Thread: M130x2 | Item: Sleeve only
H3028 Shaft: 125 mm | Bearing bore: 140 mm | B1: 82 mm | Thread: M140x2 | Item: Adapter assembly, 3.15 kg
A3028 Shaft: 125 mm | Bearing bore: 140 mm | B1: 82 mm | Thread: M140x2 | Item: Sleeve only
H3128 Shaft: 125 mm | Bearing bore: 140 mm | B1: 97 mm | Thread: M140x2 | Item: Adapter assembly, 4.35 kg
A3128 Shaft: 125 mm | Bearing bore: 140 mm | B1: 97 mm | Thread: M140x2 | Item: Sleeve only
H2328 Shaft: 125 mm | Bearing bore: 140 mm | B1: 131 mm | Thread: M140x2 | Item: Adapter assembly, 5.55 kg
A2328 Shaft: 125 mm | Bearing bore: 140 mm | B1: 131 mm | Thread: M140x2 | Item: Sleeve only
H3030 Shaft: 135 mm | Bearing bore: 150 mm | B1: 87 mm | Thread: M150x2 | Item: Adapter assembly, 3.90 kg
A3030 Shaft: 135 mm | Bearing bore: 150 mm | B1: 87 mm | Thread: M150x2 | Item: Sleeve only
H3130 Shaft: 135 mm | Bearing bore: 150 mm | B1: 111 mm | Thread: M150x2 | Item: Adapter assembly, 5.50 kg
A3130 Shaft: 135 mm | Bearing bore: 150 mm | B1: 111 mm | Thread: M150x2 | Item: Sleeve only
H2330 Shaft: 135 mm | Bearing bore: 150 mm | B1: 139 mm | Thread: M150x2 | Item: Adapter assembly, 6.63 kg
A2330 Shaft: 135 mm | Bearing bore: 150 mm | B1: 139 mm | Thread: M150x2 | Item: Sleeve only
H3032 Shaft: 140 mm | Bearing bore: 160 mm | B1: 93 mm | Thread: M160x3 | Item: Adapter assembly, 5.20 kg
A3032 Shaft: 140 mm | Bearing bore: 160 mm | B1: 93 mm | Thread: M160x3 | Item: Sleeve only
H3132 Shaft: 140 mm | Bearing bore: 160 mm | B1: 119 mm | Thread: M160x3 | Item: Adapter assembly, 7.65 kg
A3132 Shaft: 140 mm | Bearing bore: 160 mm | B1: 119 mm | Thread: M160x3 | Item: Sleeve only
H2332 Shaft: 140 mm | Bearing bore: 160 mm | B1: 147 mm | Thread: M160x3 | Item: Adapter assembly, 9.15 kg
A2332 Shaft: 140 mm | Bearing bore: 160 mm | B1: 147 mm | Thread: M160x3 | Item: Sleeve only
H3034 Shaft: 150 mm | Bearing bore: 170 mm | B1: 101 mm | Thread: M170x3 | Item: Adapter assembly, 6.00 kg
A3034 Shaft: 150 mm | Bearing bore: 170 mm | B1: 101 mm | Thread: M170x3 | Item: Sleeve only
H3134 Shaft: 150 mm | Bearing bore: 170 mm | B1: 122 mm | Thread: M170x3 | Item: Adapter assembly, 8.40 kg
A3134 Shaft: 150 mm | Bearing bore: 170 mm | B1: 122 mm | Thread: M170x3 | Item: Sleeve only
H2334 Shaft: 150 mm | Bearing bore: 170 mm | B1: 154 mm | Thread: M170x3 | Item: Adapter assembly, 10.20 kg
A2334 Shaft: 150 mm | Bearing bore: 170 mm | B1: 154 mm | Thread: M170x3 | Item: Sleeve only
H3036 Shaft: 160 mm | Bearing bore: 180 mm | B1: 109 mm | Thread: M180x3 | Item: Adapter assembly, 6.85 kg
A3036 Shaft: 160 mm | Bearing bore: 180 mm | B1: 109 mm | Thread: M180x3 | Item: Sleeve only
H3136 Shaft: 160 mm | Bearing bore: 180 mm | B1: 131 mm | Thread: M180x3 | Item: Adapter assembly, 9.50 kg
A3136 Shaft: 160 mm | Bearing bore: 180 mm | B1: 131 mm | Thread: M180x3 | Item: Sleeve only
H2336 Shaft: 160 mm | Bearing bore: 180 mm | B1: 161 mm | Thread: M180x3 | Item: Adapter assembly, 11.30 kg
A2336 Shaft: 160 mm | Bearing bore: 180 mm | B1: 161 mm | Thread: M180x3 | Item: Sleeve only
H3038 Shaft: 170 mm | Bearing bore: 190 mm | B1: 112 mm | Thread: M190x3 | Item: Adapter assembly, 7.45 kg
A3038 Shaft: 170 mm | Bearing bore: 190 mm | B1: 112 mm | Thread: M190x3 | Item: Sleeve only
H3138 Shaft: 170 mm | Bearing bore: 190 mm | B1: 141 mm | Thread: M190x3 | Item: Adapter assembly, 11.00 kg
A3138 Shaft: 170 mm | Bearing bore: 190 mm | B1: 141 mm | Thread: M190x3 | Item: Sleeve only
H2338 Shaft: 170 mm | Bearing bore: 190 mm | B1: 169 mm | Thread: M190x3 | Item: Adapter assembly, 12.60 kg
A2338 Shaft: 170 mm | Bearing bore: 190 mm | B1: 169 mm | Thread: M190x3 | Item: Sleeve only
H3040 Shaft: 180 mm | Bearing bore: 200 mm | B1: 120 mm | Thread: M200x3 | Item: Adapter assembly, 9.20 kg
A3040 Shaft: 180 mm | Bearing bore: 200 mm | B1: 120 mm | Thread: M200x3 | Item: Sleeve only
H3140 Shaft: 180 mm | Bearing bore: 200 mm | B1: 150 mm | Thread: M200x3 | Item: Adapter assembly, 12.00 kg
A3140 Shaft: 180 mm | Bearing bore: 200 mm | B1: 150 mm | Thread: M200x3 | Item: Sleeve only
H2340 Shaft: 180 mm | Bearing bore: 200 mm | B1: 176 mm | Thread: M200x3 | Item: Adapter assembly, 14.00 kg
A2340 Shaft: 180 mm | Bearing bore: 200 mm | B1: 176 mm | Thread: M200x3 | Item: Sleeve only
H3044 Shaft: 200 mm | Bearing bore: 220 mm | B1: 126 mm | Thread: Tr220x4 | Item: Adapter assembly, 10.50 kg
A3044 Shaft: 200 mm | Bearing bore: 220 mm | B1: 126 mm | Thread: Tr220x4 | Item: Sleeve only
H3144 Shaft: 200 mm | Bearing bore: 220 mm | B1: 161 mm | Thread: Tr220x4 | Item: Adapter assembly, 15.00 kg
A3144 Shaft: 200 mm | Bearing bore: 220 mm | B1: 161 mm | Thread: Tr220x4 | Item: Sleeve only
H2344 Shaft: 200 mm | Bearing bore: 220 mm | B1: 186 mm | Thread: Tr220x4 | Item: Adapter assembly, 16.70 kg
A2344 Shaft: 200 mm | Bearing bore: 220 mm | B1: 186 mm | Thread: Tr220x4 | Item: Sleeve only
H3048 Shaft: 220 mm | Bearing bore: 240 mm | B1: 133 mm | Thread: Tr240x4 | Item: Adapter assembly, 13.00 kg
A3048 Shaft: 220 mm | Bearing bore: 240 mm | B1: 133 mm | Thread: Tr240x4 | Item: Sleeve only
H3148 Shaft: 220 mm | Bearing bore: 240 mm | B1: 172 mm | Thread: Tr240x4 | Item: Adapter assembly, 18.00 kg
A3148 Shaft: 220 mm | Bearing bore: 240 mm | B1: 172 mm | Thread: Tr240x4 | Item: Sleeve only
H2348 Shaft: 220 mm | Bearing bore: 240 mm | B1: 199 mm | Thread: Tr240x4 | Item: Adapter assembly, 29.70 kg
A2348 Shaft: 220 mm | Bearing bore: 240 mm | B1: 199 mm | Thread: Tr240x4 | Item: Sleeve only
H3052 Shaft: 240 mm | Bearing bore: 260 mm | B1: 145 mm | Thread: Tr260x4 | Item: Adapter assembly, 15.50 kg
A3052 Shaft: 240 mm | Bearing bore: 260 mm | B1: 145 mm | Thread: Tr260x4 | Item: Sleeve only
H3152 Shaft: 240 mm | Bearing bore: 260 mm | B1: 190 mm | Thread: Tr260x4 | Item: Adapter assembly, 22.50 kg
A3152 Shaft: 240 mm | Bearing bore: 260 mm | B1: 190 mm | Thread: Tr260x4 | Item: Sleeve only
H2352 Shaft: 240 mm | Bearing bore: 260 mm | B1: 211 mm | Thread: Tr260x4 | Item: Adapter assembly, 24.20 kg
A2352 Shaft: 240 mm | Bearing bore: 260 mm | B1: 211 mm | Thread: Tr260x4 | Item: Sleeve only
H3056 Shaft: 260 mm | Bearing bore: 280 mm | B1: 152 mm | Thread: Tr280x4 | Item: Adapter assembly, 17.50 kg
A3056 Shaft: 260 mm | Bearing bore: 280 mm | B1: 152 mm | Thread: Tr280x4 | Item: Sleeve only
H3156 Shaft: 260 mm | Bearing bore: 280 mm | B1: 195 mm | Thread: Tr280x4 | Item: Adapter assembly, 25.00 kg
A3156 Shaft: 260 mm | Bearing bore: 280 mm | B1: 195 mm | Thread: Tr280x4 | Item: Sleeve only
H2356 Shaft: 260 mm | Bearing bore: 280 mm | B1: 224 mm | Thread: Tr280x4 | Item: Adapter assembly, 27.80 kg
A2356 Shaft: 260 mm | Bearing bore: 280 mm | B1: 224 mm | Thread: Tr280x4 | Item: Sleeve only
H3060 Shaft: 280 mm | Bearing bore: 300 mm | B1: 168 mm | Thread: Tr300x4 | Item: Adapter assembly, 23.00 kg
A3060 Shaft: 280 mm | Bearing bore: 300 mm | B1: 168 mm | Thread: Tr300x4 | Item: Sleeve only
H3160 Shaft: 280 mm | Bearing bore: 300 mm | B1: 208 mm | Thread: Tr300x4 | Item: Adapter assembly, 30.00 kg
A3160 Shaft: 280 mm | Bearing bore: 300 mm | B1: 208 mm | Thread: Tr300x4 | Item: Sleeve only
H3064 Shaft: 300 mm | Bearing bore: 320 mm | B1: 171 mm | Thread: Tr320x5 | Item: Adapter assembly, 24.50 kg
A3064 Shaft: 300 mm | Bearing bore: 320 mm | B1: 171 mm | Thread: Tr320x5 | Item: Sleeve only
H3164 Shaft: 300 mm | Bearing bore: 320 mm | B1: 226 mm | Thread: Tr320x5 | Item: Adapter assembly, 35.00 kg
A3164 Shaft: 300 mm | Bearing bore: 320 mm | B1: 226 mm | Thread: Tr320x5 | Item: Sleeve only
Bearing AccessoriesKYK
204 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KYK H Series Adapter Sleeves (H2, H3, H23, H30, H31, H32)

Brand KYK·Bearing Accessories

Available part numbers (204)

H204, A204, H304, A304, H2304, A2304, H205, A205, H305, A305 + 194 more — see full table ↓

How to order

Send the KYK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H204Shaft: 17 mm | Bearing bore: 20 mm | B1: 24 mm | Thread: M20x1 | Item: Adapter assembly, 0.04 kg
A204Shaft: 17 mm | Bearing bore: 20 mm | B1: 24 mm | Thread: M20x1 | Item: Sleeve only
H304Shaft: 17 mm | Bearing bore: 20 mm | B1: 28 mm | Thread: M20x1 | Item: Adapter assembly, 0.05 kg
A304Shaft: 17 mm | Bearing bore: 20 mm | B1: 28 mm | Thread: M20x1 | Item: Sleeve only
H2304Shaft: 17 mm | Bearing bore: 20 mm | B1: 31 mm | Thread: M20x1 | Item: Adapter assembly, 0.05 kg
A2304Shaft: 17 mm | Bearing bore: 20 mm | B1: 31 mm | Thread: M20x1 | Item: Sleeve only
H205Shaft: 20 mm | Bearing bore: 25 mm | B1: 26 mm | Thread: M25x1.5 | Item: Adapter assembly, 0.07 kg
A205Shaft: 20 mm | Bearing bore: 25 mm | B1: 26 mm | Thread: M25x1.5 | Item: Sleeve only
H305Shaft: 20 mm | Bearing bore: 25 mm | B1: 29 mm | Thread: M25x1.5 | Item: Adapter assembly, 0.08 kg
A305Shaft: 20 mm | Bearing bore: 25 mm | B1: 29 mm | Thread: M25x1.5 | Item: Sleeve only
H2305Shaft: 20 mm | Bearing bore: 25 mm | B1: 35 mm | Thread: M25x1.5 | Item: Adapter assembly, 0.09 kg
A2305Shaft: 20 mm | Bearing bore: 25 mm | B1: 35 mm | Thread: M25x1.5 | Item: Sleeve only
H206Shaft: 25 mm | Bearing bore: 30 mm | B1: 27 mm | Thread: M30x1.5 | Item: Adapter assembly, 0.10 kg
A206Shaft: 25 mm | Bearing bore: 30 mm | B1: 27 mm | Thread: M30x1.5 | Item: Sleeve only
H306Shaft: 25 mm | Bearing bore: 30 mm | B1: 31 mm | Thread: M30x1.5 | Item: Adapter assembly, 0.11 kg
A306Shaft: 25 mm | Bearing bore: 30 mm | B1: 31 mm | Thread: M30x1.5 | Item: Sleeve only
H2306Shaft: 25 mm | Bearing bore: 30 mm | B1: 38 mm | Thread: M30x1.5 | Item: Adapter assembly, 0.13 kg
A2306Shaft: 25 mm | Bearing bore: 30 mm | B1: 38 mm | Thread: M30x1.5 | Item: Sleeve only
H207Shaft: 30 mm | Bearing bore: 35 mm | B1: 29 mm | Thread: M35x1.5 | Item: Adapter assembly, 0.13 kg
A207Shaft: 30 mm | Bearing bore: 35 mm | B1: 29 mm | Thread: M35x1.5 | Item: Sleeve only
H307Shaft: 30 mm | Bearing bore: 35 mm | B1: 35 mm | Thread: M35x1.5 | Item: Adapter assembly, 0.14 kg
A307Shaft: 30 mm | Bearing bore: 35 mm | B1: 35 mm | Thread: M35x1.5 | Item: Sleeve only
H2307Shaft: 30 mm | Bearing bore: 35 mm | B1: 43 mm | Thread: M35x1.5 | Item: Adapter assembly, 0.17 kg
A2307Shaft: 30 mm | Bearing bore: 35 mm | B1: 43 mm | Thread: M35x1.5 | Item: Sleeve only
H208Shaft: 35 mm | Bearing bore: 40 mm | B1: 31 mm | Thread: M40x1.5 | Item: Adapter assembly, 0.17 kg
A208Shaft: 35 mm | Bearing bore: 40 mm | B1: 31 mm | Thread: M40x1.5 | Item: Sleeve only
H308Shaft: 35 mm | Bearing bore: 40 mm | B1: 36 mm | Thread: M40x1.5 | Item: Adapter assembly, 0.19 kg
A308Shaft: 35 mm | Bearing bore: 40 mm | B1: 36 mm | Thread: M40x1.5 | Item: Sleeve only
H2308Shaft: 35 mm | Bearing bore: 40 mm | B1: 46 mm | Thread: M40x1.5 | Item: Adapter assembly, 0.22 kg
A2308Shaft: 35 mm | Bearing bore: 40 mm | B1: 46 mm | Thread: M40x1.5 | Item: Sleeve only
H209Shaft: 40 mm | Bearing bore: 45 mm | B1: 33 mm | Thread: M45x1.5 | Item: Adapter assembly, 0.23 kg
A209Shaft: 40 mm | Bearing bore: 45 mm | B1: 33 mm | Thread: M45x1.5 | Item: Sleeve only
H309Shaft: 40 mm | Bearing bore: 45 mm | B1: 39 mm | Thread: M45x1.5 | Item: Adapter assembly, 0.25 kg
A309Shaft: 40 mm | Bearing bore: 45 mm | B1: 39 mm | Thread: M45x1.5 | Item: Sleeve only
H2309Shaft: 40 mm | Bearing bore: 45 mm | B1: 50 mm | Thread: M45x1.5 | Item: Adapter assembly, 0.28 kg
A2309Shaft: 40 mm | Bearing bore: 45 mm | B1: 50 mm | Thread: M45x1.5 | Item: Sleeve only
H210Shaft: 45 mm | Bearing bore: 50 mm | B1: 35 mm | Thread: M50x1.5 | Item: Adapter assembly, 0.27 kg
A210Shaft: 45 mm | Bearing bore: 50 mm | B1: 35 mm | Thread: M50x1.5 | Item: Sleeve only
H310Shaft: 45 mm | Bearing bore: 50 mm | B1: 42 mm | Thread: M50x1.5 | Item: Adapter assembly, 0.30 kg
A310Shaft: 45 mm | Bearing bore: 50 mm | B1: 42 mm | Thread: M50x1.5 | Item: Sleeve only
H2310Shaft: 45 mm | Bearing bore: 50 mm | B1: 55 mm | Thread: M50x1.5 | Item: Adapter assembly, 0.36 kg
A2310Shaft: 45 mm | Bearing bore: 50 mm | B1: 55 mm | Thread: M50x1.5 | Item: Sleeve only
H211Shaft: 50 mm | Bearing bore: 55 mm | B1: 37 mm | Thread: M55x2 | Item: Adapter assembly, 0.31 kg
A211Shaft: 50 mm | Bearing bore: 55 mm | B1: 37 mm | Thread: M55x2 | Item: Sleeve only
H311Shaft: 50 mm | Bearing bore: 55 mm | B1: 45 mm | Thread: M55x2 | Item: Adapter assembly, 0.35 kg
A311Shaft: 50 mm | Bearing bore: 55 mm | B1: 45 mm | Thread: M55x2 | Item: Sleeve only
H2311Shaft: 50 mm | Bearing bore: 55 mm | B1: 59 mm | Thread: M55x2 | Item: Adapter assembly, 0.42 kg
A2311Shaft: 50 mm | Bearing bore: 55 mm | B1: 59 mm | Thread: M55x2 | Item: Sleeve only
H212Shaft: 55 mm | Bearing bore: 60 mm | B1: 38 mm | Thread: M60x2 | Item: Adapter assembly, 0.35 kg
A212Shaft: 55 mm | Bearing bore: 60 mm | B1: 38 mm | Thread: M60x2 | Item: Sleeve only
H312Shaft: 55 mm | Bearing bore: 60 mm | B1: 47 mm | Thread: M60x2 | Item: Adapter assembly, 0.39 kg
A312Shaft: 55 mm | Bearing bore: 60 mm | B1: 47 mm | Thread: M60x2 | Item: Sleeve only
H2312Shaft: 55 mm | Bearing bore: 60 mm | B1: 62 mm | Thread: M60x2 | Item: Adapter assembly, 0.48 kg
A2312Shaft: 55 mm | Bearing bore: 60 mm | B1: 62 mm | Thread: M60x2 | Item: Sleeve only
H213Shaft: 60 mm | Bearing bore: 65 mm | B1: 40 mm | Thread: M65x2 | Item: Adapter assembly, 0.40 kg
A213Shaft: 60 mm | Bearing bore: 65 mm | B1: 40 mm | Thread: M65x2 | Item: Sleeve only
H313Shaft: 60 mm | Bearing bore: 65 mm | B1: 50 mm | Thread: M65x2 | Item: Adapter assembly, 0.46 kg
A313Shaft: 60 mm | Bearing bore: 65 mm | B1: 50 mm | Thread: M65x2 | Item: Sleeve only
H2313Shaft: 60 mm | Bearing bore: 65 mm | B1: 65 mm | Thread: M65x2 | Item: Adapter assembly, 0.56 kg
A2313Shaft: 60 mm | Bearing bore: 65 mm | B1: 65 mm | Thread: M65x2 | Item: Sleeve only
H214Shaft: 60 mm | Bearing bore: 70 mm | B1: 41 mm | Thread: M70x2 | Item: Adapter assembly, 0.60 kg
A214Shaft: 60 mm | Bearing bore: 70 mm | B1: 41 mm | Thread: M70x2 | Item: Sleeve only
H314Shaft: 60 mm | Bearing bore: 70 mm | B1: 52 mm | Thread: M70x2 | Item: Adapter assembly, 0.72 kg
A314Shaft: 60 mm | Bearing bore: 70 mm | B1: 52 mm | Thread: M70x2 | Item: Sleeve only
H2314Shaft: 60 mm | Bearing bore: 70 mm | B1: 68 mm | Thread: M70x2 | Item: Adapter assembly, 0.90 kg
A2314Shaft: 60 mm | Bearing bore: 70 mm | B1: 68 mm | Thread: M70x2 | Item: Sleeve only
H215Shaft: 65 mm | Bearing bore: 75 mm | B1: 43 mm | Thread: M75x2 | Item: Adapter assembly, 0.71 kg
A215Shaft: 65 mm | Bearing bore: 75 mm | B1: 43 mm | Thread: M75x2 | Item: Sleeve only
H315Shaft: 65 mm | Bearing bore: 75 mm | B1: 55 mm | Thread: M75x2 | Item: Adapter assembly, 0.83 kg
A315Shaft: 65 mm | Bearing bore: 75 mm | B1: 55 mm | Thread: M75x2 | Item: Sleeve only
H2315Shaft: 65 mm | Bearing bore: 75 mm | B1: 73 mm | Thread: M75x2 | Item: Adapter assembly, 1.05 kg
A2315Shaft: 65 mm | Bearing bore: 75 mm | B1: 73 mm | Thread: M75x2 | Item: Sleeve only
H216Shaft: 70 mm | Bearing bore: 80 mm | B1: 46 mm | Thread: M80x2 | Item: Adapter assembly, 0.88 kg
A216Shaft: 70 mm | Bearing bore: 80 mm | B1: 46 mm | Thread: M80x2 | Item: Sleeve only
H316Shaft: 70 mm | Bearing bore: 80 mm | B1: 59 mm | Thread: M80x2 | Item: Adapter assembly, 1.00 kg
A316Shaft: 70 mm | Bearing bore: 80 mm | B1: 59 mm | Thread: M80x2 | Item: Sleeve only
H2316Shaft: 70 mm | Bearing bore: 80 mm | B1: 78 mm | Thread: M80x2 | Item: Adapter assembly, 1.28 kg
A2316Shaft: 70 mm | Bearing bore: 80 mm | B1: 78 mm | Thread: M80x2 | Item: Sleeve only
H217Shaft: 75 mm | Bearing bore: 85 mm | B1: 50 mm | Thread: M85x2 | Item: Adapter assembly, 1.02 kg
A217Shaft: 75 mm | Bearing bore: 85 mm | B1: 50 mm | Thread: M85x2 | Item: Sleeve only
H317Shaft: 75 mm | Bearing bore: 85 mm | B1: 63 mm | Thread: M85x2 | Item: Adapter assembly, 1.20 kg
A317Shaft: 75 mm | Bearing bore: 85 mm | B1: 63 mm | Thread: M85x2 | Item: Sleeve only
H2317Shaft: 75 mm | Bearing bore: 85 mm | B1: 82 mm | Thread: M85x2 | Item: Adapter assembly, 1.45 kg
A2317Shaft: 75 mm | Bearing bore: 85 mm | B1: 82 mm | Thread: M85x2 | Item: Sleeve only
H218Shaft: 80 mm | Bearing bore: 90 mm | B1: 52 mm | Thread: M90x2 | Item: Adapter assembly, 1.20 kg
A218Shaft: 80 mm | Bearing bore: 90 mm | B1: 52 mm | Thread: M90x2 | Item: Sleeve only
H318Shaft: 80 mm | Bearing bore: 90 mm | B1: 65 mm | Thread: M90x2 | Item: Adapter assembly, 1.35 kg
A318Shaft: 80 mm | Bearing bore: 90 mm | B1: 65 mm | Thread: M90x2 | Item: Sleeve only
H2318Shaft: 80 mm | Bearing bore: 90 mm | B1: 86 mm | Thread: M90x2 | Item: Adapter assembly, 1.69 kg
A2318Shaft: 80 mm | Bearing bore: 90 mm | B1: 86 mm | Thread: M90x2 | Item: Sleeve only
H219Shaft: 85 mm | Bearing bore: 95 mm | B1: 55 mm | Thread: M95x2 | Item: Adapter assembly, 1.35 kg
A219Shaft: 85 mm | Bearing bore: 95 mm | B1: 55 mm | Thread: M95x2 | Item: Sleeve only
H319Shaft: 85 mm | Bearing bore: 95 mm | B1: 68 mm | Thread: M95x2 | Item: Adapter assembly, 1.55 kg
A319Shaft: 85 mm | Bearing bore: 95 mm | B1: 68 mm | Thread: M95x2 | Item: Sleeve only
H2319Shaft: 85 mm | Bearing bore: 95 mm | B1: 90 mm | Thread: M95x2 | Item: Adapter assembly, 1.92 kg
A2319Shaft: 85 mm | Bearing bore: 95 mm | B1: 90 mm | Thread: M95x2 | Item: Sleeve only
H220Shaft: 90 mm | Bearing bore: 100 mm | B1: 58 mm | Thread: M100x2 | Item: Adapter assembly, 1.50 kg
A220Shaft: 90 mm | Bearing bore: 100 mm | B1: 58 mm | Thread: M100x2 | Item: Sleeve only
H320Shaft: 90 mm | Bearing bore: 100 mm | B1: 71 mm | Thread: M100x2 | Item: Adapter assembly, 1.70 kg
A320Shaft: 90 mm | Bearing bore: 100 mm | B1: 71 mm | Thread: M100x2 | Item: Sleeve only
H3120Shaft: 90 mm | Bearing bore: 100 mm | B1: 76 mm | Thread: M100x2 | Item: Adapter assembly, 1.80 kg
A3120Shaft: 90 mm | Bearing bore: 100 mm | B1: 76 mm | Thread: M100x2 | Item: Sleeve only
H2320Shaft: 90 mm | Bearing bore: 100 mm | B1: 97 mm | Thread: M100x2 | Item: Adapter assembly, 2.15 kg
A2320Shaft: 90 mm | Bearing bore: 100 mm | B1: 97 mm | Thread: M100x2 | Item: Sleeve only
H221Shaft: 95 mm | Bearing bore: 105 mm | B1: 60 mm | Thread: M105x2 | Item: Adapter assembly, 1.70 kg
A221Shaft: 95 mm | Bearing bore: 105 mm | B1: 60 mm | Thread: M105x2 | Item: Sleeve only
H321Shaft: 95 mm | Bearing bore: 105 mm | B1: 74 mm | Thread: M105x2 | Item: Adapter assembly, 1.95 kg
A321Shaft: 95 mm | Bearing bore: 105 mm | B1: 74 mm | Thread: M105x2 | Item: Sleeve only
H2321Shaft: 95 mm | Bearing bore: 105 mm | B1: 101 mm | Thread: M105x2 | Item: Adapter assembly, 2.46 kg
A2321Shaft: 95 mm | Bearing bore: 105 mm | B1: 101 mm | Thread: M105x2 | Item: Sleeve only
H222Shaft: 100 mm | Bearing bore: 110 mm | B1: 63 mm | Thread: M110x2 | Item: Adapter assembly, 1.90 kg
A222Shaft: 100 mm | Bearing bore: 110 mm | B1: 63 mm | Thread: M110x2 | Item: Sleeve only
H322Shaft: 100 mm | Bearing bore: 110 mm | B1: 77 mm | Thread: M110x2 | Item: Adapter assembly, 2.20 kg
A322Shaft: 100 mm | Bearing bore: 110 mm | B1: 77 mm | Thread: M110x2 | Item: Sleeve only
H3122Shaft: 100 mm | Bearing bore: 110 mm | B1: 81 mm | Thread: M110x2 | Item: Adapter assembly, 2.40 kg
A3122Shaft: 100 mm | Bearing bore: 110 mm | B1: 81 mm | Thread: M110x2 | Item: Sleeve only
H2322Shaft: 100 mm | Bearing bore: 110 mm | B1: 105 mm | Thread: M110x2 | Item: Adapter assembly, 2.75 kg
A2322Shaft: 100 mm | Bearing bore: 110 mm | B1: 105 mm | Thread: M110x2 | Item: Sleeve only
H3024Shaft: 110 mm | Bearing bore: 120 mm | B1: 72 mm | Thread: M120x2 | Item: Adapter assembly, 1.95 kg
A3024Shaft: 110 mm | Bearing bore: 120 mm | B1: 72 mm | Thread: M120x2 | Item: Sleeve only
H3124Shaft: 110 mm | Bearing bore: 120 mm | B1: 88 mm | Thread: M120x2 | Item: Adapter assembly, 2.65 kg
A3124Shaft: 110 mm | Bearing bore: 120 mm | B1: 88 mm | Thread: M120x2 | Item: Sleeve only
H2324Shaft: 110 mm | Bearing bore: 120 mm | B1: 112 mm | Thread: M120x2 | Item: Adapter assembly, 3.20 kg
A2324Shaft: 110 mm | Bearing bore: 120 mm | B1: 112 mm | Thread: M120x2 | Item: Sleeve only
H3026Shaft: 115 mm | Bearing bore: 130 mm | B1: 80 mm | Thread: M130x2 | Item: Adapter assembly, 2.85 kg
A3026Shaft: 115 mm | Bearing bore: 130 mm | B1: 80 mm | Thread: M130x2 | Item: Sleeve only
H3126Shaft: 115 mm | Bearing bore: 130 mm | B1: 92 mm | Thread: M130x2 | Item: Adapter assembly, 3.65 kg
A3126Shaft: 115 mm | Bearing bore: 130 mm | B1: 92 mm | Thread: M130x2 | Item: Sleeve only
H2326Shaft: 115 mm | Bearing bore: 130 mm | B1: 121 mm | Thread: M130x2 | Item: Adapter assembly, 4.60 kg
A2326Shaft: 115 mm | Bearing bore: 130 mm | B1: 121 mm | Thread: M130x2 | Item: Sleeve only
H3028Shaft: 125 mm | Bearing bore: 140 mm | B1: 82 mm | Thread: M140x2 | Item: Adapter assembly, 3.15 kg
A3028Shaft: 125 mm | Bearing bore: 140 mm | B1: 82 mm | Thread: M140x2 | Item: Sleeve only
H3128Shaft: 125 mm | Bearing bore: 140 mm | B1: 97 mm | Thread: M140x2 | Item: Adapter assembly, 4.35 kg
A3128Shaft: 125 mm | Bearing bore: 140 mm | B1: 97 mm | Thread: M140x2 | Item: Sleeve only
H2328Shaft: 125 mm | Bearing bore: 140 mm | B1: 131 mm | Thread: M140x2 | Item: Adapter assembly, 5.55 kg
A2328Shaft: 125 mm | Bearing bore: 140 mm | B1: 131 mm | Thread: M140x2 | Item: Sleeve only
H3030Shaft: 135 mm | Bearing bore: 150 mm | B1: 87 mm | Thread: M150x2 | Item: Adapter assembly, 3.90 kg
A3030Shaft: 135 mm | Bearing bore: 150 mm | B1: 87 mm | Thread: M150x2 | Item: Sleeve only
H3130Shaft: 135 mm | Bearing bore: 150 mm | B1: 111 mm | Thread: M150x2 | Item: Adapter assembly, 5.50 kg
A3130Shaft: 135 mm | Bearing bore: 150 mm | B1: 111 mm | Thread: M150x2 | Item: Sleeve only
H2330Shaft: 135 mm | Bearing bore: 150 mm | B1: 139 mm | Thread: M150x2 | Item: Adapter assembly, 6.63 kg
A2330Shaft: 135 mm | Bearing bore: 150 mm | B1: 139 mm | Thread: M150x2 | Item: Sleeve only
H3032Shaft: 140 mm | Bearing bore: 160 mm | B1: 93 mm | Thread: M160x3 | Item: Adapter assembly, 5.20 kg
A3032Shaft: 140 mm | Bearing bore: 160 mm | B1: 93 mm | Thread: M160x3 | Item: Sleeve only
H3132Shaft: 140 mm | Bearing bore: 160 mm | B1: 119 mm | Thread: M160x3 | Item: Adapter assembly, 7.65 kg
A3132Shaft: 140 mm | Bearing bore: 160 mm | B1: 119 mm | Thread: M160x3 | Item: Sleeve only
H2332Shaft: 140 mm | Bearing bore: 160 mm | B1: 147 mm | Thread: M160x3 | Item: Adapter assembly, 9.15 kg
A2332Shaft: 140 mm | Bearing bore: 160 mm | B1: 147 mm | Thread: M160x3 | Item: Sleeve only
H3034Shaft: 150 mm | Bearing bore: 170 mm | B1: 101 mm | Thread: M170x3 | Item: Adapter assembly, 6.00 kg
A3034Shaft: 150 mm | Bearing bore: 170 mm | B1: 101 mm | Thread: M170x3 | Item: Sleeve only
H3134Shaft: 150 mm | Bearing bore: 170 mm | B1: 122 mm | Thread: M170x3 | Item: Adapter assembly, 8.40 kg
A3134Shaft: 150 mm | Bearing bore: 170 mm | B1: 122 mm | Thread: M170x3 | Item: Sleeve only
H2334Shaft: 150 mm | Bearing bore: 170 mm | B1: 154 mm | Thread: M170x3 | Item: Adapter assembly, 10.20 kg
A2334Shaft: 150 mm | Bearing bore: 170 mm | B1: 154 mm | Thread: M170x3 | Item: Sleeve only
H3036Shaft: 160 mm | Bearing bore: 180 mm | B1: 109 mm | Thread: M180x3 | Item: Adapter assembly, 6.85 kg
A3036Shaft: 160 mm | Bearing bore: 180 mm | B1: 109 mm | Thread: M180x3 | Item: Sleeve only
H3136Shaft: 160 mm | Bearing bore: 180 mm | B1: 131 mm | Thread: M180x3 | Item: Adapter assembly, 9.50 kg
A3136Shaft: 160 mm | Bearing bore: 180 mm | B1: 131 mm | Thread: M180x3 | Item: Sleeve only
H2336Shaft: 160 mm | Bearing bore: 180 mm | B1: 161 mm | Thread: M180x3 | Item: Adapter assembly, 11.30 kg
A2336Shaft: 160 mm | Bearing bore: 180 mm | B1: 161 mm | Thread: M180x3 | Item: Sleeve only
H3038Shaft: 170 mm | Bearing bore: 190 mm | B1: 112 mm | Thread: M190x3 | Item: Adapter assembly, 7.45 kg
A3038Shaft: 170 mm | Bearing bore: 190 mm | B1: 112 mm | Thread: M190x3 | Item: Sleeve only
H3138Shaft: 170 mm | Bearing bore: 190 mm | B1: 141 mm | Thread: M190x3 | Item: Adapter assembly, 11.00 kg
A3138Shaft: 170 mm | Bearing bore: 190 mm | B1: 141 mm | Thread: M190x3 | Item: Sleeve only
H2338Shaft: 170 mm | Bearing bore: 190 mm | B1: 169 mm | Thread: M190x3 | Item: Adapter assembly, 12.60 kg
A2338Shaft: 170 mm | Bearing bore: 190 mm | B1: 169 mm | Thread: M190x3 | Item: Sleeve only
H3040Shaft: 180 mm | Bearing bore: 200 mm | B1: 120 mm | Thread: M200x3 | Item: Adapter assembly, 9.20 kg
A3040Shaft: 180 mm | Bearing bore: 200 mm | B1: 120 mm | Thread: M200x3 | Item: Sleeve only
H3140Shaft: 180 mm | Bearing bore: 200 mm | B1: 150 mm | Thread: M200x3 | Item: Adapter assembly, 12.00 kg
A3140Shaft: 180 mm | Bearing bore: 200 mm | B1: 150 mm | Thread: M200x3 | Item: Sleeve only
H2340Shaft: 180 mm | Bearing bore: 200 mm | B1: 176 mm | Thread: M200x3 | Item: Adapter assembly, 14.00 kg
A2340Shaft: 180 mm | Bearing bore: 200 mm | B1: 176 mm | Thread: M200x3 | Item: Sleeve only
H3044Shaft: 200 mm | Bearing bore: 220 mm | B1: 126 mm | Thread: Tr220x4 | Item: Adapter assembly, 10.50 kg
A3044Shaft: 200 mm | Bearing bore: 220 mm | B1: 126 mm | Thread: Tr220x4 | Item: Sleeve only
H3144Shaft: 200 mm | Bearing bore: 220 mm | B1: 161 mm | Thread: Tr220x4 | Item: Adapter assembly, 15.00 kg
A3144Shaft: 200 mm | Bearing bore: 220 mm | B1: 161 mm | Thread: Tr220x4 | Item: Sleeve only
H2344Shaft: 200 mm | Bearing bore: 220 mm | B1: 186 mm | Thread: Tr220x4 | Item: Adapter assembly, 16.70 kg
A2344Shaft: 200 mm | Bearing bore: 220 mm | B1: 186 mm | Thread: Tr220x4 | Item: Sleeve only
H3048Shaft: 220 mm | Bearing bore: 240 mm | B1: 133 mm | Thread: Tr240x4 | Item: Adapter assembly, 13.00 kg
A3048Shaft: 220 mm | Bearing bore: 240 mm | B1: 133 mm | Thread: Tr240x4 | Item: Sleeve only
H3148Shaft: 220 mm | Bearing bore: 240 mm | B1: 172 mm | Thread: Tr240x4 | Item: Adapter assembly, 18.00 kg
A3148Shaft: 220 mm | Bearing bore: 240 mm | B1: 172 mm | Thread: Tr240x4 | Item: Sleeve only
H2348Shaft: 220 mm | Bearing bore: 240 mm | B1: 199 mm | Thread: Tr240x4 | Item: Adapter assembly, 29.70 kg
A2348Shaft: 220 mm | Bearing bore: 240 mm | B1: 199 mm | Thread: Tr240x4 | Item: Sleeve only
H3052Shaft: 240 mm | Bearing bore: 260 mm | B1: 145 mm | Thread: Tr260x4 | Item: Adapter assembly, 15.50 kg
A3052Shaft: 240 mm | Bearing bore: 260 mm | B1: 145 mm | Thread: Tr260x4 | Item: Sleeve only
H3152Shaft: 240 mm | Bearing bore: 260 mm | B1: 190 mm | Thread: Tr260x4 | Item: Adapter assembly, 22.50 kg
A3152Shaft: 240 mm | Bearing bore: 260 mm | B1: 190 mm | Thread: Tr260x4 | Item: Sleeve only
H2352Shaft: 240 mm | Bearing bore: 260 mm | B1: 211 mm | Thread: Tr260x4 | Item: Adapter assembly, 24.20 kg
A2352Shaft: 240 mm | Bearing bore: 260 mm | B1: 211 mm | Thread: Tr260x4 | Item: Sleeve only
H3056Shaft: 260 mm | Bearing bore: 280 mm | B1: 152 mm | Thread: Tr280x4 | Item: Adapter assembly, 17.50 kg
A3056Shaft: 260 mm | Bearing bore: 280 mm | B1: 152 mm | Thread: Tr280x4 | Item: Sleeve only
H3156Shaft: 260 mm | Bearing bore: 280 mm | B1: 195 mm | Thread: Tr280x4 | Item: Adapter assembly, 25.00 kg
A3156Shaft: 260 mm | Bearing bore: 280 mm | B1: 195 mm | Thread: Tr280x4 | Item: Sleeve only
H2356Shaft: 260 mm | Bearing bore: 280 mm | B1: 224 mm | Thread: Tr280x4 | Item: Adapter assembly, 27.80 kg
A2356Shaft: 260 mm | Bearing bore: 280 mm | B1: 224 mm | Thread: Tr280x4 | Item: Sleeve only
H3060Shaft: 280 mm | Bearing bore: 300 mm | B1: 168 mm | Thread: Tr300x4 | Item: Adapter assembly, 23.00 kg
A3060Shaft: 280 mm | Bearing bore: 300 mm | B1: 168 mm | Thread: Tr300x4 | Item: Sleeve only
H3160Shaft: 280 mm | Bearing bore: 300 mm | B1: 208 mm | Thread: Tr300x4 | Item: Adapter assembly, 30.00 kg
A3160Shaft: 280 mm | Bearing bore: 300 mm | B1: 208 mm | Thread: Tr300x4 | Item: Sleeve only
H3064Shaft: 300 mm | Bearing bore: 320 mm | B1: 171 mm | Thread: Tr320x5 | Item: Adapter assembly, 24.50 kg
A3064Shaft: 300 mm | Bearing bore: 320 mm | B1: 171 mm | Thread: Tr320x5 | Item: Sleeve only
H3164Shaft: 300 mm | Bearing bore: 320 mm | B1: 226 mm | Thread: Tr320x5 | Item: Adapter assembly, 35.00 kg
A3164Shaft: 300 mm | Bearing bore: 320 mm | B1: 226 mm | Thread: Tr320x5 | Item: Sleeve only

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
