KYK SA 200 Insert Ball Bearings (Eccentric Locking Collar)

KYK SA 200 Insert Ball Bearings (Eccentric Locking Collar)

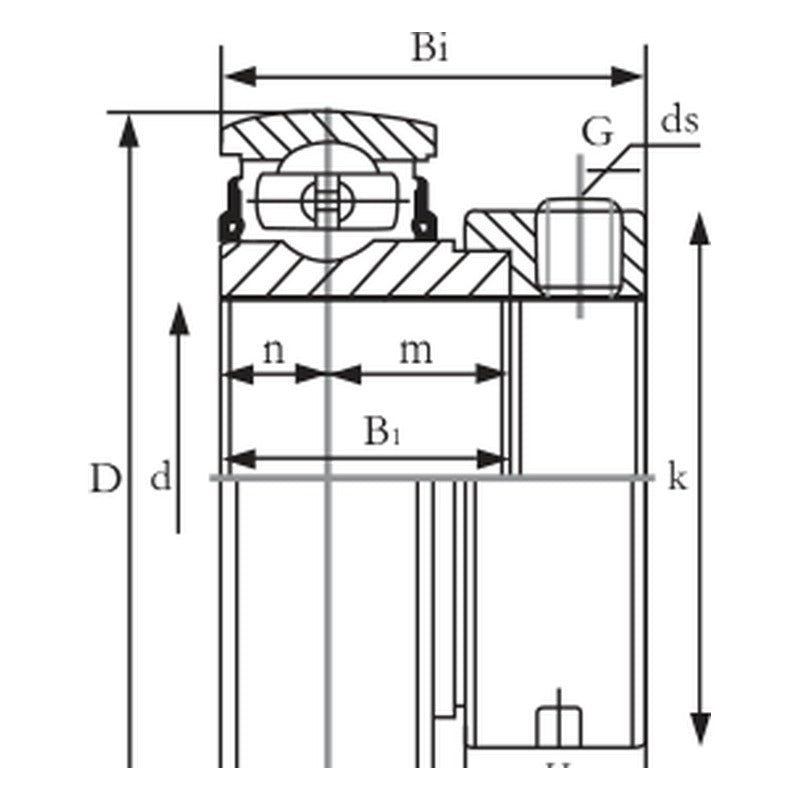

KYK SA 200 series insert ball bearings with eccentric locking collar, metric bores 12 to 60 mm and inch bores 1/2 to 2-7/16 in.

Key features

  • Inner ring secured to the shaft with an eccentric locking collar and set screw
  • Spherical outside diameter for self-alignment in the housing
  • Metric series and inch series designations (inch suffix in sixteenths of an inch)
  • Set screw size listed for each bearing

Specifications

Brand KYK
Series SA 200
Bearing type Insert ball bearing, eccentric locking collar
Metric shaft range 12 - 60 mm
Inch shaft range 1/2 - 2-7/16 in
Load ratings Basic dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 88-89
SA201 Shaft: 12 mm | Set screw: M6X1.0 | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA202 Shaft: 15 mm | Set screw: M6X1.0 | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA203 Shaft: 17 mm | Set screw: M6X1.0 | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA204 Shaft: 20 mm | Set screw: M6X1.0 | Cr: 9.8 kN | C0r: 6.2 kN | Mass: 0.150 kg
SA205 Shaft: 25 mm | Set screw: M6X1.0 | Cr: 10.8 kN | C0r: 7.0 kN | Mass: 0.220 kg
SA206 Shaft: 30 mm | Set screw: M8X1.0 | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.300 kg
SA207 Shaft: 35 mm | Set screw: M8X1.0 | Cr: 19.7 kN | C0r: 13.6 kN | Mass: 0.500 kg
SA208 Shaft: 40 mm | Set screw: M8X1.0 | Cr: 25.1 kN | C0r: 17.7 kN | Mass: 0.670 kg
SA209 Shaft: 45 mm | Set screw: M8X1.0 | Cr: 32.4 kN | C0r: 20.6 kN | Mass: 0.730 kg
SA210 Shaft: 50 mm | Set screw: M8X1.0 | Cr: 34.3 kN | C0r: 22.5 kN | Mass: 0.830 kg
SA211 Shaft: 55 mm | Set screw: M10X1.0 | Cr: 43.1 kN | C0r: 29.4 kN | Mass: 0.870 kg
SA212 Shaft: 60 mm | Set screw: M10X1.0 | Cr: 47.5 kN | C0r: 29.0 kN | Mass: 1.300 kg
SA201-8 Shaft: 1/2 in | Set screw: 1/4-28UNF | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA202-10 Shaft: 5/8 in | Set screw: 1/4-28UNF | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA203-11 Shaft: 11/16 in | Set screw: 1/4-28UNF | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA204-12 Shaft: 3/4 in | Set screw: 1/4-28UNF | Cr: 9.8 kN | C0r: 6.2 kN | Mass: 0.150 kg
SA205-14 Shaft: 7/8 in | Set screw: 1/4-28UNF | Cr: 10.8 kN | C0r: 7.0 kN | Mass: 0.220 kg
SA205-16 Shaft: 1 in | Set screw: 1/4-28UNF | Cr: 10.8 kN | C0r: 7.0 kN | Mass: 0.220 kg
SA206-18 Shaft: 1-1/8 in | Set screw: 5/16-24UNF | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.300 kg
SA206-19 Shaft: 1-3/16 in | Set screw: 5/16-24UNF | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.300 kg
SA206-20 Shaft: 1-1/4 in | Set screw: 5/16-24UNF | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.300 kg
SA207-20 Shaft: 1-1/4 in | Set screw: 5/16-24UNF | Cr: 19.7 kN | C0r: 13.6 kN | Mass: 0.500 kg
SA207-22 Shaft: 1-3/8 in | Set screw: 5/16-24UNF | Cr: 19.7 kN | C0r: 13.6 kN | Mass: 0.500 kg
SA207-23 Shaft: 1-7/16 in | Set screw: 5/16-24UNF | Cr: 19.7 kN | C0r: 13.6 kN | Mass: 0.500 kg
SA208-24 Shaft: 1-1/2 in | Set screw: 5/16-24UNF | Cr: 25.1 kN | C0r: 17.7 kN | Mass: 0.670 kg
SA208-25 Shaft: 1-9/16 in | Set screw: 5/16-24UNF | Cr: 25.1 kN | C0r: 17.7 kN | Mass: 0.670 kg
SA209-26 Shaft: 1-5/8 in | Set screw: 5/16-24UNF | Cr: 32.4 kN | C0r: 20.6 kN | Mass: 0.730 kg
SA209-27 Shaft: 1-11/16 in | Set screw: 5/16-24UNF | Cr: 32.4 kN | C0r: 20.6 kN | Mass: 0.730 kg
SA209-28 Shaft: 1-3/4 in | Set screw: 5/16-24UNF | Cr: 32.4 kN | C0r: 20.6 kN | Mass: 0.730 kg
SA210-30 Shaft: 1-7/8 in | Set screw: 5/16-24UNF | Cr: 34.3 kN | C0r: 22.5 kN | Mass: 0.830 kg
SA210-31 Shaft: 1-15/16 in | Set screw: 5/16-24UNF | Cr: 34.3 kN | C0r: 22.5 kN | Mass: 0.830 kg
SA211-32 Shaft: 2 in | Set screw: 3/8-24UNF | Cr: 43.1 kN | C0r: 29.4 kN | Mass: 0.870 kg
SA211-34 Shaft: 2-1/8 in | Set screw: 3/8-24UNF | Cr: 43.1 kN | C0r: 29.4 kN | Mass: 0.870 kg
SA211-35 Shaft: 2-3/16 in | Set screw: 3/8-24UNF | Cr: 43.1 kN | C0r: 29.4 kN | Mass: 0.870 kg
SA212-36 Shaft: 2-1/4 in | Set screw: 3/8-24UNF | Cr: 47.5 kN | C0r: 29.0 kN | Mass: 1.300 kg
SA212-38 Shaft: 2-3/8 in | Set screw: 3/8-24UNF | Cr: 47.5 kN | C0r: 29.0 kN | Mass: 1.300 kg
SA212-39 Shaft: 2-7/16 in | Set screw: 3/8-24UNF | Cr: 47.5 kN | C0r: 29.0 kN | Mass: 1.300 kg
Insert BearingsKYK
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KYK SA 200 Insert Ball Bearings (Eccentric Locking Collar)

Brand KYK·Insert Bearings

Available part numbers (37)

SA201, SA202, SA203, SA204, SA205, SA206, SA207, SA208, SA209, SA210 + 27 more — see full table ↓

How to order

Send the KYK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SA201Shaft: 12 mm | Set screw: M6X1.0 | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA202Shaft: 15 mm | Set screw: M6X1.0 | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA203Shaft: 17 mm | Set screw: M6X1.0 | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA204Shaft: 20 mm | Set screw: M6X1.0 | Cr: 9.8 kN | C0r: 6.2 kN | Mass: 0.150 kg
SA205Shaft: 25 mm | Set screw: M6X1.0 | Cr: 10.8 kN | C0r: 7.0 kN | Mass: 0.220 kg
SA206Shaft: 30 mm | Set screw: M8X1.0 | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.300 kg
SA207Shaft: 35 mm | Set screw: M8X1.0 | Cr: 19.7 kN | C0r: 13.6 kN | Mass: 0.500 kg
SA208Shaft: 40 mm | Set screw: M8X1.0 | Cr: 25.1 kN | C0r: 17.7 kN | Mass: 0.670 kg
SA209Shaft: 45 mm | Set screw: M8X1.0 | Cr: 32.4 kN | C0r: 20.6 kN | Mass: 0.730 kg
SA210Shaft: 50 mm | Set screw: M8X1.0 | Cr: 34.3 kN | C0r: 22.5 kN | Mass: 0.830 kg
SA211Shaft: 55 mm | Set screw: M10X1.0 | Cr: 43.1 kN | C0r: 29.4 kN | Mass: 0.870 kg
SA212Shaft: 60 mm | Set screw: M10X1.0 | Cr: 47.5 kN | C0r: 29.0 kN | Mass: 1.300 kg
SA201-8Shaft: 1/2 in | Set screw: 1/4-28UNF | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA202-10Shaft: 5/8 in | Set screw: 1/4-28UNF | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA203-11Shaft: 11/16 in | Set screw: 1/4-28UNF | Cr: 9.4 kN | C0r: 4.7 kN | Mass: 0.130 kg
SA204-12Shaft: 3/4 in | Set screw: 1/4-28UNF | Cr: 9.8 kN | C0r: 6.2 kN | Mass: 0.150 kg
SA205-14Shaft: 7/8 in | Set screw: 1/4-28UNF | Cr: 10.8 kN | C0r: 7.0 kN | Mass: 0.220 kg
SA205-16Shaft: 1 in | Set screw: 1/4-28UNF | Cr: 10.8 kN | C0r: 7.0 kN | Mass: 0.220 kg
SA206-18Shaft: 1-1/8 in | Set screw: 5/16-24UNF | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.300 kg
SA206-19Shaft: 1-3/16 in | Set screw: 5/16-24UNF | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.300 kg
SA206-20Shaft: 1-1/4 in | Set screw: 5/16-24UNF | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.300 kg
SA207-20Shaft: 1-1/4 in | Set screw: 5/16-24UNF | Cr: 19.7 kN | C0r: 13.6 kN | Mass: 0.500 kg
SA207-22Shaft: 1-3/8 in | Set screw: 5/16-24UNF | Cr: 19.7 kN | C0r: 13.6 kN | Mass: 0.500 kg
SA207-23Shaft: 1-7/16 in | Set screw: 5/16-24UNF | Cr: 19.7 kN | C0r: 13.6 kN | Mass: 0.500 kg
SA208-24Shaft: 1-1/2 in | Set screw: 5/16-24UNF | Cr: 25.1 kN | C0r: 17.7 kN | Mass: 0.670 kg
SA208-25Shaft: 1-9/16 in | Set screw: 5/16-24UNF | Cr: 25.1 kN | C0r: 17.7 kN | Mass: 0.670 kg
SA209-26Shaft: 1-5/8 in | Set screw: 5/16-24UNF | Cr: 32.4 kN | C0r: 20.6 kN | Mass: 0.730 kg
SA209-27Shaft: 1-11/16 in | Set screw: 5/16-24UNF | Cr: 32.4 kN | C0r: 20.6 kN | Mass: 0.730 kg
SA209-28Shaft: 1-3/4 in | Set screw: 5/16-24UNF | Cr: 32.4 kN | C0r: 20.6 kN | Mass: 0.730 kg
SA210-30Shaft: 1-7/8 in | Set screw: 5/16-24UNF | Cr: 34.3 kN | C0r: 22.5 kN | Mass: 0.830 kg
SA210-31Shaft: 1-15/16 in | Set screw: 5/16-24UNF | Cr: 34.3 kN | C0r: 22.5 kN | Mass: 0.830 kg
SA211-32Shaft: 2 in | Set screw: 3/8-24UNF | Cr: 43.1 kN | C0r: 29.4 kN | Mass: 0.870 kg
SA211-34Shaft: 2-1/8 in | Set screw: 3/8-24UNF | Cr: 43.1 kN | C0r: 29.4 kN | Mass: 0.870 kg
SA211-35Shaft: 2-3/16 in | Set screw: 3/8-24UNF | Cr: 43.1 kN | C0r: 29.4 kN | Mass: 0.870 kg
SA212-36Shaft: 2-1/4 in | Set screw: 3/8-24UNF | Cr: 47.5 kN | C0r: 29.0 kN | Mass: 1.300 kg
SA212-38Shaft: 2-3/8 in | Set screw: 3/8-24UNF | Cr: 47.5 kN | C0r: 29.0 kN | Mass: 1.300 kg
SA212-39Shaft: 2-7/16 in | Set screw: 3/8-24UNF | Cr: 47.5 kN | C0r: 29.0 kN | Mass: 1.300 kg
