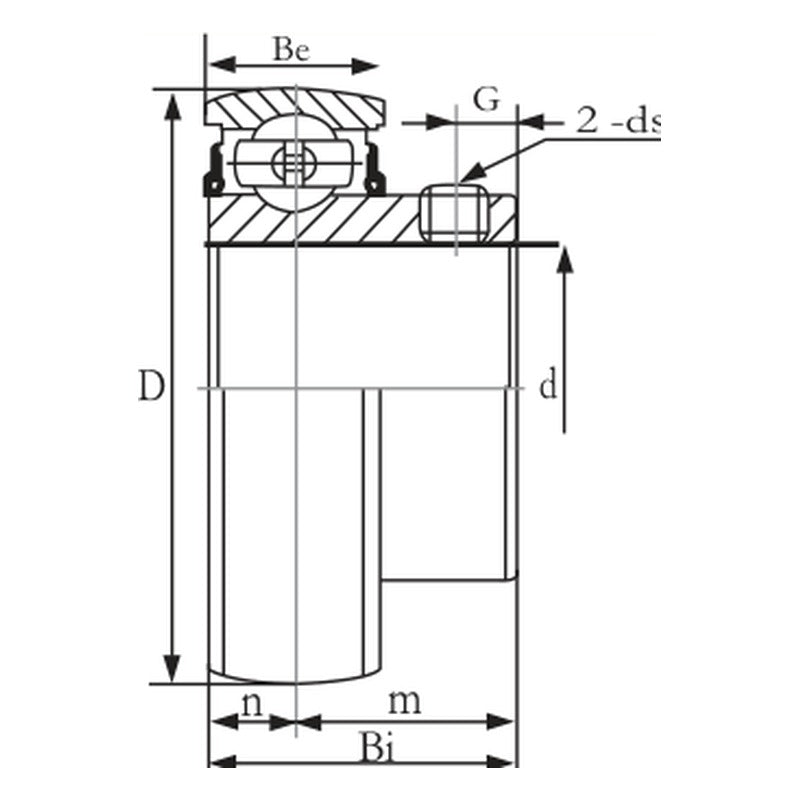

KYK SB 200 Insert Ball Bearings (Narrow, Set Screw)

KYK SB 200 Insert Ball Bearings (Narrow, Set Screw)

KYK SB 200 series insert ball bearings with set-screw locking, metric bores 12 to 60 mm and inch bores 1/2 to 2-1/4 in.

Key features

  • Inner ring secured to the shaft with a set screw
  • Spherical outside diameter for self-alignment in the housing
  • Metric series and inch series designations (inch suffix in sixteenths of an inch)
  • Set screw size listed for each bearing

Specifications

Brand KYK
Series SB 200
Bearing type Insert ball bearing, set screw locking
Metric shaft range 12 - 60 mm
Inch shaft range 1/2 - 2-1/4 in
Load ratings Basic dynamic Cr / static C0r
Source KYK Bearing Catalogue, p. 90-91
SB201 Shaft: 12 mm | Set screw: M5X0.8 | Cr: 7.5 kN | C0r: 4.4 kN | Mass: 0.100 kg
SB202 Shaft: 15 mm | Set screw: M5X0.8 | Cr: 7.5 kN | C0r: 4.4 kN | Mass: 0.100 kg
SB203 Shaft: 17 mm | Set screw: M5X0.8 | Cr: 7.5 kN | C0r: 4.4 kN | Mass: 0.100 kg
SB204 Shaft: 20 mm | Set screw: M6X1.0 | Cr: 9.8 kN | C0r: 6.2 kN | Mass: 0.150 kg
SB205 Shaft: 25 mm | Set screw: M6X1.0 | Cr: 10.8 kN | C0r: 7.0 kN | Mass: 0.180 kg
SB206 Shaft: 30 mm | Set screw: M6X1.0 | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.270 kg
SB207 Shaft: 35 mm | Set screw: M8X1.0 | Cr: 19.7 kN | C0r: 13.3 kN | Mass: 0.420 kg
SB208 Shaft: 40 mm | Set screw: M8X1.0 | Cr: 25.1 kN | C0r: 17.7 kN | Mass: 0.600 kg
SB209 Shaft: 45 mm | Set screw: M8X1.0 | Cr: 32.0 kN | C0r: 24.0 kN | Mass: 0.800 kg
SB210 Shaft: 50 mm | Set screw: M8X1.0 | Cr: 35.1 kN | C0r: 22.5 kN | Mass: 0.830 kg
SB211 Shaft: 55 mm | Set screw: M8X1.0 | Cr: 43.1 kN | C0r: 29.0 kN | Mass: 1.100 kg
SB212 Shaft: 60 mm | Set screw: M10X1.25 | Cr: 47.5 kN | C0r: 32.4 kN | Mass: 1.300 kg
SB201-8 Shaft: 1/2 in | Set screw: 10-32UNF | Cr: 7.5 kN | C0r: 4.4 kN | Mass: 0.100 kg
SB202-10 Shaft: 5/8 in | Set screw: 10-32UNF | Cr: 7.5 kN | C0r: 4.4 kN | Mass: 0.100 kg
SB203-11 Shaft: 11/16 in | Set screw: 10-32UNF | Cr: 7.5 kN | C0r: 4.4 kN | Mass: 0.100 kg
SB204-12 Shaft: 3/4 in | Set screw: 1/4-28UNF | Cr: 9.8 kN | C0r: 6.2 kN | Mass: 0.150 kg
SB205-14 Shaft: 7/8 in | Set screw: 1/4-28UNF | Cr: 10.8 kN | C0r: 7.0 kN | Mass: 0.180 kg
SB205-16 Shaft: 1 in | Set screw: 1/4-28UNF | Cr: 10.8 kN | C0r: 7.0 kN | Mass: 0.180 kg
SB206-18 Shaft: 1-1/8 in | Set screw: 1/4-28UNF | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.270 kg
SB206-19 Shaft: 1-3/16 in | Set screw: 1/4-28UNF | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.270 kg
SB206-20 Shaft: 1-1/4 in | Set screw: 1/4-28UNF | Cr: 14.9 kN | C0r: 10.0 kN | Mass: 0.270 kg
SB207-20 Shaft: 1-1/4 in | Set screw: 5/16-24UNF | Cr: 19.7 kN | C0r: 13.3 kN | Mass: 0.420 kg
SB207-22 Shaft: 1-3/8 in | Set screw: 5/16-24UNF | Cr: 19.7 kN | C0r: 13.3 kN | Mass: 0.420 kg
SB207-23 Shaft: 1-7/16 in | Set screw: 5/16-24UNF | Cr: 19.7 kN | C0r: 13.3 kN | Mass: 0.420 kg
SB208-24 Shaft: 1-1/2 in | Set screw: 5/16-24UNF | Cr: 25.1 kN | C0r: 17.7 kN | Mass: 0.600 kg
SB209-26 Shaft: 1-5/8 in | Set screw: 5/16-24UNF | Cr: 32.0 kN | C0r: 24.0 kN | Mass: 0.800 kg
SB209-27 Shaft: 1-11/16 in | Set screw: 5/16-24UNF | Cr: 32.0 kN | C0r: 24.0 kN | Mass: 0.800 kg
SB209-28 Shaft: 1-3/4 in | Set screw: 5/16-24UNF | Cr: 32.0 kN | C0r: 24.0 kN | Mass: 0.800 kg
SB210-30 Shaft: 1-7/8 in | Set screw: 5/16-24UNF | Cr: 35.1 kN | C0r: 22.5 kN | Mass: 0.830 kg
SB210-31 Shaft: 1-15/16 in | Set screw: 5/16-24UNF | Cr: 35.1 kN | C0r: 22.5 kN | Mass: 0.830 kg
SB211-32 Shaft: 2 in | Set screw: 5/16-24UNF | Cr: 43.1 kN | C0r: 29.0 kN | Mass: 1.100 kg
SB211-34 Shaft: 2-1/8 in | Set screw: 5/16-24UNF | Cr: 43.1 kN | C0r: 29.0 kN | Mass: 1.100 kg
SB211-35 Shaft: 2-3/16 in | Set screw: 5/16-24UNF | Cr: 43.1 kN | C0r: 29.0 kN | Mass: 1.100 kg
SB212-36 Shaft: 2-1/4 in | Set screw: 3/8-24UNF | Cr: 47.5 kN | C0r: 32.4 kN | Mass: 1.300 kg
