KYK SN 500/600 Plummer Block Housings (Split, Shaft 20-140 mm)

KYK SN 500/600 Plummer Block Housings (Split, Shaft 20-140 mm)

KYK SN 500 and SN 600 series split plummer block housings for self-aligning ball and spherical roller bearings on adapter sleeves.

Key features

  • Two-piece split housing for easy mounting and inspection
  • Accepts tapered-bore 12, 13, 22, 23, 222 and 223 series bearings on H adapter sleeves
  • SR locating rings define fixed (locating) or free (non-locating) bearing positions
  • Cap bolt and base bolt sizes listed for each housing

Specifications

Brand KYK
Series SN 500, SN 600
Product Split plummer block housing
Bearings Self-aligning ball and spherical roller, K bore
Mounting Adapter sleeve H series
Source KYK Bearing Catalogue, p. 92-95

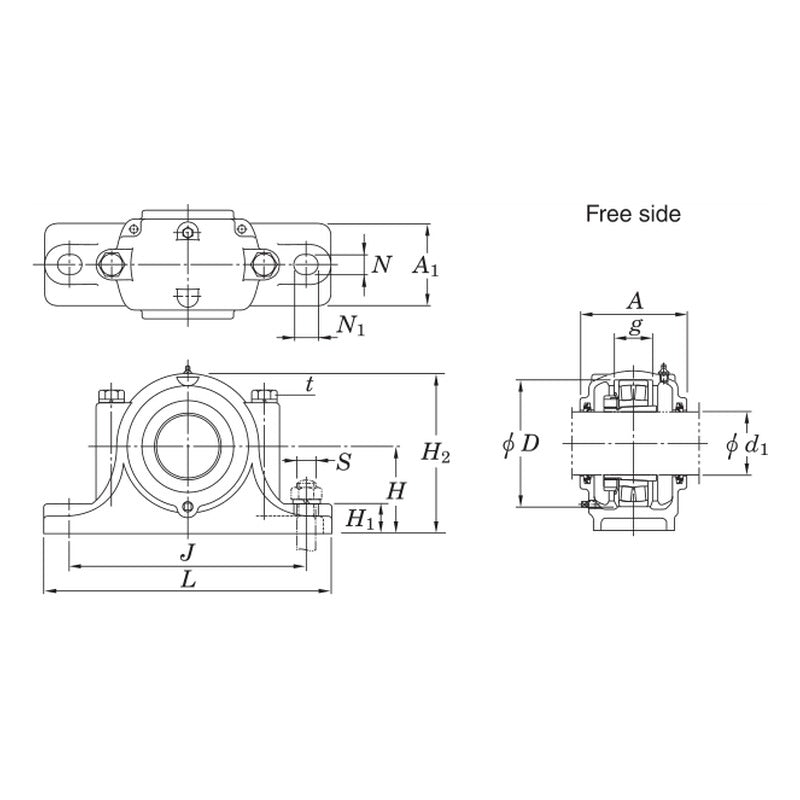

SN505 Shaft d1: 20 mm | Bearing OD D: 52 mm | Centre height H: 40 mm | Base bolt: M12 | Mass: 1.20 kg
SN605 Shaft d1: 20 mm | Bearing OD D: 62 mm | Centre height H: 50 mm | Base bolt: M12 | Mass: 1.80 kg
SN506 Shaft d1: 25 mm | Bearing OD D: 62 mm | Centre height H: 50 mm | Base bolt: M12 | Mass: 1.90 kg
SN606 Shaft d1: 25 mm | Bearing OD D: 72 mm | Centre height H: 50 mm | Base bolt: M12 | Mass: 2.10 kg
SN507 Shaft d1: 30 mm | Bearing OD D: 72 mm | Centre height H: 50 mm | Base bolt: M12 | Mass: 2.30 kg
SN607 Shaft d1: 30 mm | Bearing OD D: 80 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 2.60 kg
SN508 Shaft d1: 35 mm | Bearing OD D: 80 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 2.40 kg
SN608 Shaft d1: 35 mm | Bearing OD D: 90 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 2.80 kg
SN509 Shaft d1: 40 mm | Bearing OD D: 85 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 2.70 kg
SN609 Shaft d1: 40 mm | Bearing OD D: 100 mm | Centre height H: 70 mm | Base bolt: M16 | Mass: 4.30 kg
SN510 Shaft d1: 45 mm | Bearing OD D: 90 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 3.50 kg
SN610 Shaft d1: 45 mm | Bearing OD D: 110 mm | Centre height H: 70 mm | Base bolt: M16 | Mass: 4.70 kg
SN511 Shaft d1: 50 mm | Bearing OD D: 100 mm | Centre height H: 70 mm | Base bolt: M16 | Mass: 3.70 kg
SN611 Shaft d1: 50 mm | Bearing OD D: 120 mm | Centre height H: 80 mm | Base bolt: M16 | Mass: 5.80 kg
SN512 Shaft d1: 55 mm | Bearing OD D: 110 mm | Centre height H: 70 mm | Base bolt: M16 | Mass: 4.40 kg
SN612 Shaft d1: 55 mm | Bearing OD D: 130 mm | Centre height H: 80 mm | Base bolt: M16 | Mass: 6.40 kg
SN513 Shaft d1: 60 mm | Bearing OD D: 120 mm | Centre height H: 80 mm | Base bolt: M16 | Mass: 5.40 kg
SN613 Shaft d1: 60 mm | Bearing OD D: 140 mm | Centre height H: 95 mm | Base bolt: M20 | Mass: 8.60 kg
SN515 Shaft d1: 65 mm | Bearing OD D: 130 mm | Centre height H: 80 mm | Base bolt: M16 | Mass: 6.10 kg
SN615 Shaft d1: 65 mm | Bearing OD D: 160 mm | Centre height H: 100 mm | Base bolt: M20 | Mass: 11.80 kg
SN516 Shaft d1: 70 mm | Bearing OD D: 140 mm | Centre height H: 95 mm | Base bolt: M20 | Mass: 8.20 kg
SN616 Shaft d1: 70 mm | Bearing OD D: 170 mm | Centre height H: 112 mm | Base bolt: M20 | Mass: 13.60 kg
SN517 Shaft d1: 75 mm | Bearing OD D: 150 mm | Centre height H: 95 mm | Base bolt: M20 | Mass: 9.30 kg
SN617 Shaft d1: 75 mm | Bearing OD D: 180 mm | Centre height H: 112 mm | Base bolt: M24 | Mass: 16.80 kg
SN518 Shaft d1: 80 mm | Bearing OD D: 160 mm | Centre height H: 100 mm | Base bolt: M20 | Mass: 12.00 kg
SN618 Shaft d1: 80 mm | Bearing OD D: 190 mm | Centre height H: 112 mm | Base bolt: M24 | Mass: 21.00 kg
SN519 Shaft d1: 85 mm | Bearing OD D: 170 mm | Centre height H: 112 mm | Base bolt: M20 | Mass: 13.00 kg
SN619 Shaft d1: 85 mm | Bearing OD D: 200 mm | Centre height H: 125 mm | Base bolt: M24 | Mass: 23.00 kg
SN520 Shaft d1: 90 mm | Bearing OD D: 180 mm | Centre height H: 112 mm | Base bolt: M24 | Mass: 17.00 kg
SN620 Shaft d1: 90 mm | Bearing OD D: 215 mm | Centre height H: 140 mm | Base bolt: M24 | Mass: 31.00 kg
SN522 Shaft d1: 100 mm | Bearing OD D: 200 mm | Centre height H: 125 mm | Base bolt: M24 | Mass: 20.00 kg
SN622 Shaft d1: 100 mm | Bearing OD D: 240 mm | Centre height H: 150 mm | Base bolt: M24 | Mass: 38.00 kg
SN524 Shaft d1: 110 mm | Bearing OD D: 215 mm | Centre height H: 140 mm | Base bolt: M24 | Mass: 23.00 kg
SN624 Shaft d1: 110 mm | Bearing OD D: 260 mm | Centre height H: 160 mm | Base bolt: M30 | Mass: 48.00 kg
SN526 Shaft d1: 115 mm | Bearing OD D: 230 mm | Centre height H: 150 mm | Base bolt: M24 | Mass: 33.00 kg
SN626 Shaft d1: 115 mm | Bearing OD D: 280 mm | Centre height H: 170 mm | Base bolt: M30 | Mass: 78.00 kg
SN528 Shaft d1: 125 mm | Bearing OD D: 250 mm | Centre height H: 150 mm | Base bolt: M30 | Mass: 40.00 kg
SN628 Shaft d1: 125 mm | Bearing OD D: 300 mm | Centre height H: 180 mm | Base bolt: M30 | Mass: 97.00 kg
SN530 Shaft d1: 135 mm | Bearing OD D: 270 mm | Centre height H: 160 mm | Base bolt: M30 | Mass: 45.00 kg
SN630 Shaft d1: 135 mm | Bearing OD D: 320 mm | Centre height H: 190 mm | Base bolt: M30 | Mass: 110.00 kg
Bearing HousingsKYK
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KYK SN 500/600 Plummer Block Housings (Split, Shaft 20-140 mm)

Brand KYK·Bearing Housings

Available part numbers (40)

SN505, SN605, SN506, SN606, SN507, SN607, SN508, SN608, SN509, SN609 + 30 more — see full table ↓

How to order

Send the KYK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SN505Shaft d1: 20 mm | Bearing OD D: 52 mm | Centre height H: 40 mm | Base bolt: M12 | Mass: 1.20 kg
SN605Shaft d1: 20 mm | Bearing OD D: 62 mm | Centre height H: 50 mm | Base bolt: M12 | Mass: 1.80 kg
SN506Shaft d1: 25 mm | Bearing OD D: 62 mm | Centre height H: 50 mm | Base bolt: M12 | Mass: 1.90 kg
SN606Shaft d1: 25 mm | Bearing OD D: 72 mm | Centre height H: 50 mm | Base bolt: M12 | Mass: 2.10 kg
SN507Shaft d1: 30 mm | Bearing OD D: 72 mm | Centre height H: 50 mm | Base bolt: M12 | Mass: 2.30 kg
SN607Shaft d1: 30 mm | Bearing OD D: 80 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 2.60 kg
SN508Shaft d1: 35 mm | Bearing OD D: 80 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 2.40 kg
SN608Shaft d1: 35 mm | Bearing OD D: 90 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 2.80 kg
SN509Shaft d1: 40 mm | Bearing OD D: 85 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 2.70 kg
SN609Shaft d1: 40 mm | Bearing OD D: 100 mm | Centre height H: 70 mm | Base bolt: M16 | Mass: 4.30 kg
SN510Shaft d1: 45 mm | Bearing OD D: 90 mm | Centre height H: 60 mm | Base bolt: M12 | Mass: 3.50 kg
SN610Shaft d1: 45 mm | Bearing OD D: 110 mm | Centre height H: 70 mm | Base bolt: M16 | Mass: 4.70 kg
SN511Shaft d1: 50 mm | Bearing OD D: 100 mm | Centre height H: 70 mm | Base bolt: M16 | Mass: 3.70 kg
SN611Shaft d1: 50 mm | Bearing OD D: 120 mm | Centre height H: 80 mm | Base bolt: M16 | Mass: 5.80 kg
SN512Shaft d1: 55 mm | Bearing OD D: 110 mm | Centre height H: 70 mm | Base bolt: M16 | Mass: 4.40 kg
SN612Shaft d1: 55 mm | Bearing OD D: 130 mm | Centre height H: 80 mm | Base bolt: M16 | Mass: 6.40 kg
SN513Shaft d1: 60 mm | Bearing OD D: 120 mm | Centre height H: 80 mm | Base bolt: M16 | Mass: 5.40 kg
SN613Shaft d1: 60 mm | Bearing OD D: 140 mm | Centre height H: 95 mm | Base bolt: M20 | Mass: 8.60 kg
SN515Shaft d1: 65 mm | Bearing OD D: 130 mm | Centre height H: 80 mm | Base bolt: M16 | Mass: 6.10 kg
SN615Shaft d1: 65 mm | Bearing OD D: 160 mm | Centre height H: 100 mm | Base bolt: M20 | Mass: 11.80 kg
SN516Shaft d1: 70 mm | Bearing OD D: 140 mm | Centre height H: 95 mm | Base bolt: M20 | Mass: 8.20 kg
SN616Shaft d1: 70 mm | Bearing OD D: 170 mm | Centre height H: 112 mm | Base bolt: M20 | Mass: 13.60 kg
SN517Shaft d1: 75 mm | Bearing OD D: 150 mm | Centre height H: 95 mm | Base bolt: M20 | Mass: 9.30 kg
SN617Shaft d1: 75 mm | Bearing OD D: 180 mm | Centre height H: 112 mm | Base bolt: M24 | Mass: 16.80 kg
SN518Shaft d1: 80 mm | Bearing OD D: 160 mm | Centre height H: 100 mm | Base bolt: M20 | Mass: 12.00 kg
SN618Shaft d1: 80 mm | Bearing OD D: 190 mm | Centre height H: 112 mm | Base bolt: M24 | Mass: 21.00 kg
SN519Shaft d1: 85 mm | Bearing OD D: 170 mm | Centre height H: 112 mm | Base bolt: M20 | Mass: 13.00 kg
SN619Shaft d1: 85 mm | Bearing OD D: 200 mm | Centre height H: 125 mm | Base bolt: M24 | Mass: 23.00 kg
SN520Shaft d1: 90 mm | Bearing OD D: 180 mm | Centre height H: 112 mm | Base bolt: M24 | Mass: 17.00 kg
SN620Shaft d1: 90 mm | Bearing OD D: 215 mm | Centre height H: 140 mm | Base bolt: M24 | Mass: 31.00 kg
SN522Shaft d1: 100 mm | Bearing OD D: 200 mm | Centre height H: 125 mm | Base bolt: M24 | Mass: 20.00 kg
SN622Shaft d1: 100 mm | Bearing OD D: 240 mm | Centre height H: 150 mm | Base bolt: M24 | Mass: 38.00 kg
SN524Shaft d1: 110 mm | Bearing OD D: 215 mm | Centre height H: 140 mm | Base bolt: M24 | Mass: 23.00 kg
SN624Shaft d1: 110 mm | Bearing OD D: 260 mm | Centre height H: 160 mm | Base bolt: M30 | Mass: 48.00 kg
SN526Shaft d1: 115 mm | Bearing OD D: 230 mm | Centre height H: 150 mm | Base bolt: M24 | Mass: 33.00 kg
SN626Shaft d1: 115 mm | Bearing OD D: 280 mm | Centre height H: 170 mm | Base bolt: M30 | Mass: 78.00 kg
SN528Shaft d1: 125 mm | Bearing OD D: 250 mm | Centre height H: 150 mm | Base bolt: M30 | Mass: 40.00 kg
SN628Shaft d1: 125 mm | Bearing OD D: 300 mm | Centre height H: 180 mm | Base bolt: M30 | Mass: 97.00 kg
SN530Shaft d1: 135 mm | Bearing OD D: 270 mm | Centre height H: 160 mm | Base bolt: M30 | Mass: 45.00 kg
SN630Shaft d1: 135 mm | Bearing OD D: 320 mm | Centre height H: 190 mm | Base bolt: M30 | Mass: 110.00 kg

Need a different model, or a part not listed here? Send us your parts list →
