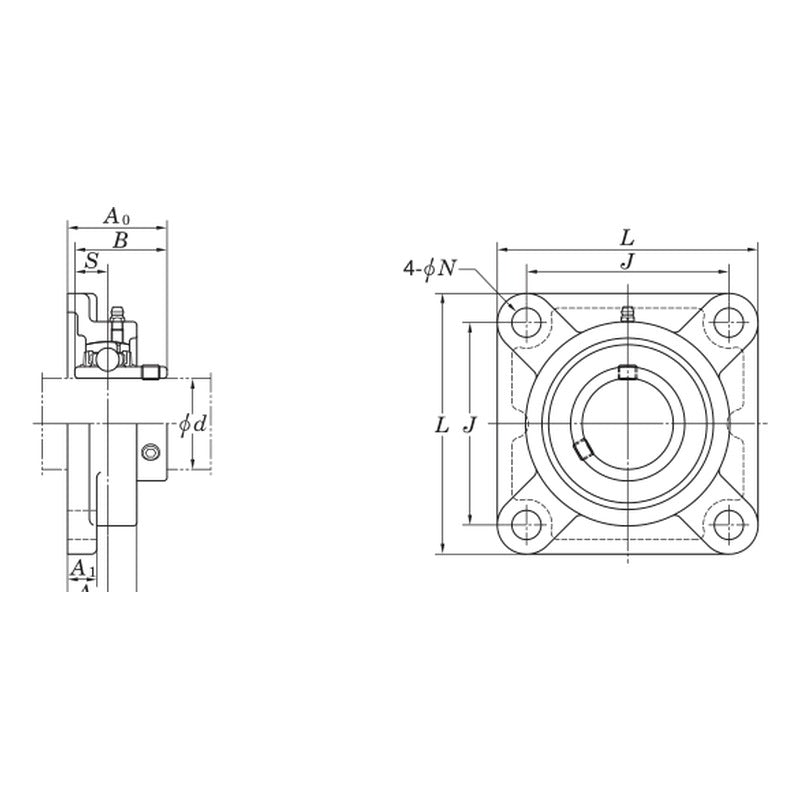

KYK UCF 200 Series Square Flange Units (Shaft 12-90 mm)

KYK UCF 200 series four-bolt square flange units with cast iron housing and set-screw insert bearing, shaft diameter 12 to 90 mm.

Key features

Pre-assembled unit of UC 200 series insert ball bearing and cast iron housing
Spherical outer ring seat allows the insert to self-align in the housing
Insert bearing locked to the shaft with set screws
Insert and housing numbers listed for each unit for replacement parts

Specifications

Brand	KYK
Series	UCF 200
Unit type	Square Flange Units
Insert bearing	UC 200 series, set screw locking
Shaft range	12 - 90 mm
Source	KYK Bearing Catalogue, p. 84

UCF201		Shaft: 12 mm \| Insert: UC201 \| Housing: F204 \| Bolt: M10 \| Mass: 0.63 kg
UCF202		Shaft: 15 mm \| Insert: UC202 \| Housing: F204 \| Bolt: M10 \| Mass: 0.61 kg
UCF203		Shaft: 17 mm \| Insert: UC203 \| Housing: F204 \| Bolt: M10 \| Mass: 0.60 kg
UCF204		Shaft: 20 mm \| Insert: UC204 \| Housing: F204 \| Bolt: M10 \| Mass: 0.58 kg
UCF205		Shaft: 25 mm \| Insert: UC205 \| Housing: F205 \| Bolt: M10 \| Mass: 0.72 kg
UCF206		Shaft: 30 mm \| Insert: UC206 \| Housing: F206 \| Bolt: M10 \| Mass: 1.01 kg
UCF207		Shaft: 35 mm \| Insert: UC207 \| Housing: F207 \| Bolt: M12 \| Mass: 1.38 kg
UCF208		Shaft: 40 mm \| Insert: UC208 \| Housing: F208 \| Bolt: M14 \| Mass: 1.77 kg
UCF209		Shaft: 45 mm \| Insert: UC209 \| Housing: F209 \| Bolt: M14 \| Mass: 2.07 kg
UCF210		Shaft: 50 mm \| Insert: UC210 \| Housing: F210 \| Bolt: M14 \| Mass: 2.36 kg
UCF211		Shaft: 55 mm \| Insert: UC211 \| Housing: F211 \| Bolt: M16 \| Mass: 3.40 kg
UCF212		Shaft: 60 mm \| Insert: UC212 \| Housing: F212 \| Bolt: M16 \| Mass: 4.02 kg
UCF213		Shaft: 65 mm \| Insert: UC213 \| Housing: F213 \| Bolt: M16 \| Mass: 4.98 kg
UCF214		Shaft: 70 mm \| Insert: UC214 \| Housing: F214 \| Bolt: M16 \| Mass: 5.56 kg
UCF215		Shaft: 75 mm \| Insert: UC215 \| Housing: F215 \| Bolt: M16 \| Mass: 6.22 kg
UCF216		Shaft: 80 mm \| Insert: UC216 \| Housing: F216 \| Bolt: M20 \| Mass: 7.48 kg
UCF217		Shaft: 85 mm \| Insert: UC217 \| Housing: F217 \| Bolt: M20 \| Mass: 8.77 kg
UCF218		Shaft: 90 mm \| Insert: UC218 \| Housing: F218 \| Bolt: M20 \| Mass: 10.74 kg
