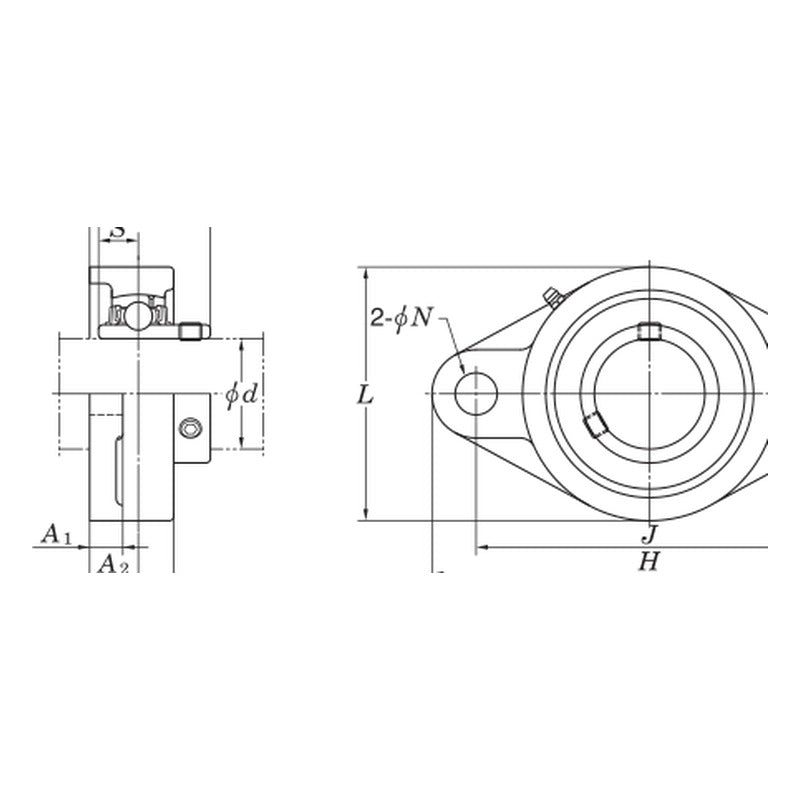

KYK UCFL 200 Series Two-Bolt Flange Units (Shaft 12-90 mm)

KYK UCFL 200 series two-bolt oval flange units with cast iron housing and set-screw insert bearing, shaft diameter 12 to 90 mm.

Key features

Pre-assembled unit of UC 200 series insert ball bearing and cast iron housing
Spherical outer ring seat allows the insert to self-align in the housing
Insert bearing locked to the shaft with set screws
Insert and housing numbers listed for each unit for replacement parts

Specifications

Brand	KYK
Series	UCFL 200
Unit type	Two-Bolt Flange Units
Insert bearing	UC 200 series, set screw locking
Shaft range	12 - 90 mm
Source	KYK Bearing Catalogue, p. 85

UCFL201		Shaft: 12 mm \| Insert: UC201 \| Housing: FL204 \| Bolt: M10 \| Mass: 0.47 kg
UCFL202		Shaft: 15 mm \| Insert: UC202 \| Housing: FL204 \| Bolt: M10 \| Mass: 0.45 kg
UCFL203		Shaft: 17 mm \| Insert: UC203 \| Housing: FL204 \| Bolt: M10 \| Mass: 0.44 kg
UCFL204		Shaft: 20 mm \| Insert: UC204 \| Housing: FL204 \| Bolt: M10 \| Mass: 0.42 kg
UCFL205		Shaft: 25 mm \| Insert: UC205 \| Housing: FL205 \| Bolt: M14 \| Mass: 0.59 kg
UCFL206		Shaft: 30 mm \| Insert: UC206 \| Housing: FL206 \| Bolt: M14 \| Mass: 0.90 kg
UCFL207		Shaft: 35 mm \| Insert: UC207 \| Housing: FL207 \| Bolt: M14 \| Mass: 1.20 kg
UCFL208		Shaft: 40 mm \| Insert: UC208 \| Housing: FL208 \| Bolt: M14 \| Mass: 1.51 kg
UCFL209		Shaft: 45 mm \| Insert: UC209 \| Housing: FL209 \| Bolt: M16 \| Mass: 1.90 kg
UCFL210		Shaft: 50 mm \| Insert: UC210 \| Housing: FL210 \| Bolt: M16 \| Mass: 2.20 kg
UCFL211		Shaft: 55 mm \| Insert: UC211 \| Housing: FL211 \| Bolt: M16 \| Mass: 3.20 kg
UCFL212		Shaft: 60 mm \| Insert: UC212 \| Housing: FL212 \| Bolt: M20 \| Mass: 4.10 kg
UCFL213		Shaft: 65 mm \| Insert: UC213 \| Housing: FL213 \| Bolt: M20 \| Mass: 5.10 kg
UCFL214		Shaft: 70 mm \| Insert: UC214 \| Housing: FL214 \| Bolt: M20 \| Mass: 6.00 kg
UCFL215		Shaft: 75 mm \| Insert: UC215 \| Housing: FL215 \| Bolt: M20 \| Mass: 6.50 kg
UCFL216		Shaft: 80 mm \| Insert: UC216 \| Housing: FL216 \| Bolt: M22 \| Mass: 8.00 kg
UCFL217		Shaft: 85 mm \| Insert: UC217 \| Housing: FL217 \| Bolt: M22 \| Mass: 9.50 kg
UCFL218		Shaft: 90 mm \| Insert: UC218 \| Housing: FL218 \| Bolt: M22 \| Mass: 11.90 kg
