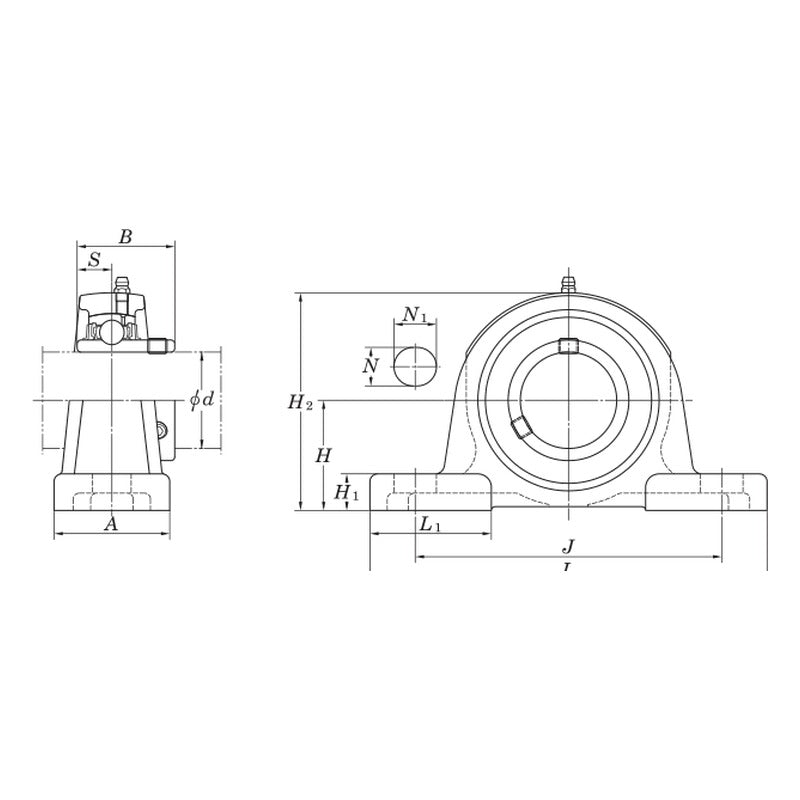

KYK UCP 200 Series Pillow Block Units (Shaft 12-90 mm)

KYK UCP 200 series pillow block (plummer) units with cast iron housing and set-screw insert bearing, shaft diameter 12 to 90 mm.

Key features

Pre-assembled unit of UC 200 series insert ball bearing and cast iron housing
Spherical outer ring seat allows the insert to self-align in the housing
Insert bearing locked to the shaft with set screws
Insert and housing numbers listed for each unit for replacement parts

Specifications

Brand	KYK
Series	UCP 200
Unit type	Pillow Block Units
Insert bearing	UC 200 series, set screw locking
Shaft range	12 - 90 mm
Source	KYK Bearing Catalogue, p. 84

UCP201		Shaft: 12 mm \| Insert: UC201 \| Housing: P203 \| Bolt: M10 \| Mass: 0.65 kg
UCP202		Shaft: 15 mm \| Insert: UC202 \| Housing: P203 \| Bolt: M10 \| Mass: 0.63 kg
UCP203		Shaft: 17 mm \| Insert: UC203 \| Housing: P203 \| Bolt: M10 \| Mass: 0.62 kg
UCP204		Shaft: 20 mm \| Insert: UC204 \| Housing: P204 \| Bolt: M10 \| Mass: 0.65 kg
UCP205		Shaft: 25 mm \| Insert: UC205 \| Housing: P205 \| Bolt: M10 \| Mass: 0.79 kg
UCP206		Shaft: 30 mm \| Insert: UC206 \| Housing: P206 \| Bolt: M14 \| Mass: 1.26 kg
UCP207		Shaft: 35 mm \| Insert: UC207 \| Housing: P207 \| Bolt: M14 \| Mass: 1.59 kg
UCP208		Shaft: 40 mm \| Insert: UC208 \| Housing: P208 \| Bolt: M14 \| Mass: 1.92 kg
UCP209		Shaft: 45 mm \| Insert: UC209 \| Housing: P209 \| Bolt: M14 \| Mass: 2.19 kg
UCP210		Shaft: 50 mm \| Insert: UC210 \| Housing: P210 \| Bolt: M16 \| Mass: 2.59 kg
UCP211		Shaft: 55 mm \| Insert: UC211 \| Housing: P211 \| Bolt: M16 \| Mass: 3.30 kg
UCP212		Shaft: 60 mm \| Insert: UC212 \| Housing: P212 \| Bolt: M16 \| Mass: 4.70 kg
UCP213		Shaft: 65 mm \| Insert: UC213 \| Housing: P213 \| Bolt: M20 \| Mass: 5.60 kg
UCP214		Shaft: 70 mm \| Insert: UC214 \| Housing: P214 \| Bolt: M20 \| Mass: 7.30 kg
UCP215		Shaft: 75 mm \| Insert: UC215 \| Housing: P215 \| Bolt: M20 \| Mass: 7.90 kg
UCP216		Shaft: 80 mm \| Insert: UC216 \| Housing: P216 \| Bolt: M20 \| Mass: 10.00 kg
UCP217		Shaft: 85 mm \| Insert: UC217 \| Housing: P217 \| Bolt: M20 \| Mass: 12.20 kg
UCP218		Shaft: 90 mm \| Insert: UC218 \| Housing: P218 \| Bolt: M22 \| Mass: 14.70 kg

Mounted Bearing UnitsKYK

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KYK UCP 200 Series Pillow Block Units (Shaft 12-90 mm)

Brand KYK·Mounted Bearing Units

Available part numbers (18)

UCP201, UCP202, UCP203, UCP204, UCP205, UCP206, UCP207, UCP208, UCP209, UCP210 + 8 more — see full table ↓
