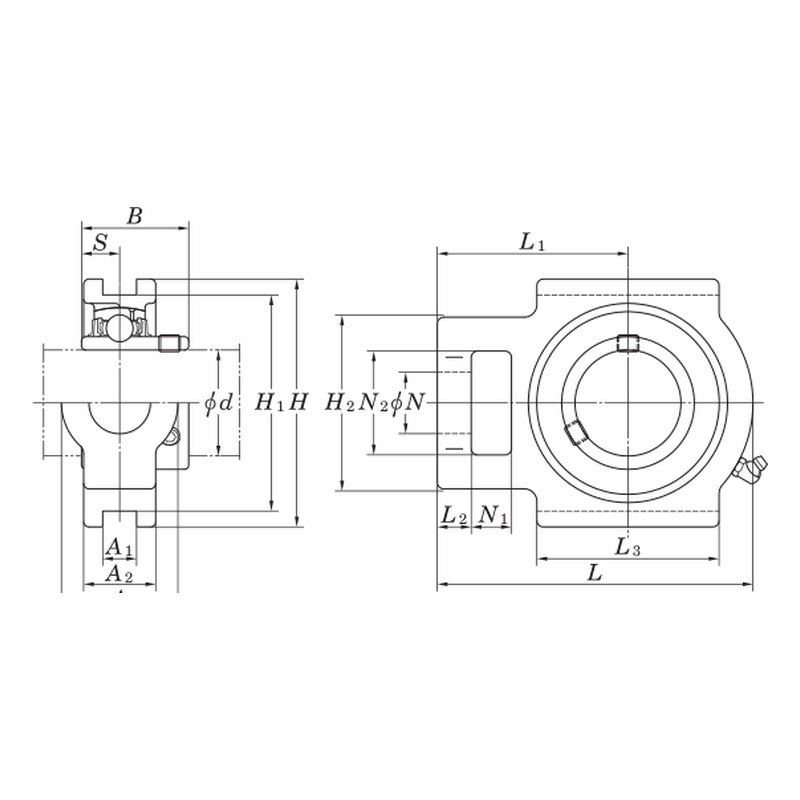

KYK UCT 200 Series Take-Up Units (Shaft 12-85 mm)

KYK UCT 200 series take-up units with cast iron housing and set-screw insert bearing, shaft diameter 12 to 85 mm.

Key features

Pre-assembled unit of UC 200 series insert ball bearing and cast iron housing
Spherical outer ring seat allows the insert to self-align in the housing
Insert bearing locked to the shaft with set screws
Insert and housing numbers listed for each unit for replacement parts

Specifications

Brand	KYK
Series	UCT 200
Unit type	Take-Up Units
Insert bearing	UC 200 series, set screw locking
Shaft range	12 - 85 mm
Source	KYK Bearing Catalogue, p. 86

UCT201		Shaft: 12 mm \| Insert: UC201 \| Housing: T204 \| Mass: 0.79 kg
UCT202		Shaft: 15 mm \| Insert: UC202 \| Housing: T204 \| Mass: 0.77 kg
UCT203		Shaft: 17 mm \| Insert: UC203 \| Housing: T204 \| Mass: 0.76 kg
UCT204		Shaft: 20 mm \| Insert: UC204 \| Housing: T204 \| Mass: 0.74 kg
UCT205		Shaft: 25 mm \| Insert: UC205 \| Housing: T205 \| Mass: 0.82 kg
UCT206		Shaft: 30 mm \| Insert: UC206 \| Housing: T206 \| Mass: 1.30 kg
UCT207		Shaft: 35 mm \| Insert: UC207 \| Housing: T207 \| Mass: 1.60 kg
UCT208		Shaft: 40 mm \| Insert: UC208 \| Housing: T208 \| Mass: 2.40 kg
UCT209		Shaft: 45 mm \| Insert: UC209 \| Housing: T209 \| Mass: 2.40 kg
UCT210		Shaft: 50 mm \| Insert: UC210 \| Housing: T210 \| Mass: 2.50 kg
UCT211		Shaft: 55 mm \| Insert: UC211 \| Housing: T211 \| Mass: 4.00 kg
UCT212		Shaft: 60 mm \| Insert: UC212 \| Housing: T212 \| Mass: 5.10 kg
UCT213		Shaft: 65 mm \| Insert: UC213 \| Housing: T213 \| Mass: 7.00 kg
UCT214		Shaft: 70 mm \| Insert: UC214 \| Housing: T214 \| Mass: 7.10 kg
UCT215		Shaft: 75 mm \| Insert: UC215 \| Housing: T215 \| Mass: 7.50 kg
UCT216		Shaft: 80 mm \| Insert: UC216 \| Housing: T216 \| Mass: 8.50 kg
UCT217		Shaft: 85 mm \| Insert: UC217 \| Housing: T217 \| Mass: 11.20 kg

Mounted Bearing UnitsKYK

17 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KYK UCT 200 Series Take-Up Units (Shaft 12-85 mm)

Brand KYK·Mounted Bearing Units

Available part numbers (17)

UCT201, UCT202, UCT203, UCT204, UCT205, UCT206, UCT207, UCT208, UCT209, UCT210 + 7 more — see full table ↓
