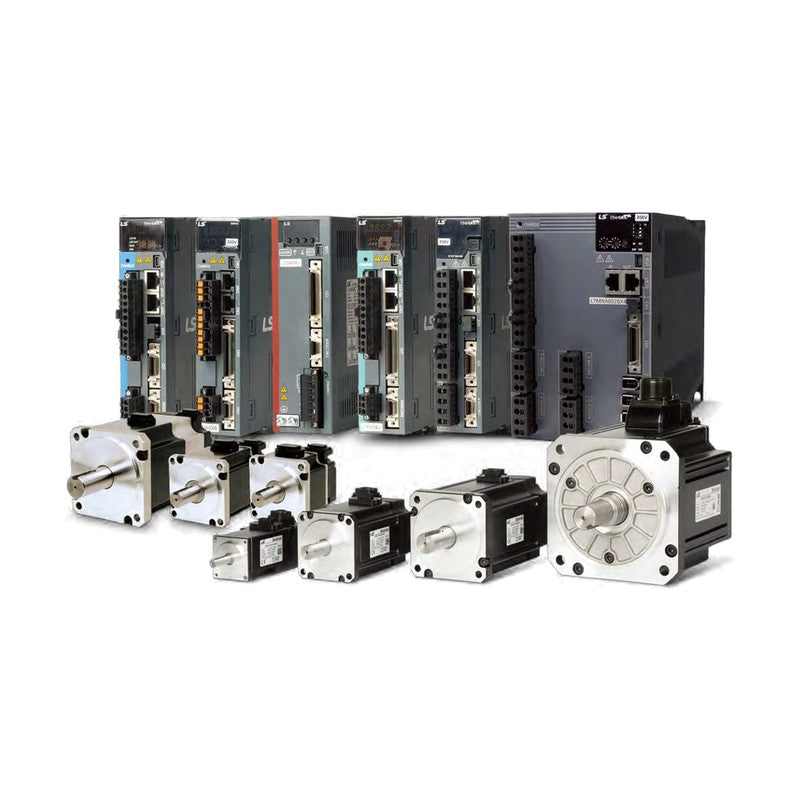

LS Electric APM-E Servo Motors 200V (130 mm, 0.3-3 kW)

LS Electric APM-E Servo Motors 200V (130 mm, 0.3-3 kW)

LS Electric Xmotion APM-E 200V servo motors with 130 mm flange (EE frame), 0.3 to 3 kW at 1,000-3,000 rpm rated speed.

Key features

  • High-resolution serial absolute encoder: 23-bit (M3) or 20-bit batteryless (L), both with 16-bit multi-turn
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Full order code = base model + encoder + shaft + option, e.g. APM-EB04AM3K2
  • Matched to Xmotion iX7NH, iX7M, L7NH, L7P, L7S and L7C drives (see drive pairing tables)
  • Totally enclosed self-cooled design, continuous duty, vibration resistance 49 m/s2 (5G)

Specifications

Motor series APM-E (Xmotion E series)
Protection Totally enclosed, IP65 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 10x motor inertia
Holding brake DC 24 V, 10.4 N.m
Ambient 0 to 40 C, 80% RH max, non-condensing
Vibration 49 m/s2 (5G)
Flange 130 mm square
Voltage 200 VAC class
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 82, 86-89, 96-97
APM-EE09A Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE09AM3K Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09AM3K1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09AM3K2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09AM3K3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09AM3N Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE09AM3N1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09AM3N2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE09AM3N3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09ALK Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09ALK1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09ALK2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09ALK3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09ALN Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE09ALN1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09ALN2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE09ALN3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE15A Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE15AM3K Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE15AM3K1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE15AM3K2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE15AM3K3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE15AM3N Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE15AM3N1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE15AM3N2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE15AM3N3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE15ALK Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE15ALK1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE15ALK2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE15ALK3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE15ALN Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE15ALN1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE15ALN2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE15ALN3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE22A Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE22AM3K Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE22AM3K1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE22AM3K2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE22AM3K3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE22AM3N Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE22AM3N1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE22AM3N2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE22AM3N3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE22ALK Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE22ALK1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE22ALK2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE22ALK3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE22ALN Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE22ALN1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE22ALN2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE22ALN3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE30A Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE30AM3K Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE30AM3K1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE30AM3K2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE30AM3K3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE30AM3N Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE30AM3N1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE30AM3N2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE30AM3N3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE30ALK Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE30ALK1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE30ALK2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE30ALK3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE30ALN Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE30ALN1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE30ALN2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE30ALN3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE06D Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE06DM3K Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE06DM3K1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE06DM3K2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE06DM3K3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE06DM3N Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE06DM3N1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE06DM3N2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE06DM3N3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE06DLK Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE06DLK1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE06DLK2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE06DLK3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE06DLN Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE06DLN1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE06DLN2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE06DLN3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE11D Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE11DM3K Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE11DM3K1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE11DM3K2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE11DM3K3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE11DM3N Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE11DM3N1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE11DM3N2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE11DM3N3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE11DLK Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE11DLK1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE11DLK2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE11DLK3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE11DLN Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE11DLN1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE11DLN2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE11DLN3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE16D Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE16DM3K Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE16DM3K1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE16DM3K2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE16DM3K3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE16DM3N Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE16DM3N1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE16DM3N2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE16DM3N3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE16DLK Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE16DLK1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE16DLK2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE16DLK3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE16DLN Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE16DLN1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE16DLN2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE16DLN3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE22D Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE22DM3K Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE22DM3K1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE22DM3K2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE22DM3K3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE22DM3N Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE22DM3N1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE22DM3N2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE22DM3N3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE22DLK Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE22DLK1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE22DLK2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE22DLK3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE22DLN Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE22DLN1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE22DLN2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE22DLN3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE05G Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE05GM3K Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE05GM3K1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE05GM3K2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE05GM3K3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE05GM3N Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE05GM3N1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE05GM3N2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE05GM3N3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE05GLK Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE05GLK1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE05GLK2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE05GLK3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE05GLN Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE05GLN1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE05GLN2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE05GLN3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09G Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE09GM3K Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09GM3K1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09GM3K2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09GM3K3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09GM3N Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE09GM3N1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09GM3N2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE09GM3N3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09GLK Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09GLK1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09GLK2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09GLK3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09GLN Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE09GLN1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09GLN2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE09GLN3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE13G Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE13GM3K Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE13GM3K1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE13GM3K2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE13GM3K3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE13GM3N Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE13GM3N1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE13GM3N2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE13GM3N3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE13GLK Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE13GLK1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE13GLK2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE13GLK3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE13GLN Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE13GLN1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE13GLN2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE13GLN3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE17G Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE17GM3K Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE17GM3K1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE17GM3K2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE17GM3K3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE17GM3N Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE17GM3N1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE17GM3N2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE17GM3N3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE17GLK Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE17GLK1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE17GLK2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE17GLK3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE17GLN Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE17GLN1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE17GLN2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE17GLN3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE03M Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE03MM3K Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE03MM3K1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE03MM3K2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE03MM3K3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE03MM3N Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE03MM3N1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE03MM3N2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE03MM3N3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE03MLK Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE03MLK1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE03MLK2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE03MLK3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE03MLN Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE03MLN1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE03MLN2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE03MLN3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE06M Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE06MM3K Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE06MM3K1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE06MM3K2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE06MM3K3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE06MM3N Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE06MM3N1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE06MM3N2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE06MM3N3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE06MLK Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE06MLK1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE06MLK2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE06MLK3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE06MLN Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE06MLN1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE06MLN2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE06MLN3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09M Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE09MM3K Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09MM3K1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09MM3K2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09MM3K3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09MM3N Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE09MM3N1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09MM3N2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE09MM3N3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09MLK Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09MLK1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09MLK2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09MLK3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09MLN Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE09MLN1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09MLN2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE09MLN3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE12M Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE12MM3K Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE12MM3K1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE12MM3K2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE12MM3K3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE12MM3N Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE12MM3N1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE12MM3N2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE12MM3N3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE12MLK Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE12MLK1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE12MLK2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE12MLK3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE12MLN Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE12MLN1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE12MLN2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE12MLN3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
272 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-E Servo Motors 200V (130 mm, 0.3-3 kW)

Brand LS Electric·Servo Motors

Available part numbers (272)

APM-EE09A, APM-EE09AM3K, APM-EE09AM3K1, APM-EE09AM3K2, APM-EE09AM3K3, APM-EE09AM3N, APM-EE09AM3N1, APM-EE09AM3N2, APM-EE09AM3N3, APM-EE09ALK + 262 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-EE09ARating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE09AM3KRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09AM3K1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09AM3K2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09AM3K3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09AM3NRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE09AM3N1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09AM3N2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE09AM3N3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09ALKRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09ALK1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09ALK2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09ALK3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09ALNRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE09ALN1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09ALN2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE09ALN3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE15ARating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE15AM3KRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE15AM3K1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE15AM3K2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE15AM3K3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE15AM3NRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE15AM3N1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE15AM3N2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE15AM3N3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE15ALKRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE15ALK1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE15ALK2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE15ALK3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE15ALNRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE15ALN1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE15ALN2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE15ALN3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE22ARating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE22AM3KRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE22AM3K1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE22AM3K2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE22AM3K3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE22AM3NRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE22AM3N1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE22AM3N2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE22AM3N3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE22ALKRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE22ALK1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE22ALK2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE22ALK3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE22ALNRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE22ALN1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE22ALN2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE22ALN3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE30ARating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE30AM3KRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE30AM3K1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE30AM3K2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE30AM3K3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE30AM3NRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE30AM3N1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE30AM3N2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE30AM3N3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE30ALKRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE30ALK1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE30ALK2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE30ALK3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE30ALNRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE30ALN1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE30ALN2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE30ALN3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE06DRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE06DM3KRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE06DM3K1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE06DM3K2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE06DM3K3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE06DM3NRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE06DM3N1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE06DM3N2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE06DM3N3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE06DLKRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE06DLK1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE06DLK2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE06DLK3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE06DLNRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE06DLN1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE06DLN2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE06DLN3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE11DRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE11DM3KRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE11DM3K1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE11DM3K2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE11DM3K3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE11DM3NRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE11DM3N1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE11DM3N2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE11DM3N3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE11DLKRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE11DLK1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE11DLK2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE11DLK3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE11DLNRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE11DLN1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE11DLN2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE11DLN3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE16DRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE16DM3KRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE16DM3K1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE16DM3K2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE16DM3K3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE16DM3NRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE16DM3N1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE16DM3N2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE16DM3N3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE16DLKRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE16DLK1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE16DLK2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE16DLK3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE16DLNRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE16DLN1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE16DLN2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE16DLN3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE22DRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE22DM3KRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE22DM3K1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE22DM3K2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE22DM3K3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE22DM3NRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE22DM3N1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE22DM3N2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE22DM3N3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE22DLKRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE22DLK1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE22DLK2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE22DLK3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE22DLNRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE22DLN1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE22DLN2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE22DLN3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE05GRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE05GM3KRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE05GM3K1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE05GM3K2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE05GM3K3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE05GM3NRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE05GM3N1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE05GM3N2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE05GM3N3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE05GLKRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE05GLK1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE05GLK2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE05GLK3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE05GLNRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE05GLN1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE05GLN2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE05GLN3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09GRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE09GM3KRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09GM3K1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09GM3K2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09GM3K3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09GM3NRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE09GM3N1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09GM3N2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE09GM3N3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09GLKRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09GLK1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09GLK2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09GLK3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09GLNRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE09GLN1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09GLN2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE09GLN3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE13GRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE13GM3KRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE13GM3K1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE13GM3K2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE13GM3K3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE13GM3NRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE13GM3N1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE13GM3N2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE13GM3N3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE13GLKRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE13GLK1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE13GLK2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE13GLK3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE13GLNRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE13GLN1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE13GLN2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE13GLN3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE17GRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE17GM3KRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE17GM3K1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE17GM3K2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE17GM3K3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE17GM3NRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE17GM3N1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE17GM3N2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE17GM3N3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE17GLKRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE17GLK1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE17GLK2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE17GLK3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE17GLNRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE17GLN1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE17GLN2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE17GLN3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE03MRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE03MM3KRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE03MM3K1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE03MM3K2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE03MM3K3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE03MM3NRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE03MM3N1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE03MM3N2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE03MM3N3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE03MLKRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE03MLK1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE03MLK2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE03MLK3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE03MLNRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE03MLN1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE03MLN2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE03MLN3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE06MRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE06MM3KRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE06MM3K1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE06MM3K2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE06MM3K3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE06MM3NRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE06MM3N1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE06MM3N2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE06MM3N3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE06MLKRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE06MLK1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE06MLK2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE06MLK3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE06MLNRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE06MLN1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE06MLN2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE06MLN3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09MRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE09MM3KRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09MM3K1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09MM3K2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09MM3K3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09MM3NRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE09MM3N1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09MM3N2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE09MM3N3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE09MLKRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE09MLK1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE09MLK2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE09MLK3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE09MLNRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE09MLN1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE09MLN2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE09MLN3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE12MRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EE12MM3KRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE12MM3K1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE12MM3K2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE12MM3K3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE12MM3NRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EE12MM3N1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EE12MM3N2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EE12MM3N3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EE12MLKRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EE12MLK1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EE12MLK2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EE12MLK3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EE12MLNRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EE12MLN1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EE12MLN2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EE12MLN3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
