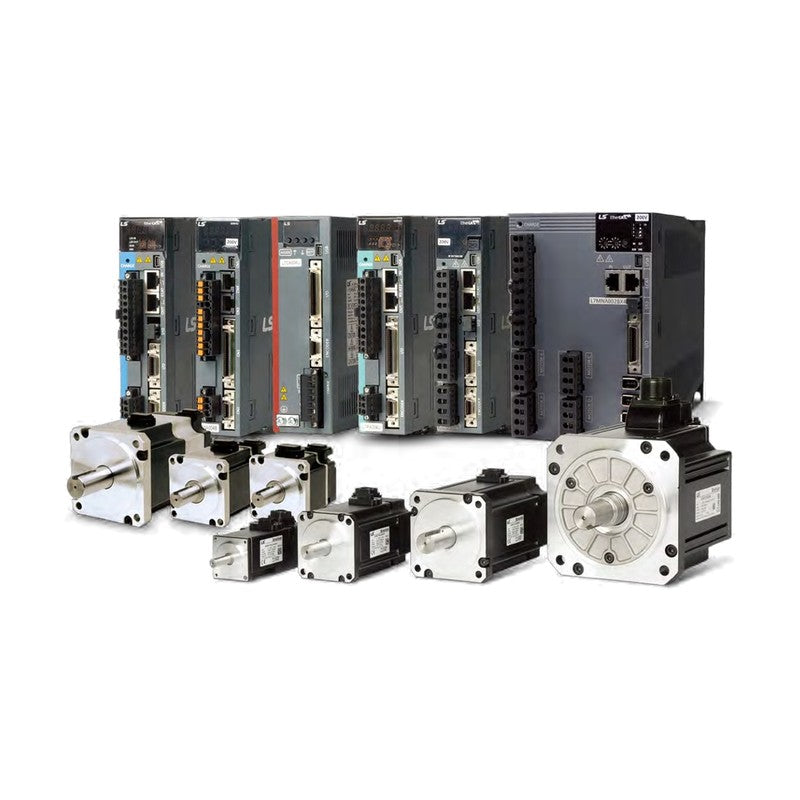

LS Electric APM-E Servo Motors 400V (130 mm, 0.3-3 kW)

LS Electric APM-E Servo Motors 400V (130 mm, 0.3-3 kW)

LS Electric Xmotion APM-E 400V servo motors with 130 mm flange (EEP), 0.3 to 3 kW, for L7NHB, L7PB and L7SB drives.

Key features

  • High-resolution serial absolute encoder: 23-bit (M3) or 20-bit batteryless (L), both with 16-bit multi-turn
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Full order code = base model + encoder + shaft + option, e.g. APM-EB04AM3K2
  • Matched to Xmotion 400V L7NHB, L7PB and L7SB drives
  • Totally enclosed self-cooled design, continuous duty, vibration resistance 49 m/s2 (5G)

Specifications

Motor series APM-E (Xmotion E series)
Protection Totally enclosed, IP65 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 10x (130 mm) / 5x (180 mm) motor inertia
Holding brake DC 24 V, 10.4 N.m
Ambient 0 to 40 C, 80% RH max, non-condensing
Vibration 49 m/s2 (5G)
Flange 130 mm square
Voltage 400 VAC class
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 82, 90-93, 96-97
APM-EEP09A Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP09AM3K Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09AM3K1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09AM3K2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09AM3K3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09AM3N Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP09AM3N1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09AM3N2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP09AM3N3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09ALK Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09ALK1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09ALK2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09ALK3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09ALN Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP09ALN1 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09ALN2 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP09ALN3 Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP15A Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP15AM3K Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP15AM3K1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP15AM3K2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP15AM3K3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP15AM3N Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP15AM3N1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP15AM3N2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP15AM3N3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP15ALK Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP15ALK1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP15ALK2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP15ALK3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP15ALN Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP15ALN1 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP15ALN2 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP15ALN3 Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP22A Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP22AM3K Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP22AM3K1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP22AM3K2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP22AM3K3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP22AM3N Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP22AM3N1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP22AM3N2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP22AM3N3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP22ALK Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP22ALK1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP22ALK2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP22ALK3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP22ALN Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP22ALN1 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP22ALN2 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP22ALN3 Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP30A Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP30AM3K Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP30AM3K1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP30AM3K2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP30AM3K3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP30AM3N Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP30AM3N1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP30AM3N2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP30AM3N3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP30ALK Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP30ALK1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP30ALK2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP30ALK3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP30ALN Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP30ALN1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP30ALN2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP30ALN3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP06D Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP06DM3K Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP06DM3K1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP06DM3K2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP06DM3K3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP06DM3N Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP06DM3N1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP06DM3N2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP06DM3N3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP06DLK Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP06DLK1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP06DLK2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP06DLK3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP06DLN Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP06DLN1 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP06DLN2 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP06DLN3 Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP11D Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP11DM3K Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP11DM3K1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP11DM3K2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP11DM3K3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP11DM3N Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP11DM3N1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP11DM3N2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP11DM3N3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP11DLK Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP11DLK1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP11DLK2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP11DLK3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP11DLN Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP11DLN1 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP11DLN2 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP11DLN3 Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP16D Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP16DM3K Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP16DM3K1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP16DM3K2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP16DM3K3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP16DM3N Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP16DM3N1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP16DM3N2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP16DM3N3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP16DLK Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP16DLK1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP16DLK2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP16DLK3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP16DLN Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP16DLN1 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP16DLN2 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP16DLN3 Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP22D Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP22DM3K Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP22DM3K1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP22DM3K2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP22DM3K3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP22DM3N Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP22DM3N1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP22DM3N2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP22DM3N3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP22DLK Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP22DLK1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP22DLK2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP22DLK3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP22DLN Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP22DLN1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP22DLN2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP22DLN3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP05G Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP05GM3K Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP05GM3K1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP05GM3K2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP05GM3K3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP05GM3N Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP05GM3N1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP05GM3N2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP05GM3N3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP05GLK Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP05GLK1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP05GLK2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP05GLK3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP05GLN Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP05GLN1 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP05GLN2 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP05GLN3 Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09G Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP09GM3K Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09GM3K1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09GM3K2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09GM3K3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09GM3N Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP09GM3N1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09GM3N2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP09GM3N3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09GLK Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09GLK1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09GLK2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09GLK3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09GLN Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP09GLN1 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09GLN2 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP09GLN3 Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP13G Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP13GM3K Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP13GM3K1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP13GM3K2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP13GM3K3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP13GM3N Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP13GM3N1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP13GM3N2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP13GM3N3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP13GLK Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP13GLK1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP13GLK2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP13GLK3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP13GLN Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP13GLN1 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP13GLN2 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP13GLN3 Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP17G Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP17GM3K Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP17GM3K1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP17GM3K2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP17GM3K3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP17GM3N Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP17GM3N1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP17GM3N2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP17GM3N3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP17GLK Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP17GLK1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP17GLK2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP17GLK3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP17GLN Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP17GLN1 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP17GLN2 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP17GLN3 Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP03M Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP03MM3K Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP03MM3K1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP03MM3K2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP03MM3K3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP03MM3N Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP03MM3N1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP03MM3N2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP03MM3N3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP03MLK Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP03MLK1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP03MLK2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP03MLK3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP03MLN Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP03MLN1 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP03MLN2 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP03MLN3 Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP06M Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP06MM3K Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP06MM3K1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP06MM3K2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP06MM3K3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP06MM3N Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP06MM3N1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP06MM3N2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP06MM3N3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP06MLK Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP06MLK1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP06MLK2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP06MLK3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP06MLN Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP06MLN1 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP06MLN2 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP06MLN3 Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09M Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP09MM3K Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09MM3K1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09MM3K2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09MM3K3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09MM3N Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP09MM3N1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09MM3N2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP09MM3N3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09MLK Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09MLK1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09MLK2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09MLK3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09MLN Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP09MLN1 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09MLN2 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP09MLN3 Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP12M Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP12MM3K Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP12MM3K1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP12MM3K2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP12MM3K3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP12MM3N Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP12MM3N1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP12MM3N2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP12MM3N3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP12MLK Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP12MLK1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP12MLK2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP12MLK3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP12MLN Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP12MLN1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP12MLN2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP12MLN3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
272 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-E Servo Motors 400V (130 mm, 0.3-3 kW)

Brand LS Electric·Servo Motors

Available part numbers (272)

APM-EEP09A, APM-EEP09AM3K, APM-EEP09AM3K1, APM-EEP09AM3K2, APM-EEP09AM3K3, APM-EEP09AM3N, APM-EEP09AM3N1, APM-EEP09AM3N2, APM-EEP09AM3N3, APM-EEP09ALK + 262 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-EEP09ARating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP09AM3KRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09AM3K1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09AM3K2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09AM3K3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09AM3NRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP09AM3N1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09AM3N2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP09AM3N3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09ALKRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09ALK1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09ALK2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09ALK3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09ALNRating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP09ALN1Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09ALN2Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP09ALN3Rating: 0.9 kW / 2.86 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP15ARating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP15AM3KRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP15AM3K1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP15AM3K2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP15AM3K3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP15AM3NRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP15AM3N1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP15AM3N2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP15AM3N3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP15ALKRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP15ALK1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP15ALK2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP15ALK3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP15ALNRating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP15ALN1Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP15ALN2Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP15ALN3Rating: 1.5 kW / 4.77 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP22ARating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP22AM3KRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP22AM3K1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP22AM3K2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP22AM3K3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP22AM3NRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP22AM3N1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP22AM3N2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP22AM3N3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP22ALKRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP22ALK1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP22ALK2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP22ALK3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP22ALNRating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP22ALN1Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP22ALN2Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP22ALN3Rating: 2.2 kW / 7 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP30ARating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP30AM3KRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP30AM3K1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP30AM3K2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP30AM3K3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP30AM3NRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP30AM3N1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP30AM3N2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP30AM3N3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP30ALKRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP30ALK1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP30ALK2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP30ALK3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP30ALNRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP30ALN1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP30ALN2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP30ALN3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP06DRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP06DM3KRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP06DM3K1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP06DM3K2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP06DM3K3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP06DM3NRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP06DM3N1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP06DM3N2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP06DM3N3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP06DLKRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP06DLK1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP06DLK2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP06DLK3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP06DLNRating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP06DLN1Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP06DLN2Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP06DLN3Rating: 0.6 kW / 2.86 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP11DRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP11DM3KRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP11DM3K1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP11DM3K2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP11DM3K3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP11DM3NRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP11DM3N1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP11DM3N2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP11DM3N3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP11DLKRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP11DLK1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP11DLK2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP11DLK3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP11DLNRating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP11DLN1Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP11DLN2Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP11DLN3Rating: 1.1 kW / 5.25 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP16DRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP16DM3KRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP16DM3K1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP16DM3K2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP16DM3K3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP16DM3NRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP16DM3N1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP16DM3N2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP16DM3N3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP16DLKRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP16DLK1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP16DLK2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP16DLK3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP16DLNRating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP16DLN1Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP16DLN2Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP16DLN3Rating: 1.6 kW / 7.64 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP22DRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP22DM3KRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP22DM3K1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP22DM3K2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP22DM3K3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP22DM3NRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP22DM3N1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP22DM3N2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP22DM3N3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP22DLKRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP22DLK1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP22DLK2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP22DLK3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP22DLNRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP22DLN1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP22DLN2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP22DLN3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP05GRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP05GM3KRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP05GM3K1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP05GM3K2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP05GM3K3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP05GM3NRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP05GM3N1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP05GM3N2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP05GM3N3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP05GLKRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP05GLK1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP05GLK2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP05GLK3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP05GLNRating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP05GLN1Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP05GLN2Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP05GLN3Rating: 0.45 kW / 2.86 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09GRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP09GM3KRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09GM3K1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09GM3K2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09GM3K3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09GM3NRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP09GM3N1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09GM3N2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP09GM3N3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09GLKRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09GLK1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09GLK2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09GLK3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09GLNRating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP09GLN1Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09GLN2Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP09GLN3Rating: 0.85 kW / 5.41 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP13GRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP13GM3KRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP13GM3K1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP13GM3K2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP13GM3K3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP13GM3NRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP13GM3N1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP13GM3N2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP13GM3N3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP13GLKRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP13GLK1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP13GLK2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP13GLK3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP13GLNRating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP13GLN1Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP13GLN2Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP13GLN3Rating: 1.3 kW / 8.28 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP17GRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP17GM3KRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP17GM3K1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP17GM3K2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP17GM3K3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP17GM3NRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP17GM3N1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP17GM3N2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP17GM3N3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP17GLKRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP17GLK1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP17GLK2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP17GLK3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP17GLNRating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP17GLN1Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP17GLN2Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP17GLN3Rating: 1.7 kW / 10.82 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP03MRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP03MM3KRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP03MM3K1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP03MM3K2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP03MM3K3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP03MM3NRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP03MM3N1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP03MM3N2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP03MM3N3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP03MLKRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP03MLK1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP03MLK2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP03MLK3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP03MLNRating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP03MLN1Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP03MLN2Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP03MLN3Rating: 0.3 kW / 2.86 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP06MRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP06MM3KRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP06MM3K1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP06MM3K2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP06MM3K3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP06MM3NRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP06MM3N1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP06MM3N2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP06MM3N3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP06MLKRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP06MLK1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP06MLK2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP06MLK3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP06MLNRating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP06MLN1Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP06MLN2Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP06MLN3Rating: 0.6 kW / 5.73 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09MRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP09MM3KRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09MM3K1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09MM3K2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09MM3K3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09MM3NRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP09MM3N1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09MM3N2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP09MM3N3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP09MLKRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP09MLK1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP09MLK2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP09MLK3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP09MLNRating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP09MLN1Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP09MLN2Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP09MLN3Rating: 0.9 kW / 8.59 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP12MRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EEP12MM3KRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP12MM3K1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP12MM3K2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP12MM3K3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP12MM3NRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EEP12MM3N1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP12MM3N2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EEP12MM3N3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EEP12MLKRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EEP12MLK1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EEP12MLK2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EEP12MLK3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EEP12MLNRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EEP12MLN1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EEP12MLN2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EEP12MLN3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
